XTOOL Prodigy Smart Diagnosis Scanner with J2534 ECU Programming, Battery Test, and 51+ Resets

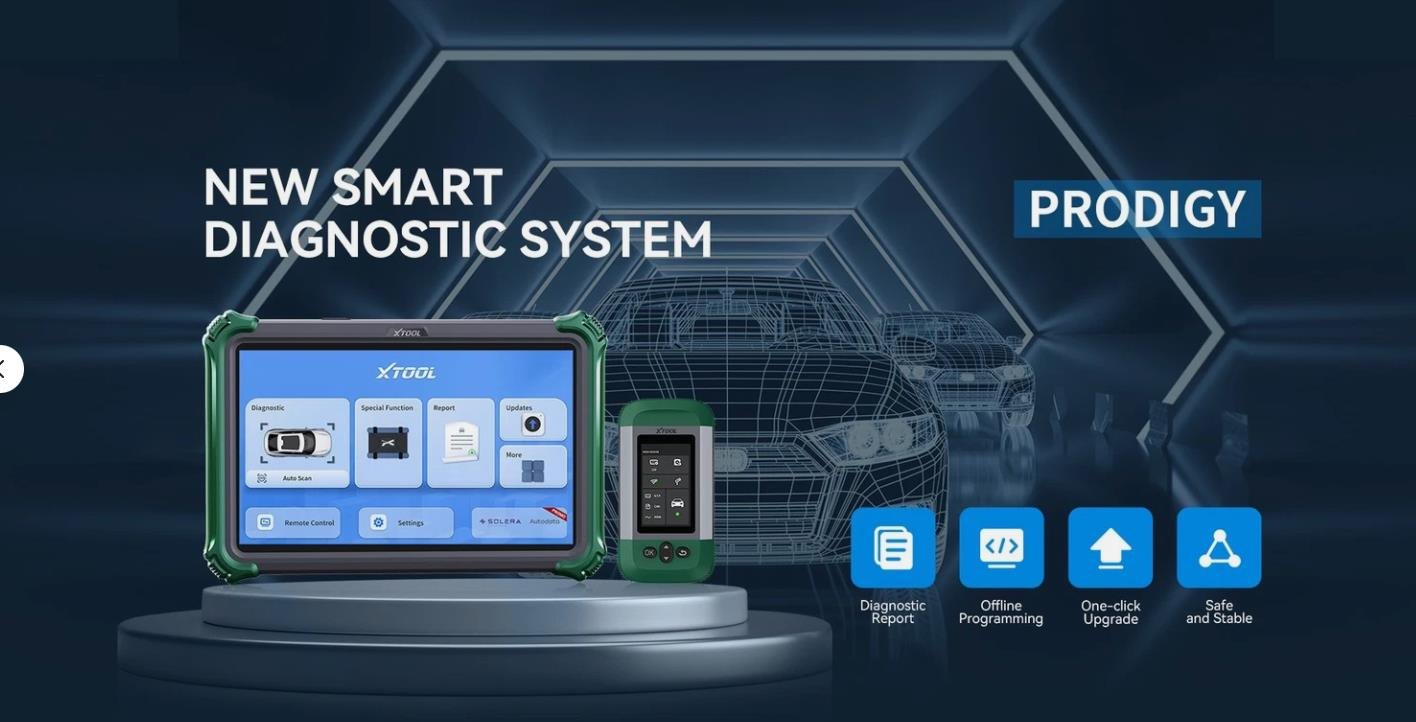

The XTOOL Prodigy is a flagship bidirectional smart diagnosis system with a 13.3-inch touchscreen, Android 10.0, and DoIP and CAN FD protocols. It covers electric, gasoline, and hybrid vehicles across global markets, with 50+ brands and 5,000+ vehicles. Model: Prodigy.

Hardware

• 13.3-inch HD display at 1920 by 1080
• 2.2GHz plus 1.8GHz octa-core processor, 8GB RAM, 256GB ROM
• 9600mAh 7.2V battery
• 13MP rear camera
• Dual WiFi modules for simultaneous internet and VCI connection. VCI wireless range up to 10 meters
• DoIP and CAN FD protocols, SAE J2534 compatible
• Wireless charging dock included. OBDI connectors included

Coverage and data

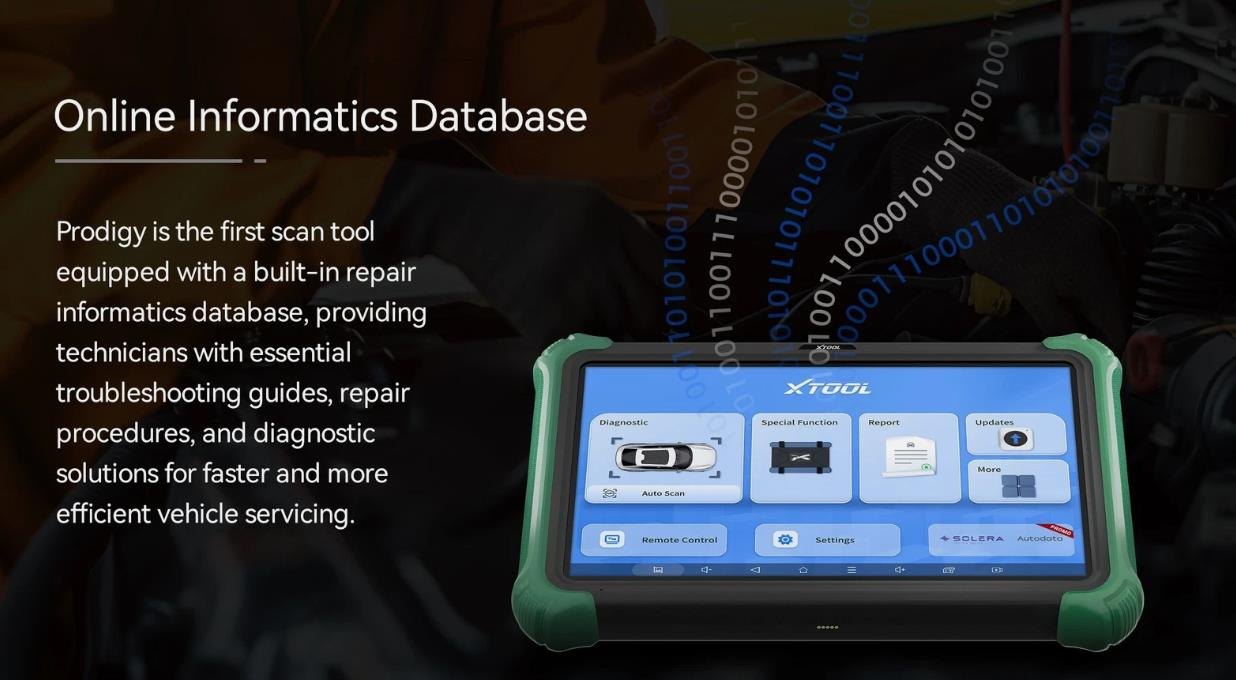

• IDENTIFIX online informatics database in partnership with Autodata, for one year

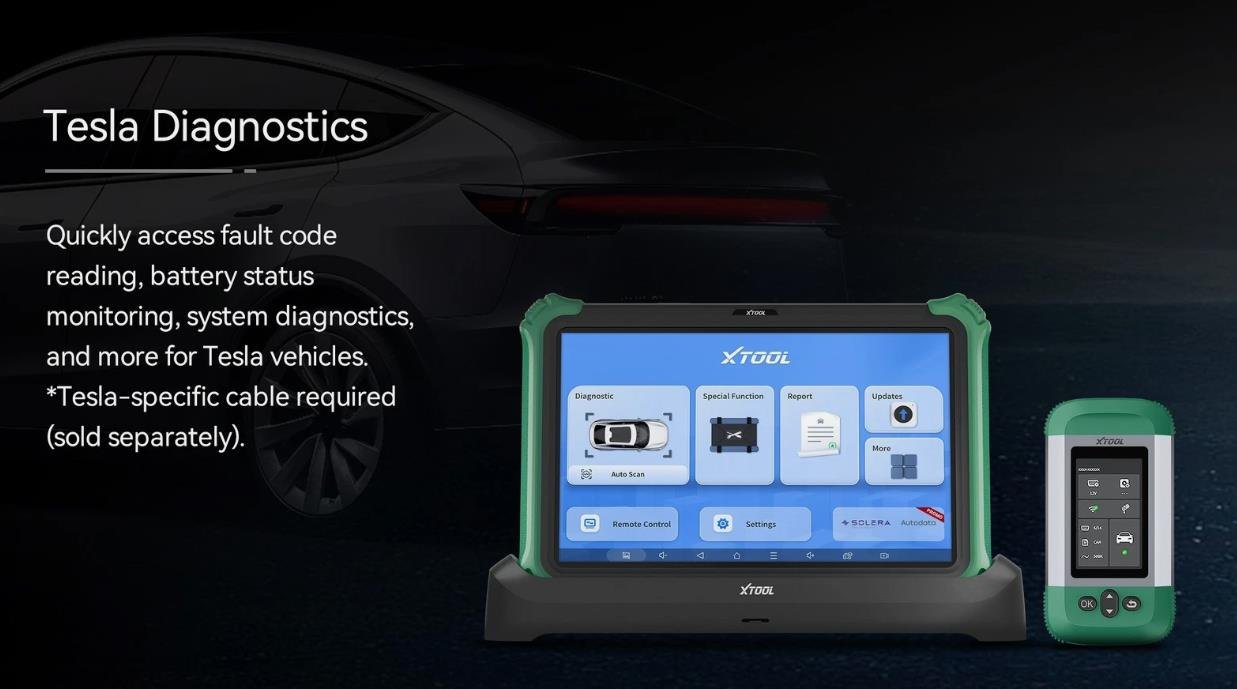

• Tesla diagnostics with full data access and special functions
• Offline programming for Ford, Lincoln, and Mazda
• Online coding and programming for VAG, BMW, and Mercedes-Benz
• ADAS calibration for cameras and radars
• PreSCAN and PostSCAN enhanced diagnostic reports
• 3-year software subscription included
• AutoAuth integration for FCA SGW access
• Up to 8 graphic live data streams

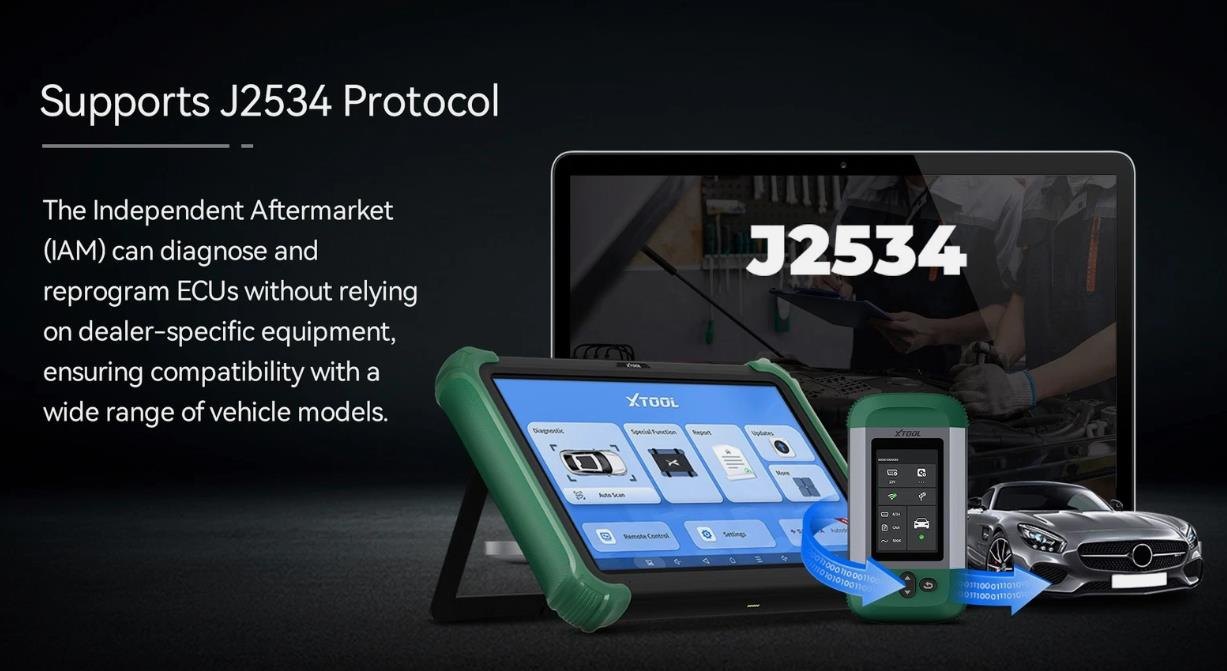

J2534 ECU programming

Programs blank ECUs, adapts existing ECUs, matches components, reflashes second-hand ECUs, and unlocks hidden functions. J2534 use needs the VCI connected to the vehicle and a PC over a wired connection only. Install the XTOOL driver on the PC first, then the original diagnostic software. Original software is not provided.

• Used in repair shops, by manufacturers, and in the aftermarket for unified diagnosis and programming across brands
• Protocols: ISO9141, ISO14230 (KWP2000), J1850, CAN (ISO11898), ISO15765, SAEJ2610, and J1939 since 2005
• Standardization cuts equipment and learning cost across brands
• Flexibility across brands and models through multi-protocol support
• Remote diagnosis and operation on supporting devices

ECU coding

Customize cars by disabling unneeded OEM settings such as auto start-stop and chimes, or activating hidden features already in the car computer. Replace, match, relearn, and recode new ECU modules. Fits VW, Audi, Skoda, Toyota, Lexus, Scion, Mazda, Ford, and Lincoln. Examples: auto side mirrors, seat belt alarm beep off.

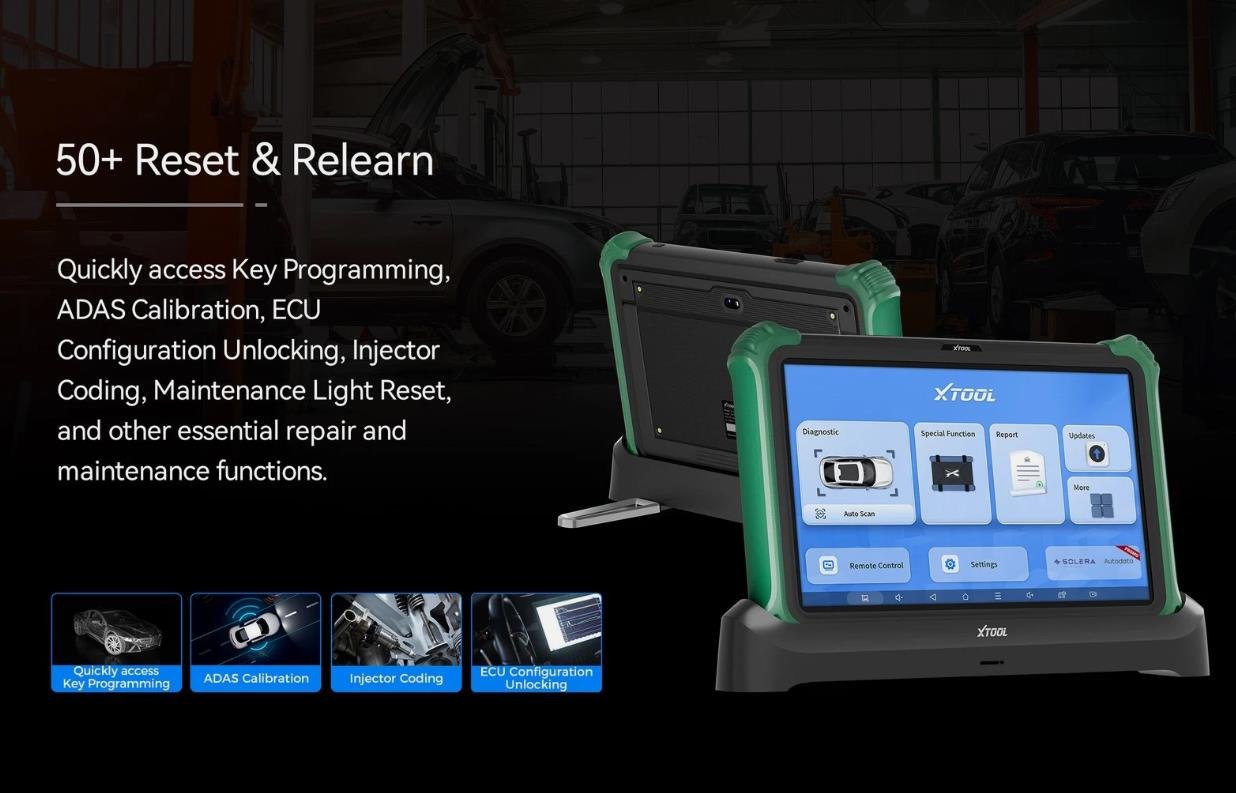

51 maintenance services

• 1 Oil reset: reset service intervals after oil change, oil light off
• 2 EPB reset: reset brake pads after brake system replacement
• 3 SAS adjustment: steering angle sensor calibration
• 4 BMS reset: reset after vehicle battery replacement
• 5 Throttle relearn: initial throttle settings for air intake
• 6 ABS bleeding: cycle the ABS pump to bleed air
• 7 Injector: code injectors after replacement
• 8 Gearbox match: reset adaptive shifting points in the automatic transmission control unit
• 9 Crank sensor relearn: crankshaft position sensor learning for normal engine operation
• 11 TPMS reset: tire pressure system reset, warning light off
• 12 Power balance: cylinder tightness and balance tests with power adjustment
• 13 Transport mode: release transportation mode
• 14 Coolant bleeding: run the electronic water pump to check the cooling system and drain air
• 15 A and F reset: flash data parameters to change engine torque toward maximum horsepower
• 16 NOx reset
• 17 Suspension
• 19 DPF
• 20 Tire size reset
• 21 Headlight
• 22 Seat match
• 23 EEPROM
• 24 ECU configurations
• 25 Stop and start reset
• 26 Windows initialization
• 27 Airbag reset
• 28 Language change
• 29 Odometer read
• 30 Control unit reset
• 31 Rain and light sensor
• 32 A/C relearn
• 33 HV battery
• 34 VGT relearn
• 35 Write VIN
• 36 FRM reset
• 37 EGR relearn
• 38 AdBlue reset
• 39 SRS
• 40 Clutch adaption
• 41 Speed limit
• 42 ADAS

Diagnostics

• Topology module mapping with color-coded full system status on supported vehicles
• Read codes with fault description and status per module
• Clear codes per module, fault light off
• Live data reading across engine, transmission, chassis, safety, body, communication, and entertainment systems
• Freeze frame data reading
