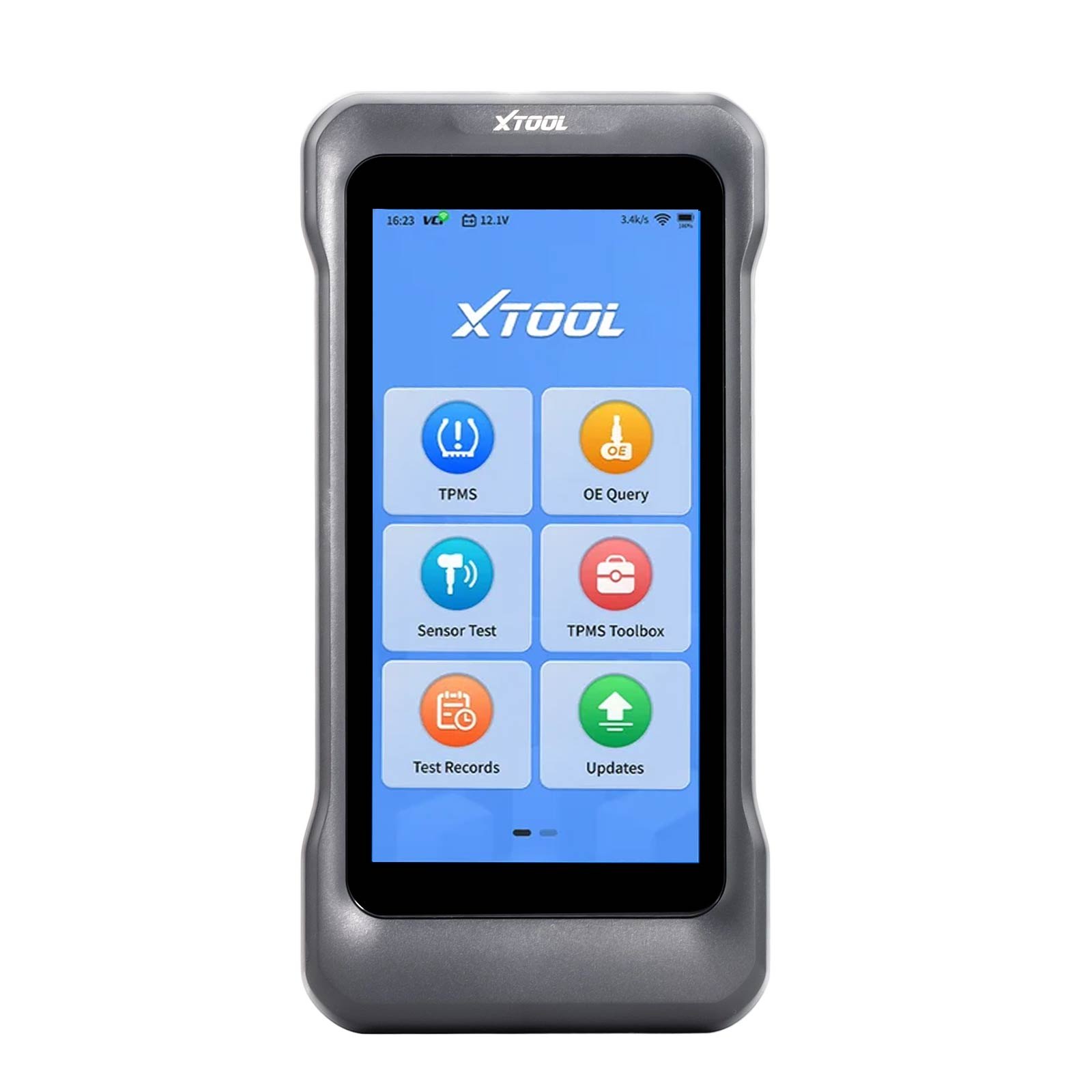

XTOOL TP580 TPMS Diagnostic Tool with 22 Services and Full System Scan

XTOOL TP580 is a handheld automotive TPMS diagnostic device for professional technicians and automotive enthusiasts. With an integrated TP module, it provides sensor check, system diagnostics, XTOOL sensor programming, OEM sensor information lookup and relearn procedures.

It also supports full OBDII and all system automotive diagnostics with the same functionality as D6S. It covers over 98 percent of all models and works on more than 4000 models across markets.

Functions

All functions lifetime free update by WiFi

Users receive free updates for all software features for the life of the device with no added fees for upgrades or new features. One click WiFi update keeps the process simple.

Professional complete TPMS service

• TPMS system diagnostics
• TPMS relearn and reset
• Activation and relearn for 98 percent of all known TPMS sensors
• TPMS programming limited to XTOOL TS100PRO sensor
• Monitor TPMS health, check tire pressure, temperature and battery life
• Read sensor ID
• Read and clear DTCs
• Reset TPMS to turn off warning lights
• Activate, program after sensor replacement and relearn sensors

All system diagnostic scan

Access and scan all available vehicle modules such as ABS, EPB, Airbag, TPMS, braking, body, chassis, transmission, AC and more to read and delete DTCs, view live data stream and up to 4 PID graphs. One click gives in depth diagnostics. No bi-directional functionality.

22 commonly used special functions

• DPF Regeneration
• EPB
• Oil Reset
• SAS
• ABS Bleeding
• Injector Coding
• VGT Relearn
• Throttle
• Suspension Calibration
• Gearbox Adaptation
• BMS Reset
• Headlight Adjustment
• Crank Sensor Relearn
• Windows Initialization
• Seat Calibration
• GPF Regeneration
• Camshaft Sensor Relearn
• Coolant Replacement
• Tire Size Setting
• EGR Relearn
• Sunroof Initialization
• EVAP test

Note: Special functions do NOT work on all cars.

FCA AutoAuth functions

Supports access to the security gateway module on 2018 and later Fiat, Chrysler and Dodge vehicles so the tool can clear codes and run active tests without FCA 12 plus 8 cable. Buyer must register an FCA account. Any charges for that account are separate from the seller.

CAN FD and DoIP protocols

Works on more than 10000 vehicles including brands from America, Asia, Europe, Australia and China with growing coverage by updates. CAN FD covers GM MY2020 plus models with no extra CAN FD adapter needed. DoIP covers BMW E, F and G chassis, Jaguar and Land Rover. Note: Not all vehicles are compatible. Check compatibility before purchase.

Fast Auto VIN plus Auto Scan

Auto VIN identifies basic vehicle information to reduce manual input and improve speed. Auto Scan scans the vehicle system to find and locate faults.

Full 10 OBD2 functions and DTC library lookup

Full OBD2 covers engine, transmission, emission systems and more to find fault sources. DTC library provides fault code descriptions and maintenance suggestions.

4 in 1 live data graph with record and playback

Monitor multiple parameters in real time to improve speed and accuracy. Record and playback operating data for analysis of faults and system status. Graphic analysis helps understand performance and failure modes.

22 kinds of language

English, Spanish, French, German, Polish, Portuguese, Russian, Danish, Greek, Finnish, Hungarian, Italian, Japanese, Korean, Dutch, Norwegian, Swedish, Thai, Arabic, Turkish, Vietnamese and Traditional Chinese. English is the default language. Provide the serial number to select another language.

Extensive car coverage

Latest data and software updates cover more than 100 makes and more than 10000 vehicles from the US, European and Asian markets for 12V cars, SUVs, light duty trucks and more.

TPMS programming detail

• TPMS relearn: relearn 98 percent of market sensors including OE and aftermarket sensors to match vehicle ECU by stationary relearn, automatic relearn and OBD relearn
• Sensor information: retrieve manufacturer, frequency, part number and printing number for OEM or XTOOL sensors when the sensor is placed near the TPMS mark of the scanner
• Sensor activation: activate 98 percent of all known 315 and 433MHz sensors in the market including XTOOL TS100PRO, OE and other programmed sensors
• Sensor status check: check ID, pressure, temperature and battery to locate sensor faults
• System diagnostics: check TPMS module health, read and clear TPMS trouble codes

Box Contents

Box contents are not listed in supplier data. Confirm contents before order.

Notices

Confirm vehicle coverage before purchase. Special functions and protocol support vary by model and year.
