New Released XTOOL PS2 GDS Gasoline Bluetooth Diagnostic Tool with Touch Screen Update Online Warranty for 3 Years

The XTOOL PS2 GDS gasoline Bluetooth diagnostic tool, on an eight inch touch screen with online updating and a three year warranty. Coverage spans Asia including Acura, Honda, Infiniti, Isuzu, Lexus, Mitsubishi, Nissan, Suzuki and Toyota, Europe including Audi, BMW, Fiat, Mercedes-Benz, Lancia, Citroen, Peugeot, Porsche, VW, Seat and Skoda, America including Buick, Cadillac, Chevrolet, Chrysler, Dodge and Ford, plus Japan, India, Australia and Brazil lists. Languages are English, Russian, German, Turkish and Middle Eastern.

Specifications

• Language: English, Russian, German, Turkish, Middle Eastern
• Asia: ACURA,HONDA,INFINITI,ISUZU,LEXUS,MITSUBISHI,NISSAN,SUZUKIA,TOYOTA
• Europe: AUDI,BMW,FIAT,MERCEDES-BENZ,LANCIA,CITROEN,PEUGEOT,PORSCHE,SEAT,SKODA,VOLVO,VW
• America: BUICK,CADILLAC,CHEVROLET,CHEVROLET TRUCKS,CHRYSLER,DODGE,FORD,JEEP, LANDROVER, LINCOLN, OLDSMOBILE, PONTIAC, SAAB, SATURN
• Japan: Honda, Mazda, Mitsubishi, Nissan, Subaru, Suzuki,Toyota, Daihatsu, Tlisuzu
• Europe: VW, Audi, SEAT, SKODA, Mercedes Benz, BMW, Citroen,EuropeFord, Fiat, Opel, Peugeot, Renault, Volvo
• India: Mahindra, MARUTI, TATA
• America: AmericaFord, Chrysler, GM, ACRUA
• Australia: AustraliaFord, Holden
• Brazil: BrazilOPEL
• China: DFSK
• Korea: Hyundai, Kia, Ssangyong
• Malaysia: Perodua, Proton

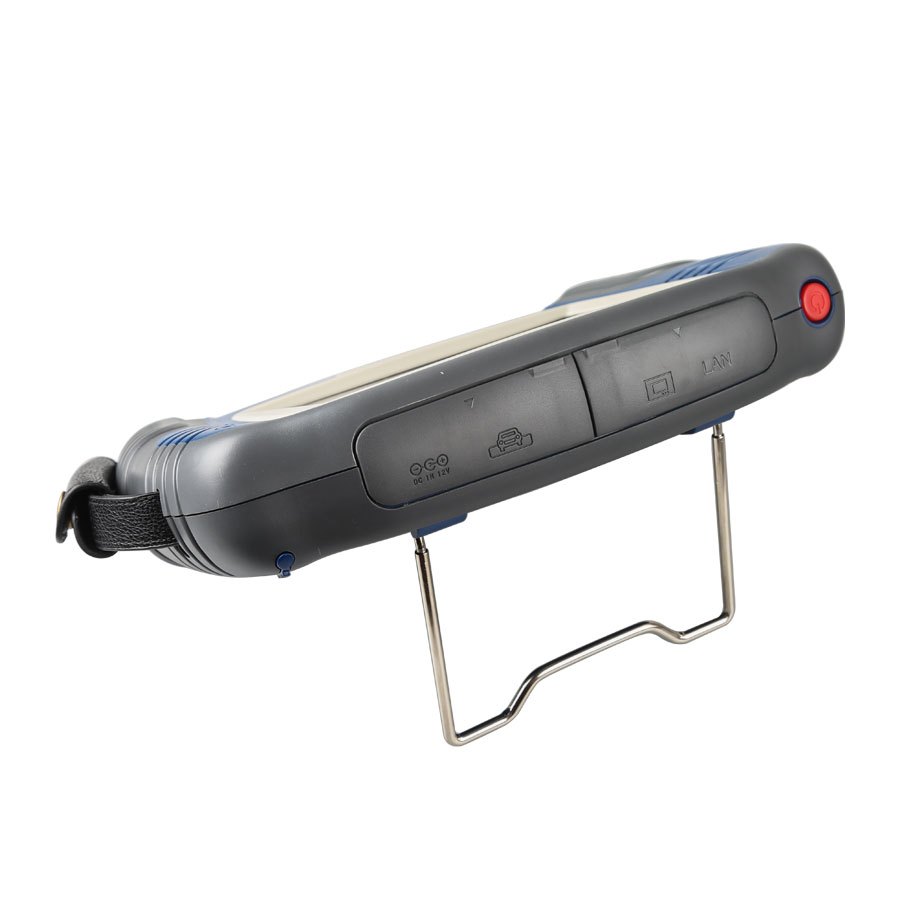

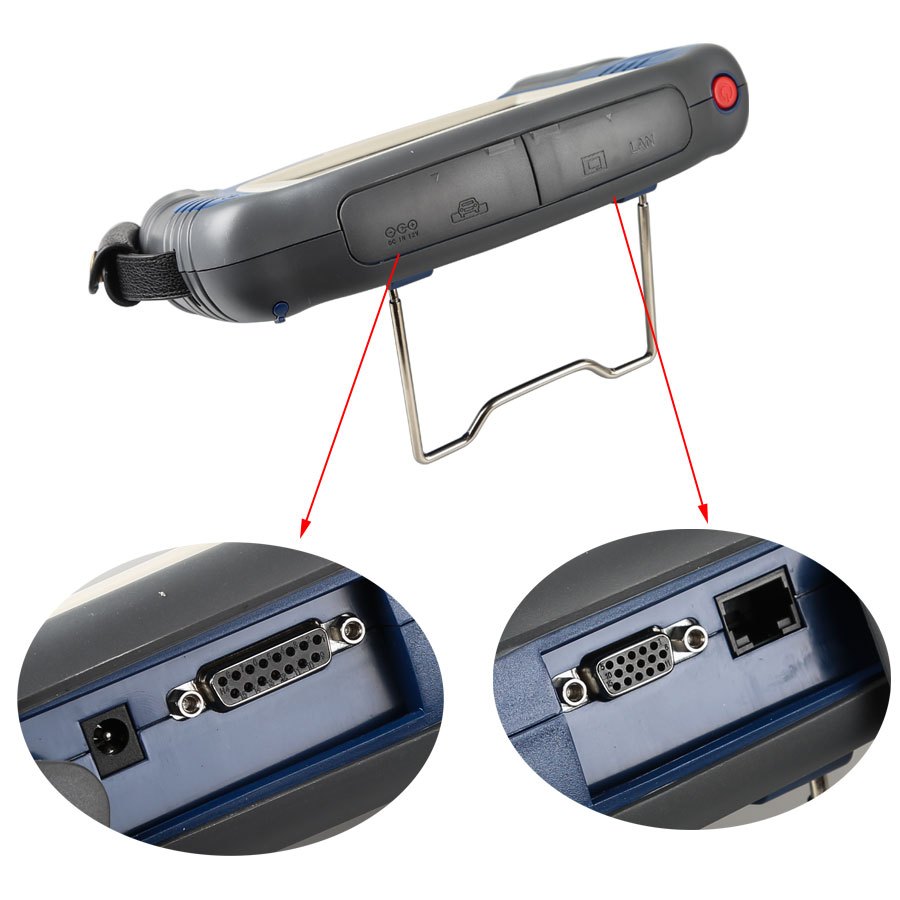

• ①Power Switch: Start/shut down the Mainframe
• ②USB Interface: Interface for synchronizing data between the mainframe and PC
• ③VGA Interface: Interface for connect to an external monitor(800*600 pixel)
• ④Main Cable Interface: Interface for connecting the main cable to vehicle diagnosis
• ⑤Power Interface: External power supply to the host
• ①Serial ports Interface: Debug port
• ③Paper port: Paper output of the printer
• NOTE: No internal battery power is provided with this scan tool.
• NOTE: Do not remove memory card from the scan tool unless performing software updates to card.
• NOTE: The vehicle's DLC is not always located under the dash as shown above. NOTE: Some adapters may have more than
• Operating System: WINCE
• CPU: SAMSUNG 32-bit processor,frequency 400MHZ
• RAM: SDRAM 64M bytes
• Program Memory: FLASH 64M bytes
• External Memory: SD c

Also stated by the supplier

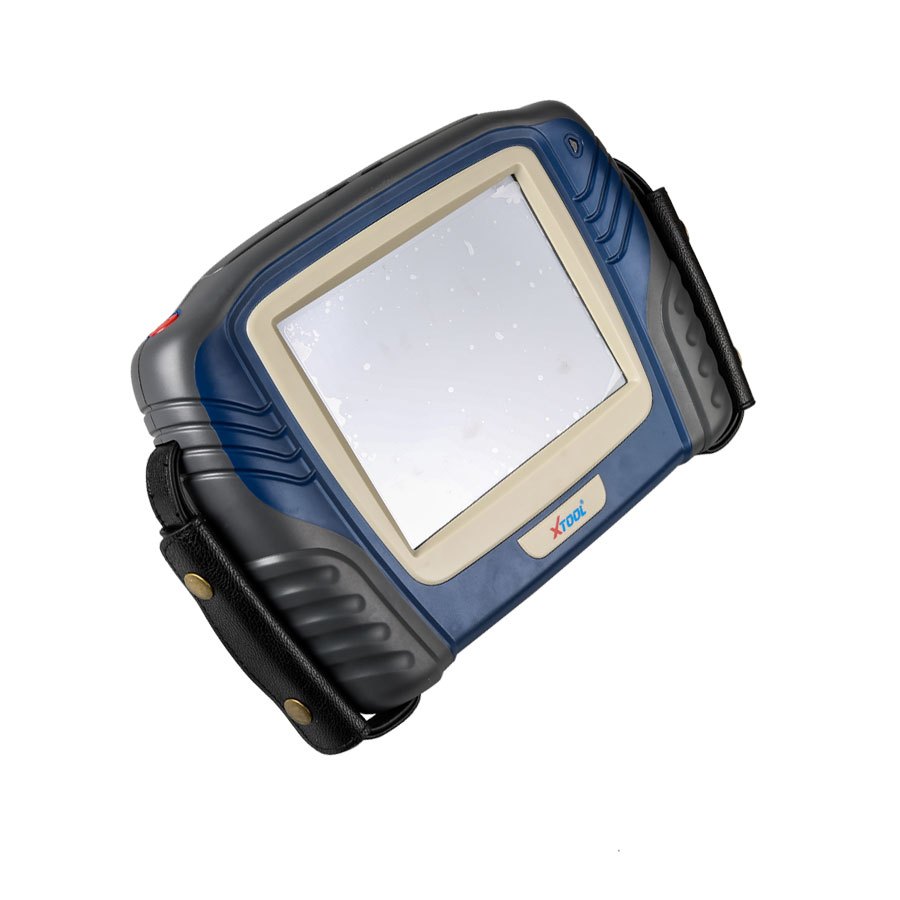

• New Released XTOOL PS2 GDS Gasoline Bluetooth Diagnostic Tool comes with 8 inches true color TFT touch screen, support bluetooth wireless connection, Specially designed diagnostic tool for automotive technicians.
• New Released XTOOL PS2 GDS Gasoline Bluetooth Diagnostic Tool with Touch Screen Update Online Warranty for 3 Years
• XTOOL PS2 GDS Diagnostic System is the easiest-to-use scan tool which features simple touch screen navigation. It is ingeniously designed to create the functionality of the
• OEM tools used by automotive manufacturer's dealers, empowering independent garages to provide comprehensive service in their own workshops without relying on dealer availability.
• XTOOL PS2 GDS has a memory card that contains the operating system and scan software applications. It can help you diagnose symptoms, codes, and complaints quickly
• special functions as actuation tests, immobilizer key coding and, oil resetting, etc. on the vehicle. You can also save recorded data, capture an image of the current screen and print information.
• Support free update online. Support 3 years warranty.
• With 8 inches true color TFT touch screen, 800*600 with LED back-light.
• Supports special function like reset oil service light, oil inspection, service mileage, service intervals and airbag
• With Battery Inside
• Auto key programming/immobilizer
• New keys programming
• Reads keys from immobilizer's memory
• New immobilizer programming
• New mechanical key number programming
• Reset ECM & reset immobilizer
• New remote controller programming
• With full and strong database for the most important vehicle makes
• Key programming Supports the Following Models:
• XTOOL PS2 Gasoline Diagnose Vehicle List:
• PS2/PS90 Gasoline Series Mercedes-Benz V16.21
• Language version of the vehicle system software is currently released for Simplified Chinese, Traditional Chinese, English, Spanish
• This Version (V16.21) Issued the Following:
• 1.Increase the Transmission, Steering angle,Tyrepressure loss alarm (activated) and other common special function.
• 2.Increase more than seven languages: German, French, Portuguese, Italian, Dutch, Arabic, farsi.
• The replacement of EPB brake pad supports for the following models:
• VW ( R36, CC, Magotan etc.)
• Audi ( A4L, A6L, Q5 etc.)
• XTOOL PS2 CDS Overview
• How to Connect XTOOL PS2 GDS to Vehicle?
• The method used to connect the scan tool to a vehicle's DLC depends on the vehicle's configuration as follows: A vehicle equipped with an On Board Diagnostics Two (OBD II) vehicle management system supplies both communication and 12-volt power through a standardized J-1962 data link connection (DLC). A vehicle not equipped with an OBD II system supplies communication through a DLC connection and sometimes supplies 12-volt power through the cigarette lighter receptacle or a connection to the battery.

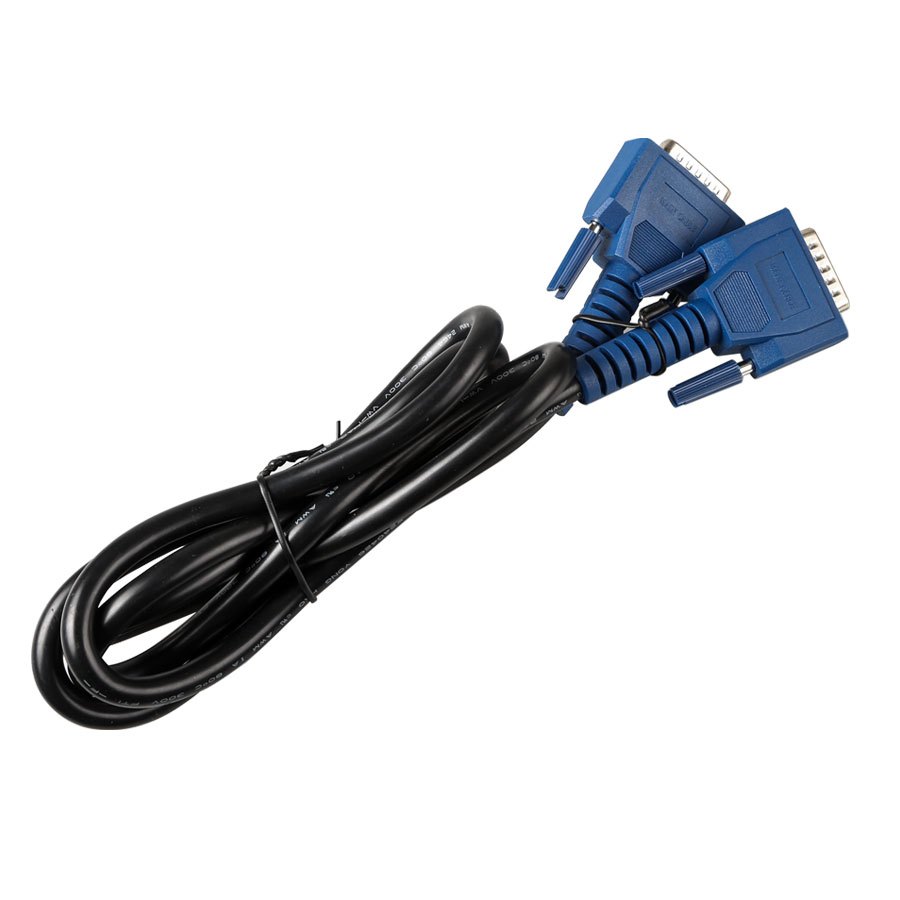

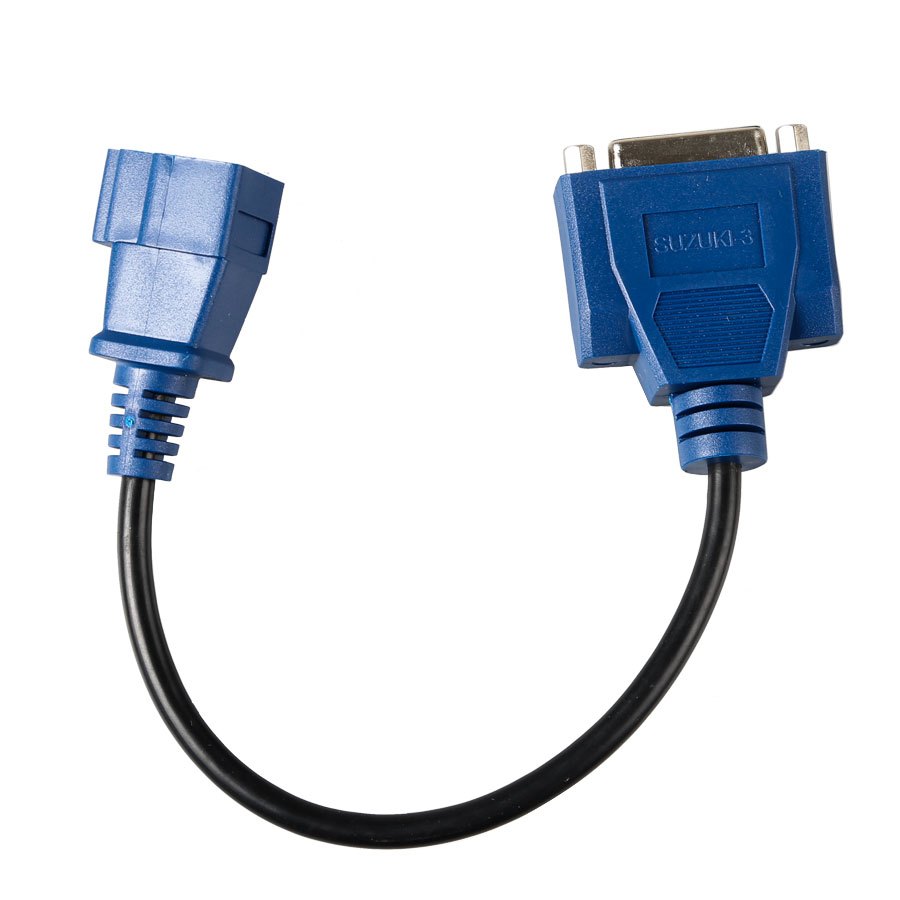

• This type of connection generally requires the 15-pin main cable and an OBD II adapter. To connect the 15-pin main cable,please follow these steps:

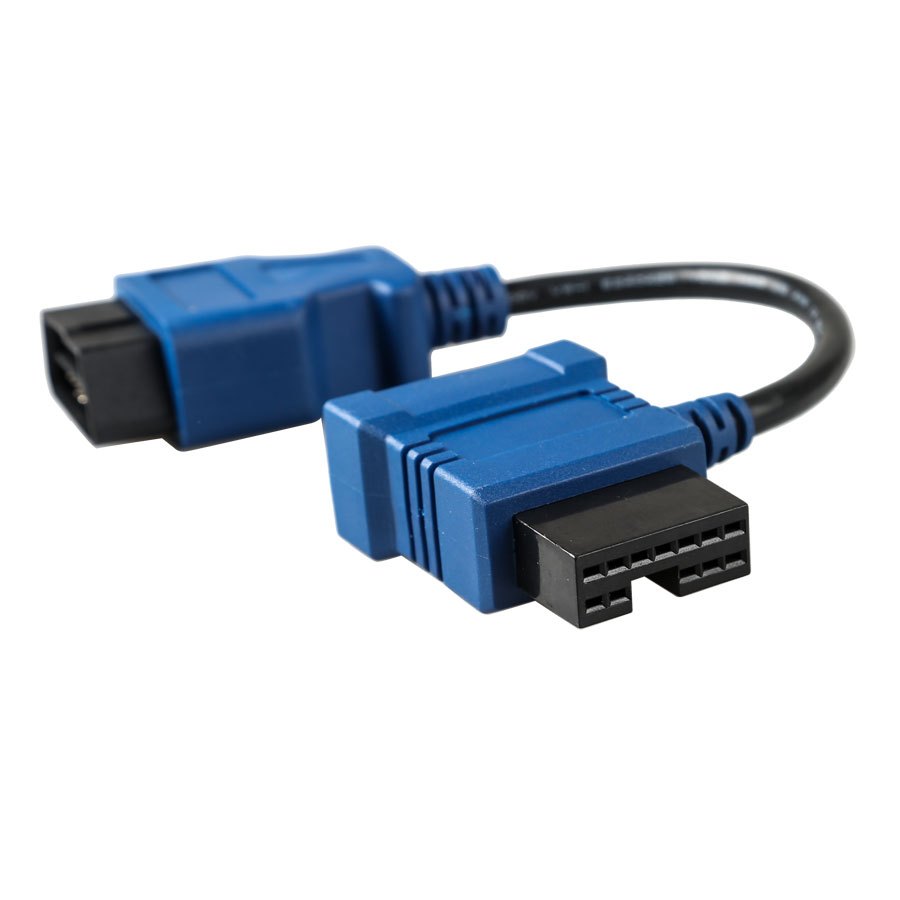

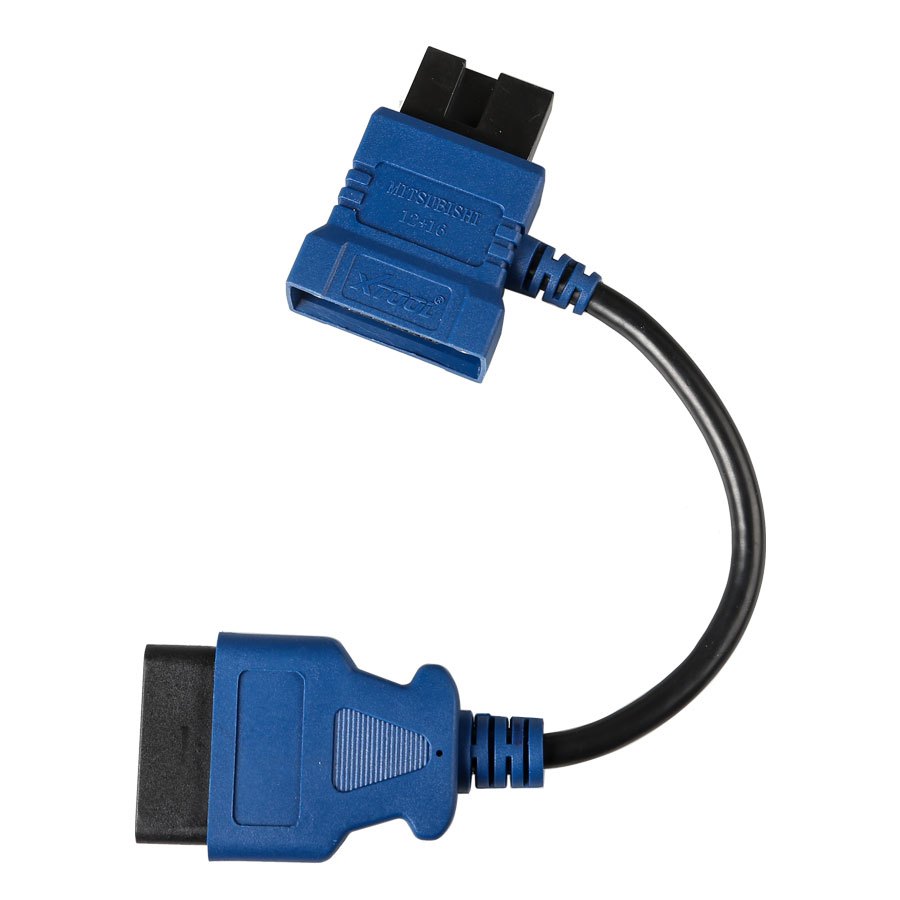

• Locate the required OBD II adapter and connect it into the 15-pin male connector of the main cable.
• Connect the cable's 15-pin female adapter to the DB 15-pin port on the top of the scan tool.
• If the DLC connection does not supply power to the scan tool, connection to the cigarette lighter receptacle will be needed.
• Connect the cable's power plug into the vehicle's cigarette lighter receptacle.
• If the cigarette lighter connection does not provide power either, connection to the vehicle's battery is necessary. Follow these steps:
• Connect the clipper cable to the vehicle's battery.
• NOTE: The vehicle's battery is usually located beside the engine. NOTE: Please connect the red clipper to the anode and the black clipper to the cathode. WARNING: The clippers might be hot after use. Be careful not to be burnt. You can conveniently obtain power supply through power adaptor connection to the scan tool if any power socket is within reach.
