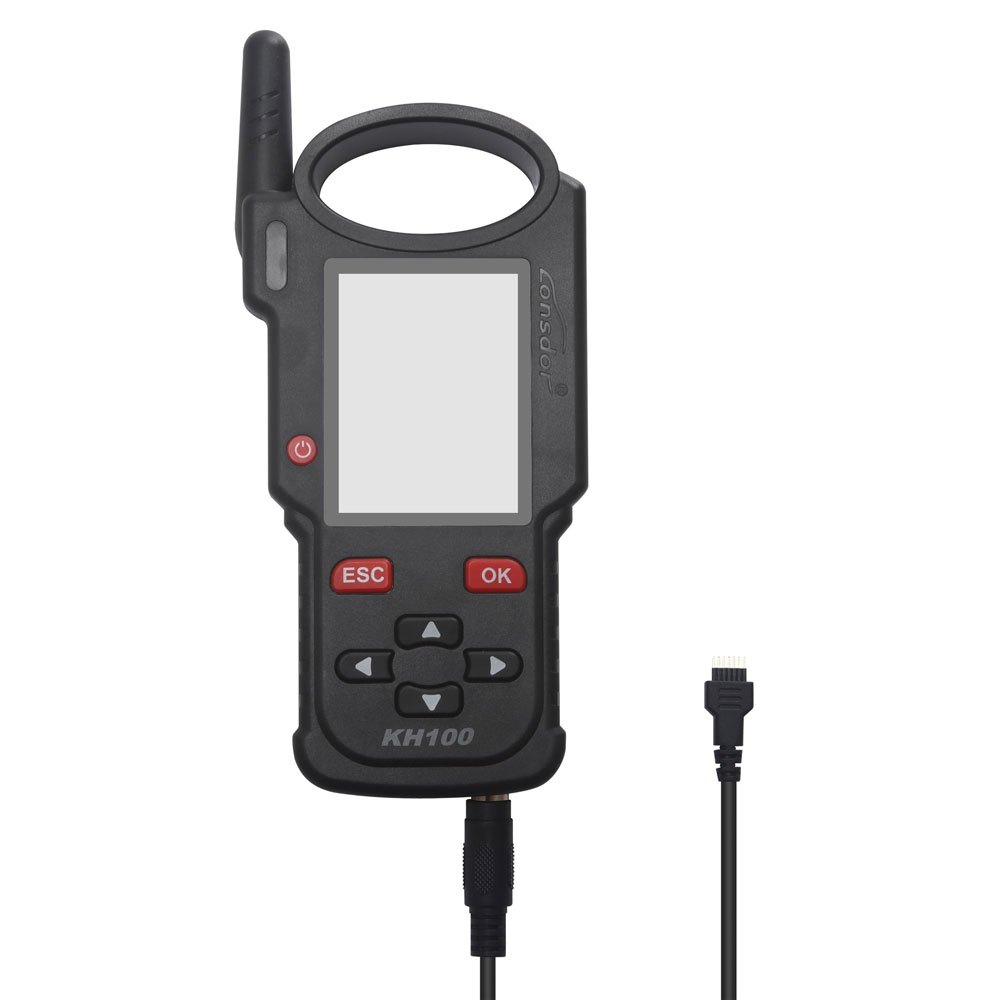

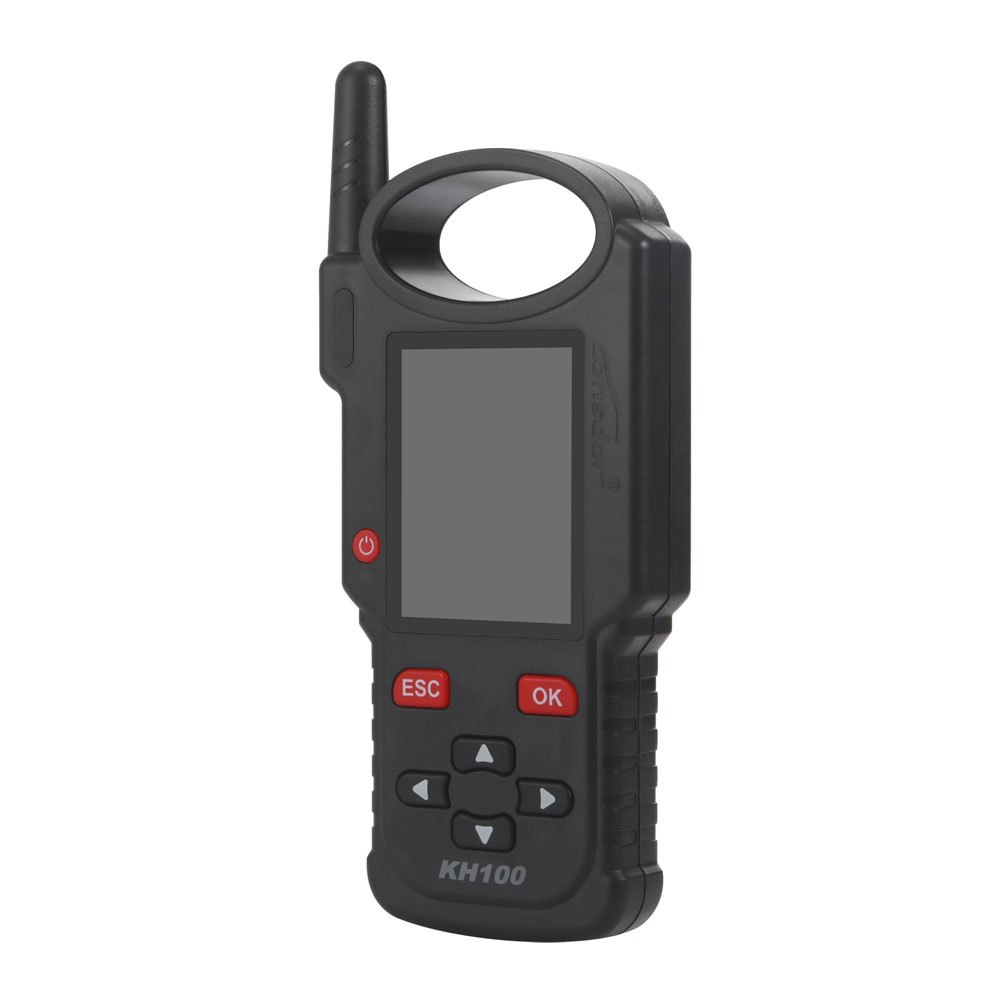

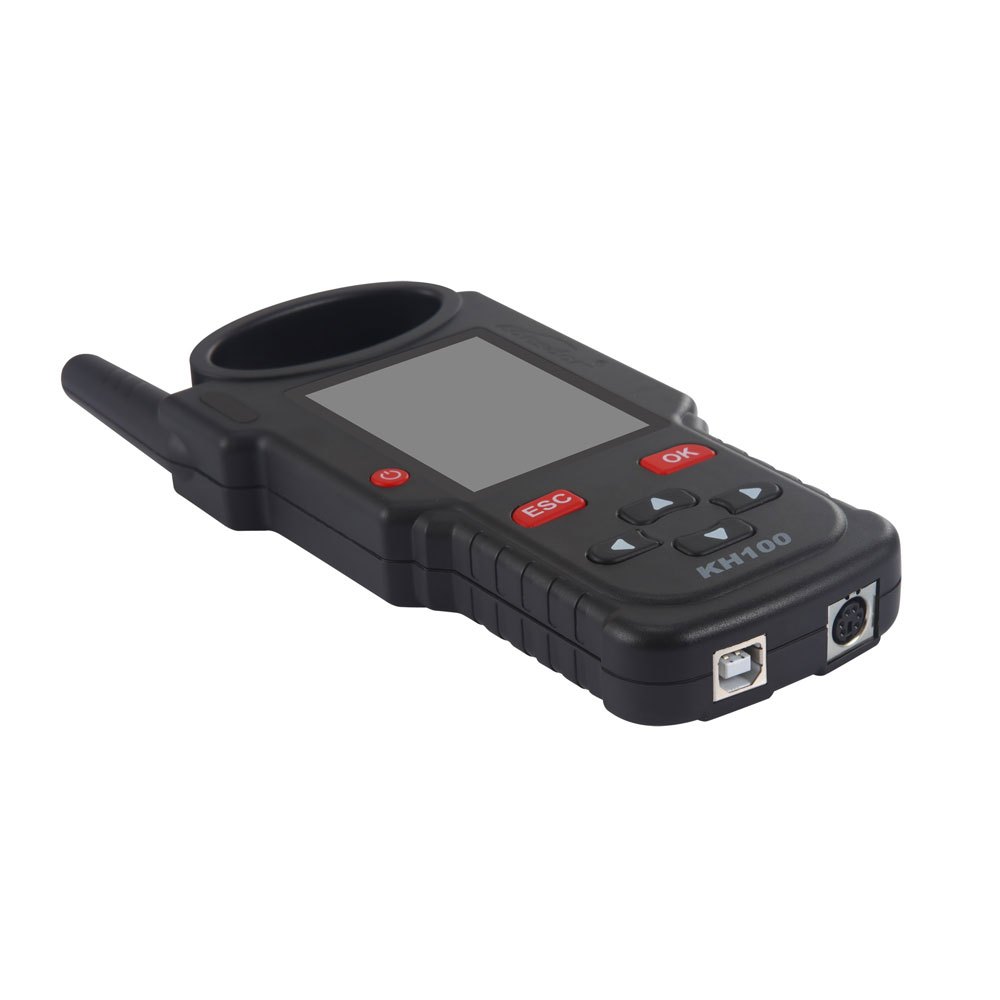

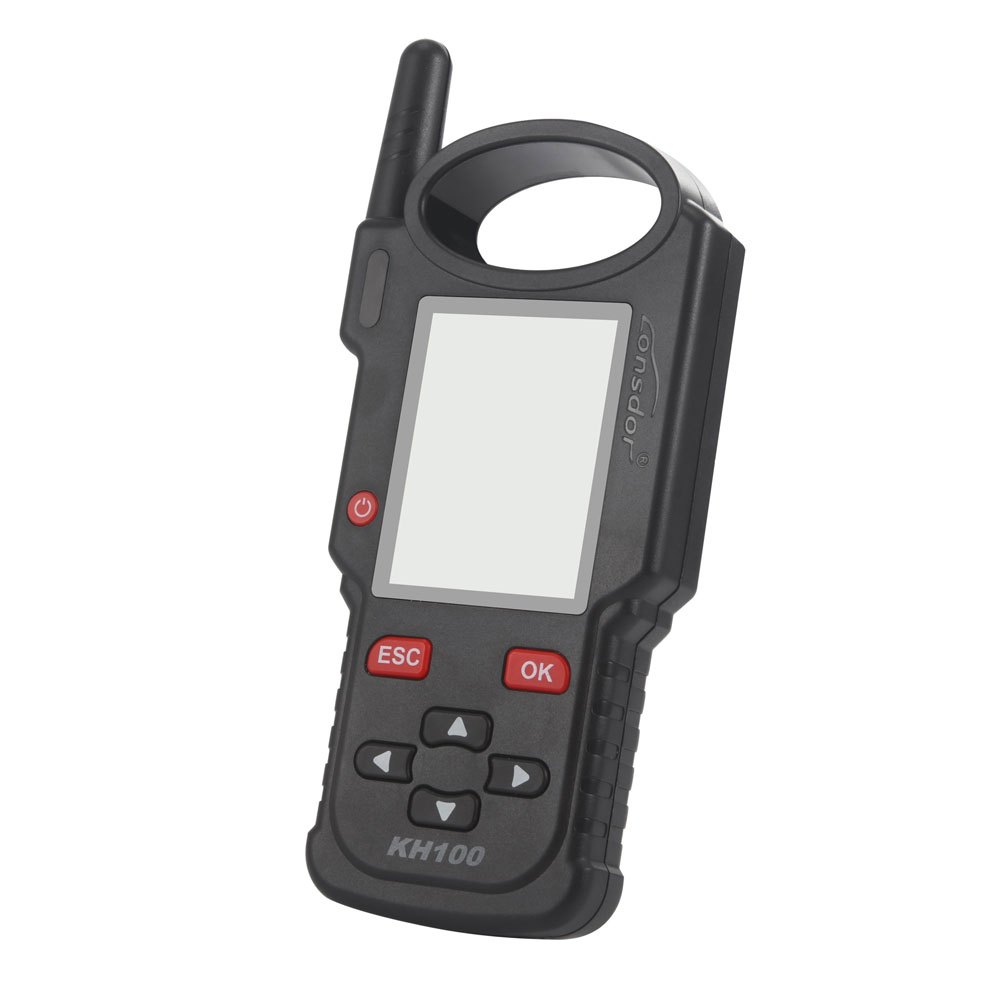

Lonsdor KH100 Hand-Held Remote Key Programmer

The Lonsdor KH100, a handheld remote key programmer measuring 193 by 88 by 24mm with a 2.8 inch 320 by 240 colour screen and a 3.7V 2000mAh detects infrared signals, unlocks Toyota smart keys and connects over USB-B and a PS2 7 pin port, with operating instructions built into the device.

Specifications

• Include: detect infrared signal, unlock Toyota smart key, More functions, to be continued...
• Note: Please ensure that the network is stable during the upgrade process. Do not shut down during the upgrade process.
• Size: 193mm*88mm*24mm
• Screen size: 2.8 inch color screen
• Resolution: 320*240
• Battery: 3.7V 2000mA/H
• Power: 5V 500MA
• Work Temperature: -5~60℃

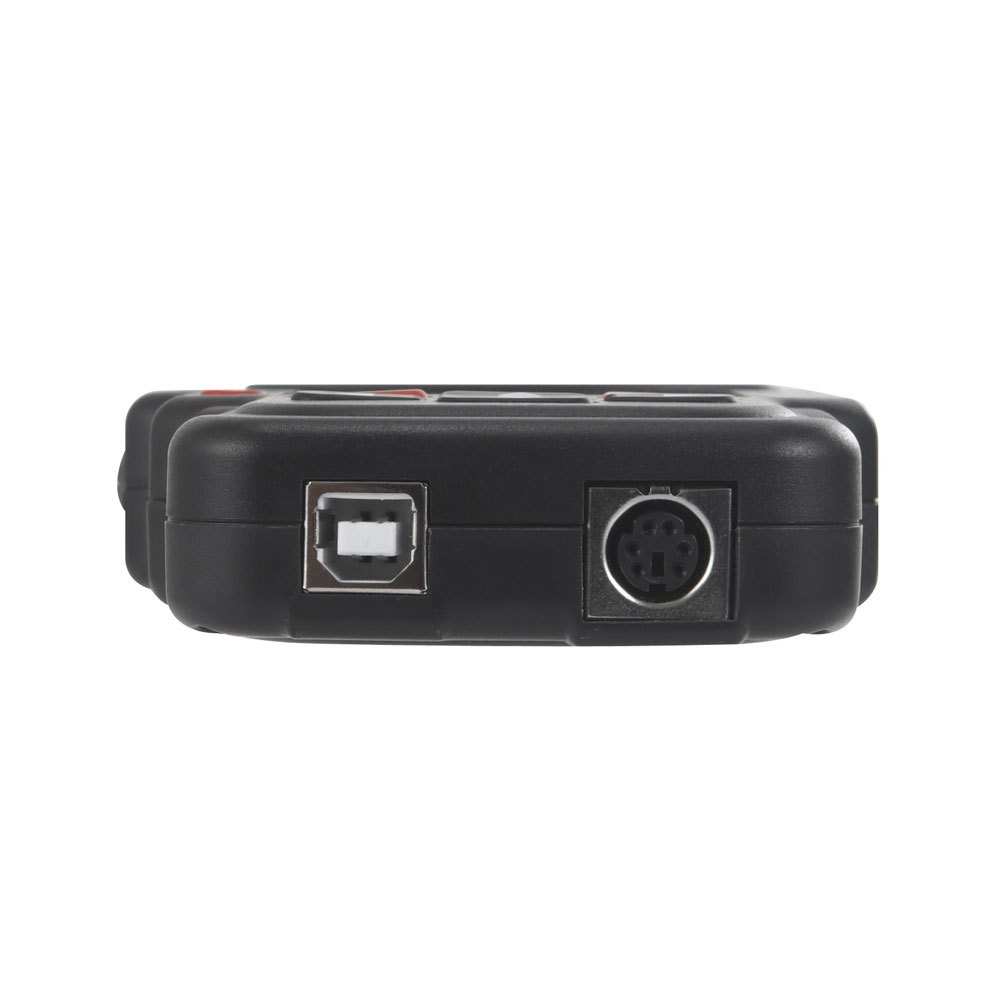

• USB: USB-B/Charge-Data Transfer
• Connector Port: PS2-7Pin OD3.5 7Pin,1.27 Spacing,The 2ND Pin:NC
• Note: After booting the device, please connect to WIFI and enter the following process.

Also stated by the supplier

• Lonsdor KH100 is a versatile hand-held smart device, able to access control key, simulate/ generate chip, generate remote (key), detect remote frequency, detect IMMO, unlock Toyota smart key and etc.
• Lonsdor KH100 Hand-Held Remote Key Programmer
• ※ Device system comes with operation instructions, easier for you to use.
• ※ Exclusive support for 8A(H chip) generation.

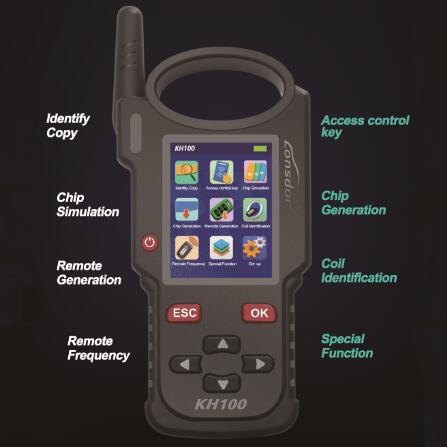

• Chip Simulation
• Remote Generation
• Remote Frequency
• Access Control Key
• Chip Generation
• Special Function
• Multi-vendor chips supported
• Especially Toyota 8A(H) chip Our predominance
• Able to simulate 4D/46/48 chips
• With built-in super sensory data collector(no interference within 1 meter when collecting data)
• Dedicated connector to generate remote/smart key Online update supported
• Remote generation diagram
• Smart key generation diagram

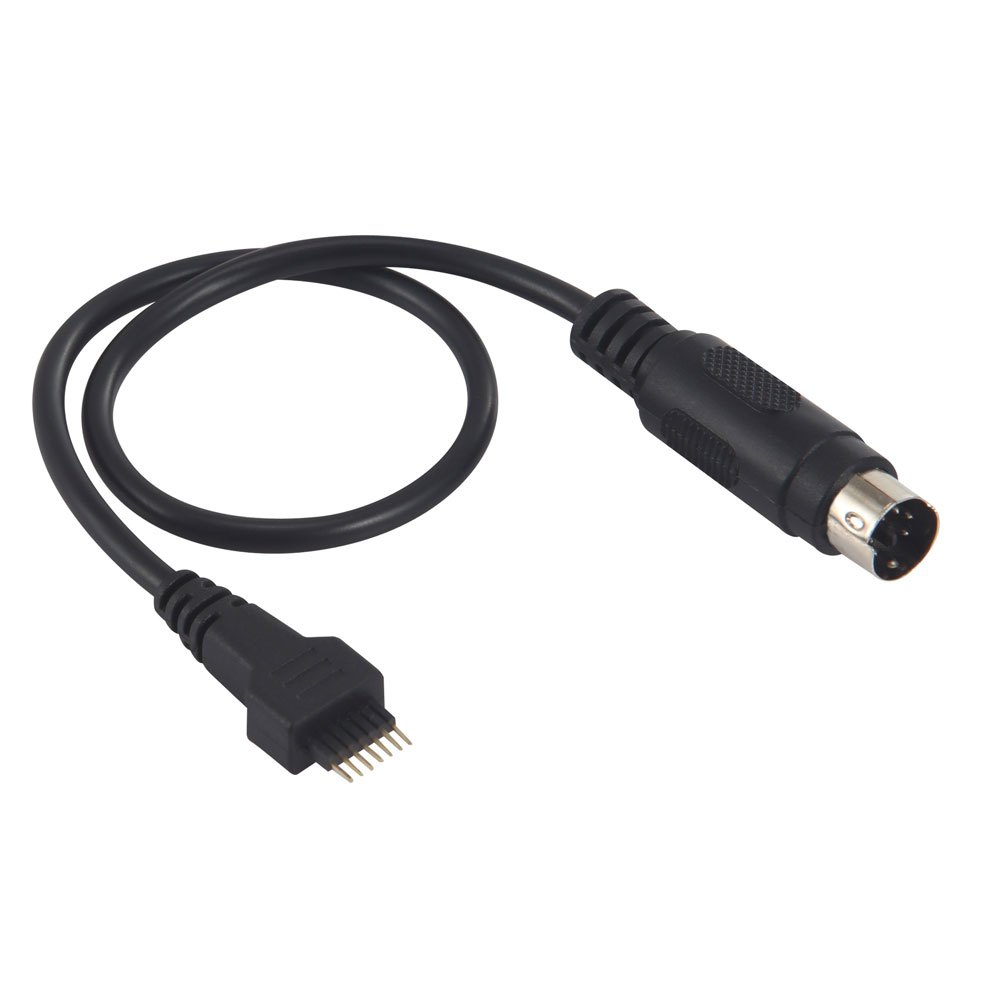

• Dedicated connector to generate remote key:PS2-7Pin OD3.5
• Access control/remote frequency
• Detect remote frequency bands with high accuracy
• Detect super frequency
• Detect multiple frequency brands with high accuracy
• Lonsdor KH100 Identify Coil
• Connect remote key with remote connector, Put KH100's antenna position. If inductive signal is identified, the device will make sounds, please check if the position is right (as shown below).
• Connect remote key with remote connector, Put KH100's antenna close to key
• identification coil, and use key to turn ignition ON. When KH100 buzzer beeps, it means
• Lonsdor KH100 Remote Frequency
• Enter this menu, put remote control at the device's induction area to detect remote frequency.
• Lonsdor KH100 Special function
• Put remote control at the infrared signal detection area, press the remote's button once. When the light on KH100's screen is on, it indicates there is infrared signal, otherwise there is no signal (see below pic).
• ② Unlock Toyota smart key
• Put in smart key, click OK to operate.
• To induce simulated chip and detect ignition coil
• 2.8-inch color screen, resolution: 320X480
• To identify, copy, generate key chip or remote, etc.
• Port 1
• Port 2
• Dedicated port for remote's connector
• Power button
• In shut-down state, tap to boot the device. In power-on state, tap to switch to power saving mode. Long press for 3s to shut down
• Remote frequency detection
• Put remote in this position to detect its frequency.
• High-frequency detection
• LONSDOR KH100 UPDATE Sept 25th, 2019
• IDENTIFICATION OPTIMIZATION FOR SOME OF CHIP
• INTERFACE OPTIMIZATION FOR CHIP IDENTIFICATION AND EDITING
• GENERATE CHIP OPTIMIZATION
• MQB KEY IDENTIFICATION OPTIMIZATION
• Enter settings menu, and connect the device to network, then choose [check for updates], one-click online upgrade. 3.0 After-sales service
• Our company will provide you with excellent after-sales service and warranty service within agreed time.
• The warranty period lasts 12 months from device activation date.
• For product maintenance beyond the warranty period, we will charge labor and material costs.
• ※ The device and components are beyond the warranty period.
• ※ The product is damaged due to not following the instructions in this manual for operation, use, storage, and maintenance.
• ※ The newly purchased device works normally without any damage when unpacked for the first time. But with the prolonged time of use, screen damage occurs, such as screen explosion, scratching, white spots, black spots, silk screen, touch damage, etc.
• ※ The use of special tools and accessories not provided by our company.
• ※ For the man-made damaged device, if you decide not to repair after we disassemble it and make a quotation, the device appears unstable condition(such as: unable to boot, crash, etc) when you receive it.
• If the device is damaged in the process of delivery, our company will not bear relevant fees. In particular cases, we will assist the customer to claim for compensation against the shipping company..
• Please keep the warranty card properly, and fill in the card when returning your device for repair, so that we can deal with the relevant work procedures (the warranty card attached to the end of the manual).
• Lonsdor KH100 Registration guide
• ① For the first use, please prepare a common call phone or email to help complete
