XTOOL InPlus IK618 Key Programming Tool with KC100 Programmer and EEPROM Adapter Support Bi-Directional Control, 31+ Services, OE Full Diagnos

The XTOOL InPlus IK618 key programming tool supplied with the KC100 programmer and an EEPROM adapter. It covers all keys lost by deleting a lost key and adding a new one, advanced immobiliser work with remote learning and key learning, reading the PIN code and key information, checking how many keys are registered and backing up immobiliser EEPROM data, alongside bidirectional control and more than 31 services. It runs Android 10 on a quad core 1.6GHz with a 7 inch 1024 by 600 screen in eight languages.

Specifications

• All Key Lost: When the key is lost, you can delete the lost key and add a new key to restart the vehicle.
• Advanced IMMO Function: Add New Key + Disable Lost Key + Remote Learning + Key Learning + Key Matching+ All key lost +EEPROM etc.
• 8 Languages are supported: Remove language barriers and support English, French, Spanish, Portuguese, German, Russian, Japanese, Polish.
• Powerful Hardware Expansion: Android 10 + OS Quad-Core 1.6Ghz processor + 7 inch 1024*600 Touch screen+ CAN FD Protocol + 5,000mAh battery + 2GB +32 GB memory.
• Backup IMMO data: Used to read, write and backup the EEPROM chip inside the immobilizer module.
• Check number of keys: check out how many keys that had been registered to the vehicle right now.
• Read PIN code& key info: Pull PIN code of the immobilizer of specific vehicles when it requires a pin to get access to the system.
• Program/Add keys Fobs: Add another new key when you have a key that has already matched to the vehicle.
• Generate dealer key: Used for generating dealer keys for Volkswagen/ for Audi/ for Fiat/for Renault/for BMW/for Land Rover, etc.
• Program remote: Read the radio frequencies of the car remotes and program remote keys.
• All keys losst: Make a new key in the situation where you have no active keys at the moment.
• EEPROM modification: Allows you to modify EEPROM chip when unsoldered.
• Write-enable functions: Allows you to write key information inside the dump files.
• EVAP Tests: EVAP Purge Solenoid Valve, EVAP Vent Solenoid Valv

Also stated by the supplier

• XTOOL InPlus IK618 is a professional key programmer machine that supports key programming functions for over 90% of models in all regions, including over 70 manufacturers. Full compatibility and full functions on a compact-sized tablet, make IK618 a great tool for locksmith businesses.

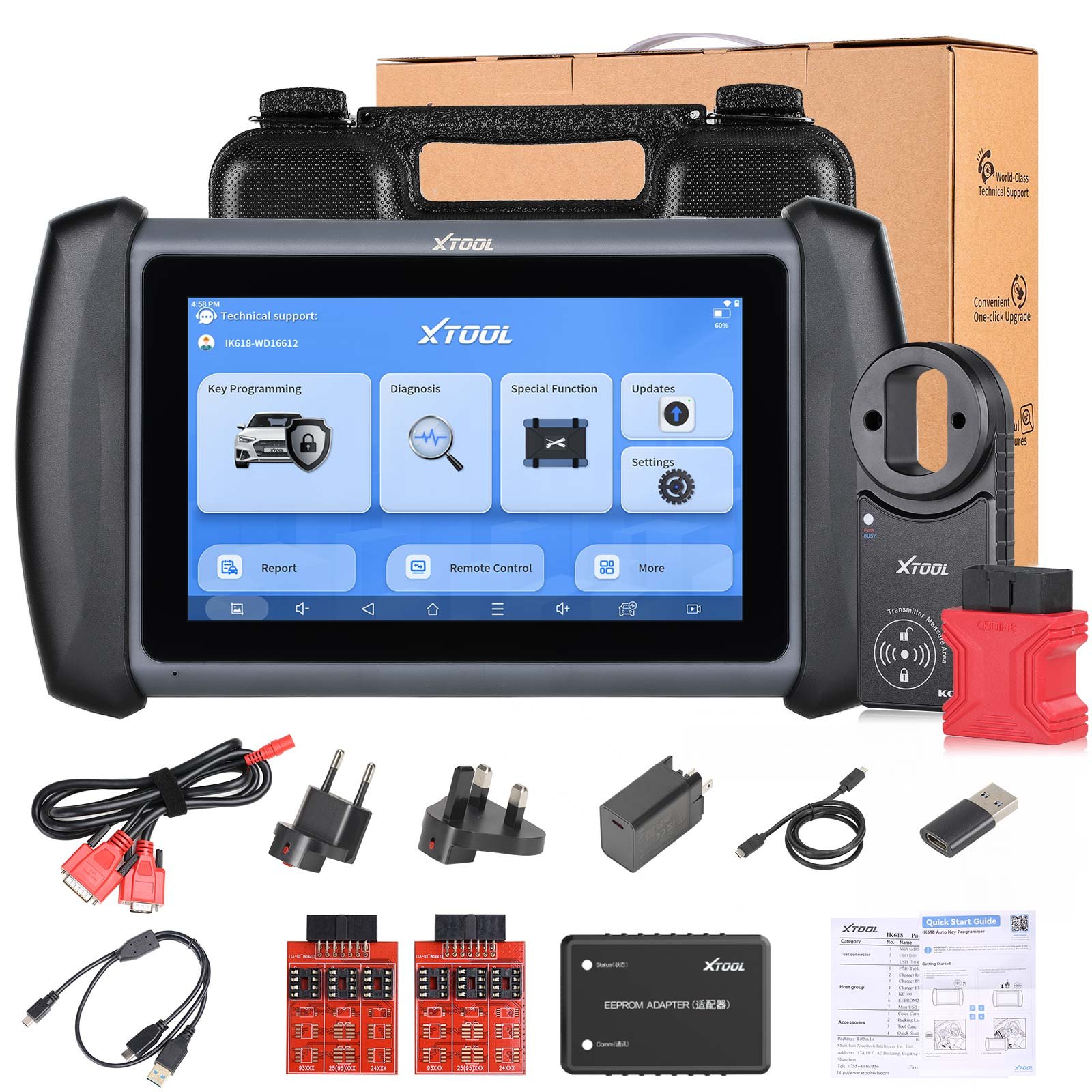

• XTOOL InPlus IK618 Key Programming Tool with KC100 Key Programmer and EEPROM Adapter
• Comprehensive IMMO/Key Programming Functions
• X100 InPlus IK618 combines advanced key programming and immobilizer capabilities with OE-level diagnostics, equipped with KC100 key programmer, performs key fobs programming, read PIN, read & write car keys & key chip, ideal for auto technicians,
• advance DIY, garage and locksmiths!
• 31+ Maintenance Services & Full Special Functions
• Oil Reset,EPB,BMS,SAS,Throttle Relearn,ABS Bleed,Key Programming,injector Coding,Steering Angle Sensor Adjustment,Transmission Relearn,TPMS Reset, Airbag Repair, Hybrid Control Compression Test, HVAC Control Module Calibrate,
• Zero Point Calibration, Injector Balance Test, Fuel Trim Reset,Cylinder Power Balance,Crankshaft Sensors Relearn,rewrite the vin on pcm,alcohol composition reset,suspension calibration,etc.
• Full control over all various vehicles components to perform active tests like EVAP test, idle relearn, injector test, cycling ABS motor pump, A/C Clutch Switch On/Off, Window/Mirror/Door Lock Test, etc.
• ECU Coding & Guide Functions for VW
• And reset the adaptive data for certain components after repairs or replacements.
• With VAG Guide Functions,IK618 scan tool can perform complex functions such as special functions,ECU coding to help your diagnostic step by step with instructions for VW/Audi/Skoda etc.
• Android 5.1 systems +7'' Touch Screen+ 5000mAh Battery +1024*600 Resolution +Quad-Core 1.6GHz CPU Processor +2G RAM & 32G + Dual WiFi
• Access new communication protocols of CANFD (cover for GM MY2020+ models) without extra adapter.
• 10,000+ Vehicle Coverage
• Covers 10000+ Vehicles includes American European Asian Japanese brands makes, etc.
• 2 Years Software Udpate & Support 14+ Languages & Remote Support
• OE-Level Bi-directional Control + All System Diagnostic Tool + Powerful Key Programming.
• 30+ Common Reset Service Functions like abs bleeding/dpf/Oil/SAS/BMS etc.
• Advance ECU Coding & Guide Functions for VW+Bi-Directional Controls+Auto VIN +8 in 1 Live date.
• NO IP LIMITED, it can works for all over the world.
• 2 years Free update + 3 years warranty +online technical support.
• Complete with KC501(For Benz infrared key）KC100(For VW 4th 5th immo） ks01(For Toyota all key lost )M821(for toyoto 4a/8a key )M822(For benz all key lost )SK1(For toyota free password).
• XTOOL InPlus IK618 with Complete IMMO& key FOB Programming Abilities, Upgraded Ver. of X100 PAD PLUS
• All the mentioned functions vary across vehicles. Please check compatibility with us before purchase!
• IK618 support pull pin codes For Dodge Ram 2013-2018.
• IK618 support pull pin codes For Dodge Charger/Challenger/300C 2015-2018.
• IK618 support read pin codes from OBD for FCA Group(Fiat/Chrysler/Dodge/Jeep), via VPW protocol.
• IK618 cannot support FBS4 infrared key for Benz.
• Support VW/Audi/Skoda 4th generation, 5th generation, MQB key programming
• Support VW/Audi/Skoda 4th-generation 96-bit online, 5th-generation online, MQB online key programming
• Support BMW CAS1-CAS3++ key programming
• Support Land rover (2015-) smart key write start key
• Support Fiat Viaggio, 500, Palio and other models
• Support BMW EWS2 EWS3 EWS4 key programming
• Support Toyota/Lexus all smart key lost key programming without dismantling, can realize 94, 98, 88, A8, A9, 39 simulation key generation (require KS-01 emulator as well).
• Matched Dashboard Type for 4th, 5th immobilizer of VW/Audi/Seat/Skoda: CDC24C32,NEC24C32,9S12, NEC24C64, NEC24C64 color screen, Jiangsen, NEC95320, NEC24C64 white screen.
• As a Key Programmer & Scan Tool, XTOOL IK618 provides you with Dealership-Level only diagnosis, getting accurate and clear diagnostics across all available automotive systems including: Engine, ABS, BCM, HVAC, SRS, TPMS, TCM and more.
• Complete Capability for Codes
• XTOOL InPlus IK618 also is a bi-directional scan tool, allow you to request information or command an actuator or subsystem to perform specific tests, while observing the resulting data to troubleshoot and fast repair.

Checking the number of registered keys is the step that finds a spare key nobody mentioned.
