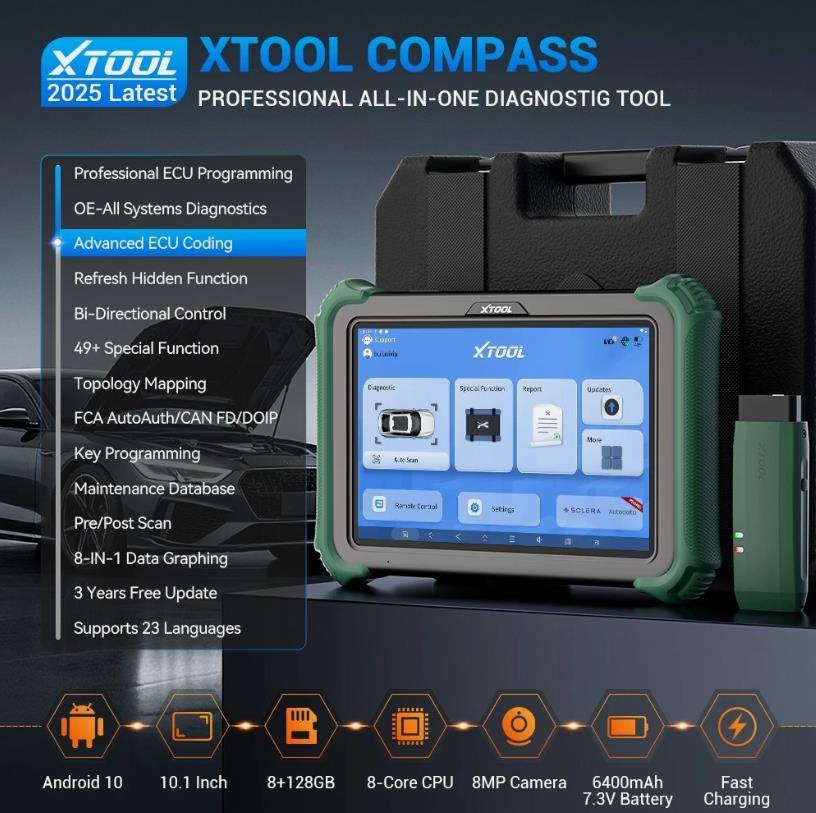

XTOOL COMPASS Master Identifix Smart Diagnostic Tool with J2534 ECU Programming and 51+ Services

The XTOOL COMPASS Master Identifix is a smart diagnostic tool at the level of the D9S, D9S PRO, IP919, and IP919 PRO. It pairs a 10.1-inch screen with J2534 ECU programming, Topology mapping, ADAS calibration, and online coding. Model: Compass.

Highlights

• Technician Choice repair informatics database, Identifix Direct Hit, for one year with renewal available
• One-stop J2534 ECU programming for multiple car brands
• Topology module mapping
• Pre-scan and post-scan with Report V2.0
• 3 years of free software updates
• 23 or more languages

Hardware

• 10.1-inch display at 1920 by 1200
• 2.2GHz plus 1.8GHz octa-core processor, 8GB RAM, 128GB storage
• 46080mWh battery (6400mAh at 7.2V) with fast charge
• Dual WiFi and USB cable connection. 5GHz and 2.4GHz dual WiFi for updates. 10 times faster octa-core processor
• Wireless charging dock

Identifix database

The built-in Identifix Direct Hit and maintenance database holds real-world repair cases and troubleshooting solutions. Match fault codes to field-proven repair procedures without manual searching.

J2534 programming

The VCI box connects to OEM software for ECU programming: replace ECU software or firmware, program new ECUs, and fix software-based driving and emission issues. ECU coding matches components after replacement and reflashes modules to switch features on or off.

Coding

Online and offline coding. For Jaguar and Land Rover, sync online for current manufacturer data or work offline on site. Online calibration and parameterization tune engine performance and adjust parameters in real time with secure online access.

OE-level diagnostics

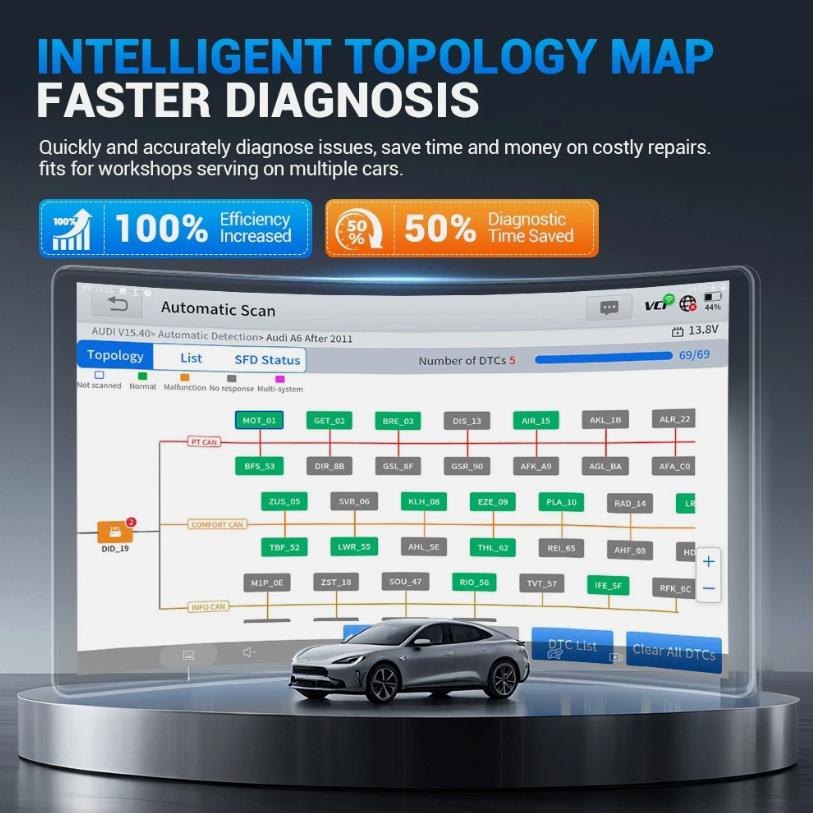

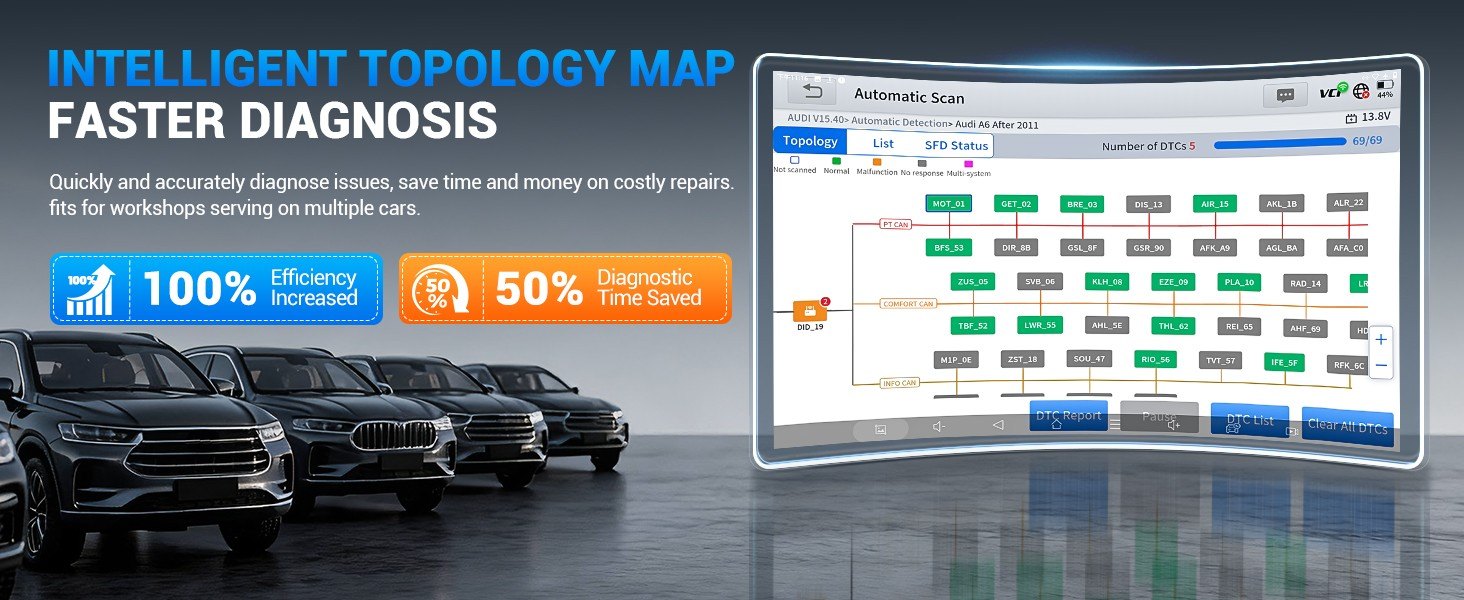

Basic functions plus module communication structure views, fault code reading and clearing, live vehicle data, and ECU info retrieval. Topology mapping shows the full module network with ECU connections, sensor links, and communication flows. Pre-scan and post-scan verify safety, comfort, and convenience systems. Report V2.0 accepts the shop logo and repair pictures.

Access protocols

• FCA AutoAuth for the Security Gateway Module on 2018 and newer Chrysler, Dodge, Jeep, and register the FCA account themselves. No FCA 12+8 cable purchase needed
• CAN FD protocol vehicles including GM after 2020. No CAN FD adapter purchase needed
• DOIP for BMW E, F, and G chassis, Jaguar, and Land Rover

Services and tests

• 51+ maintenance services including oil reset, EPB, BMS, SAS, DPF, throttle relearn, ABS bleed, injector coding, air suspension, transmission relearn, TPMS reset, and airbag repair
• 4000+ bidirectional controls and active tests including EVAP test, idle relearn, injector test, ABS motor pump cycling, and A/C clutch switching
• 8-in-1 live data: eight core parameters monitored together with recording, playback, and CSV export, for American, European, and Asian models

Languages

English, German, Spain, French, Polish, Portuguese, Russian, Italian, Turkish, Traditional Chinese, Japanese, Korean, Vietnamese, Arabic, and Finnish.

Updates and connection

• Auto VIN scan reads the VIN in seconds
• One-click update for vehicle data, bug fixes, and features
• Wireless WiFi and wired USB connection. Wireless range and stability exceed Bluetooth for complex shop environments
• 3 years of free software updates in one tap

What is in the box

1 set XTOOL COMPASS Master Identifix smart diagnostic tool.

Orders leave the warehouse within one business day. Delivery then takes 7 to 20 days. Orders over $150 ship free.

Not right for you? You have 30 days from delivery, with no restocking fee. See the full returns policy.
