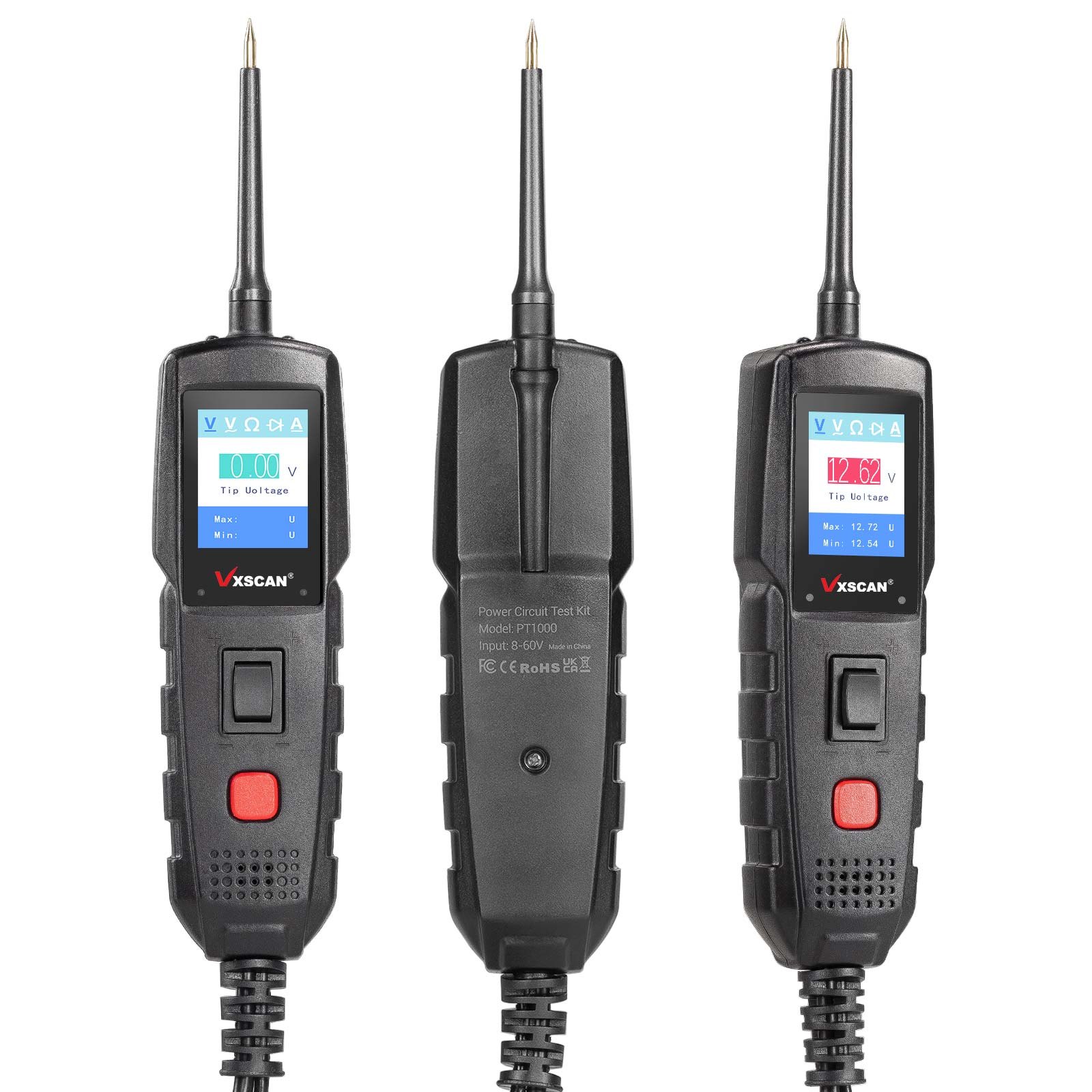

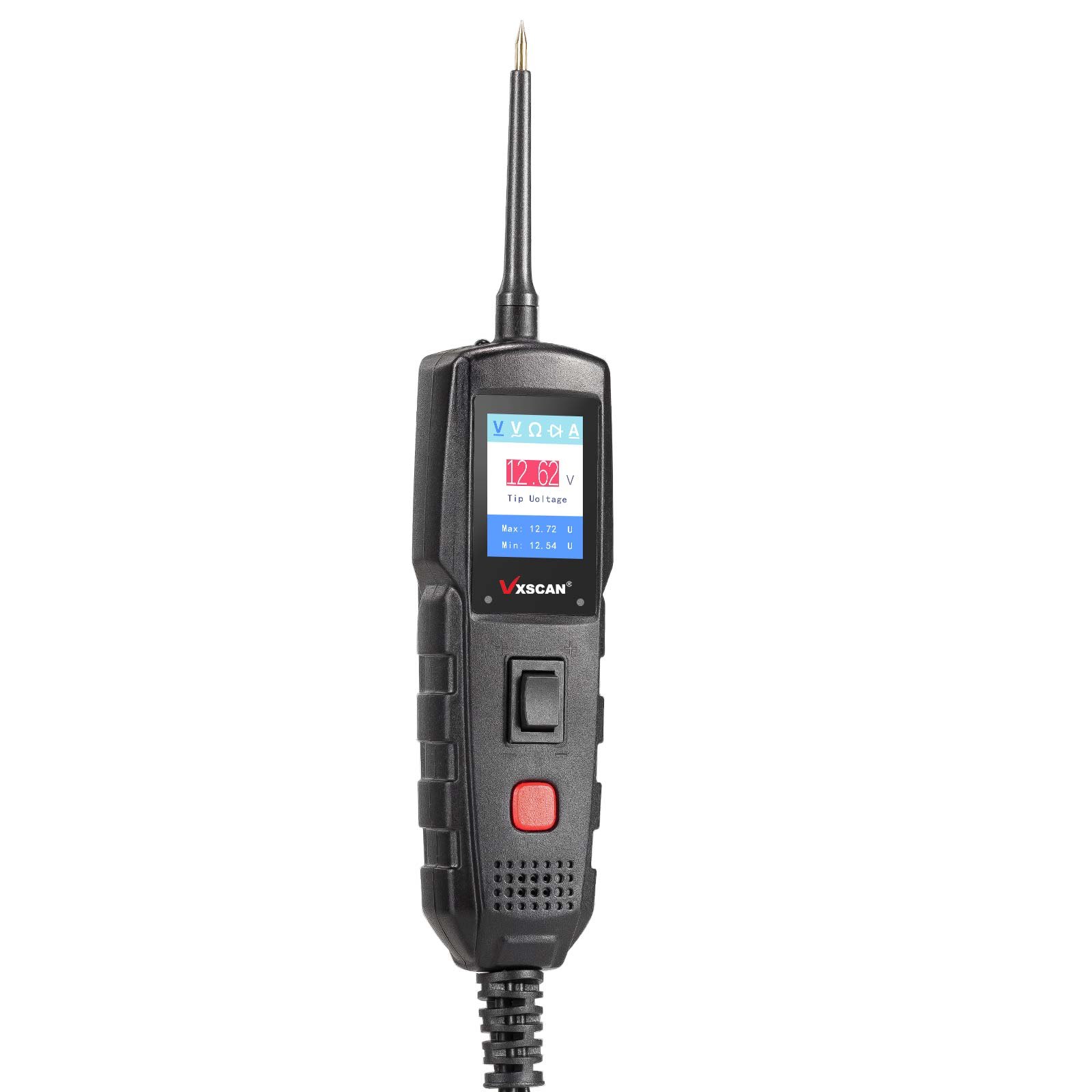

VXSCAN PT1000 Electrical Tester DC/ AC/ Waveform/ Resistance/ Diode / Current Diagnostics

The VXSCAN PT1000 electrical tester, covering DC and AC voltage, waveform, resistance, diode and current diagnostics in a single handheld unit. Waveform on a tester rather than a scope suits a quick check at the car.

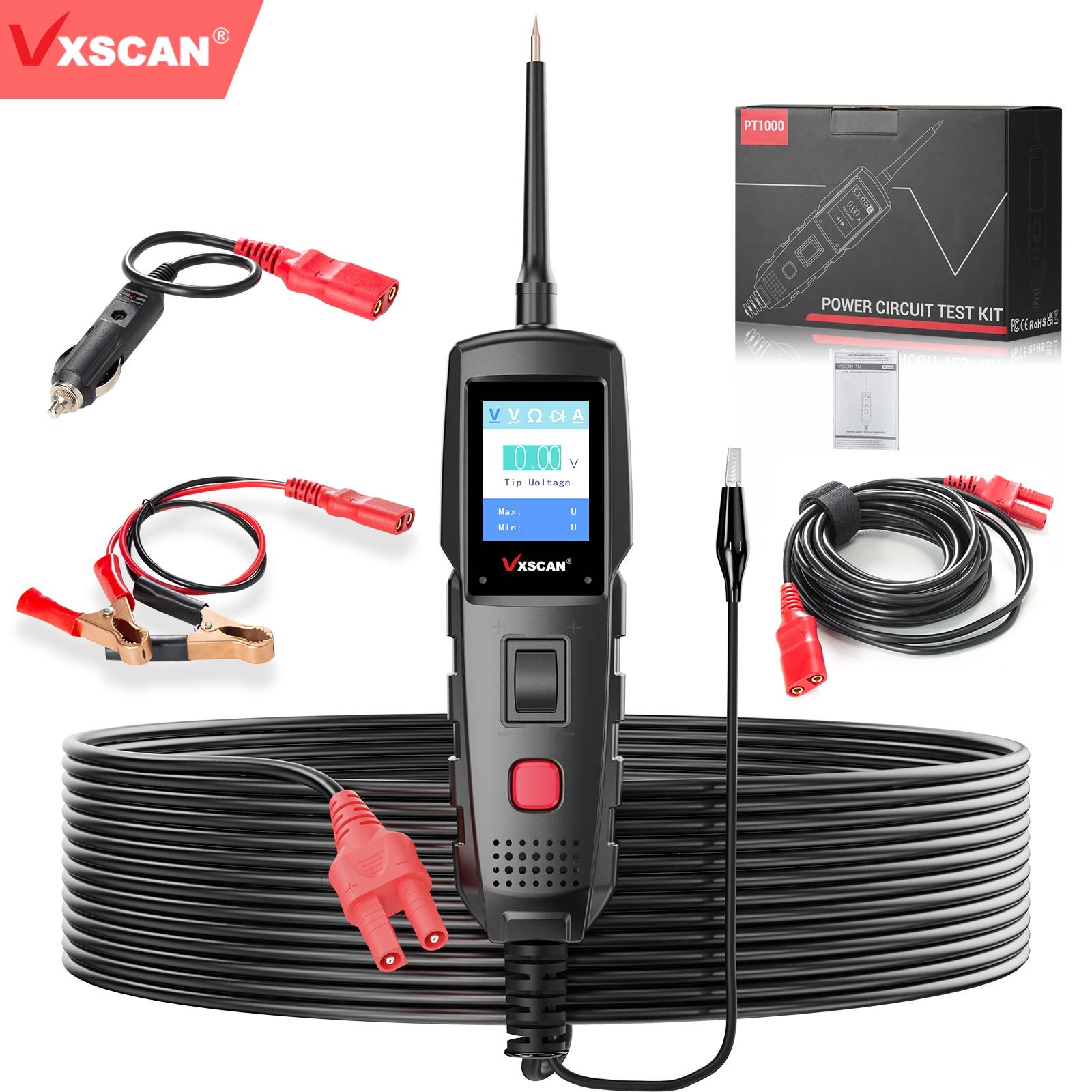

What you get

• 1pc x Cigarette lighter adapter
• 1pc x Battery hookup clips
• 1pc x Probe tip
• 1pc x Extension cable (20ft.)
• 1pc x Rugged blow molded case
• 1pc x Power assist cable
• 1pc x User's manual
• VXSCAN PT1000 is the best electrical tester for reducing diagnostic time in all 8 to 50 volt vehicle electrical systems. It is short circuit protected, and its internal circuit breaker will trip if it becomes overloaded. The long extension cable allows you to test along the entire length of the vehicle without constantly searching for suitable vehicle grounds.

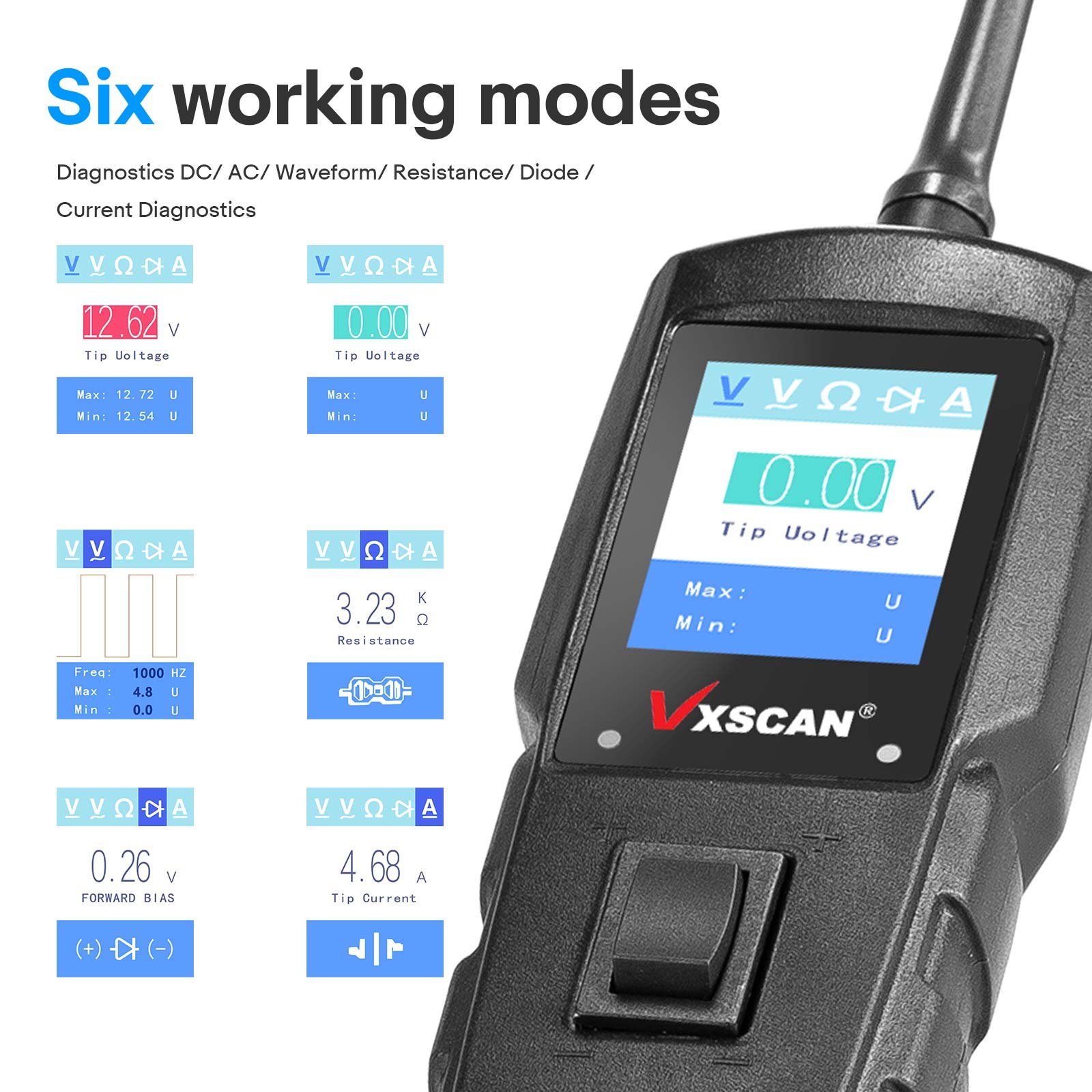

• VXSCAN PT1000 Vehicle Super Electrical Diagnostics DC/ AC/ Waveform/ Resistance/ Diode / Current Diagnostics
• Performs every type of service including power injection, measurement, ground testing, polarity checks, continuity testing and components activation.
• Allows you to read voltage, current and resistance at the fingertip.
• With a flip of the power switch, you have an instant hot/ground lead for powering up electrical components like cooling fans, relays, etc.
• Tests for bad ground contacts instantly, allowing you to follow and locate shorts fast without wasting fuses.
• 20ft (extendable) cable provides excellent accessibility to test along the vehicle.
• Audio tone indicator allows for no-look menu scrolling once users are familiar with menu tone assignment
• Determine at a glance if a circuit is positive, negative, or open without having to reconnect clips from one battery pole to another.
• Test for continuity with its built-in auxiliary ground lead.
• By depressing the power switch, conduct a positive or negative battery current to the probe tip for testing the function of an electrical component without the use of jumper wires.
• Test for poor ground contacts instantly without performing voltage drop tests.
• Press the power switch and the probe tip will output current, which can test the current of motors, light bulbs, etc.
• 7.There is a protective action during waveform testing and resistor and diode detection. The probe head will not output positive and negative poles to ensure that the circuit and components under test are not burned.
• Display TFT color display (160x128 dpi)
• Operating Temperature 0 to 60℃(32 to 140'F)
• Storage Temperature -40 to 70°℃ (-40 to 185℃F)
• External Power 12.0 or 24.0 V power provided via vehicle battery
• Dimensions (L*W*H) 200*50*35mm(7.87*1.97*1.38in)
• Net Weight 0.1Kg(0.22LB)

Six measurement types on one tool is what keeps a diagnostic bag light on a mobile job.
