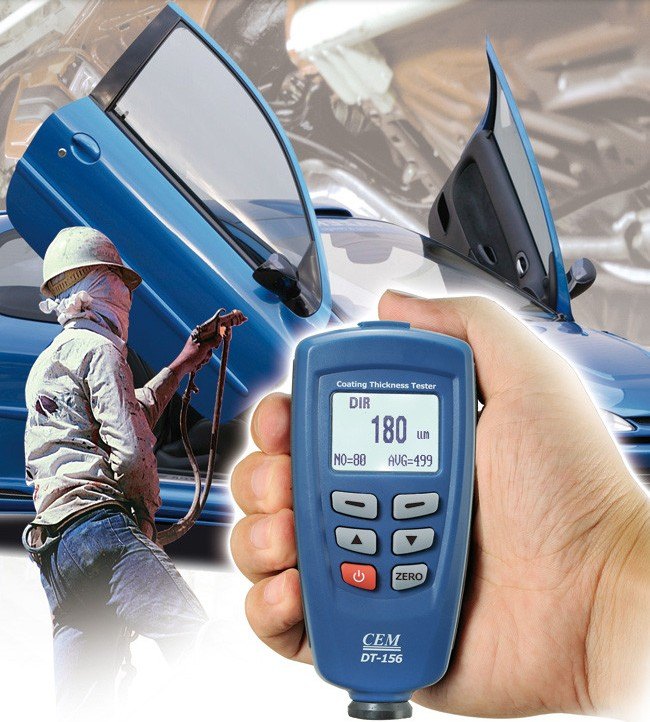

CEM DT-156 Pro Paint Coating Thickness Meter Gauge Auto F/NF Probe Tester 1250um V-groove

CEM DT-156 Pro Paint Coating Thickness Meter Gauge with Auto Fe/NFe Probe Tester. Works with Ferrous (Fe) and Non-Ferrous (NFe) substrates for coating thickness measurement.

Specifications

• Model: AT64
• Measuring Range: 0 to 1250 ??m (0 to 49.21 mils)
• Probe Types: Fe (magnetic induction) and NFe (eddy current) both included
• Guaranteed Tolerance (Fe): 0-850 ??m (??3% + 1 ??m), 850-1250 ??m (??5%)
• Guaranteed Tolerance (NFe): 0-850 ??m (??3% + 1.5 ??m), 850-1250 ??m (??5%)
• Precision (Fe): 0-50 ??m (0.1 ??m), 50-850 ??m (1 ??m), 850-1250 ??m (0.01 mm)
• Precision (NFe): 0-50 ??m (0.1 ??m), 50-850 ??m (1 ??m), 850-1250 ??m (0.01 mm)
• Minimum Curvature Radius: Fe 1.5 mm, NFe 3 mm
• Diameter of Minimum Area: Fe 7 mm, NFe 5 mm
• Basic Critical Thickness: Fe 0.5 mm, NFe 0.3 mm
• Working Temperature: 0??C to 40??C (32??F to 104??F)
• Working Humidity: 20% to 90% RH
• Working Modes: DIRECT and GROUP (4 groups, max 400 data)
• V-Groove: Yes, for small cylindrical parts
• Probe Material: Hard and durable
• Alarms: High/low alarm, low battery, error indication
• Auto Power Off: Yes (can be disabled)

In the box

• 1 x CEM DT-156 Pro meter
• 1 x Fe probe
• 1 x NFe probe
