GODIAG GT101 PIRT Power Circuit Probe DC 6-40V Vehicles Electrical System Diagnosis/ Fuel Injector Cleaning and Testing

The GODIAG GT101 PIRT power circuit probe, working on DC 6 to 40V vehicle electrical systems. It diagnoses the electrical system and is also used for cleaning and testing fuel injectors.

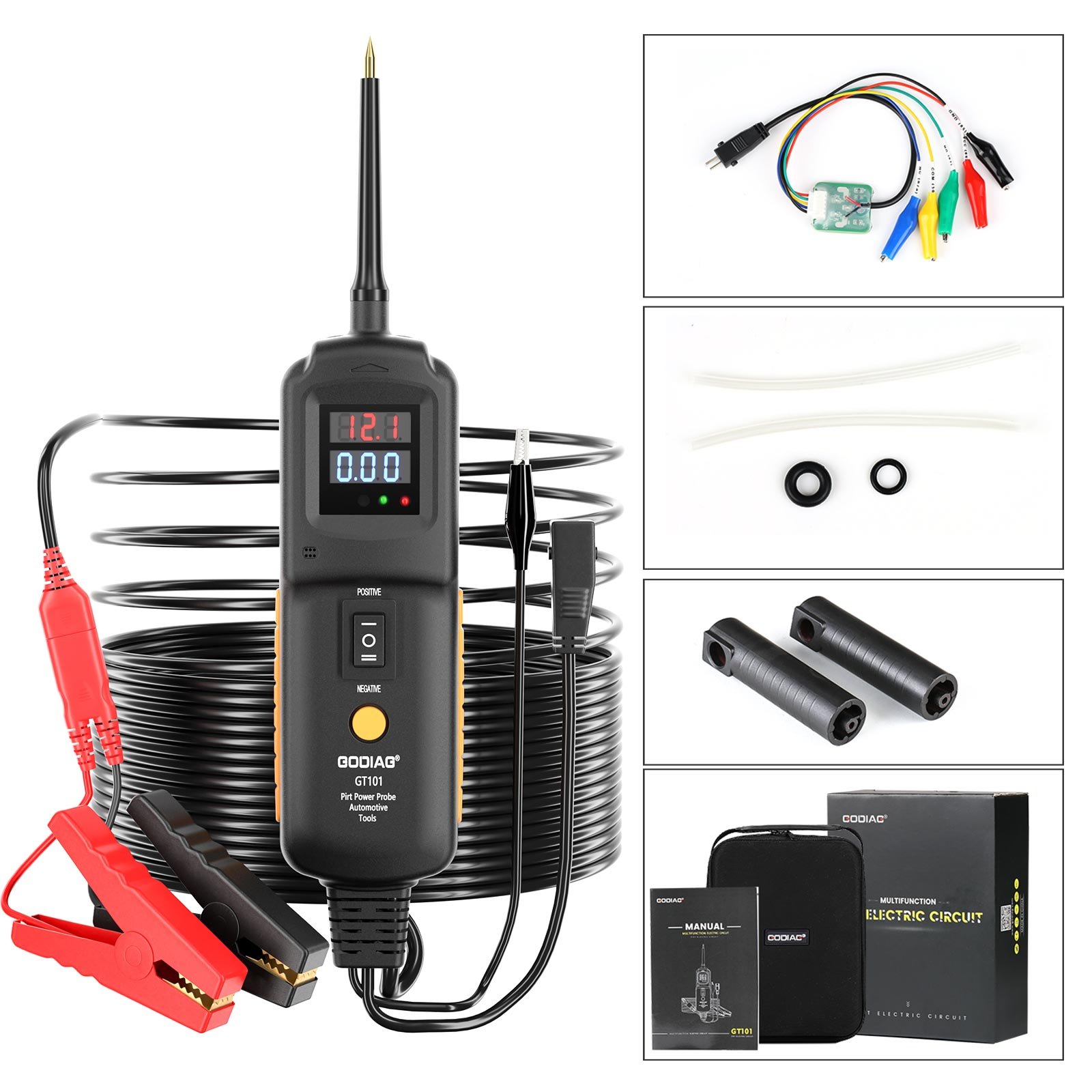

What you get

• 25*18.7*8.5CM

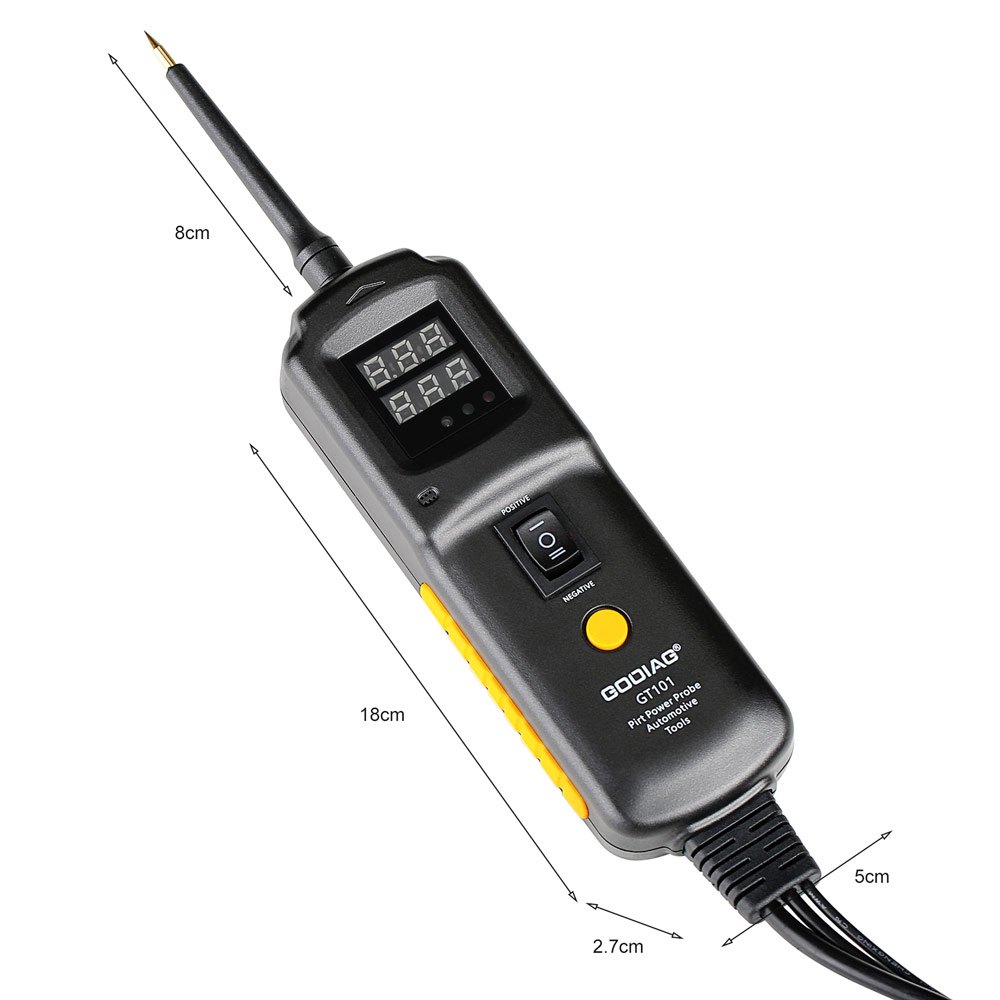

• 18*5*2.7CM

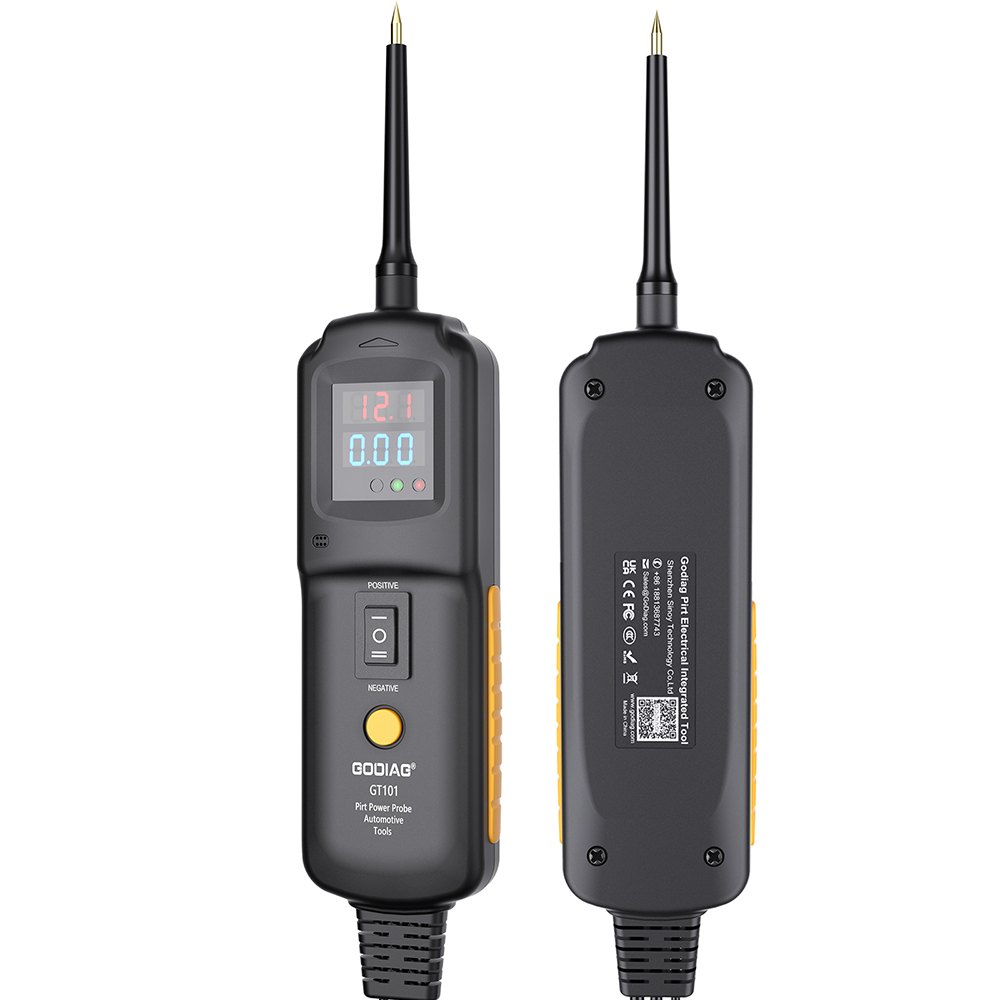

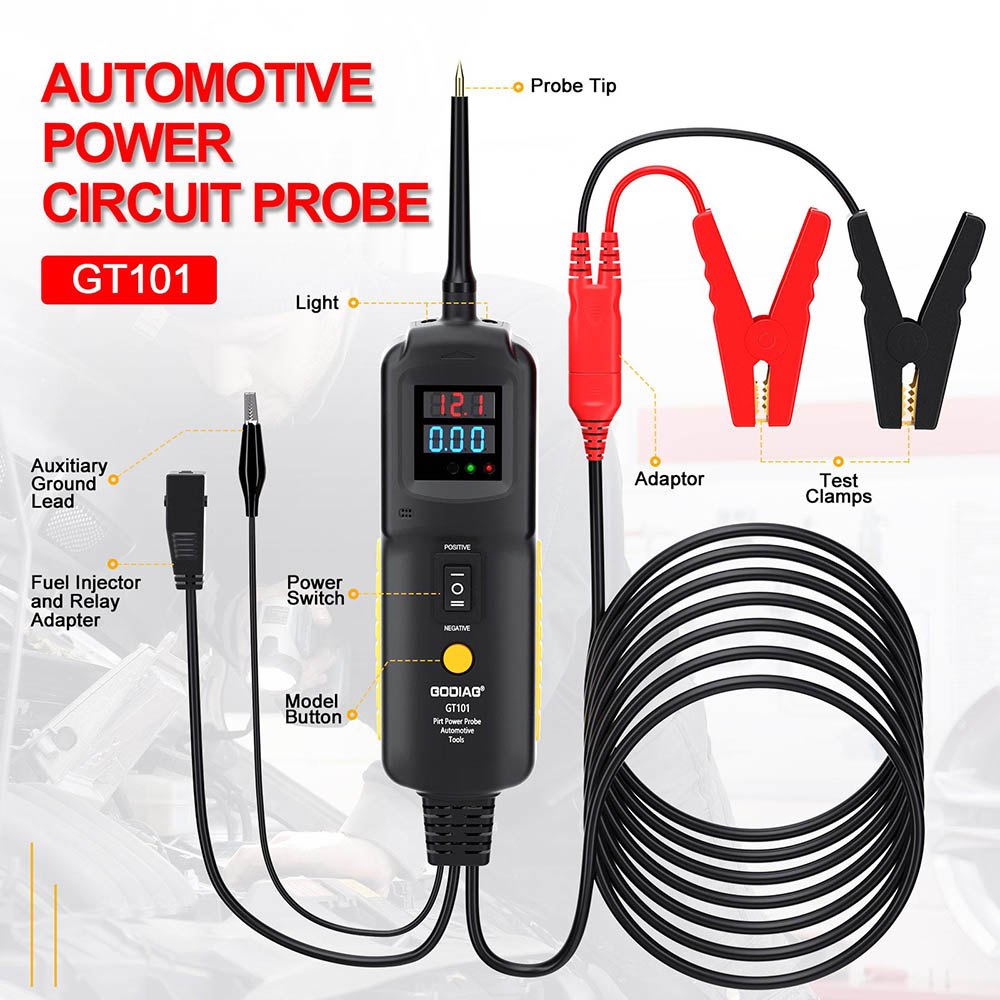

• 1pc x Main Unit of GODIAG GT101 PIRT Power Probe
• 1pc x Clip to Connect Battery
• 1pc x Probe
• 1pc x Probe Cap
• 1pc x Fuel Injector Test Lead
• 1pc x 10mm Fuel Injector Cleaning Connector
• 1pc x 12mm Fuel Injector Cleaning Connector

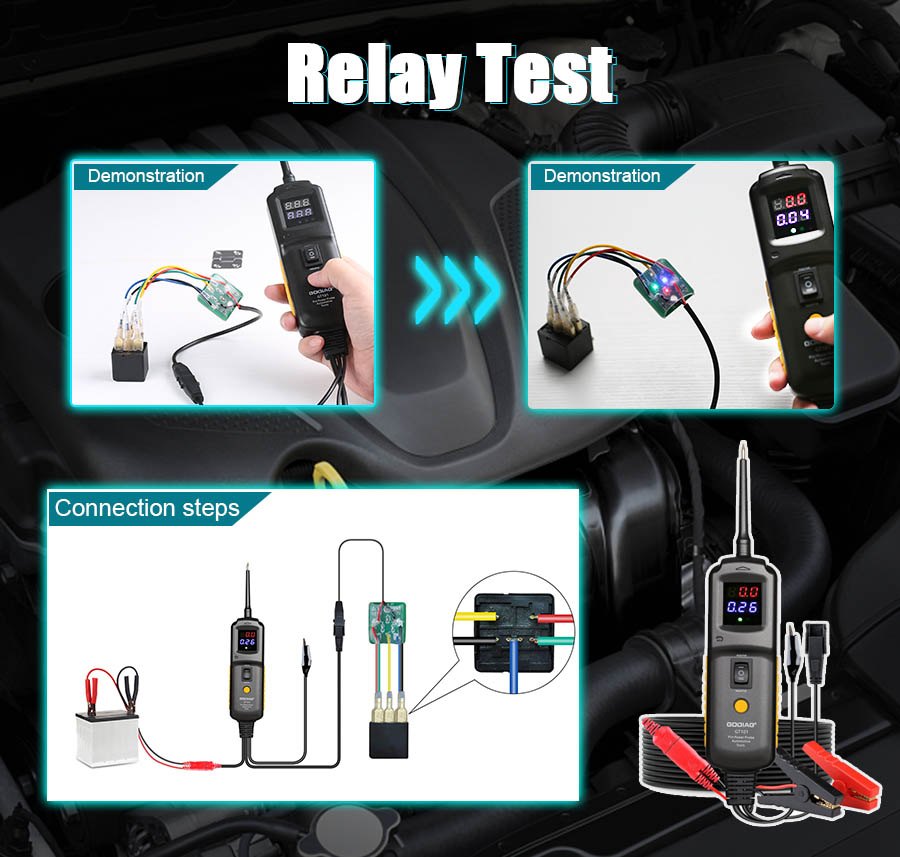

• 1pc x Simple Relay Test Adapter
• 5pcs Simple Relay Connection Leads
• 1pc x English Manual
• GODIAG GT101 PIRT Power Probe Unboxing and Functions Display
• GODIAG GT101 PIRT Power Circuit Probe is a multi-use circuit-tester with the diagnostic power from the car battery or the external is the best electrical tester for reducing diagnostic time in all 6- to 40-volt vehicle electrical systems. Undoubtedly it is the most versatile and practical tool ever for its users.
• GODIAG GT101 PIRT Power Circuit Probe DC 6-40V Vehicles Electrical System Diagnosis/ Fuel Injector Cleaning and Testing/ Current Detection/Relay Testing
• GODIAG GT101 PIRT Power Circuit Probe Highlights:
• GODIAG PIRT Power Probe is a special circuit maintenance testing tool which is developed for automobile maintenance workers and engineers.
• It can be used to diagnose an open circuit, short circuit, detect positive and negative circuit and pulse current of power lines; and support the testing of lighting lamp,window lift motor, horn, ECU control Unit power supply and other individual component, vehicle component circuit.
• The output current can be reversed to form a loop power, and when the current exceeds 20A, it automatically trip to protect the device and extend the service life.
• It can detect all 0-80v electronic systems, greatly shortening the detection time. The connection with the car battery is simple and easy to use.
• GODIAG GT101 PIRT Power Probe is a multi-use circuit-tester with the diagnostic power from the car battery or the external is the best electrical tester for reducing diagnostic time in all 6- to 40-volt vehicle electrical systems. Undoubtedly it is the most versatile and practical tool ever for its users. This tool simplifies the testing of fuse boxes, verifies the correct operation of motors, lights, relays, sensors, wires, and large digital color display makes for easy viewing in direct sunlight or complete darkness.
• GODIAG GT101 PIRT Power Circuit Probe Functions:
• When the vehicle's headlights, turn signals, lift windows, sunroofs and other functions fail, GT101 can be used to detect the circuit voltage or supply power for these components to find out whether it is a circuit problem or a component damage.
• 1)According to the circuit diagram, locate the fault point that may have the problem, and the GT101 electric tester can detect the positive and negative electricity.
• 2)Detect whether the circuit has normal positive or negative electricity.
• 3)Input positive voltage to the malfunctioning component (for example, headlight or motor). If the component works normally, it means that the circuit may be open. Otherwise, it means that the component is damaged.

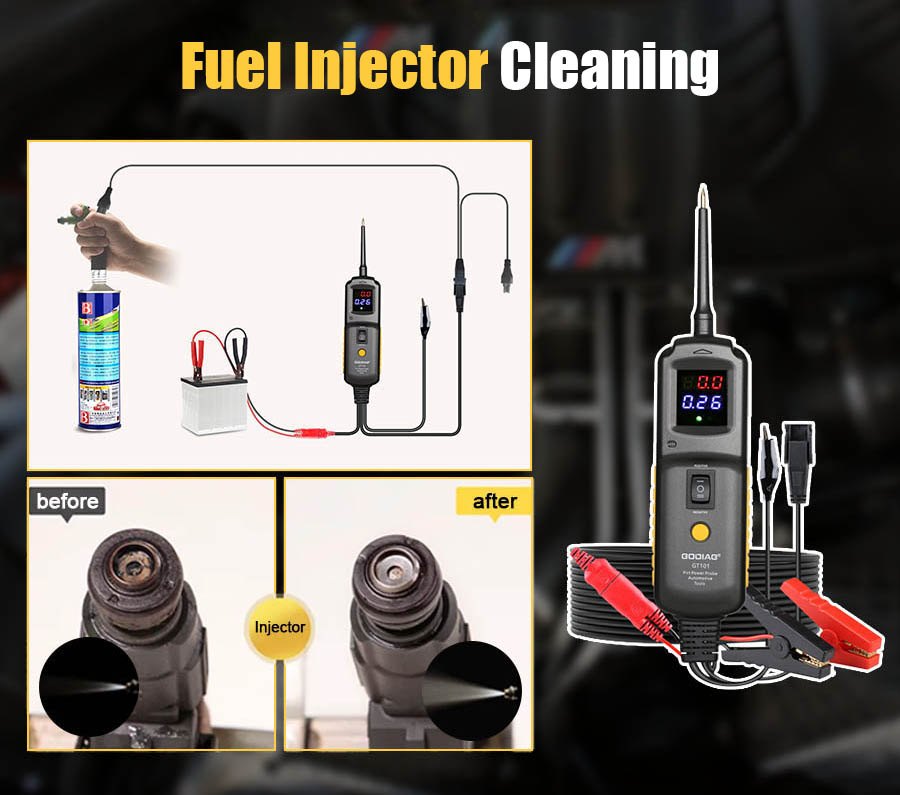

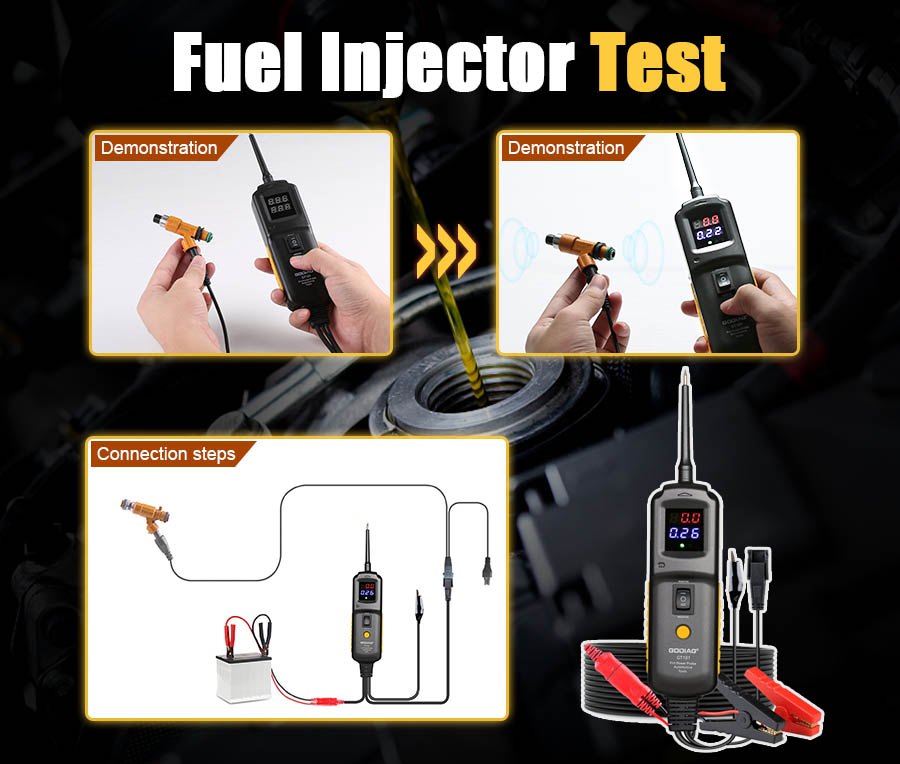

• 3.Fuel Injector Test
• When the fuel injector is blocked, the fuel injection is not smooth. There are carbon deposits and thick sticky substance in the gap of the fuel injector. The designed fuel injection volume or atomization effect cannot be achieved, it needs to be cleaned.
• 1)Prepare a fuel injector cleaner pressurized can or a carburetor cleaner pressurized can(nozzle diameter of the pressurized cans: 4mm)
• 2)Hold the manual cleaning tool tightly with your hand, and firmly fix the fuel injector with your fingers to prevent the pressure of the cleaner can from washing away the the fuel injector.
• 3)Pay attention to the hazards of liquid to human body during manual cleaning, and take protective measures. Do not operate in dangerous places with open flames because the pressurized cans are extremely flammable. Choose an open place to facilitate the discharge of cleaning liquid.)
• GODIAG GT101 PIRT Power Circuit Probe Features:
• ●Performs every type of service including power injection, measurement, ground testing, polarity checks, continuity testing and components activation
• ●Easy-to-read volt-ammeter allows you to read voltage and current at your fingertips.
• ●With a flip of the output switch, you have positive and negative electricity via the probe for powering up electrical components like cooling fans, relays, etc.
• ●Tests for bad ground contacts instantly, allowing you to follow and locate shorts fast without wasting fuses
• ●Audio tone indicator allows for no-look menu scrolling once users are familiar with menu tone assignment
• ●20ft (can be extended via extendable cable port) cable provides excellent accessibility to test along the vehicle
• ●Used for DC 6-40v cars, motorcycles, trucks, buses, engineering vehicles, vessels, tractors, mining vehicles and other vehicles that use DC circuits.
• Comparison Table GODIAG GT101, JDIAG P200 and Autel PS100:
• GODIAG GT101
• GODIAG GT102
• JDIAG P200
• AUTEL PS100
• DC voltage
• AC voltage
• Positive and negative voltage output
• DC Power
• DC Car battery power（Suitable for 6-40v）
• Power Consumption
• 0.5Ｗ
• 5 to 50 degrees Celsius
• 5 to 60 degrees Celsius
• The Box Size
• The Main Unit Size
• Weight
• 1.2KG
• Wire Length
• 620CM
• Shell Material
• ABS Environment-Friendly Materials

A powered probe drives a circuit as well as reading it, which finds a fault a multimeter alone will miss.
