Orange5
Original Orange5 Professional Memory and Microcontrollers Programming Device Free Shipping by DHL
In stock, delivery 7 to 20 days
- Free US shipping over $150
- Secure checkout via Stripe
- 30 day returns, no restocking fee
Buying for the trade? Ask for a written quote on quantity.
Description
Orange5 is a bench programmer for memory devices and microcontrollers. The ZIF16 panel takes EEPROMs directly, and the interface list covers most of what turns up in an immobiliser or an instrument cluster.
The macro language is what separates it from a fixed-list programmer. Protocols are written down as scripts, so a new chip type can be added to match the manufacturer read and write algorithm instead of waiting for a firmware release.
Capability
- Built-in macro language for writing down protocols

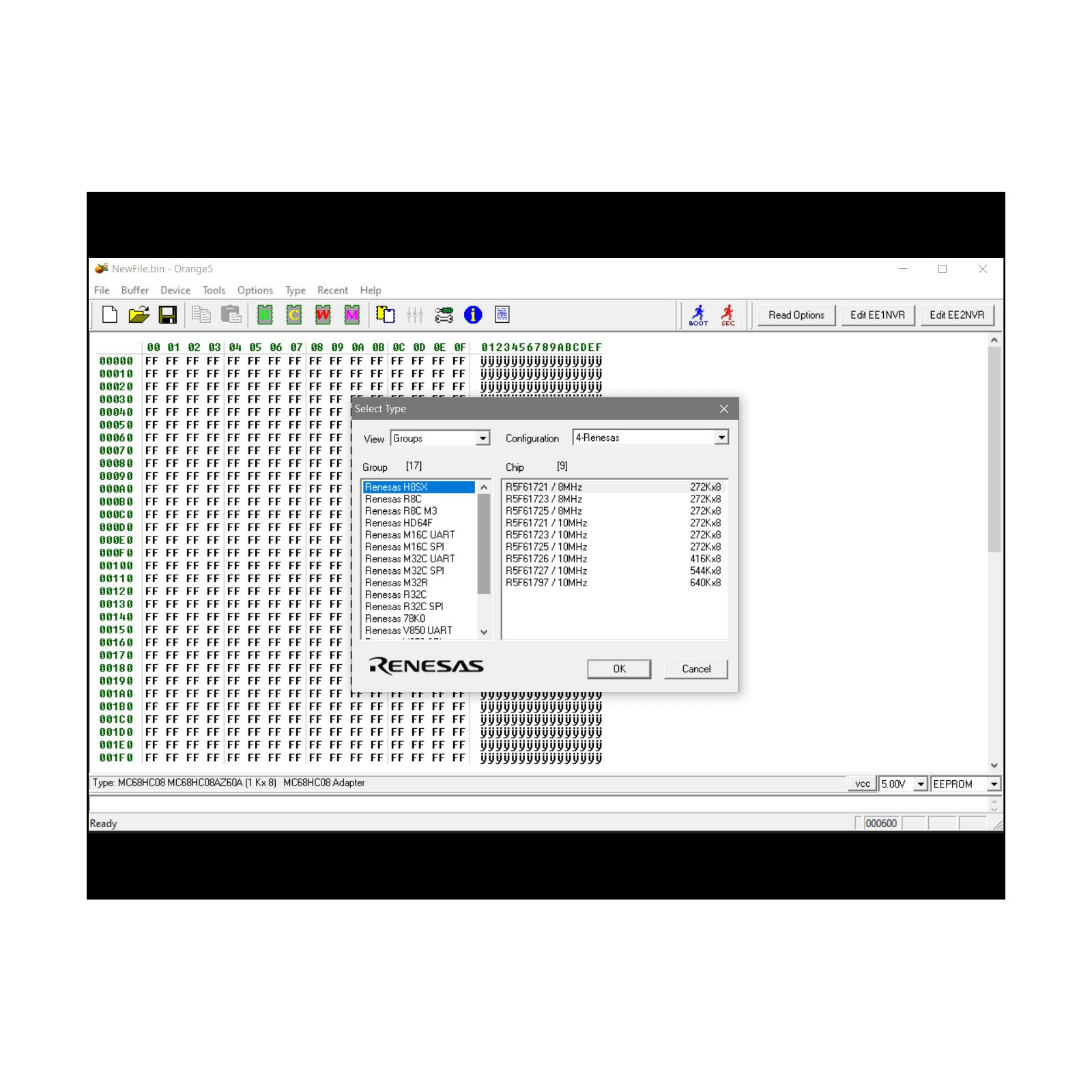

- New micro scheme types can be added to match manufacturer read and write algorithms
- Built-in 32-bit virtual machine
- Two expansions compatible with Orange4 and Omega MTRK
Specifications

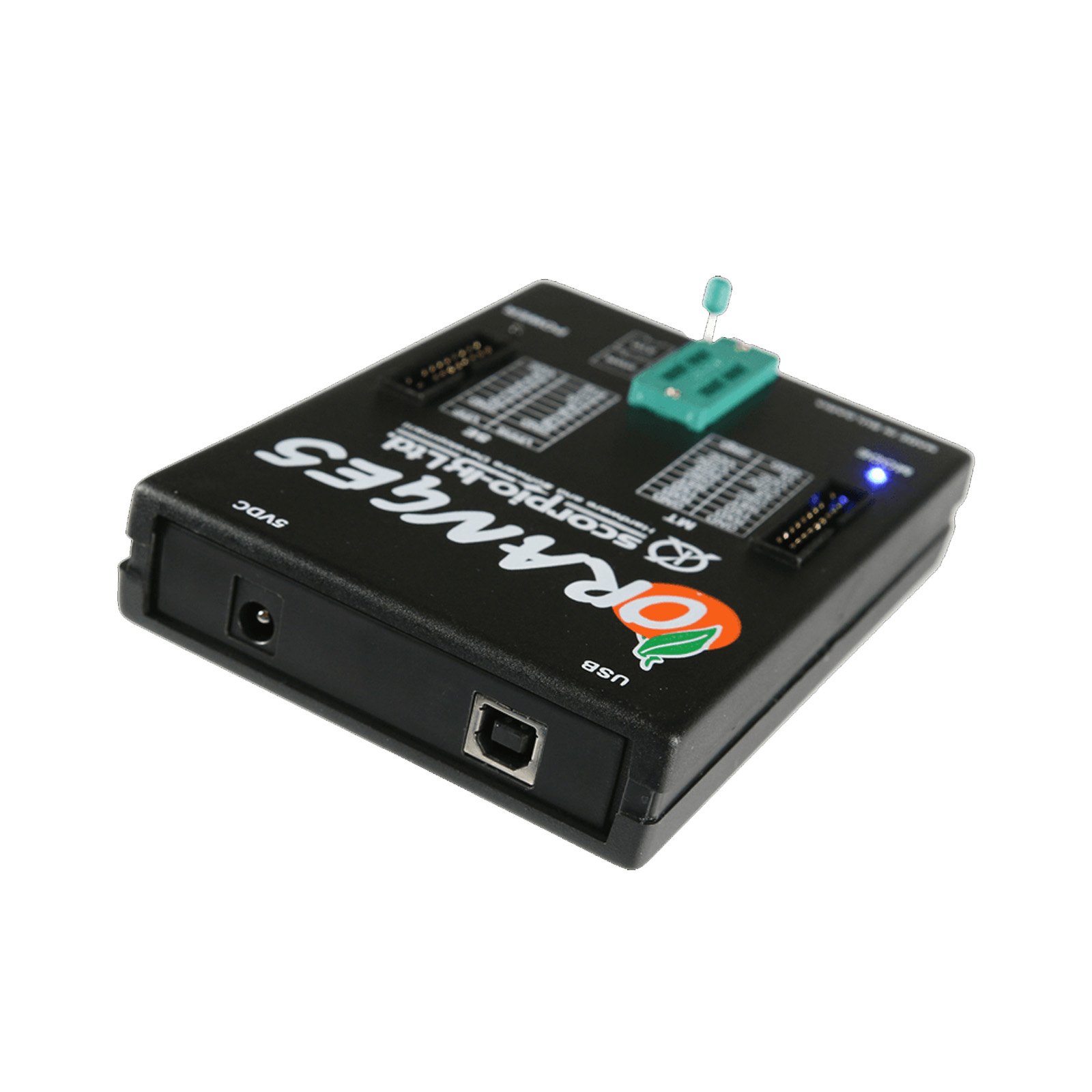

- Power: USB 2.0 or USB 3.0

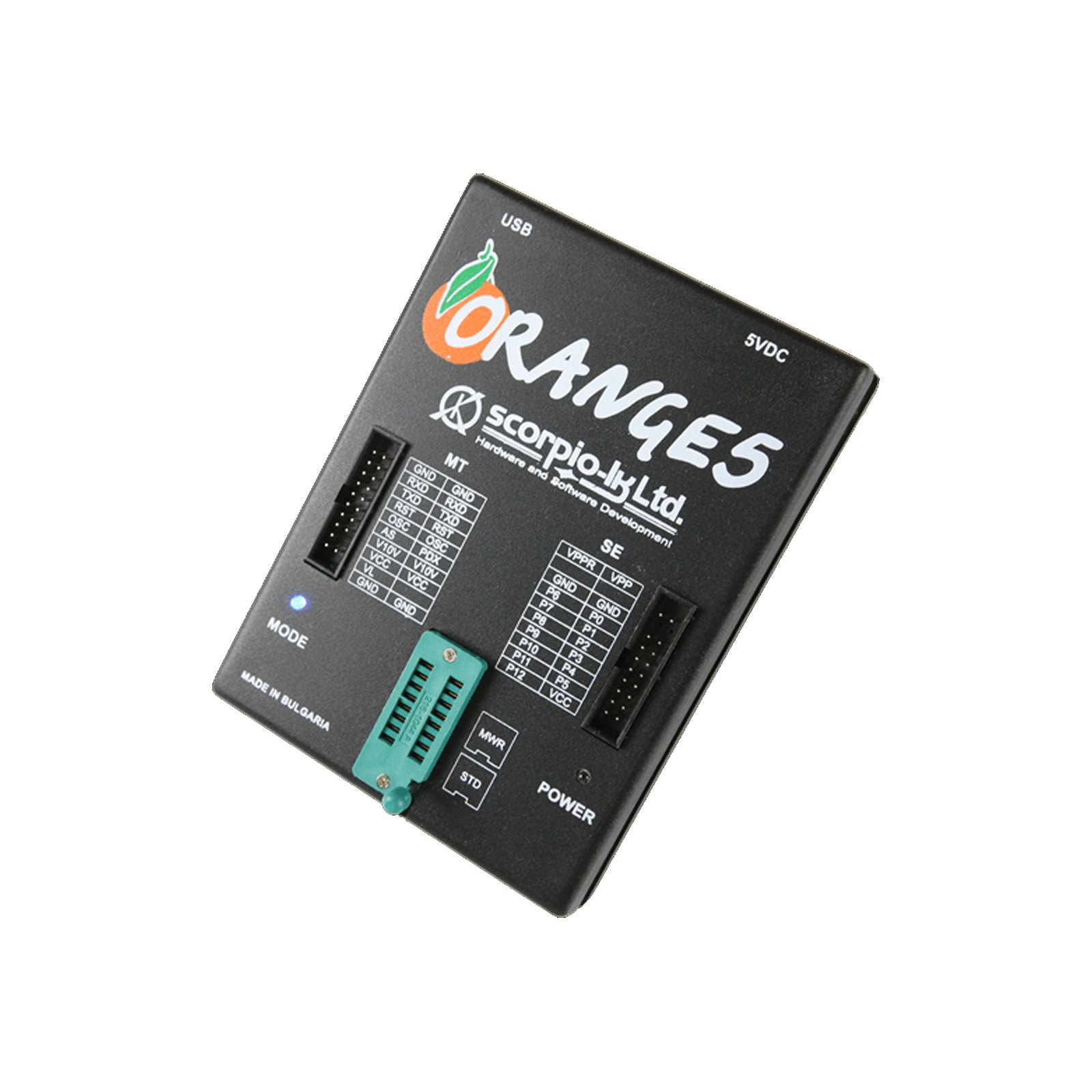

- Socket: universal easy to plug ZIF16 panel for EEPROM
- Power supply types: standard (USB) and enhanced (USB plus external power supply)
- Supply voltage, adjustable: 2.0 V to 5.0 V
- Programming voltage, adjustable: 2.0 V to 21.0 V
- Additional static voltage for microcontrollers: 10 V
- Pin drivers: high-speed bidirectional, adjustable 2.0 V to 5.0 V
- Wave cycle generator: up to 24 MHz, output voltage adjustable 2.0 V to 5.0 V
- Protection: overload voltage protection
- Supported interfaces: I2C, SPI, MicroWire, JTAG, UART, BDM, ISO7816
In the box
- 1 x Orange5 programming device
Specifications
| Brand | Orange5 |
|---|---|
| Type | ECU Chip Tuning |
| Part number | SE125 |
| Condition | New |
