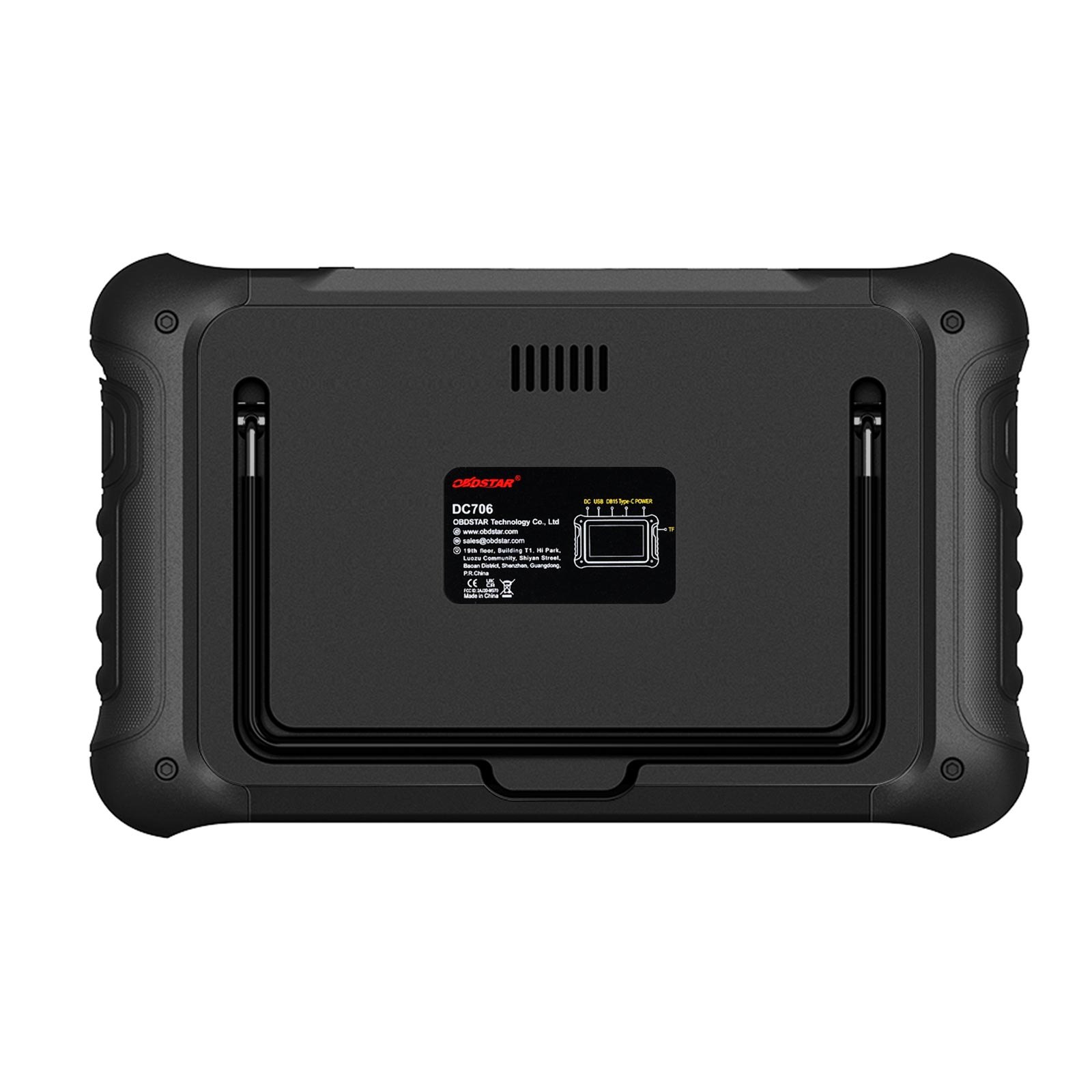

OBDSTAR DC706 ECU Tool Full Version with MP001 Set for Car and Motorcycle ECM & TCM & BODY Clone by OBD or BENCH

The OBDSTAR DC706 ECU tool in the full version with the MP001 set, cloning car and motorcycle ECM, TCM and body modules over OBD or on the bench. A VW seven in one TCM kit, a P003 adapter and a one year update service are listed as options.

Specifications

• Our Distributor Code: 0086A002

What you get

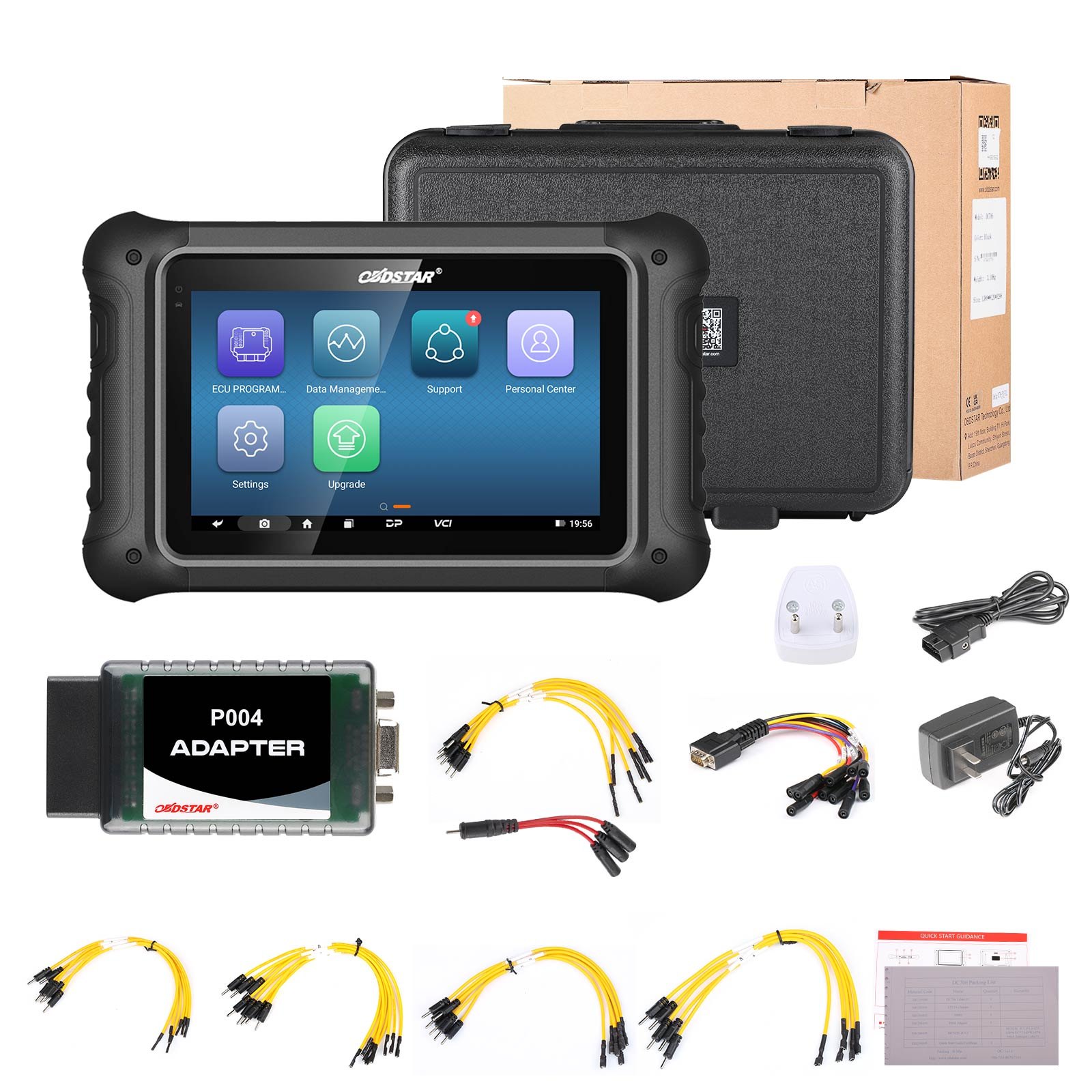

• OBDSTAR DC706 ECU Tool Full Version and MP001 Programmer Set
• OBDSTAR DC706 Full Version with MP001 Set Highlights:
• Support 710+ ECM types
• Support 120+ other ECU types(AIRBAG, BCM, BSI, CEM, DDM/PDM, DIM, EPS, KeyLess(RFHUB/RFHM), KVM, RFA, SAM...)
• Support motorcycle Delphi MT05, MT05.2, MT05.3 ECU clone
• Support motorcycle BRP ME17.8.5 ECU clone
• Support Piaggio series engine ECU clone(such as MIU G4 (M4G1))
• Support intelligent search by brand, model, part No., ECU manufacturer, MCU controller type
• Please check OBDSTAR DC706 Full Version Support List
• DC706 ECU Tool Full Version supports Indian TATA and Mahindra (Check in V30.41 ECM software)
• Support HP, Fiat IAW 9GF/9GV/7GF/10GF, Simos etc ECU
• MP001 fully supports read/write, clone, data processing functions for automotive, commercial vehicle, new energy vehicle, motorcycle, marine (jet-ski).
• MP001 covers all the function of P003+ and has more SlMOS 18 than P003+ ( because the boot mode of SlMOS 18 is very special and needs more lO ports to be supported, P003+ has 4 lO ports and can't support it), and since MP001 has up to 12 lO ports, it can meet all future ECM requirements.
• OBDSTAR DC706 ECU Tool Full Version Supports ECM & TCM & BODY Clone by OBD or BENCH
• OBDSTAR MP001 programmer Upgraded version of the P002 or P003 or P003+ adapters.
• ECU Clone for Cars and Motorcycles.
• OBDSTAR DC706 ECU Tool Full Version with MP001 Set for Car and Motorcycle ECM & TCM & BODY Clone by OBD or BENCH

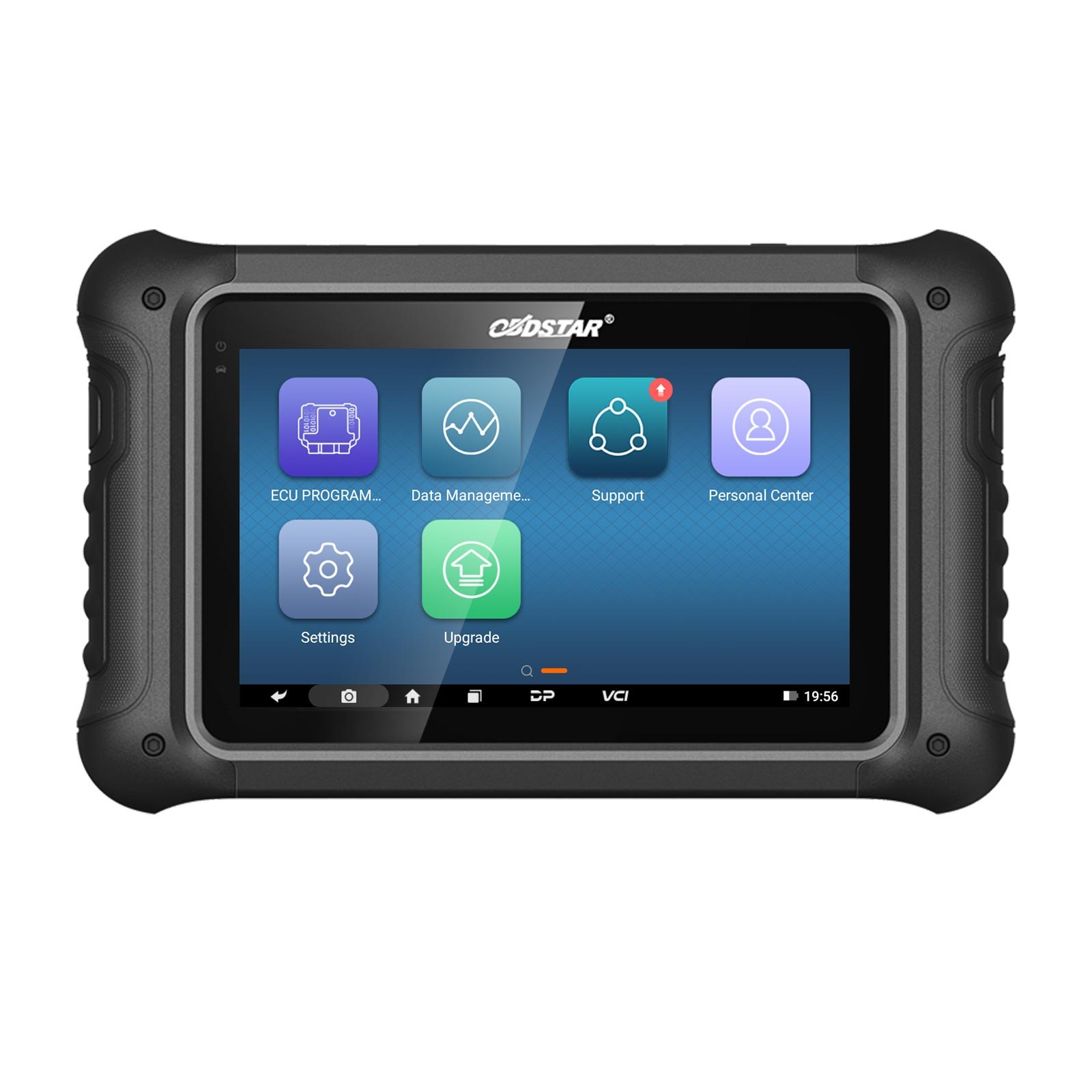

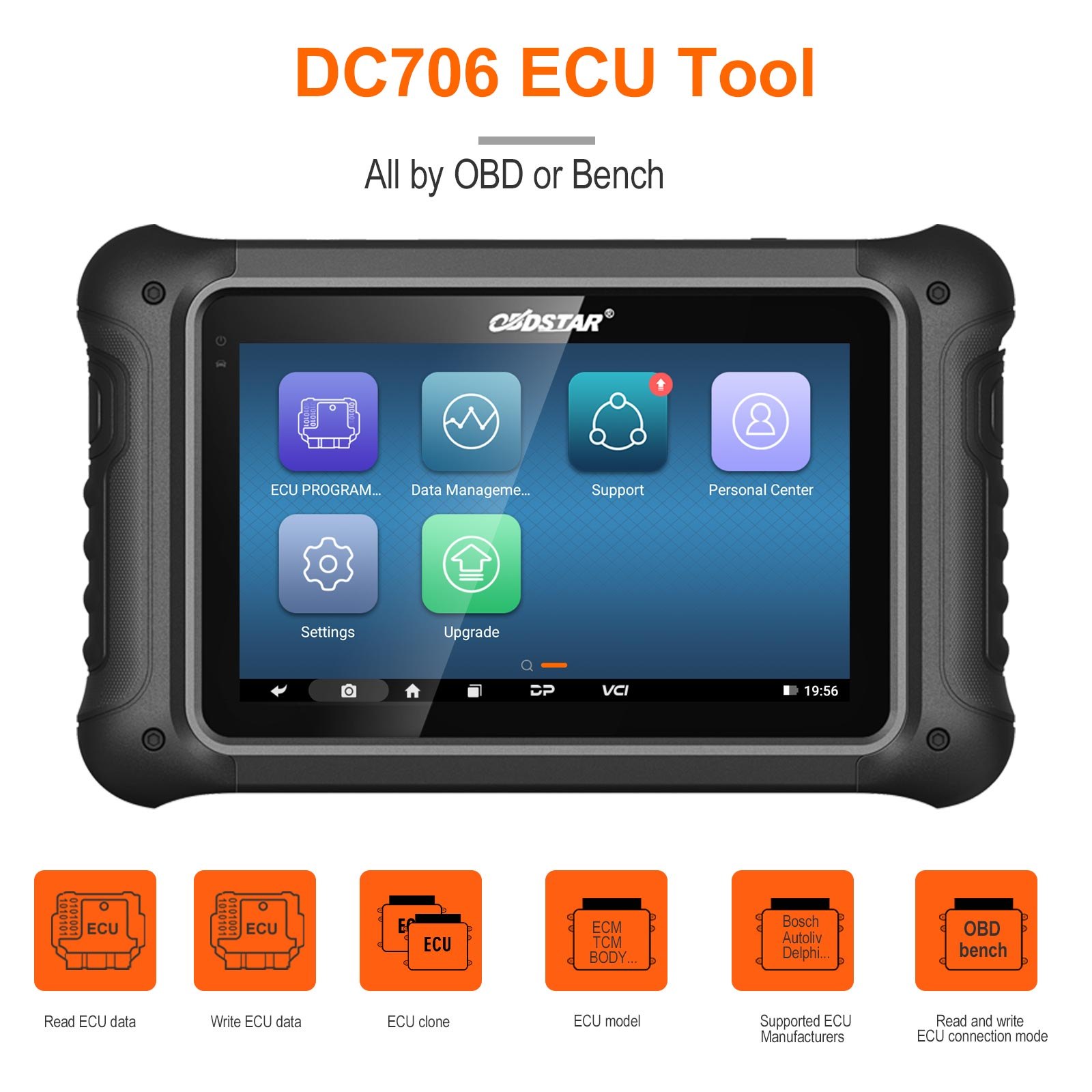

• OBDSTAR DC706 ECU tool is designed for vehicle ECM, TCM and body/other system for ECU flasher. It can read ECU info, R/W Eeprom/Dflash/Pflash/MAP, reset ECU(Virgin), calibrate mileage, read IMMO pincode, ECU recovery... It's all by OBD or bench mode and makes ECU cloning easy.
• With MP001 Set to read/write Simos 18 or more ECUs.
• Not support DQ250 before Year 2008 with the old protocol
• OBDSTAR VW 7-in-1 TCM Kit supports ECU clone, Read/Write MAP, Diag, Cluster Calibration and other functions for VW, AUDI automatic transmission. It's all by OBD or bench mode and no need to take off the TCM of the car, easy to use.
• OBDSTAR TCM Connectors use for transmission mileage calibration and ECU cloning functions, no jumper connection required, one click read/write, easy to use, time saving and safe.
• OBDSTAR C4-07(MB-VGS4-0-NAG2) Adapter Kit Full Configuration Support all vehicles with VGS4-0 NAG2 7G-Tronic TCU of the FBS4/DAS4 generation Mercedes-Benz; Support solder-free virginizing of used TCM via JTAG mode; Support personalization (data transfer) via BENCH or OBD mode, achieving the same effect as TCM clone.
• OBDSTAR C4-08 (MB-VGS4-500-NAG2) Adapter Kit Support solder-free virginizing of used TCM via JTAG mode and personalization (data transfer) via BENCH or OBDmode, achieving the same effect as TCM clone.
• OBDSTAR C4-09 (MB91F526) Adapter Kit Read/ Write FLASH, DFLASH and immobilizer data decryption.

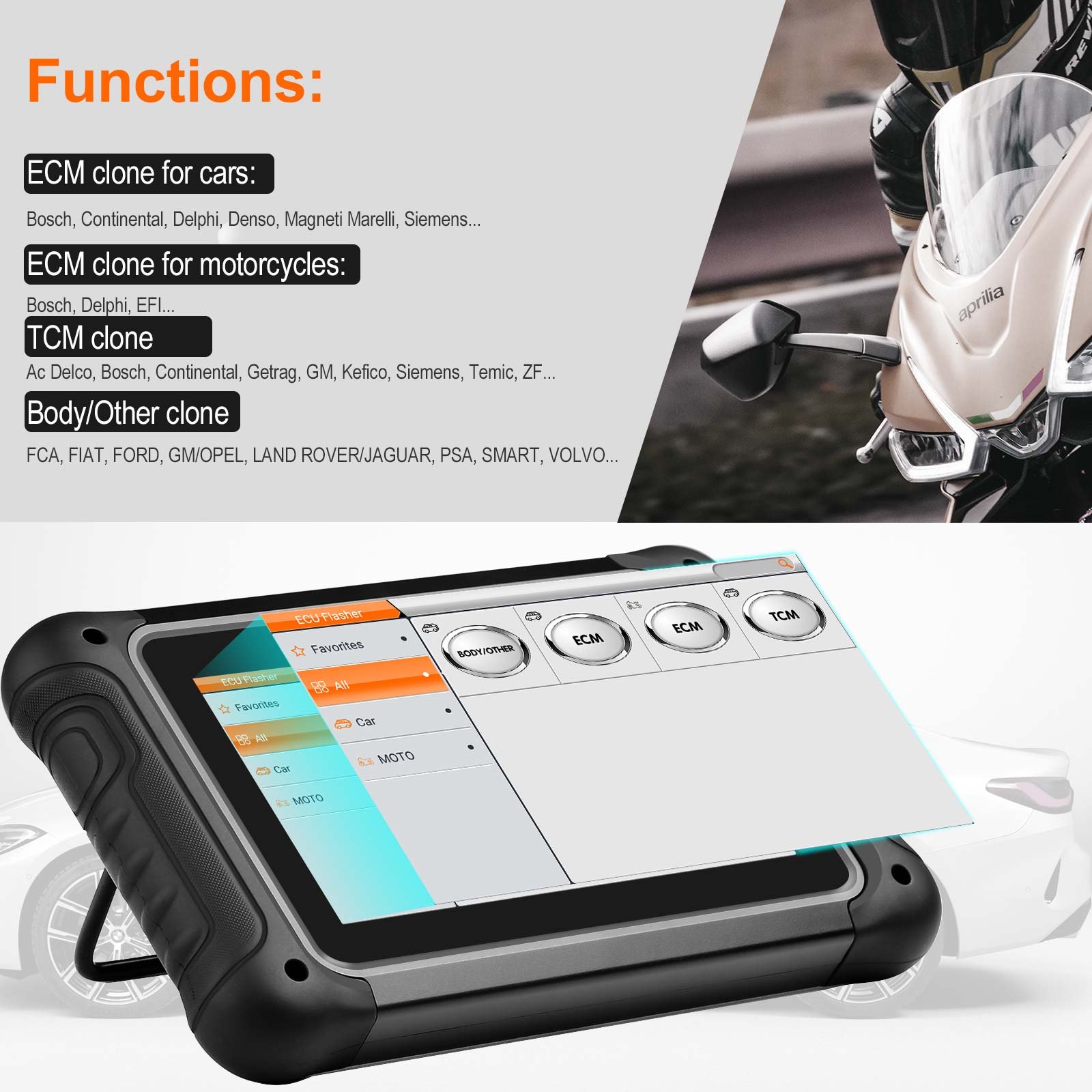

• ECM clone for cars (Bosch, Continental, Delphi, Denso, Magneti Marelli, Siemens...)
• ECM clone for motorcycles (Bosch, Delphi, EFI...)
• Main Page/Brand Supported

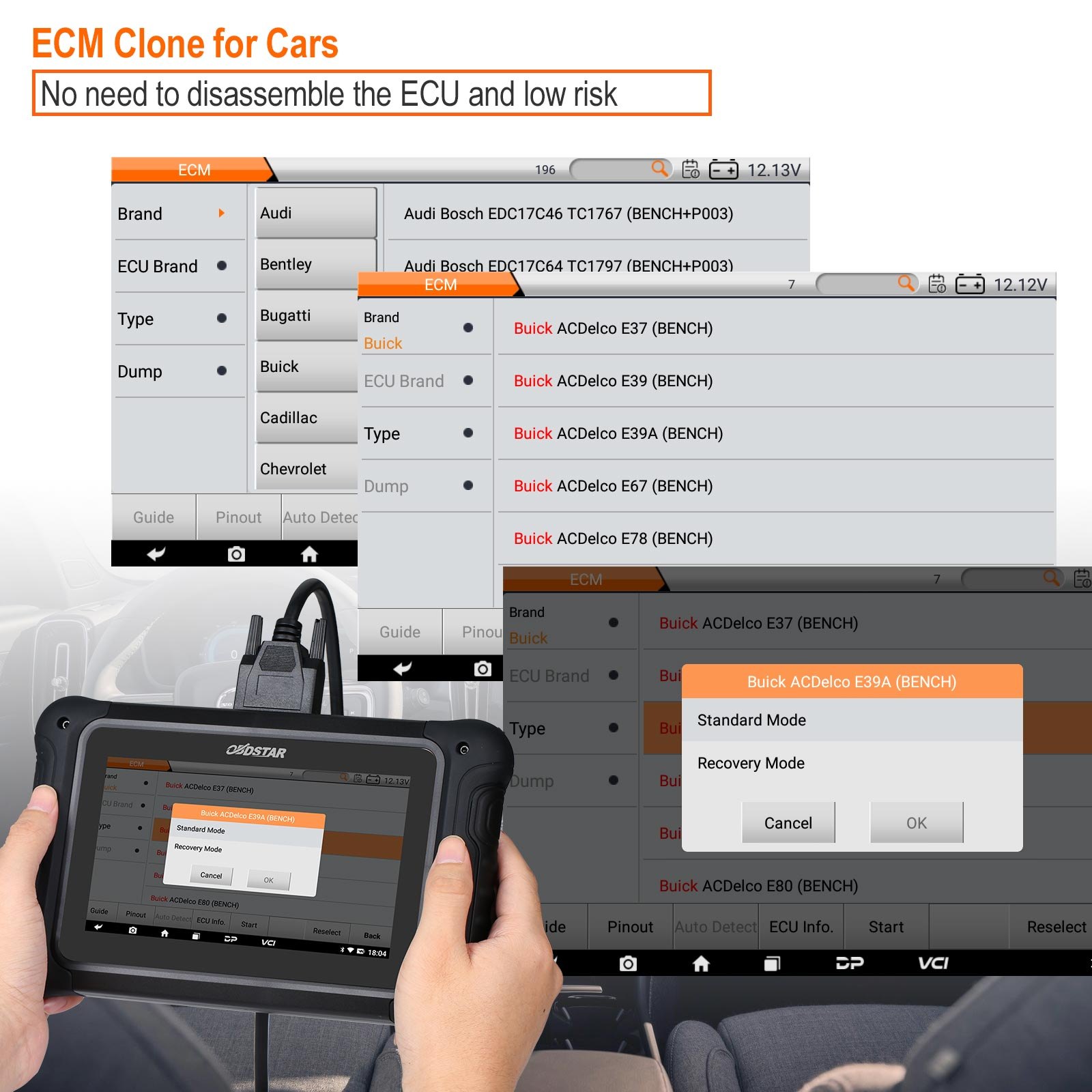

• ECM Clone for Cars

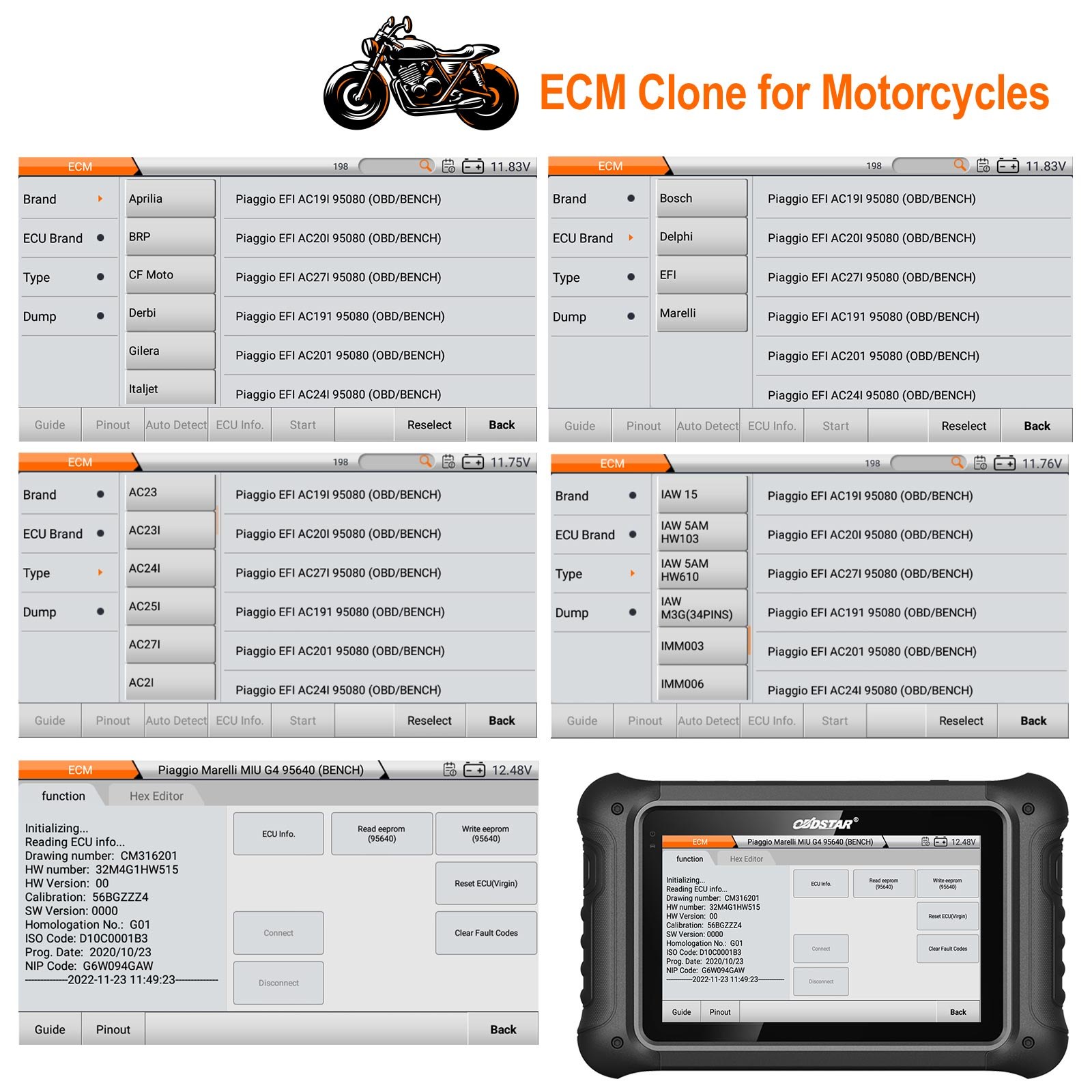

• ECM Clone for Motorcycles

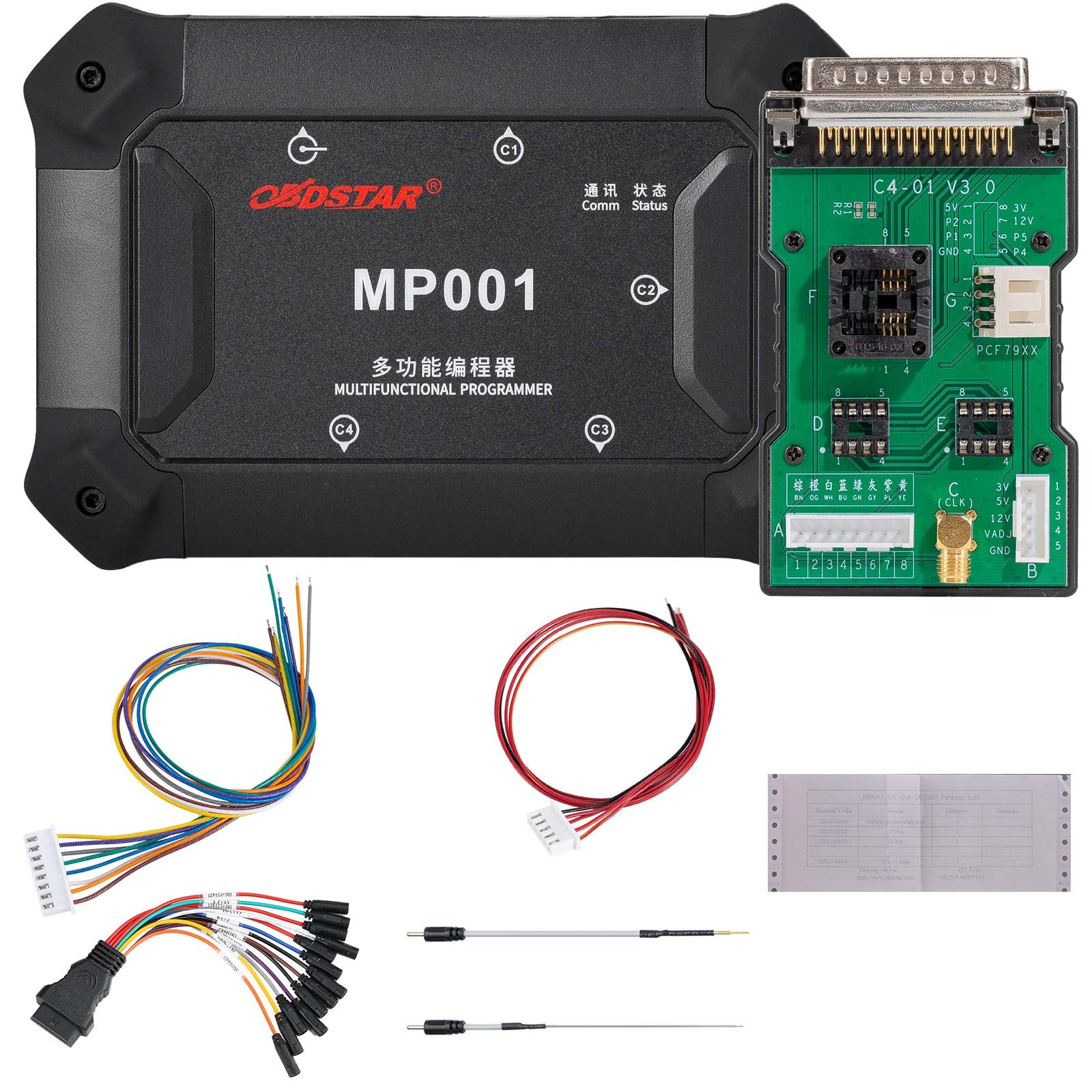

• OBDSTAR MP001 Set（MP001 Programmer+C4-01Host + W004/W005/W006/ECU Bench Jumper Advantages:

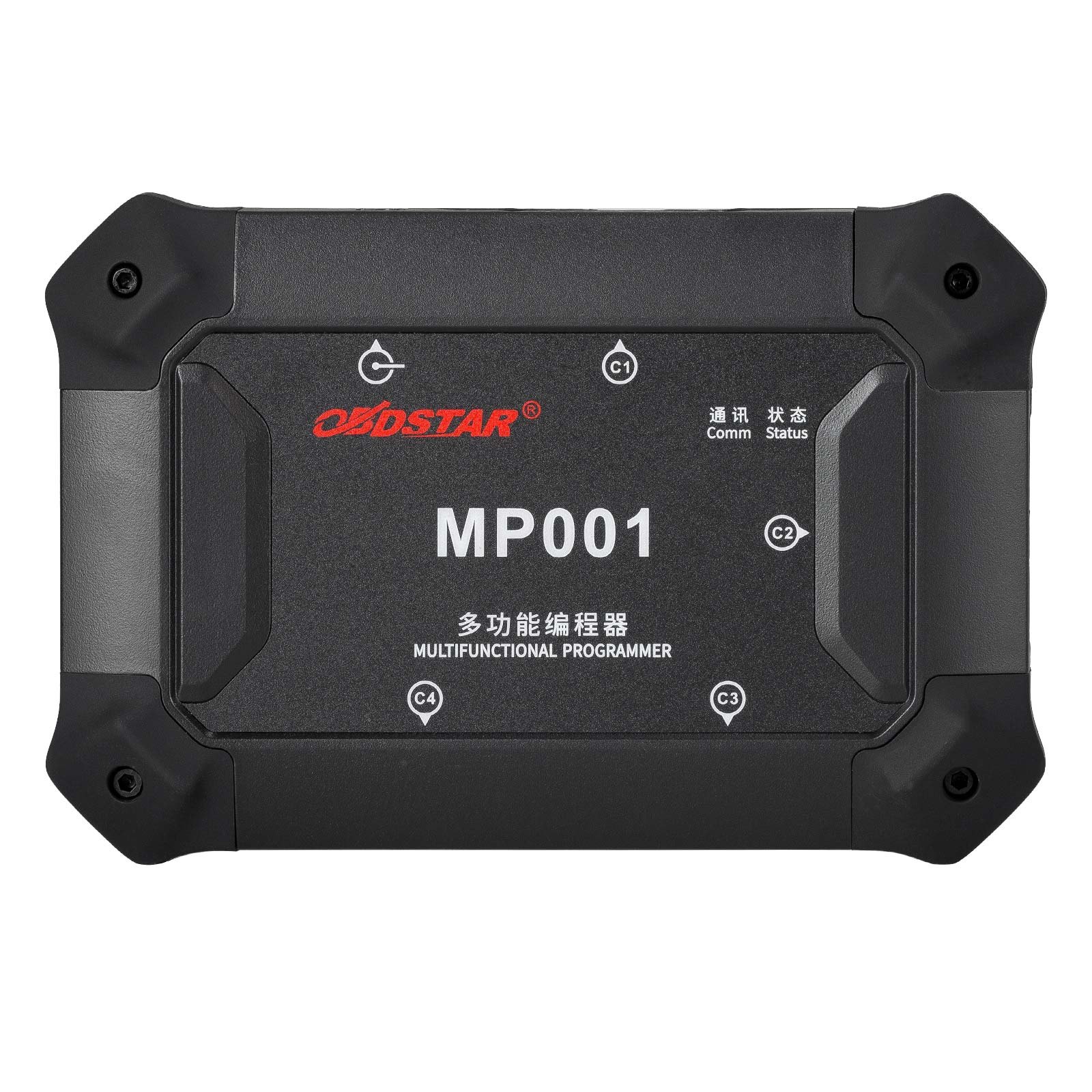

• MP001 is the latest multifunctional programmer developed by OBDSTAR, which fully supports read/write, clone, data processing functions for automotive, commercial vehicle, new energy vehicle, motorcycle, marine (jet-ski).
• MP001 covers all the function of P003+ and has more SlMOS 18 than P003+( because the boot mode of SlMOS 18 is very special and needs more lO ports to be supported, P003+ has 4 lO ports and can't support it), and since MP001 has up to 12 lO ports, it can meet all future ECM requirements.
• Following Models Can be Supported by MP001 Only
• BRAND
• ECU BRAND
• TYPE
• SIMOS18.10
• TC1791
• MP001
• EMS3120
• TC1738
• EMS3125
• TC1782
• 5F27E
• MH8104F
• Key flashing
• Battery module repair
• Different tablet device models require different configuration software.

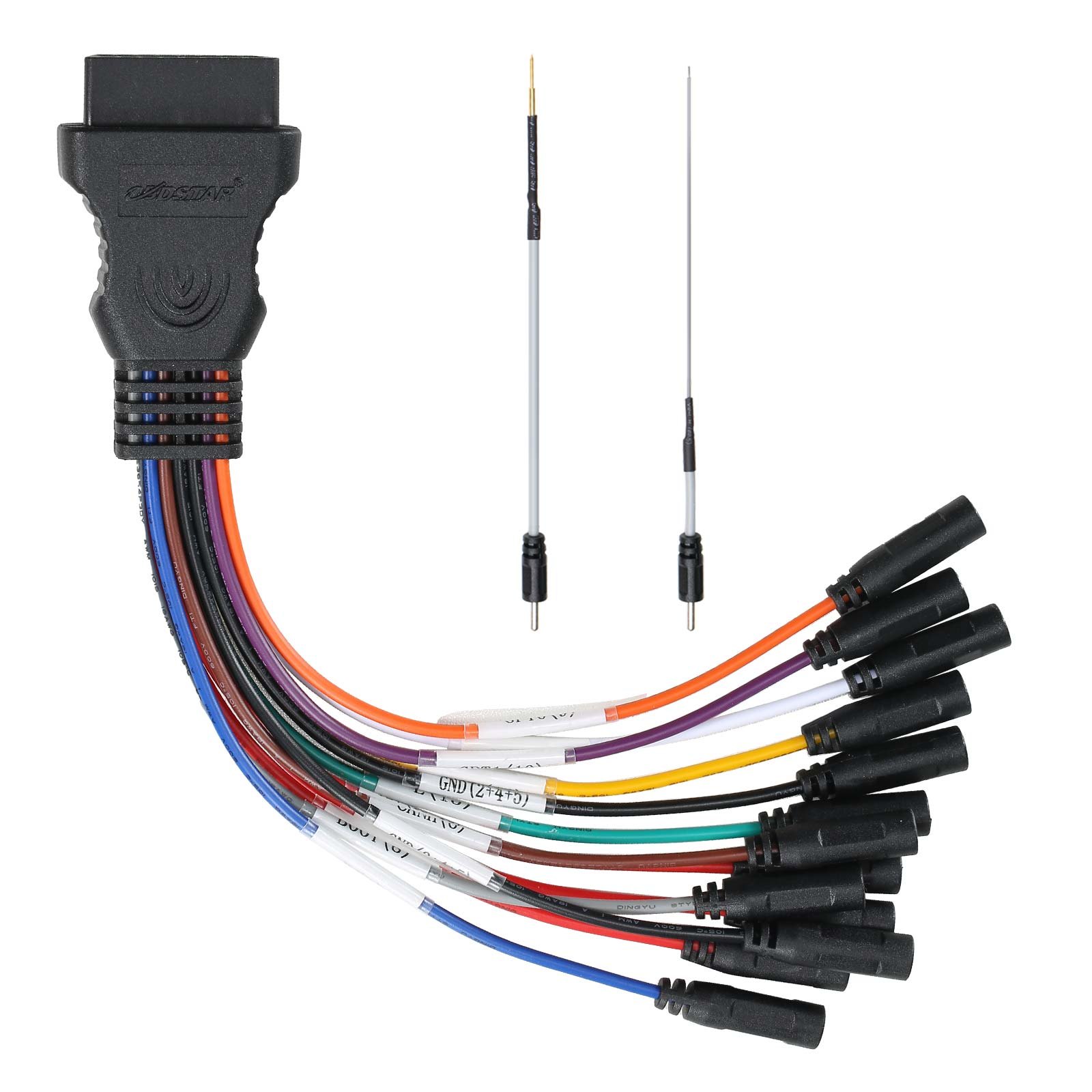

• To use MP001 programmer, you must have ECU bench jumper cables, come with the package by default
• ME17.3.0
• TC1724N
• P003/P003+/MP001
• EDC17CV54
• TC1767
• EDC16C39
• MPC561(2)+M58BW016D(F)B
• P003+/MP001
• EDC16C8
• MPC556+AM29BL802C
• EDC17C49
• TC1797
• EDC17C69
• TC1793
• MED17.3.1
• TC1766
• MED17.3.3
• MED17.3.5
• EDC17CP02
• EDC17CP45
• MEVD17.2.6 FXX
• MEVD17.2.8
• MEVD17.2.G
• MG1CS201
• TC298TP
• ME17.8.31
• MED17.7.5
• EDC16CP34
• MPC563(4)
• EDC16U31
• MPC561(2)
• EDC16U34
• EDC17C46
• EDC17C64
• EDC17C74
• TC1793S
• EDC17CP04
• TC1796

Bench and OBD cloning cover both routes, which matters when a module will not respond through the port.
