OBDSTAR DC706 ECU Tool Full Version Plus P003+ Adapter and ECU Bench Cables for Reading BOSCH ECU Data CS PINCODE ECU Clone/ All by OBD or Bench

An OBDSTAR DC706 ECU tool in full version supplied with the P003+ adapter and ECU bench cables, for reading Bosch ECU data, CS pincode and ECU cloning either through OBD or on the bench. The distributor code is 0086A002.

Specifications

• Our Distributor Code: 0086A002

What you get

• OBDSTAR DC706 ECU Tool Full Version and P003+ KIT
• Support 710+ ECM types(Partial functions require P003+ adapter.)
• Support 120+ other ECU types(AIRBAG, BCM, BSI, CEM, DDM/PDM, DIM, EPS, KeyLess(RFHUB/RFHM), KVM, RFA, SAM...)
• Support motorcycle Delphi MT05, MT05.2, MT05.3 ECU clone
• Support motorcycle BRP ME17.8.5 ECU clone (works with P003+ adapter)
• Support Piaggio series engine ECU clone(such as MIU G4 (M4G1))
• Support intelligent search by brand, model, part No., ECU manufacturer, MCU controller type
• Please check OBDSTAR DC706 Full Version Support List

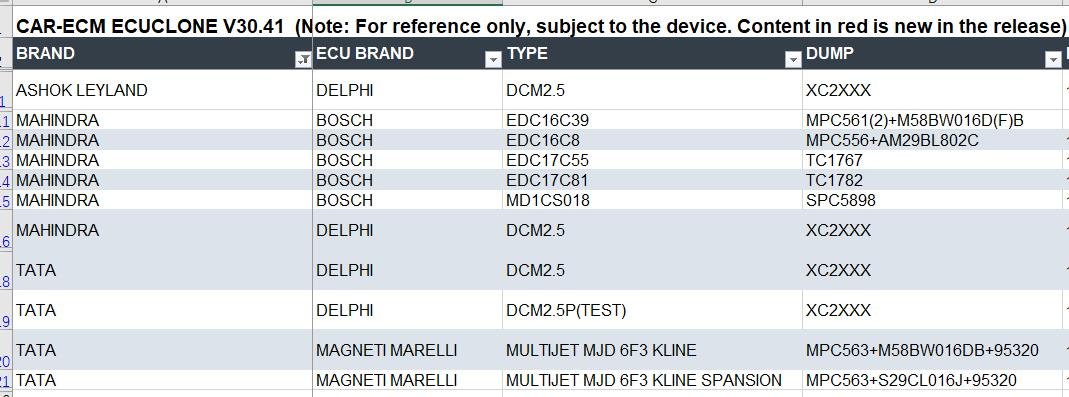

• DC706 ECU Tool Full Version supports Indian TATA and Mahindra (Check in V30.41 ECM software)
• Support HP, Fiat IAW 9GF/9GV/7GF/10GF, Simos etc ECU (Partial functions require P003+ adapter.)
• OBDSTAR VW 7-in-1 TCM Kit supports ECU clone, Read/Write MAP, Diag, Cluster Calibration and other functions for VW, AUDI automatic transmission. It's all by OBD or bench mode and no need to take off the TCM of the car, easy to use.
• OBDSTAR TCM Connectors use for transmission mileage calibration and ECU cloning functions, no jumper connection required, one click read/write, easy to use, time saving and safe.

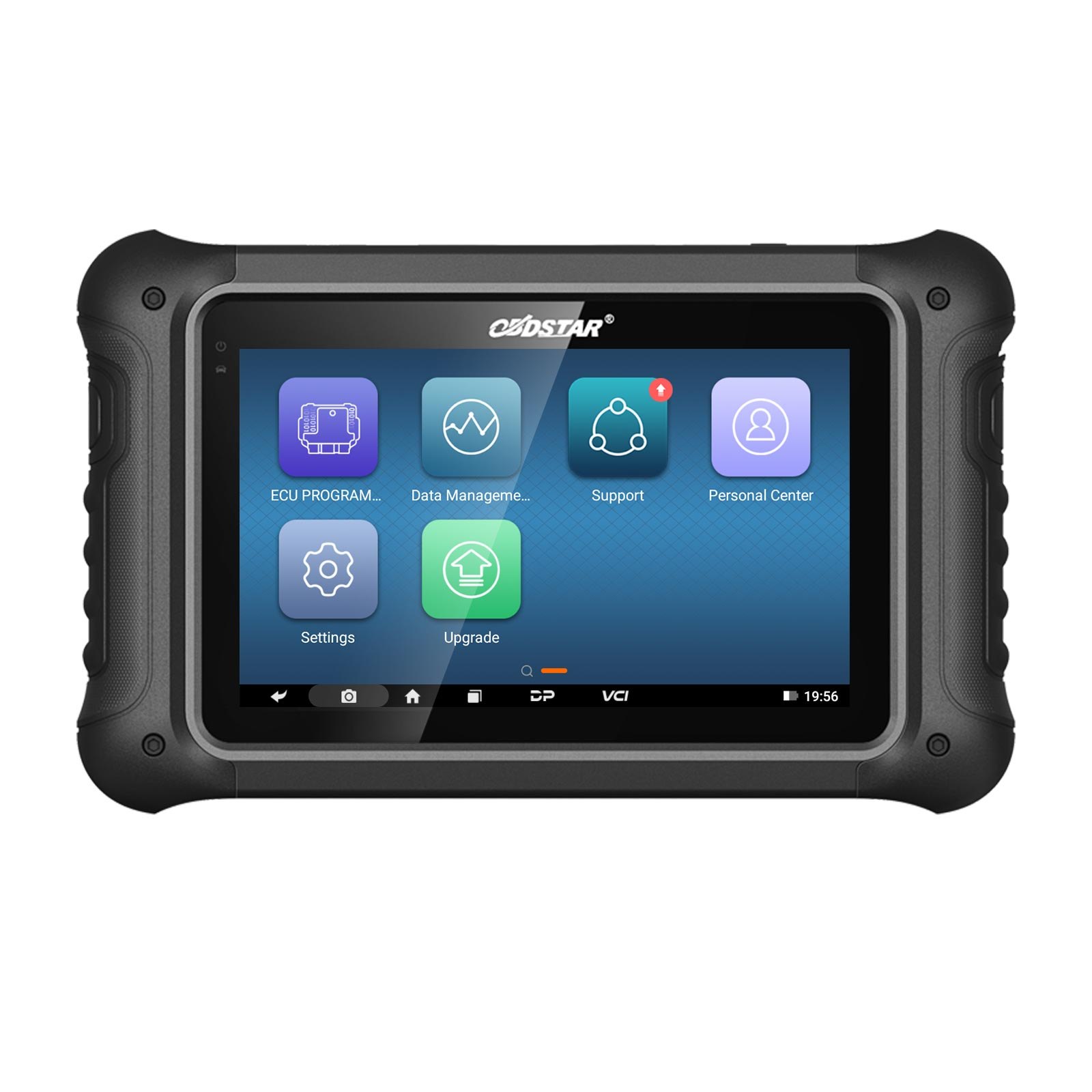

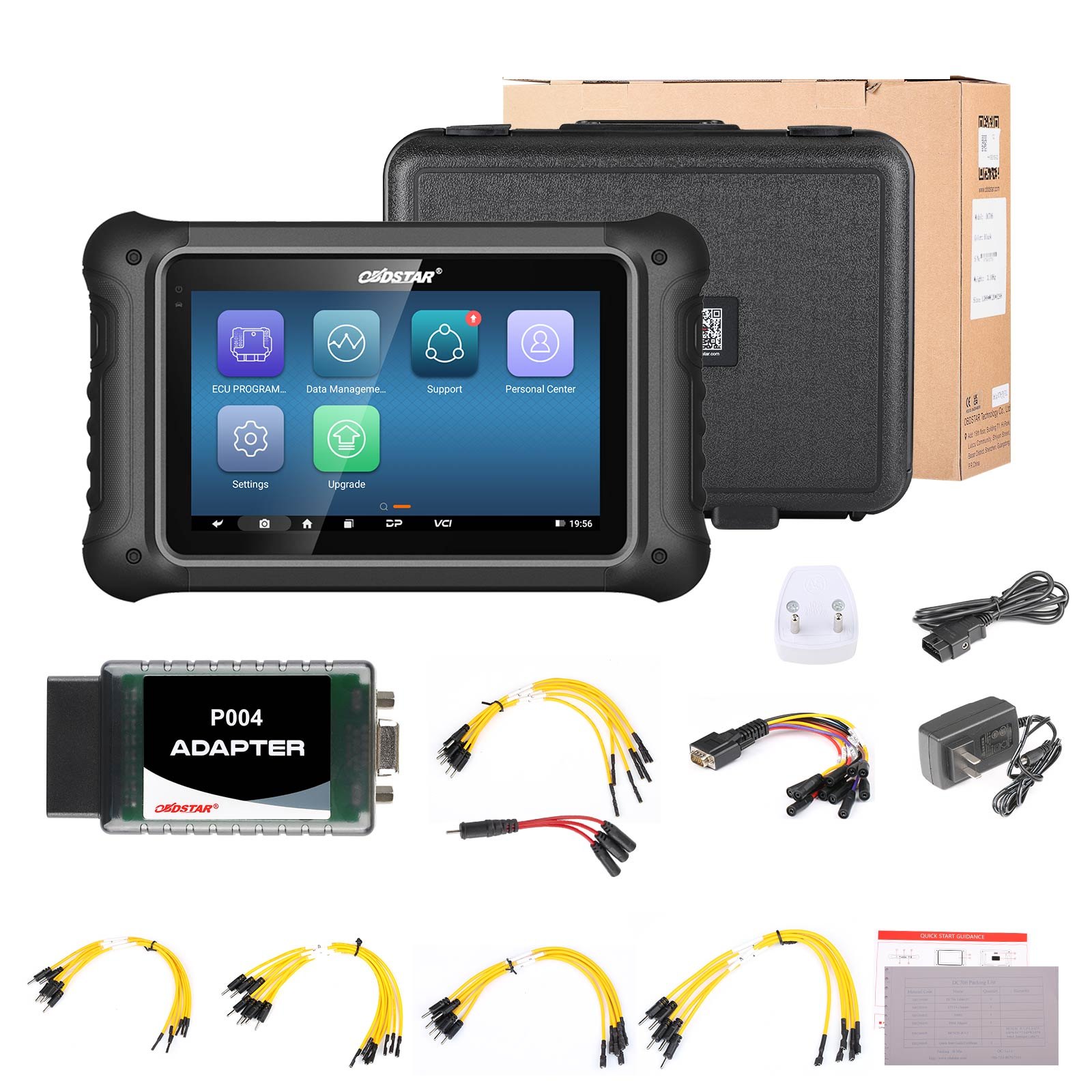

• 1pc x DC706 tablet PC
• 1pc x 12V2A charger
• 1pc x M001
• 1pc x P004 adapter
• 1pc x BENCH-B V2 Cable Set
• 1pc x Quick start guide/certificate

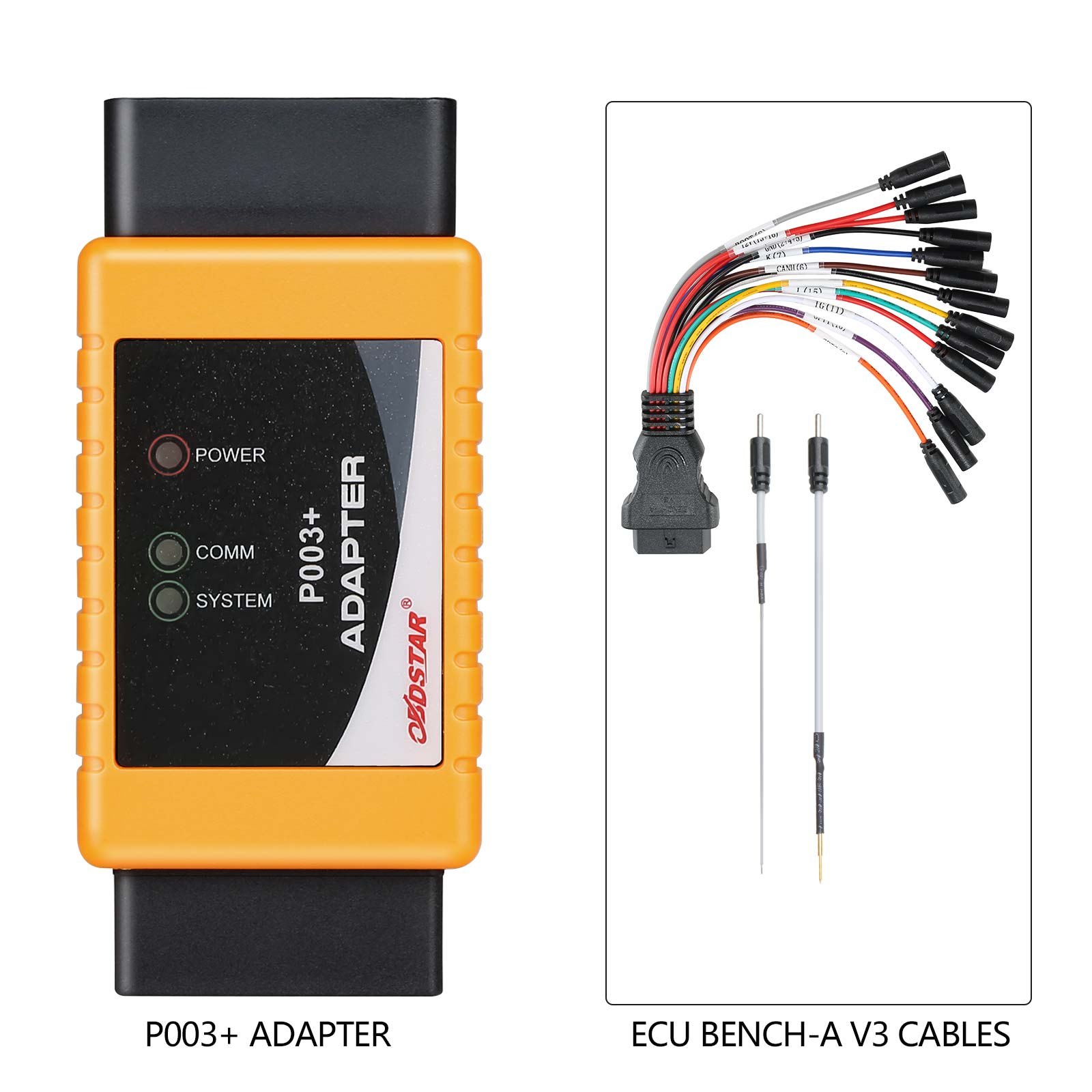

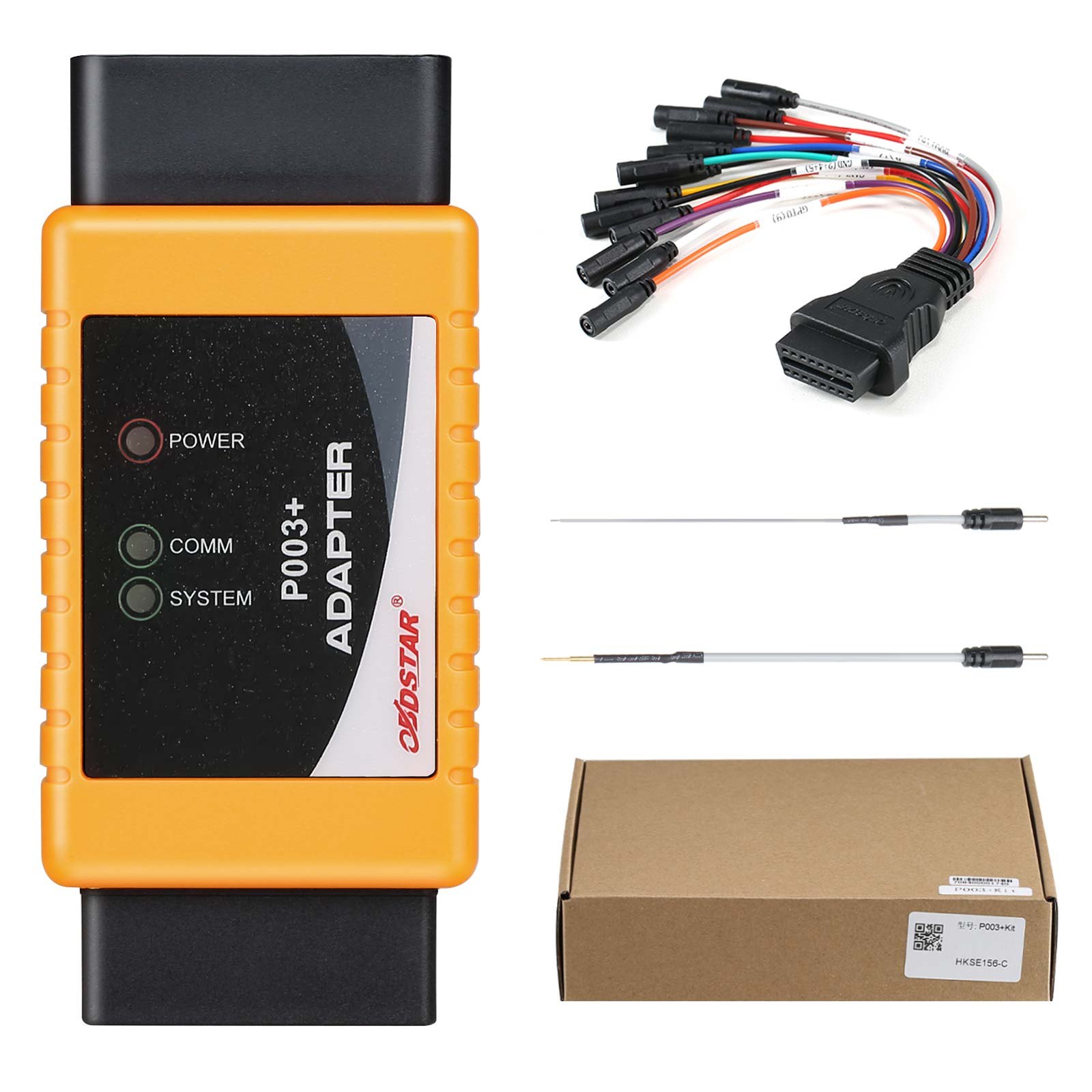

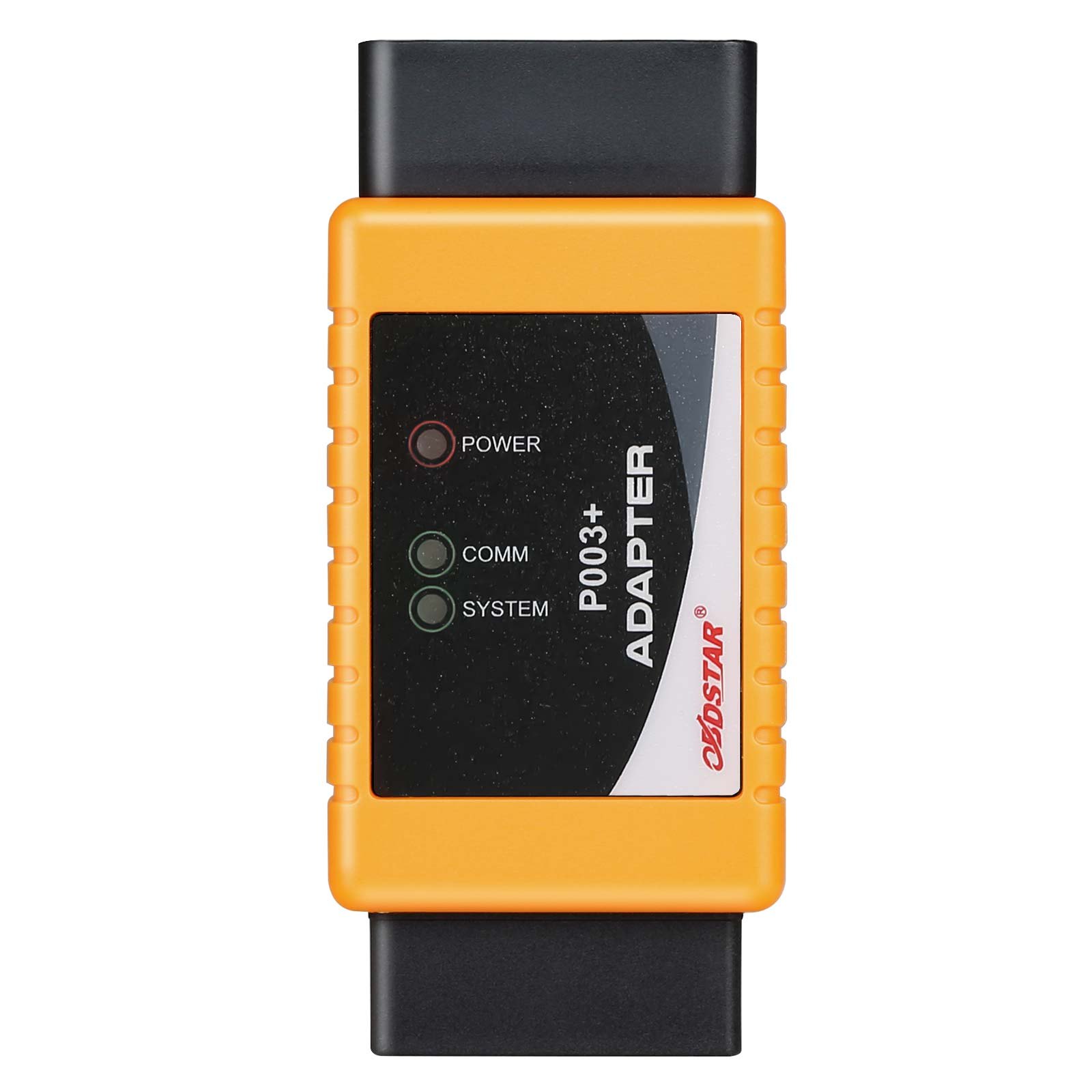

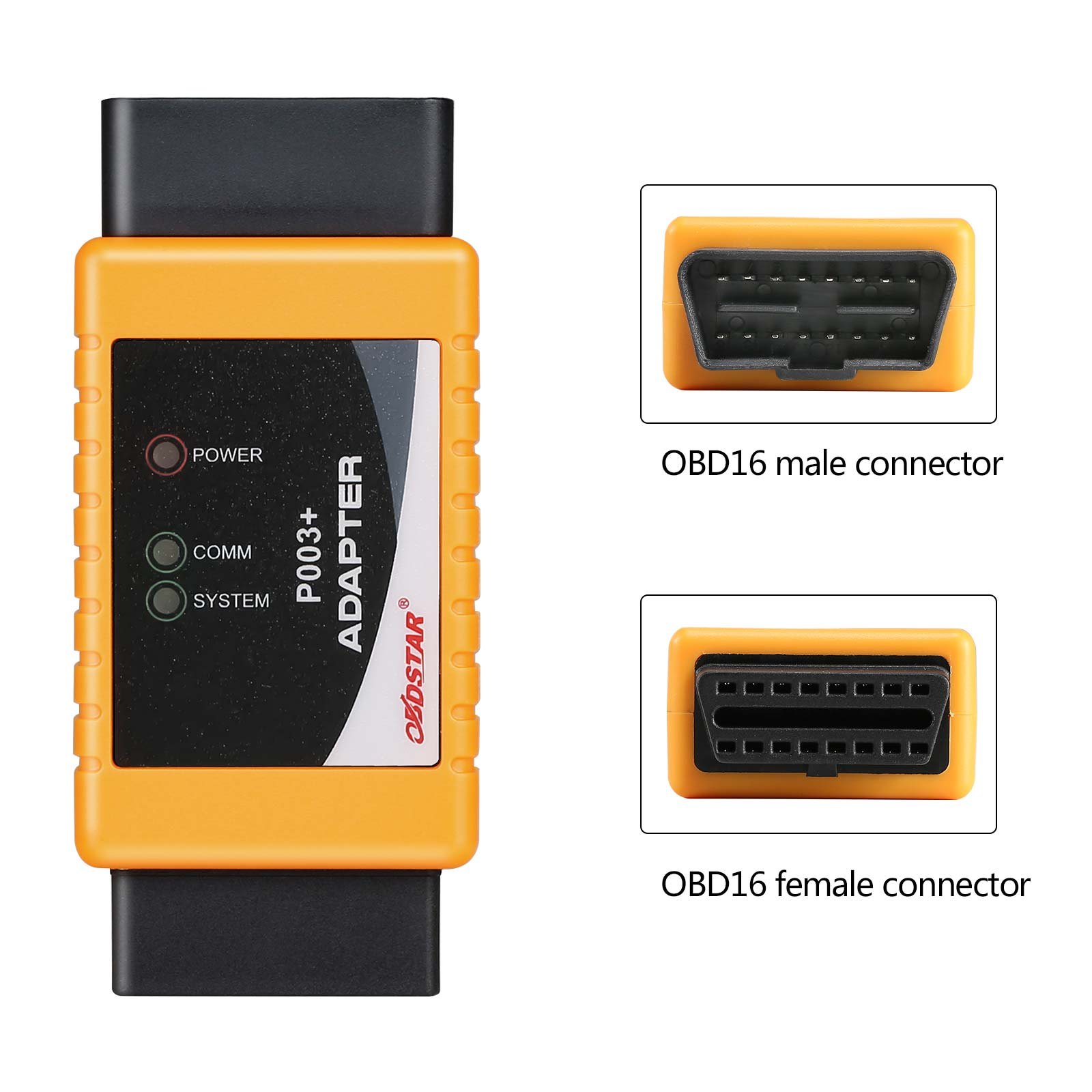

• 1pc x OBDSTAR P003+ adapter
• 1pc x ECU BENCH jumper
• OBDSTAR DC706 VW DQ500 TCM READ WRITE BY BENCH
• OBDSTAR DC706 HYUNDAI TC60 TCM READ WRITE BY BENCH
• OBDSTAR DC706 Read and Write VW 7GV ECU on Bench
• OBDSTAR DC706 Read and Write VW 9GV ECM Read IMMO data
• OBDSTAR DC706 Read and Write BMW MSV90 on bench
• OBDSTAR DC706 ECU Tool Full Version Plus P003+ Adapter and ECU Bench Cables for Reading BOSCH ECU Data CS PINCODE
• OBDSTAR DC706 ECU Tool Full Version Plus P003+ Adapter and ECU Bench Cables

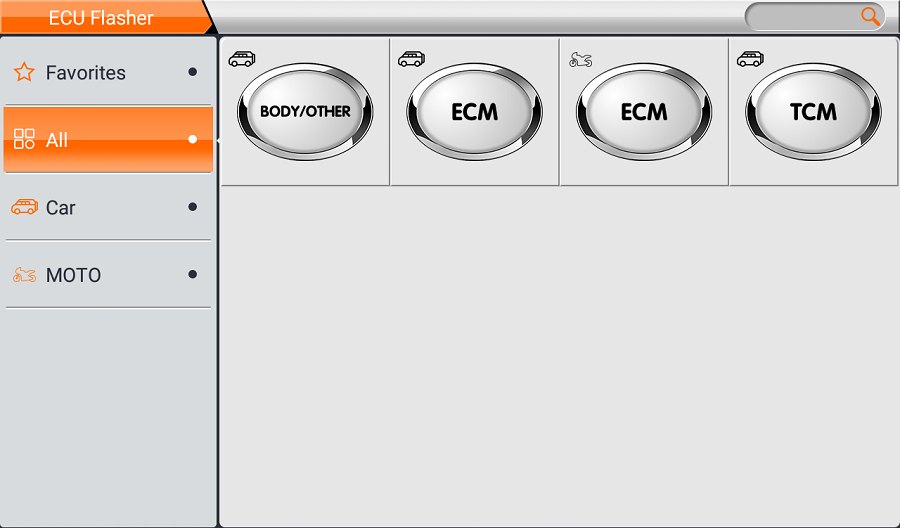

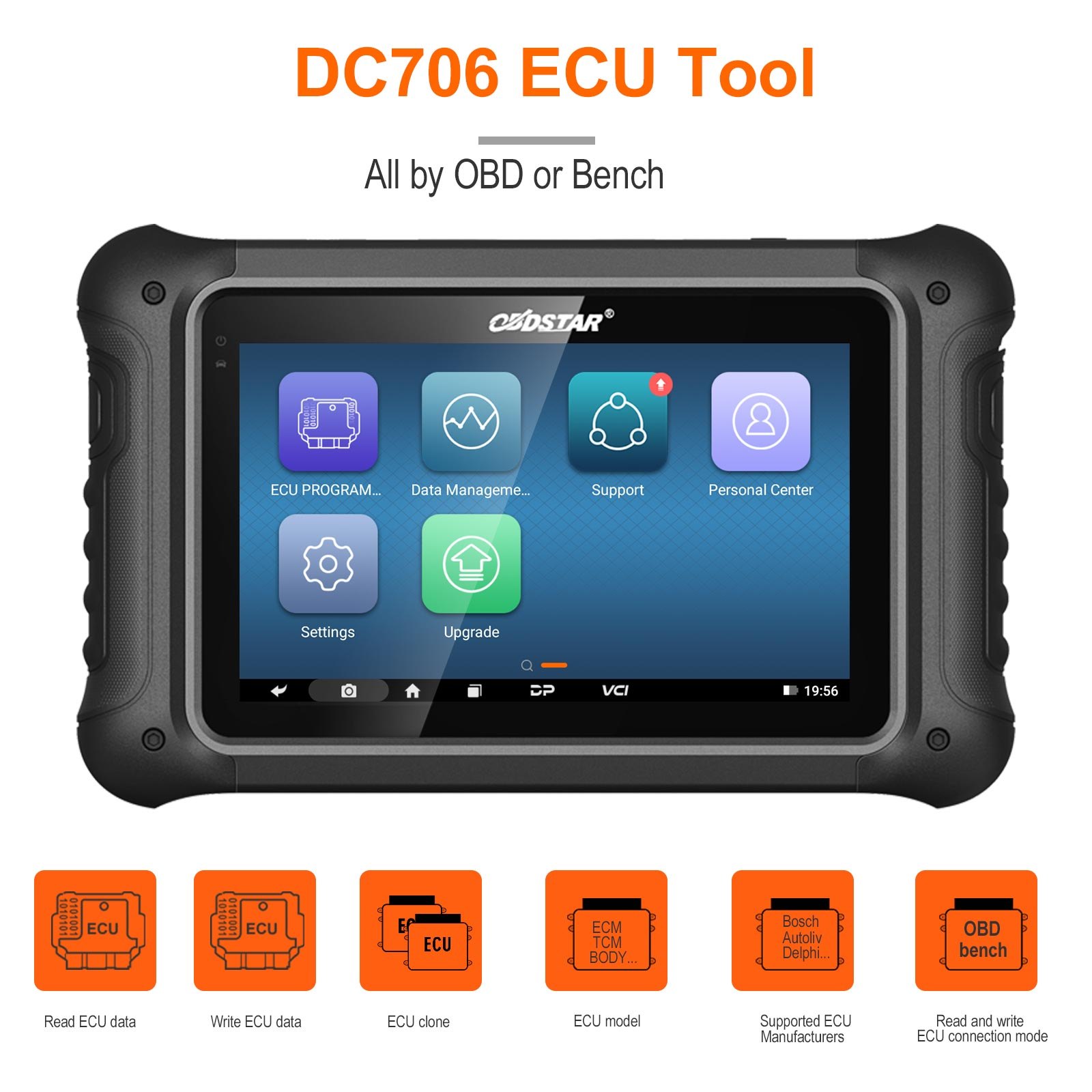

• OBDSTAR DC706 ECU tool is designed for vehicle ECM, TCM and body/other system for ECU flasher. It can read ECU info, R/W Eeprom/Dflash/Pflash/MAP, reset ECU(Virgin), calibrate mileage, read IMMO pincode, ECU recovery... It's all by OBD or bench mode and makes ECU cloning easy.
• OBDSTAR P003+ KIT supports reading and writing ECU eeprom & flash data and caculating IMMO data of BOSCH ME17XX, MED17XX, EDC17XX & CONTINENTAL PCR2.1 for VW/Skoda/Audi/Seat, Bentley, Peugeot/Citroen/DS, Lamborghini, Porsche, Mahindra etc. Supports the following models require a higher frequency clock during the decryption process(ME9.0, MED9.1,MED9.6.1, ME9.6.1, MED9.5.10,EDC16C39, EDC16CP35, EDC16C8)
• Not support DQ250 before Year 2008 with the old protocol

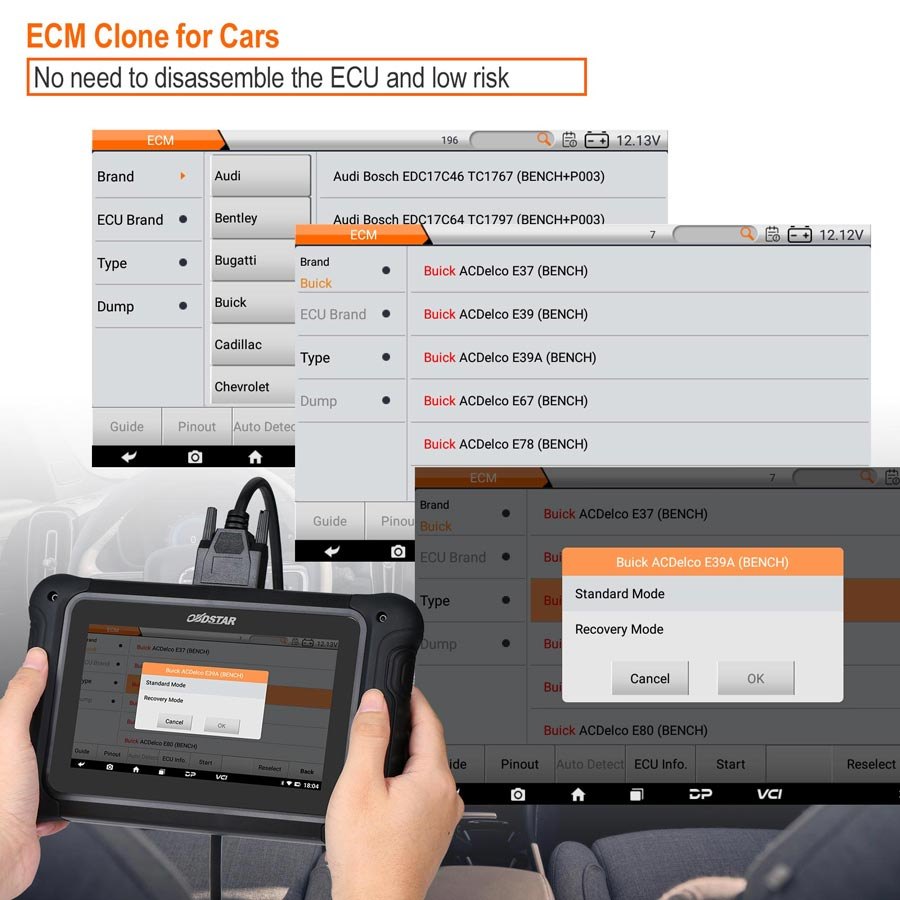

• ECM clone for cars (Bosch, Continental, Delphi, Denso, Magneti Marelli, Siemens...)
• ECM clone for motorcycles (Bosch, Delphi, EFI...)
• OBDSTAR DC706 Supported ECU Manufacturers:
• Continental PCR 2.1 reading CS, PinCode, MAC valueP003 KIT
• Bosch MED17.4.4 reading eeprom, PinCodeP003 KIT
• Bosch EDC17C60 reading eeprom, PinCodeP003 KIT
• Bosch MD1CS018 reading eeprom, PinCodeP003 KIT
• Bosch MED17XX/EDC17XX reading eeprom, flash, CS, PinCode, MAC value
• Bosch ME17XX reading & writing eeprom, flash
• T87A, 6HP reading & writing TCM eeprom, flash
• Supports the following models require a higher frequency clock during the decryption process(ME9.0, MED9.1,MED9.6.1, ME9.6.1, MED9.5.10,EDC16C39, EDC16CP35, EDC16C8)
• OBDSTAR P003 KIT is required when you read and write 6HP, 9GF, 10GF, Simos etc ECUs on bench.
• ALPINA BOSCH MEVD17.2.6 TC1797 (BENCH+P003)
• AUDI CONTINENTAL SIMOS12.2 TC1797 (BENCH+P003)
• AUDI CONTINENTAL SIMOS8.5X TC1796 (BENCH+P003)
• AUDI CONTINENTAL SIMOS8.6X TC1796 (BENCH+P003)
• BMW BOSCH MEVD17.2.6 TC1797 (BENCH+P003)
• FORD BOSCH MED17.0 TC1767 (BENCH+P003)
• FORD BOSCH MEDG17.0 TC1797 (BENCH+P003)
• GEELY BOSCH MED17.8.10 HW2 TC1728 (BENCH+P003)
• PORSCHE CONTINENTAL SIMOS8.5X TC1796 (BENCH+P003)
• SEAT CONTINENTAL SIMOS12.2 TC1797 (BENCH+P003)
• GREATWALL BOSCH MED17.8.10 HW2 TC1728 (BENCH+P003)
• VOLKSWAGEN(VW) CONTINENTAL SIMOS12.2 TC1797 (BENCH+P003)
• VOLKSWAGEN(VW) CONTINENTAL SIMOS8.5X TC1796 (BENCH+P003)
• HYUNDAI BOSCH ME17.9.11.1 TC1766 (BENCH+P003)
• VW/Audi/Skoda/Seat BOSCH MED17.5 TC1766 (BENCH+P003)
• KIA BOSCH ME17.9.11.1 TC1766 (BENCH+P003)
• Audi Bosch MED17.1.6 TC1797 (Bench +P003)
• Audi Bosch MED17.5.2 TC1767 (Bench +P003)
• Bentley Bosch MED17.1.6 TC1797 (Bench +P003)
• Porsche Bosch MED17.1.6 TC1797 (Bench +P003)
• Seat Bosch MED17.1.6 TC1797 (Bench +P003)
• Seat Bosch MED17.5.2 TC1767 (Bench +P003)
• Skoda Bosch MED17.5.2 TC1767 (Bench +P003)
• Skoda Bosch MED17.1.6 TC1797 (Bench +P003)
• VW Bosch MED17.5.2 TC1767 (Bench +P003)
• VW Bosch MED17.1.6 TC1797 (Bench +P003)
• Audi/VW/Seat Bosch MED17.5.1 TC1796 (Bench +P003)
• Fiat Magneti Merelli IAW 7GF Kline MPC5534+95640 (Bench +P003)
• Fiat/Lanica Magneti Merelli IAW 9GF CAN MPC5642+95640 (Bench +P003)
• Ford Magneti Merelli IAW 9GF CAN MPC5642+95640 (Bench +P003)
• Hyundai/Kia Bosch ME17.9.11 TC7966 (Bench +P003)
• Jeep Magneti Merelli IAW 9GF CAN MPC5642+95640 (Bench +P003)
• Jeep/ Fiat/VW Magneti Merelli IAW 10GF CAN MPC5642+95640 (Bench +P003)
• Fiat Magneti Merelli IAW 7GF CAN MPC5534+95640 (Bench +P003)
• VW Magneti Merelli IAW 9GF CAN MPC5634+95320(Bench +P003)
• OBDSTAR DC706 ECU Tool Latest Update Information:
• MOTORCYCLE ECU FLASHER UPGRADE [V30.04]
• ROYAL ENFIELD BOSCH ME17.9.71 TC1724N (BENCH+P003)
• CFMOTO BOSCH ME17U6 TC1728 (BENCH+P003)
• KTM BOSCH ME17.9.21.1 TC1724N (BENCH+P003)

The bench cables are what make the P003+ worth having over the plain adapter on its own.
