GODIAG GT105 ECU IMMO Kit Plus GT107 DSG Gearbox Data Read/Write Adapter for DQ250, DQ200, VL381, VL300, DQ500, DL501

The GODIAG GT105 ECU IMMO kit with the GT107 DSG gearbox data read and write adapter. It covers the DQ250, DQ200, VL381, VL300, DQ500 and DL501 gearboxes, listed with a jumper cable, the GT105 alone or both together.

What you get

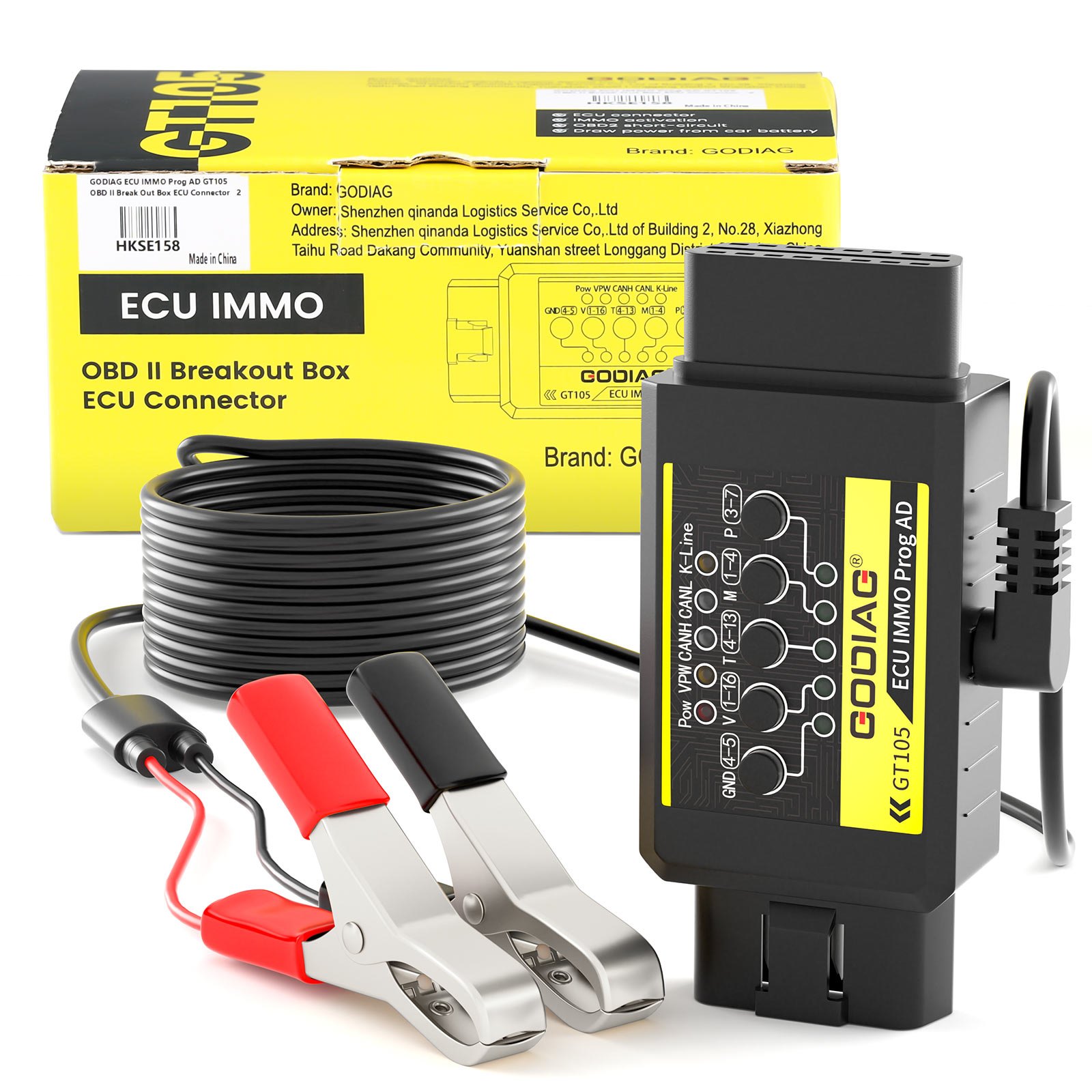

• 1pc x Godiag ECU IMMO Prog AD
• 1pc x DSG Adapter
• 1pc x Power Cord with Battery Clip
• 1pc x Probe
• Kess V2 with GODIAG GT107 Read DQ250 DSG Gearbox
• PCMTuner DQ200(OAM) DSG Gearbox Reading with GODIAG GT105/GT107 Adapter
• GODIAG ECU IMMO Kit GT107 DSG Gearbox Data Read/Write Adapter Plus GT105 ECU IMMO Prog AD
• Work for DQ250, DQ200, VL381, VL300, DQ500, DL501
• Compatible with Kess V2, PCMFlash, KTMBench etc
• Godiag ECU IMMO Kit GT107 DSG Gearbox Data Read/Write Adapter Plus GT105 ECU IMMO Prog AD for Kess V2 PCMFlash KTMBench

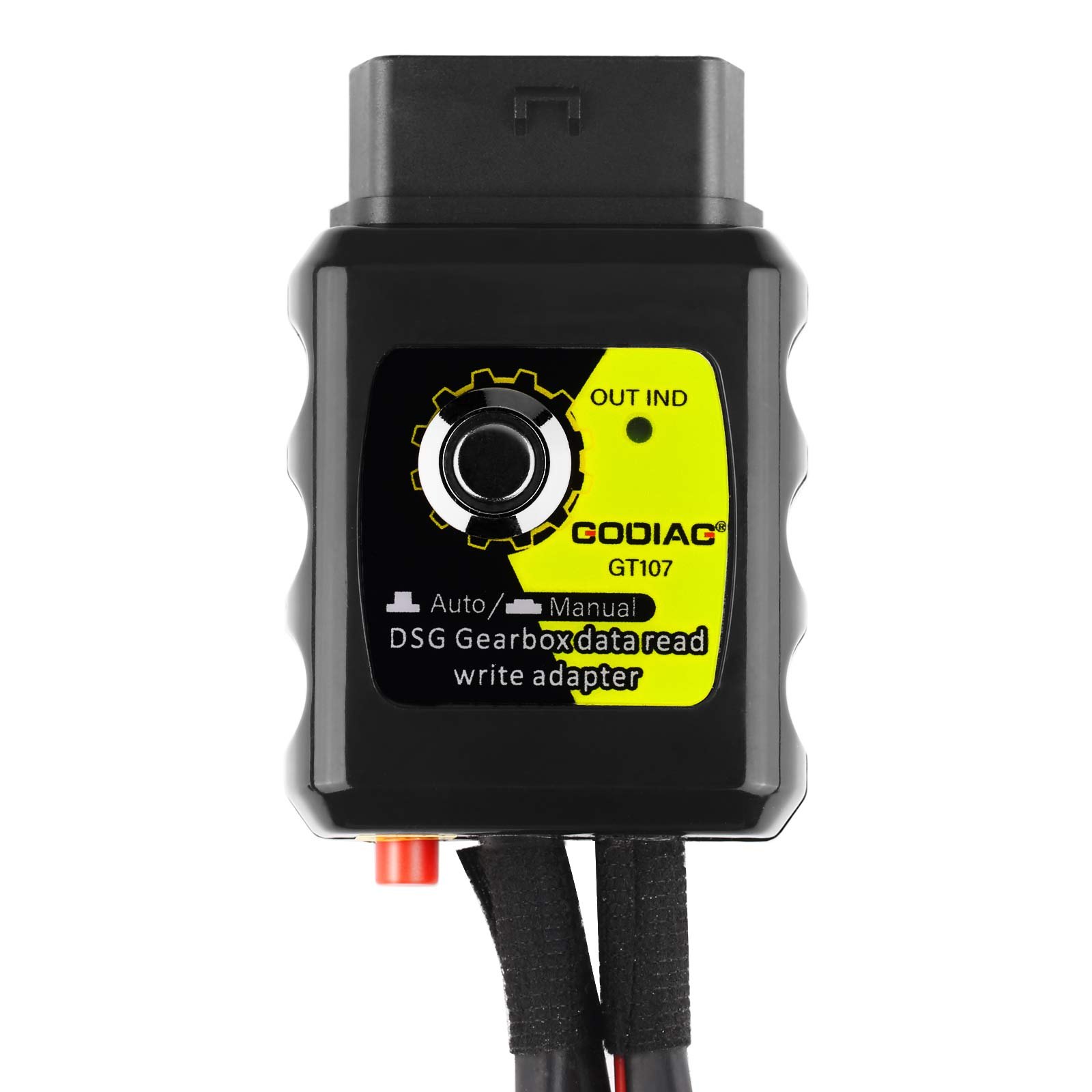

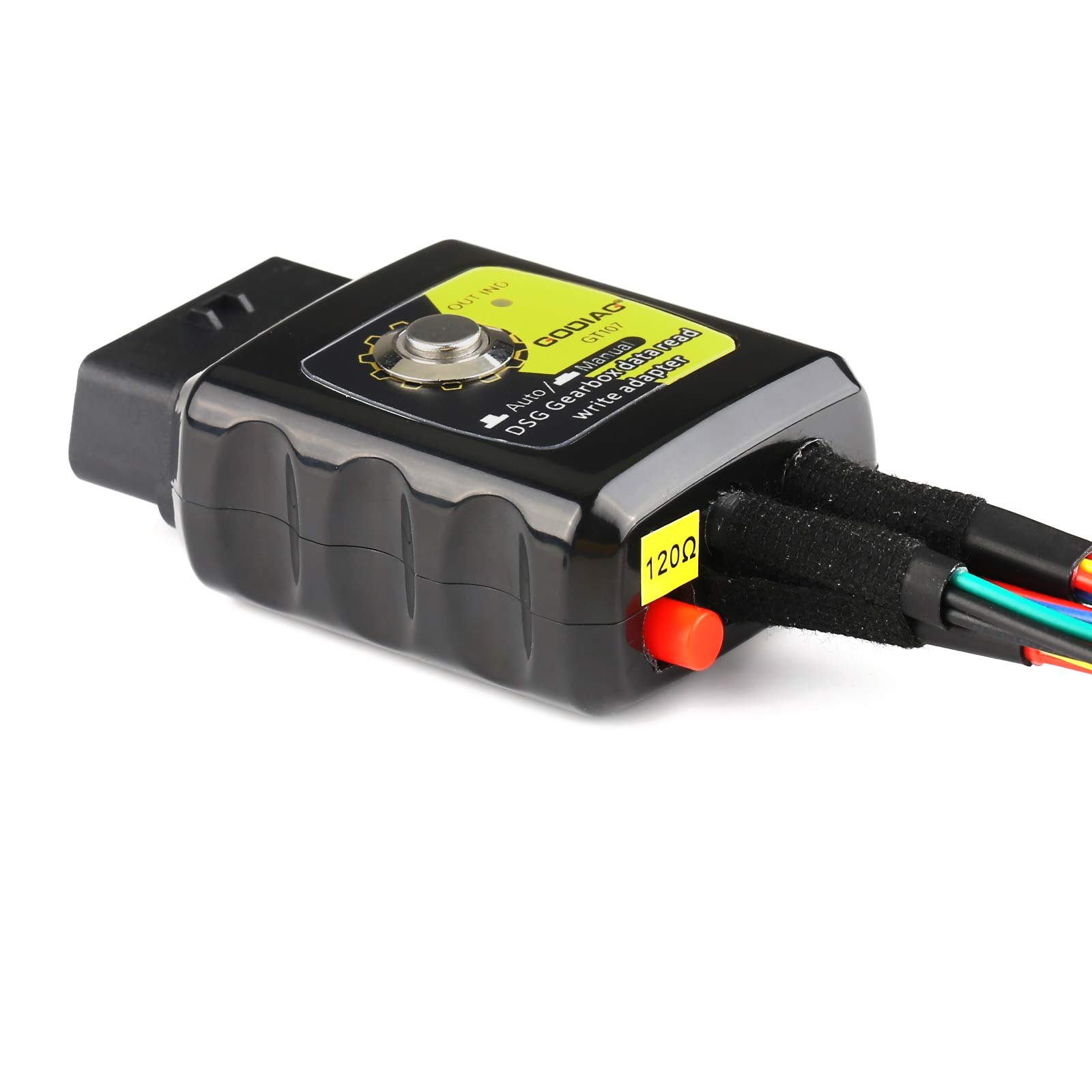

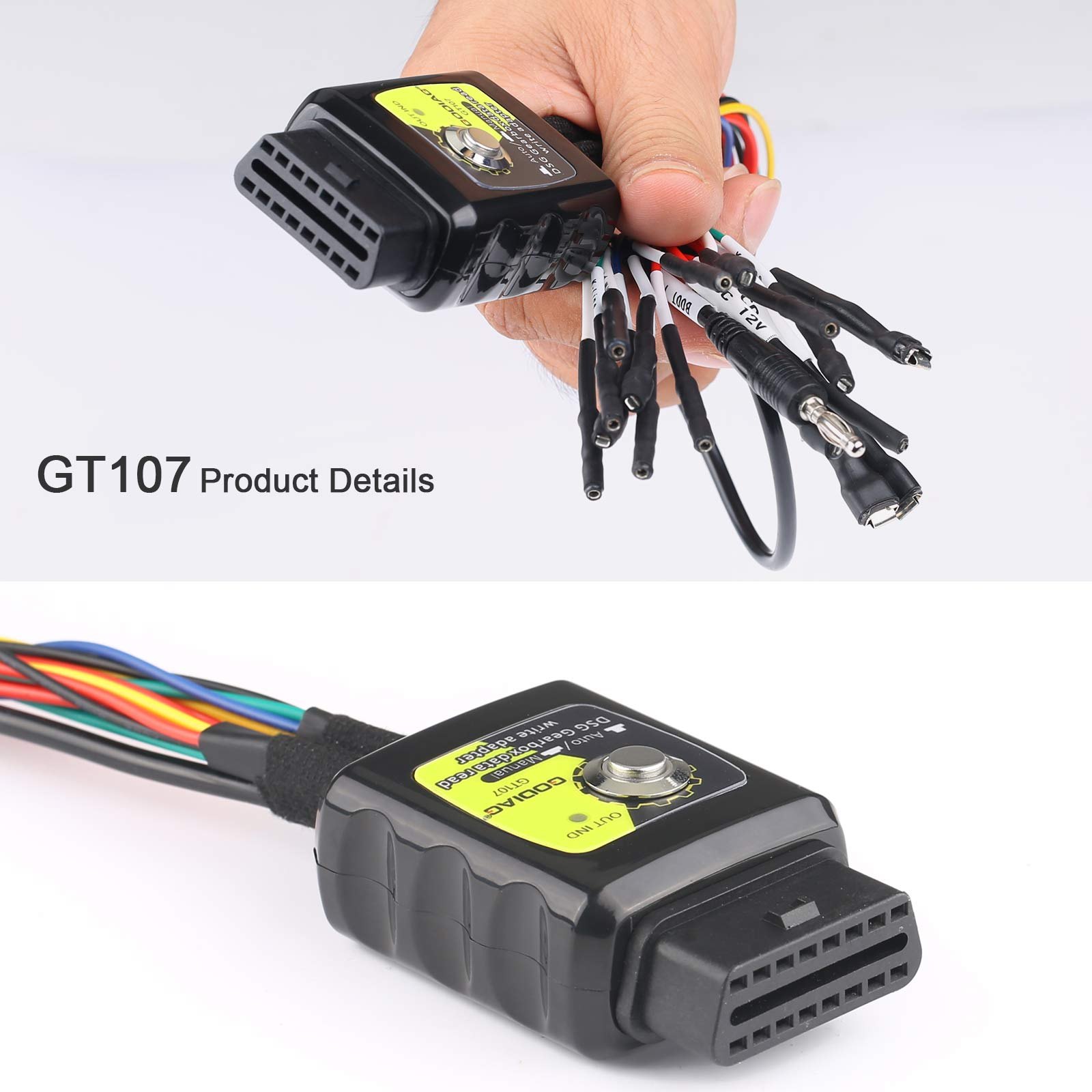

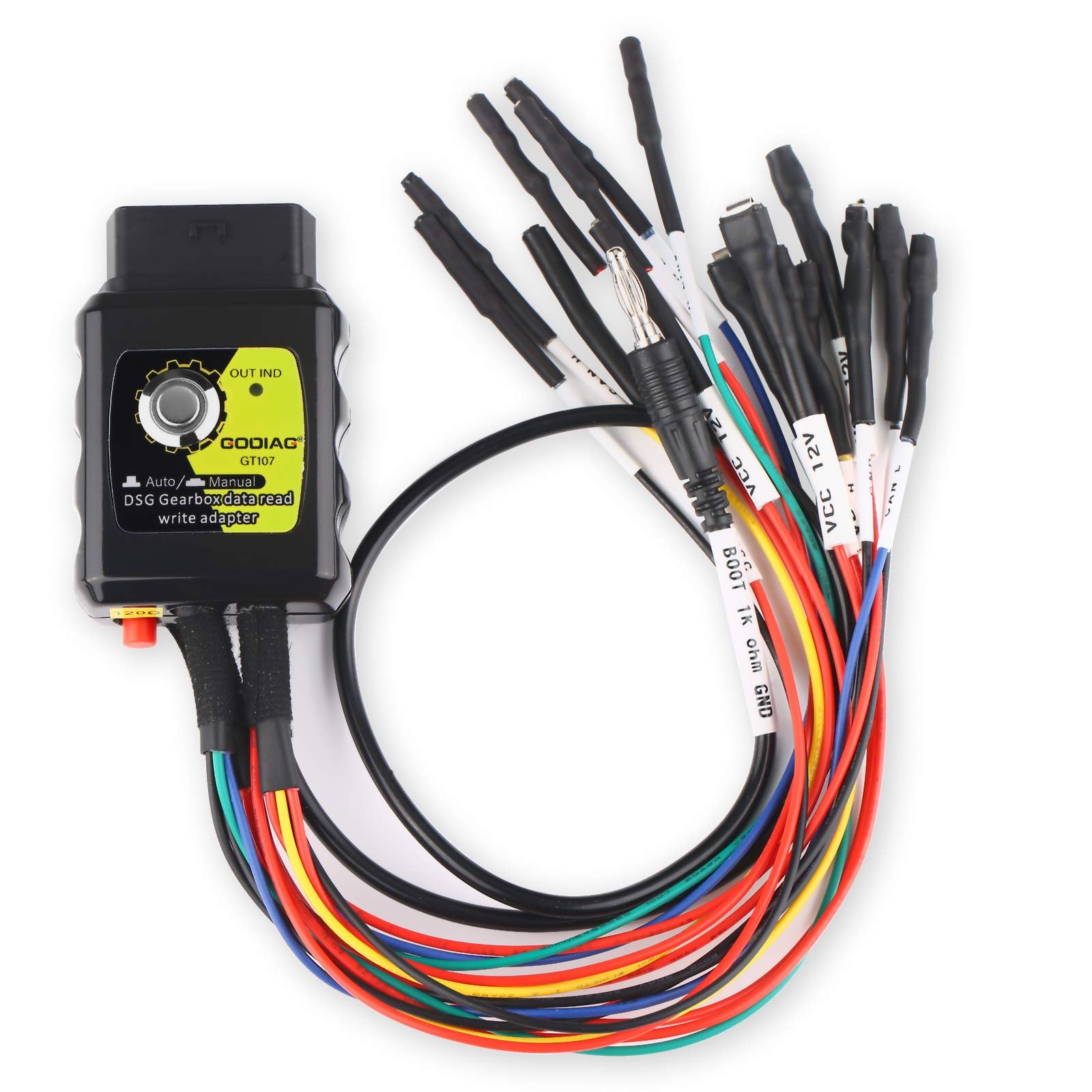

• GODIAG GT107 ECU IMMO Kit is a DSG gearbox connection adapter. DSG Gearbox maintenance engineers can clone, diagnose and repair DSG Gearbox ECU and can also read, write and adjust data for DSG Gearbox ECU via PCMFlash and Kess V2 etc. This adapter has automatic and manual selection for PCMFlash software. For data reading and writing, you can choose "Auto", and for diagnosis you can choose "Manual". For other software kessv2, DQ200, DQ250, DQ500 you can also choose "Manual".
• Moreover, with the car battery power, the adapter can directly read and write DSG Gearbox data and you can clearly check the communication status during the data reading and writing process.
• Compatible with PCMTuner, Kess V2, PCMFlash, KTMBench etc

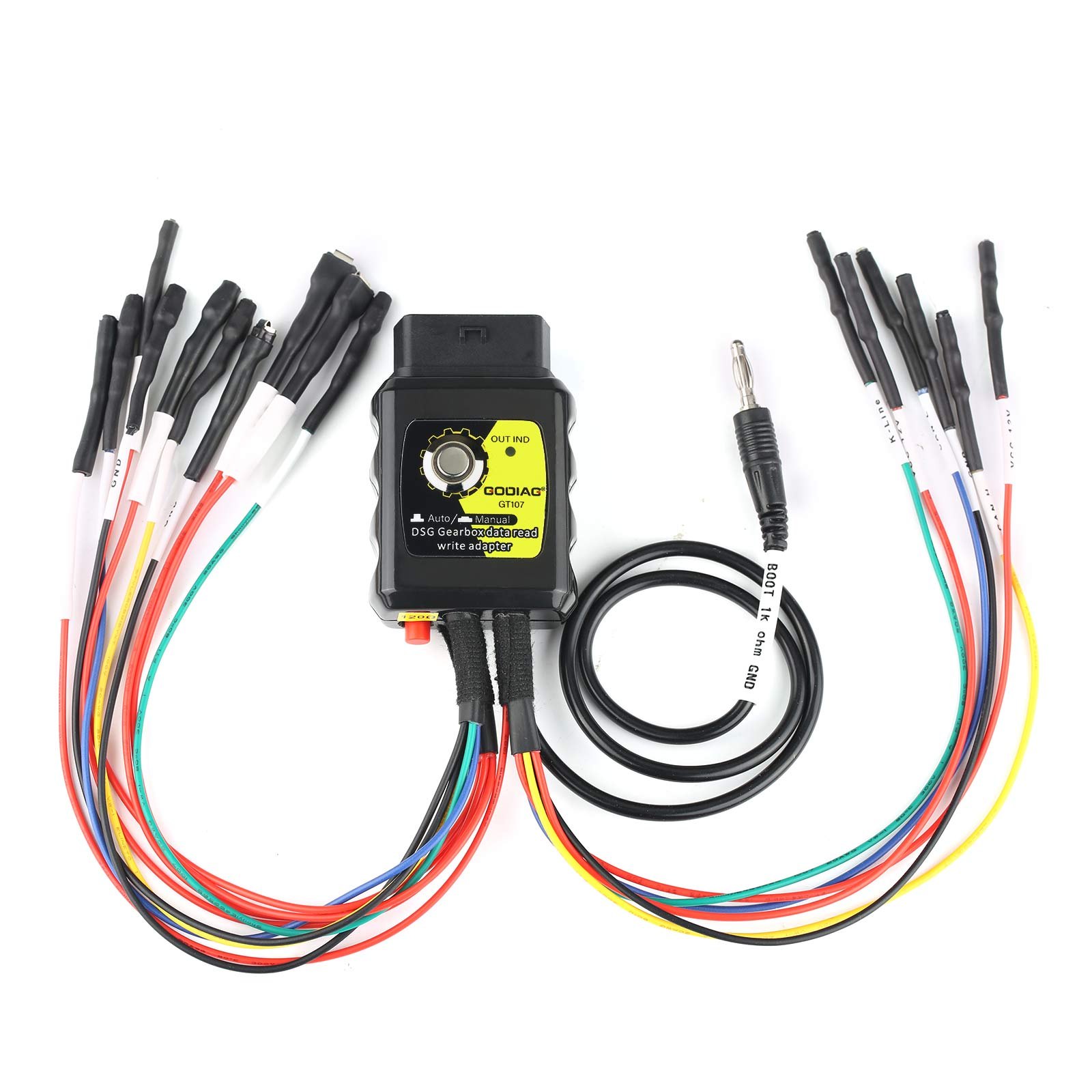

• GODIAG GT107 DSG Gearbox Data Adapter Support the Connection of:
• Renault DC0/DC4 Gen2
• DQ200 (0AM) [WR/CK]
• DQ250C (02E) [RD/WR/CK]
• DQ250E/F (02E) [WR/CK]
• DQ200MQB/G2 (0CW) [WR/CK]
• DQ250MQB (0D9) [WR/CK]
• VL300/V30 (01J/0AN) [WR/CK]
• VL381 (0AW) [WR/CK]
• DL501/G2 (0B5) [WR/CK]
• DQ500 (0BH/0BT) [RD/WR/CK] reading when using a direct connection.
• DQ200/MQB/G2 Boot (MICRO) [RD/WR/CK]
• DQ200/MQB/G2 Boot (EEPROM) [RD/WR]
• DQ250E/F/MQB Boot (MICRO) [RD/WR/CK]
• DQ250E/F/MQB Boot (EEPROM) [RD/WR]
• VL300/V30 BSL (FLASH) [RD/WR/CK]
• VL300/V30 BSL (EEPROM) [RD/WR/CK]
• VL381 Boot (MICRO) [RD/WR/CK]
• VL381 Boot (EEPROM) [RD/WR]
• DL501/G2 Boot (MICRO) [RD/WR/CK]
• DL501/G2 Boot (EEPROM) [RD/WR]

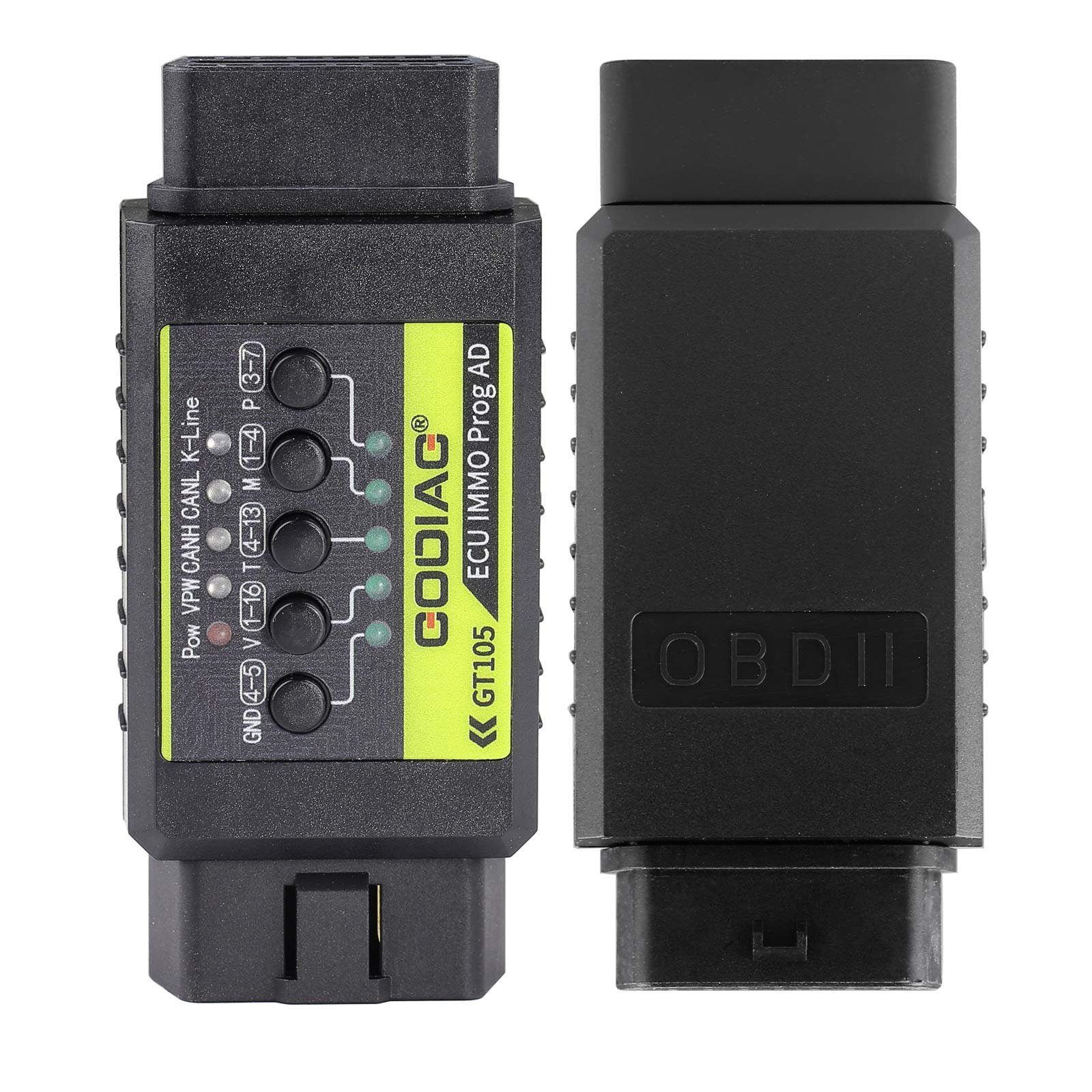

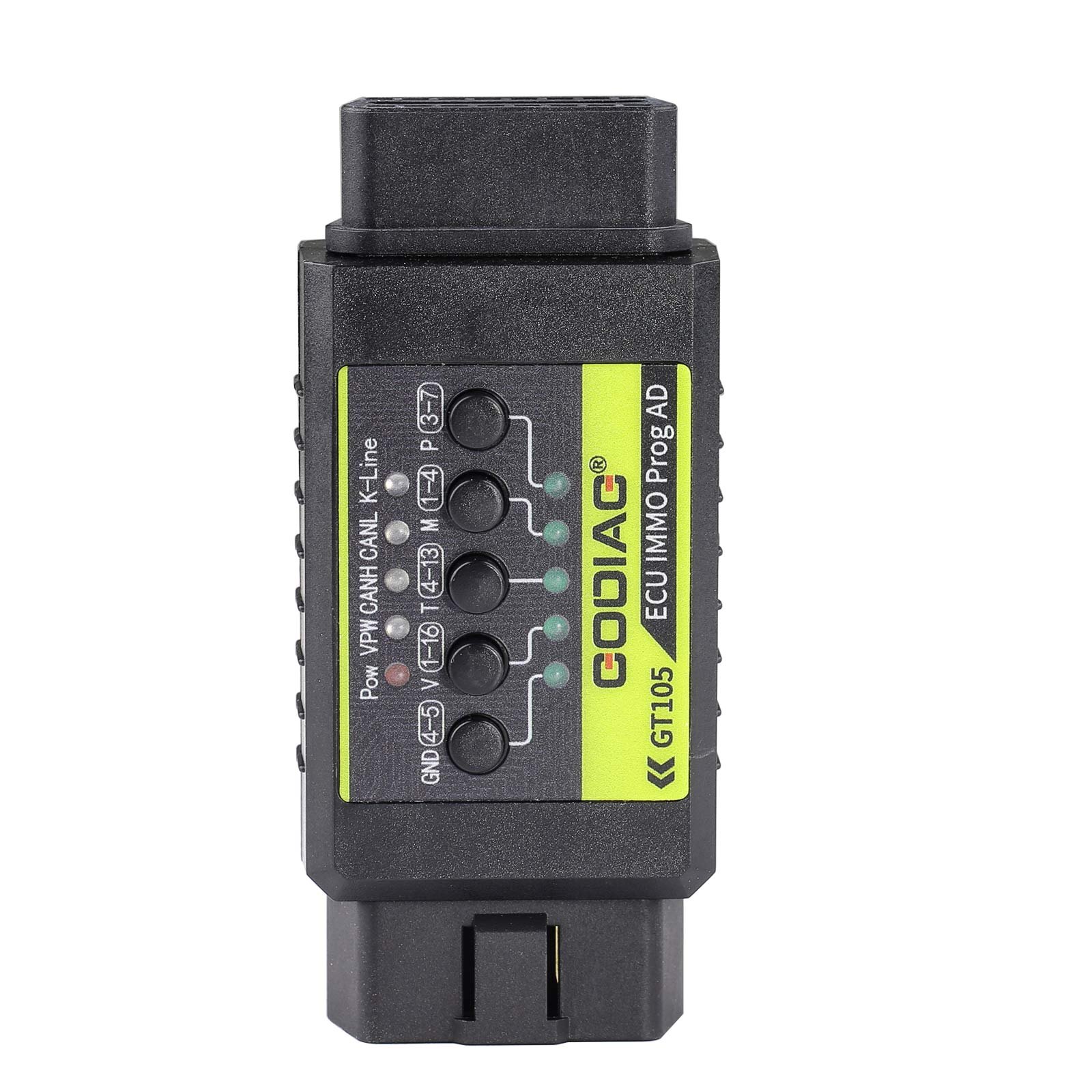

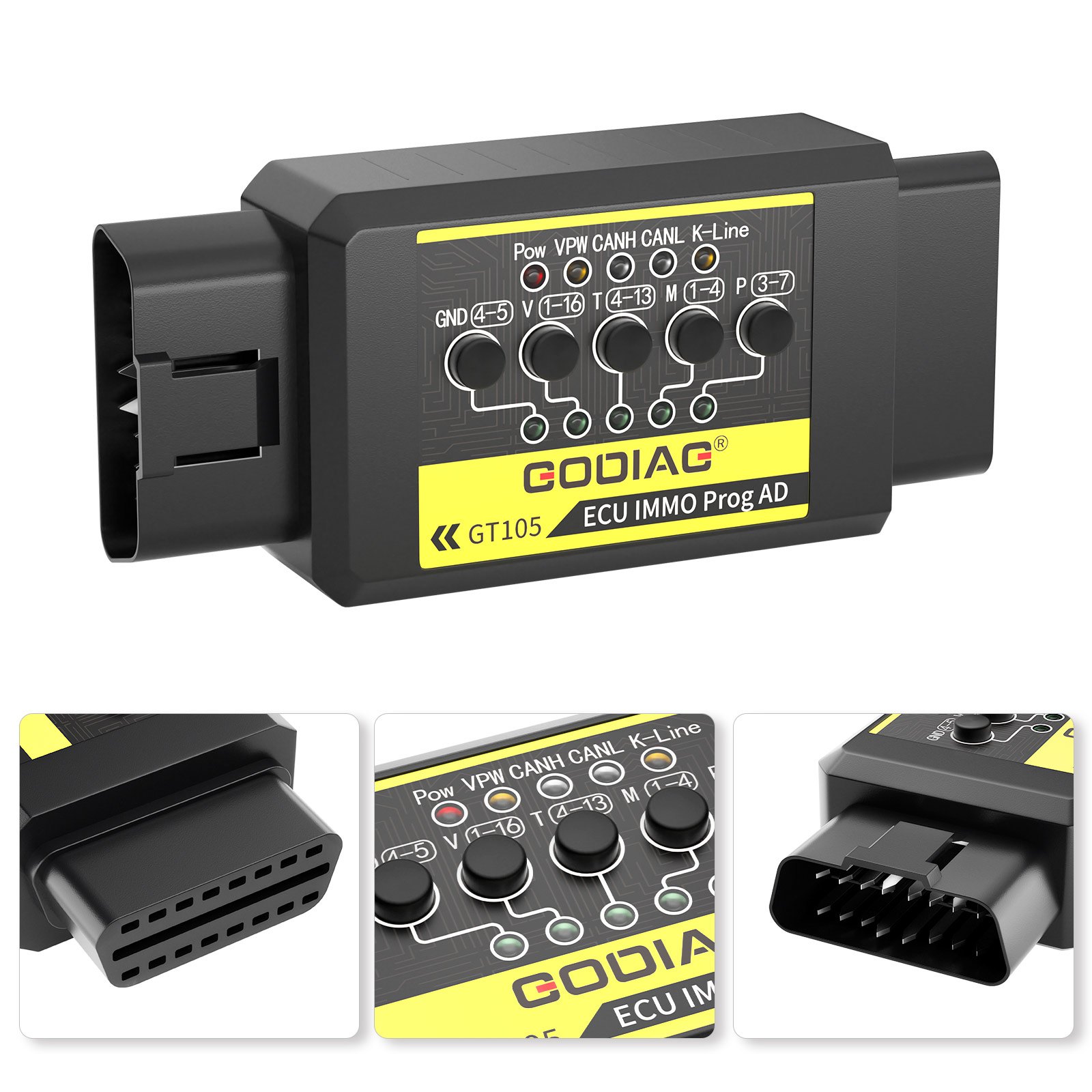

• A full-protocol ECU connection line for ECU programming power adjustment
• OBD2 independent PIN 4 body GND, PIN5 signal GND for special programming of some modules.
• PIN4 and PIN5 can be switched between short-circuit and non-short-circuit.
• Standard OBD2 independent PIN4, PIN5.
• Battery clip treated with environmentally-friendly salt spray, with a thickness of 0.5mm.

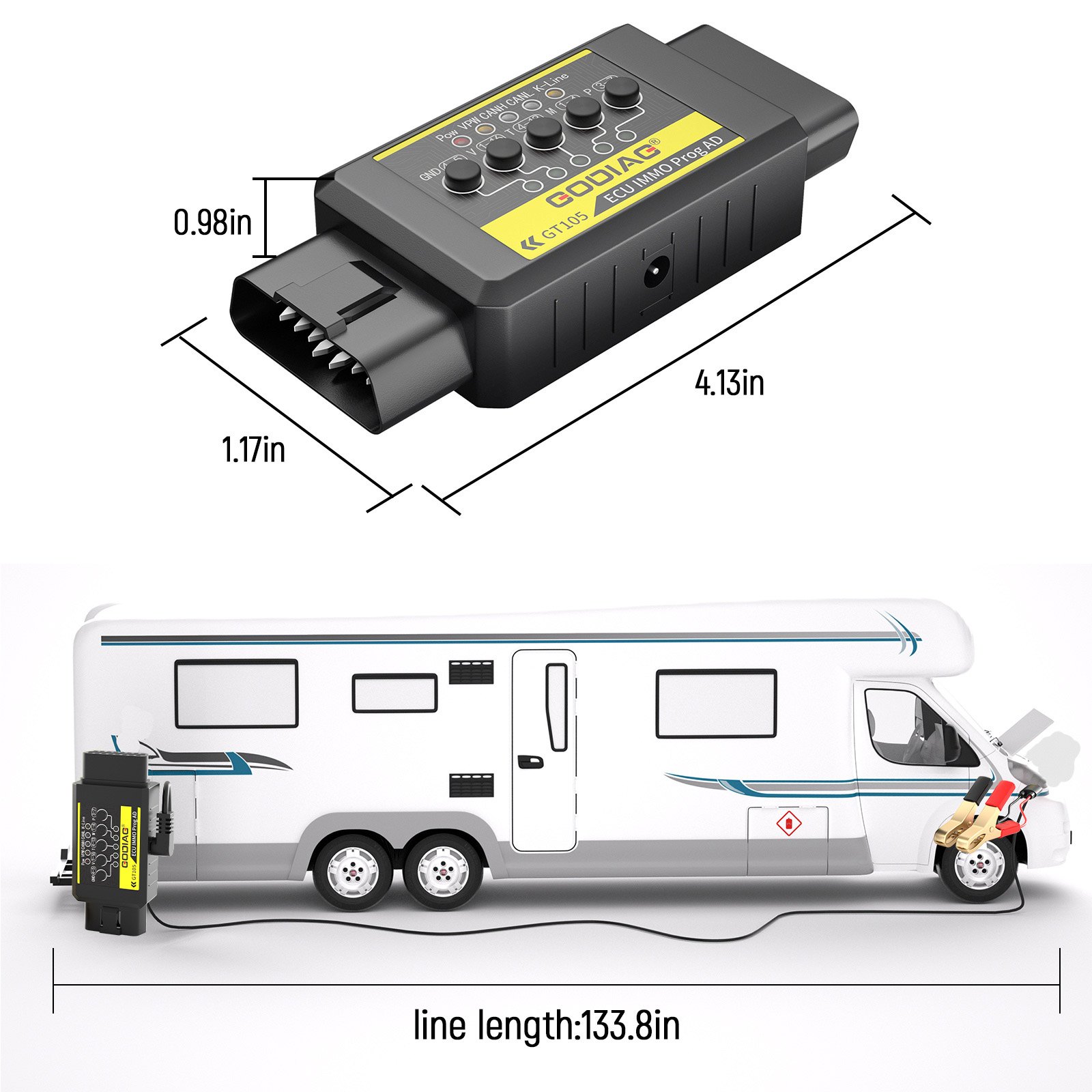

• The DC car battery cable adopts 0.75mm² 2-core sheathed cable, which supports DC5.5*2.5/ DC5.5*2.1 interface.
• The DC connector has a resettable 7A fuse.
• DC power interface, dedicated laboratory power connector.
• OBD2 universal jumper of good quality.
• Connect Godiag GT107 to the gearbox ECU DQ250, DQ200, VL381, VL300, DQ500, DL501.
• Connect Godiag ECU IMMO Prog AD and connect 12V 2A DC power supply.
• The GODIAG GT107 analog ignition switch is in "Auto" mode if it is not pressed, and it is in "Manual" mode if it is pressed down(Note: Please select the corresponding mode in the software for data reading)
• Connect PCMFlash, PCMTuner J2534passthru.
• Connect Godiag GT107 to gearbox ECU DQ250, DQ200, DQ500.
• Connect Godiag ECU IMMO Prog AD and connect vehicle battery or 12v 3A power supply.
• Connect kessv2 device, and press down the GT107's switch to make it in "Manual" ignition mode.
• Connect the Godiag ECU IMMO Prog AD and connect the vehicle battery.
• The Godiag GT107 analog ignition switch is in "Auto" mode if it is not pressed, and it is in "Manual" mode if it is pressed down(Note: Please select the corresponding mode in the software for data reading).

The DSG mechatronic is read on the bench, which is what the GT107 half of this kit exists for.
