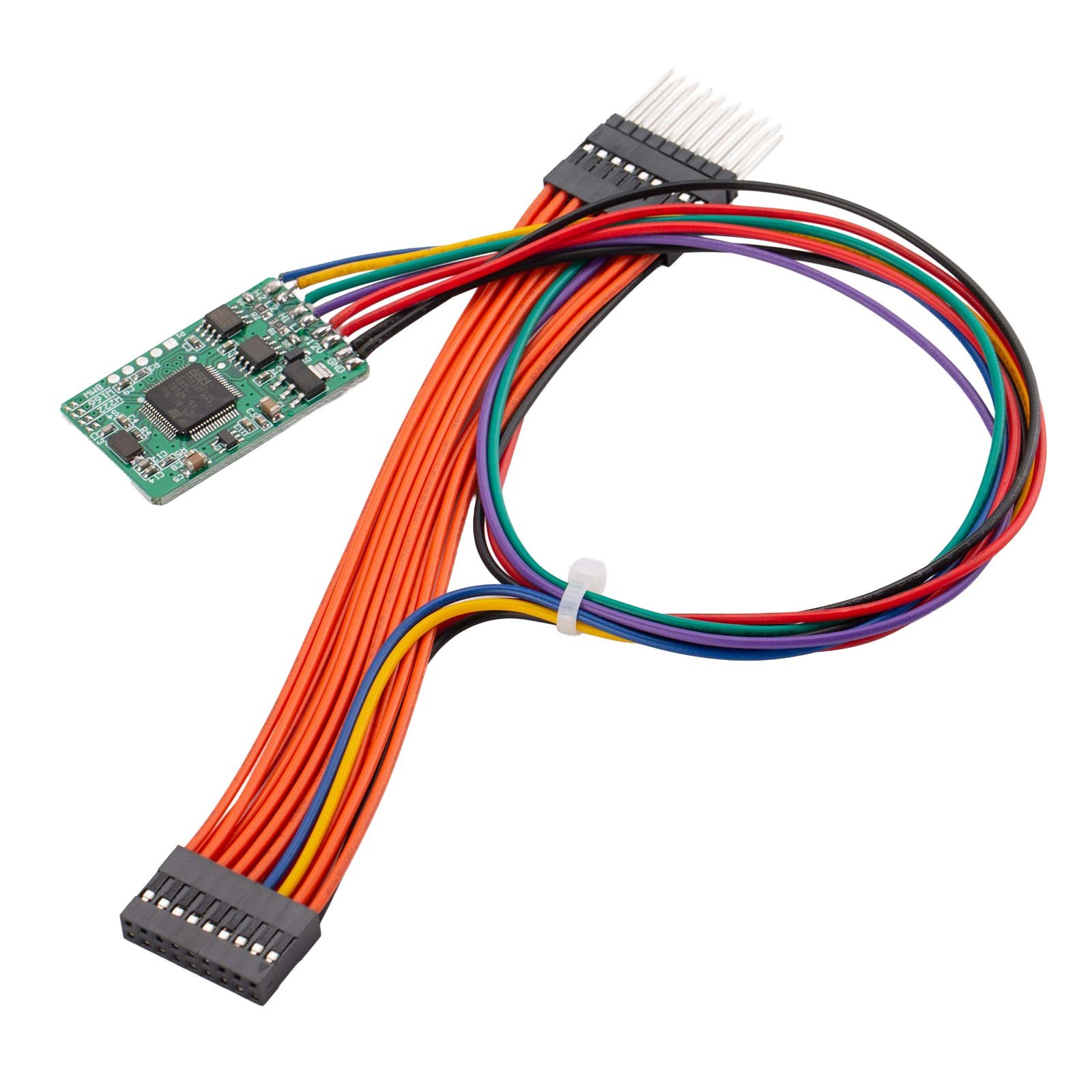

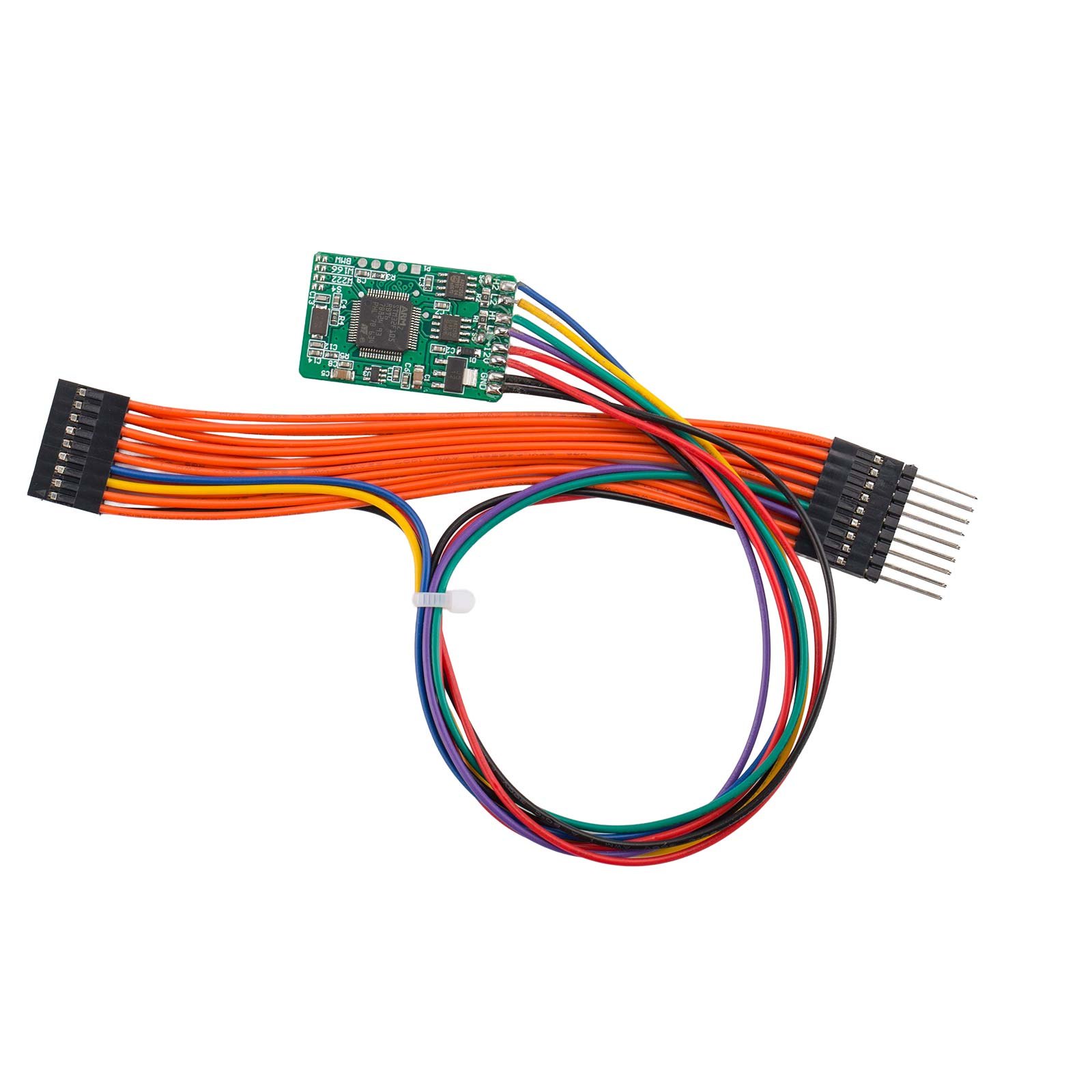

MB CAN Filter 18 in 1 for Benz/BMW Universal Filter

An 18 in 1 CAN filter covering eighteen Mercedes chassis including the S 222 and 221, C 205 and 204, V W447, E W212 and W207 and the A class, together with the BMW CAS4 and FEM Fxx. It is listed in a new style for 222, 205 and 217 and an old style for 166, 212 and 463.

Specifications

• Benz 18 types chasis model: S(222), S(221), C(205), C(204), V(W447), E(W212), E(W207), A(W176), G(W463), ML(W166), SL(R231), GL(X166), B(W246), CLS(W218), SLK(R172), SLS(W197), CLA(W117), GLK(X204)
• BMW: CAS4/FEM Fxx
• New style: 222/205/217
• Old style: 166/212/463

What you get

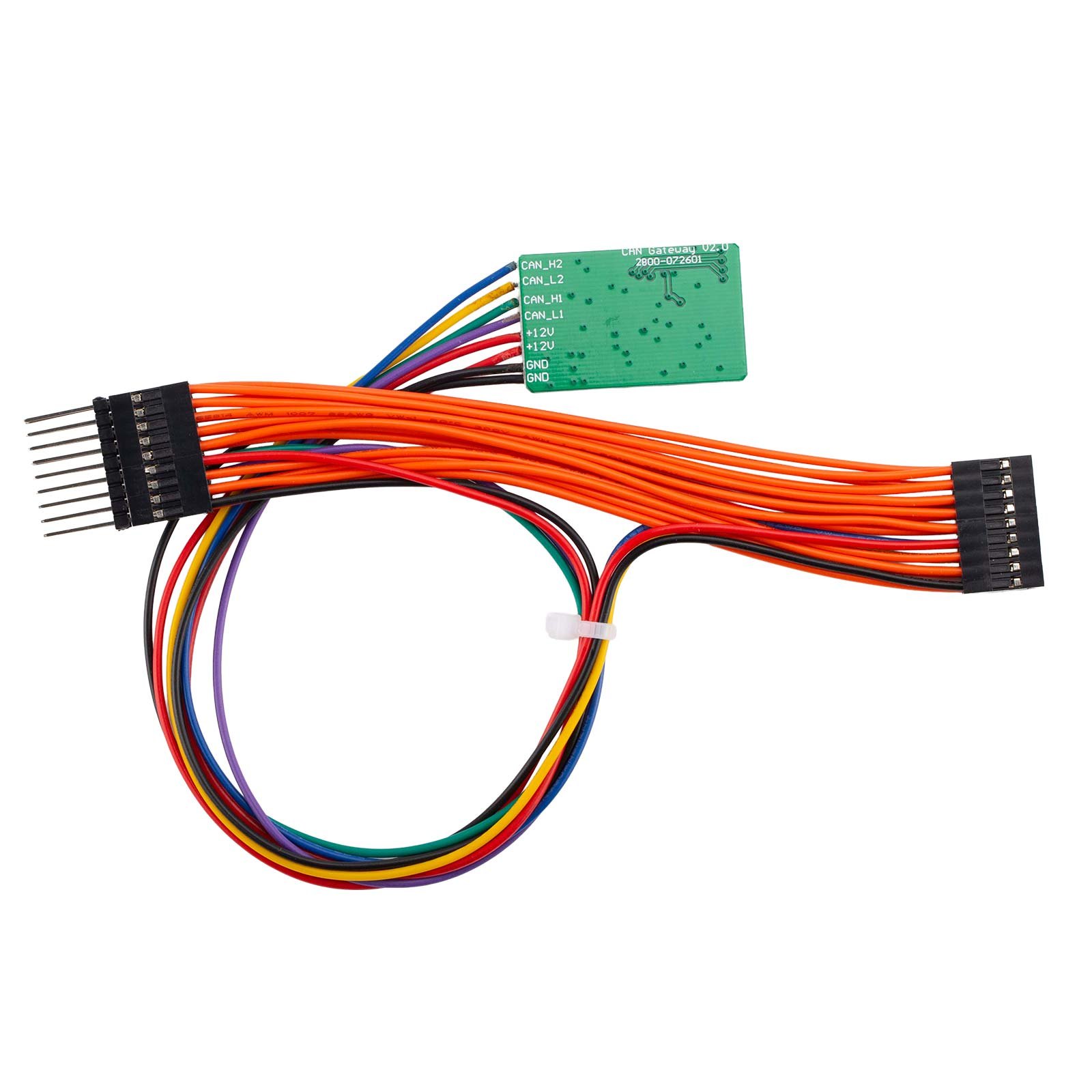

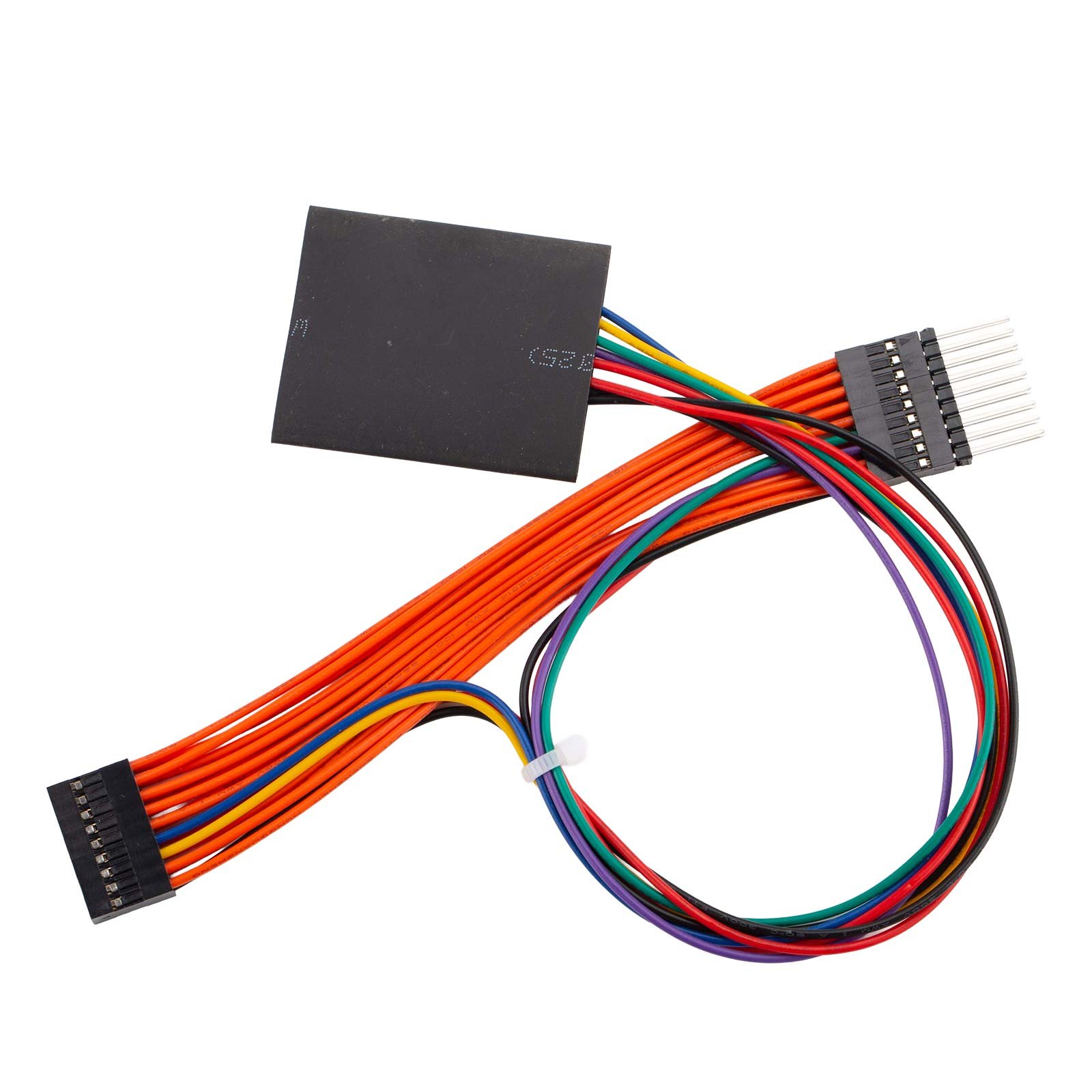

• 1pc x MB CAN Filter 18 in 1 for Benz/BMW Universal Filter

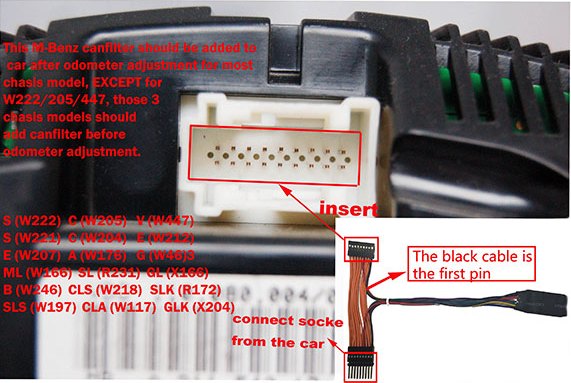

• This MB CAN Filter 18 in 1 Benz / BMW Universal filter should be added to car after odometer adjustment for most chassis model, EXCEPT for W222/W205/W447,those 3 chassis models should add can filter before odometer adjustment.
• MB CAN Filter 18 in 1 Benz/BMW Universal Filter
• BMW 1 series F2X, 3 series F3X, BMW X5 etc., FEM mileage adjustment;
• BMW 5 series F10, 7 series F01/02 etc., CAS4 Fxx chassis.( F01, F02, F07, F18, F10, F20, F25, X3 etc., applicable for 9S12 XEP series 5M48H/1N35H).
• This filter is universal for multiple car models, small and convenient, easy operate, with stable performance and reliability.
• CHECK the car model correctly before adjust.
• Old style W166 short circuit to GND
• New style W222 short circuit to GND
• Black wire connect to plug 1

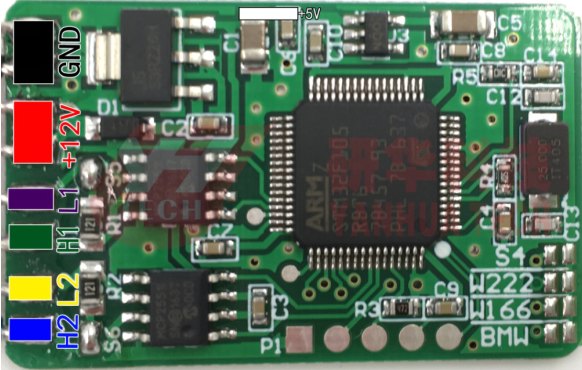

• YH Benz / BMW Universal filter --- Diagram for BMW

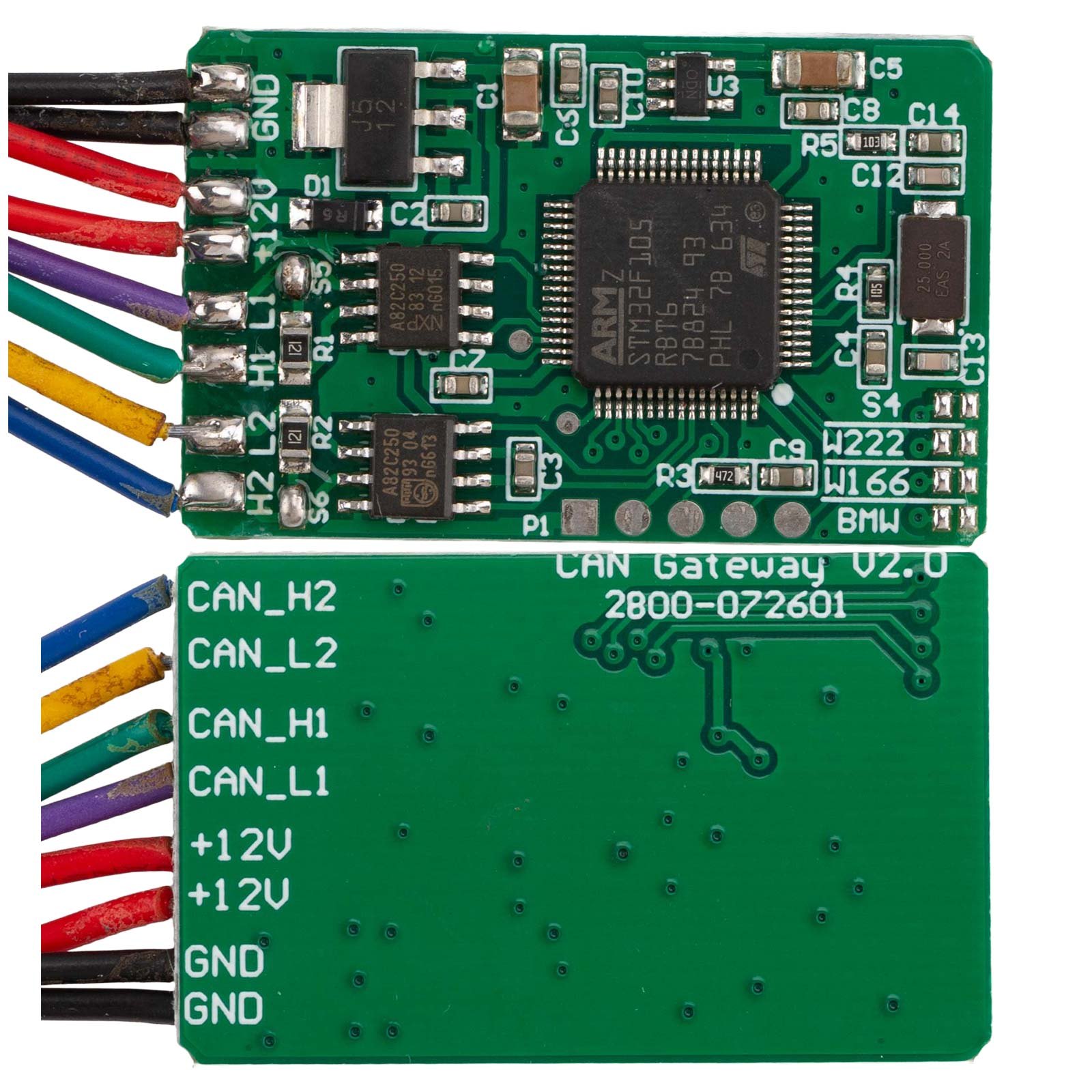

• Black --------- GND Red --------- +12V White --------- +5V
• Purple -------- L1(CAN_L1) Green --------- H1(CAN_H1)
• Yellow --------- L2(CAN_L2) Blue --------- H2(CAN_H1)
• NOTICE! Please connect the 2 BMW dot together(short circuit) BEFORE connect to car!

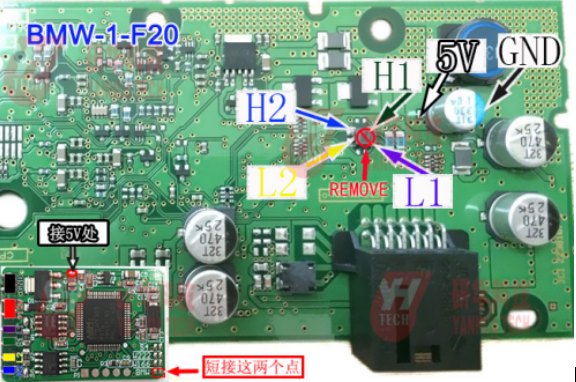

• Below is the diagram for BMW 1 series F20 instrument:

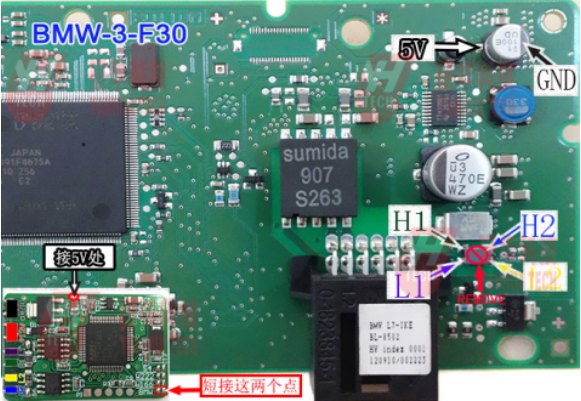

• Below is the BMW 3 series F30 instrument:
• Below is the BMW 3 GT series F30 instrument:

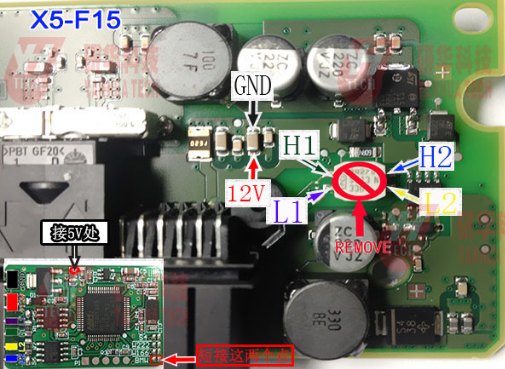

• Below is the diagram for BMW X5 F15 instrument:
• Below is the diagram for USA Strandard BMW X5 F15 instrument:
• Below is the diagram for BMW CAS4(1L15Y/5M48H/1N35H)
• 8.Below is the diagram for BMW X3 F25 instrument:

One filter covering eighteen chassis is what keeps a van kit down rather than carrying a filter per car.
