GODIAG ECU GPT Boot AD Connector for ECU Reading Writing No Need Disassembly Compatible with J2534/ Openport/ PCMFlash/ FoxFlash/ FC200

The GODIAG ECU GPT Boot AD connector, reading and writing an ECU without disassembly. It is compatible with J2534, Openport, PCMFlash, FoxFlash and FC200 tools.

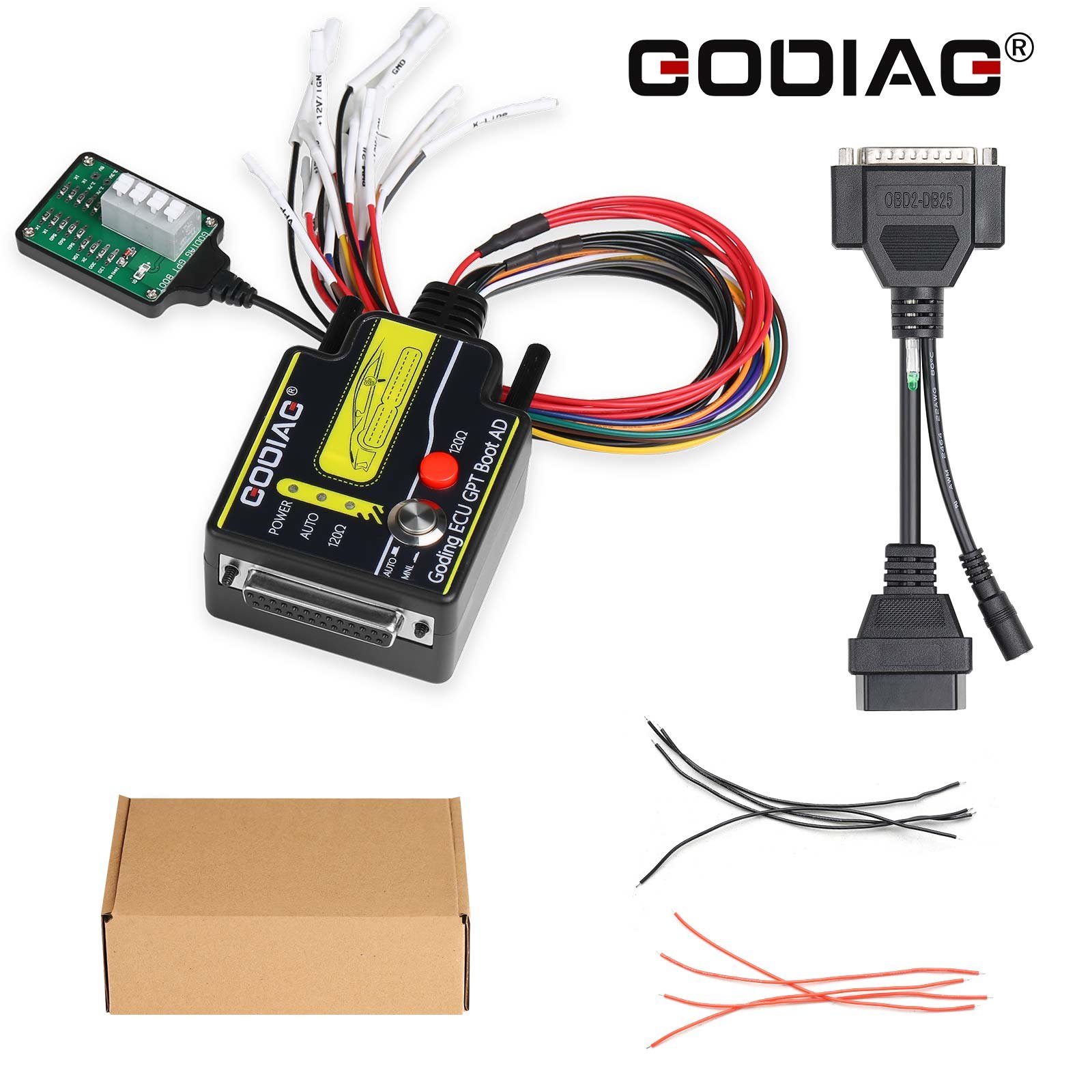

What you get

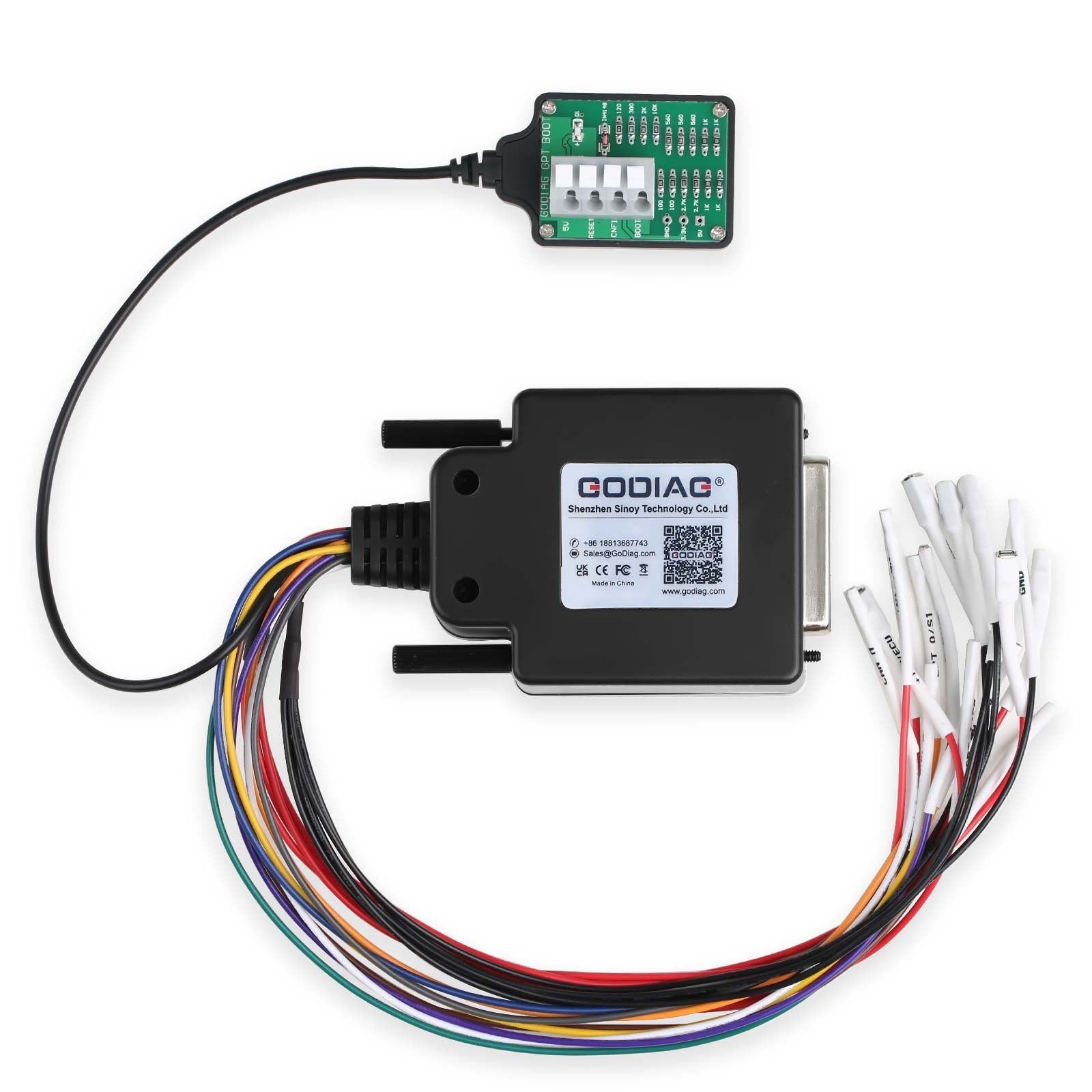

• 1pc x GODIAG ECU GPT Boot Adapter
• 8pcs x Soft Silicone Wires
• PCMTuner with GODIAG ECU GPT AD KIA ME17.9.11.1 FULL BACKUP BENCH
• BMW EDC17CP02 FULL BACKUP BENCH by CG FC200 + GODIAG ECU GPT Adapter
• Godiag ECU GPT Boot AD with sm2 and GT100+ to read me17.9.11 TC1762 ECU
• How to use Godiag ECU GPT Boot AD with sm2 and GT100+ recognize Hyundai me7.9.8 ECU
• Godiag ECU GPT Boot AD with sm2 and GT100+ read JLR SID208 ECU data

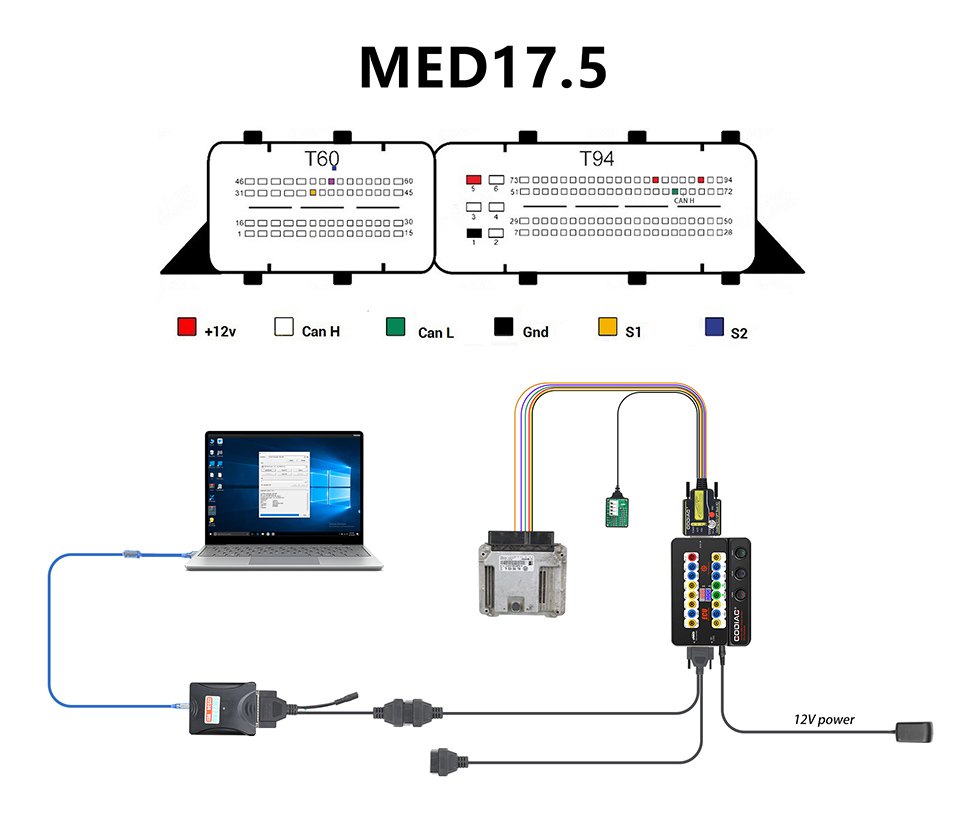

• GODIAG ECU GPT Boot AD with sm2 and GT100+ to read me17.5 ECU data

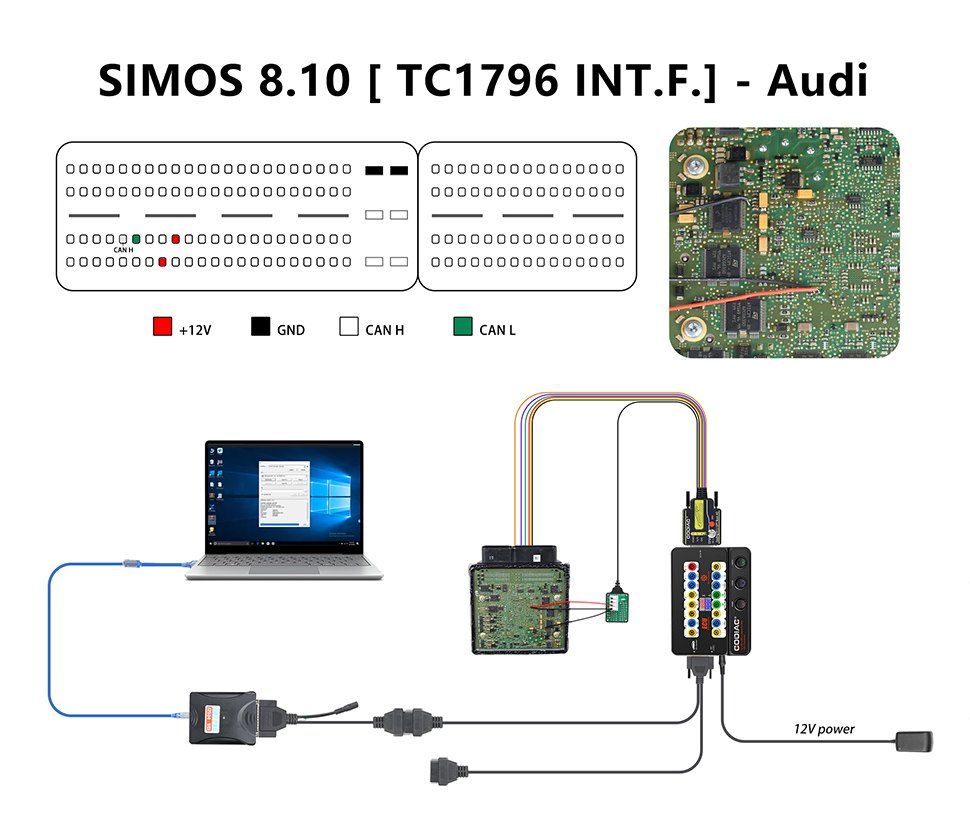

• Godiag Boot GPT Adapter Read Simos8.10 ECU

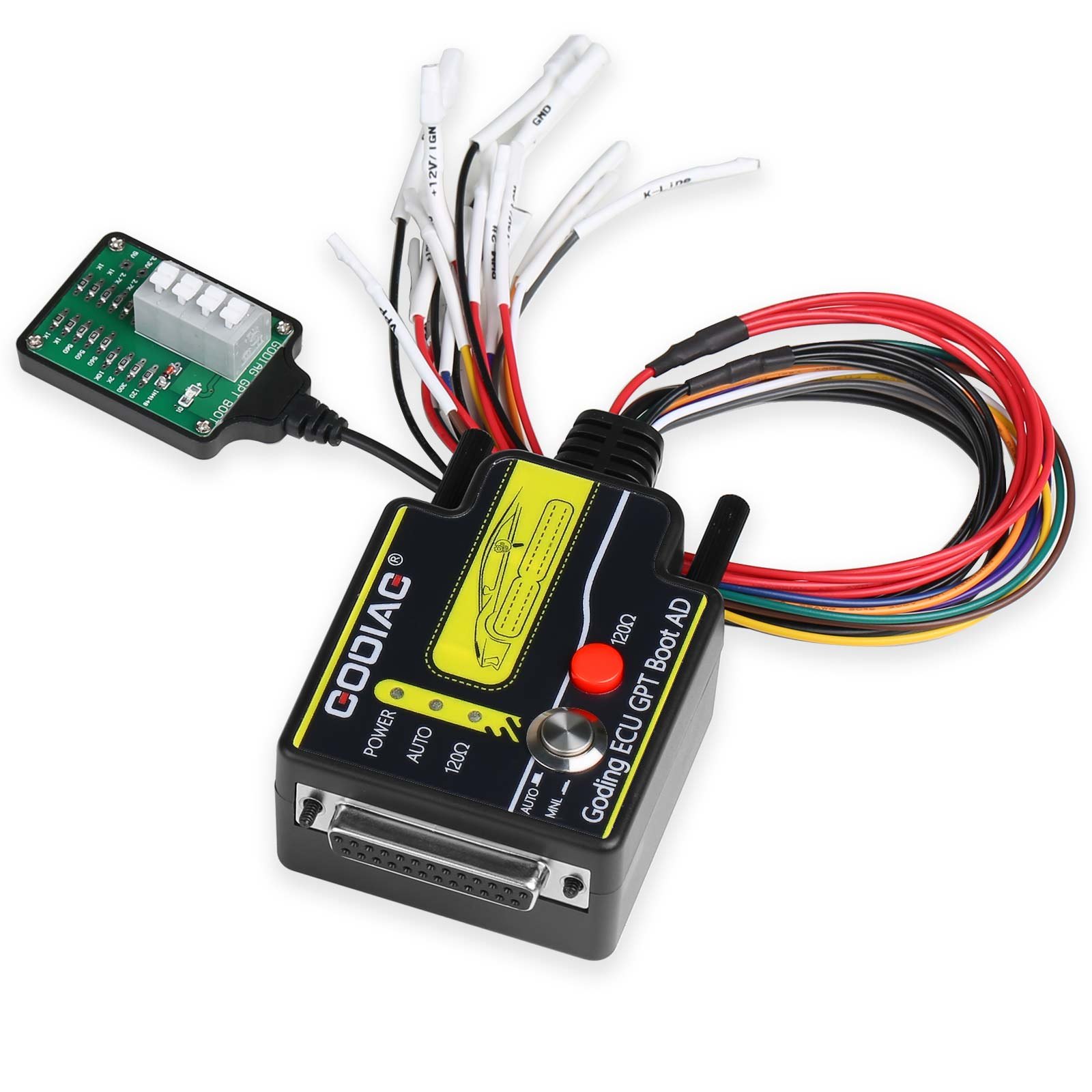

• GODIAG ECU GPT Boot AD Connector for ECU Reading Writing No Need Disassembly
• Compatible with J2534/ Openport/ PCMFlash/ FoxFlash/ FC200
• GODIAG ECU GPT Boot AD ECU Connector for ECU Reading Writing No Need Disassembly Compatible with J2534/ Openport/ PCMFlash/ FoxFlash/ FC200

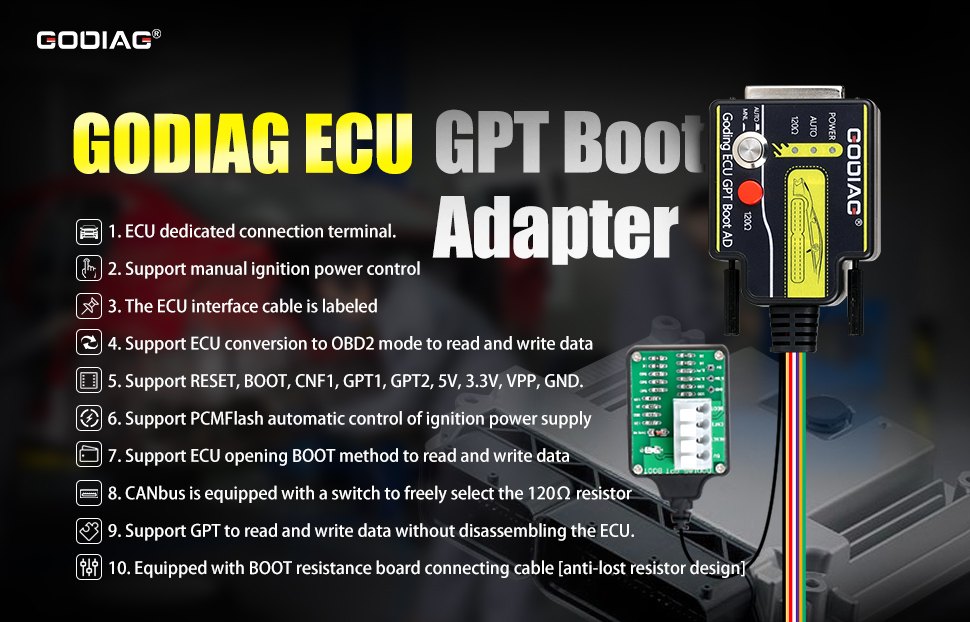

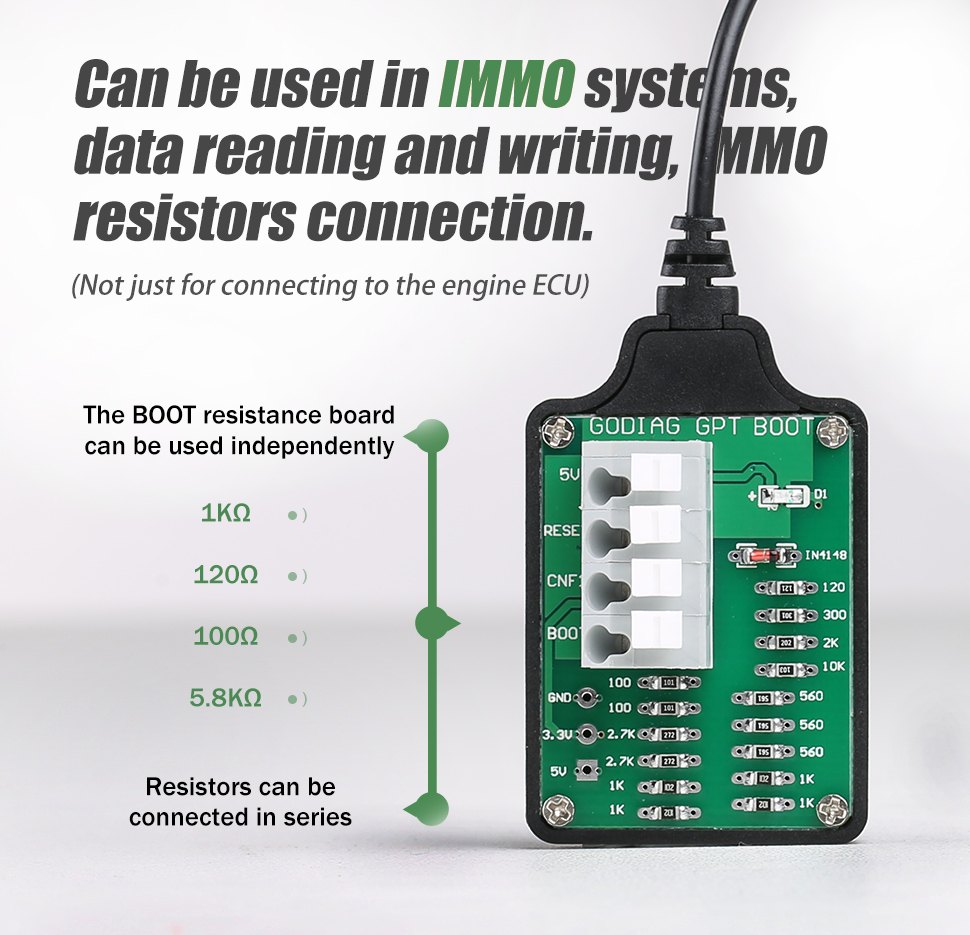

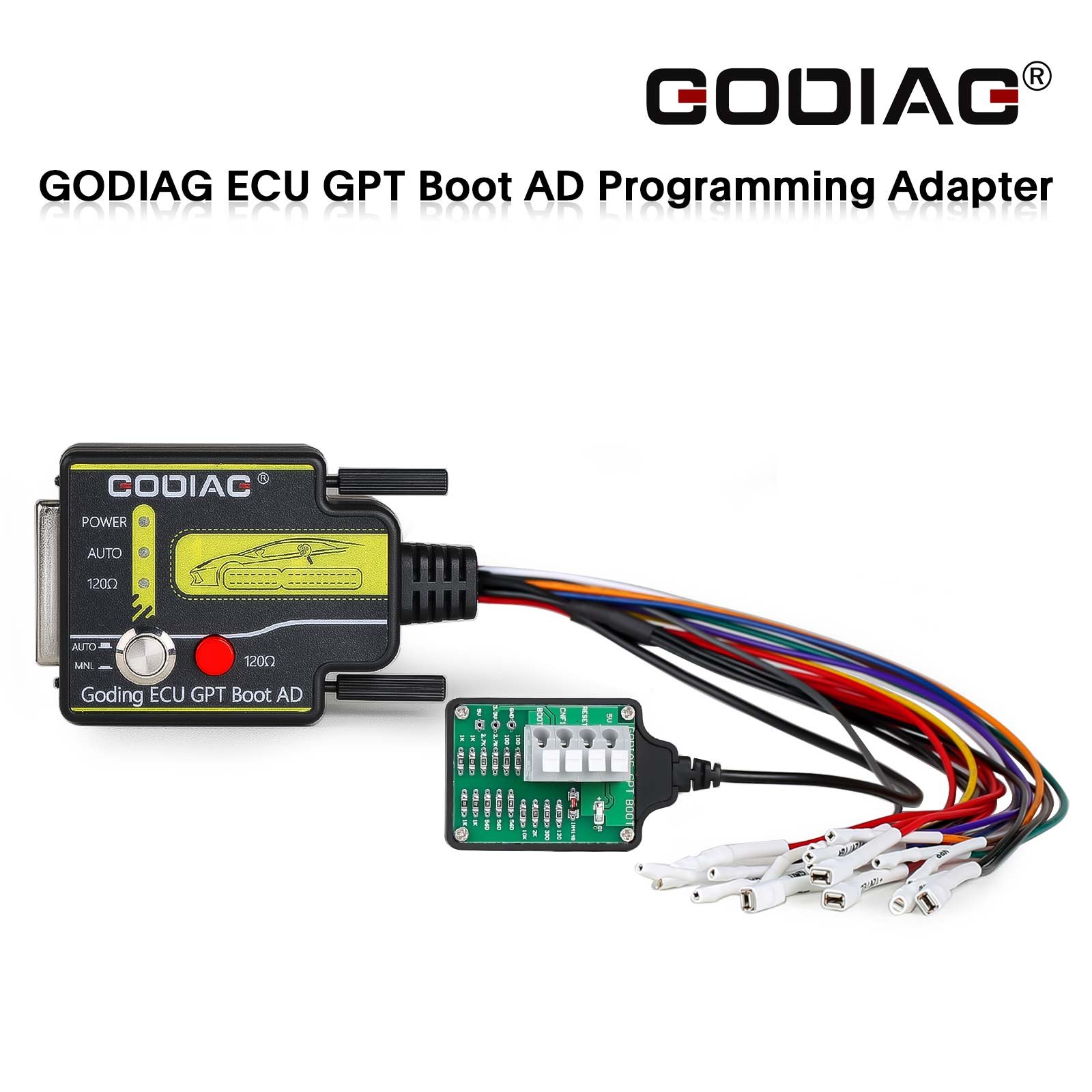

• GODIAG ECU GPT Boot AD programming adapter can help customers read and write ECU data without disassembling the ECU using the OBD2 Bench or GPT Bench method or disassembling the ECU and using the Boot method. This product is equipped with a short-circuit-proof BOOT resistance board connection line to protect the ECU. Customers can use it with J2534 devices and PCMFLash software.
• Support manual ignition power control
• Support ECU conversion to OBD2 mode to read and write data
• Support RESET, BOOT, CNF1, GPT1, GPT2, 5V, 3.3V, VPP, GND.
• Support PCMFlash automatic control of ignition power supply
• CANbus is equipped with a switch to freely select the 120Ω resistor
• Diagnostic function supports standard OBD2 protocol equipment.
• Supports ECU reading and writing data, and supports J2534 devices.
• Only Scanmatik 2 PRO for PCMflash allows to form GPT1, GPT2 signals necessary to work with Module 71.
• Other devices Scanmatik OpenPort 2.0, Mongoose JLR, MongoosePro JLR,
• Teradyne GNA600 (VCM 1), Mazda VCM 2 supports OBD2 or BOOT 53 mode to read and write ECU data.
• GODIAG ECU GPT Boot Adapter Tested with CG FC200:
• Connection Method of GODIAG ECU GPT Boot AD programming adapter, J2534 device and PCMFlash dongle software.
• J2534 Device
• Convenient to observe communication status, current and voltage and other working status

Working without opening the ECU case is what keeps the seal intact and the warranty argument simple.
