EngineDance X5 2-in-1 ECU Programming and Truck Diagnostics (Free MD1/MG1 Adapter)

The EngineDance X5 2-in-1 covers ECU programming and truck diagnostics for Chinese, Japanese, and international brands of diesel, natural gas, and new energy vehicles.

Versions

Three versions are available at different prices: Truck Diagnosis, 2 in 1 shown here, and 2 in 1 with X5 Box.

Promotion

From August 20 to October 20: buy the EngineDance X5 and get a free MD1 and MG1 BOOT-GLITCH adapter.

New update

Unlock Bosch MDG1 ECUs after 2021. Examples: Bosch MD1CE100 (TC299), MD1CE101 (TC299), MD1CS069 (TC299), MD1CS089 (TC299), MD1CS012 (TC298), MD1CS003 (TC298), MG1CS042 (TC298), and MD1CP006 (TC298), plus more models.

Features

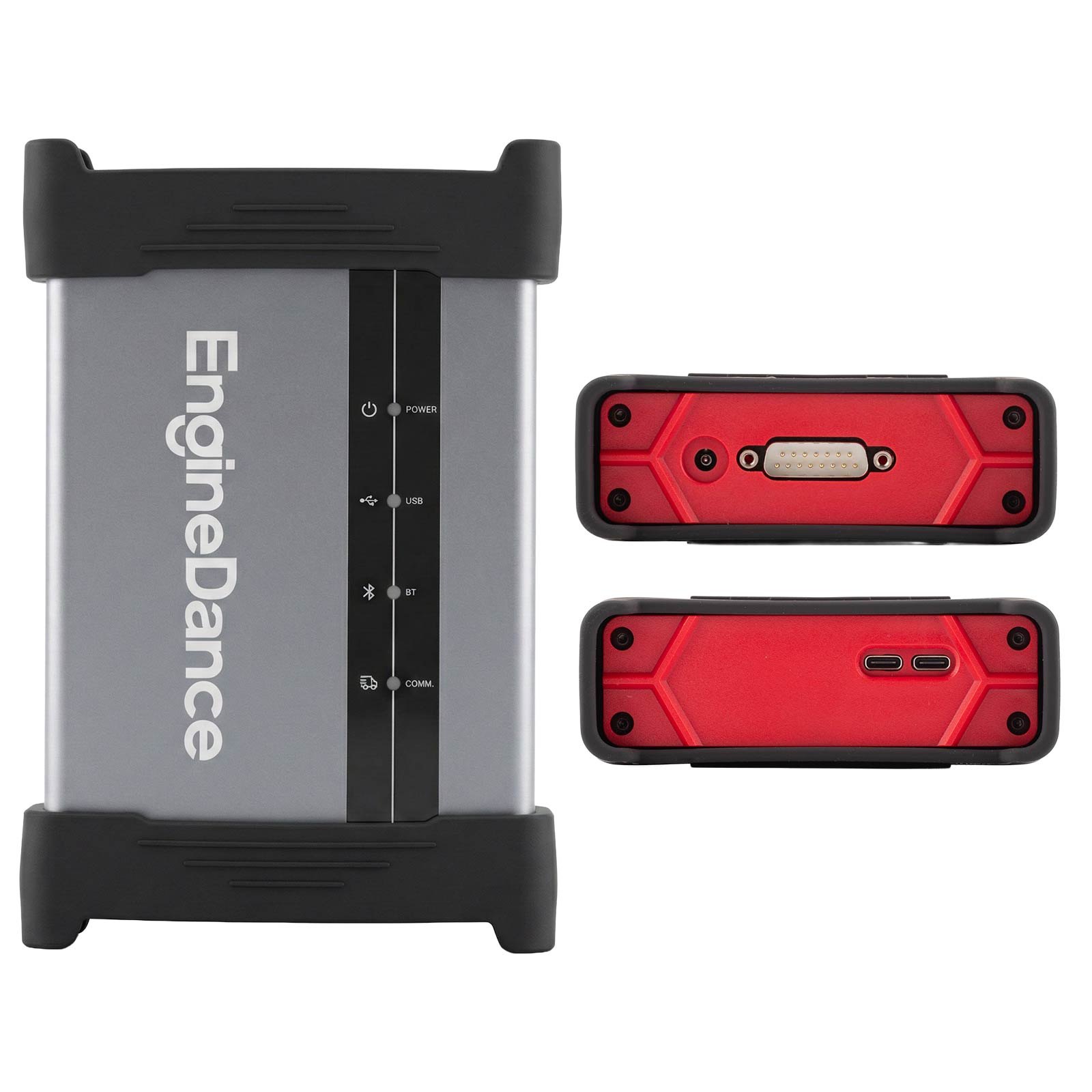

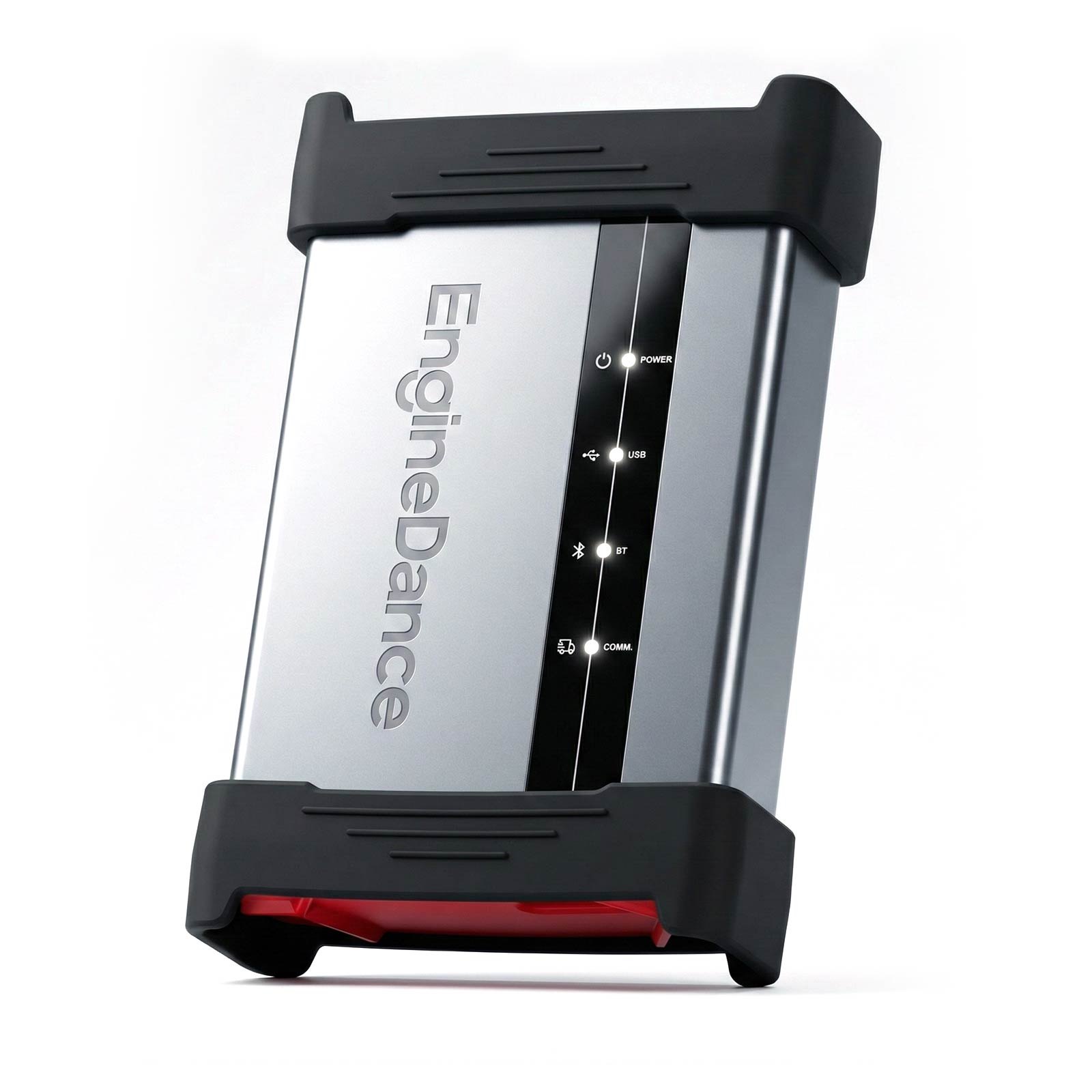

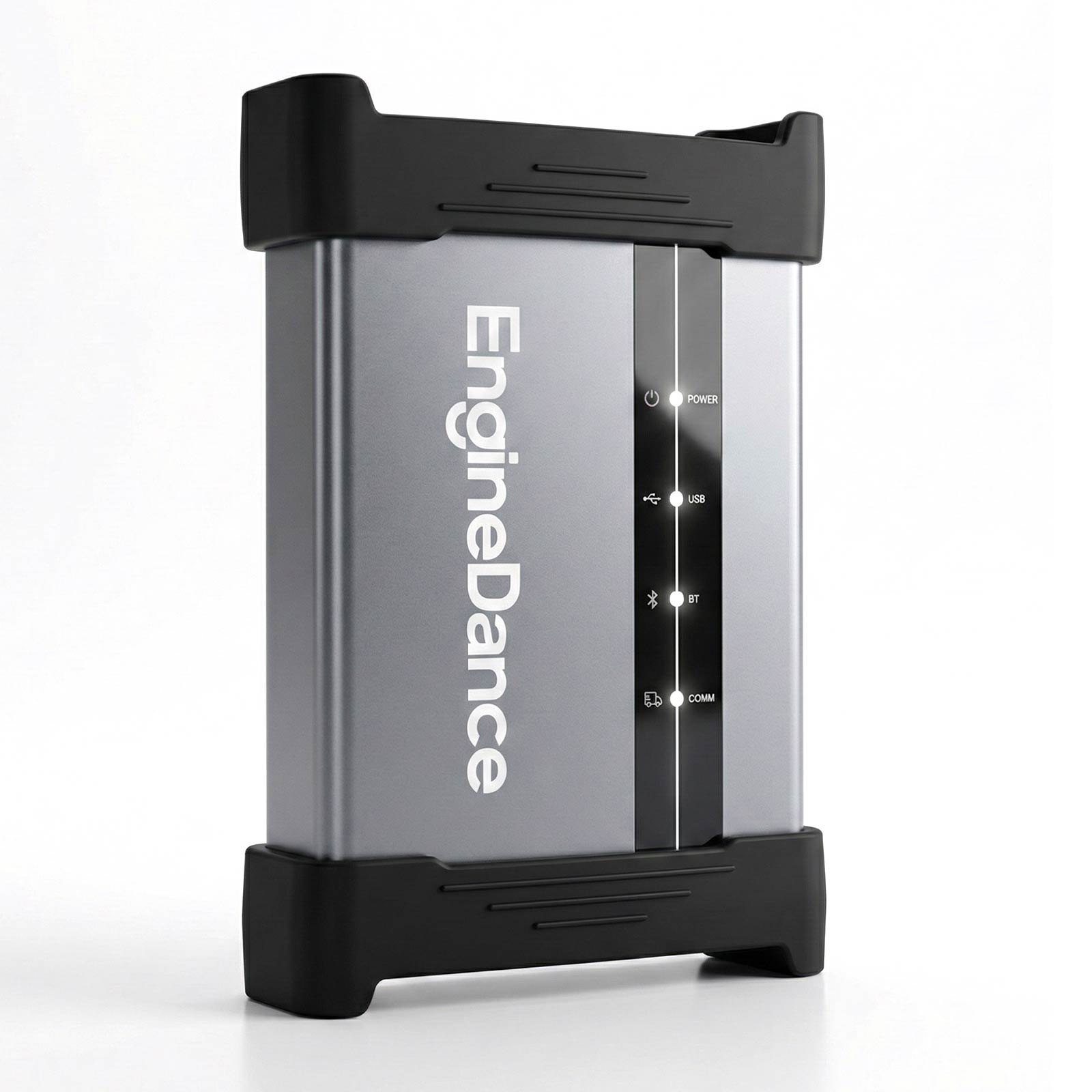

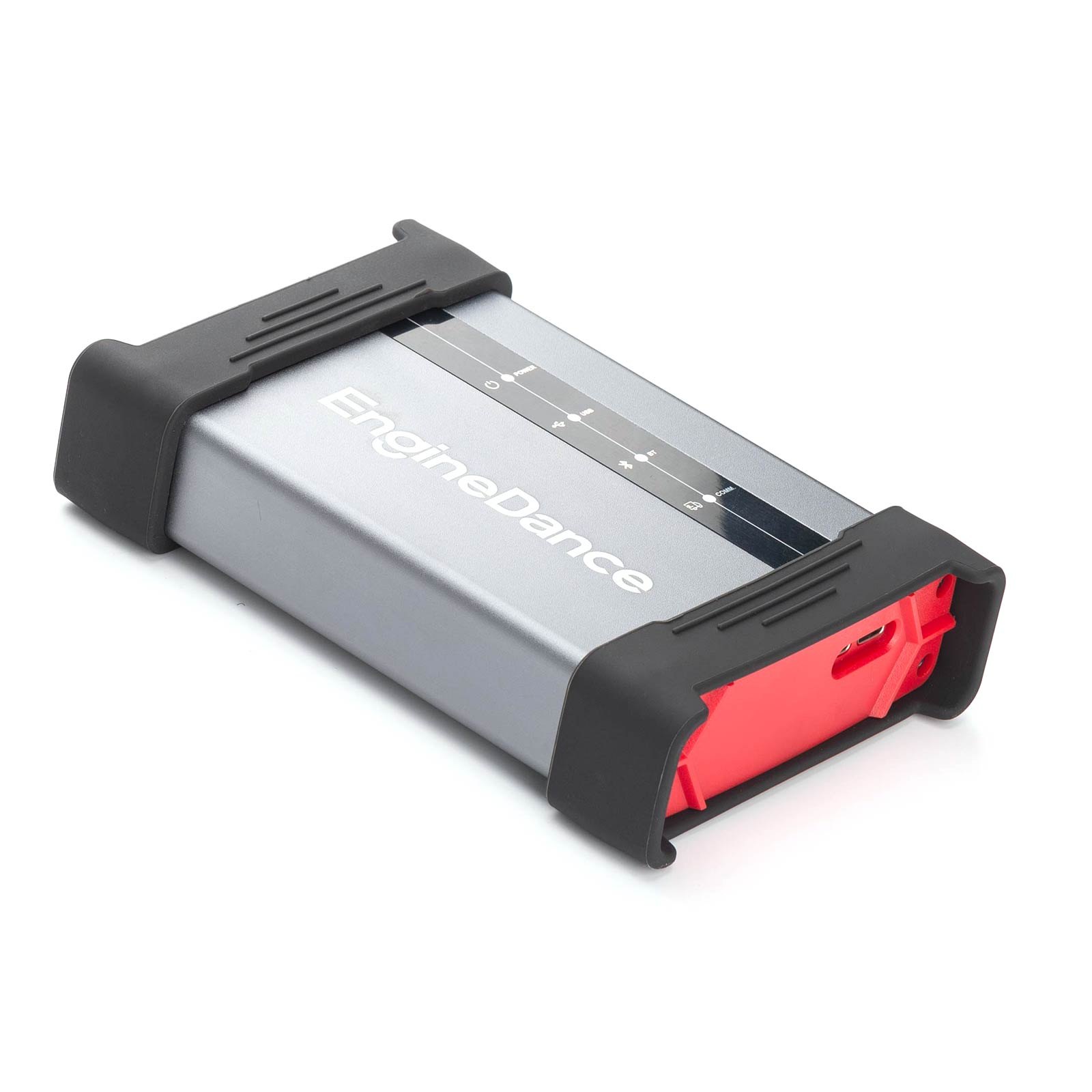

• Aviation alloy shell with laser engraving, anti-fall build rated to survive vehicle pressure
• Wireless Bluetooth and high-speed USB Type-C dual-mode communication
• Two-year warranty with worry-free after-sales. Upgrade cost 300 USD per year after 2 years
• Languages: Chinese, English, Russian, and Vietnamese
• Light trucks, heavy trucks, buses, agricultural machinery, and construction machinery, covering over 98 percent of Chinese vehicle models
• Supported ECUs: Bosch, Denso, Cummins, Delphi, Continental, TRW, Ectek, and others
• Supported engines: Cummins, Perkins, Caterpillar, Weichai, Yuchai, FAW, Yunnei, Doosan, Isuzu, Komatsu, Yanmar, Deutz, YTO, Econtrols, Woodward, Mercury, Quanchai, SDEC, Great Wall, Changchai, DCD, Sida, XinChai, and others

Functions

• BOSCH MD1 read and flash, partly encrypted ECUs included
• EDC17 encrypted series read and flash
• International vehicle diagnosis and flash
• Diesel and natural gas compatible
• Transmission diagnosis, self-learning, and flash
• BCM and instrument diagnosis, calibration, and flash
• Engineering machinery diagnosis, read, and flash
• Agricultural machinery diagnosis, calibration, and flash
• Deep code clearing and fault light reset
• Urea induction reset
• Remote unlock of encrypted MD1 ECUs, partly. Contact us for the ECU list

Advantages

• ECU reprogramming across most ECU flashes, including FAW, CNHTC, SINOTRUK, SITRAK, DongFeng, Foton, CAMC, SHACMAN, SFH, JMC, JAC, XCMG, SANY, and CHENGLONG
• Over 300 Chinese commercial vehicle ECU models readable and writable, covering almost all electronic control systems of Chinese commercial vehicles
• Gas flash, Woodward OH6 and OH2.0, and Bosch EGC4 flash
• Post-processing DCU flash
• Transmission module flash and retarder flash
• Stable flashing with dual verification technology and very low flash failure probability
• VCU, CBCU, BCM, and instrument writing for FAW, CNHTC, DF, and Foton
• DPF regeneration with full coverage
• Calibration, SCR detection, NOx sensor detection, VECU maximum speed adjustment, urea injection temperature setting, CAN bus and instrument drive

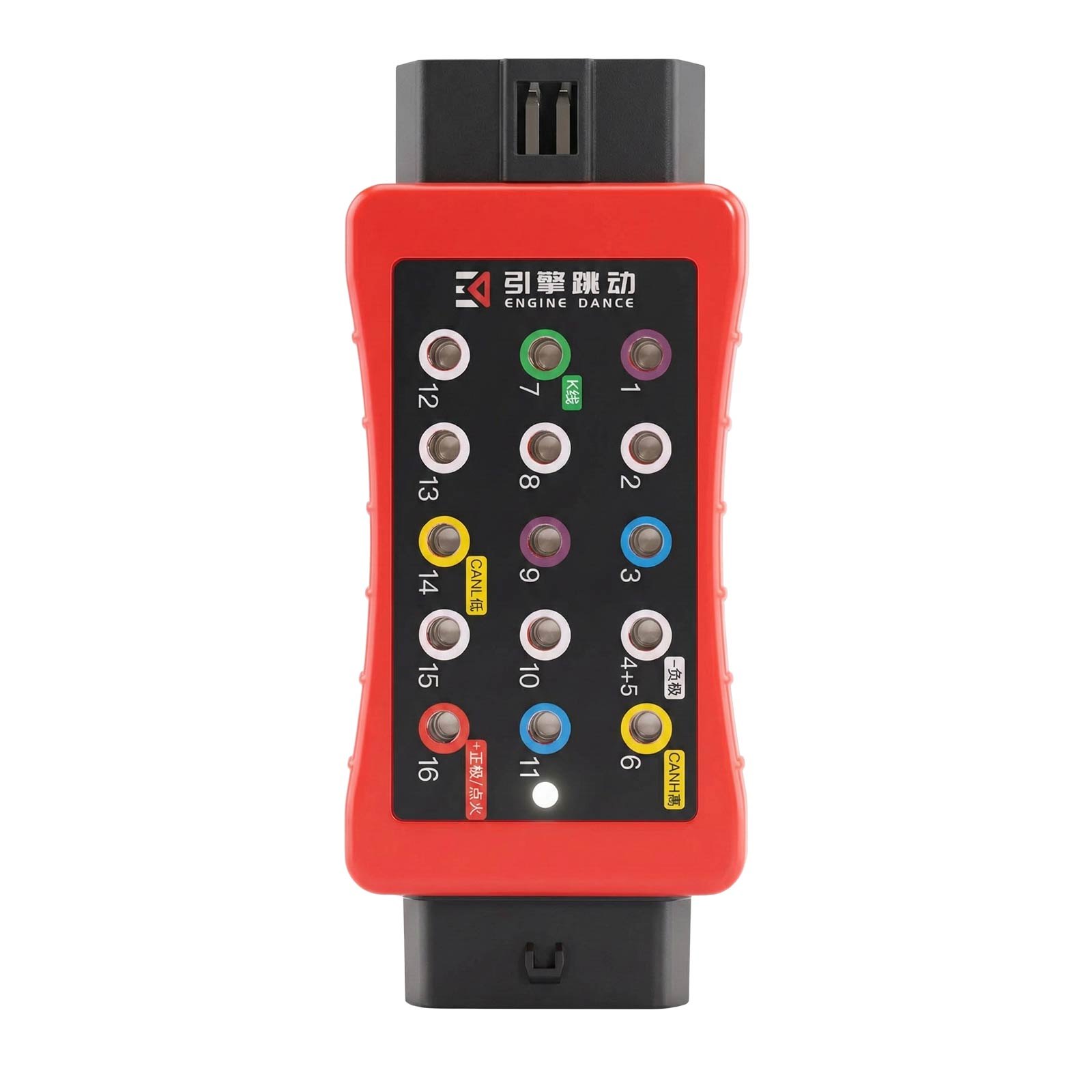

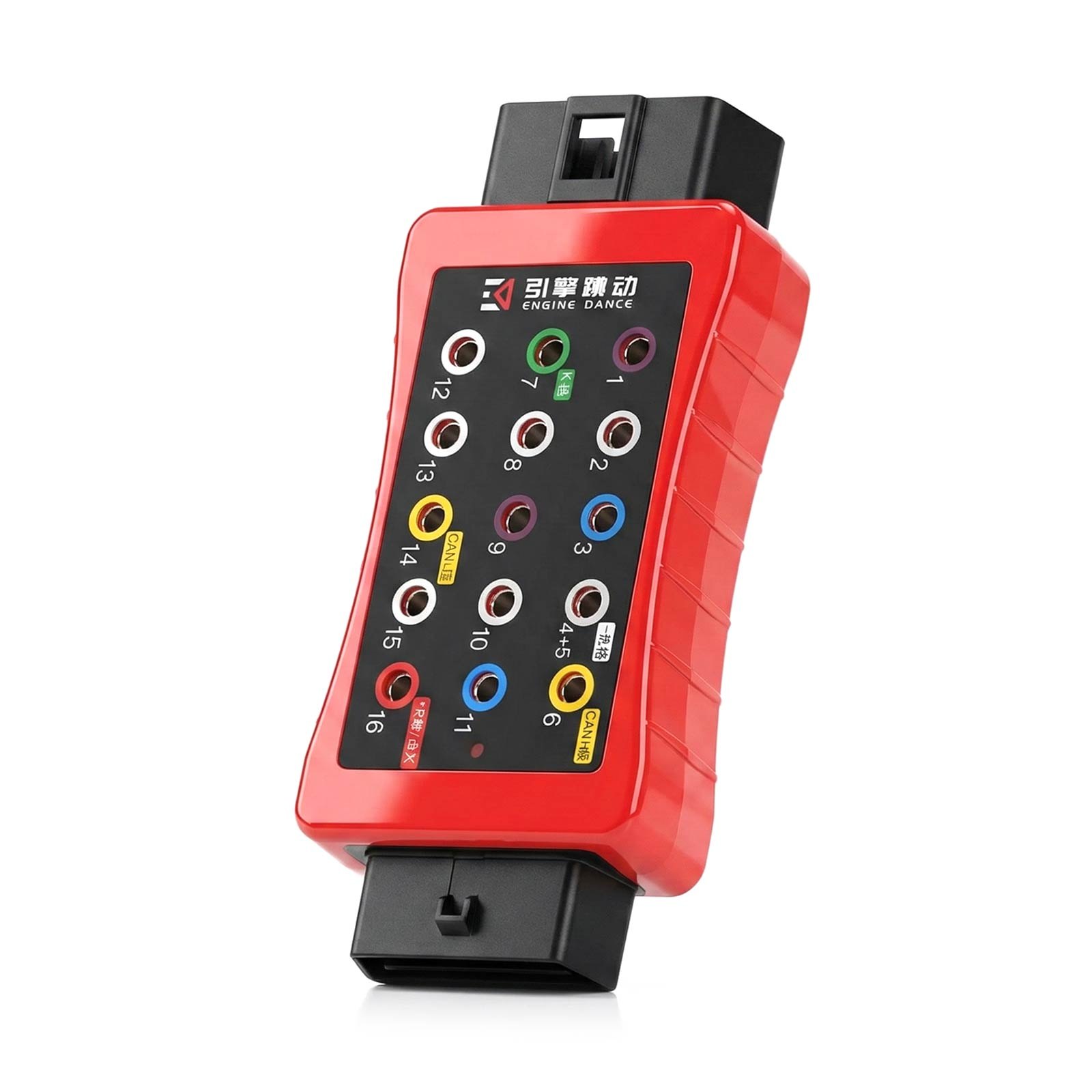

• OBD pin voltage reading
• Remote assistance with one-click start from engineers
• One-click software upgrade

International brands

Diagnosis: Volvo, MAN, Scania, Mercedes-Benz, DAF, Hino, Fuso, Iveco, UD, Caterpillar, Hyundai, Kia, Doosan, Isuzu, Toyota, Ford, Jeep, Land Rover, and VW.

• Scania programming: EMS and EDC S6 250Kbps (MPC555 and 556), EMS S6 500Kbps (MPC555 and 556), EMS S8 250Kbps (MPC5566), EMS S8 and EMD1 500Kbps (MPC5566), EMS S8 and EMD1 250Kbps with Bam (MPC5566), EMS S8 and EMD1 500Kbps with Bam (MPC5566). Reading, writing, and checksum correction
• MAN: Bosch EDC7C32 (0281020067) by OBD and Bench, Bosch EDC17CV42 (0281020273, TC1797) by Bench, Bosch MD1CE100 TC299 by Bench. Reading, writing, and checksum correction
• Denso SH725XX, 1N83M, and SH705X by Bench with FLASH and EEPROM read, write, and checksum correction per chip: 1N83M, SH72543, SH7055, SH7058, and SH7059
• Toyota and Lexus Gen 3 P5-UDS models: R7F701202 and R7F701216. LC300 and LX500d 3.3TD (F33A-FTV and R7F701216). LC150, Hiace, Hilux, Revo, and Fortuner 2.4TD and 2.8TD (1GD-FTV, 2GD-FTV, and R7F701216) plus 6AT gearbox (AC60F and R7F701201). Camry, ES, Rav4, and UX 2.0L and 2.5L (M20A-FKS, A25A-FKS, and R7F701202). Camry, ES, and Rav4 2.5L 8AT gearbox (UB80 and R7F701201). Camry, ES, and Rav4 2.5L HV test (A25A-FXS and R7F701202). Corolla 2.0L test (M20A-FKS and R7F701202). Highlander and Siena 2.5L HV test (A25A-FXS and R7F701216). Yaris GR 1.6T test (G16E-GTS and R7F701216) with read, write, and checksum
• Trucks Delphi ETC3: read and write by CAN-bus OBD2 or bench on DAF, Kenworth, Peterbilt, and Hyundai trucks. DAF and industrial Delphi ETC3 on MCU NXP MPC5566 with 3Mb internal flash, map area read and write with checksum correction by CAN-bus OBD2 or bench. REV 0 and REV H ECUs not supported. Hyundai Delphi ETC3 on the same MCU
• Trucks Delphi DMCI CAN: read and write by CAN-bus on DAF and Hyundai trucks. Motorola MPC561 with 2.0Mb internal flash. Calibration area read and write with checksum correction. DAF, Kenworth, and Hyundai DMCI variants
• IVECO light trucks: EDC17C69 bench, EDC17C49 bench, MD1CS069 with bench lock ECU support, MD1CS089 bench, DCU17PC42 and PC43 bench
• Isuzu and Transtron: 4HK1, 6HK1, and 4JJ1 on SH7058. 6HK1XDIAG and 4JJ1XDIAG M4S and L4S on SH72533. 6HK1, 6WG1 M5.3 and M5.2 and 4HK1, 6HK1, 4JJ1 L5.2, L5.3, and L5.4 on SH72544 and SH72546
• Kia and Hyundai: heavy-duty Delphi ECU DMCI on MPC561. D6CF Delphi ETC3 series MPC5566 by OBD. Kefico and Denso 2.5L CRDI on SH72546 (MB275700-58xx) by OBD. Euro 6 Denso SH72543 by bench. DCM3.7AP. Reading, writing, and checksum correction
• BOSCH MD1 bootloader: MD1CE100 AURIX SAK-TC299TP, MD1CE108 ST-SPC5898, MD1CS089 SAK-TC299TP, and MD1CS069 SAK-TC299TP
