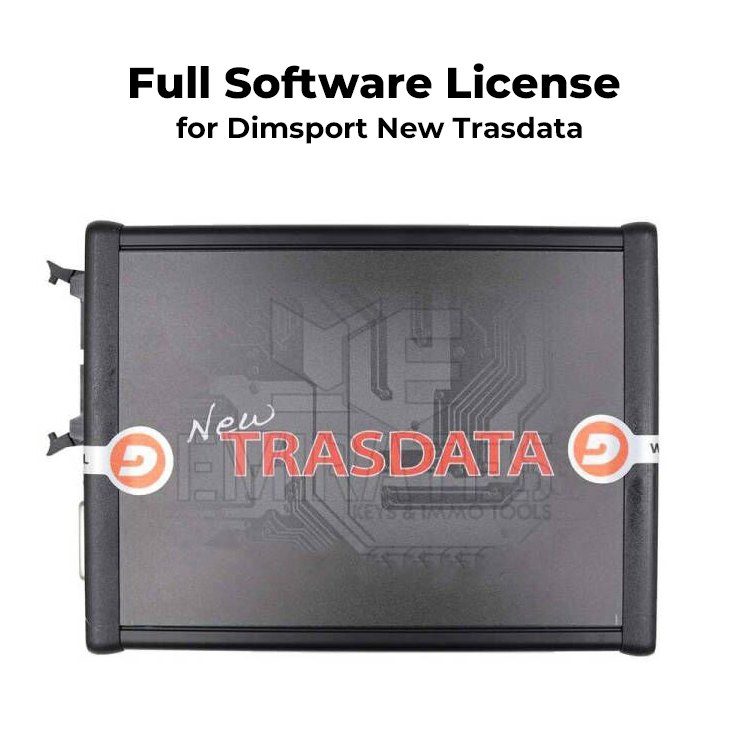

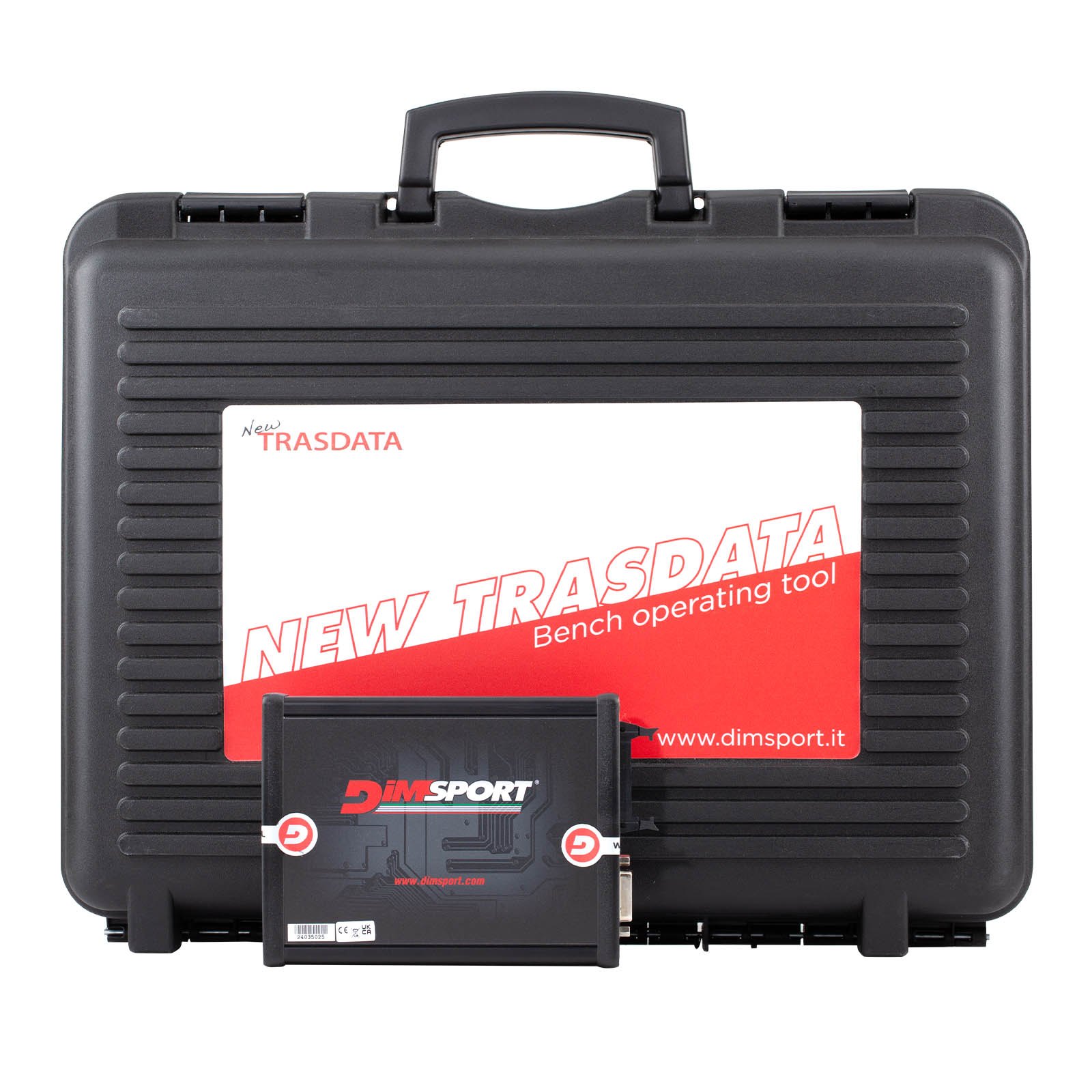

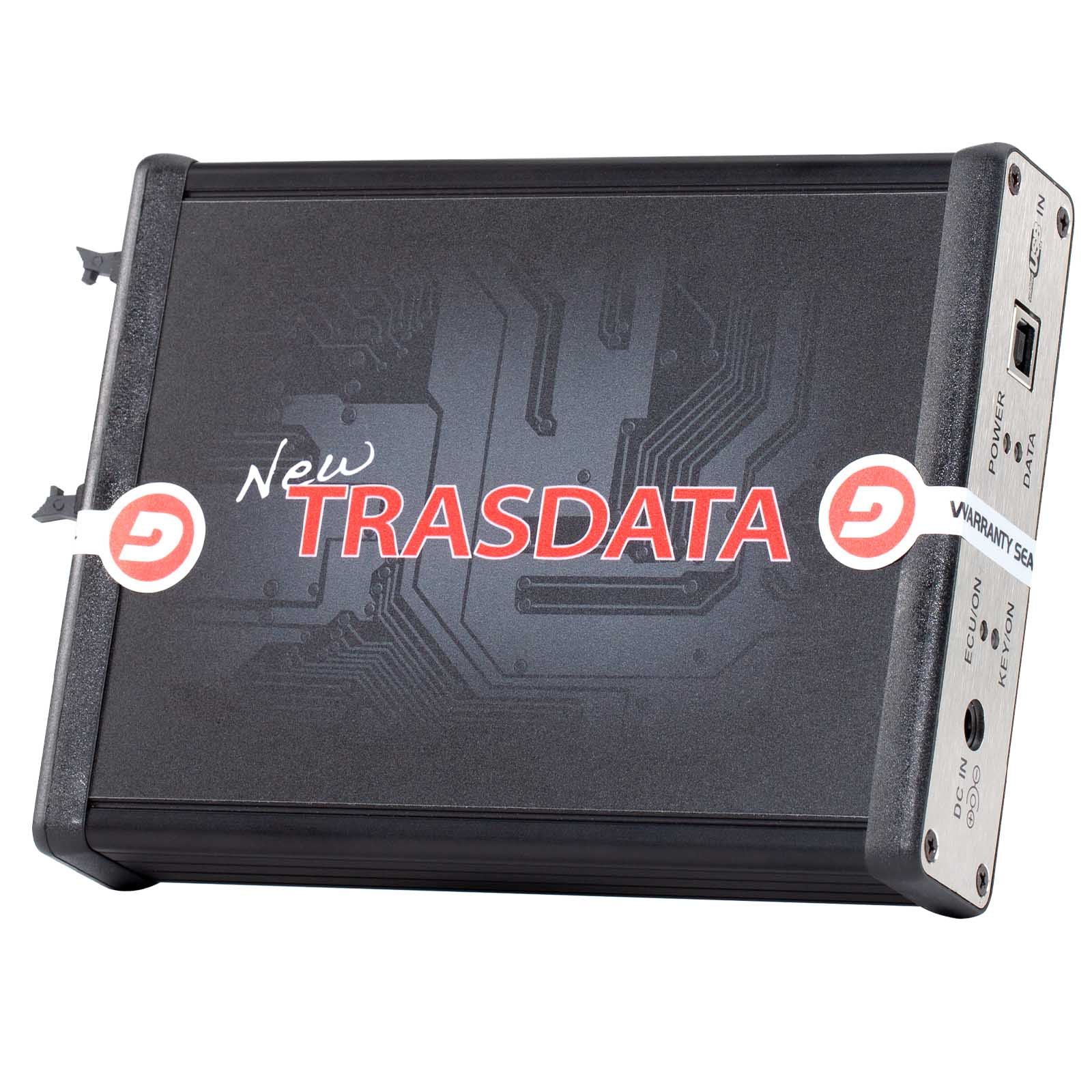

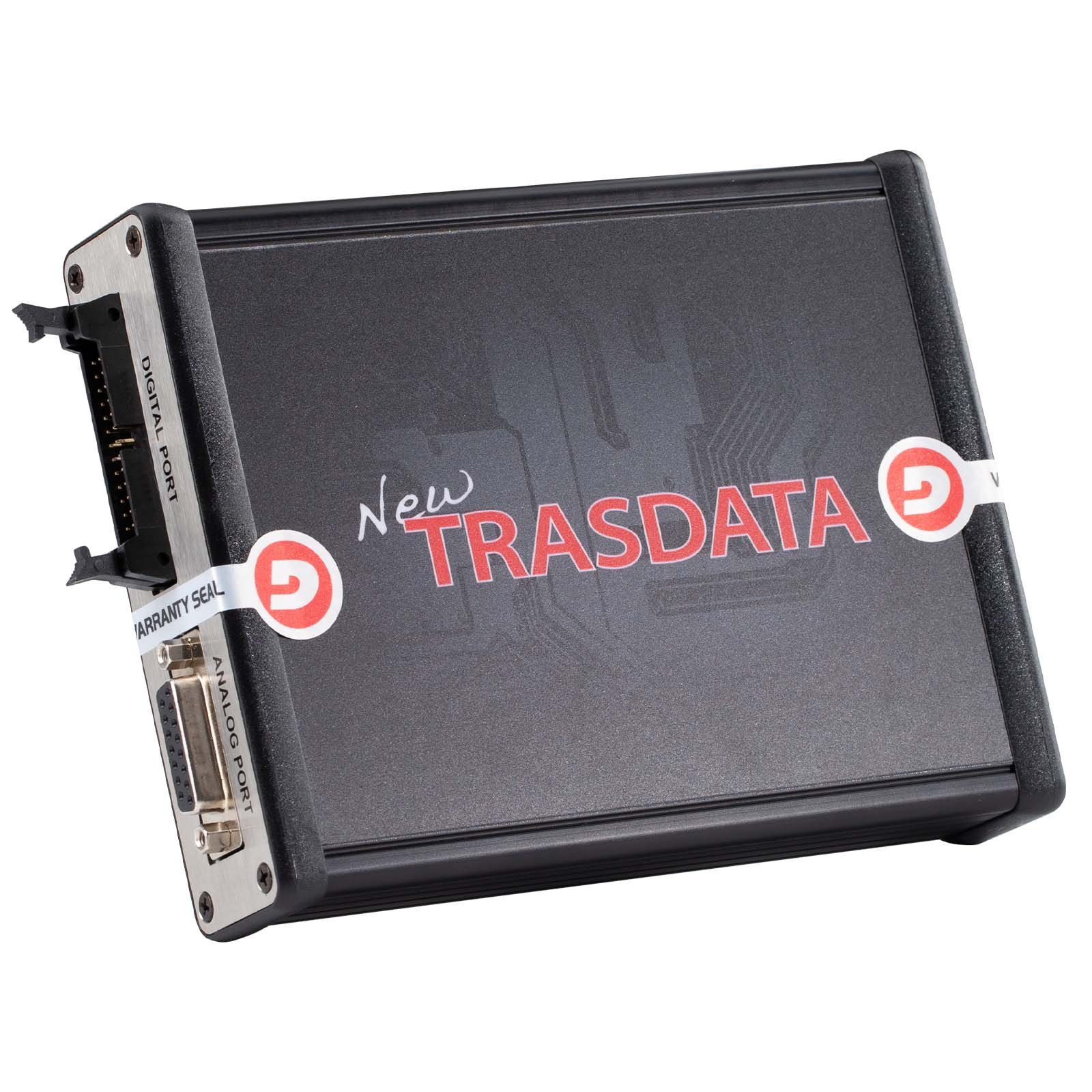

Dimsport New Trasdata Master Version Hardware with Full Software Activation (All Vehicle Categories)

The Dimsport New Trasdata Master Version Hardware with full software activation covers all vehicle numbers: SE190 and XNR-SS514-M-FULL.

Full software activation includes

• AV34NT001B: bike and ATV
• AV34NT001C: car and light commercial vehicle, bike not included
• AV34NT001M: marine applications
• AV34NT001A: tractor and agricultural vehicle
• AV34NT001T: truck, bus, and light commercial vehicle

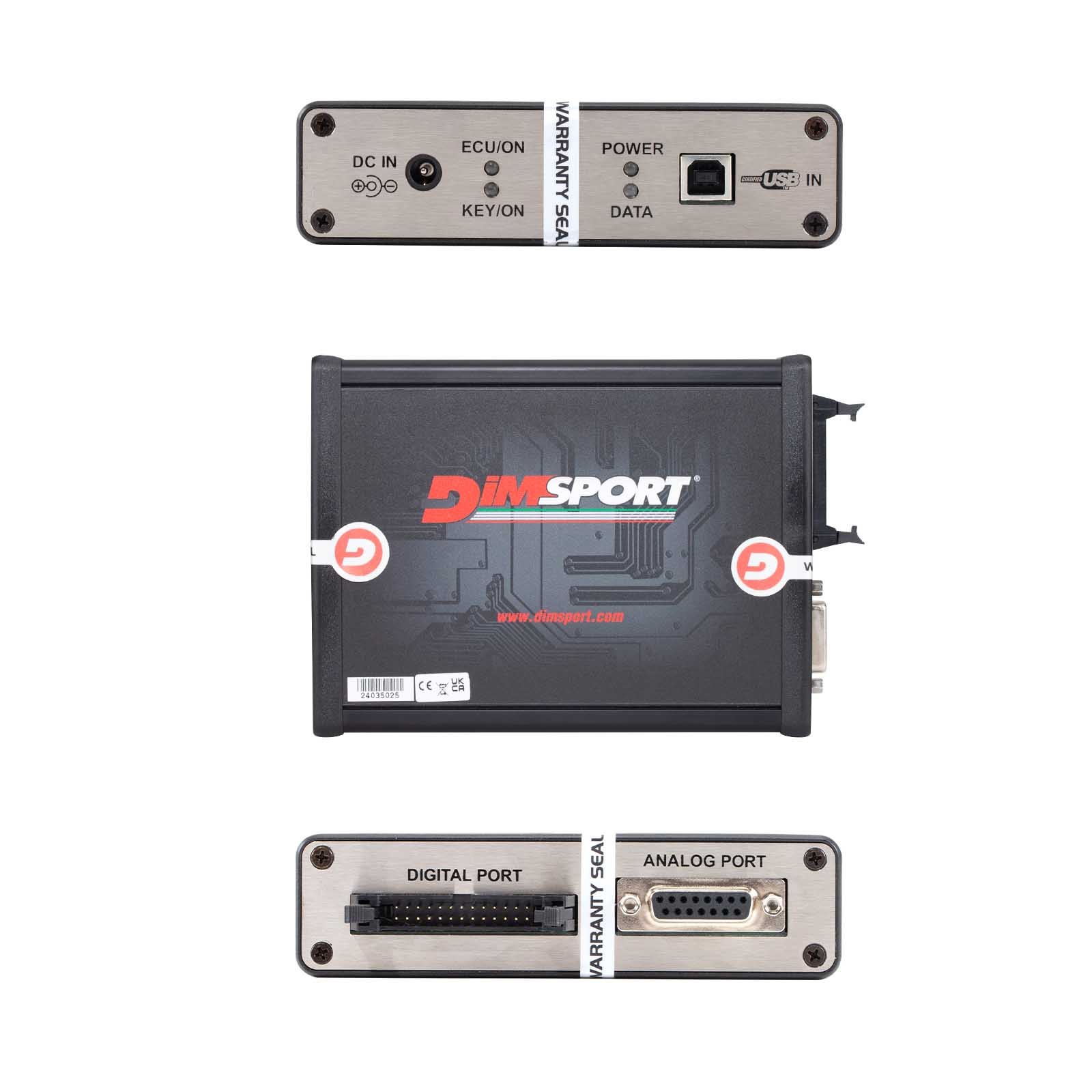

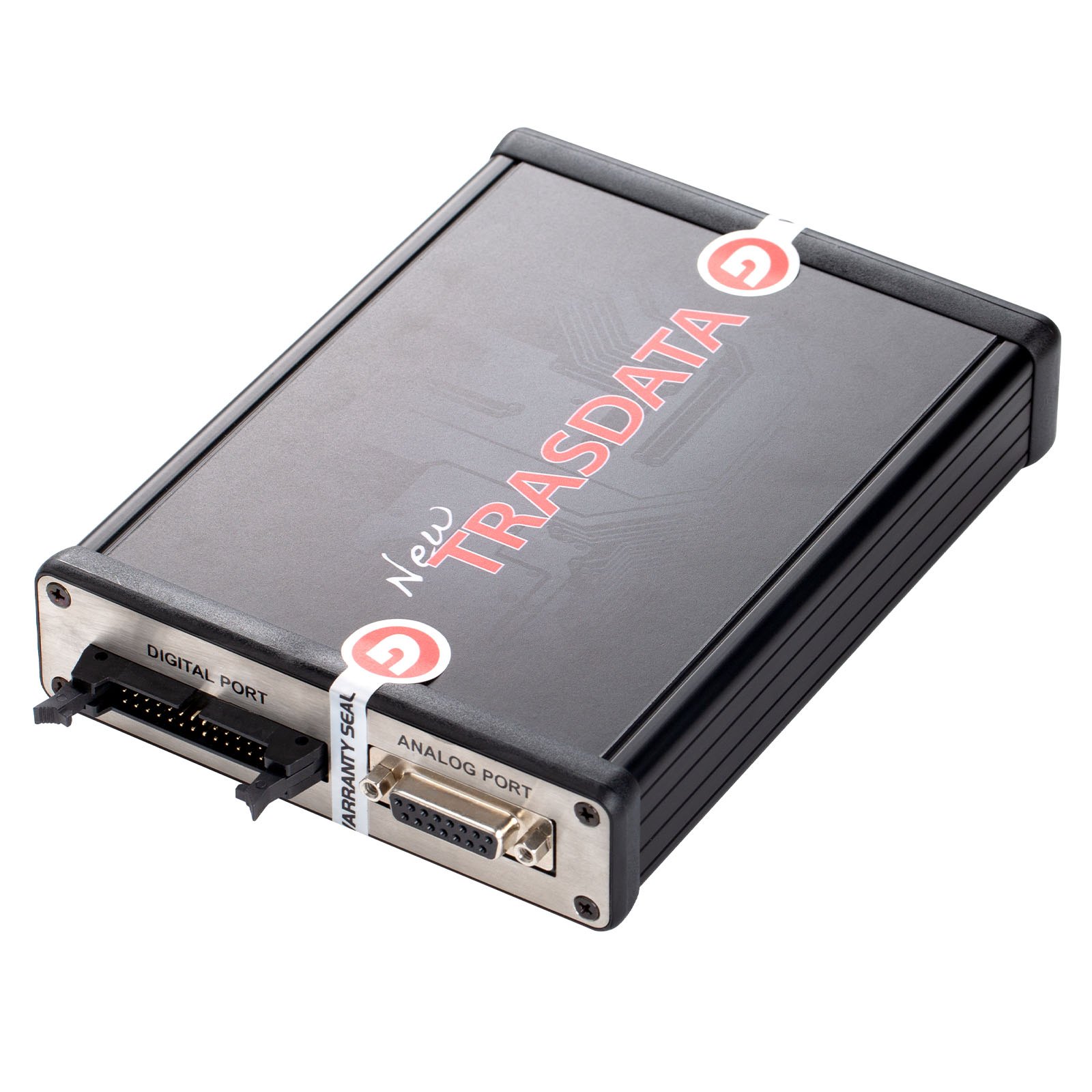

Hardware

New Trasdata supports all microprocessors used across vehicle types. Where the ECU microprocessor carries an anti-tuning feature, a New Trasdata software patch unlocks OBDII communication and restores support.

• Freescale and ST MPC56xx SPC56x, Freescale and ST SPC5777C, Freescale SPC577M
• Infineon Tricore and Infineon Tricore Aurix TC2XX
• Mitsubishi MH72xx and MH82xx
• Motorola HC12, MC68xxx, MPC5xx, and MPC55xx
• Nec 76F00xx
• Renesas M32R, SH705x, and SH725xx
• ST Microelectronics ST10xxx

Bench and open operation

• Reads and programs the full ECU content: microprocessor, flash EPROM, and serial EEPROM. The original content stays retrievable even after a blocking event
• Autonomous checksum recalculation keeps normal engine conditions after modification
• No soldering or desoldering. A metal positioning frame with terminal adapters connects the ECU board to the tool. Some operations run without opening the ECU at all
• Reads full ECU firmware and self-identifies engine maps and parameters across ECU components
• ECU and TCU cloning by OBD, BDM, BOOT, JTAG, and AUD
• ECU and TCU reading of software and data files
• ECU and TCU programming with software updates, customizations, and modifications
• Automatic checksum correction during programming
• Protocols: CAN, K-LINE, J1850, and PWM
• Multi-brand and multi-language support
• Real-time ECU and TCU data display including sensor data and fault codes
• Easy software with automatic updates and backup options

JTAG developments

• Motorola MPC5xx (BDM mode)
• Motorola MC68xxx (BDM mode)
• Motorola MPC55xx (JTAG mode)
• Renesas SH705x (AUD and BOOT mode)
• Mitsubishi MH72xx and MH82xx (BOOT mode)
• Infineon Tricore (BOOT mode)
• ST Microelectronics ST10xxx (BOOT mode)
• Motorola HC12 (BDM mode)
• Renesas M32R (BOOT mode)

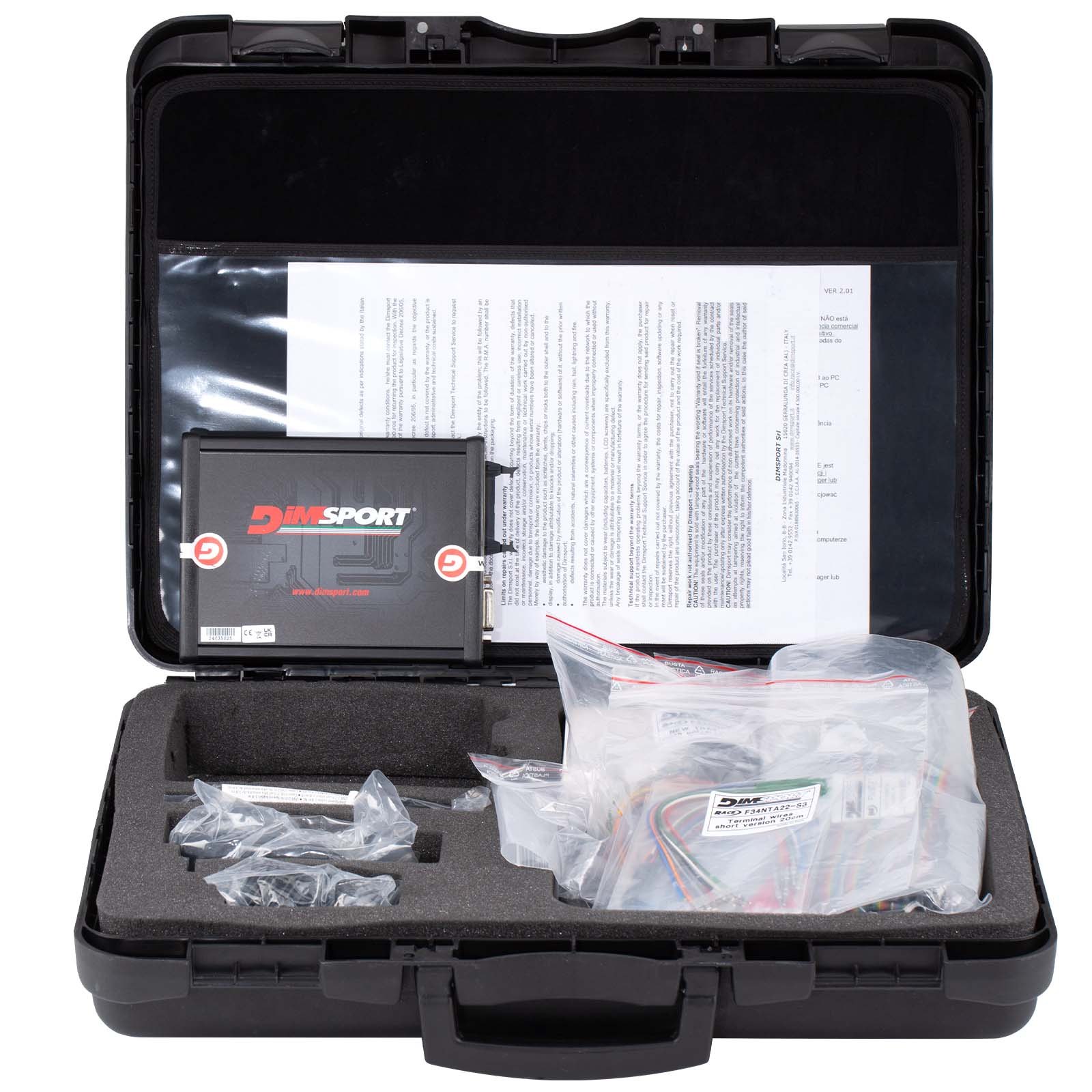

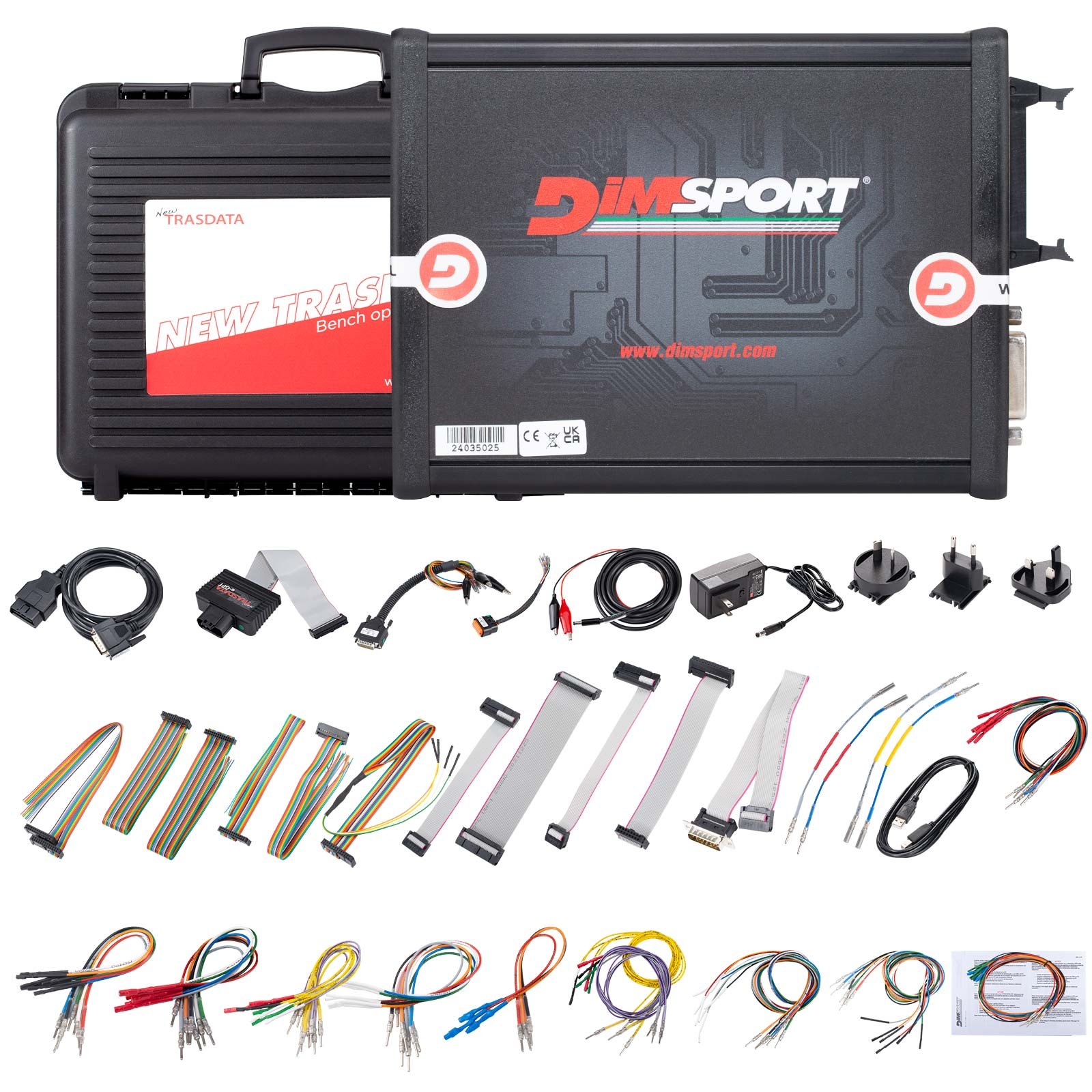

What is in the box

• 1pc Dimsport New Trasdata
• 1pc full software activation

Orders leave the warehouse within one business day. Delivery then takes 7 to 20 days. Orders over $150 ship free.

Not right for you? You have 30 days from delivery, with no restocking fee. See the full returns policy.
