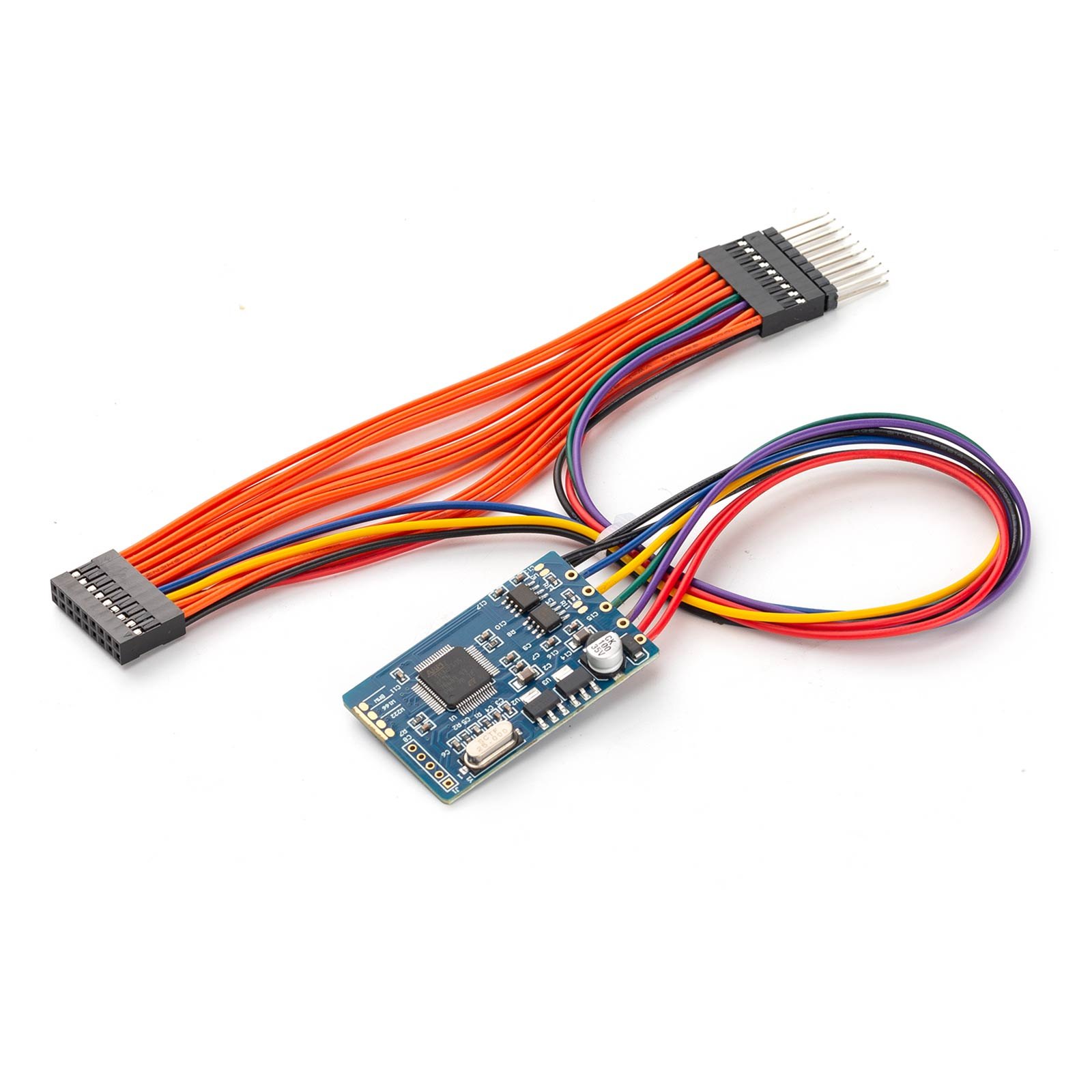

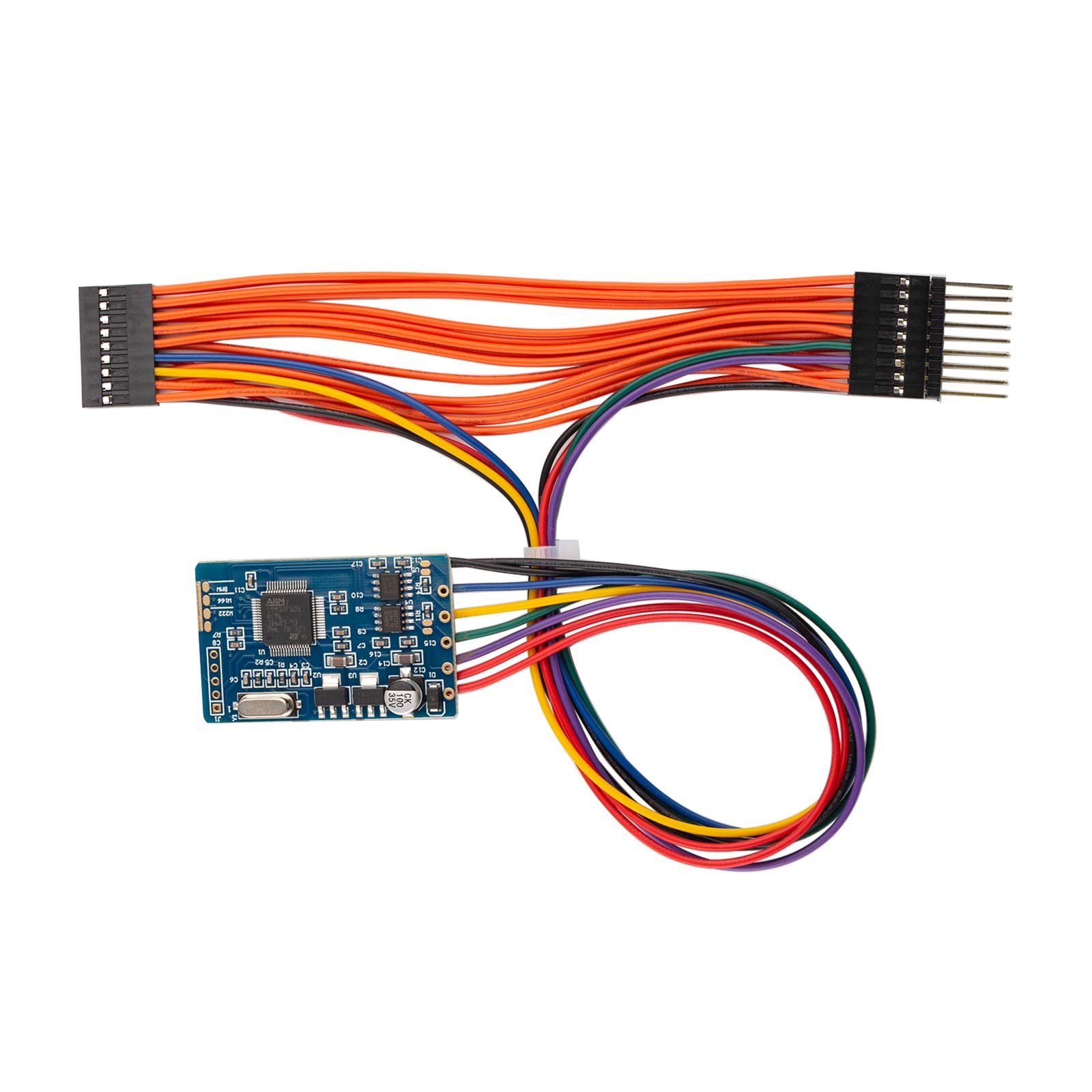

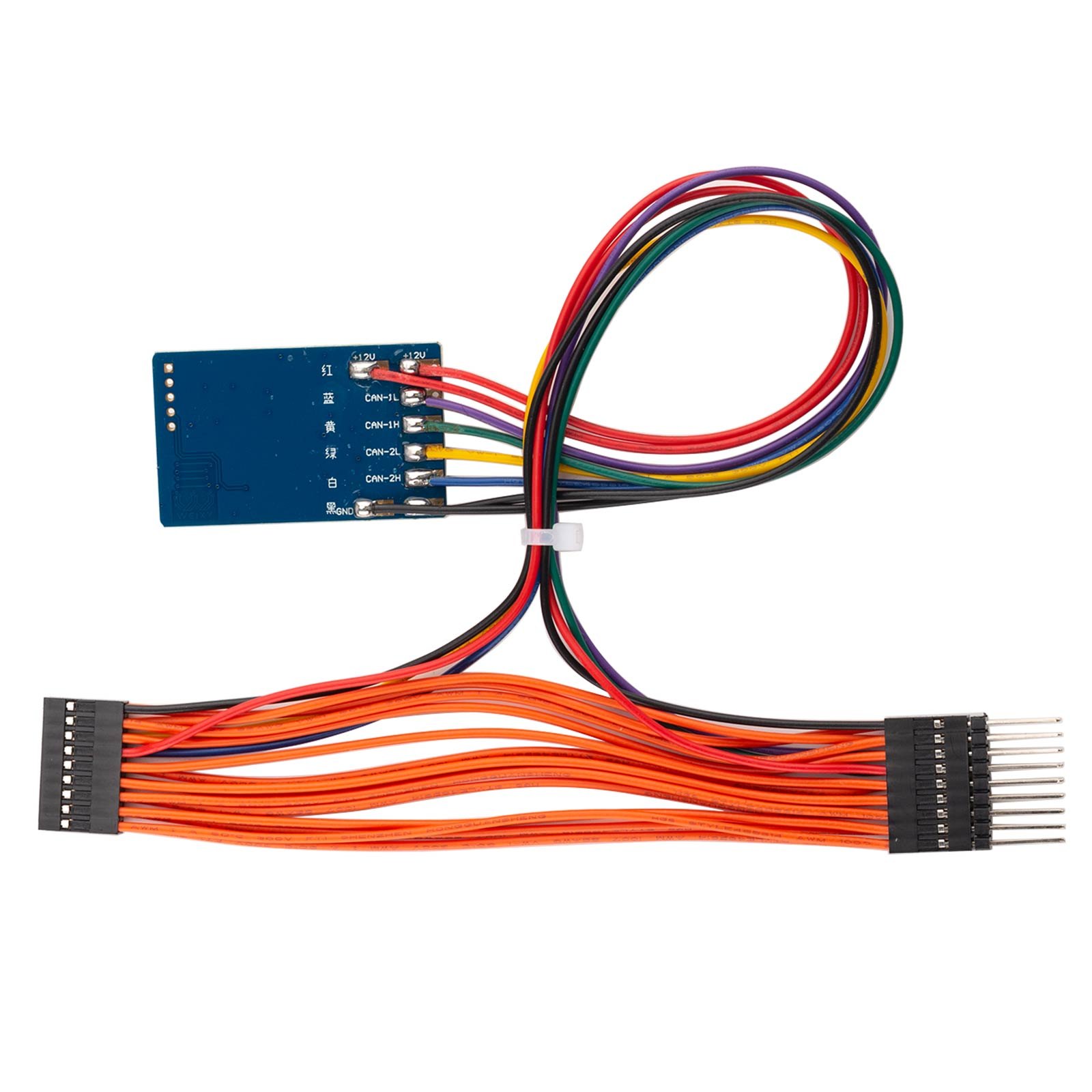

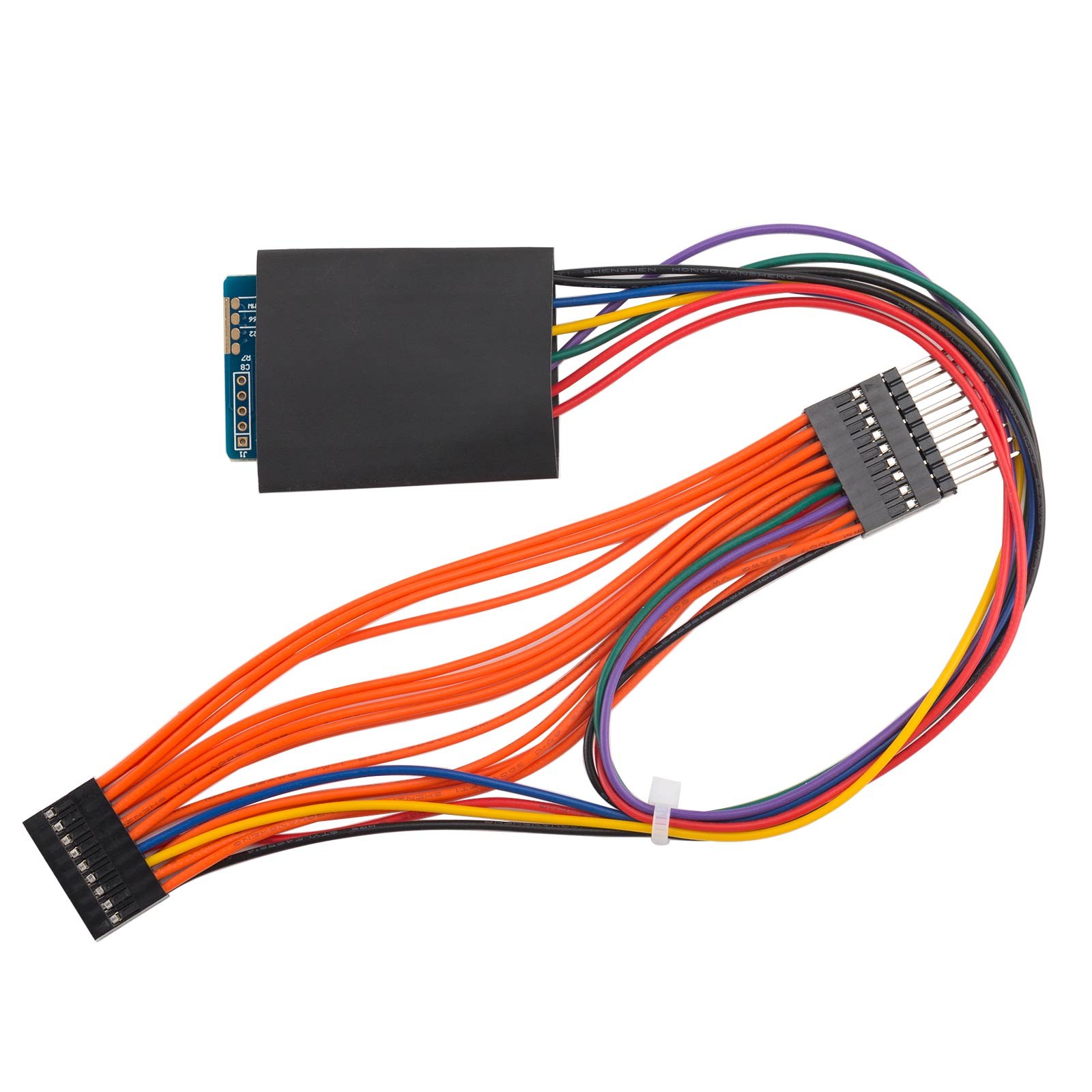

CAN Filter 18 in 1 for Benz/BMW Universal CAN Filter

A universal CAN filter 18 in 1 for Mercedes-Benz and BMW. Benz coverage runs eighteen chassis including the S 222 and 221, C 205 and 204, V W447 and E W212 and W207, in new style 222, 205 and 217 and old style 166, 212 and 463, and BMW covers the CAS4 and FEM Fxx.

Specifications

• Benz 18 types chassis model: S(222), S(221), C(205), C(204), V(W447), E(W212), E(W207), A(W176), G(W463), ML(W166), SL(R231), GL(X166), B(W246), CLS(W218), SLK(R172), SLS(W197), CLA(W117), GLK(X204)
• New style: 222/205/217
• Old style: 166/212/463
• BMW: CAS4/FEM Fxx

What you get

• 1pc x CAN Filter 18 in 1 for Benz/BMW Universal filter

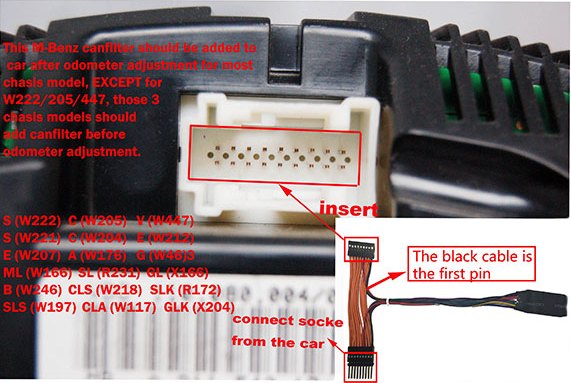

• This CAN Filter 18 in 1 for Benz / BMW universal filter should be added to the car after odometer adjustment for most chassis models. But for W222/W205/W447 models, CAN filters should be added before odometer adjustment.
• CAN Filter 18 in 1 Benz/BMW Universal Filter
• CAN Filter 18 in 1 Benz/BMW vehicle list:
• CHECK the car model correctly before mileage adjustment.
• Old style W166 short circuit to GND
• New style W222 short circuit to GND
• Black wire connect to plug 1

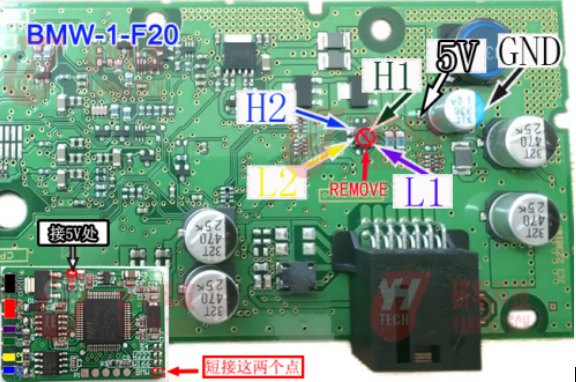

• BMW 1 series F2X, 3 series F3X, BMW X5 etc., FEM mileage adjustment( no need to remove FEM, connect directly to instrument panel);
• BMW 5 series F10, 7 series F01/02 etc., CAS4 Fxx chassis.( F01, F02, F07, F18, F10, F20, F25, X3 etc., applicable for 9S12 XEP series 5M48H/1N35H).
• This filter is universal for multiple car models, small and convenient, easy operate, with stable performance and reliability.

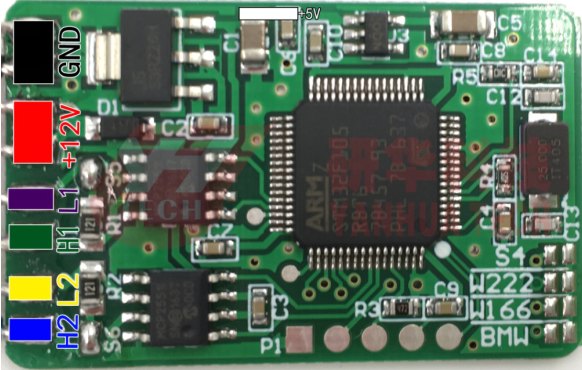

• YH Benz / BMW Universal filter --- Diagram for BMW
• Black --------- GND Red --------- +12V White --------- +5V
• Purple -------- L1(CAN_L1) Green --------- H1(CAN_H1)
• Yellow --------- L2(CAN_L2) Blue --------- H2(CAN_H1)
• NOTICE! Please connect the 2 BMW dots together (short circuit) BEFORE connection to the car!

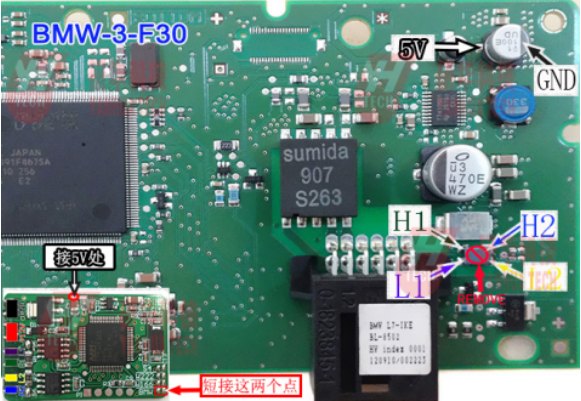

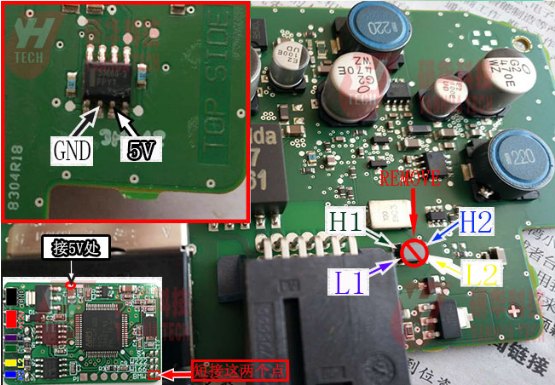

• diagram for BMW 3 GT series F30 instrument:

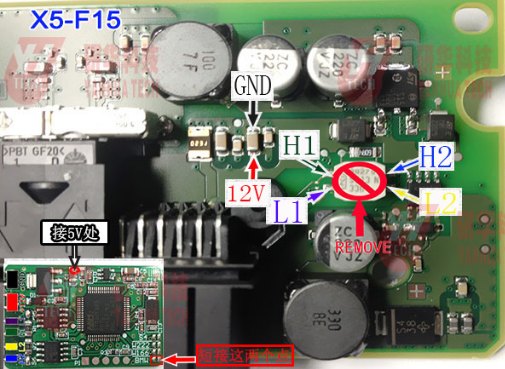

• diagram for American Standard BMW X5 F15 instrument:

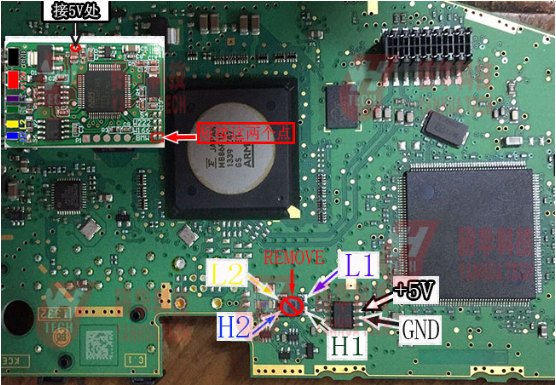

• diagram for USA Strandard BMW X5 F15 instrument:
• diagram for BMW CAS4(1L15Y/5M48H/1N35H)

Cluster work is legal only on a repaired or replaced unit, and the reading must be recorded honestly.
