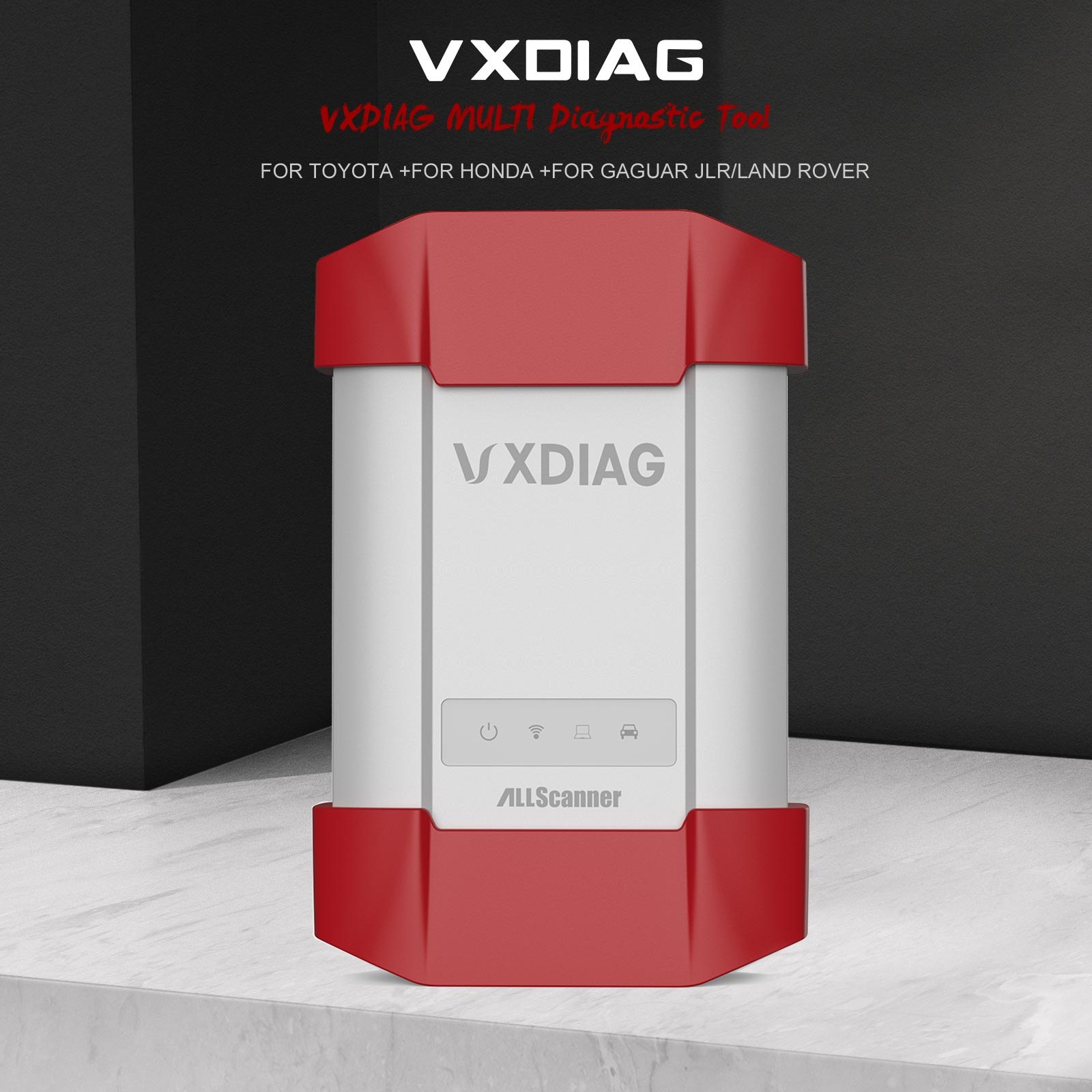

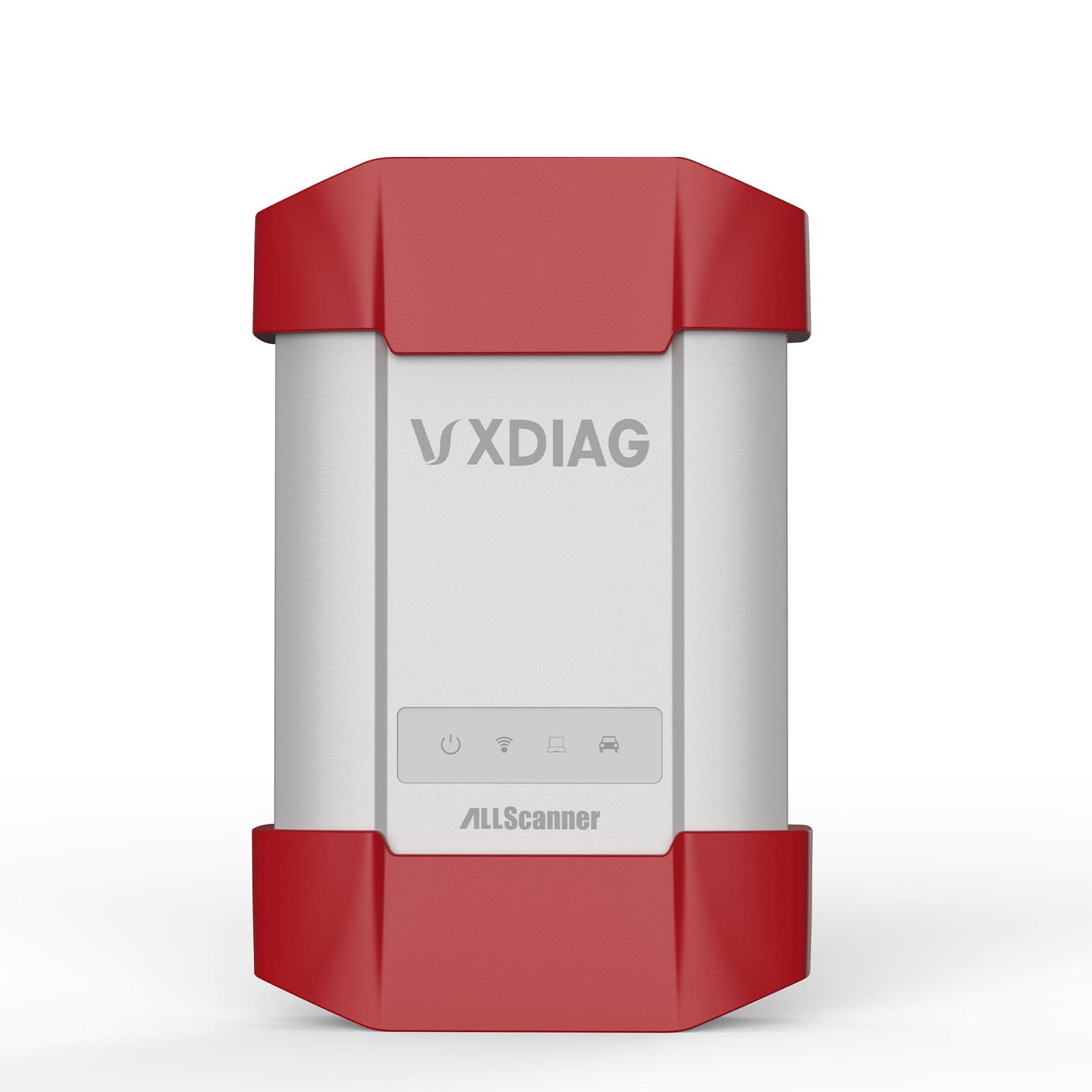

WIFI VXDIAG MULTI Diagnostic Tool for Toyota Honda Land Rover/Jaguar JLR & Volvo 4 IN 1 Scanner

A Wi-Fi VXDIAG Multi diagnostic tool covering Toyota, Honda, Land Rover and Jaguar and Volvo, four marques in one. It needs a Pentium 4 at 1.6GHz or better with 1GB of memory and 40GB of disk.

Specifications

• Toyota or VW: 70USD
• GM: 90USD
• Honda: 110USD
• BMW: 150USD
• Subaru: 270USD
• Porsche:
• Benz:
• Processor: Pentium 4 / 1.6GHz+.
• Memory: 1G Bytes or more.
• Hard disk: 40G or more.
• Display: Resolution 1024x768 or higher.
• Network interfaces: LAN 10 / 100M or 802.11b / g.
• Communication Interface: USB2.0 or USB3.0
• Warranty: One Year

Also stated by the supplier

• New Release Allscanner VXDIAG MULTI Diagnostic Tool support Toyota, Honda, LandRover & Jaguar Volvo 4 in 1, support original software WIFI version. One device support three brand, and all brand can directly run original software, and more important, you can add more software to this device in future.software to this device in future.
• WIFI VXDIAG MULTI Diagnostic Tool for Toyota Honda Land Rover/Jaguar JLR & Volvo 4 IN 1 Scanner

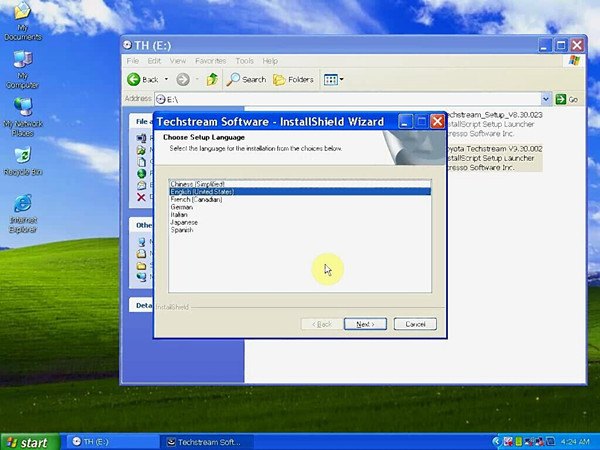

• VXDIAG is the latest diagnostic software software can be operated under WinCE and Windows, available installation for Laptop or PDA.
• Top 5 Reasons to Get VXDIAG Multi Diagnostic Tool:
• This Version VXDIAG Support Toyota, Honda, LandRover & Jaguar and Volvo, 4 Software in one Device. (From July 5th, 2017, add Volvo car software on this device, if you bought VX01/VX01-W on our site before, then can get Volvo software for free, if not, need to pay 85USD to get the authorization.)
• Support both 12V and 24V gasoline and diesel car.
• Hardware support 4-way CAN BUS and 2-way K - Line/L-Line, support multi-protocol high-speed and concurrent communication
• With the innovation design of OBD II intelligent bus protocol routing hardware, a diagnostic plug can be intelligent identification test all models, fully meet the future demand for all kinds of bus communication
• Ford&Mazda or JLR or Volvo: 85USD
• VXDIAG Can Not Support All Keys Lost, Need At Least One Key.
• VXDIAG Multi Diagnostic Tool Software Version:
• Toyota V12.019
• Honda 3.014
• LandRover, Jaguar Version V153
• VXDIAG Multi Diagnostic Tool Specification:
• RAM 32bit180MHz ARM
• FLASH 1MByte FALSH

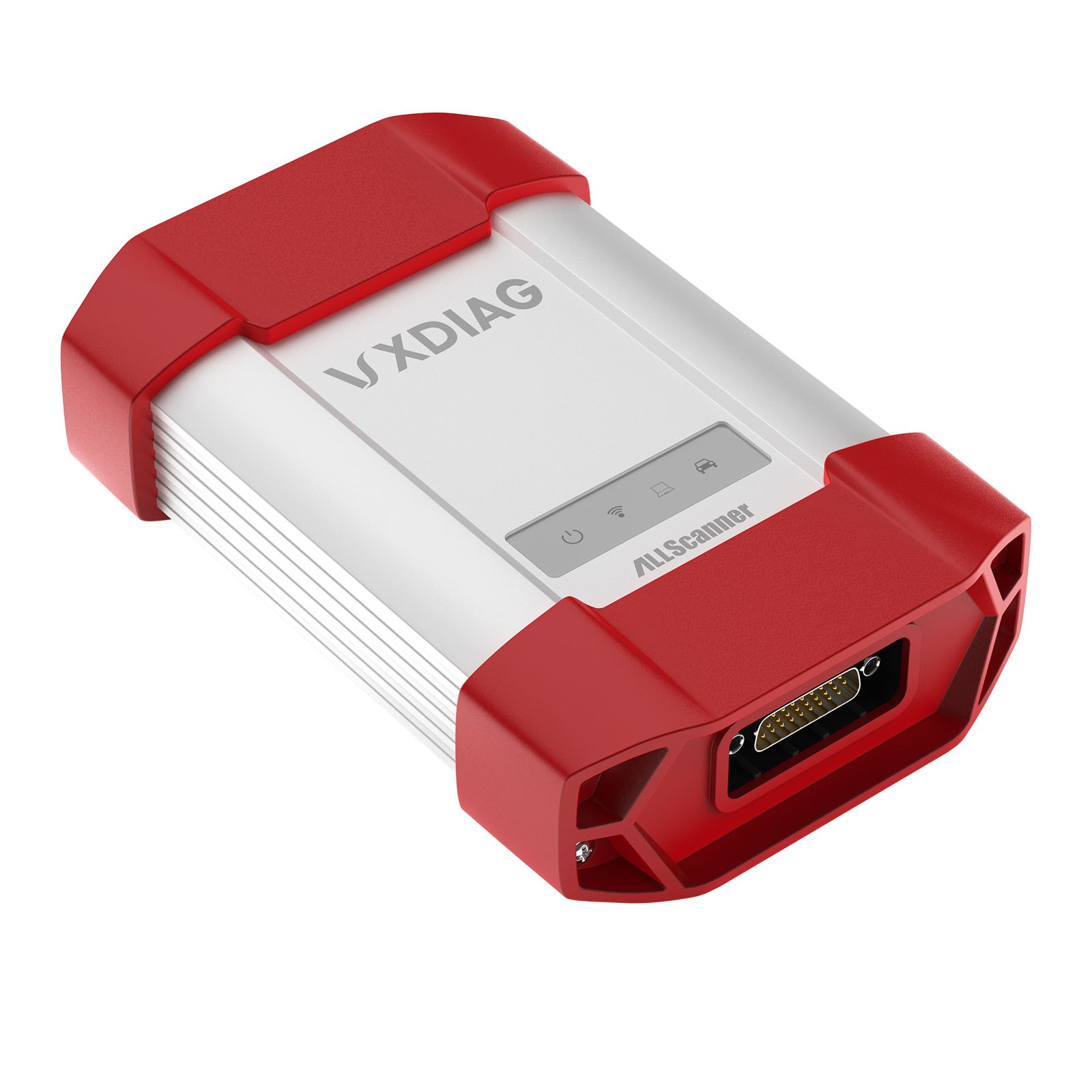

• Diagnostic Port 24PIN, self-determination design
• LED 4 LED indicator light,indicate power and status.
• Power DC 9V-36V
• Consumption 3W
• Working Temperature -20°C~70 °C
• Storage Temperature -40°C~85 °C

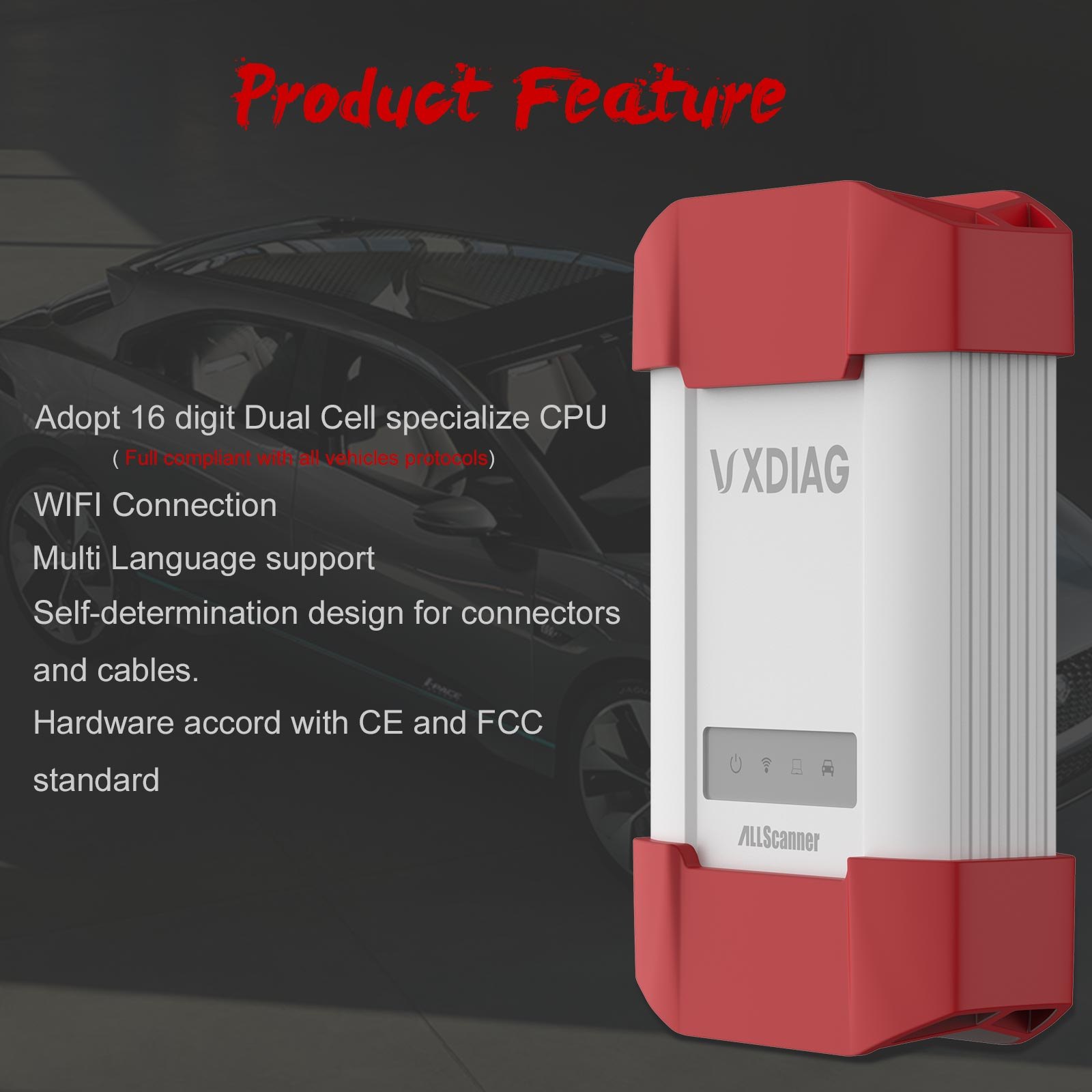

• Product Feature
• Adopt 16 digit Dual Cell specialize CPU, Full compliant with all vehicles protocols.
• Self-determination design for connectors and cables.
• Hardware accord with CE and FCC standard.
• ISO-9141 K-Line
• ISO-14230 K-Line
• ISO-15765 CAN
• SAE-J1850-VPW (GM Class2)
• SAE-J1850-PWM (FORD SCP)
• ISO-11898-2 DWCAN
• ISO-11898-3 DWFTCAN
• SAE-J2411 Single Wire CAN (GMLAN)
• SAE-J2610 SCI (Chrysler)
• SAE-J1567 CCD BUS (Chrysler)
• SAE-J2740 GM ALDL
• SAE-J2809 (HONDA DIAG-H)
• CAN125/CAN250/CAN500/CAN1000
• SAE-J1939 CAN
• SAE-J1708/J1587 On RS485
• 1pc x VXDIAG VCX-PLUS
• 1pc x OBDII Cable
• 1pc x USB Cable
• 1pc x CD

Extra marque licences are priced separately, from 70 dollars for Toyota up to 440 for Porsche.

Orders leave the warehouse within one business day. Delivery then takes 7 to 20 days. Orders over $150 ship free.

Not right for you? You have 30 days from delivery, with no restocking fee. See the full returns policy.
