Vident iEasy 320HD Pro Diesel & Petrol Truck Diagnostic Tool OBD2/EOBD + CAN Code Reader Automotive Scanner Supports 5 Languages

The 320HD Pro reads both diesel and petrol trucks over OBD2, EOBD and CAN, reaching engine, transmission, brake, fuel, body control and chassis systems rather than engine alone. Five languages are supported: English, French, Spanish, German and Russian.

Specifications

• Support 5 Languages: English, French, Spanish, Germany and Russian
• Multi-systems, e.g: Engine, Transmission, Brake, Fuel, Body Control, Chassis, etc
• I/M Readiness: Red-Yellow-Green LEDs and build-in speaker indicate emissions monitor status. They can also help catch intermittent problems or confirm repairs during a drive cycle.

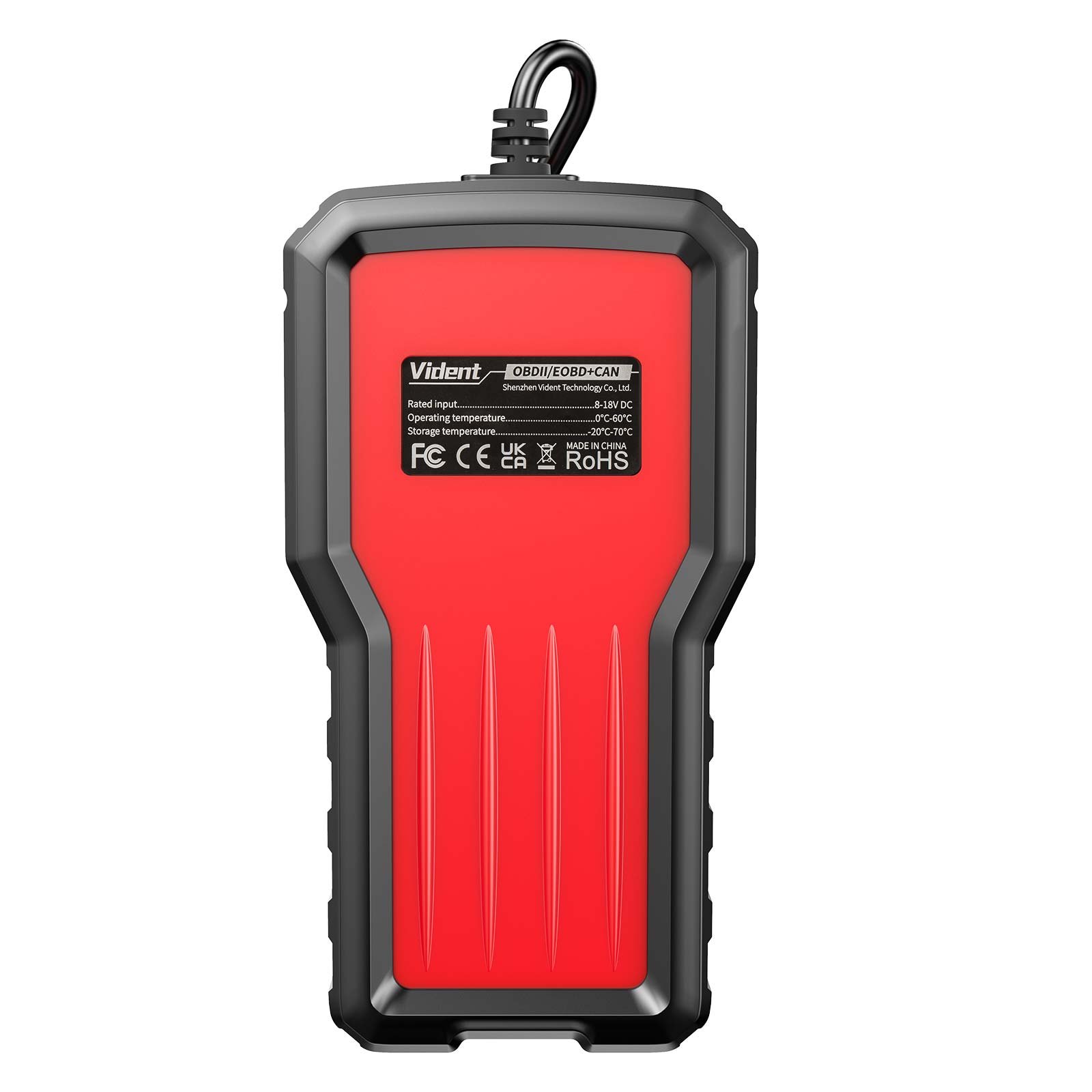

• Operating Temperature: 0 to 60°C (32 to 140°F)
• Storage Temperature: -20 to 70°C (-4 to 158°F)
• Power: 8 to 18 V provided via vehicle
• Supported Protocols: J1939, J1587/1708, J1850VPW, J1850PWM, ISO9141, KWP2000(ISO14230-4) and CAN(Control Area Network ISO15765-4)

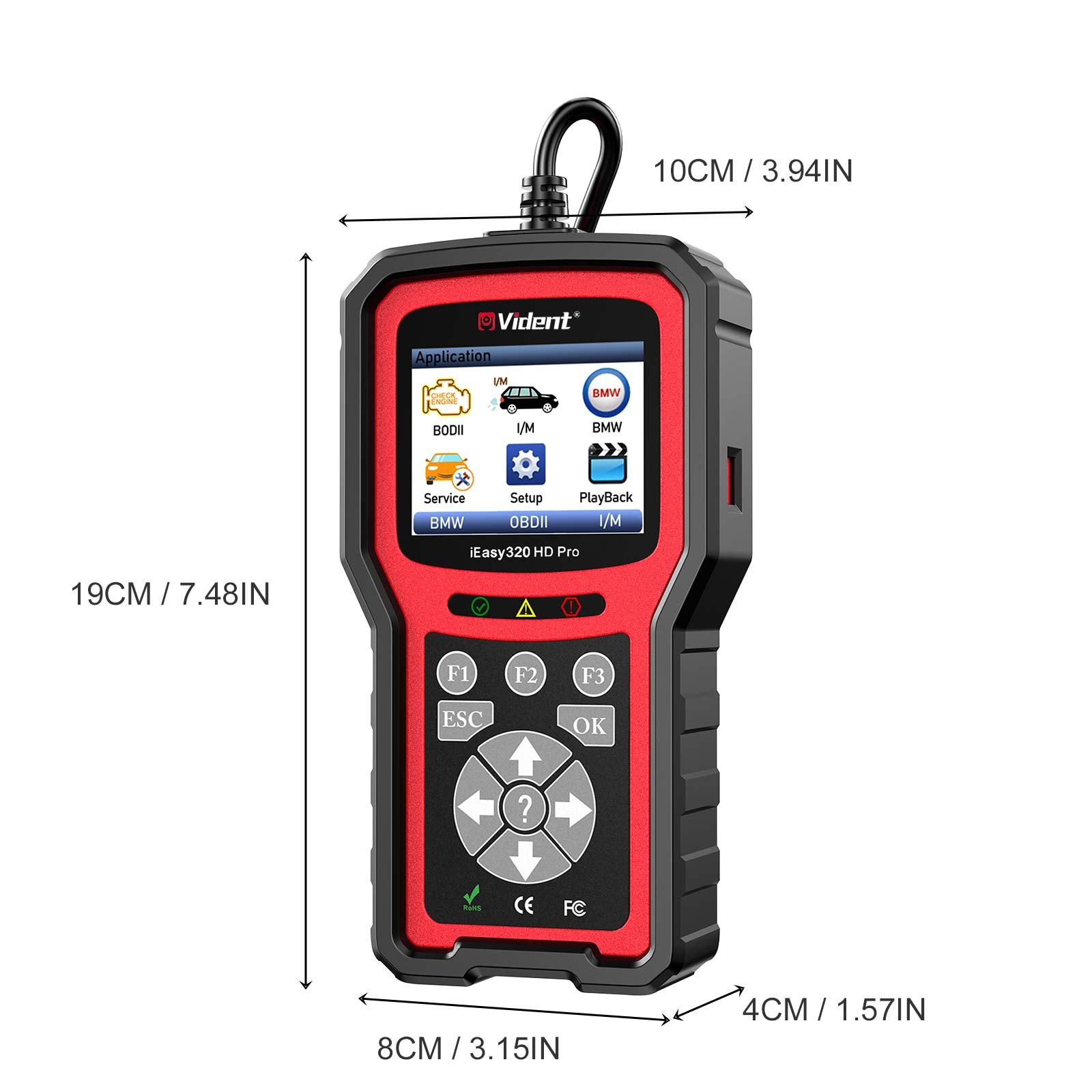

• Unit Dimensions: 190mm(7.5")*100mm(3.9'')*35mm(1.4")
• Weight: 380g

What you get

• 1pc x Vident iEasy320HD Pro Code reader
• 1pc x USB PC cable for updating software
• 1pc x 6+9 diagnostic cable
• 1pc x User Manual

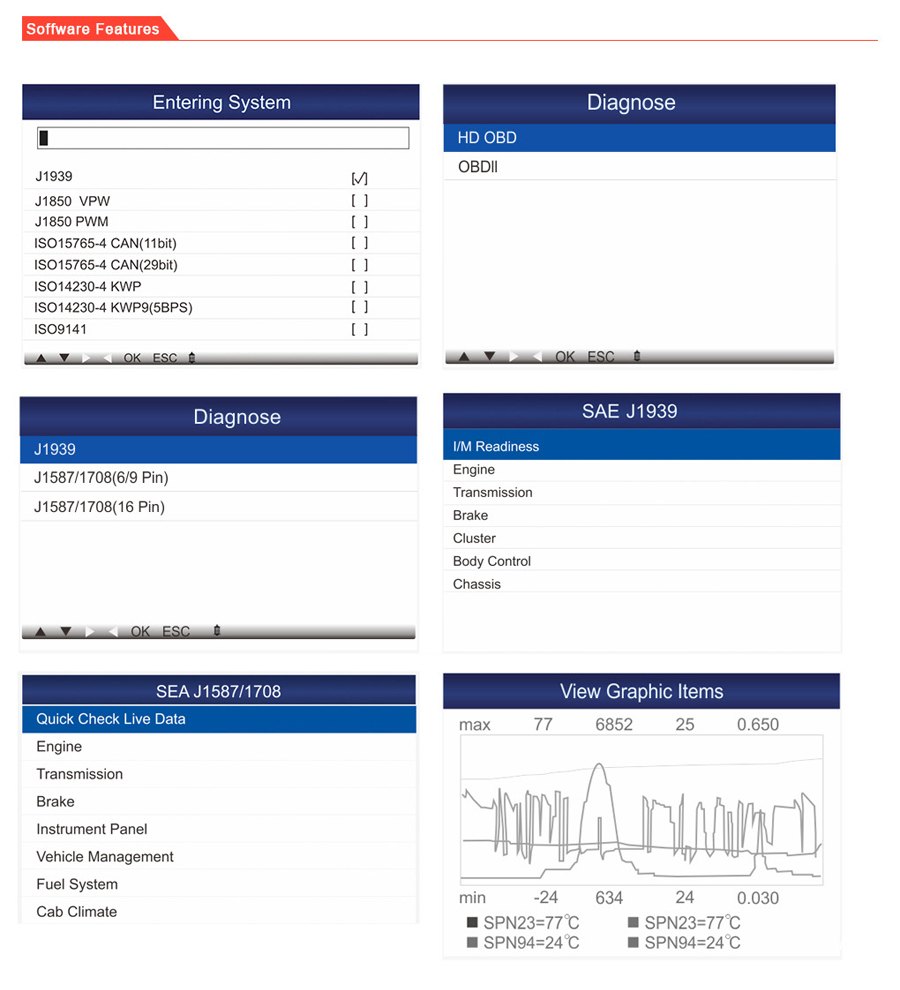

• iEasy320HD Pro is specially developed for heavy-duty vehicles(Diesel) and passenger cars(Gasoline or Petrol), which enables users to read DTCs, clear DTCs and view the datastream with a live color graphing.
• It covers a wide range of vehicles since it offers multiple data bus protocols, such as J1587, J1939, J1850VPW, J1850PWM, ISO9141, KWP2000(ISO14230-4) and CAN(Control Area Network ISO15765-4).
• Vident iEasy 320HD Pro Diesel & Petrol Truck Diagnostic Tool
• J1939, J1587/1708, J1850VPW, J1850PWM, ISO9141, KWP2000(ISO14230-4) and CAN(Control Area Network ISO15765-4)
• 6PIN, 9PIN, 16PIN DLC
• Display with 2.8" TFT panel
• D&P&F Reset for MaxxForce Engine, Cummins Engine, Detroit Engine.
• Support all the 10 OBDII test modes, enhanced Mode 6 functions, Non-continuous Monitored Systems test results.
• All gas car and diesel truck for OBD code reader

Protocol coverage is J1939, J1587 and J1708, J1850 VPW and PWM, ISO9141 and KWP2000, which is what makes it usable on commercial vehicles. I/M readiness shows on red, amber and green LEDs with an audible indicator. It runs on 8 to 18V from the vehicle, measures 190 by 100 by 35mm and weighs 380g.
