VIDENT iMax4301 VAWS V-A-G OBD Diagnostic Service Tool Supports 9 Special Functions

The VIDENT iMax4301 VAWS, a multi system diagnostic tool for the VAG group with nine special functions. Coverage runs the Audi A1 to A8 and Q2 to Q7, the Skoda Citigo, Fabia, Octavia, Rapid, Superb and Kodiaq, the Seat Leon, Toledo, Exeo, Ibiza and Alhambra, Bentley from the Arnage to the Continental, the Bugatti Veyron and the Lamborghini Aventador, Gallardo and Huracan.

Specifications

• Audi: A1, A2, A3, A4, A5, A6, A7, A8, Cabriolet, Q2, Q3, Q5, Q7, Q8, S3, S4, S5, S7, R8, TT etc.
• Skoda: Citigo, Fabia, Octavia, Rapid, Roomster, Superb, Yeti, Kodiaq, Kamiq etc.
• Seat: Leon, Toledo, Exeo, Leon, Altea, Arosa, Ibiza, Corodoba, Alhambra, Inca, Mii etc.
• Bentley: Arnage, Azure, Brooklands, Continental Flying Spur, Continental GT, Mulsanne
• Bugatti: Veyron etc.
• Lamborghini: Aventador, Gallardo, Huracan etc.

Also stated by the supplier

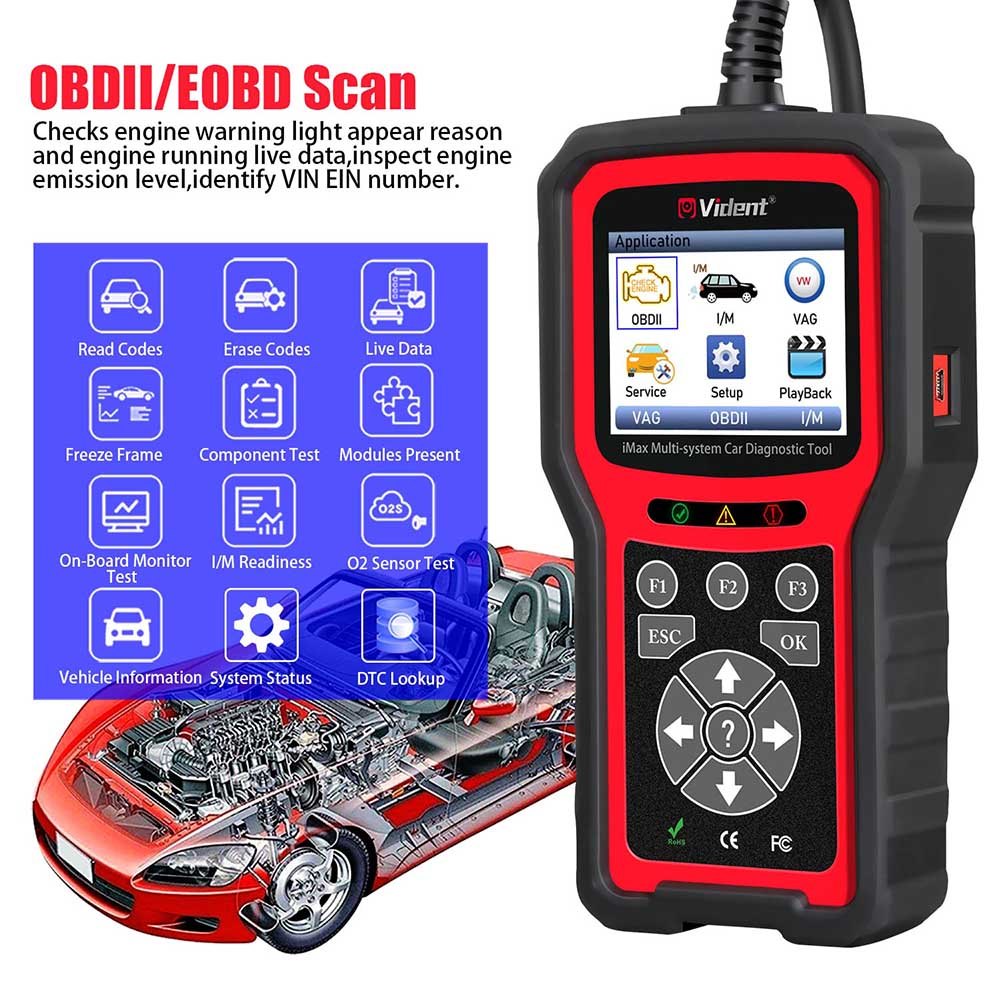

• VIDENT iMax4301 VAWS is professional multi-system car diagnostic tool for Audi, Volkswagen, Skoda, Seat, Bentley, Bugatti and Lamborghini, which features full ECU diagnosis of single vehicle brands and test modes mainly include CANBUS, ISO9141, KWP2000, and J1850,KWP1281,KWP2089,TP16,TP20,UDS and 29bit CANBUS etc. With TFT LCD and unique diagnostic software, it enables technicians to accurately diagnose complex problems.

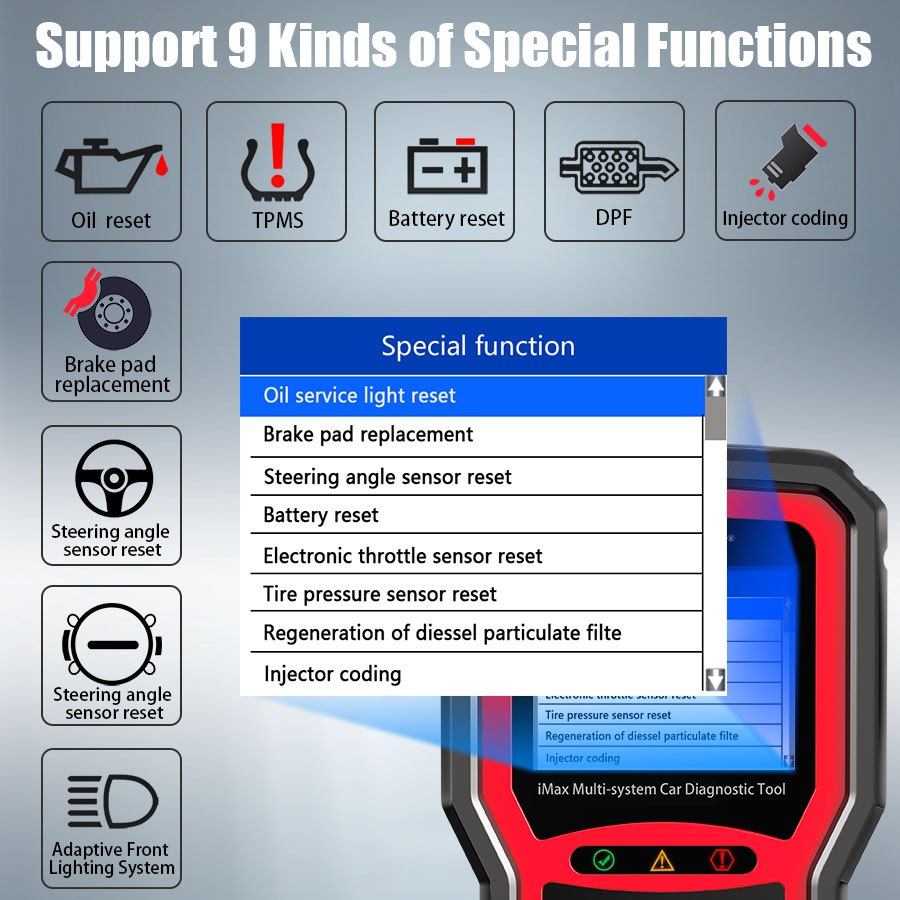

• VIDENT iMax4301 VAWS V-A-G OBD Diagnostic Service Tool Supports 9 Special Functions
• VIDENT iMax4301 VAWS is professional multi-system car diagnostic tool for Audi, Volkswagen, Skoda, Seat, Bentley, Bugatti and Lamborghini, which works on most of 2001 and later European OBDII compliant PETROL and DIESEL vehicles.

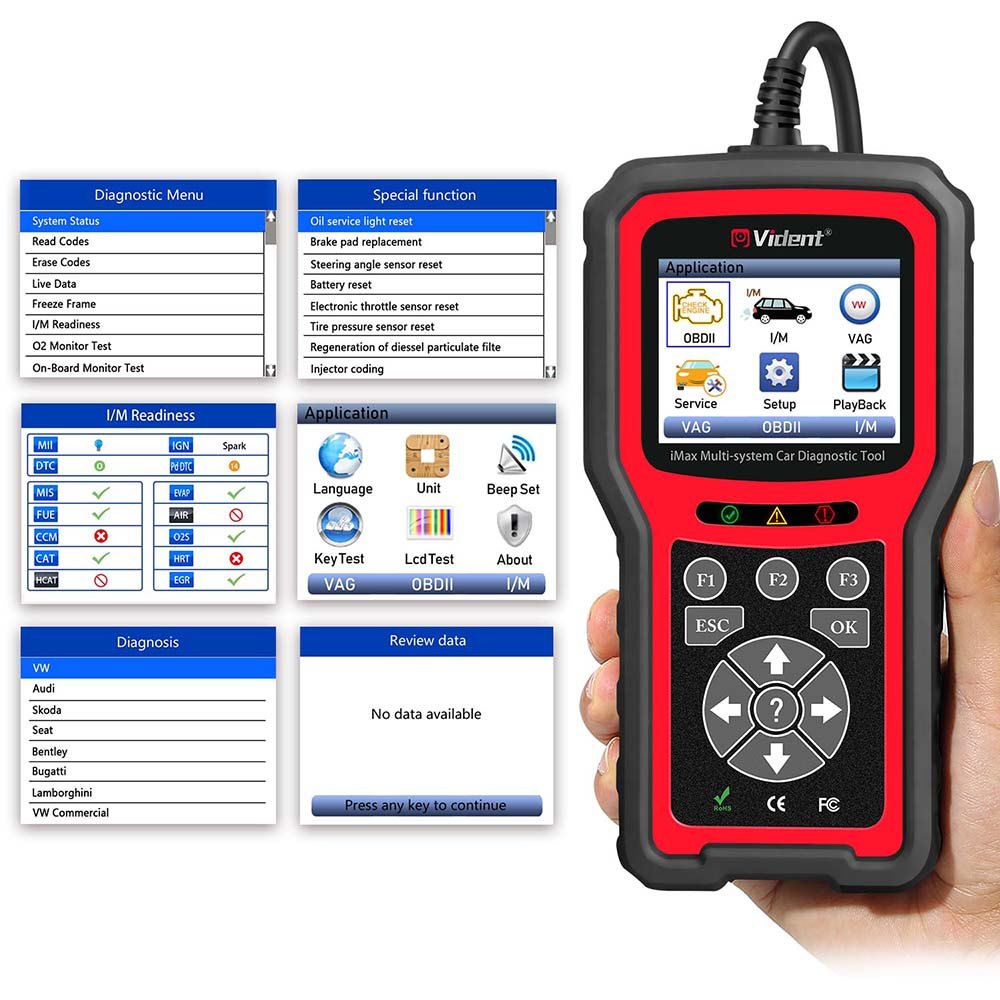

• 1). VAG Diagnosis for Single Brand of most Models (OBDII-16DLC)
• 2). Read &Clear DTC

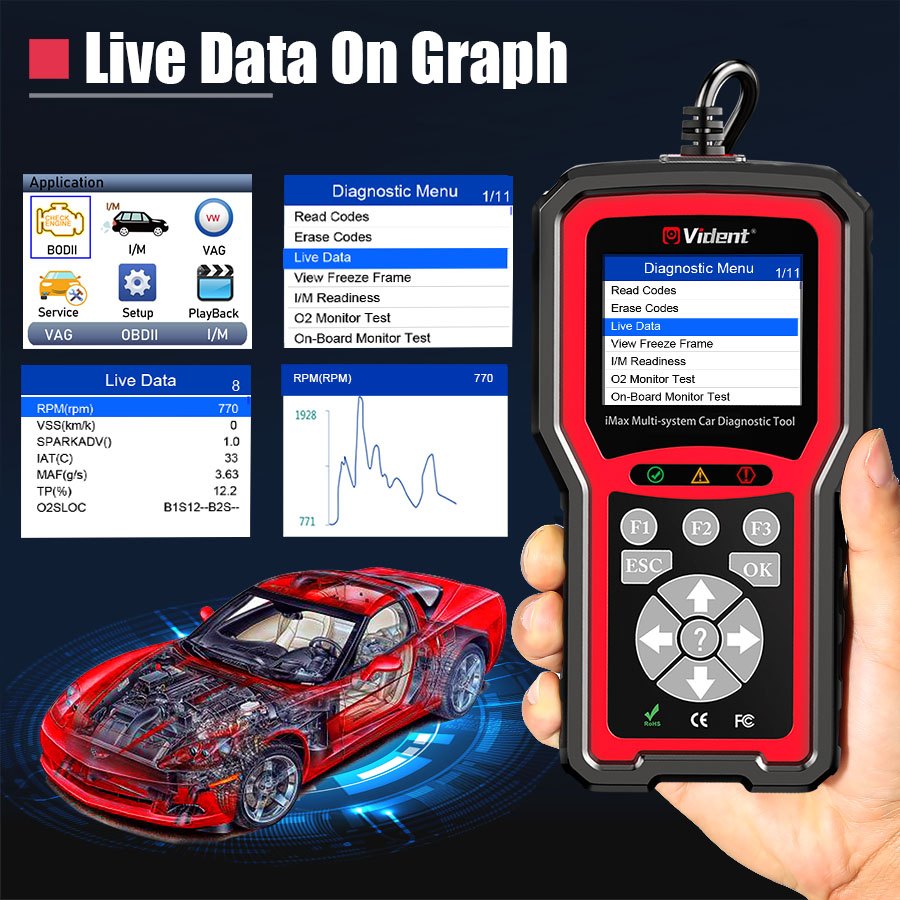

• 3). Read Live Data
• 4). ECU Information
• 5). Freeze Frame

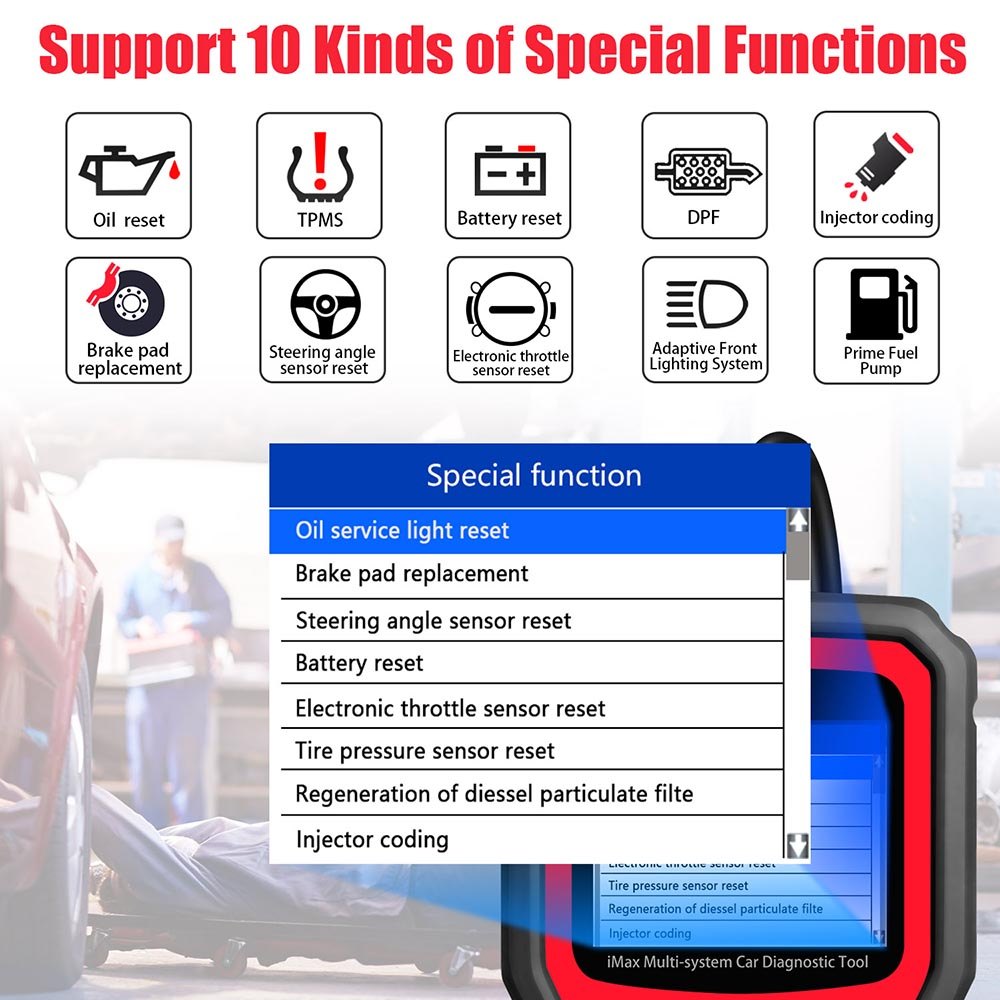

• 6). Oil Service Reset
• 7). Electronic Parking Brake (EPB) system maintenance
• 8). Battery Replace Test (BRT)
• 9). Diesel Particulate Filter (DPF) Regeneration Control System
• 10). Throttle Position Sensor(TPS)- Electronic throttle sensor reset
• 11). Steering Angle Sensor (SAS) Calibration
• 12). Prime Fuel Pump(PFP)
• 13). Adaptive Front Lighting System(AFS)
• 14). Tire pressure sensor reset(TPMS)
• 15). Injector coding

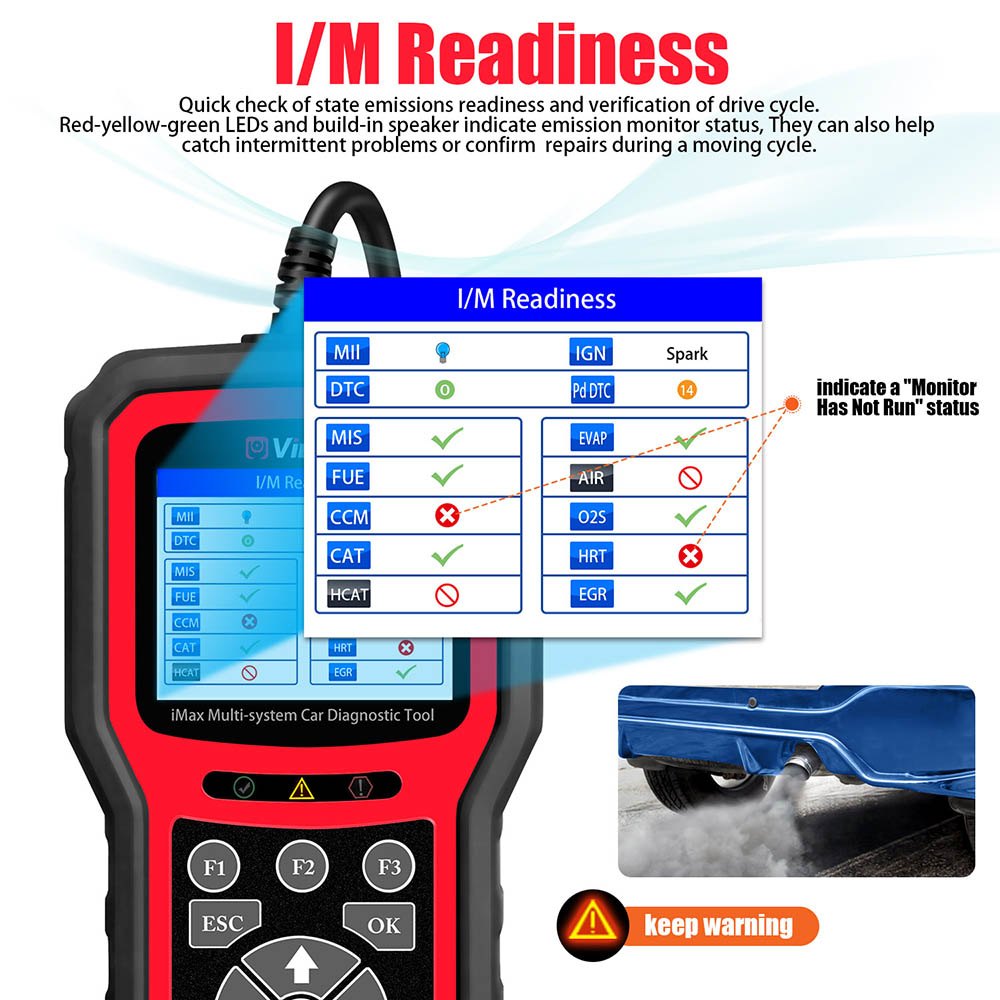

• 16). I/M Readiness Test
• 17). Data Playback and Print
• 18). Full Speed Upgrade via PC
• 19). TFT LCD,320*240
• 20). Lifetime free software update

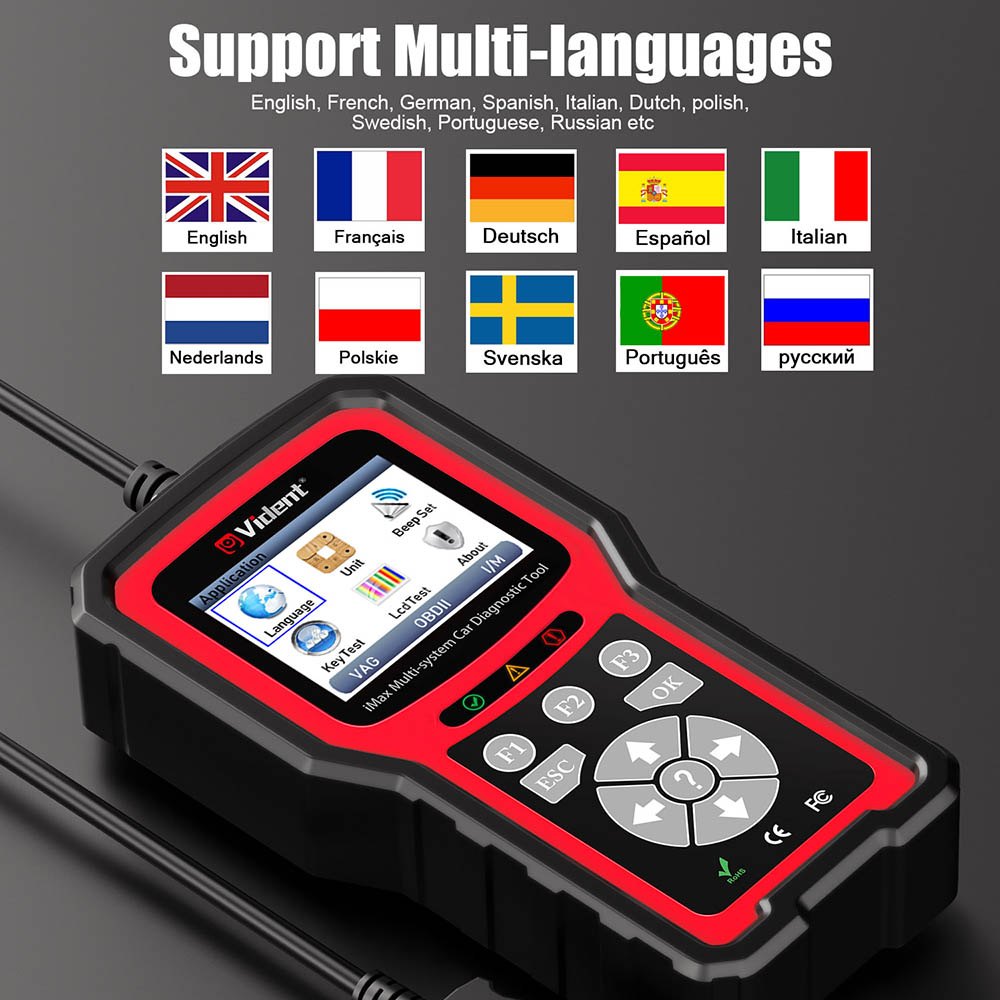

• 21). Multilingual: English, French, German, Spanish, Italian, Dutch, polish, Swedish, Portuguese, Russian etc
• Battery Replace Test (BRT)
• Battery replaceTest(BRT)
• Applies to most of the VAG models which equipped with OBDII-16 DLC.
• 1.If the service lamp is on, you must provide service for the car. After service, you need to reset the driving mileage or driving time so that the service lamp turns off and the system enables the new service cycle.
• 2.After changing engine oil or electric appliances that monitor oil life, you need to use vident tools reset the service lamp.
• 1.If the brake pad wears the brake pad sense line, the brake pad sense line sends a signal sense line to the on-board computer to replace the brake pad. After replacing the brake pad, you must reset the brake pad. Otherwise, the car alarms.
• 2.Reset must be performed in the following cases:
• 1.Use the car diagnostic device to reset the car battery monitoting unit to clear original fault information about insufficient battery electric quantity, and match the battery again and monitor battery based on current battery information.
• 2.Battery matching must be performed in the following cases:
• a) Main battery is replaced. Battery matching must be performed to clear original electric quantity insufficiency information and prevent the related control module from detecting false information. If the related control module detects false information, it will invalidate some electric auxiliary functions, such as automatic start&stop function, sunroof without one-key trigger function, power window without automatic function.
• b) Battery monitoring sensor. Battery matching is performed to re-match the control module and motoring sensor to detect battery electric quantity use information more accurately, which can avoid the instrument panel displaying false information.
• 1.DPF regeneration is used to regularly clear PM (particulate matter) from the trap in combustion oxidation mode (such as high temperature heating combustion, fuel additive or catalyst reduce PM fire point combustion) to stabilize trap performance.
• 2.DPF regeneration matching must be performed in the following cases:
• 1.Use the car decoder to initialize the throttle actuation element so that the ECU learning value is returned to the initial status to more accurately regulate throttle (or idle motor) operations to control intake air quantity.
• 2.Throttle matching must be performed in the following cases:
• a) The ECU is replaced and the ECU does not yet store throttle working features.
• e) The throttle is cleaned. Although the idle throttle potentiometer features are not changed, with the same throttle opening, the intake quantity has changed and idle speed control features have changed.
• 1.To reset the steering angle, first find the relative zero point position for the car to drive in straight line. Taking this position as reference, the ECU can calculate the accurate angle for left and right steering.
• 2.After replacing the steering angle position sensor, replacing steering mechanical parts (such as steering gearbox, steering column, end tie rod, steering knuckle), peforming four-wheel alignment, or recoving car body, you must reset the steering angle.
• 1.The program can detect the Prime Fuel Pump function.
• 2.Air often gets into the fuel line when a diesel vehicle change fuel or assembly fuel system. This causes a vehicle to have problems starting, forcing you to 'prime' the fuel system to remove the air.

Bentley, Bugatti and Lamborghini coverage comes free with a VAG tool, since they share the platform.
