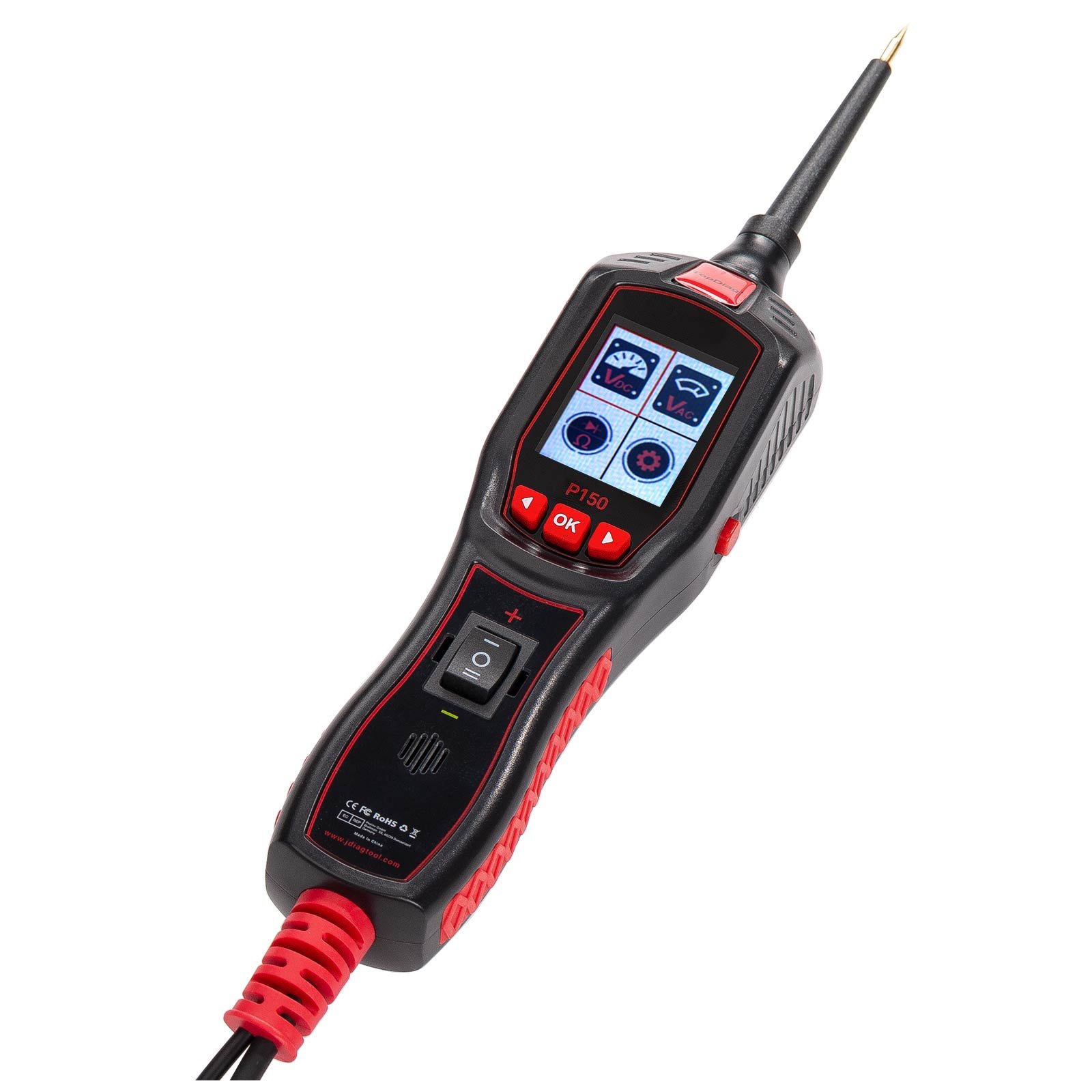

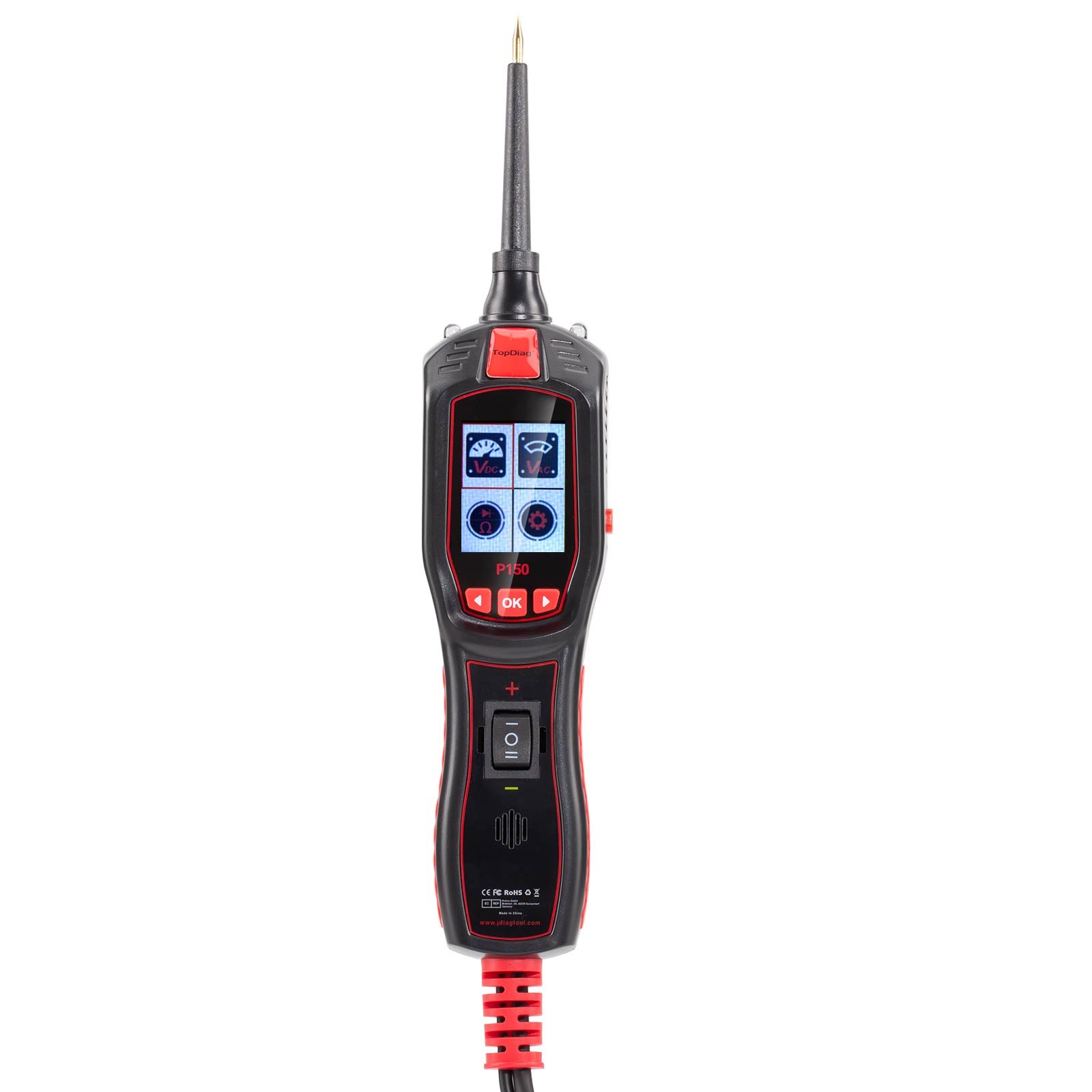

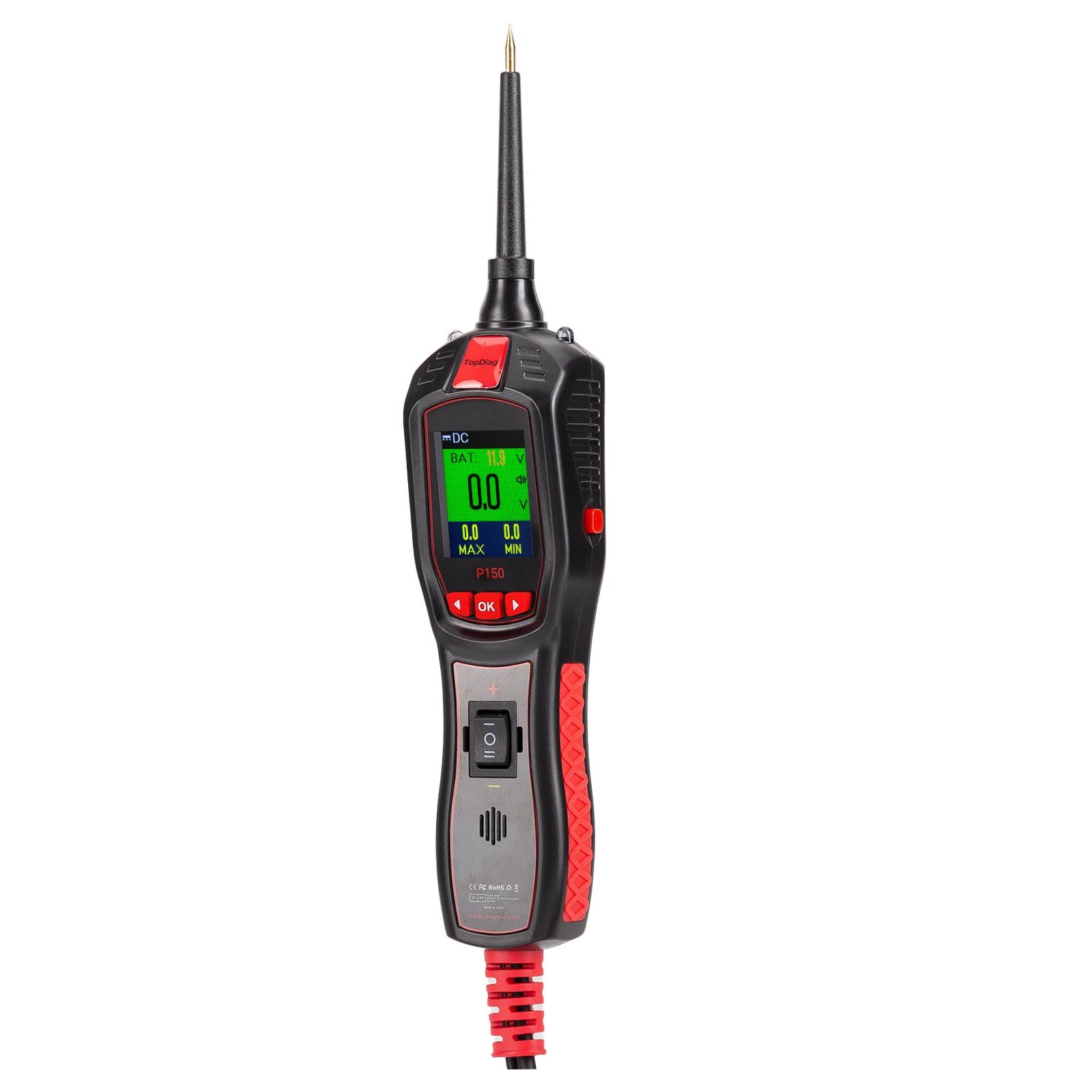

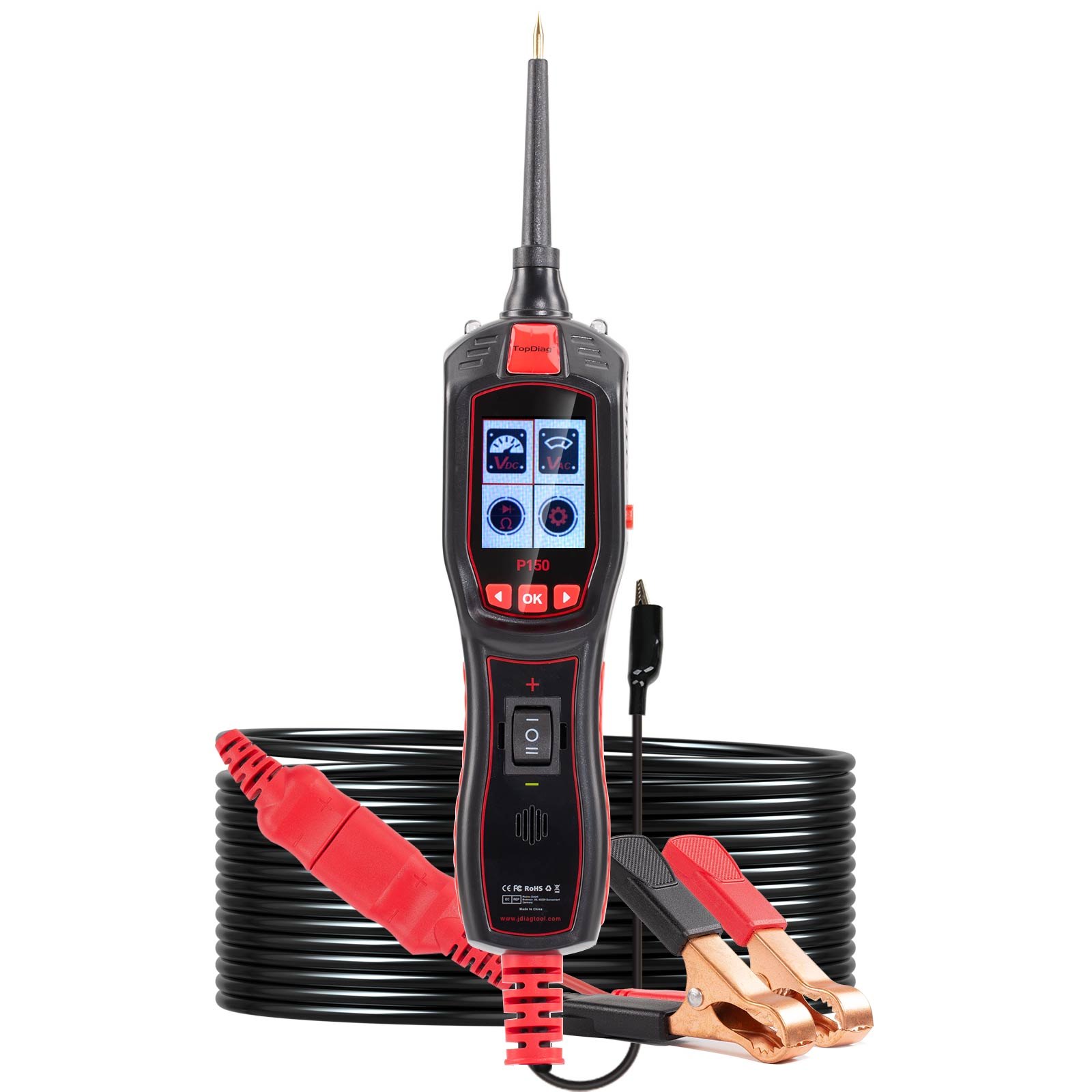

TOPDIAG P150 Electrical Tester 6 - 30 Volt Vehicle Electrical System Diagnostics

The TOPDIAG P150 electrical tester for 6 to 30 volt vehicle systems. It reads 0.1 to 70V, resistance from 0.1 ohm to 200 kilohms, frequency from 10Hz to 200kHz, diode drop from 0.2 to 2.6V and duty cycle from 1 to 99 percent, on a 160 by 128 dpi TFT colour display powered from the car battery. Trip current is 8 amps for an hour, 12 amps for less than an hour and 16 amps briefly.

Specifications

• Voltage: 0.1~70V
• Display: TFF colour display(160*128dpi)
• Power Supply: Car battery supply 12.0 or 24.0V
• Frequency: 10Hz~200KHz
• Resistance: 0.1Ω~200KΩ
• Diode: 0.2V~2.6V
• Duty cycle: 1-99%

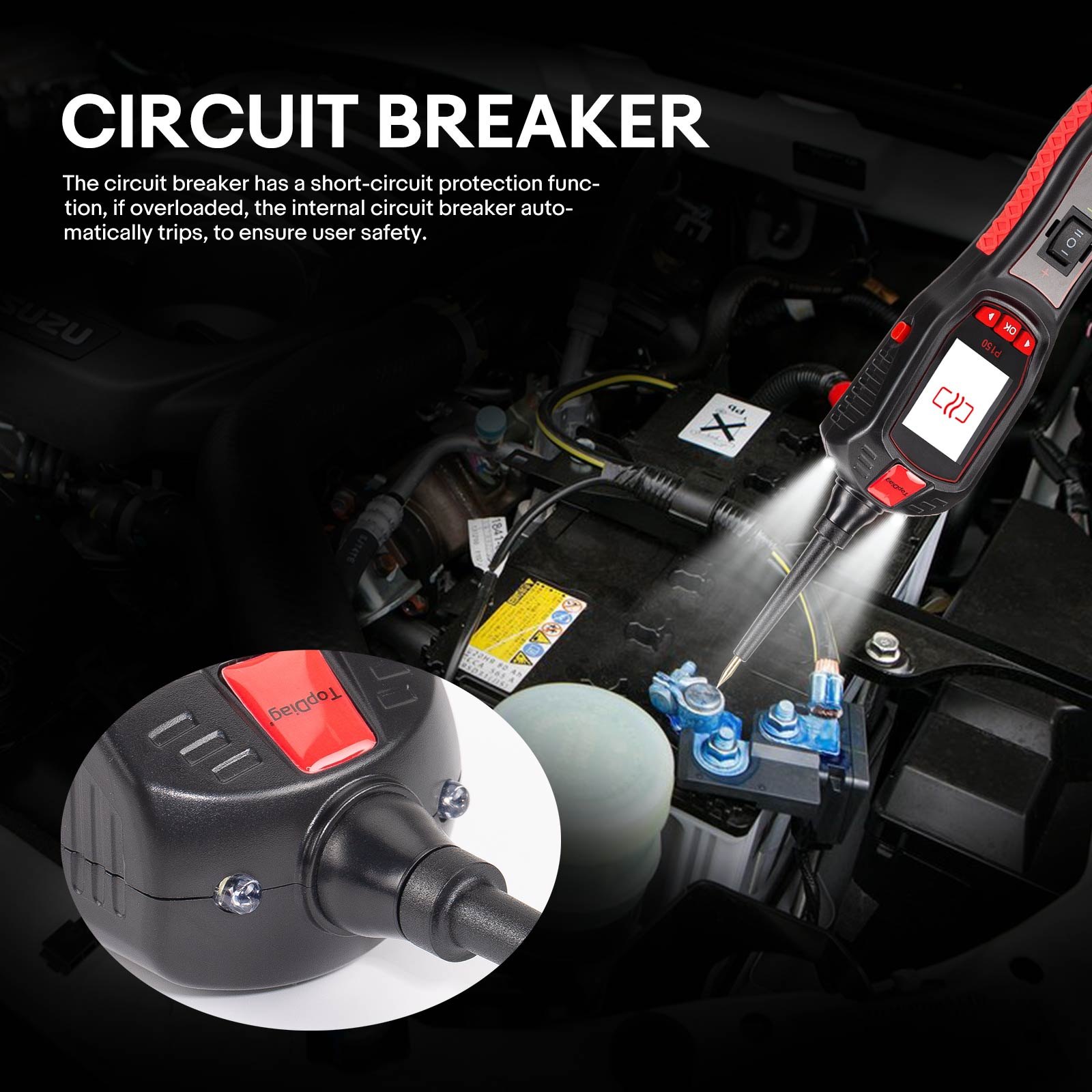

• Trip current: 8 Amps for 1 hour/12Amps less than 1 hour/16Amps less than 5 sec.

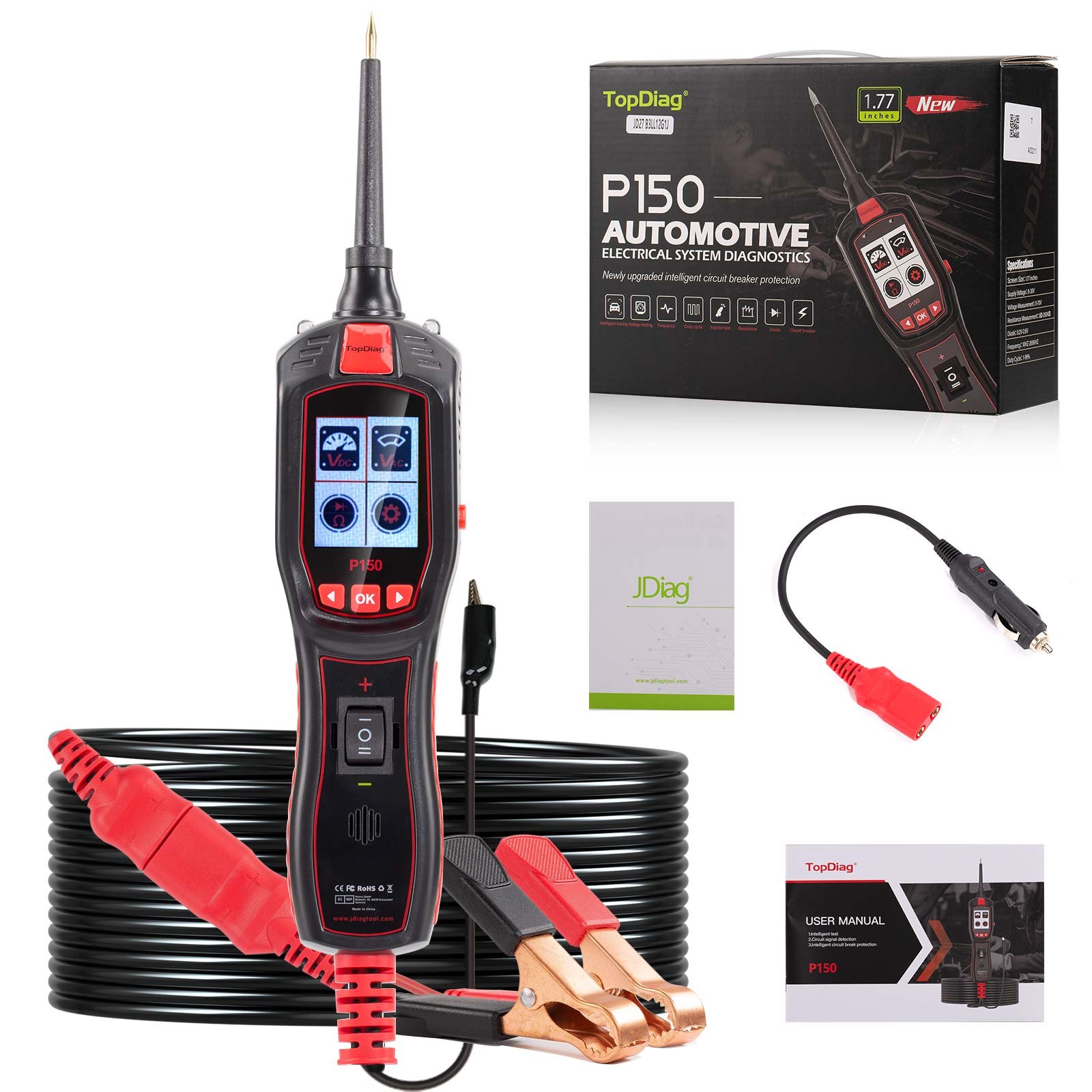

What you get

• 1pc x TOPDIAG P150 Electrical Tester
• 1pc x Probe Cap
• 1pc x clip cable
• 1pc x lighter
• 1pc x extension cable
• 1pc x manual

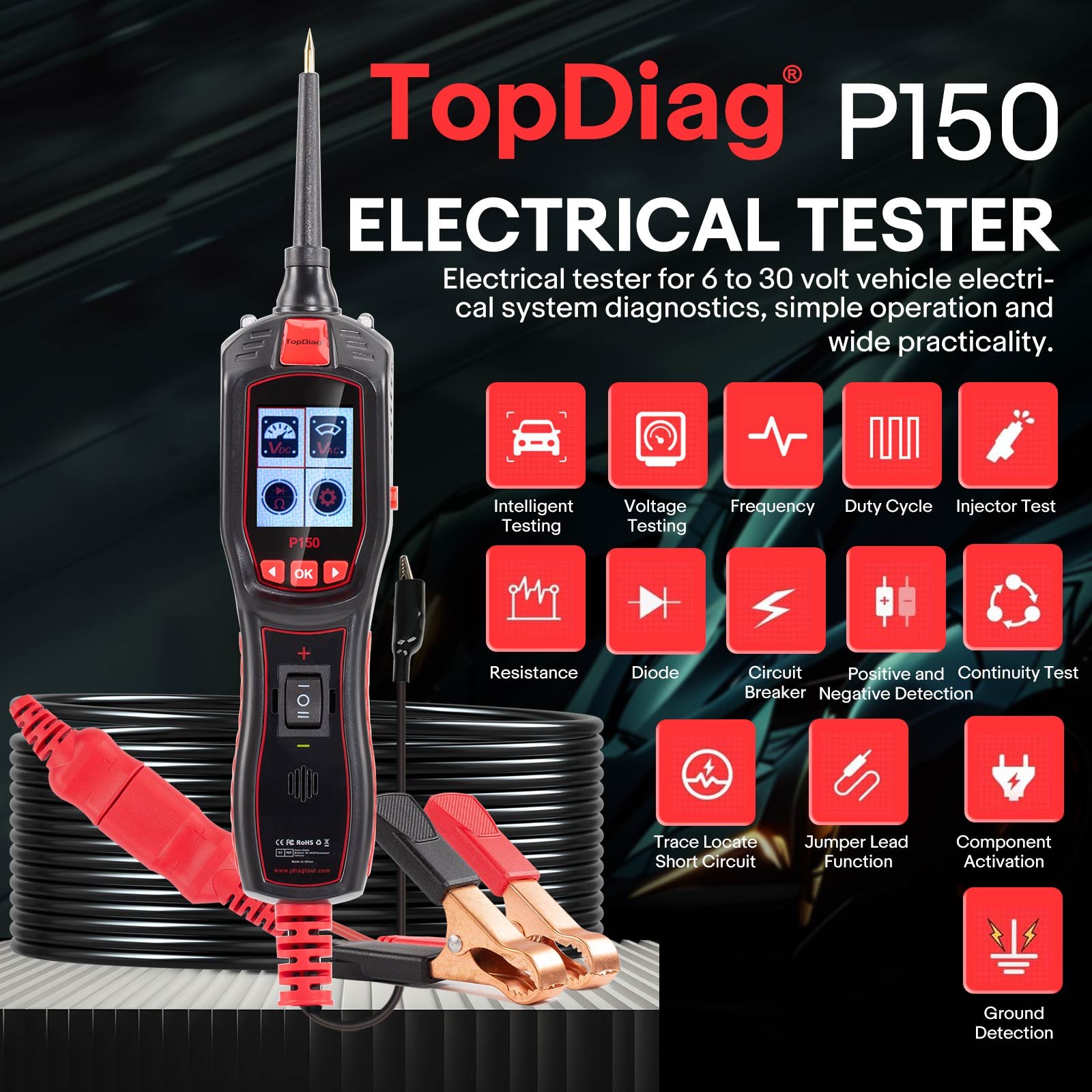

• TOPDIAG P150 electrical tester is used for 6 to 30 volt vehicle electrical system diagnostics with simple operation and wide practicality.
• TOPDIAG P150 Electrical Tester 6 - 30 Volt Vehicle Electrical System Diagnostics

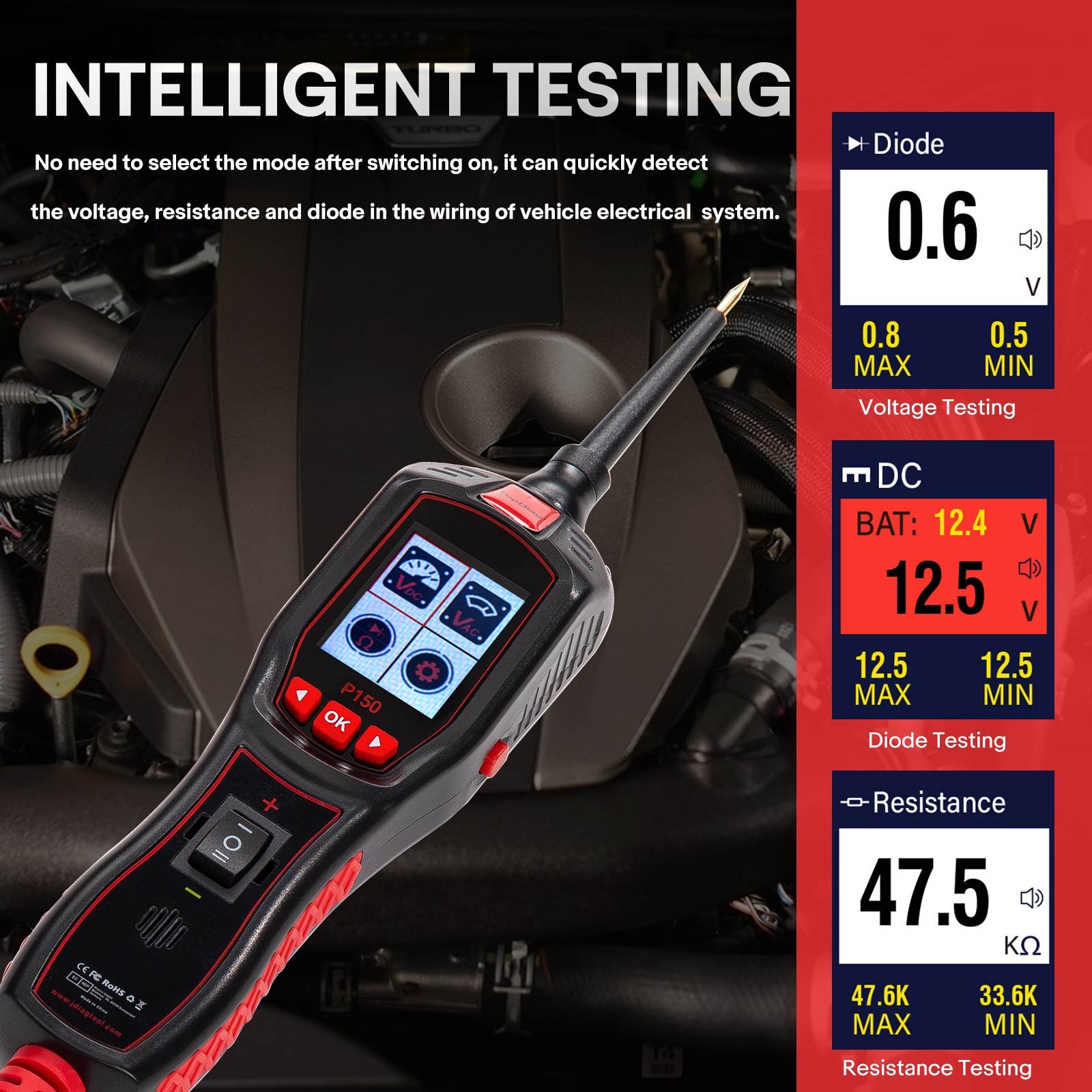

• No need to select the mode after switching on, it can quickly detect the voltage, resistance and diode in the wiring of vehicle electrical system.

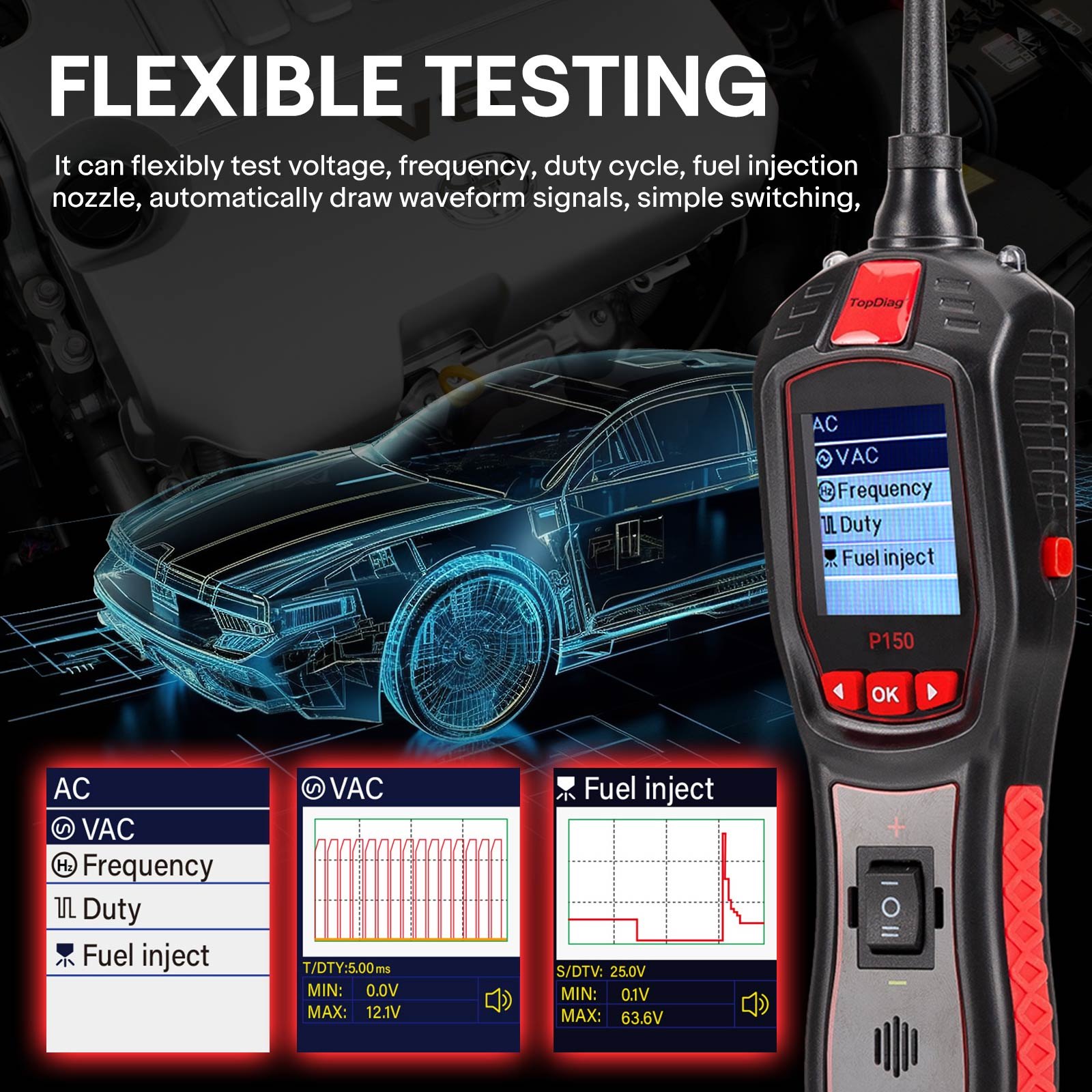

• It can flexibly test voltage, frequency, duty cycle, fuel injection nozzle, automatically draw waveform signals, simple switching.

Duty cycle reading is what lets a solenoid or a valve be judged rather than only checked for power.
