TOPDIAG P100 with 10 Meters Long Automotive Circuit Diagnostic Tester
In stock, delivery 7 to 20 days
- Free US shipping over $150
- Secure checkout via Stripe
- 30 day returns, no restocking fee
Buying for the trade? Ask for a written quote on quantity.
Description

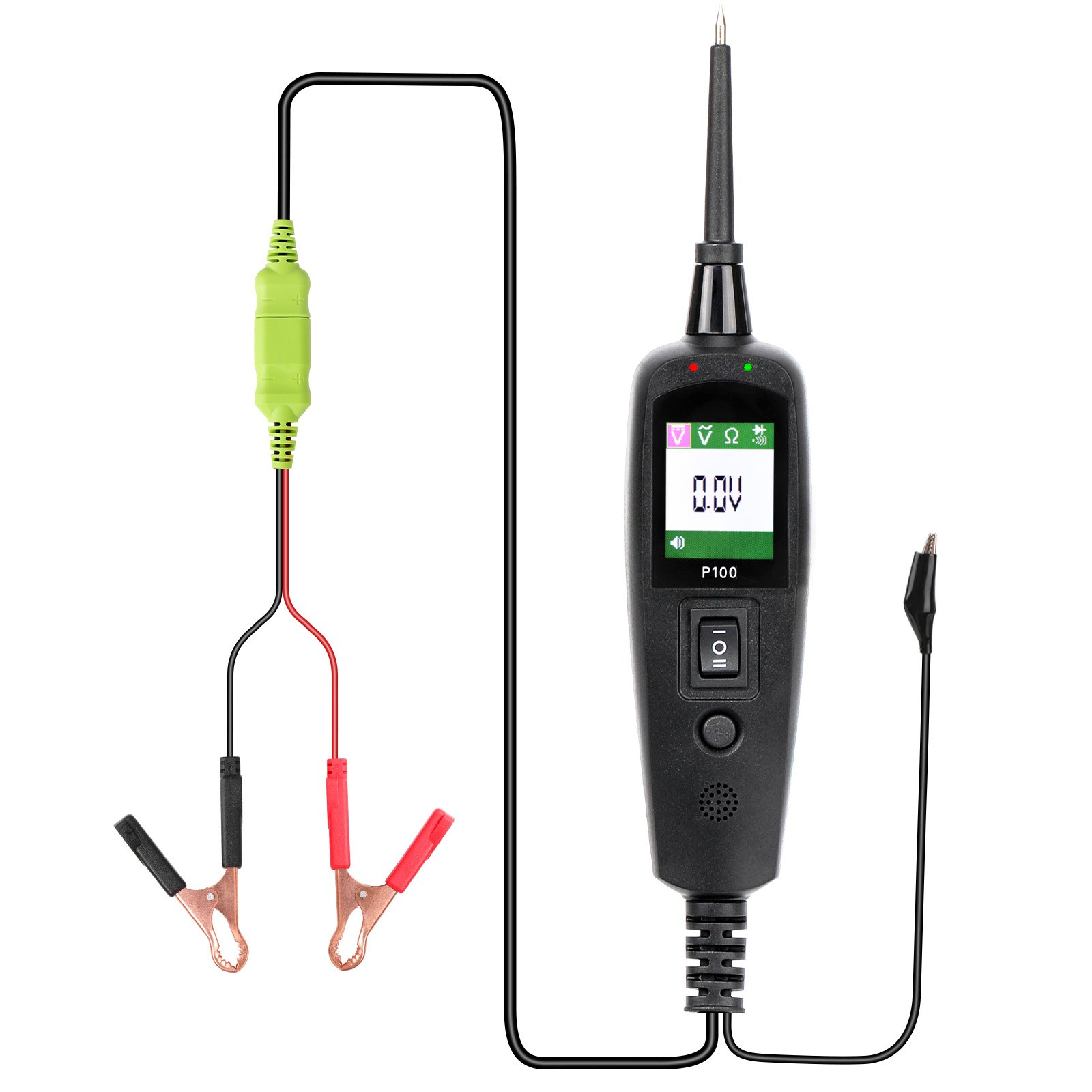

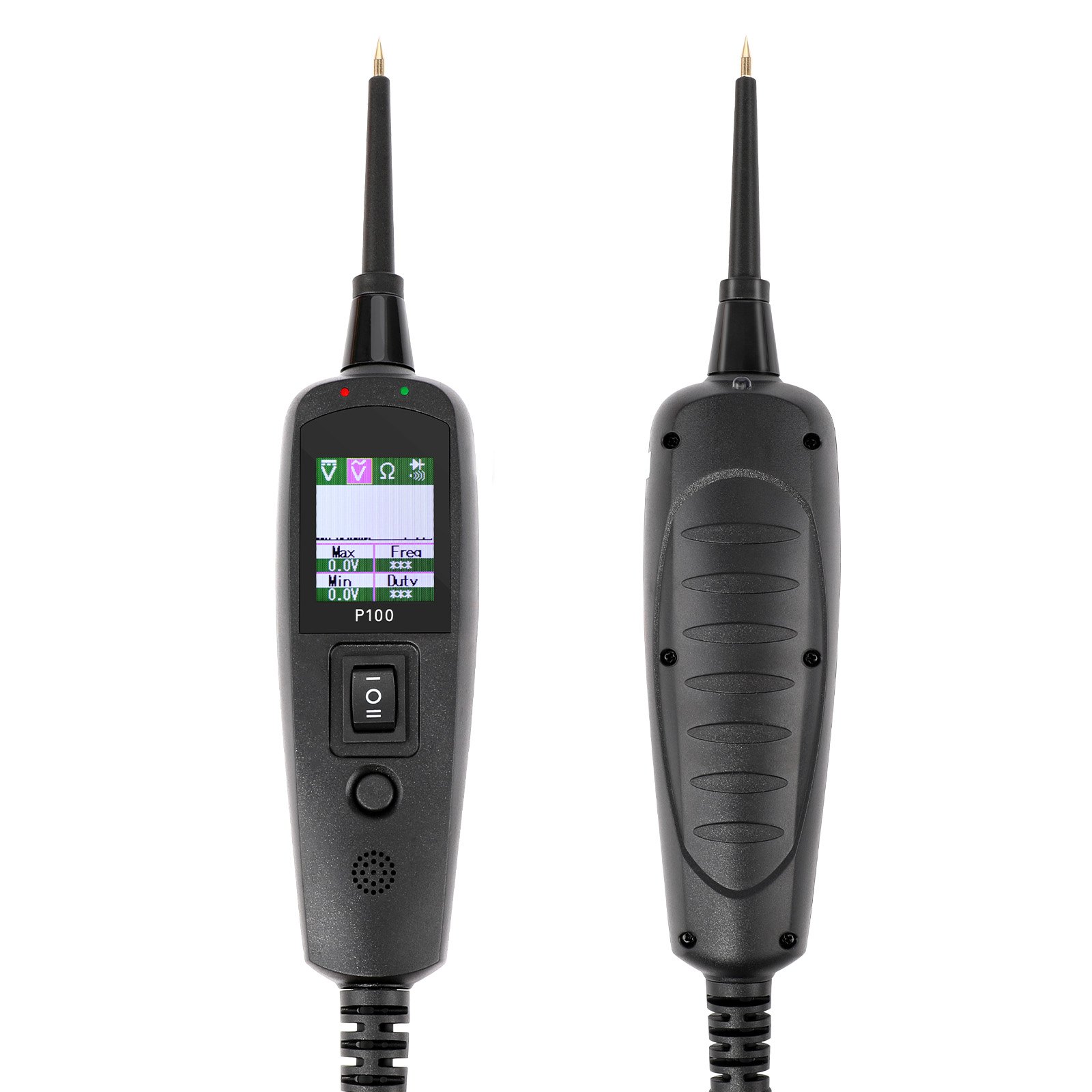

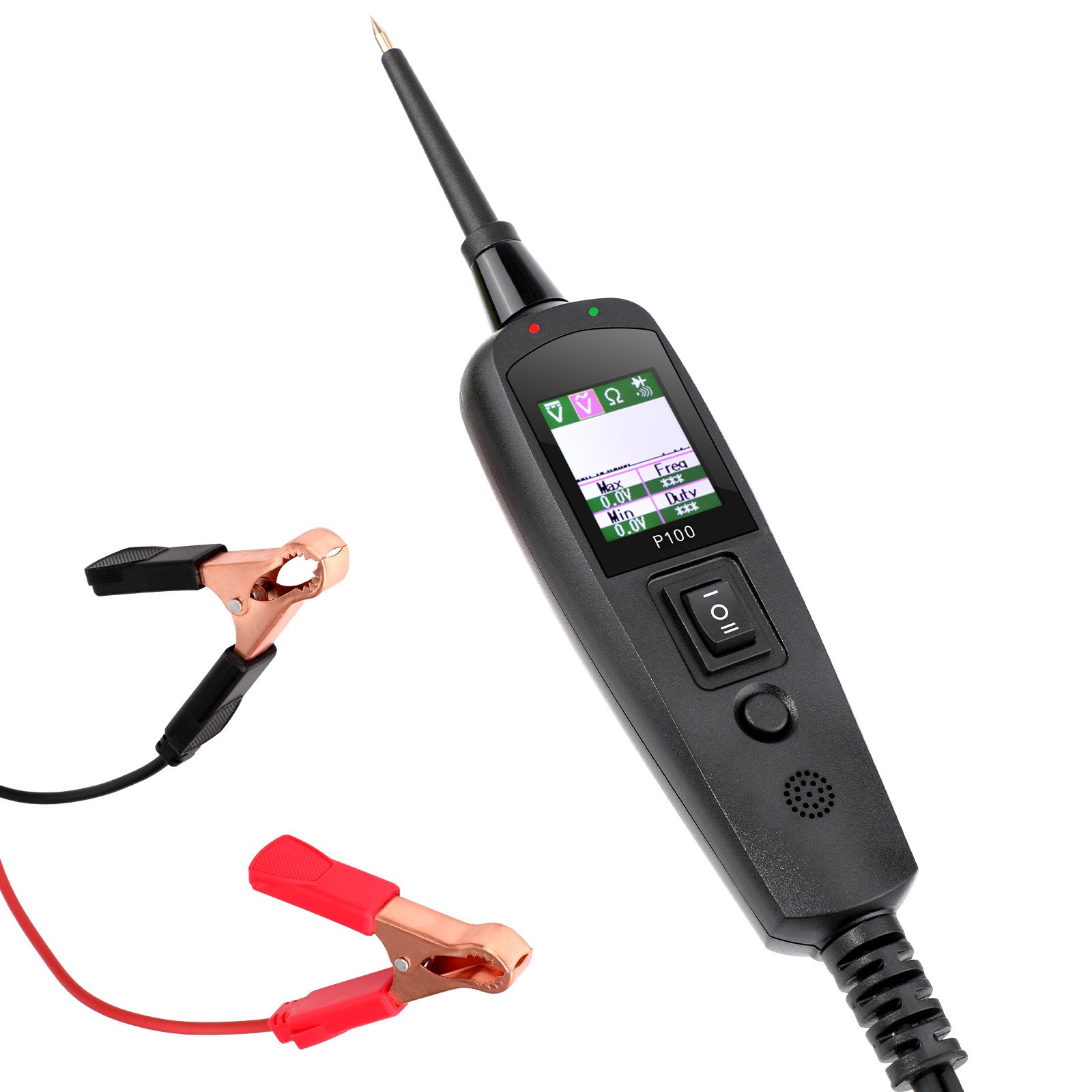

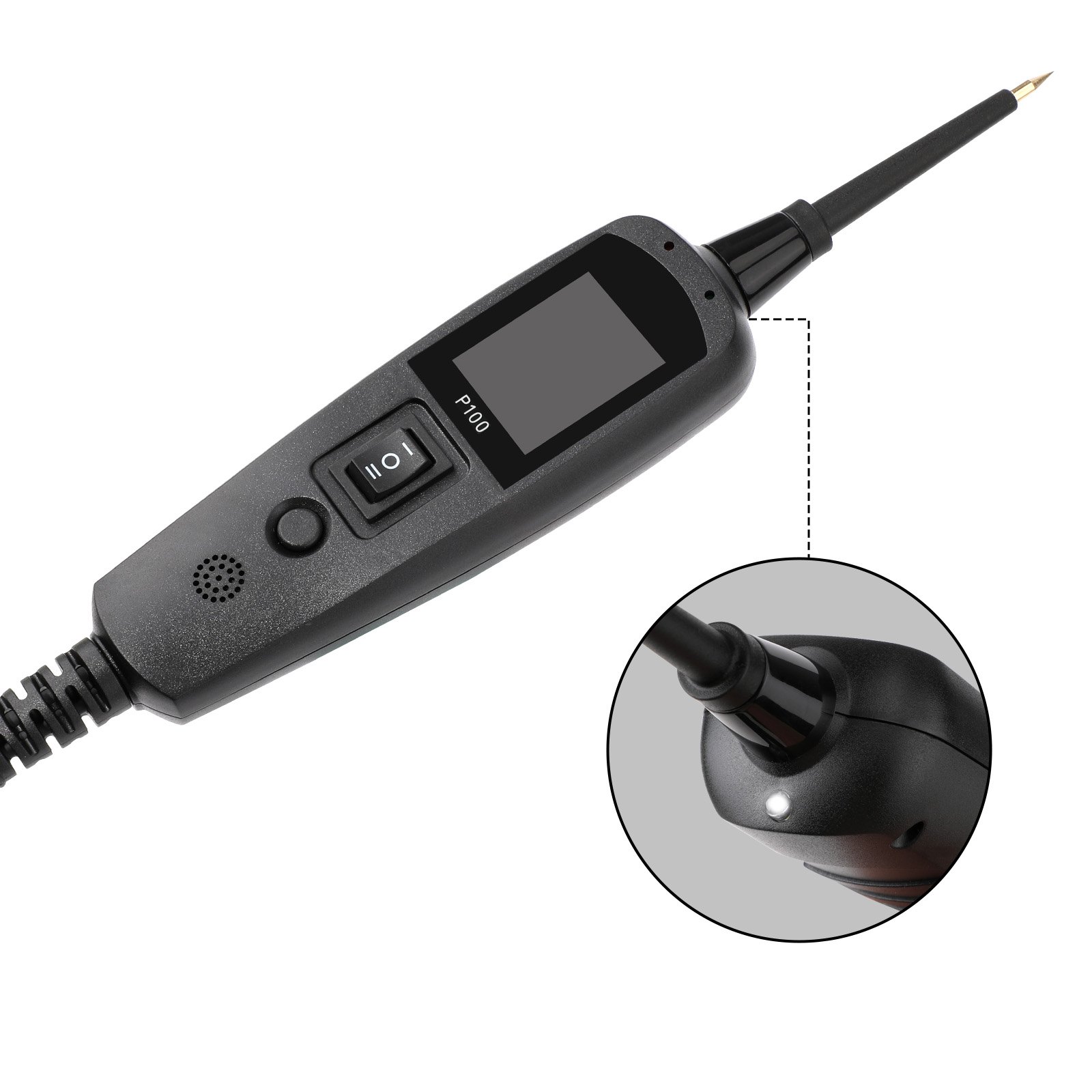

A TOPDIAG P100 automotive circuit diagnostic tester with a ten metre lead. It works from 9 to 30V on a 12V or 24V battery, measures 0.1 to 100V, resistance from 1 ohm to 200 kilohms and active current from 0 to 18A, on a 2.4 inch 320 by 240 TFT true colour display.
Specifications
- Display: 2.4 inches (320*240 DPI) TFT true color display
- Working temperature: 0-60°C (32-140 F°)
- Storage temperature: 40-70°C (-40-185 F°)
- External power supply: 12V or 24V powered by battery
- Minimum working voltage: 9V
- Maximum working voltage: 30V
- Maximum measuring voltage: 100V
- Minimum measuring voltage: 0.1V
- Resistance measurement range: 1 ohm~200K ohm
- Active Current measuring range: 0~18A
- Maximum continuous current: 18A

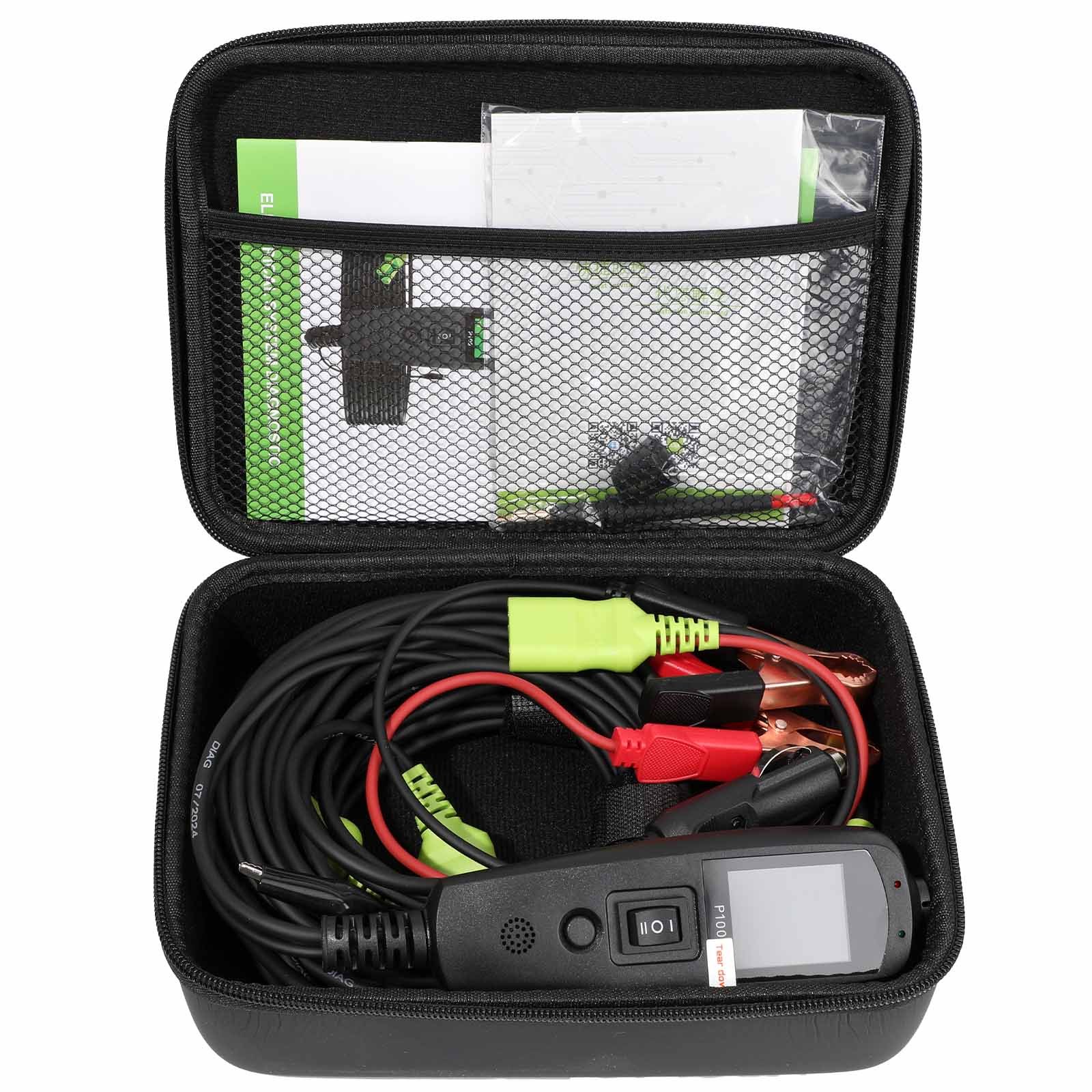

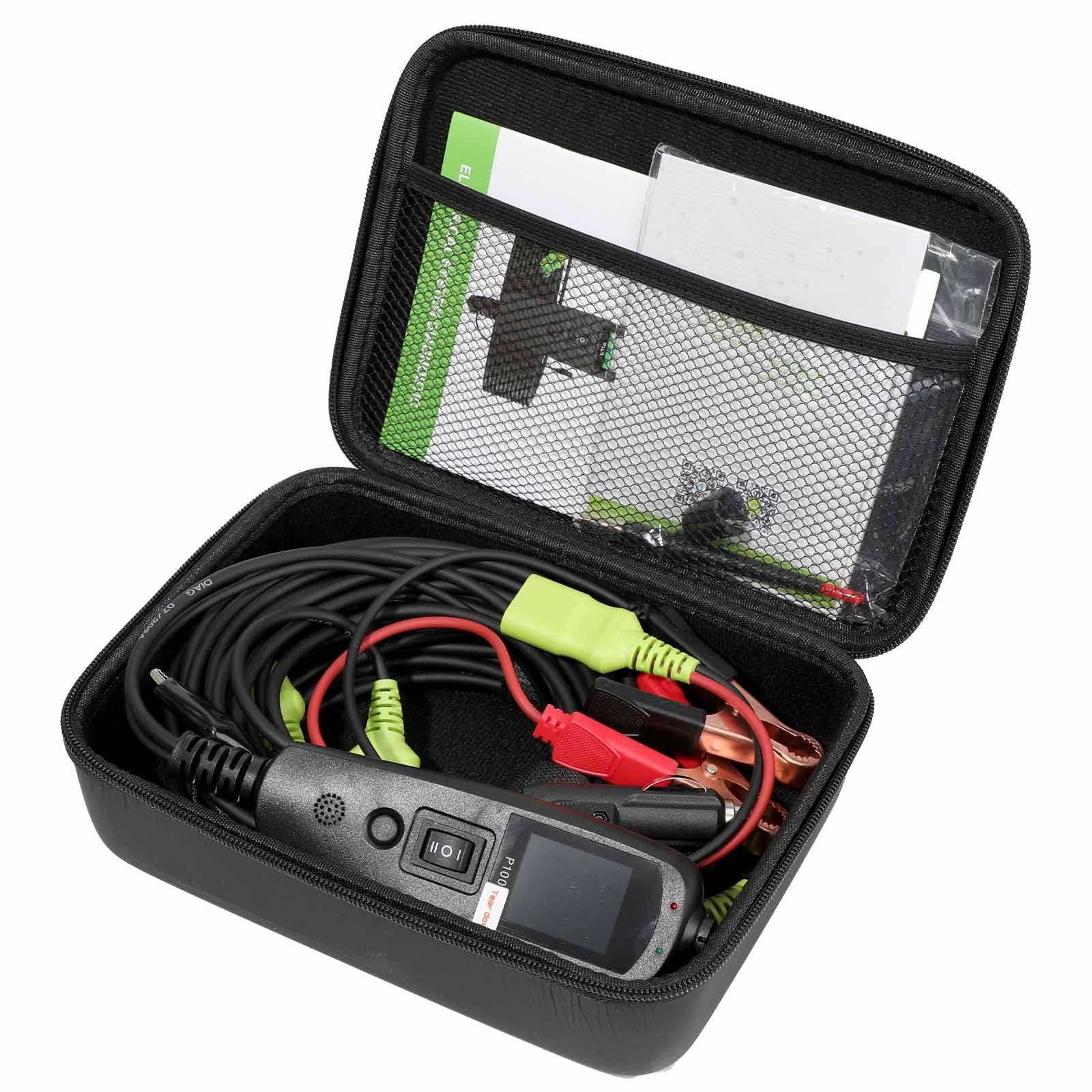

What you get
- 1pc x TOPDIAG P100 10 Meters Long
- TOPDIAG P100 is an ultra-high cost-effective, more efficient automotive circuit diagnostic testing and analysis instrument, a highly integrated automotive specialized testing instrument.
- TOPDIAG P100 with 10 Meters Long Automotive Circuit Diagnostic Tester
- Intelligent identification of voltage/resistance
- Multimeter mode (measure voltage, resistance, diode, continuity )
- 0-5V adjustable power supply
- Frequency
Ten metres reaches a rear lamp or a tailgate motor from the driver's seat, which two metres will not.
Specifications
| Type | Automotive Electrical Testers & Test Leads |
|---|---|
| Part number | AD217-B |
| Condition | New |
| Version | 2 Meters, 10 Meters |
| Price range | $99.99 to $205.99 |
