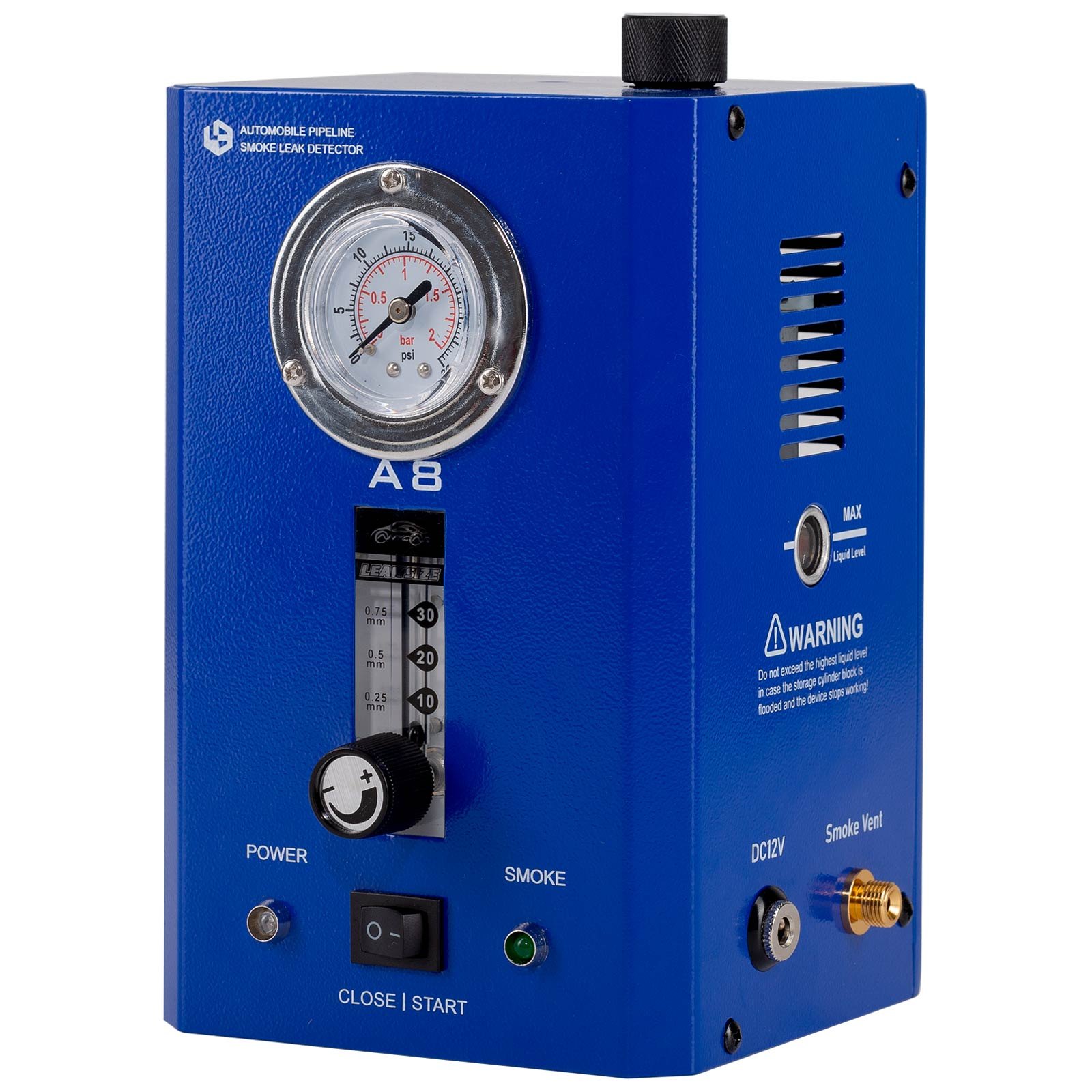

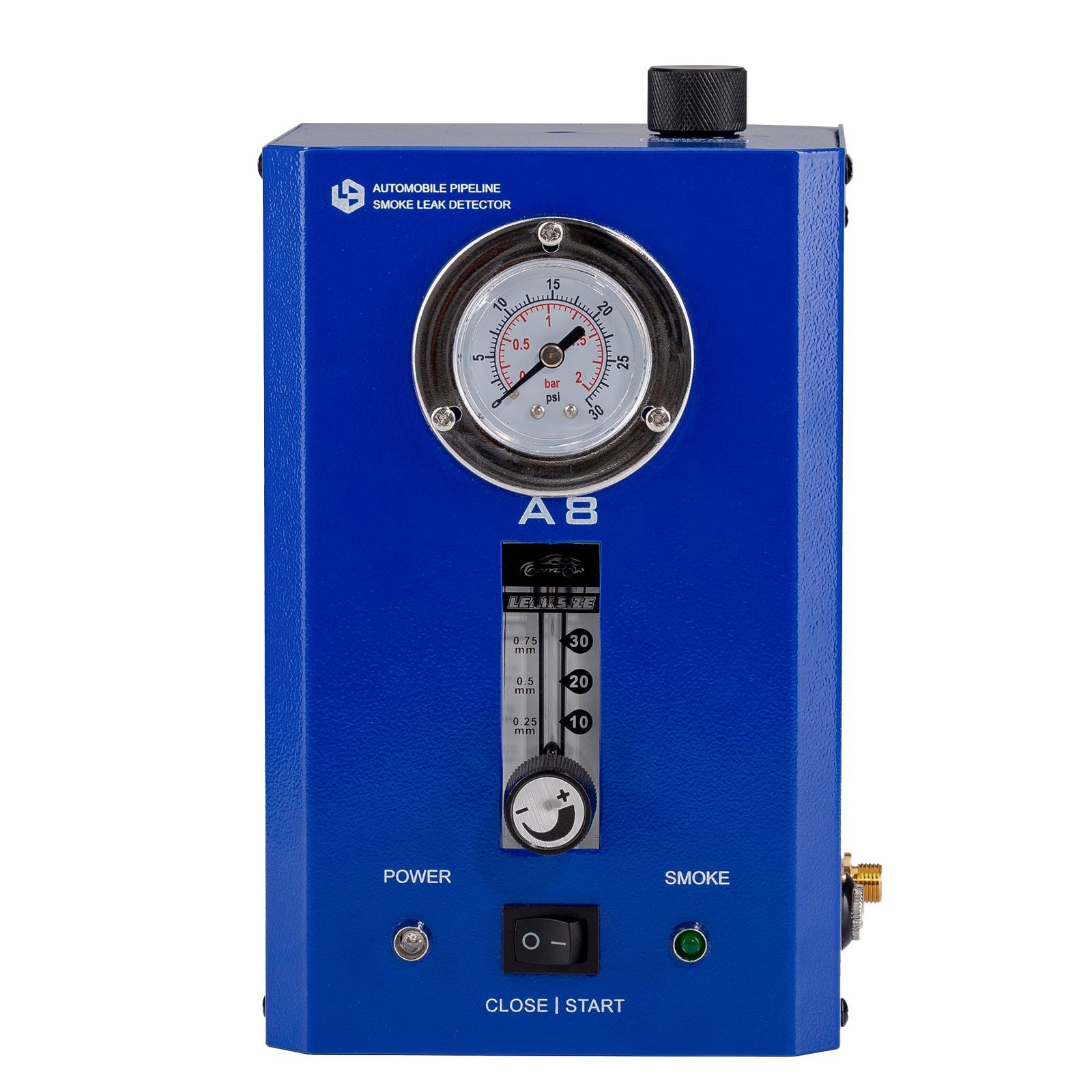

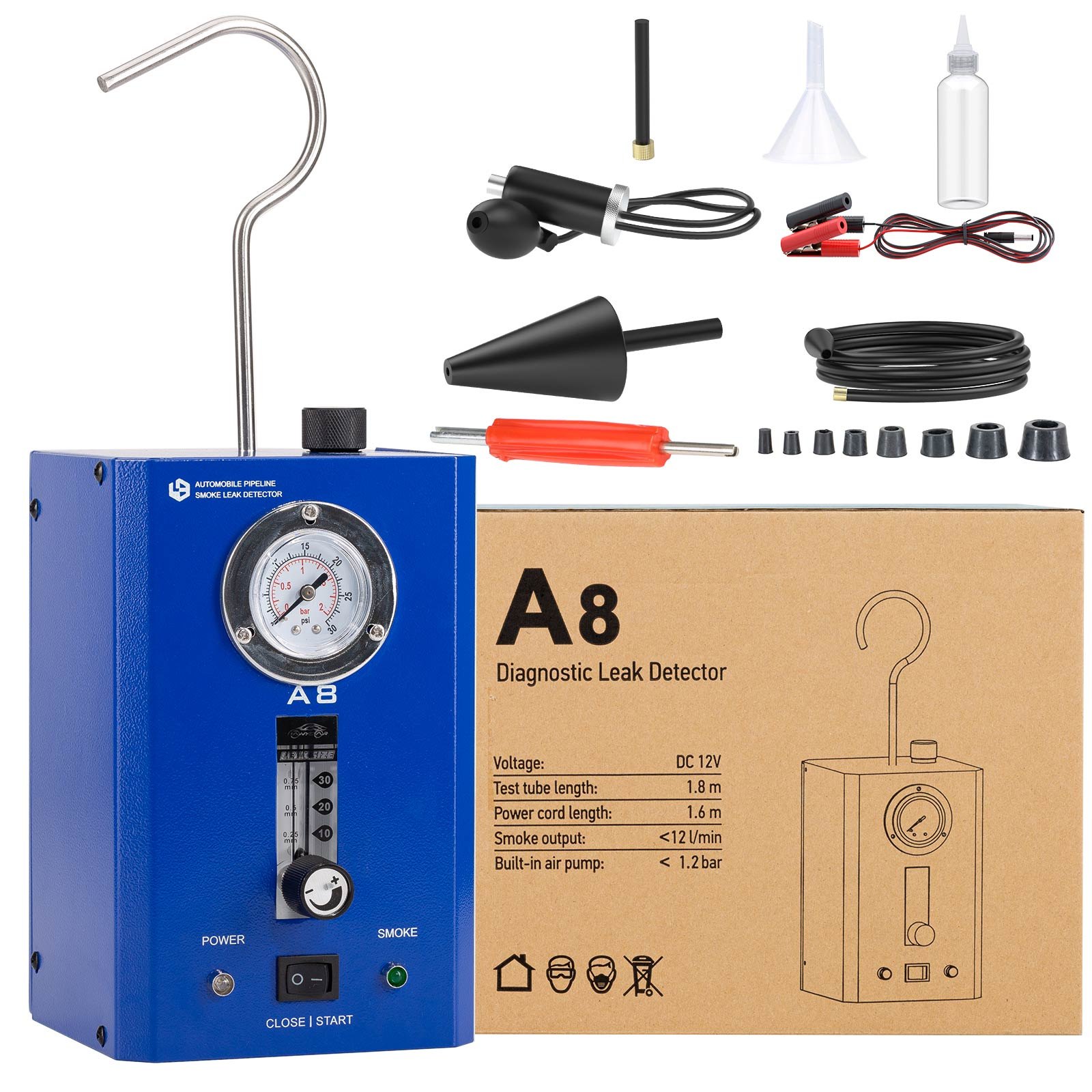

OEM A8 Automative Leak Tester with Flow Meter & the Pressure Gauge Test Leak in Vehicle Pipe Systems for Cars, Motorcycles, Snowmobiles, ATV, Boats

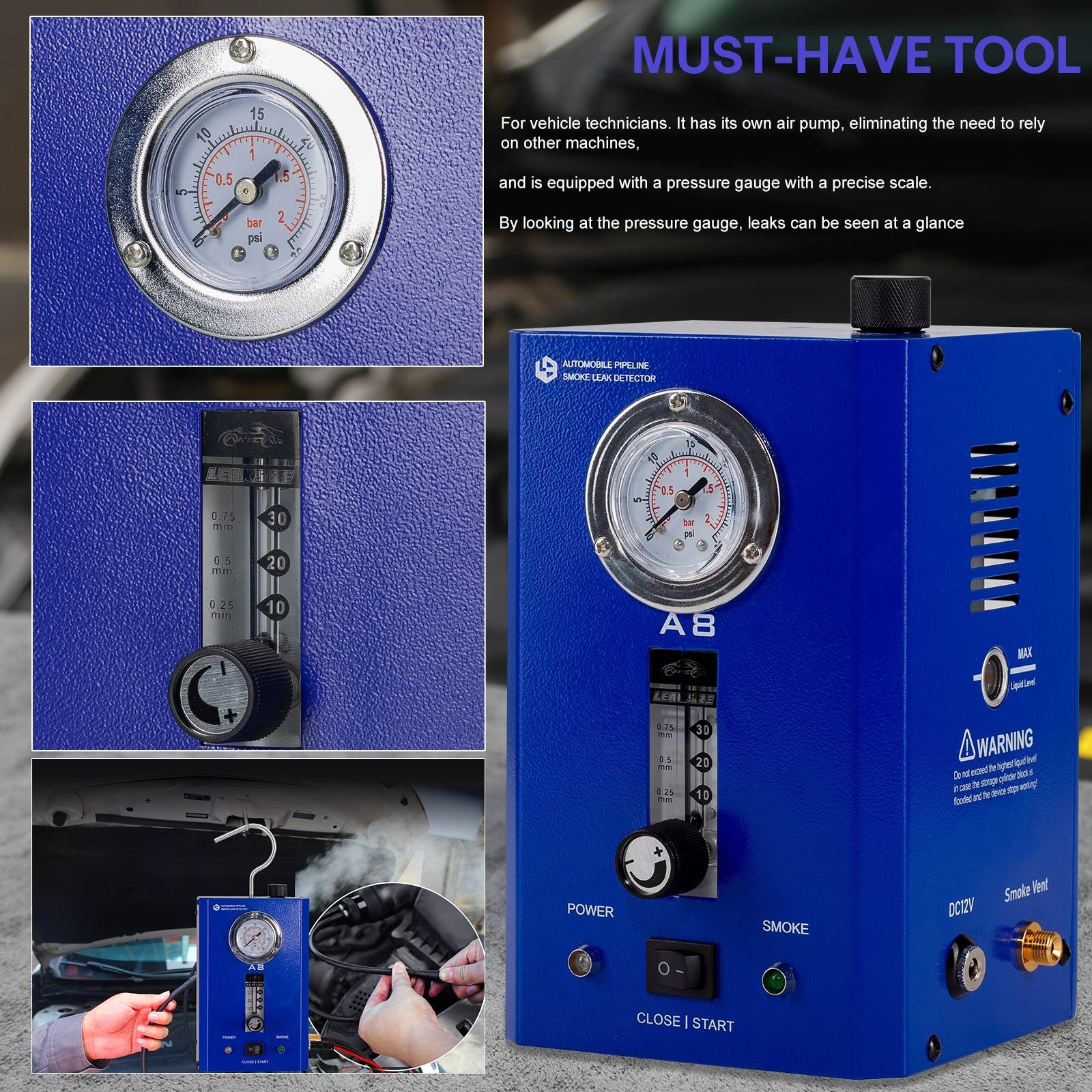

The OEM A8 automotive leak tester, fitted with both a flow meter and a pressure gauge, for testing leaks in vehicle pipe systems on cars, motorcycles, snowmobiles, ATVs and runs from the 12V vehicle battery, and it is aimed at the generic EVAP codes P0443 to P0457 and P0465 to P0469.

Specifications

• Note: Red plug to red socket and black plug to black socket.
• Note: Use the Velcro Strap to collect the Power Cords and the Smoke Tube before storage.
• Note: Pay attention to the Oil Level Indication Window before use. If the oil level is close to the bottom, the unit will need a refill.
• Note: red clamp to positive (+), and black clamp to negative (-).
• Generic OBD EVAP related codes: P0443~0457/P0465~0469.
• Note: The valve is left-hand thread.
• Power Supply: 12V Vehicle Battery

Also stated by the supplier

• OEM A8 Automative Leak Tester with Flow Meter & the Pressure Gauge Test Leak in Vehicle Pipe Systems for Cars, Motorcycles, Snowmobiles, ATV, Boats

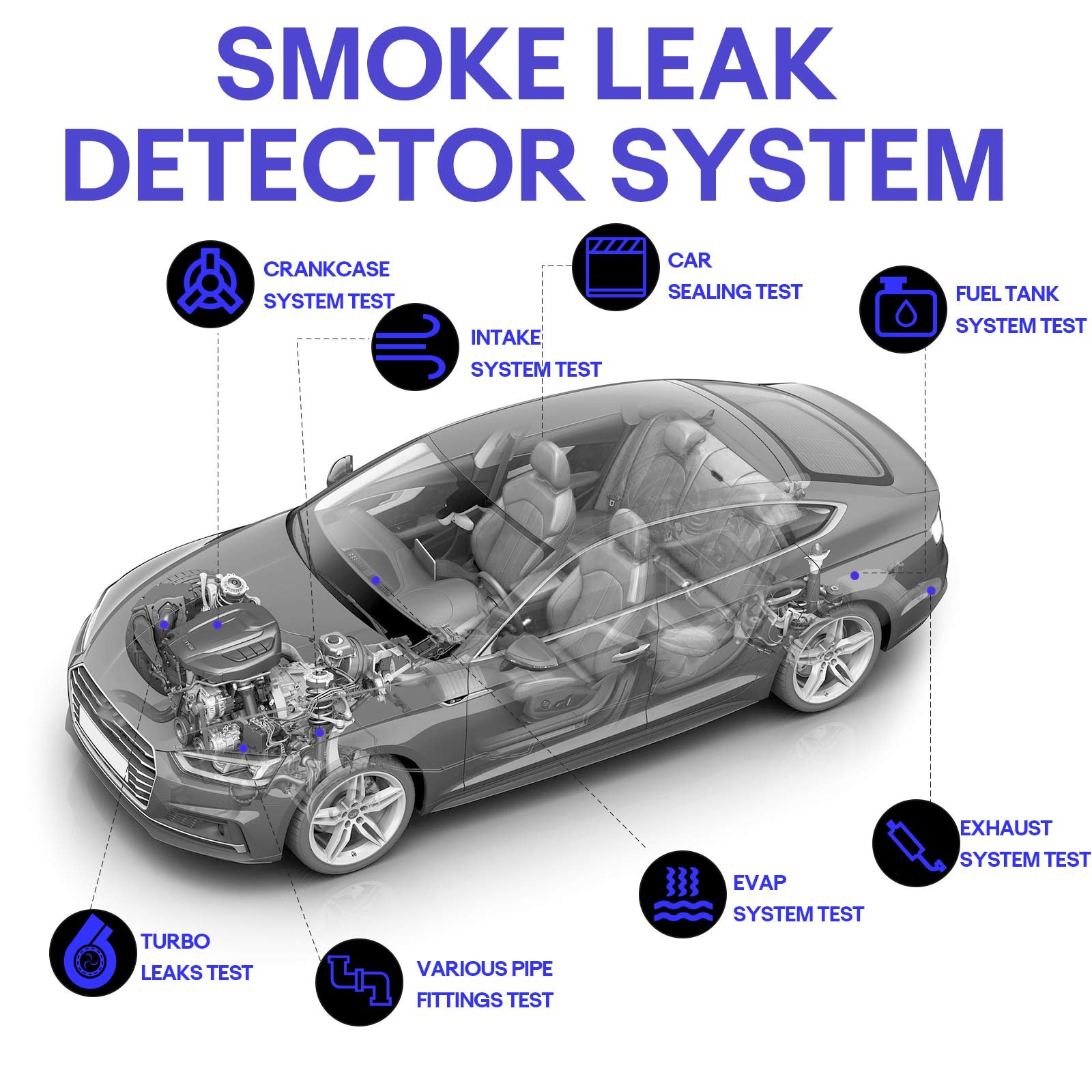

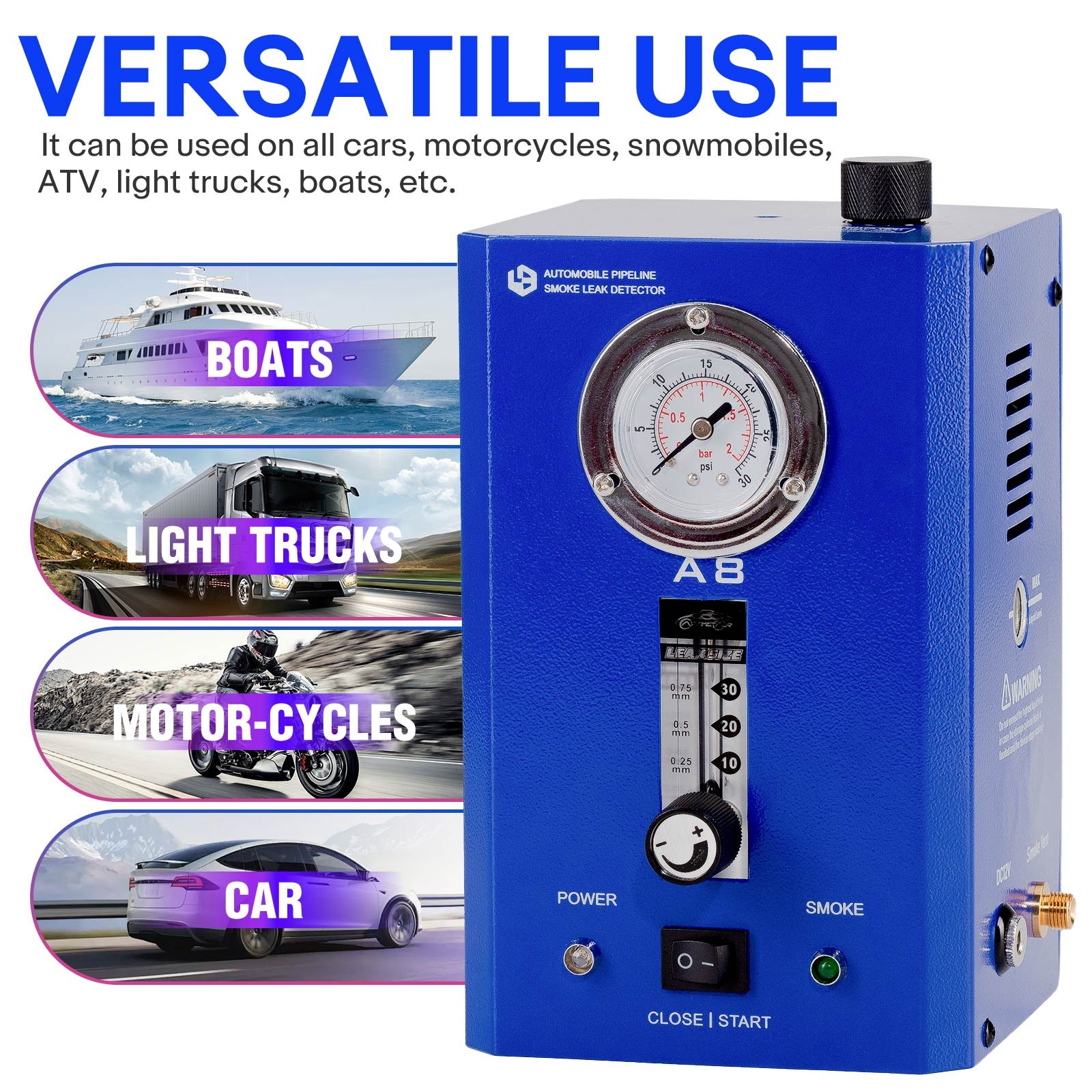

• This automotive diagnostic leak detector is designed for test leaks in vehicle pipe systems. It can be used on all cars, motorcycles, snowmobiles, ATV, light trucks, boats, etc.

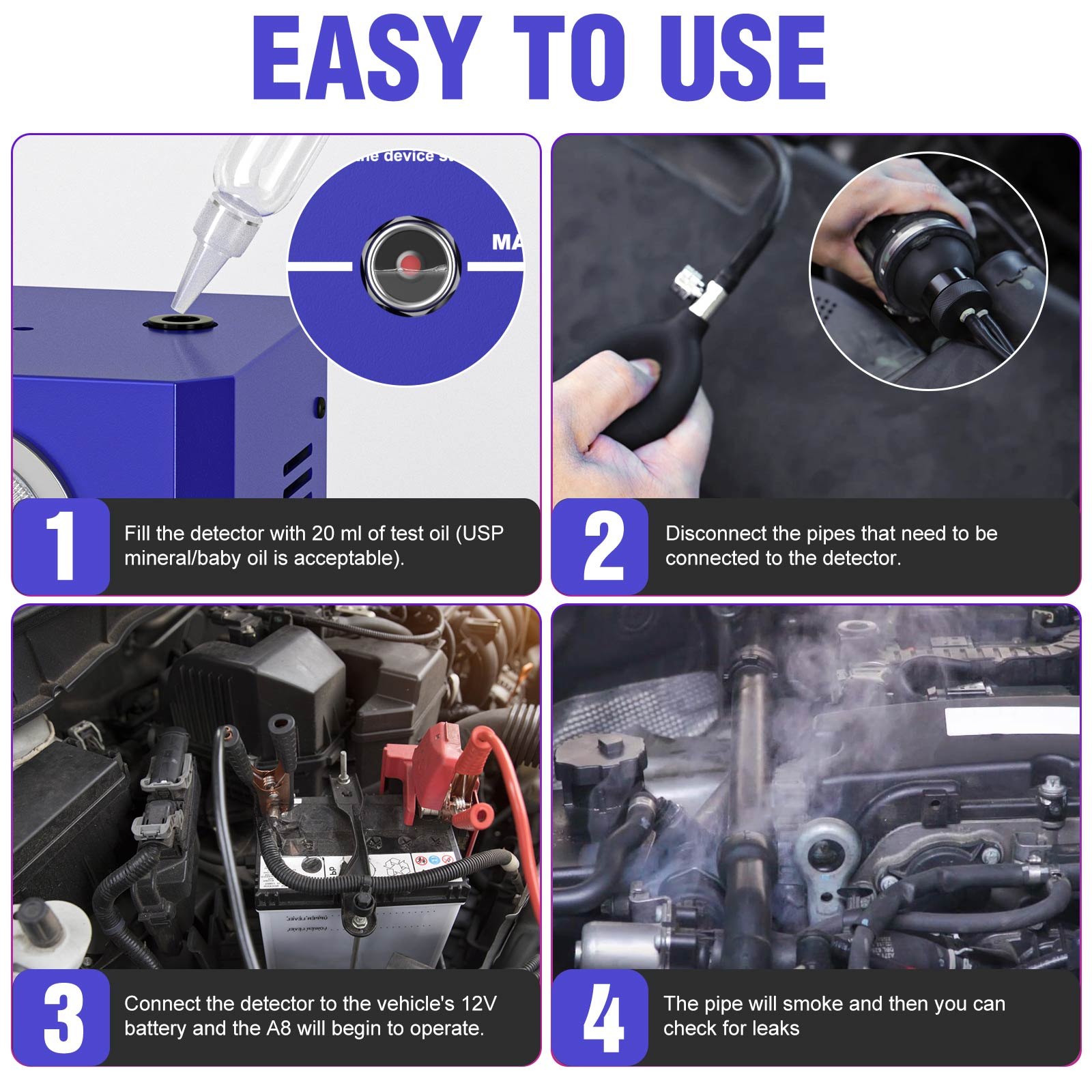

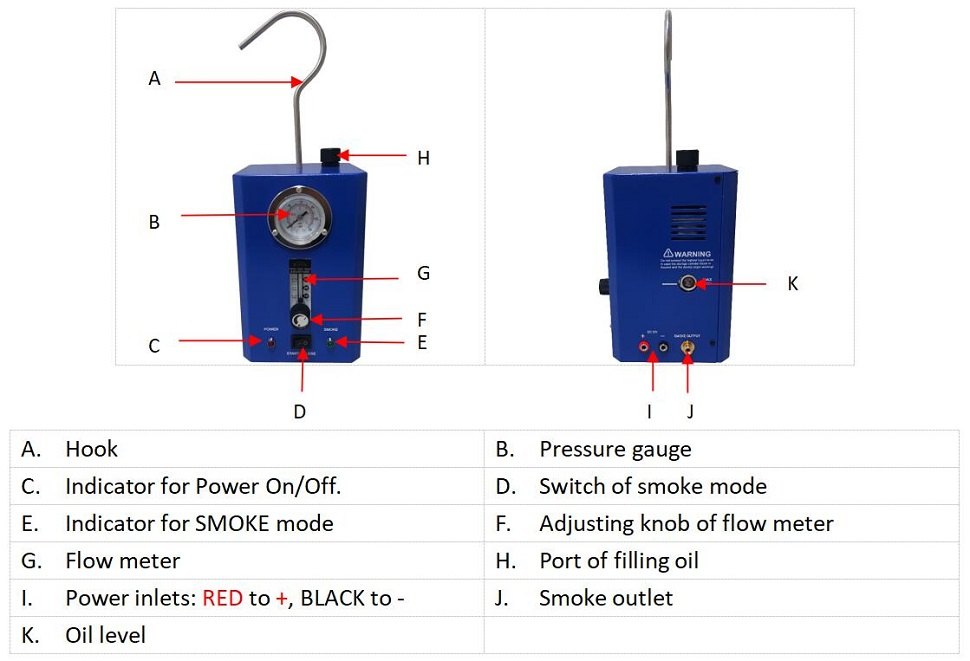

• 1.Mount the Power Cords to the Power Inlets.
• 2.Mount the Smoke Tube to the Smoke Outlet, and lock it with the quick clamp.
• 3.Open the Oil Filler Port, fill smoke oil into the reservoir, note the Oil Level Indication Window, make sure the oil level do NOT exceed the Max line. If the smoke oil is overfilled, turn the unit upside down to drain some oil out.
• 1.Connect 12V vehicle battery with the clamps on the Power Cords. The Power Indicator will be ON and the unit will start generating air pressure.
• 2.Turn the Flow Dial to max, the Flow Gauge will indicate the flow rate.
• 3.Block off the smoke nozzle on the Smoke Tube with fingertip, the Pressure Gauge will indicate the real time output pressure.
• 4.Switch on the smoke mode switch, the smoke mode indicator will be ON. The unit will start producing smoke.
• 1.Locate EVAP Access Port (Green cap in engine compartment).
• 2.Remove the Schrader Valve, by using the Schrader Value Tool.
• 3.Mount the EVAP Service Port Adaptor.

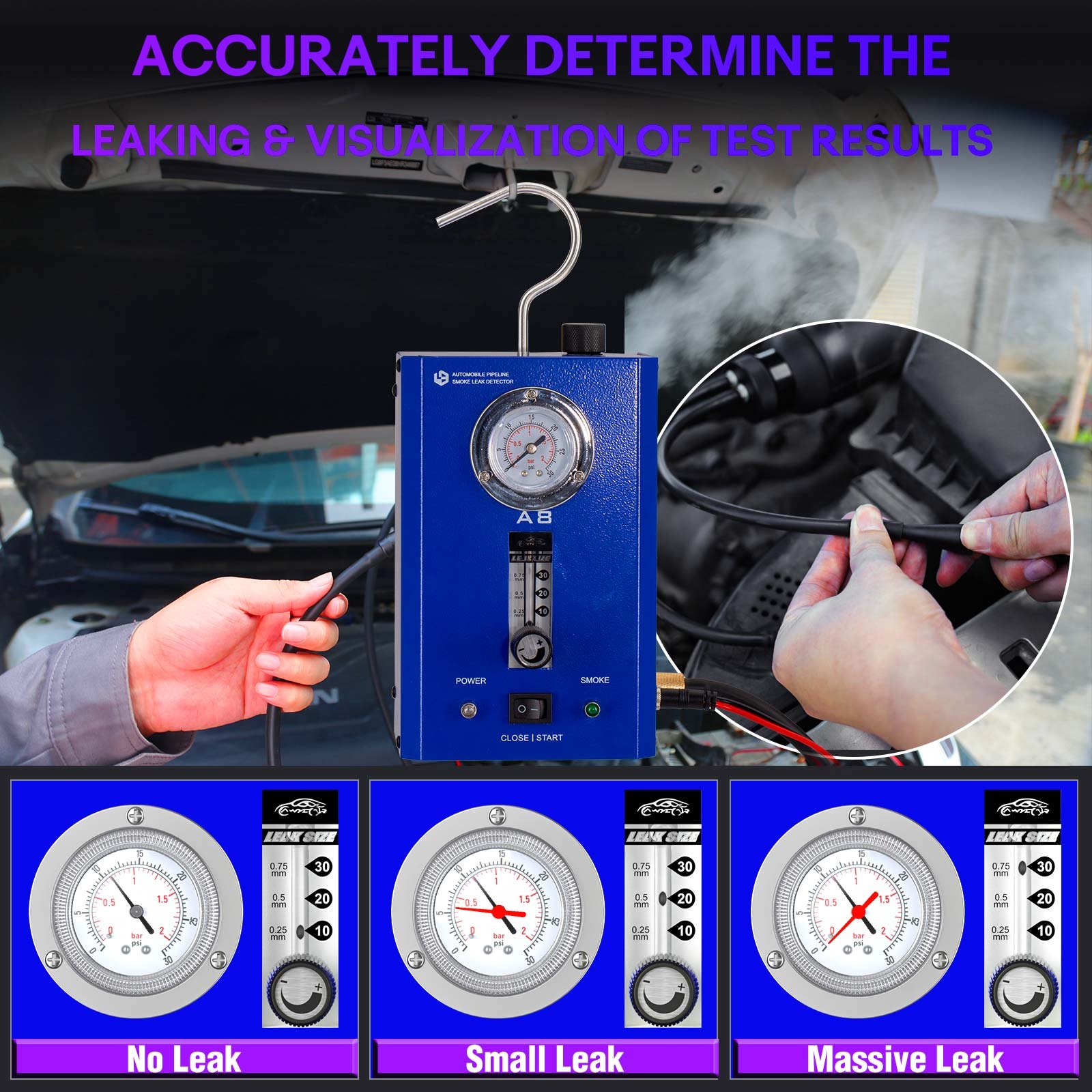

• 4.Connect the smoke nozzle to the EVAP Service Port Adaptor, Introduce pressurized air into the system, and turn the Flow Dial to max, check the status of Pressure Gauge and Flow Meter to confirm if there is a leak.
• 5.If there is leak in the system, press the Start/Stop Button, the unit will start generating smoke for an auto-stop 5 minutes working cycle.
• 6.Pull off the smoke nozzle, and plug it back again when there is obvious smoke coming out of the smoke nozzle.
• 7.In 2 minutes, the system will be ready for leak check. Use a bright light torch or working lamp to assist.
• 8.After leak test, collect the Power Cords and Smoke Tube with the Velcro Strap, clean the Intake Adaptor Cone (or the Universal Intake Adaptor) before storage.

The valve is left hand thread, and the oil level window should be checked before every use.
