GODIAG GT100 Auto Tool OBDII Break Out Box ECU Connector

The GODIAG GT100 OBDII break out box and ECU connector, for single module connection on the bench. It measures 23cm long by 18cm wide by 7cm high, and GODIAG asks that the version be chosen to match the voltage of the local supply.

Specifications

• Notice: Please choose in Version according to the voltage of your local place.
• ECU connection: single module connection
• L: 23cm, W:18cm, H:7cm

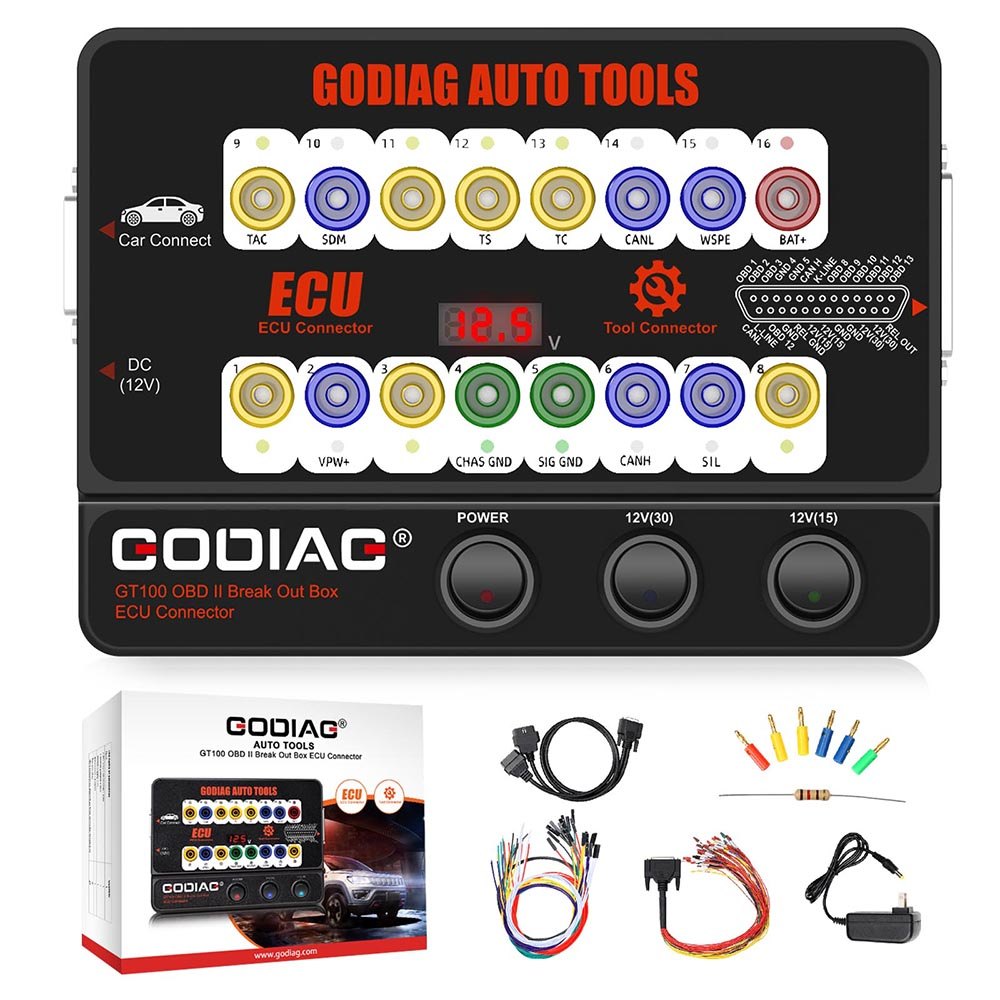

What you get

• 1pc x Host
• 1pc x OBD 2-in-1 extension cable
• 1pc x Colored jumper cable
• 1pc x Power supply 12V
• 1pc x Resistance 120 ohm
• 6pcs x Banana plug
• 24pcs x Wire accessories, Dupont 2.54mm connector female pins
• GODIAG GT100 Customer Review and Test
• GODIAG GT100 with Autel MD808 Pro Read CAS4
• GODIAG GT100 Test ECU With Xhorse VVDI2
• GODIAG GT100 Test MPPS ECU Communication Good or Not
• How to Read ECU Data Stream Via Godiag GT100 and OBD2 Scanner
• GODIAG GT100 OBDII Break Out Box ECU Connector Unboxing
• GODIAG GT100 is a latest testing platform for OBDII protocol communication detection and ECU maintenance, diagnosis, programming & coding. Work together with Xhorse VVDI2, Autel devices, Launch, Foxwell etc.
• GODIAG GT100 Auto Tool OBDII Break Out Box ECU Connector
• GODIAG GT100 is a latest testing platform for OBDII protocol communication detection and ECU maintenance, diagnosis, programming & coding.
• It can convert the car OBD2 interface into 6 pin for signal detection.
• Supply power to the car when you change the battery to avoid the vehicle control module data being lost, automatically locked, key remote control fails or the fault light turns on.
• One Year Warranty.
• Work together with Xhorse VVDI2, Autel devices, Launch, Foxwell etc.
• Work with BMW CAS4 Test Platform and BMW FEM/BDC Test Platform

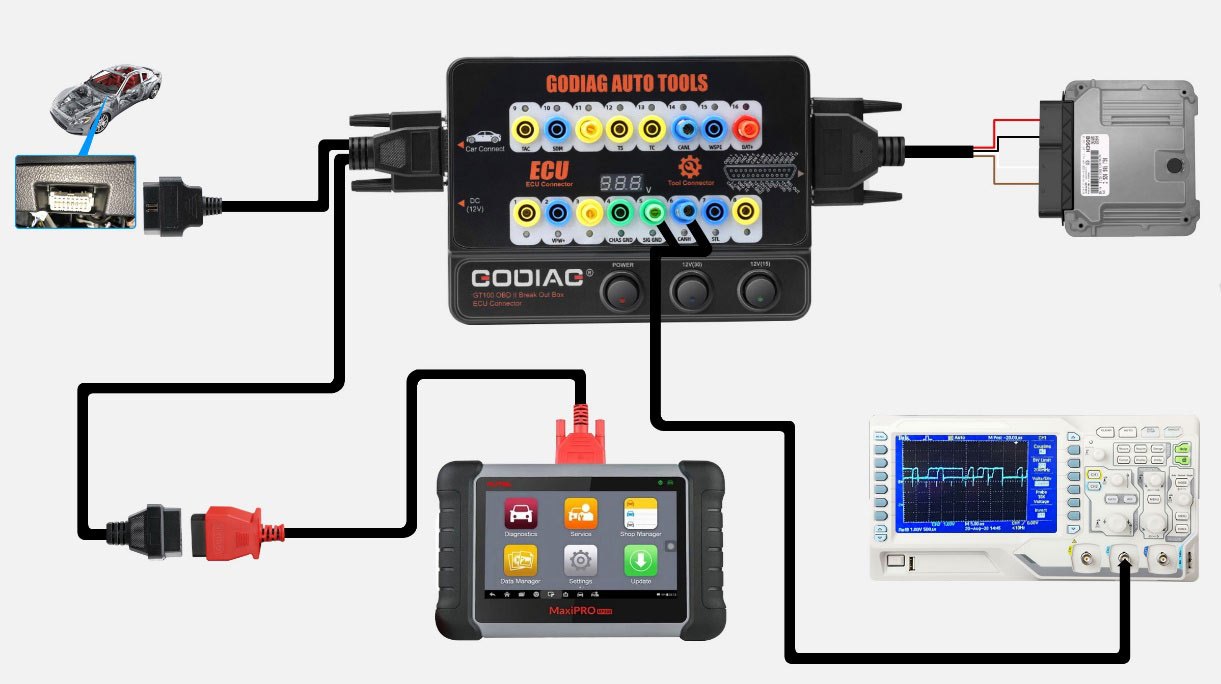

• GODIAG GT100 is a brand new ECU connector and protocol communication testing tool. It will greatly help a user to connect the ECU module separately for diagnosis, programming and coding. Also it will tell whether the diagnostic & programming tool can normally send out communication signal.

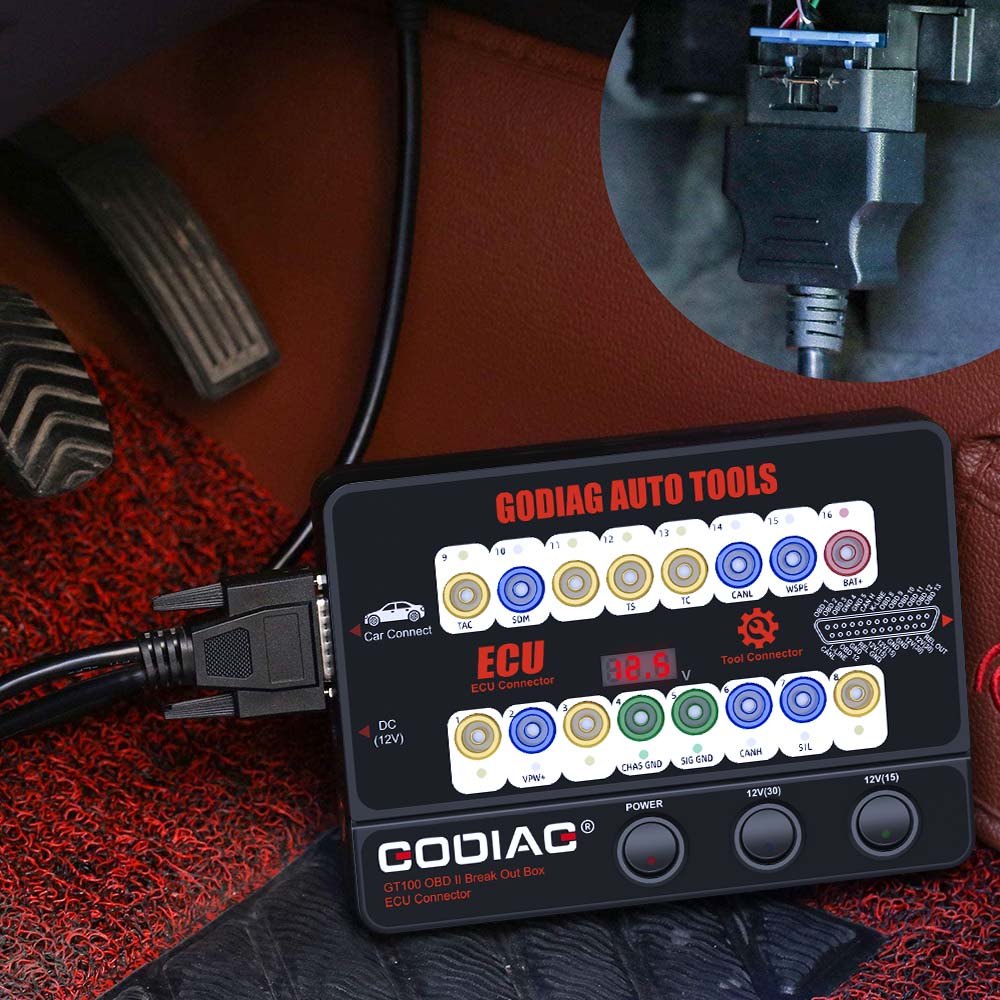

• 1). Connect GODIAG GT100 to the OBDII diagnostic port of the car.
• 2). When the device displays the voltage, turn on the power switch of GODIAG GT100.
• 3). Then connect to the diagnostic tool, when the tool is communicating with the car, the LED indicator of corresponding protocol will light up or flash. ( If the CAN protocol is detected, it will have the maximum brightness. When the communication is successful, the corresponding CAN-H and CAN-L will dim or twinkling weakly)

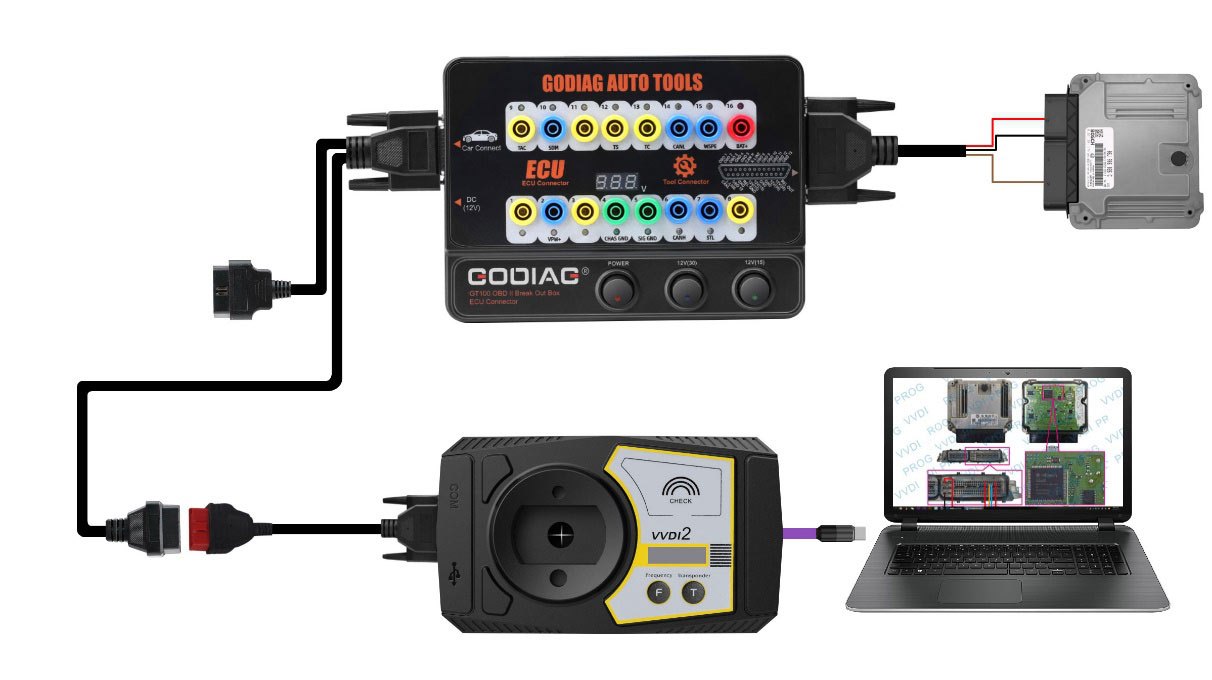

• GODIAG GT100, connected to a single ECU module, is convenient for a user to do the single-module diagnosis and programming.
• 1). Connect the ECU with the color jumpers. (If the ECU is CAN protocol, please check whether you will need to connect a 120 ohm resistor.)
• 2). The Godiag GT100 can be powered by connecting to the OBDII diagnostic interface of car, or by an AC power adapter.
• 3). To diagnose and program for a single ECU by connecting the diagnostic tool or ECU programmer.
• Extend the car's OBDII 16pin interface to tell you whether the OBDII interface connection is good or not, which is convenient for the test of OBDII interface voltage waveform.
• Convert OBD1 diagnostic interface to the standard OBD2

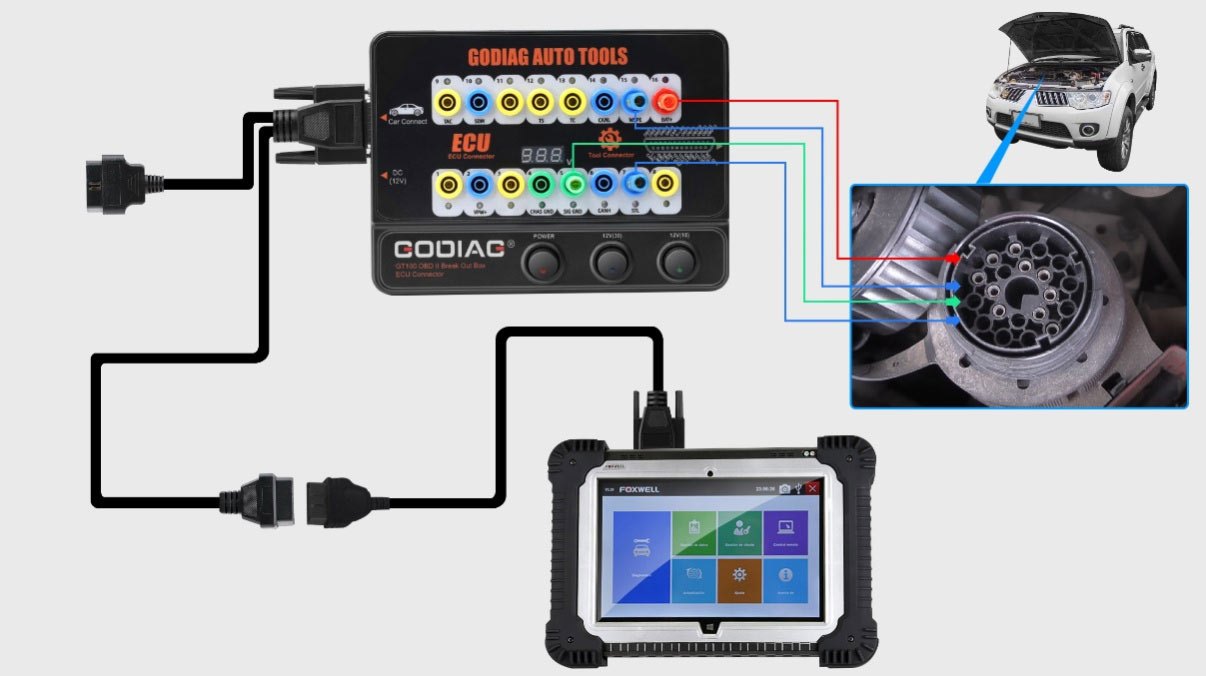

• Use the connector to convert the OBD1 interface into obd2 interface according to the diagnostic interface communication protocol.
• Connect multiple ECU control modules at the same time, which is convenient for the professional engineers to detect and maintain.
• The space of the diagnostic interface location is too narrow to connect to the diagnostic tool, or the user find that the diagnostic cable is not long enough during maintenance. It can be extended by 1.2 meters.
• Able to power the car when replacing the used battery.
• 1). Prepare battery A to supply power by connecting to No. 16 / 4 / 5 holes of Godiag GT100 & to the OBD2 diagnostic interface of the car.
• Turn on the power switch of Godiag GT100.
• 2). Then replace the brand-new battery B with the used battery in the car, which will ensure that the car has fully power to prevent data loss and audio lock-up or the malfunction due to lack of power to the ECU control module.
• GT100 will convert the OBD1 port of special truck to the standard OBD2 diagnostic port according to the protocol.

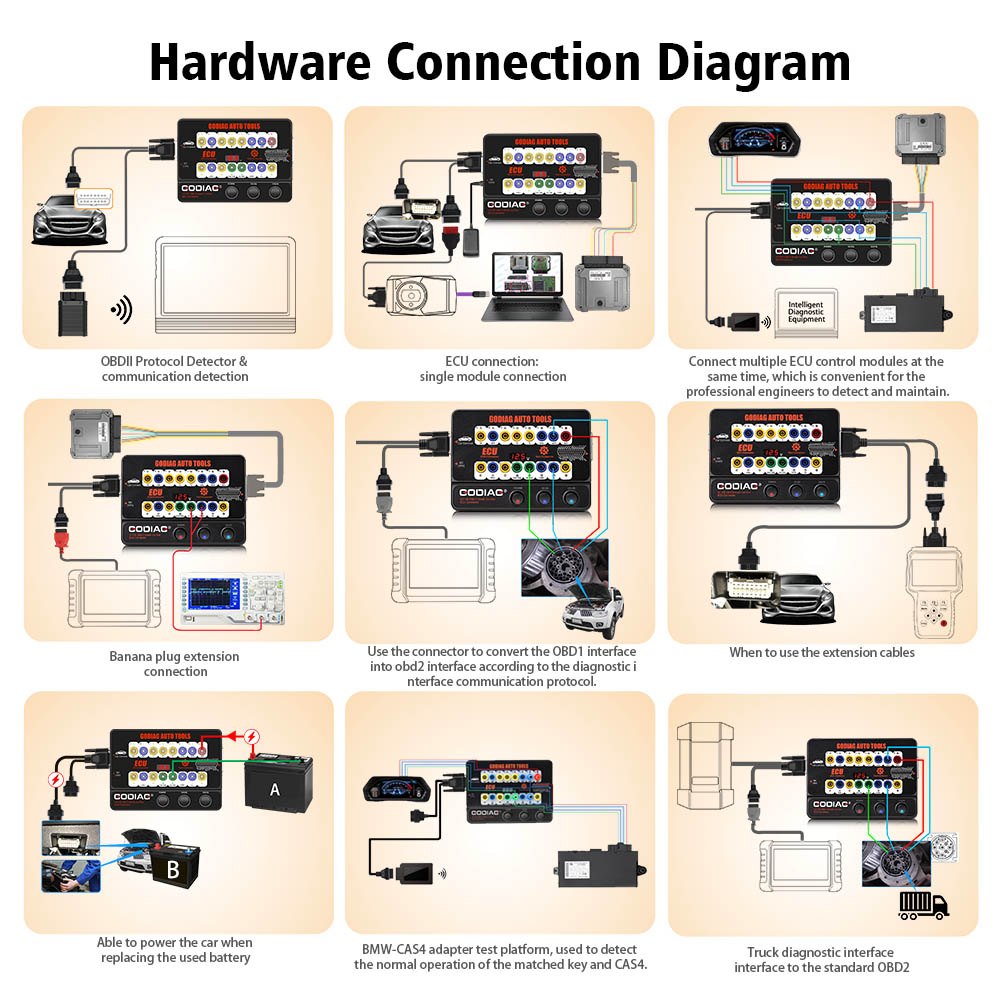

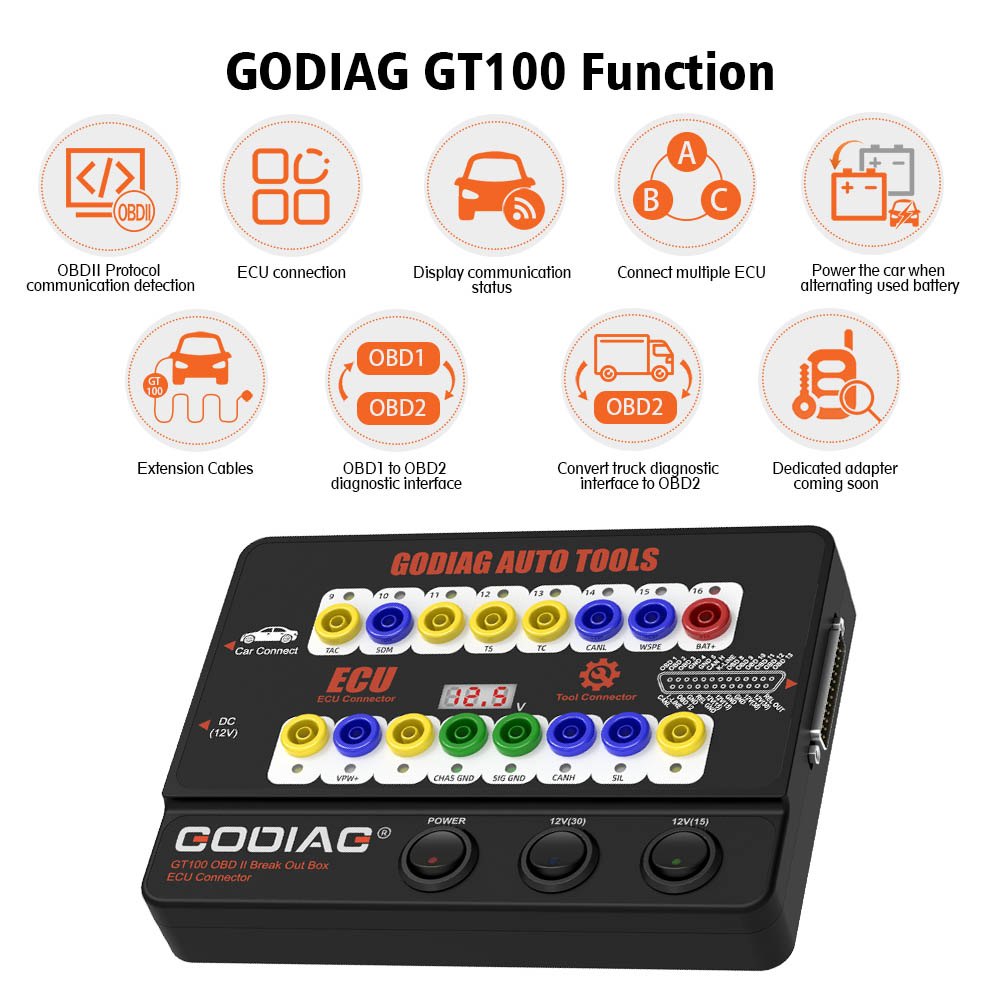

• GODIAG GT100 Function and Operation Guide:

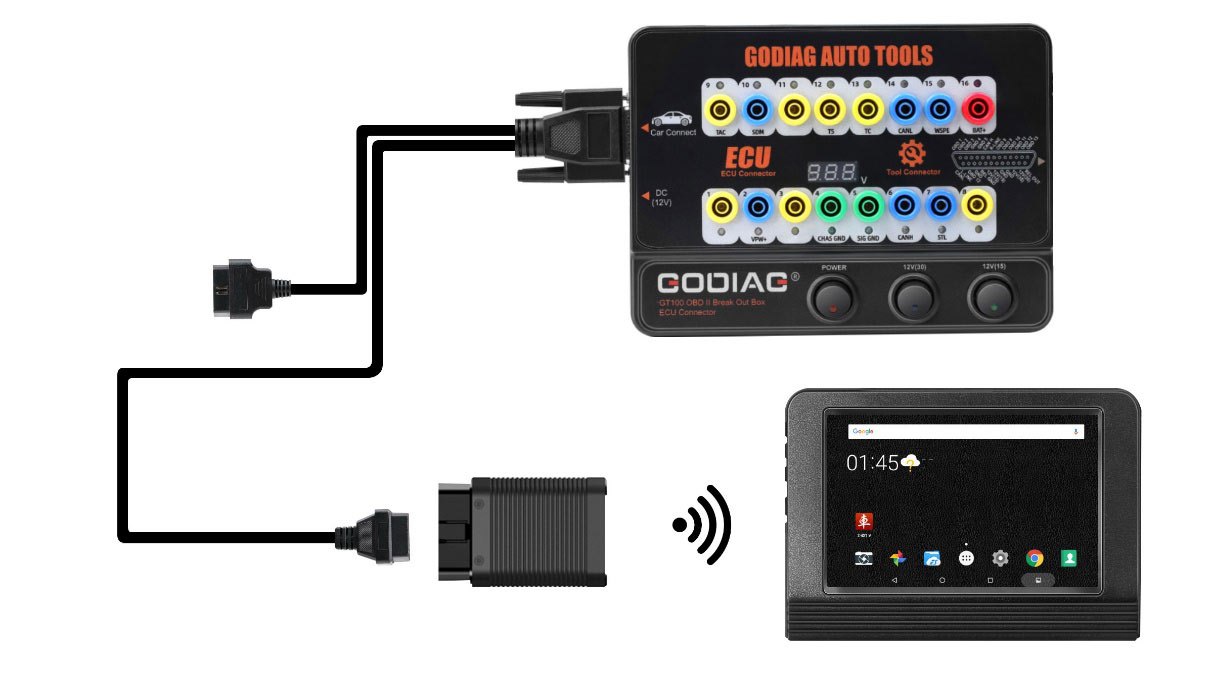

• By connecting the vehicle and diagnostic tool via OBDII, Godiag GT100's LED will indicate whether the OBDII diagnostic interface has a good communication with the car.

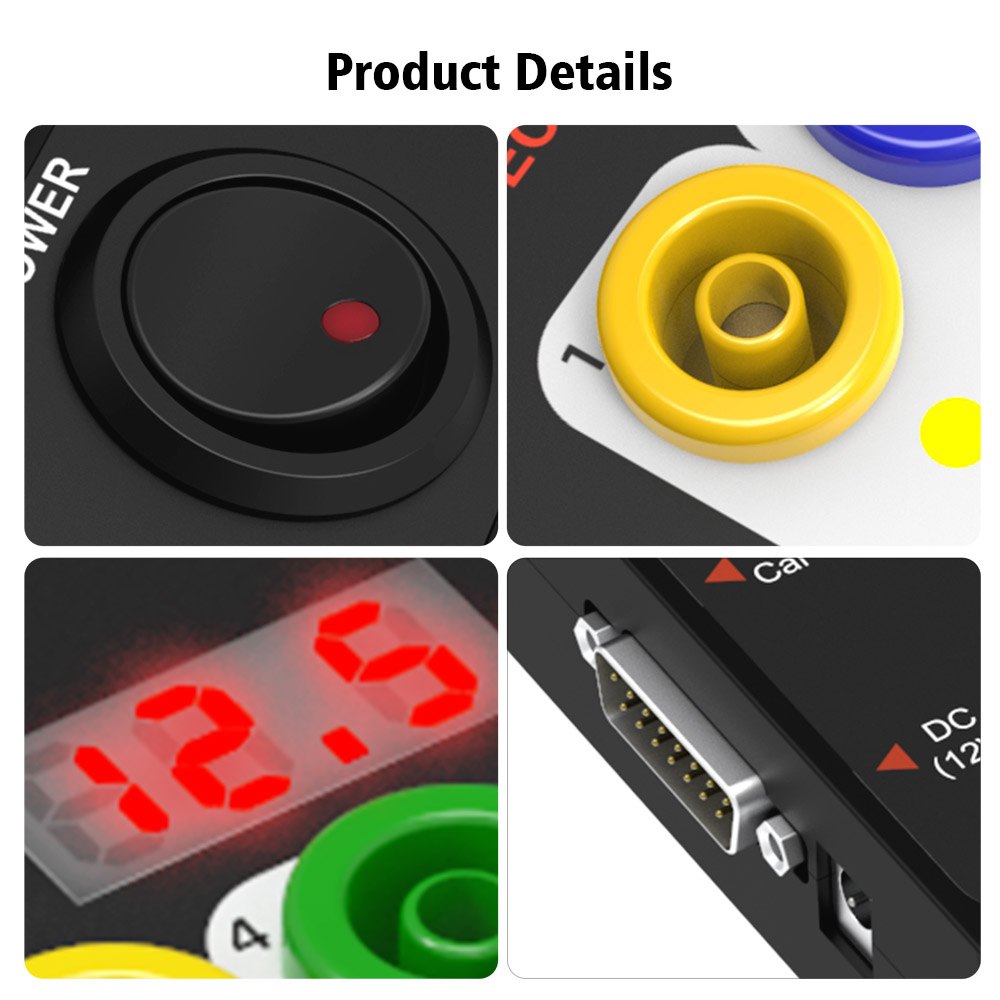

• Monitor the voltage of vehicle OBDII interface and display it in real time. If it is less than 11V, please stop the diagnosis and programming to avoid the vehicle being unable to start/data loss/module locked.
• SJE1850 wire
• Power grounding
• SAEJ2284《CAN》high
• ISO9141-2&iso, DIS4230-4K wire
• SJE1850 wire《bus->
• SAEJ2284《CAN》low
• ISO9141-2 & ISO/DIS 4230-4L wire
• Car battery positive
• Working voltage
• DC 9V-24V
• Work and power
• 0.5-0.6W
• Adapter power
• Input AC100v-240v, Output DC12V 1A
• 20 to 70 °C ( -4 to 158 °F )
• 40 to 85 °C ( -40 to 185 °F )

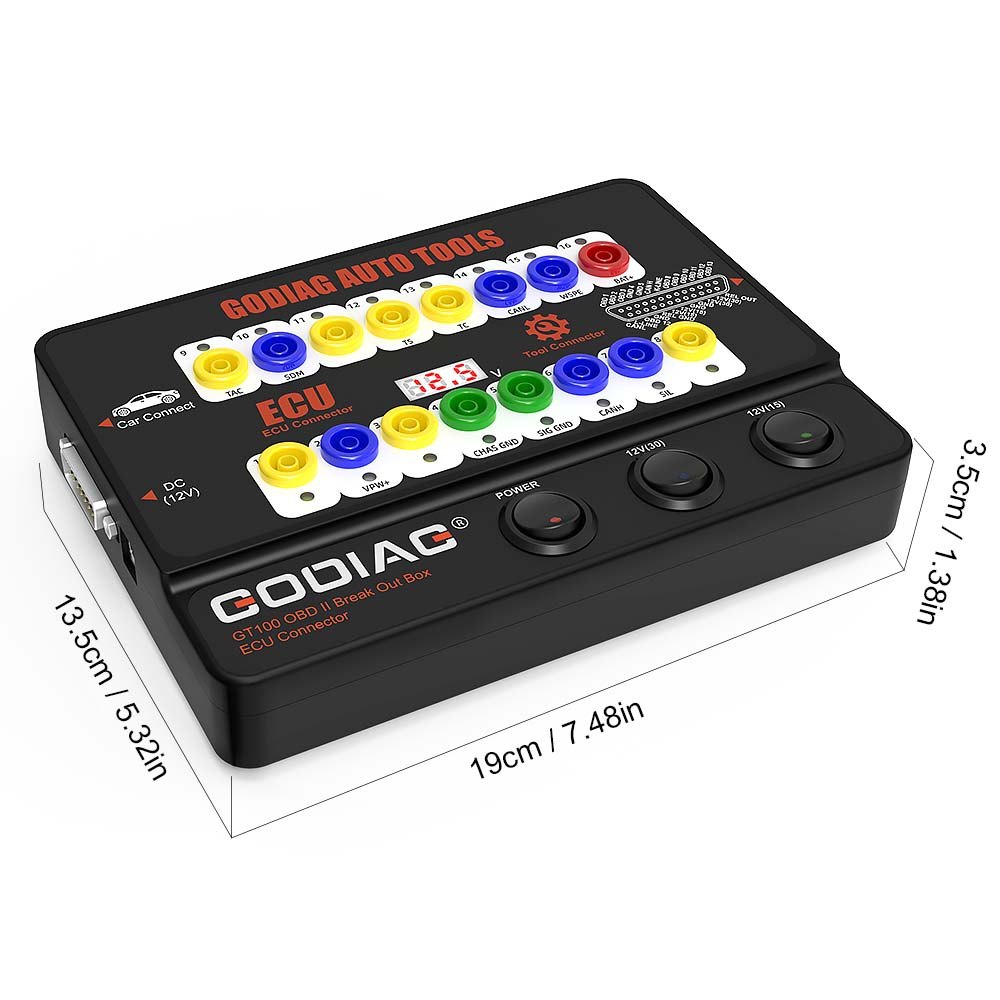

• Dimension

Options here run to an electronic display build and to CAS4 and FEM test platform versions, so read the variant.
