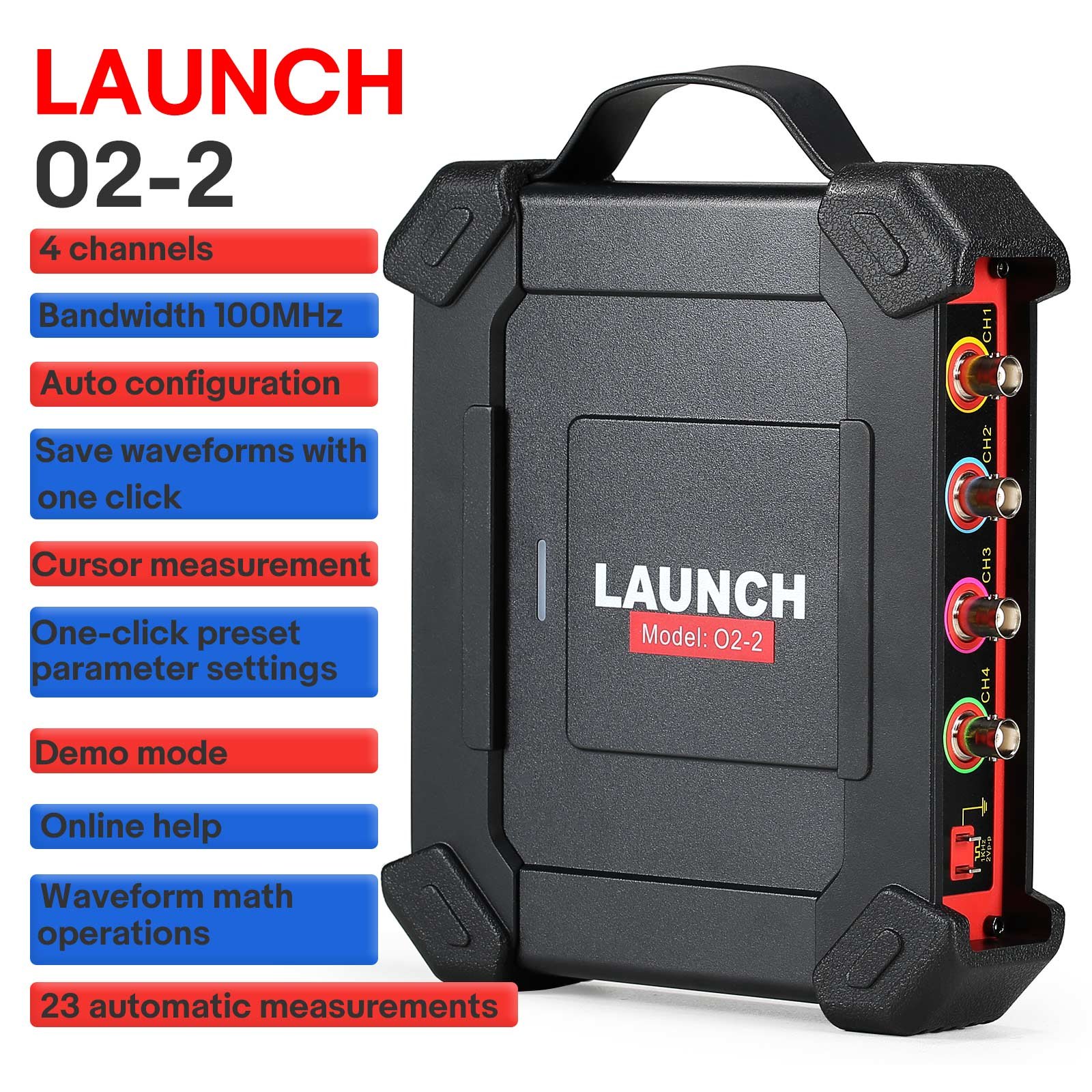

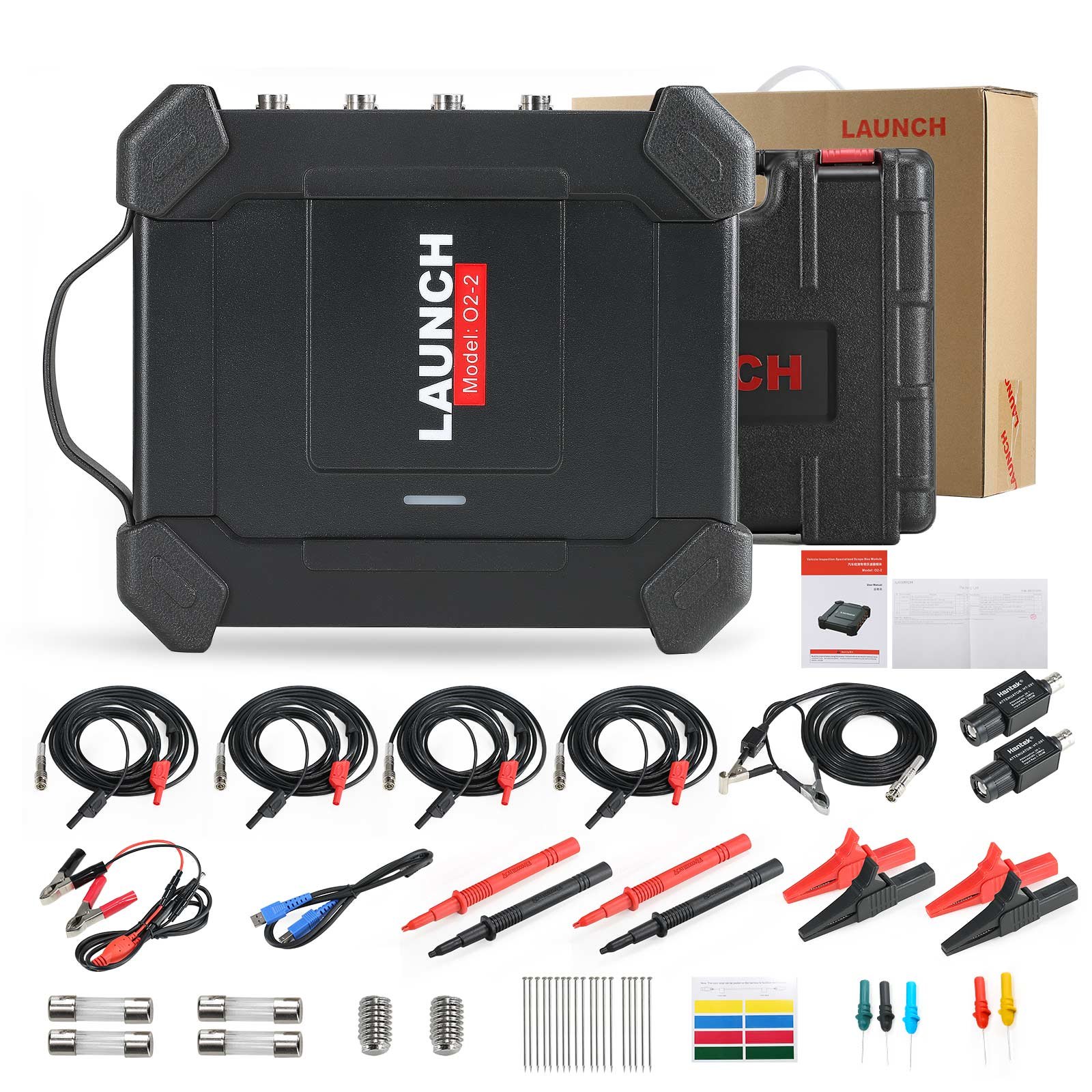

LAUNCH X431 O2-2 Scope Box Oscilloscope 4 Channels 100MHz USB DC Automotive Oscilloscopes Work with PRO3S+ V5.0/PAD V/ PAD VII

The Launch X431 O2-2 scope box, a four channel 100MHz USB automotive oscilloscope working with the PRO3S+ V5.0, PAD V and PAD VII. It runs on 5V and 1A over USB with 12V or 24V DC, and captures a particular waveform for solving complex electrical faults.

Specifications

• USB: 5V/1A
• DC: 12V/24V

Also stated by the supplier

• Launch O2-2 Scope Box allows the user to capture a particular waveform which makes the process 70% more dfficient as compared to other scopes. It features the ability to record and playback high-resolution waveform data for future analysis. Its ability to input names and characters directly by clicking on the virtual keyboard streamlines the process and contributes to 90% of efficiency improvement.
• LAUNCH O2-2 Scope Box For Solving Complex Electrical Faults
• Featuring a new design and upgraded hardware, the LAUNCH O2-2 Scopebox is a versatile and easy to use add-on module that can detects high level faults on various electrical components, such as sensors, acturators and circuits. By integrating with the X-431 series scan tools via O2-2 application, it delivers accurate and conclusive diagnostic faults that enable the shop and technician to enlarge their scan tool's functionality.
• Integrate with X-431 series scan tools (such as X431 PRO ELITE, X431 Throttle, X431 Pad II AE, X431 Torque, X431 Turbo, X431 Pro3S+, X431 PAD V, X431 PAD VII, X431 IMMO Elite, X431 IMMO PLUS) through the O2-2 application for conclusive diagnostic results.
• 4 channels
• Bandwidth 100MHz
• 23 automatic measurements
• Features the alility to record and palyback high-resolution waveform data for future analysis. One key enable function allows the suers to capture
• A particular waveform which makes the process 70% more efficient as compared to other scopes
• Access to 23 variants of automatic measurements that are displayed on one screen for an easy switch
• Ability to input names and characters directly by clicking on the virtual keyboard, this operation streamlines the process and contributes to 90% efficiency
• Buffer memory up to 50M
• Use the zoom in/out feature to review precise details
• Customizable personal system settings that can be saved as configuration files for viewing
• The Self-calibration function allows optimization of the oscillosope signal path for maximum measurement accuracy
• Magnifies waveform math operations, such as affition, subtraction, multiplication and FFT function for high level waveform anlysis
• Multiple automotive tests that include circuits, sensors, actuators, ignition tests and more
• Supports a variety of automotive preset project tests, such as circuits, sensors, actuators, ignition tests, communication tests and combination tests, and presets various parameters and specific connection methods for each test.
• 23 automatic measurement settings
• 23 automatic measurement settings are displayed on one screen, which is clear at a glance and can be clicked with a light touch. It supports one-click clearing, eliminating the tediousness of turning pages and searching multiple times, making automatic measurement easy to use and convenient.
• Quickly save the waveform currently displayed on the screen with one click and automatically save it in the specified format. It can be directly used as a reference channel waveform for display later.
• Turn on the horizontal and vertical cursors with one click respectively. Each cursor can be dragged independently, and cursor tracking is also directly implemented through simple highlight touches, improving overall efficiency by more than 80%.
• Supports 2-point touch, the waveform can be zoomed in or out vertically or horizontally
• Drag horizontally or vertically with 2 points to zoom in or out the waveform horizontally or vertically.
• Detailed Comparison Between Launch O2-2 Scope Box and Launch O2-1 Scope Box
• Model
• O2-1
• O2-2
• 100MHz
• ≤3.5ns(typical)
• ≤3.5ns
• 1Gbps(for four channels)
• 1Gbps
• 1MΩ±1.5%
• 50M
• 10M
• 8bit
• 5mV~10V
• 5ns~1ks
• 1ns-1ks
• 20ppm
• Trigger type
• Edge, Pulse width
• 200ms/div~1000s/div
• Powered by
• 0℃~50℃
• Power supply range
• One APP can be compatible with multiple tablet resolutions
• Single channel 1G/s, more than 2 channels only 250M/s
• Single channel 1G/s, 2 channels 500M/s, multiple channels 250M/s
• 2-3S
• about 16s
• Power consumption
• about 6W
• about 7.5W
• First, power the oscilloscope box through the double-clip power cable: Connect one end of the double-clip power cable to the pow

Four channels lets ignition, injection and a sensor be compared on one screen rather than in turn.
