Launch X431 V V5.0 8inch Tablet Wifi/Bluetooth Full System Diagnostic Tool

The Launch X431 V V5.0, an eight inch tablet diagnostic tool over wifi and Bluetooth, covering domestic and imported vehicles from 1996 onward on up to 72 makes. It reads and clears DTCs, shows live data and special functions, runs bidirectional control and actuation tests, programs a key where the PIN is known, codes a replacement ECU and supports remote assistance, in English, German, Japanese, Russian, French, Korean, Arabic and Spanish.

Specifications

• Multi-Languages: English, German, Japanese, Russian, French, Korea, Arabic, Spanish, Italian, Portuguese, Polish, Turkish, Dutch, Greek, Hungarian, Arabic, Danish, Persian, Romanian, Serbian, Finnish, Swedish and Czech
• Vehicle Coverage: Works on all vehicles domestic & import since 1996, up to 72 car brands about 220 car models from European, USA, Asian, Australian also Indian and Malaysia Car Models.
• Notice: 1. X431 V V4.0 is the latest hardware version currently, and the latest APP version is V5.0
• Diagnosis functions include: Read DTCs, Clear DTCs, Read datastream, Special Funtion etc.
• Bidirectional control: Bi-Directional Control which is used to request information or command a module to perform specific tests and functions
• Actuation Test: it can send information to and receive information from a vehicles control module.
• Key Programming: if you know you the PIN# of your car, x431 v can match a new key for you.
• ECU Coding: after replace a new ecu for car, x431 v can help you code it. It is very useful for mechanic.
• Remote Assistance: launch x431 v support remote diagnosis, if you need help from other mechanic, open the remote control function.

Also stated by the supplier

• Global Version LAUNCH X431 V V5.0, No IP Limit, 2 Years Free Online Update
• 15+ Reset Service (Adaption/Initialization/Matching) + ECU Coding + Key Progrmming
• OE-LEVEL Advanced Functions, All System Diagnostics for 10000+ Vehicles
• BI-Directional (Active Test) + Best Hardware with Android 9.0 + 24 Languages

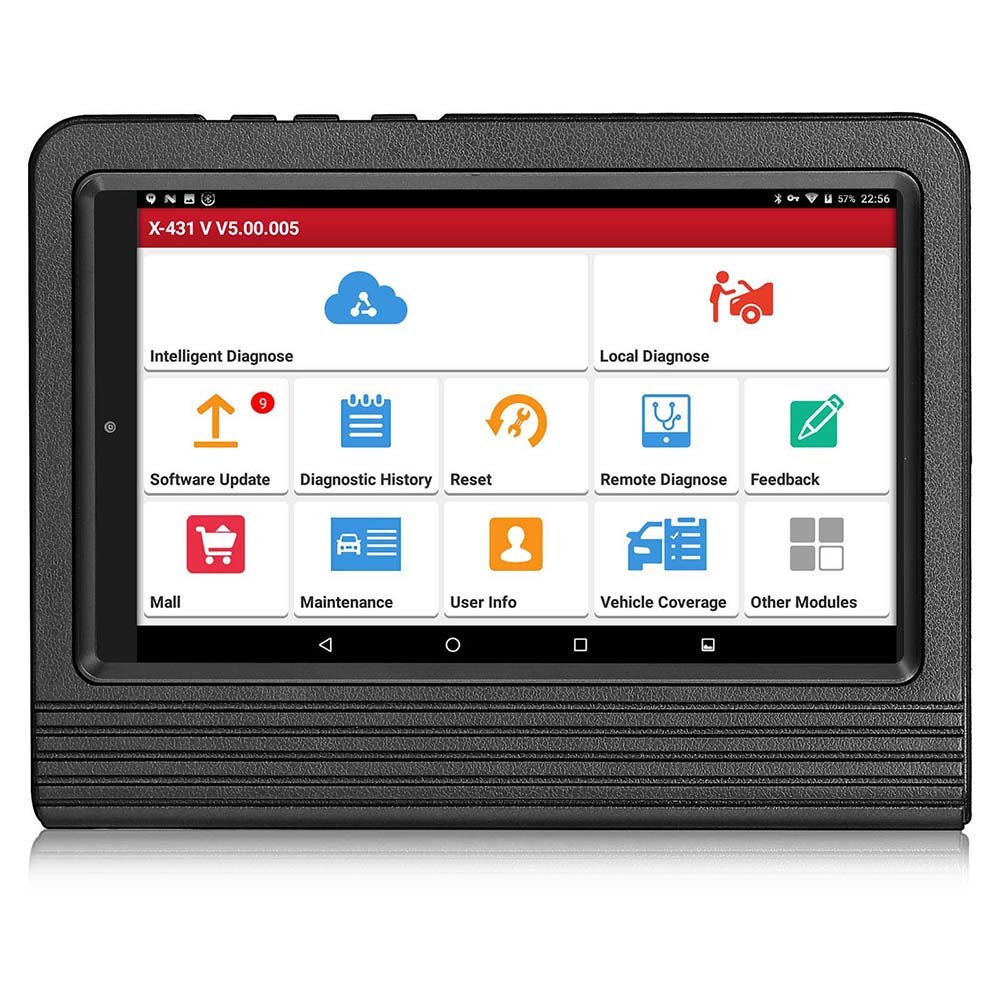

• Launch X431 V 8inch Tablet Wifi/Bluetooth Full System Diagnostic Tool
• Launch X431 V is a high cost-effective automotive diagnostic device developed based on Android 9.0 System. It adopts 2.0GHz Quad-core processor, which runs faster and more stable. It is equipped with DBSCar IV connector as standard, which can be directly inserted into the slot of the host connector, easy to use and not easy to be lost. X431 V can cover more than 98% of the car models in the market, realize the fault diagnosis of the whole system, and has many advantages such as strong diagnosis function and accurate test data.
• One-Click Free Update Online for 2 Years. After expired, it will cost $450/year or $599 for 2 years
• Global Version, No IP Limitation.
• Communicate with vehicle via Wifi and Bluetooth, Bluetooth distance: 10M (without obstacle)
• Support 15+ Special Functions
• Buy an upgraded version Launch X431 V 5.0 (X431 Pro)
• Full Diagnose Function: X431 V can diagnose the electronic control system of prevailing vehicle models covering Asian, European, American and China. Full range car models and Full car systems diagnose make it a professional automotive diagnostic tool
• a). If the service lamp is on, you must provide service for the car. After service, you need to reset the driving mileage or driving time so that the service lamp turns off and the system enables the new service cycle.
• a). To reset the steering angle, first find the relative zero point position for the car to drive in straight line. Taking this position as reference, the ECU can calculate the accurate angle for left and right steering.
• This function allows you to perform various bi-directional tests to check the operating conditions of Anti-lock Braking System (ABS).
• a). When the ABS contains air, the ABS bleeding function must be performed to bleed the brake system to restore ABS brake sensitivity.
• a) The ECU is replaced and the ECU does not yet store throttle working features.
• b)The ECU is disconnected from power and the ECU memory is lost.
• e) The throttle is cleaned. Although the idle throttle potentiometer features remain unchanged, with the same throttle opening, the air inflow has changed and idle speed control features have changed.
• Battery Register/Battery Maintenance
• This function enables you to perform a resetting operation on the monitoring unit of vehicle battery, in which the original low battery fault information will be cleared and battery matching will be done. Battery matching must be performed in the following cases:
• a) Main battery is replaced. Battery matching must be performed to clear original low battery information and prevent the related control module from detecting false information.
• If the related control module detects false information, it will invalidate some electric auxiliary functions, such as automatic start & stop function, sunroof without one-key trigger function,power window without automatic function.
• b) Battery monitoring sensor. Battery matching is performed to re-match the control module and motoring sensor to detect battery power usage more accurately, which can avoid an

Key programming here needs the PIN already in hand, which is the line between this and a dedicated key tool.
