LAUNCH X431 CRP123E OBD2 Code Reader for Engine ABS Airbag SRS Transmission OBD Diagnostic Tool Free Update Online Lifetime

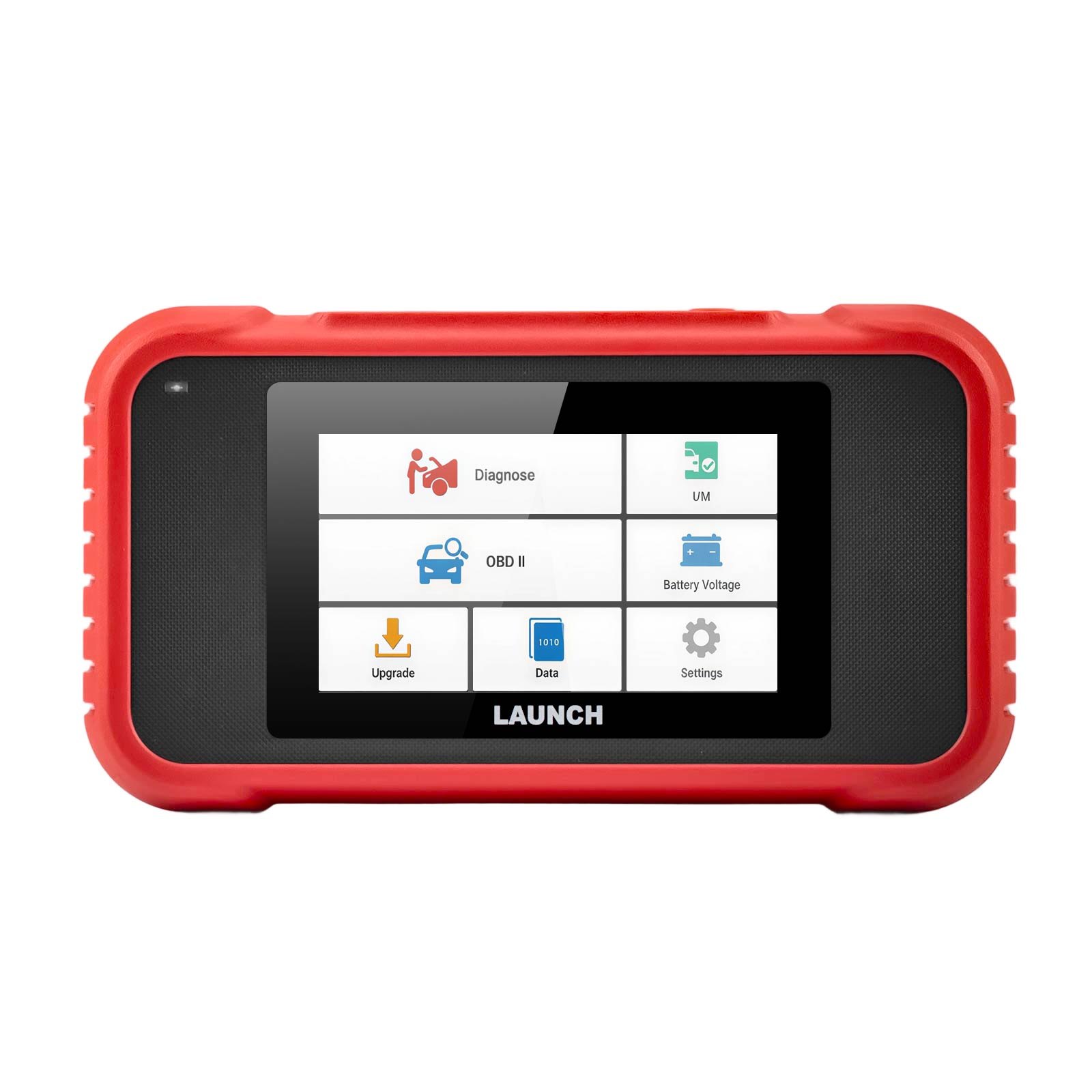

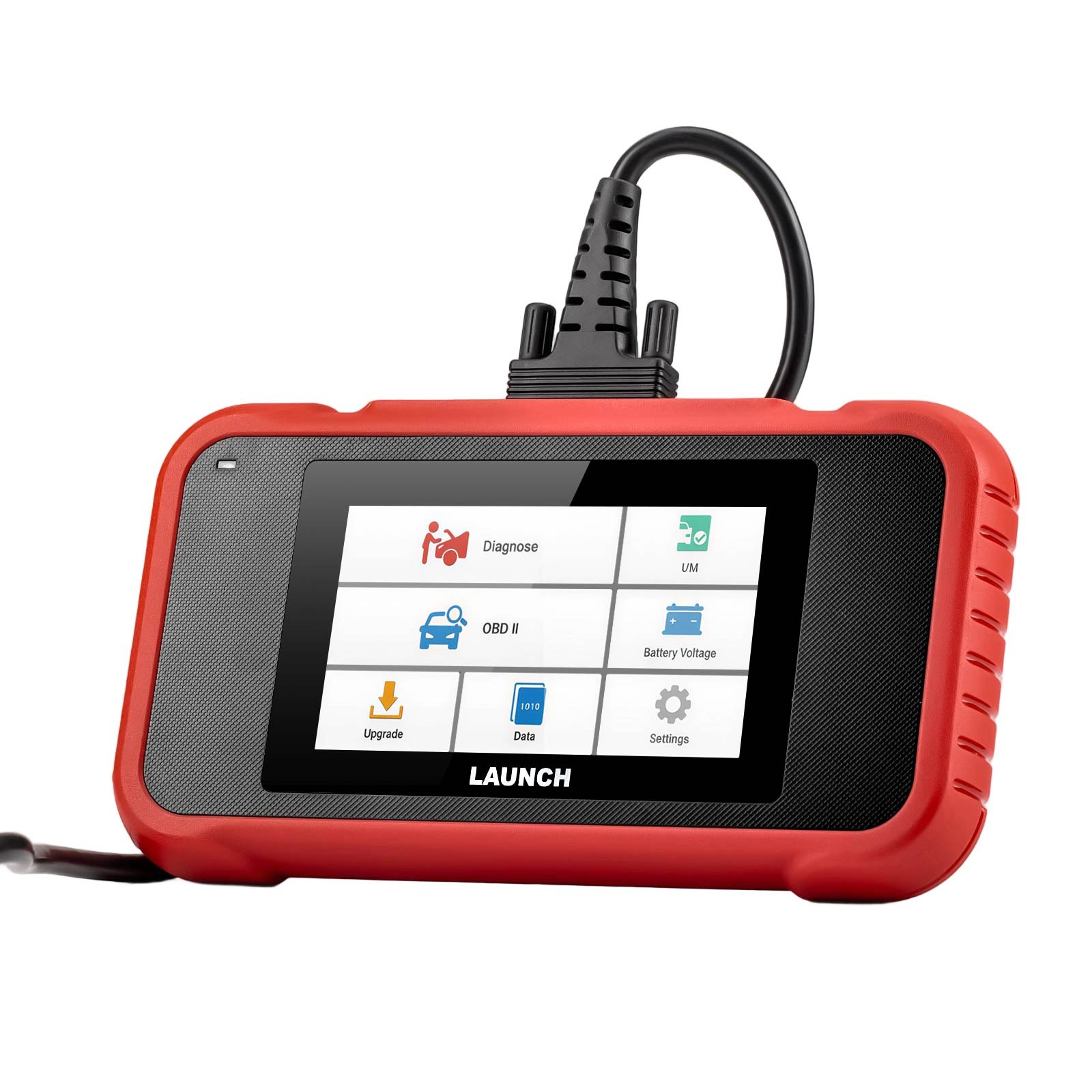

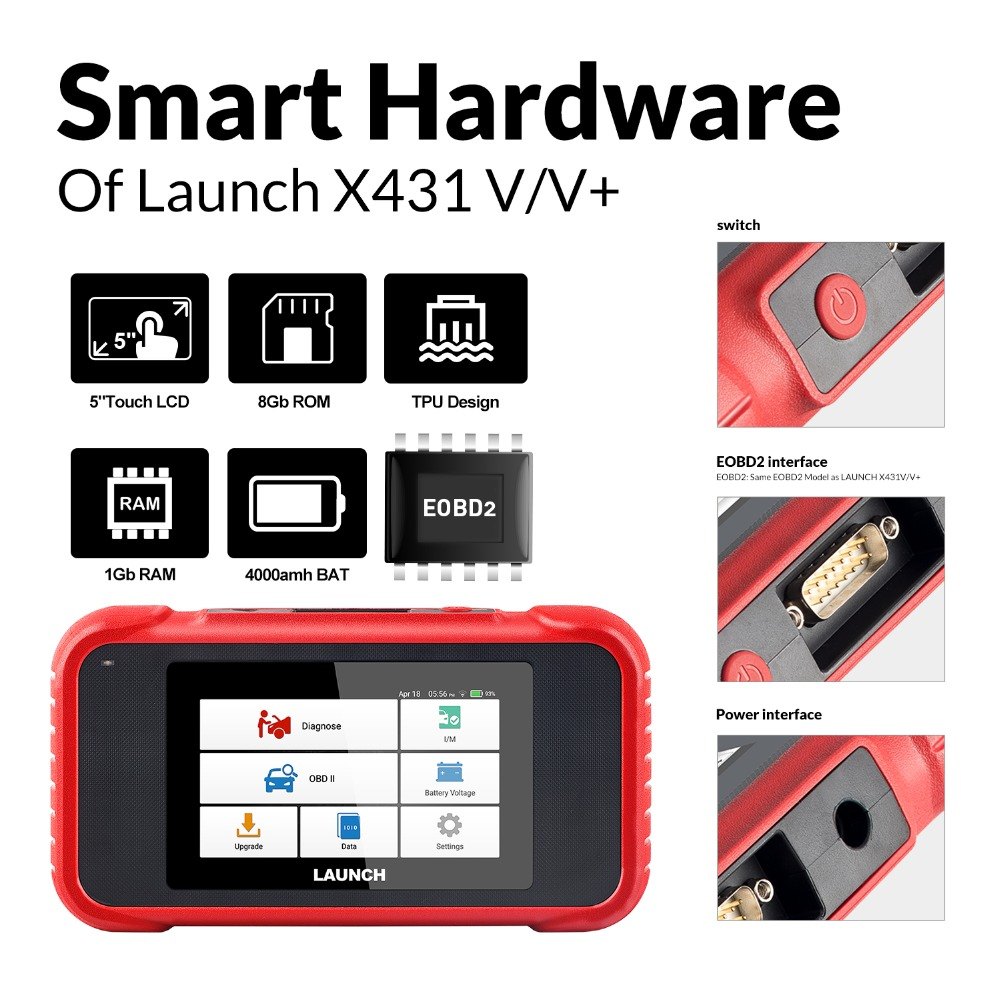

The Launch X431 CRP123E, a code reader covering engine, ABS, airbag SRS and transmission. It carries a five inch touch screen with 1GB RAM and 8GB storage on a 4000mAh battery, supports all ten OBD II test modes including EVAP and O2 sensor, holds a DTC library and diagnostic history, takes 9 to 18V from the OBD socket and updates free online for life.

Specifications

• OBD II Diagnosis: 10 modes of OBD II test are supported, including EVAP, O2 Sensor, I/M Readiness, MIL Status, VIN Info, and On-board monitors testing etc.
• One-click Update: Let you update your diagnostic software and APK online.
• Diagnostic History: This function provides a quick access to the tested vehicles and users can choose to view the test report or resume from the last operation, without the necessity of starting from scratch.
• DTC Library: Allows you to retrieve the definition of the diagnostic trouble code from the abundant DTC database.
• Screen: 5'inch Touch Screen
• RAM: 1G
• ROM: 8GB
• Battery: 4000mAh rechargeable Li-battery
• OBD II input voltage range: 9~18V

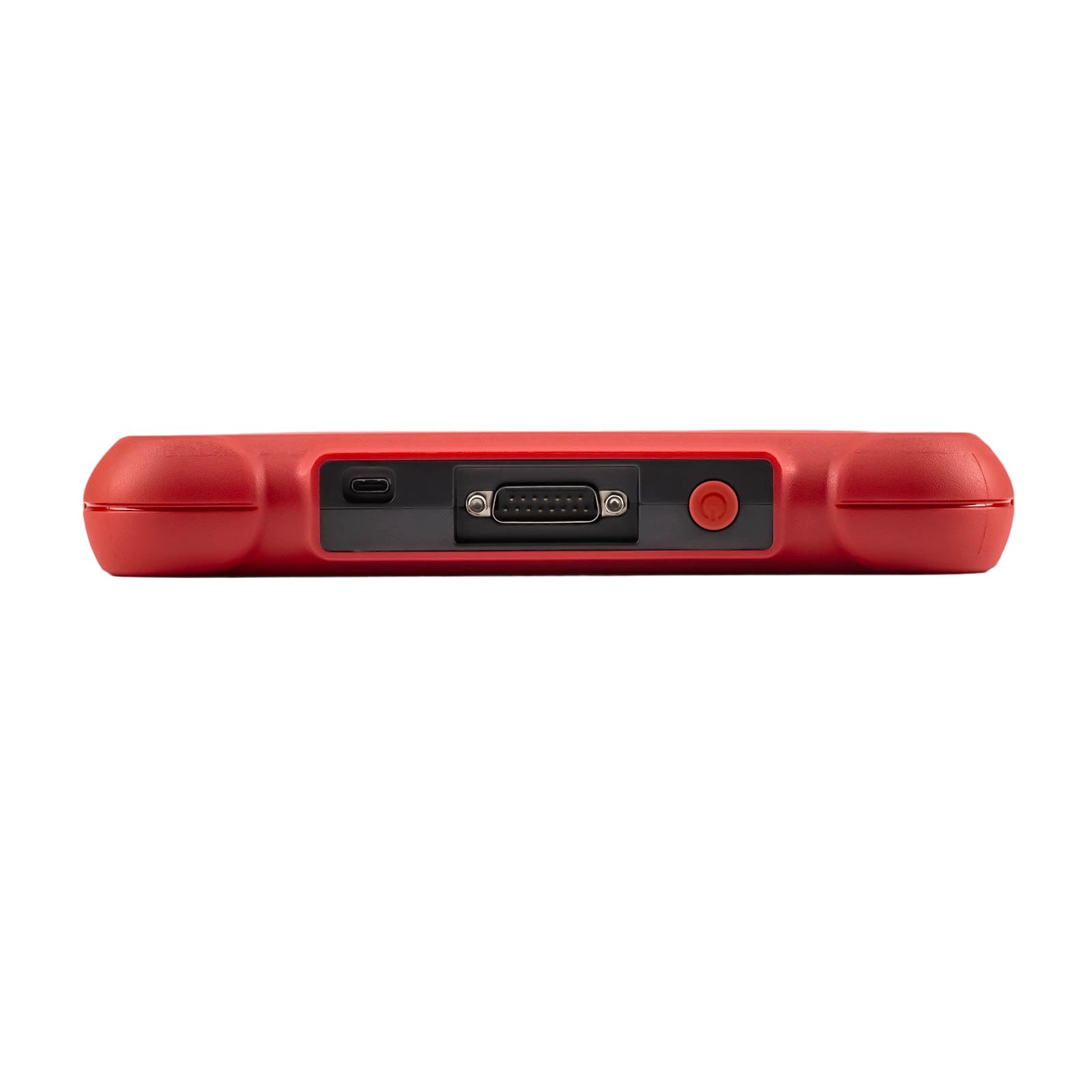

• Charging via: DC 5V charging cable or Diagnostic cable through connection to vehiclersquos DLC
• Dimension: 228mm x 125mm x 34.5mm
• Working temperature: -10 to 50degC (14 to 122 Fdeg)
• Storage temperature: -20 to 70degC (-4 to 158 Fdeg)
• Q1: System halts when reading data stream. What is the reason?
• A1: It may be caused by a slackened connector. Please turn this tool off, firmly connect the connector, and switch it on again.
• Q2: Screen of main unit flashes at engine ignition start.
• A2: Caused by electromagnetic disturbing, and this is normal phenomenon.
• Q3: There is no response when communicating with on-board computer.
• A3: Please confirm the proper voltage of power supply and check if the throttle has been closed, the transmission is in the neutral position, and the water is in proper temperature.
• Q4: What to do if the system fails to start auto VIN detection?
• A4: Please check the following possible reasons:
• Q5: Why are there so many fault codes?
• A5: Usually, itrsquos caused by poor connection or fault circuit grounding.
• Q6: How to upgrade the system software?
• A6: 1.Switch the tool on and ensure a stable internet connection.

Also stated by the supplier

• LAUNCH X431 CRP123E is an evolutionary smart solution for passenger car diagnosis, update version for CRP123 and Creader VII+.CRP123E support all 10 models of OBDII test for a complete diagnosis. CRP123E also supports the system diagnosis of ABS.SRS, ENG and AT system.
• LAUNCH X431 CRP123E OBD2 Code Reader For Engine ABS Airbag SRS Transmission OBD Diagnostic tool CRP123 E Free Update
• Creader Professional 123E is an evolutionary smart solution for passenger car diagnosis. It inherits from LAUNCHrsquos advanced diagnosing technology and is characterized by covering a wide range of vehicles, featuring powerful functions, and providing precise test result.

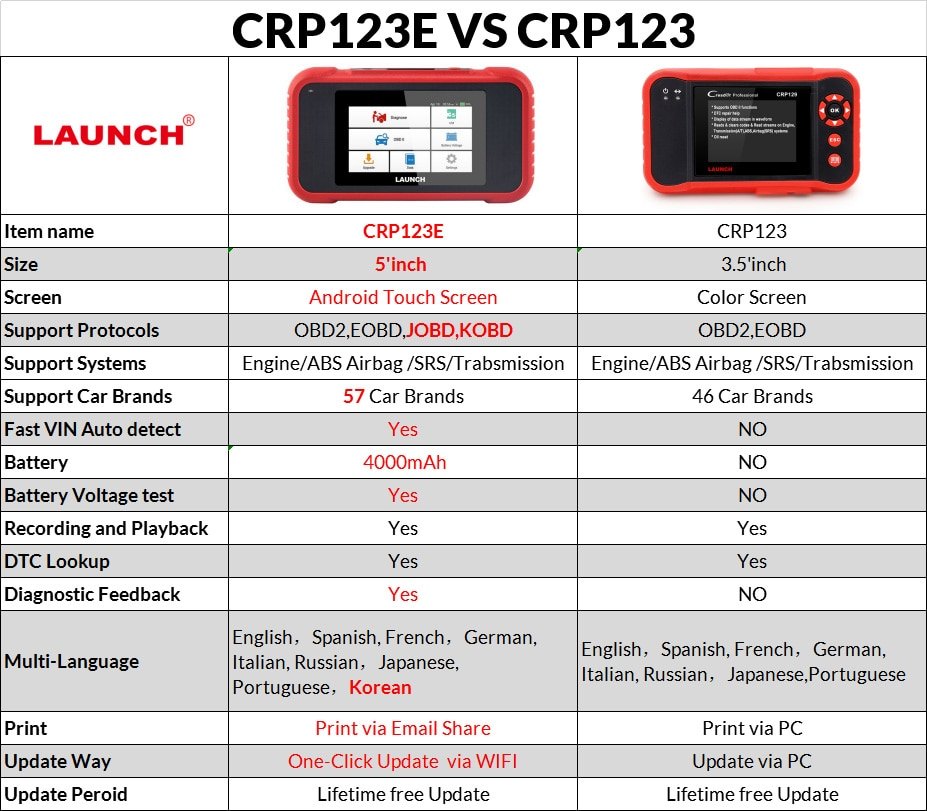

• CRP123E is an upgraded Version of CRP123 and Creader VII+, Support more cars
• Fast VIN autodetect, Support Wifi conntact, One Key Free Update Online Lifetime
• 4. Multi-Language: English, Spanish, French, German, Italian, Russian, Japanese, Korean, Portuguese
• Support all 10 Models of OBDII test for a complete diagnosis and system diagnosis of ABS.SRS, ENG and AT system.
• 1.Smart(Auto-Detect) Diagnosis: Once the tool and the vehicle are properly connected, the system starts auto-detect process. Once the whole process is successfully finished, a diagnostic report will be automatically generated and sent to your email box (if bound).
• 2.Manual Diagnosis: If Auto-Detect failure occurs, manual diagnosis is also available. Diagnosis functions include: Version Information, Read DTCs, Clear DTCs and Read Data Stream (supports 3 display modes: Value, Graph and Merged).
• Displays battery real-time voltage once properly connected to the vehicle.
• Creader Professional 123E handset
• DC 5V charging cable
• Tap ldquoSettingrdquo on the Job Menu, select ldquoAboutrdquo -> ldquoVersionrdquo, and tap ldquoDetect the System Versionrdquo to enter the system upgrading page.

Launch sells this in the Creader Pro line, and one click update keeps both the software and the APK current.
