LAUNCH X-431 SmartLink C HD V2 Commercial Vehicle Overseas Online Expansion Package

The commercial vehicle expansion package for the Launch X-431, supplied with the SmartLink C V4 adapter. It carries the full function set of the SmartLink C V2 in a smaller body.

The gain over the V2 is in the adapter itself. A dual core processor at 1.7 GHz replaces the single core, RAM goes from 256 MB to 1 GB, and the CAN bus becomes 4 way CAN FD, which is what newer trucks need on the bus.

Capability

• Commercial vehicle diagnostics as an expansion to the X-431
• Overseas online expansion package

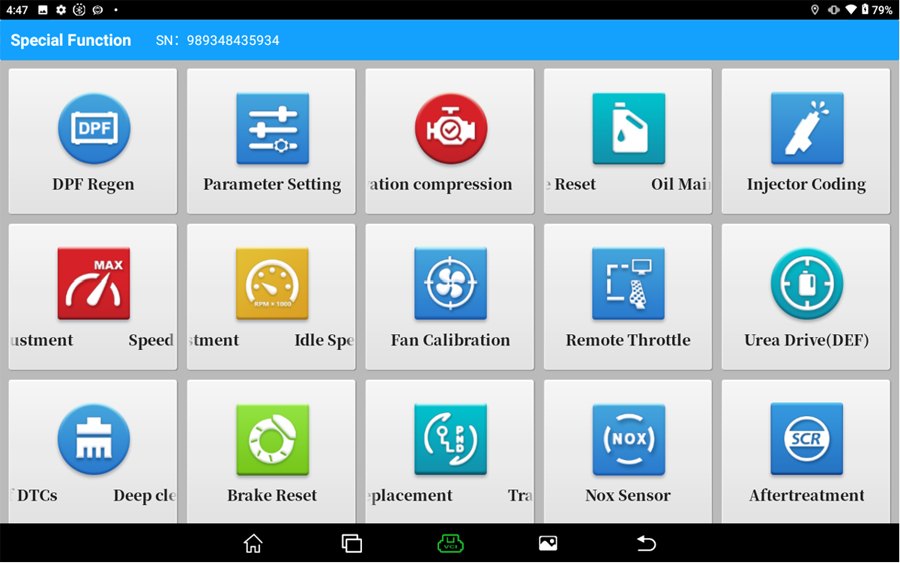

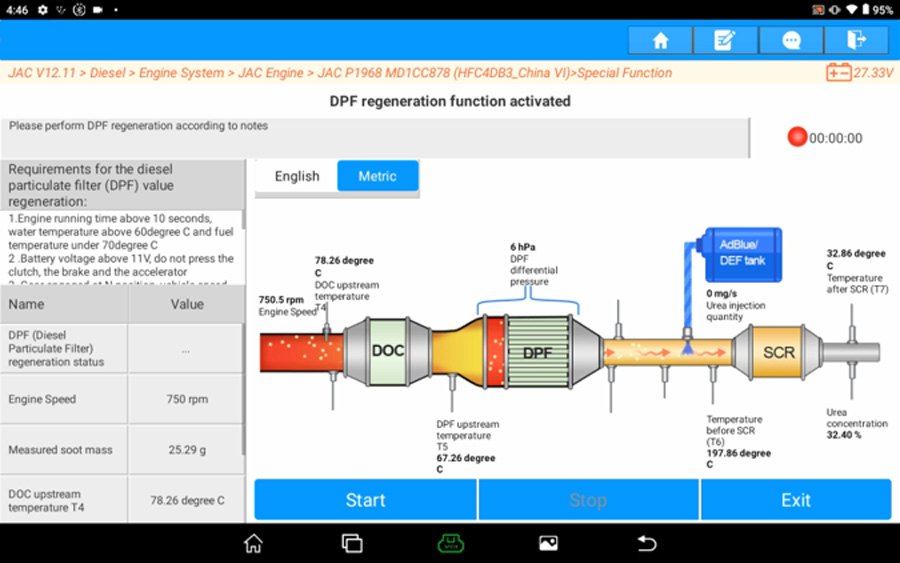

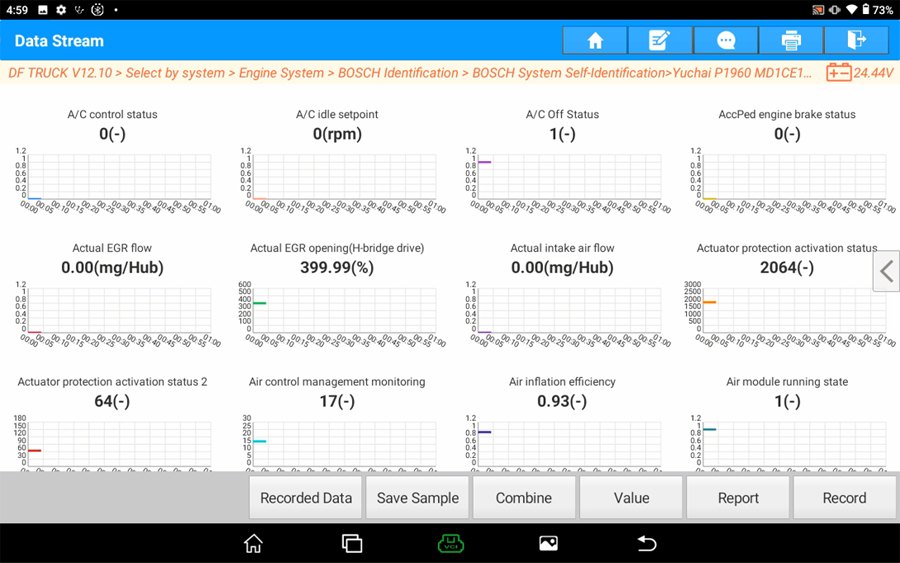

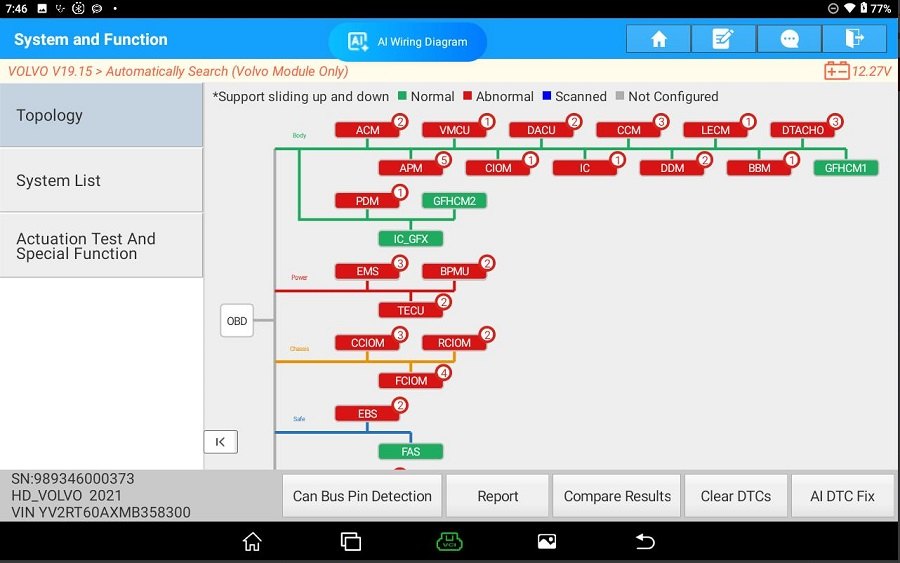

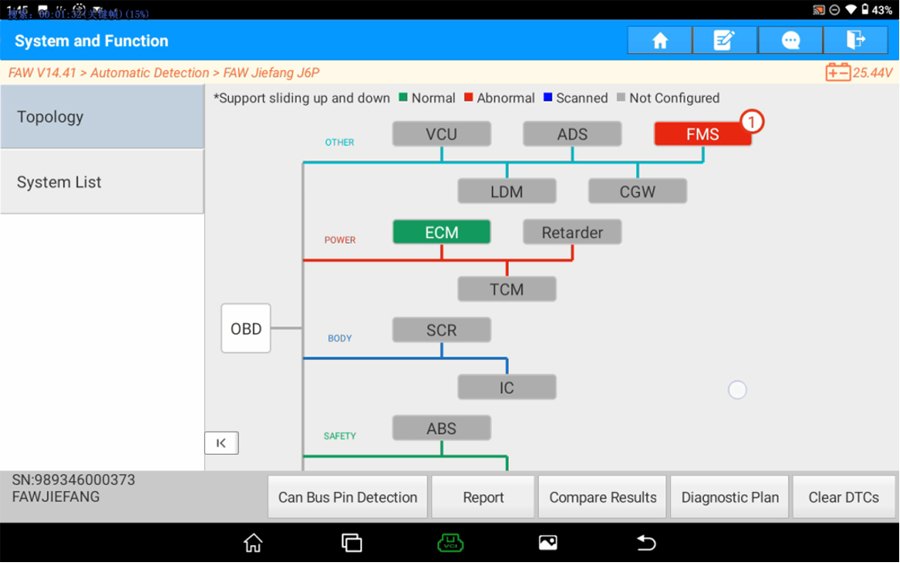

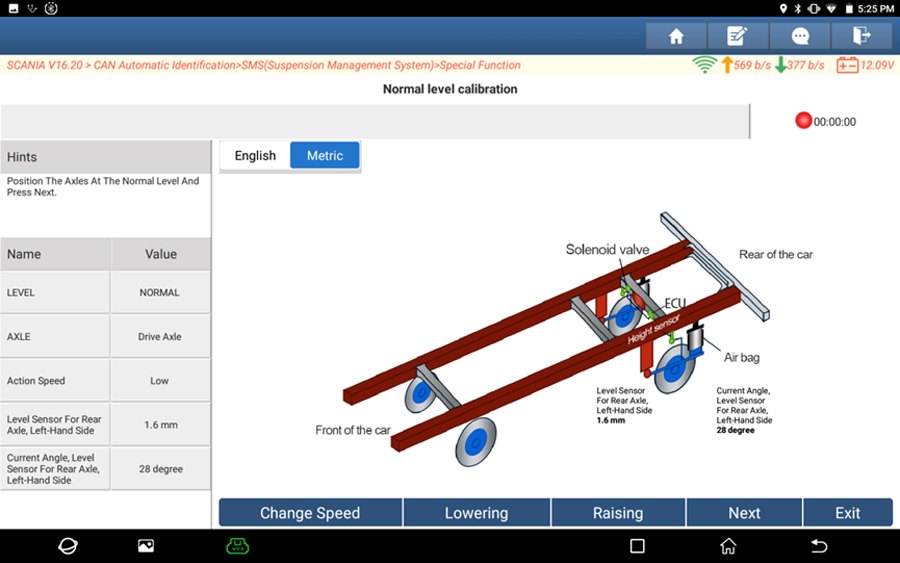

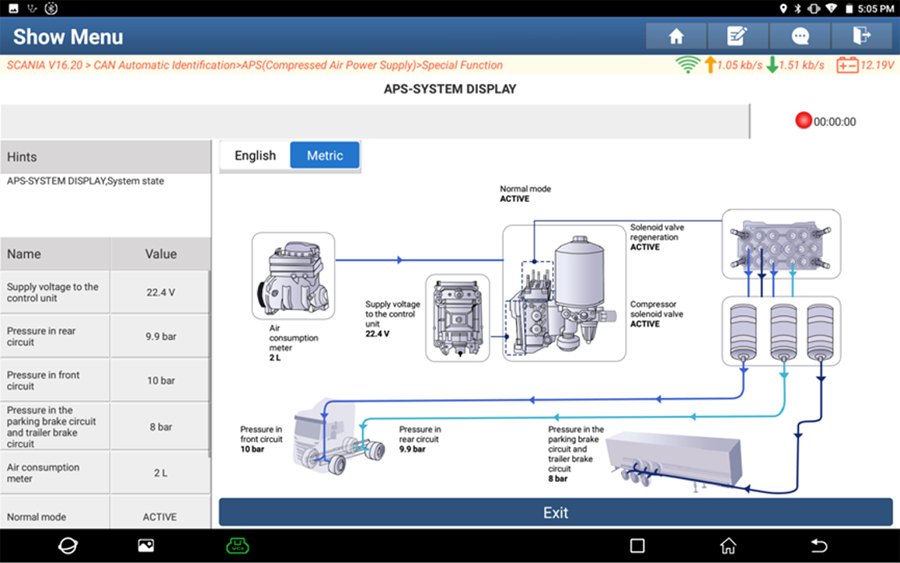

• Graphical display of special functions, topology diagrams and data streams
• Data trends shown visually for faster fault pinpointing

Specifications

• Adapter: SmartLink C V4
• CPU: dual core, 1.7 GHz, upgraded from single core
• RAM: 1 GB, upgraded from 256 MB
• CAN bus: 4 way CAN FD
• Vehicle type: commercial vehicle

In the box

• 1 x Launch X-431 SmartLink C HD V2 expansion package
