LAUNCH X-431 SmartLink C HD LITE V2 Overseas Online Expansion Package Compatible with X-431 PRO Series (8-inch Tablets）

LAUNCH X-431 SmartLink C HD LITE V2 is a commercial vehicle diagnostic expansion package for the X-431 PRO series 8-inch tablets.

Compatible with X-431 PRO series tablets. Builds on SmartLink C V2 with a smaller form factor and improved performance.

Hardware Upgrades

• CPU upgraded from single-core to dual-core 1.7 GHz
• RAM expanded from 256 MB to 1 GB
• CAN bus upgraded to 4-way CAN FD
• 5-inch capacitive touchscreen, 1280x720 resolution
• Wi-Fi 6, Bluetooth 5.0

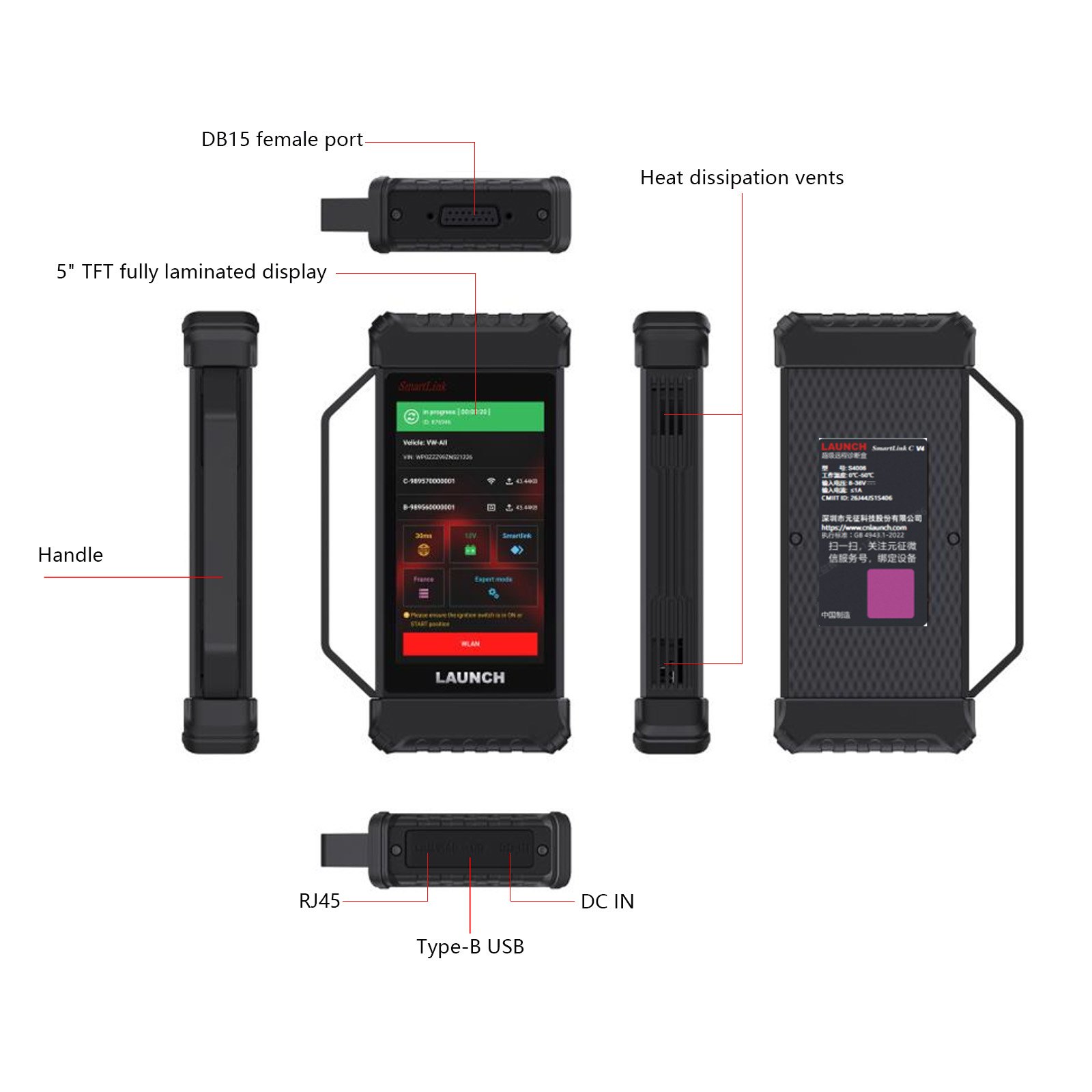

• I/O: USB 2.0 Type-B, RJ45, DC IN, DB15 female connector

Diagnostic Functions

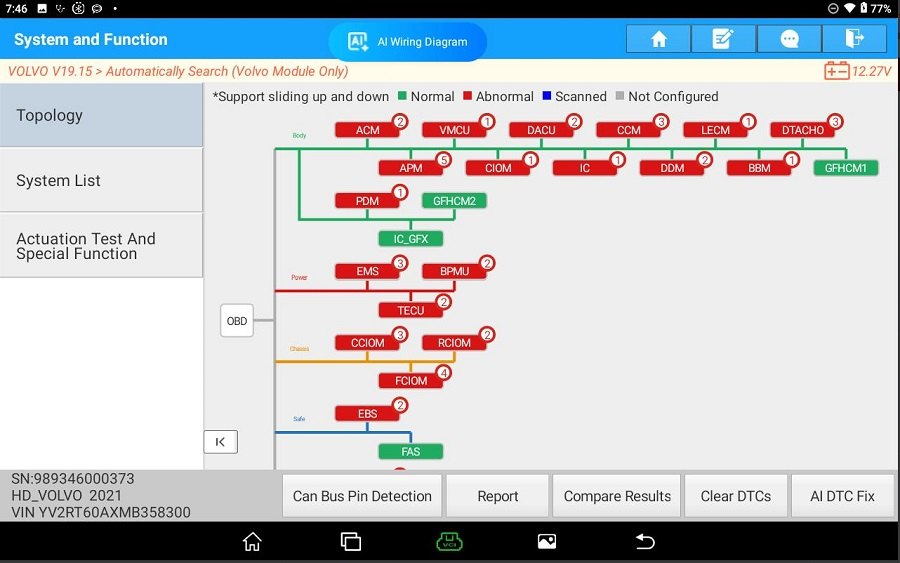

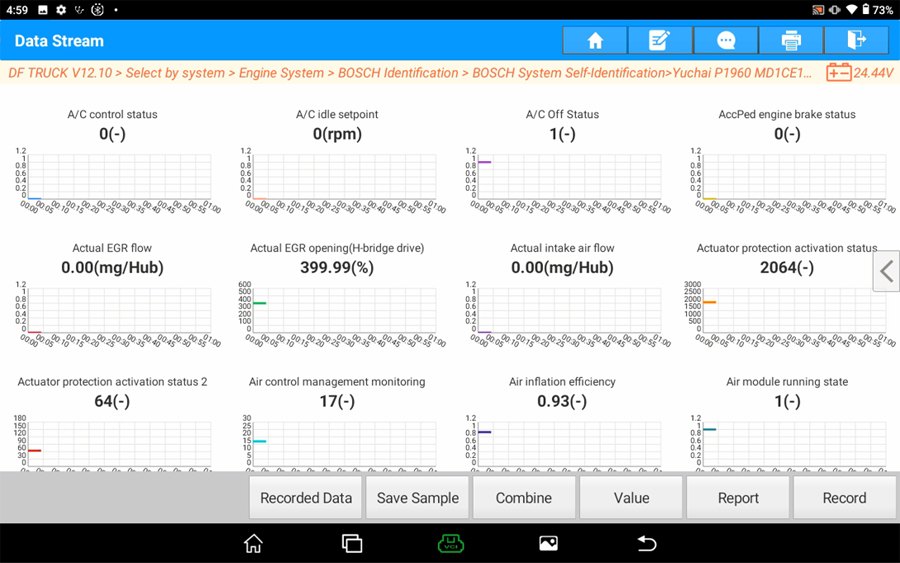

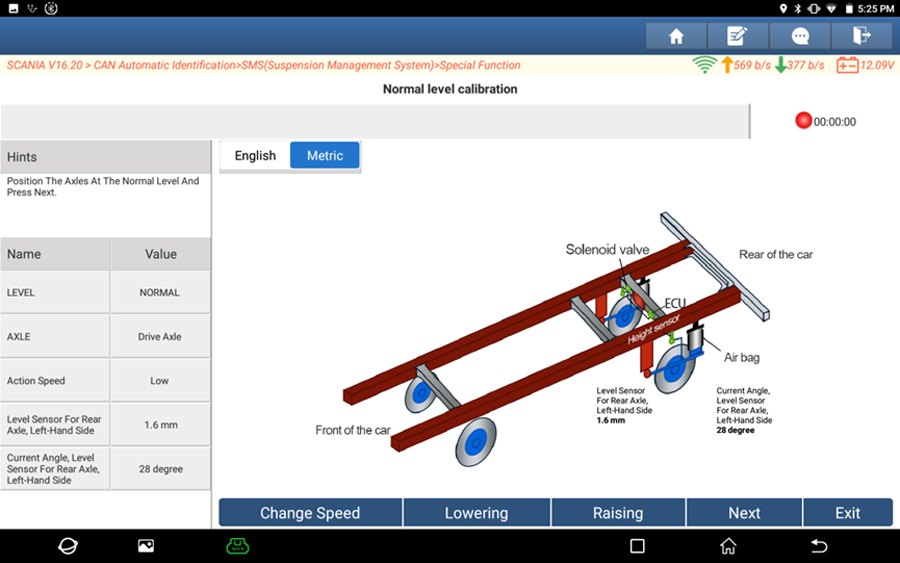

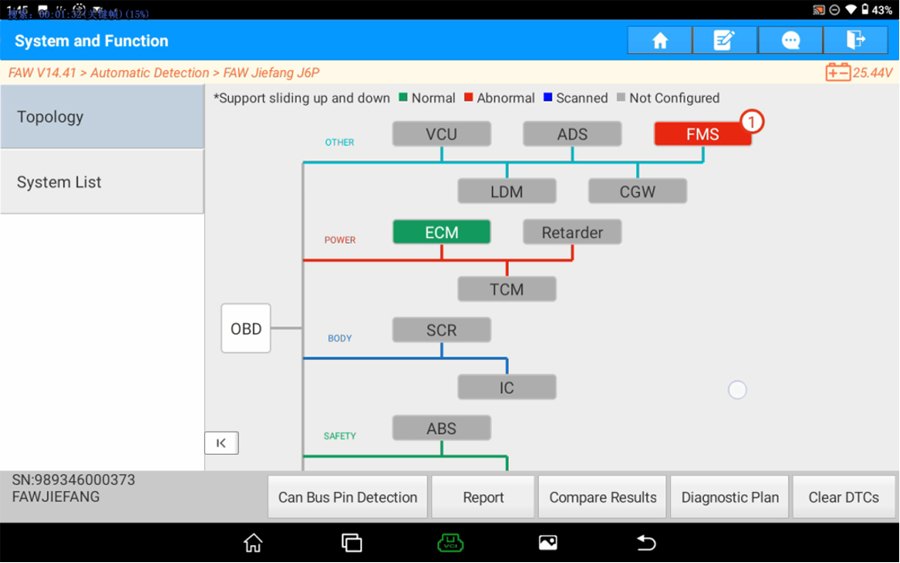

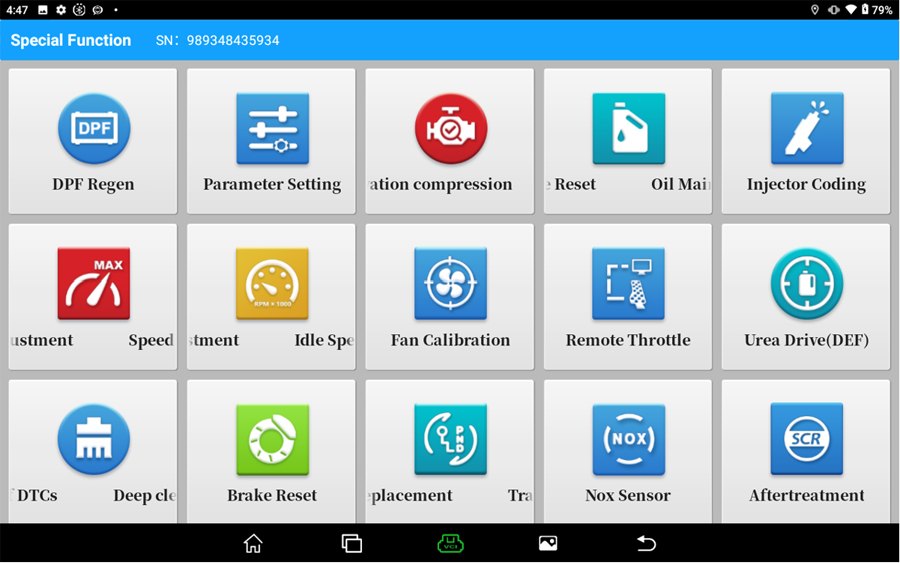

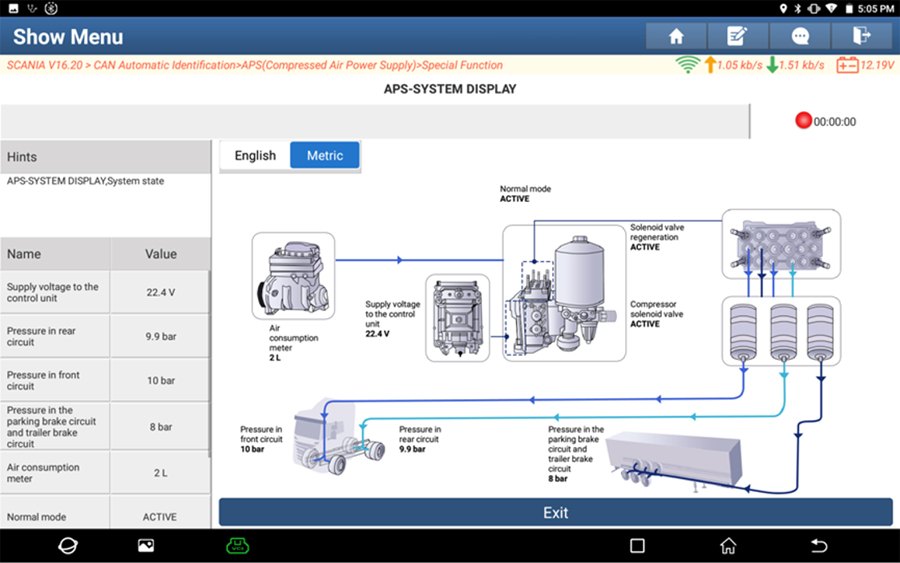

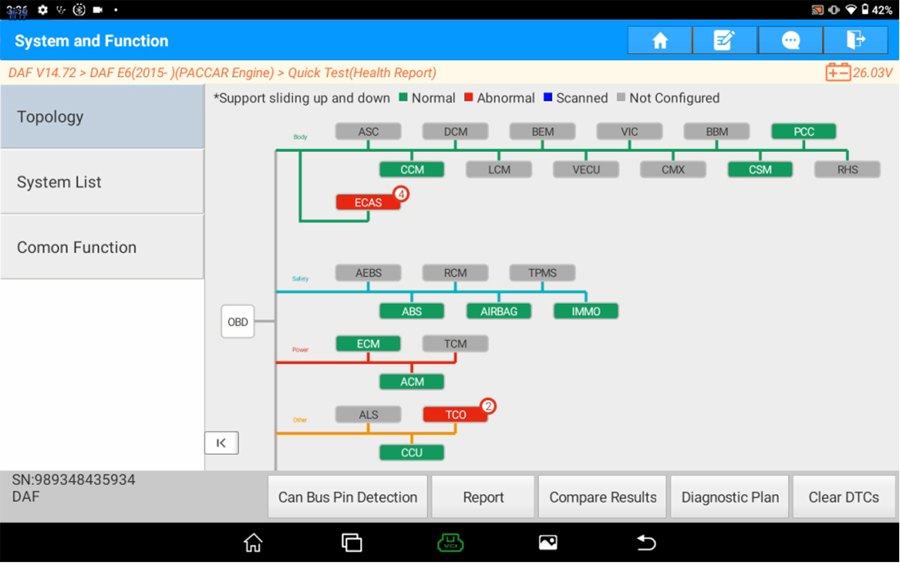

• Visualized diagnostics: graphical display of special functions, topology diagrams, and data streams
• High-speed scanning: multi-channel synchronous scanning for parallel diagnostic tasks
• AI fault repair: visual fault location display with targeted optimization solutions

Specifications

• System: Linux
• Processor: Dual-core 1.7 GHz
• Input voltage: 8-36 V
• RAM: 1 GB, Storage: 8 GB
• Display: 5-inch capacitive multi-touch, 1280x720
• Operating temperature: 10 to 50 C, humidity: 20% to 90%
• Storage temperature: 20 to 70 C, humidity: 10% to 90%
• Dimensions: approx. 180 x 80 x 26.5 mm

Package Includes

• 1 x X-431 SmartLink V4
• 1 x Universal Password Envelope
• 1 x Multilingual Quick Start Guide
• 1 x SmartLink dedicated RJ45 to RJ45 cable (blue)
• 1 x USB Type-A to Type-B cable
• 2 x Fuse F5A AC250V/5A, 6x30 mm
• 4 x Fuse SFC AC250V/5A, 5x20 mm
• 1 x Cigarette lighter cable
• 1 x Dual-clamp power cable
• 1 x MITSUBISHI-12+16 / Fuso 12+16 PIN inline diagnostic connector (M/F 12+16)
• 1 x DEUTZ-12 / Deutz 12 PIN integrated diagnostic connector (DE 12)
• 1 x VOLVO-14 / Volvo 14 PIN integrated diagnostic connector (VO 14)
• 1 x RENAULT-12 / Renault 12 PIN integrated diagnostic connector (RE 12)
• 1 x Type II OBD-9 integrated diagnostic connector (Type II OBD 9)
• 1 x VOLVO-8 / Volvo 8 PIN integrated diagnostic connector (VO 8)
• 1 x OBD 6 integrated diagnostic connector (OBD 6)
• 1 x ISUZU-3 / Isuzu 3 PIN integrated diagnostic connector (IU 3)
• 1 x BENZ-14 / Mercedes-Benz 14 PIN integrated diagnostic connector (BZ 14)
• 1 x OBD 16 integrated diagnostic connector (OBD 16)
• 1 x CAT-9 / Caterpillar 9 PIN integrated diagnostic connector (CT 9)
• 4 x Electronic control adapter cable 9
• 4 x Electronic control adapter cable 8
• 4 x Electronic control adapter cable 7
• 4 x Electronic control adapter cable 6
• 4 x Electronic control adapter cable 5
• 4 x Electronic control adapter cable 4
• 4 x Electronic control adapter cable 3
• 4 x Electronic control adapter cable 2
• 4 x Electronic control adapter cable 1
• 1 x DB15M to HDB15F test main cable (including HD15M to OBD II 16-pin male integrated test connector)
