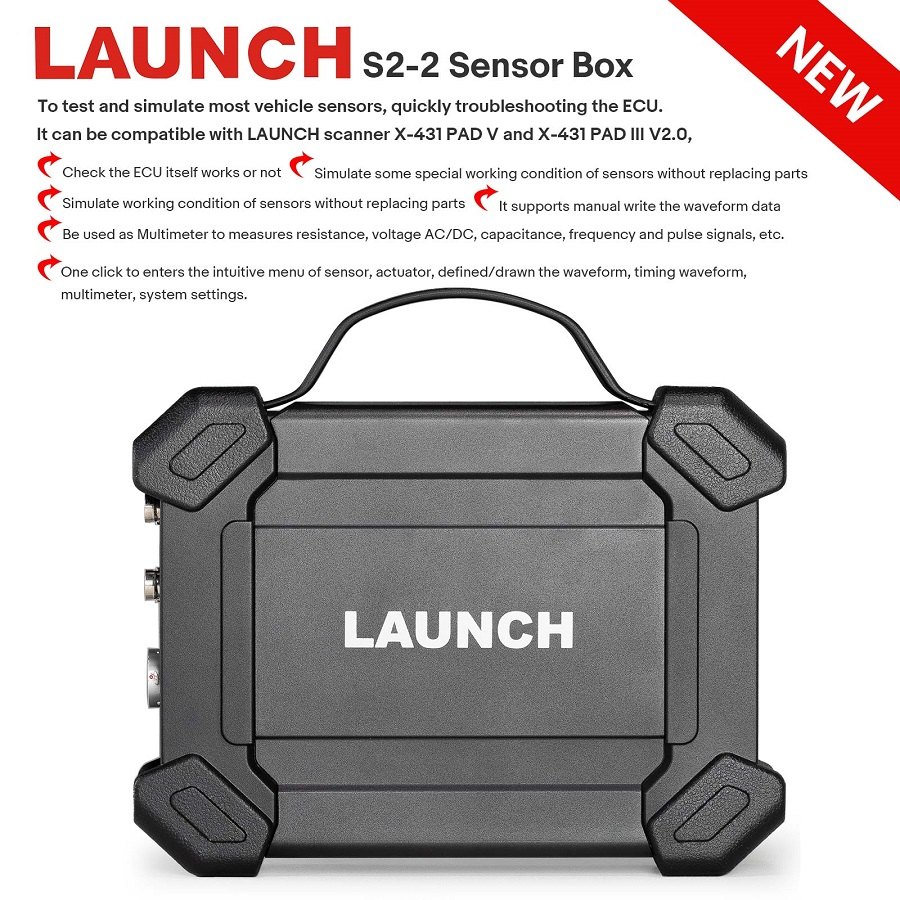

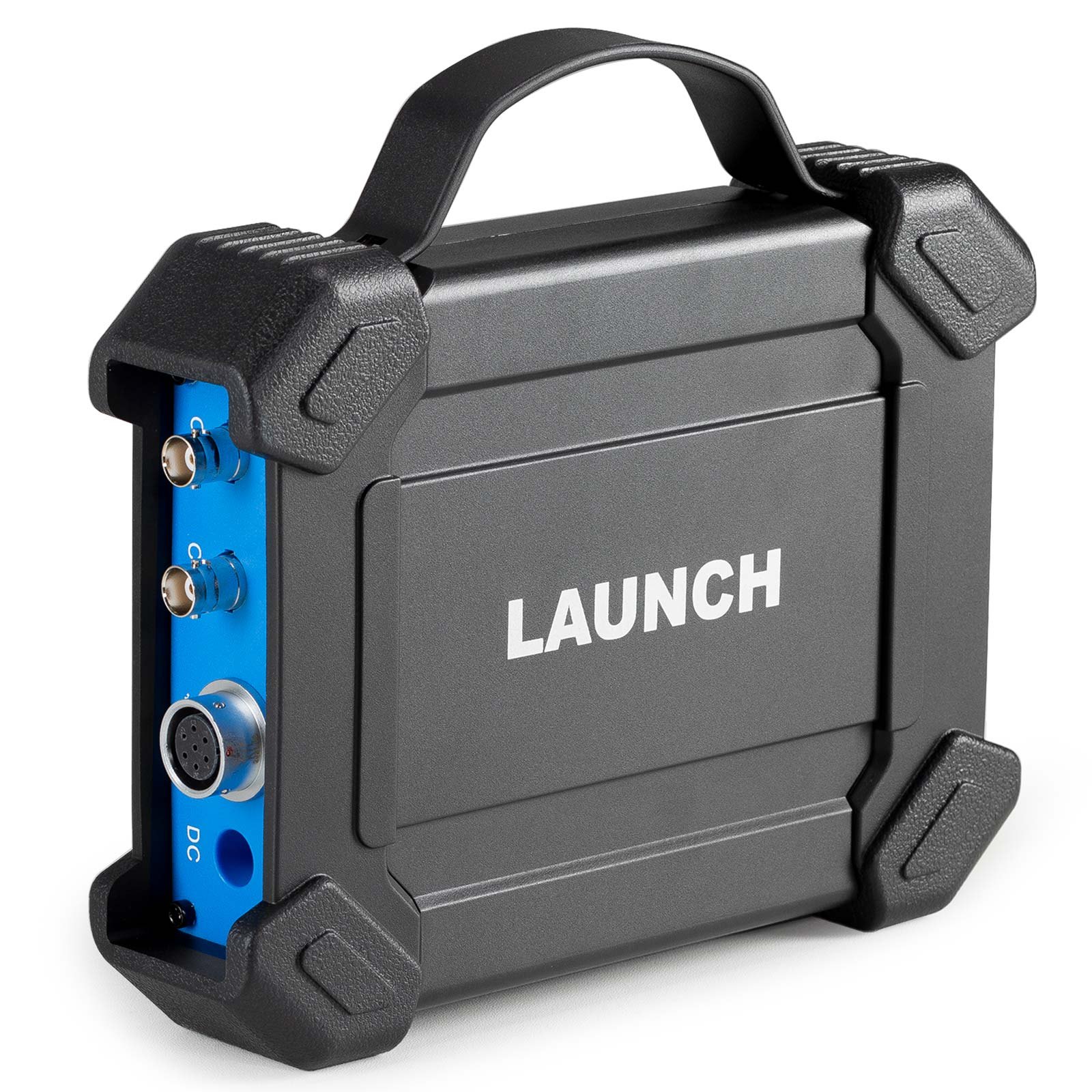

Launch X-431 Sensorbox S2-2 DC USB Oscilloscope 2 Channels Handheld Sensor Simulator and Tester for X431 PAD V/ PAD VII

The Launch X-431 Sensorbox S2-2, a two channel DC USB oscilloscope and handheld sensor simulator and tester for the X431 PAD V and PAD VII. Sensor mode simulates the input signals a car's electronics expect, actuator mode outputs a PWM signal to drive an onboard coil actuator, and multimeter mode tests voltage, resistance and current.

Specifications

• Sensor: Is used to simulate the input signals of the automobile electronic control system, and the automobile computer adjusts the running state of the engine according to these parameters.
• Actuator: Is used to simulate the output control signal of automobile electronic control system, so as to judge the working conditions of automobile actuators such as idle motor, EGR solenoid valve, etc.
• Multimeter: Through this function, users can test voltage, resistance, and capacitance.
• Steady on: normal electric quantity
• Flashing at an intermediate speed: low electric quantity (regardless of whether red lamp flashes)
• Flashing at a low speed: charging in progress
• Steady on: diagnostic tool connected
• Flashing: diagnostic tool disconnected. It will enter the charging status only when the red lamp is flashing. The green lamp is flashing at a low speed during charging.
• Sensor: Use output voltage or waveform to simulate the working status of the on-board sensor, so as to accurately judge the quality of the sensor and reduce blind replacement of accessories.
• Actuator: Used to output PWM signal to drive the on-board coil actuator.
• Defined/Drawn: Users can customize sensor waveforms to facilitate future sensor signal simulation.
• Timing waveform: Customize timing waveform to match the engine (crankshaft + camshaft), and output in the same phase.
• Multimeter: universal multimeter functions.
• Waveform: There are 9 waveforms to choose; Forward sine wave, reverse sine wave, forward square wave, reverse square wave, medium voltage, straight line, high / low voltage straight line, triangle wave, and trapezoidal wave.
• Frequency: Set the frequency of the selected waveform.
• Amplitude: Set the amplitude of the selected waveform.
• Offset: Set the offset of the selected waveform.
• Phase: Set the phase of the selected waveform.
• Duty cycle: Set the duty cycle of the selected waveform.
• Signal sync: Can cause CH1 and CH2 to output signals at the same time.
• Total frame: 1-3 (optional). Indicate the total number of output points
• Edit frame: You can edit a single frame or edit all
• Waveform: You can select a preset waveform and place it in the hand-drawing area
• Frequency: Frequency of a single frame (for 3-frame output, the total frequency is the set frequency/3)
• Amplitude: Amplitude of the output waveform
• Offset: Offset of the output waveform
• Number of channels: 2
• Precision: 1 %
• Amplitude range: 0, 20 V
• Max output current: 20 mA
• Predefined frequency range: 0, 20 kHz
• Square wave signal pulse frequency: 0, 15 kHz
• Square wave signal duty cycle: 0, 100 %
• Power supply: Simulator sensor output/max current 20mA (output is powered by battery), Drive solenoid, ignition coil/output current 2A (external power supply)
• USB: USB2.0 Type B (with charging and power supply function/5V)
• DC voltage simulation: Support
• Fixed frequency simulation: Support
• Predefined waveform simulation: Support
• Hand-drawn waveform simulation: Support
• Signal generator interface: 2
• External power supply port: 1
• Solenoid interface: 1

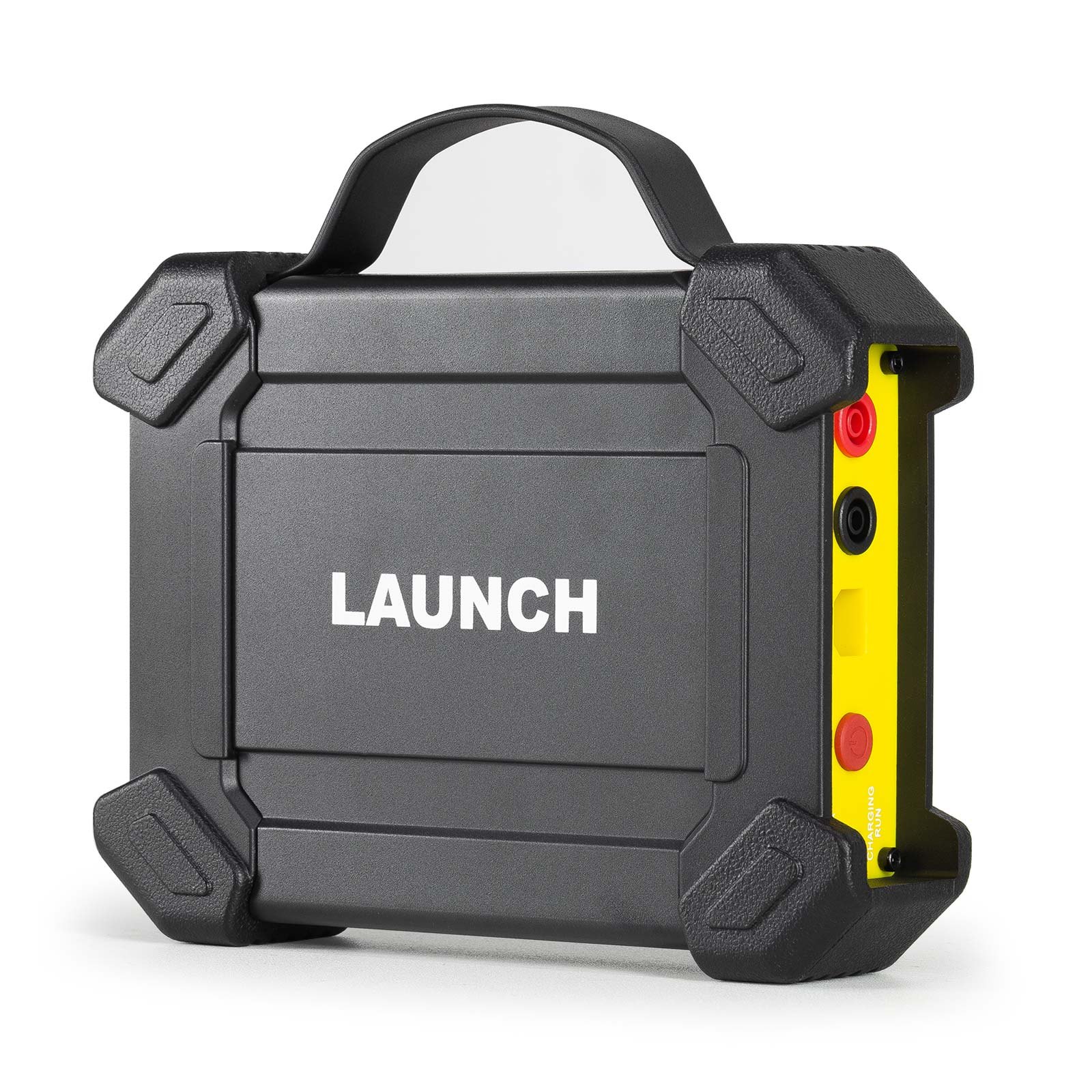

• Multimeter interface: 2
• Working temperature: 0 °C, 50 °C
• Storage temperature: -30 °C, 70 °C
• DC voltage: 0 V, 700 V
• AC voltage: 0 V, 700 V
• Resistance: 0 Ω, 40 MΩ
• Capacitance: 0 F, 100 µF (maximum 30 s measurement time)
• Diode: 0 V, 1,5 V
• Continuity detection: Sounds below 30 Ω

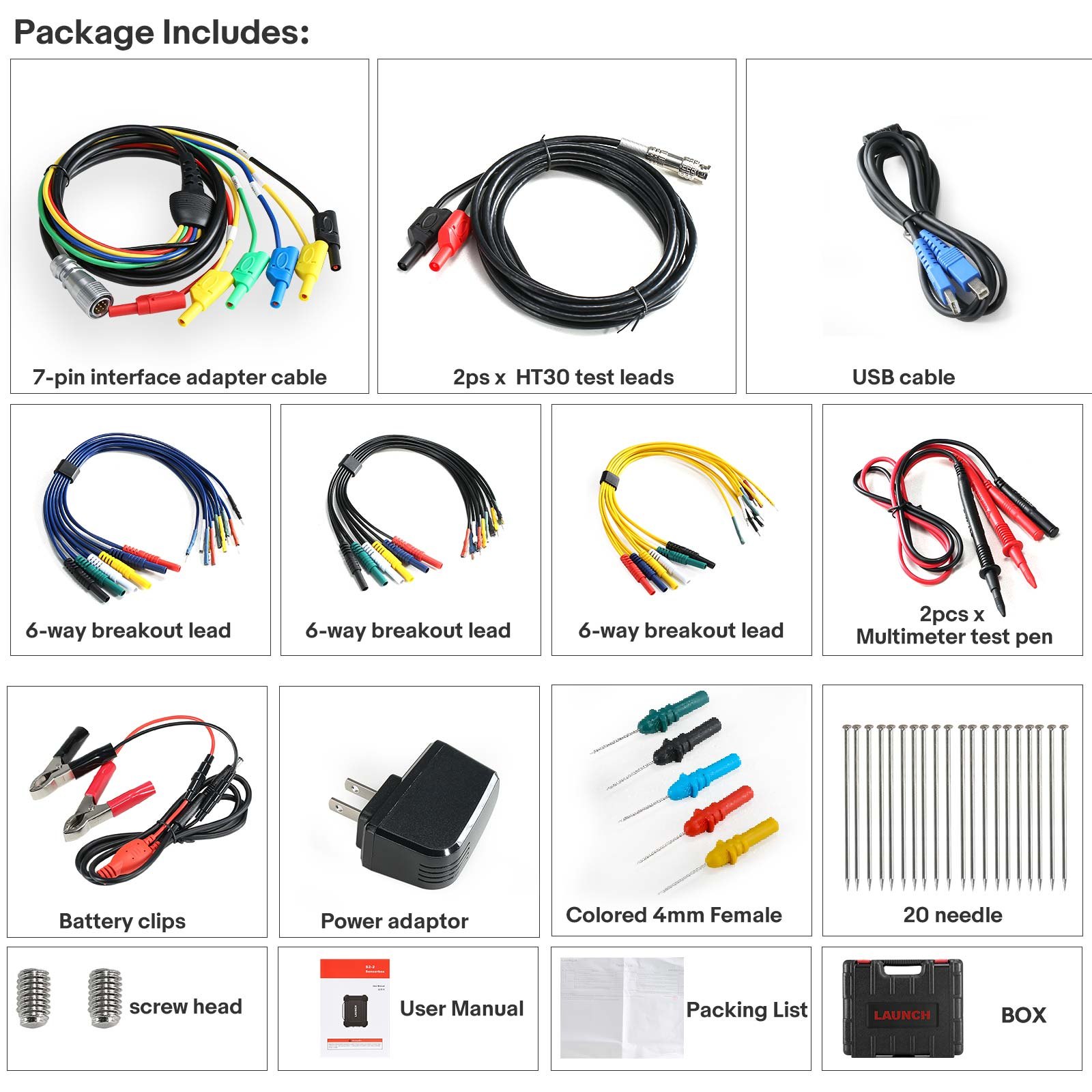

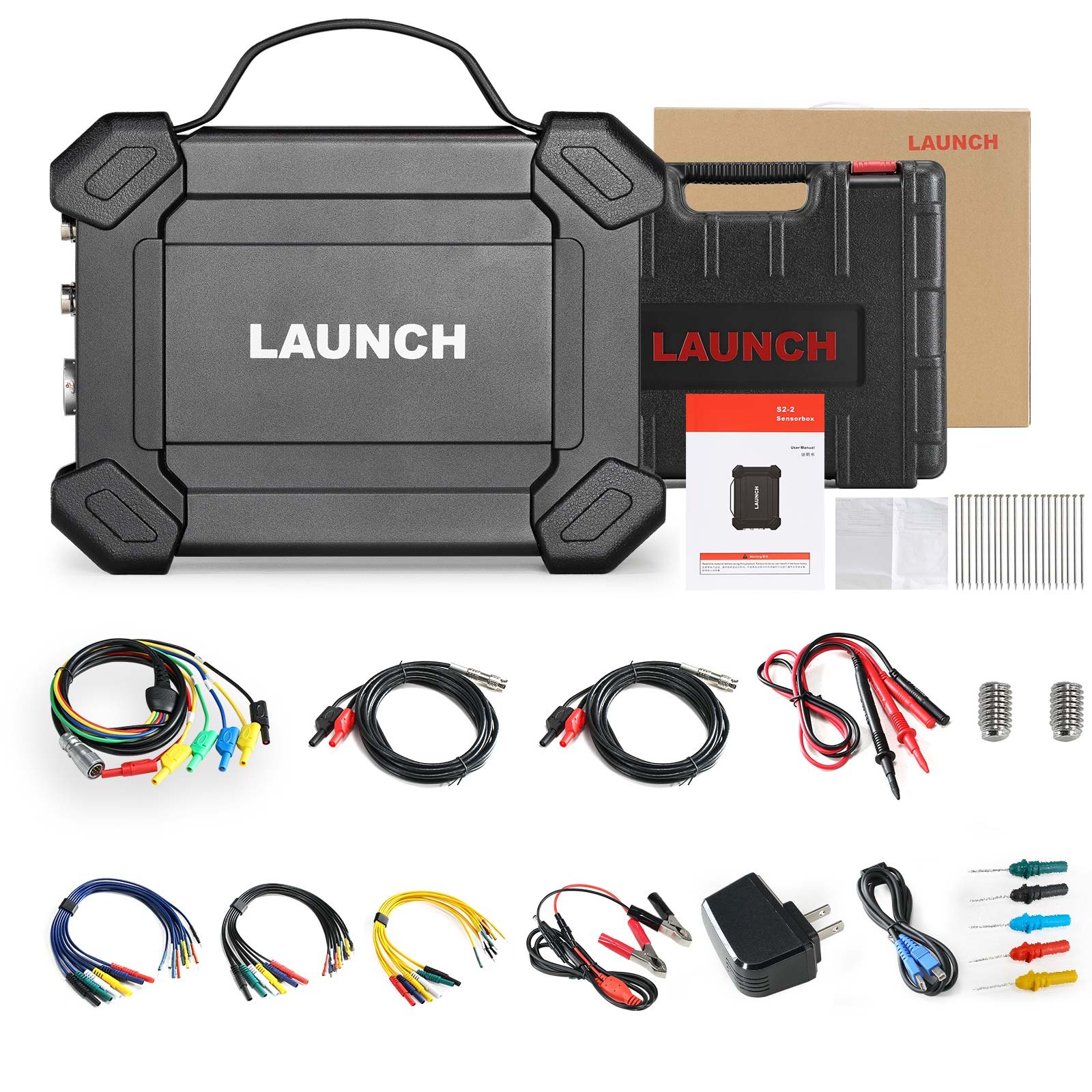

What you get

• 1pc x Sensor module
• 2ps x HT30 test leads
• 1pc x 7-pin interface adapter cable
• 1pc x Battery clamps cable
• 1pc x USB cable
• 3pcs x 6-way breakout lead
• 2pcs x Multimeter test pen (black + red - )
• 5pcs x Colored 4mm female probes
• 20pcs x Needles
• 1pc x Power adaptor
• 2pcs x Screw heads
• 1pc x User manual
• 1pc x Packing list
• 1pc x Box
• Launch new S2-2 Sensorbox it is designed to test and simulate most vehicle sensors. quickly troubleshooting the ECU.it can be compatible with Launch scanner X431 PAD V, PAD VII, X431 Throttle III, X431 Throttle and ect, to maximize the repair shop revenue.
• Launch X-431 Sensorbox S2-2 DC USB Oscilloscope 2 Channels Handheld Sensor Simulator and Tester for X431 PAD V, X431 PAD VII
• LAUNCH S2-2 Sensor box module is specially developed for diagnosing/testing/simulating most vehicle sensor faults. With its help, users can easily and quickly diagnose and simulate the sensor to rapidly troubleshoot the ECU.
• At the same time, the LAUNCH S2-2 Sensor box module also supports the vehicle multimeter function. Through this function, users can test voltage, resistance, and capacitance. The function uses the same hardware device as the sensor module. The module cannot be used separately, and must be used together with Launch-specific diagnostic tools that are compatible with this module. It can be compatible with LAUNCH scanner X-431 PAD V and X-431 PAD III V2.0.
• The sensor is the signal input device of the vehicle ECU. It converts vehicle operating parameters such as vehicle speed, coolant temperature, engine speed, air flow, and throttle opening into electrical signals and sends them to the vehicle ECU. Then, the vehicle ECU adjusts the engine running status to maintain the engine in optimal condition.
• Compatible with X-431 Throttle & X-431 Throttle III, X431 PAD V, X431 PAD VII
• Simulate the working condition of sensors without replacing parts
• Be used as Multimeter to measure resistance, voltage AC/DC, capacitance, frequency and pulse signals, etc
• Simulate some special working condition of sensors without replacing parts

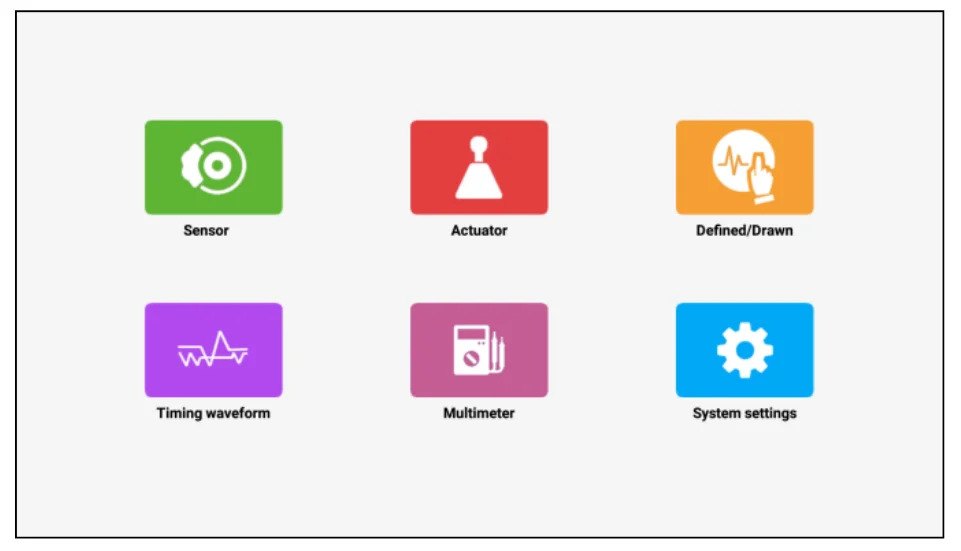

• S2-2 Sensorbox is specially developed for diagnosing/simulating sensor faults. LAUNCH S2-2 sensor box mainly includes "Sensor", "Actuator", "Defined/Drawn", and "Timing Waveform".
• The module cannot be used separately, it only works as accessory for LAUNCH X-431 PAD III, PAD V and PAD VII diagnostic tools.

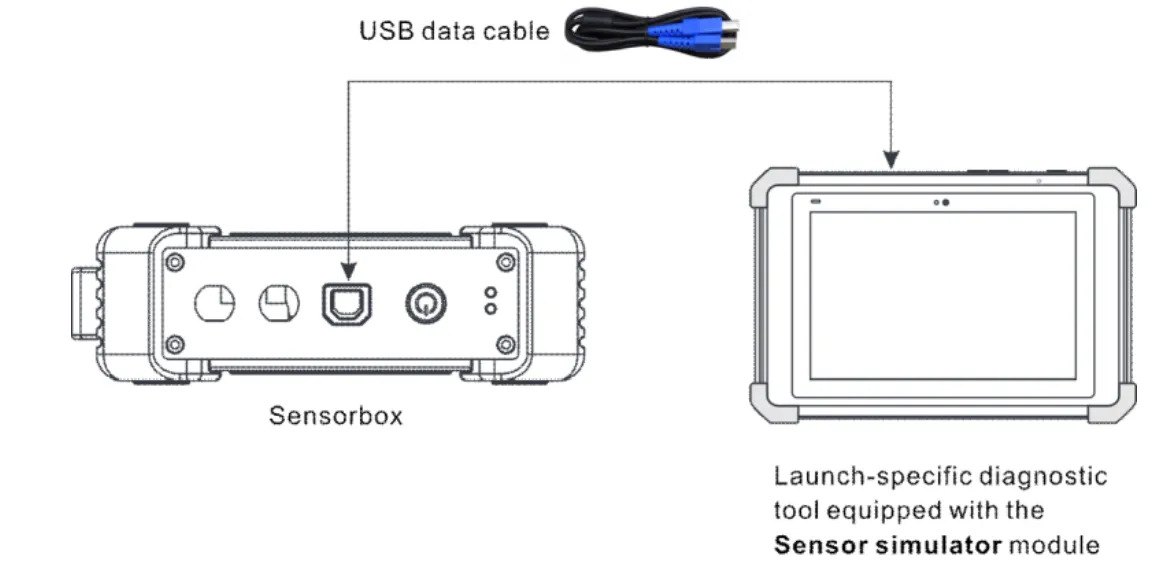

• Insert one end (B-type terminal) of the USB cable into the B-type USB port of the sensor module host, and then insert the other end into the USB port of the diagnostic tool.

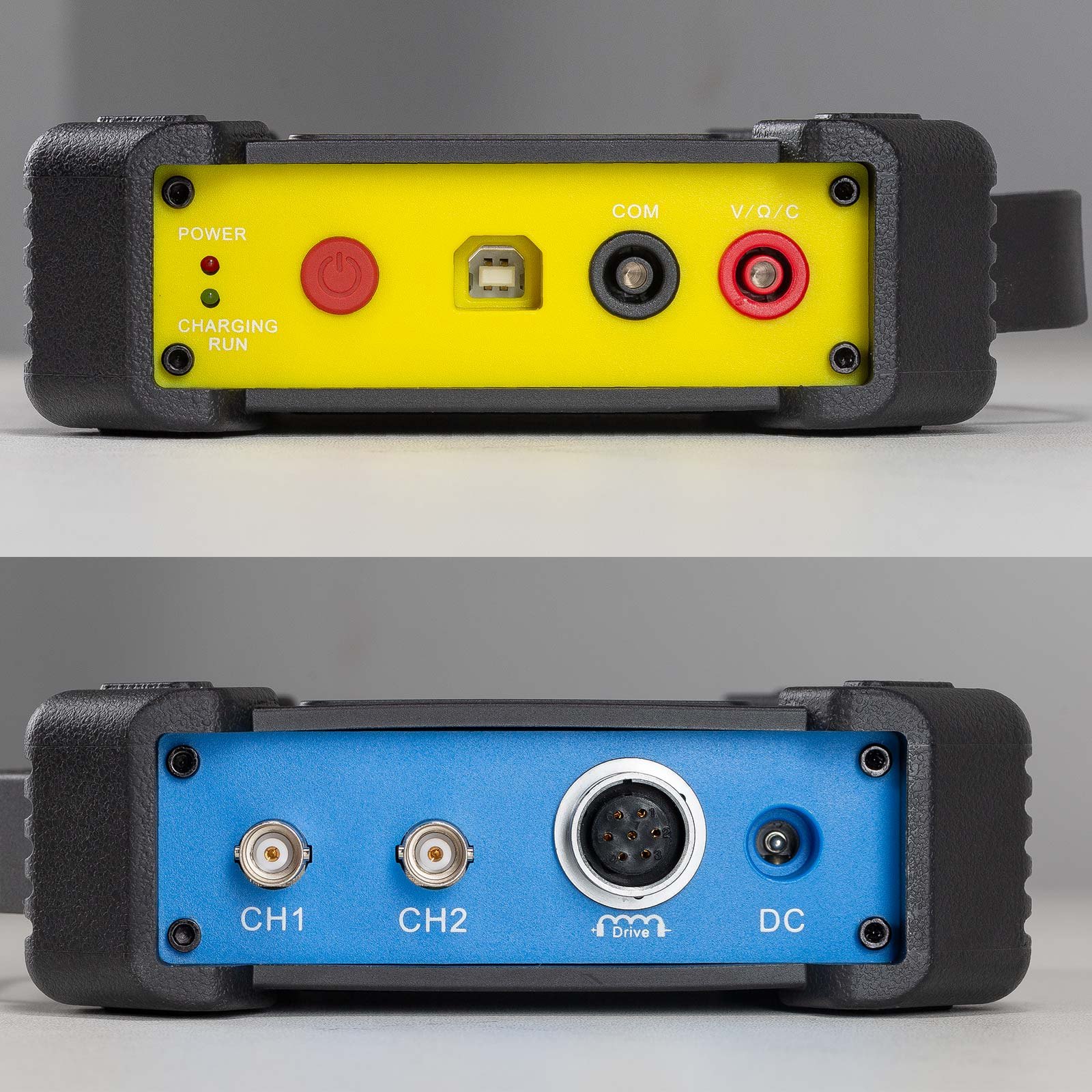

• Press and hold the power button for over 3s to start the sensor module. If the electric quantity is normal, the green lamp is steady on Indicator lamp status description:
• Generally, one waveform is composed of 100 points. The values 1-3 indicate that you can select 100, 200, or 300 points to form a waveform.

Simulating a sensor is how a wiring or ECU fault gets separated from a genuinely dead sensor.
