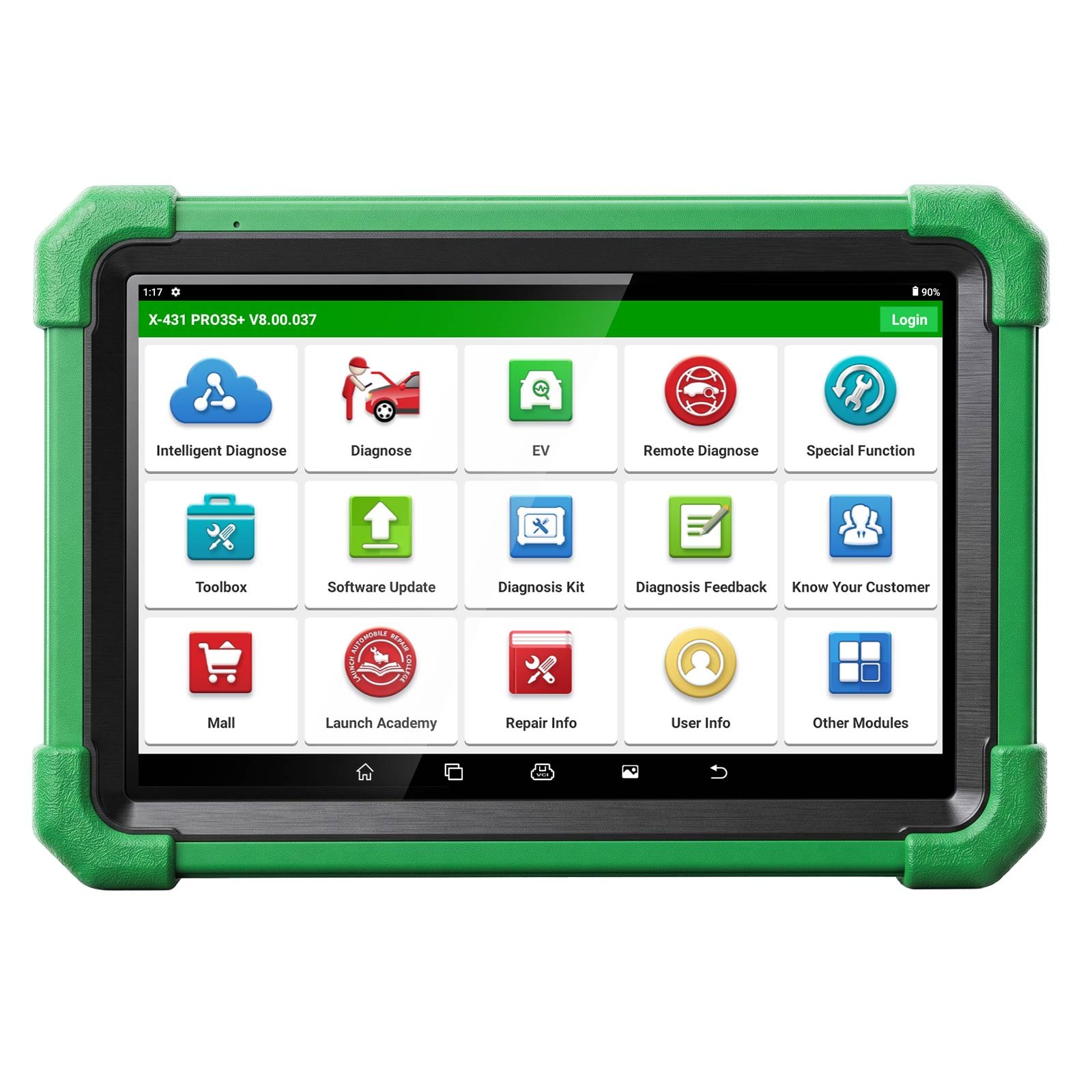

LAUNCH X-431 PRO3S+ EV Diagnostic Device With SmartLink C V2 Connector Support Local and Remote Diagnostics & Battery Pack Analysis

A diagnostic tablet built around electric vehicle work, with high voltage system diagnostics and battery pack analysis alongside standard scan tool functions. The SmartLink C V2 connector is supplied as standard.

The battery pack side is the reason to choose this over a general scanner. It reads cell voltage and temperature data, calculates the voltage differences between cells, and points to the cell at fault rather than the pack.

Functions

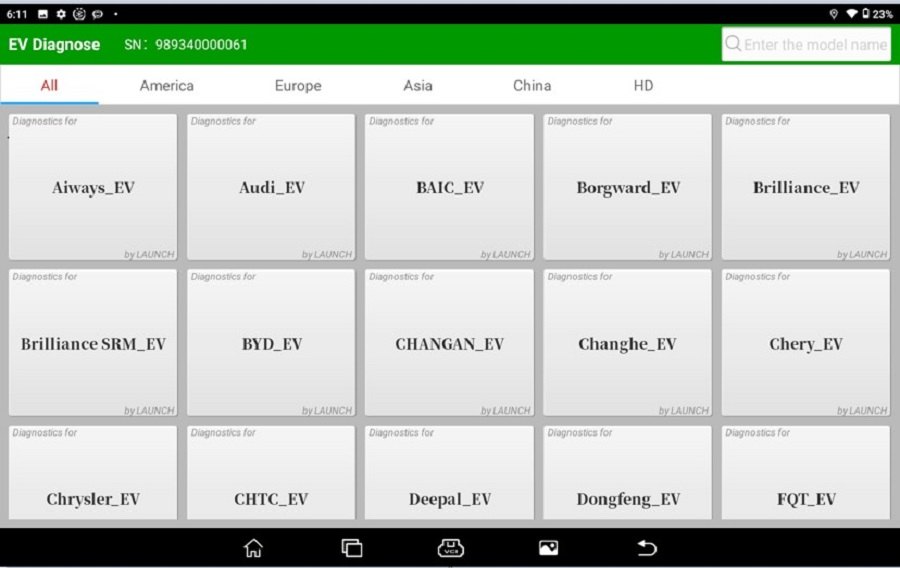

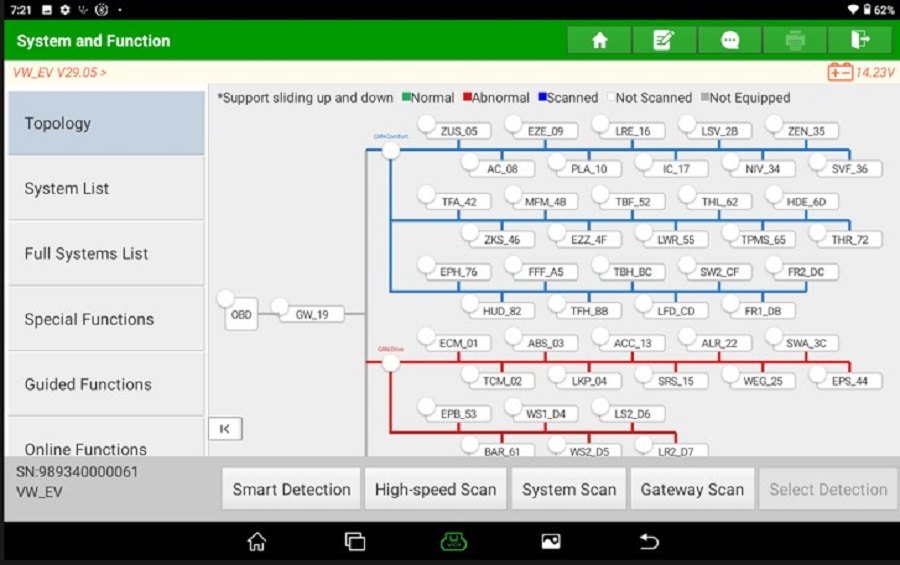

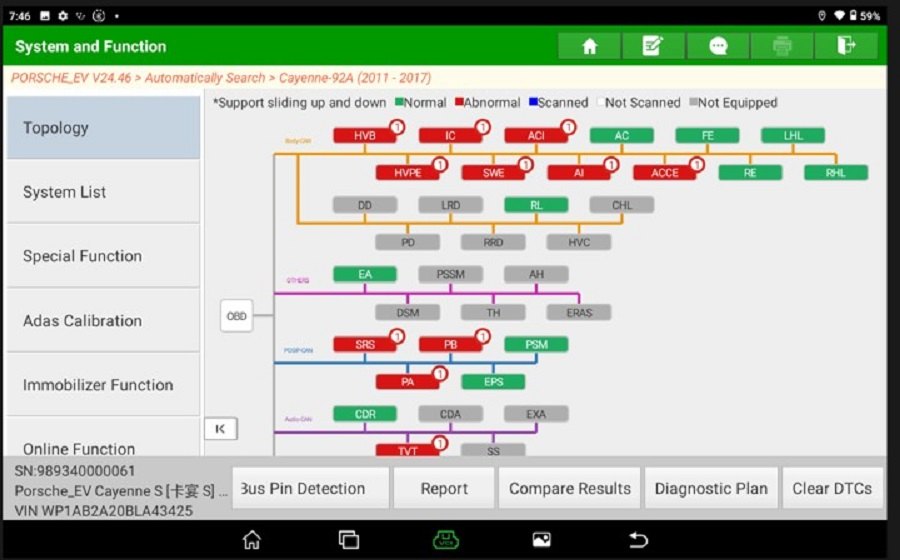

• High voltage system diagnostics for new energy vehicles
• Battery pack diagnostics by several methods
• Cell voltage and temperature reading, with automatic voltage difference calculation

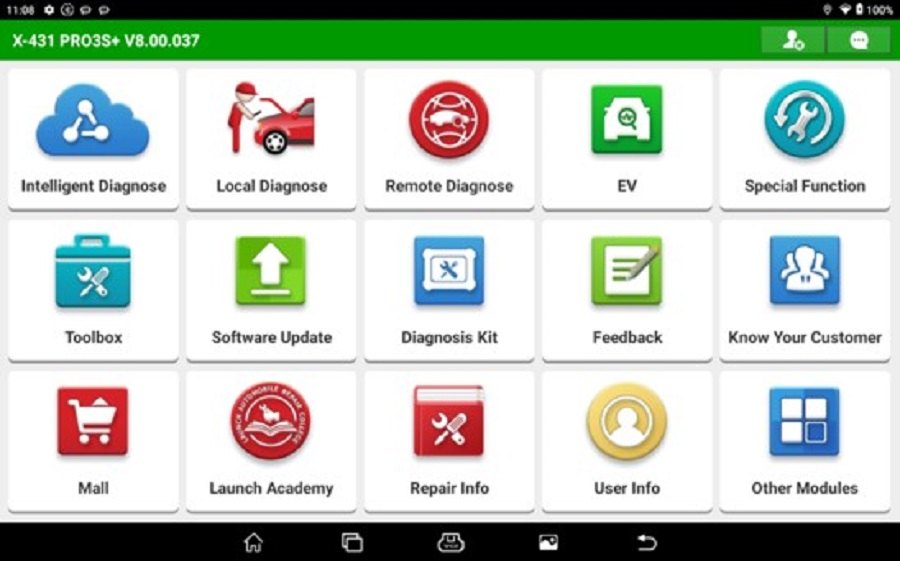

• Local and remote diagnostic modes
• Super remote diagnostics
• Works with X431 diagnostic devices and with original equipment specialised diagnostic devices

Specifications

• Operating system: Android 10.0
• Screen: 10.1 inch high definition, sunlight readable

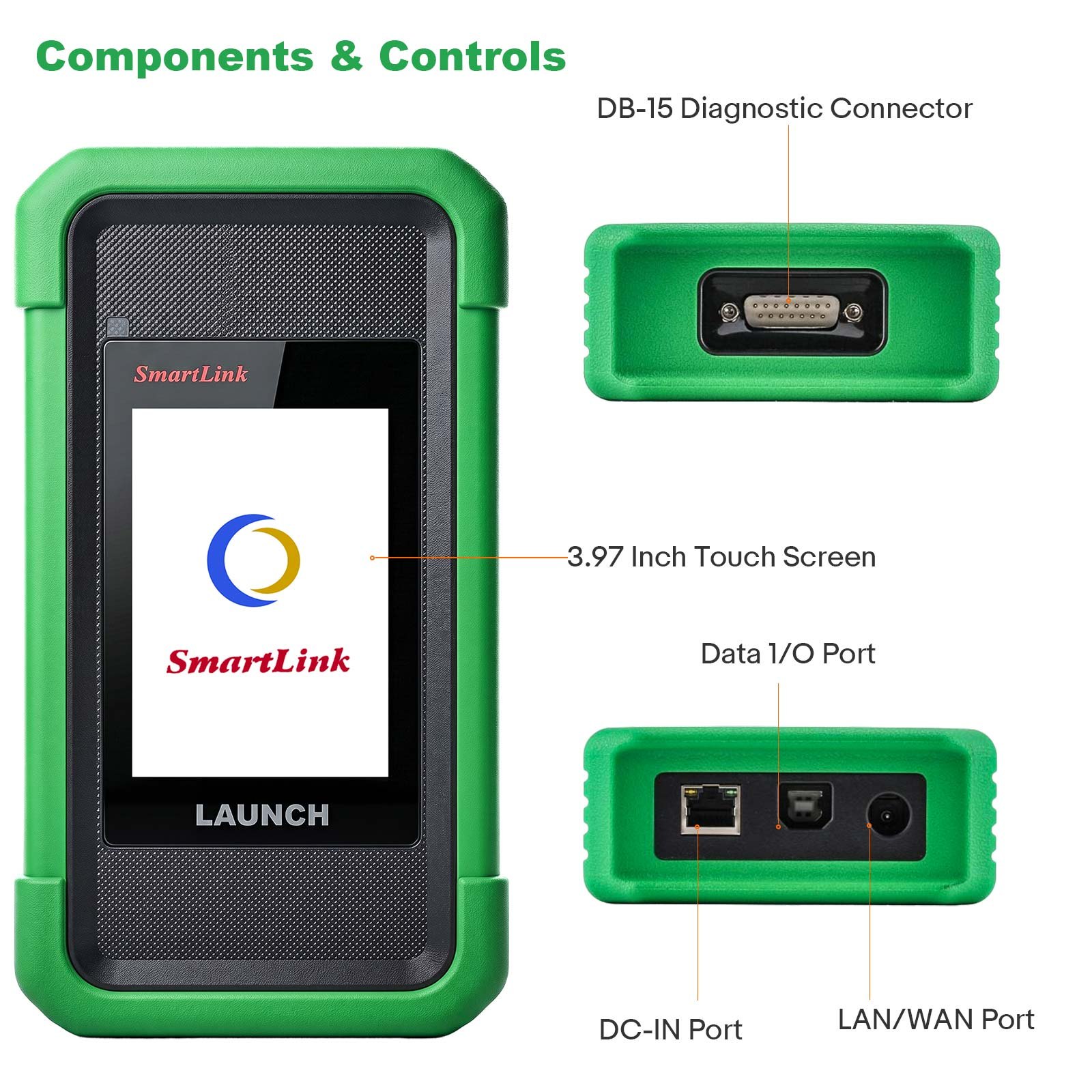

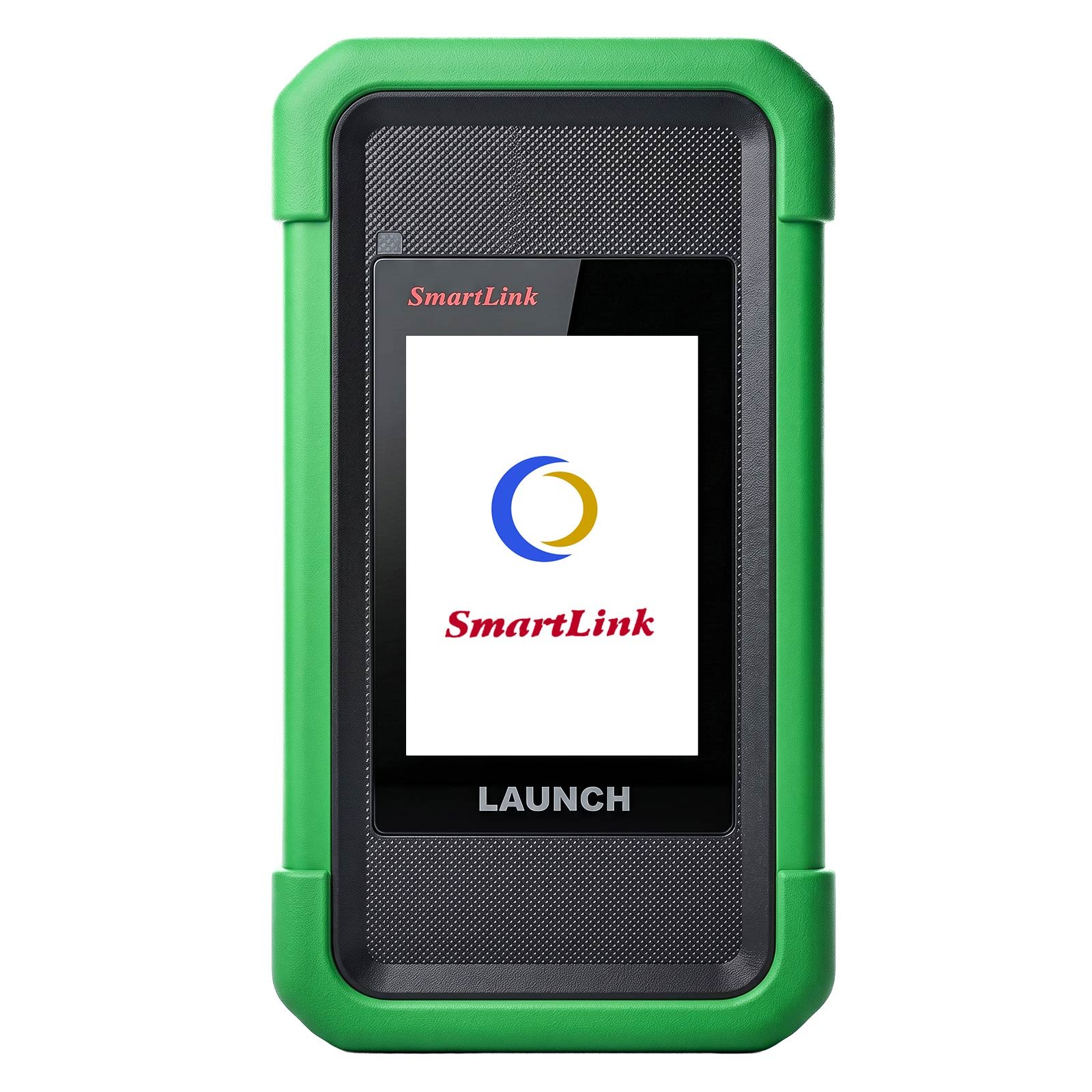

• Connector: SmartLink C V2, supplied as standard
• Standards: J2534, D-PDU and others
• Protocols: CAN2.0, CAN FD and DoIP
• Coverage: over 95% of new energy vehicle models

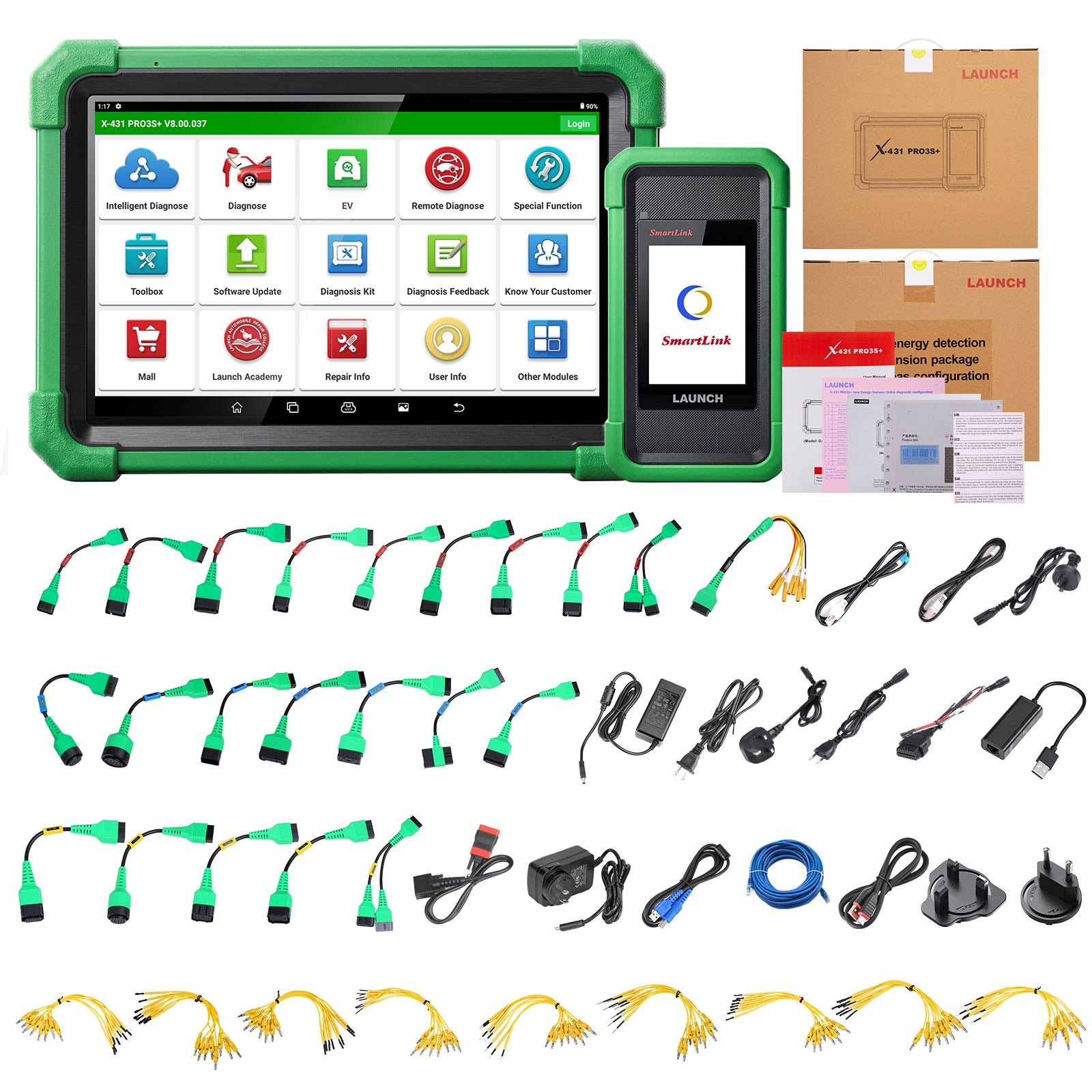

In the box

• 1 x Launch X-431 PRO3S+ EV tablet
• 1 x SmartLink C V2 connector
