LAUNCH X-431 J560 PLC Trailer-7+9 Commercial Vehicle Diagnostic Connector Extension Module

A Launch X-431 J560 PLC trailer 7 plus 9 commercial vehicle diagnostic connector extension module. J560 is the trailer connector standard, and PLC is how the tractor unit talks to the trailer over it.

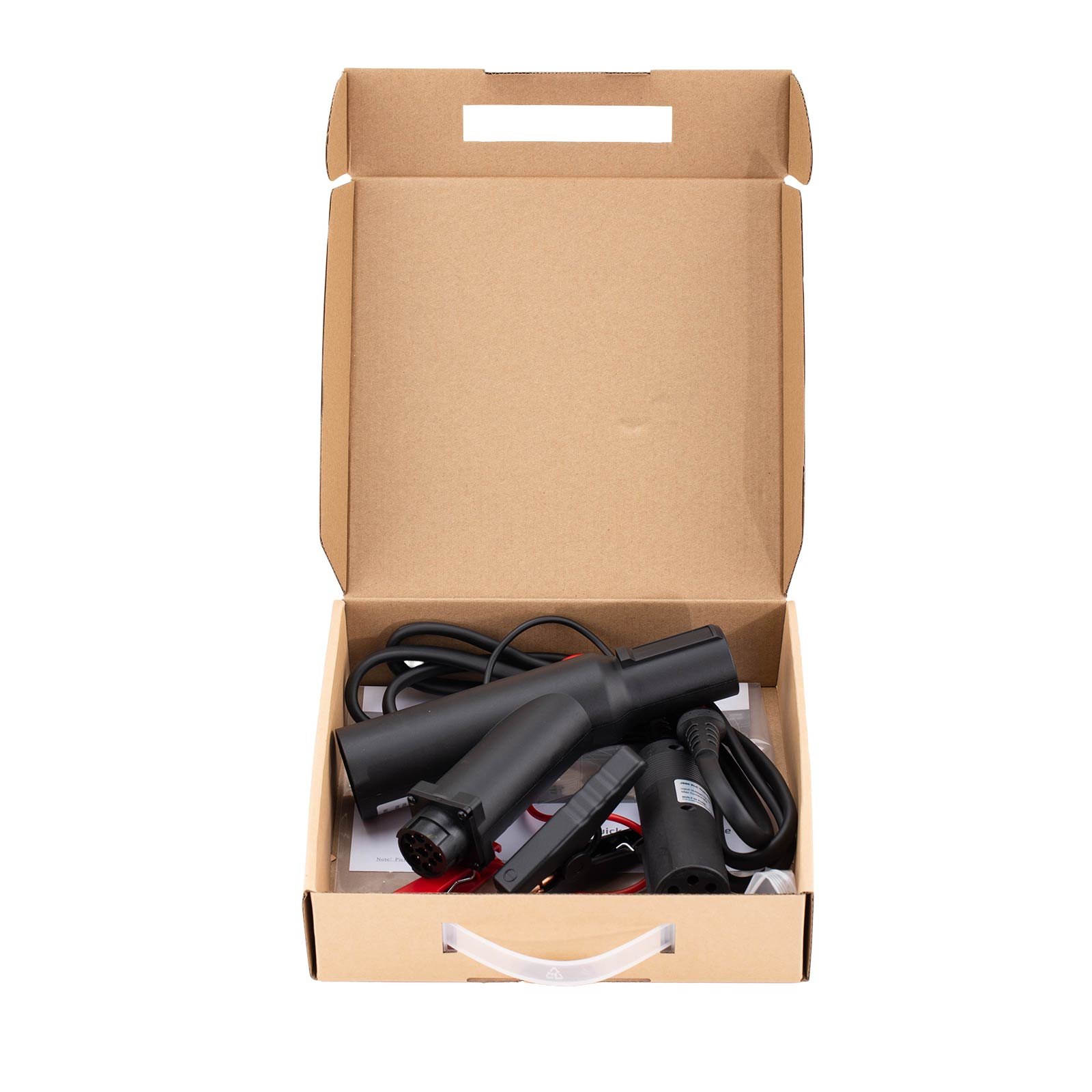

What you get

• 1pc x The J560 PLC Trailer Connector
• 1pc x The J560 PLC Trailer Power Adaptor
• LAUNCH X-431 J560 PLC Trailer-7+9 Commercial Vehicle Diagnostic Connector Extension Module

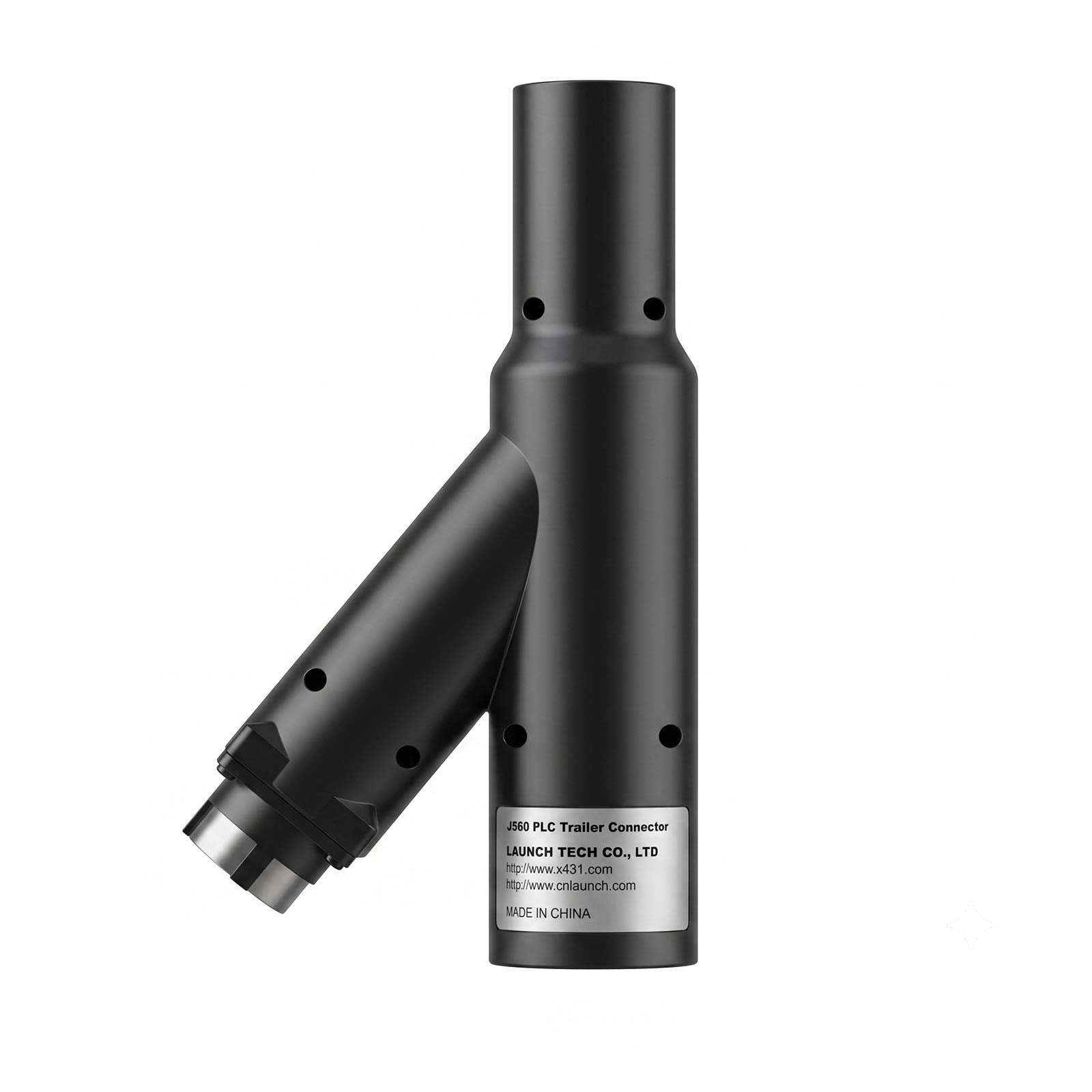

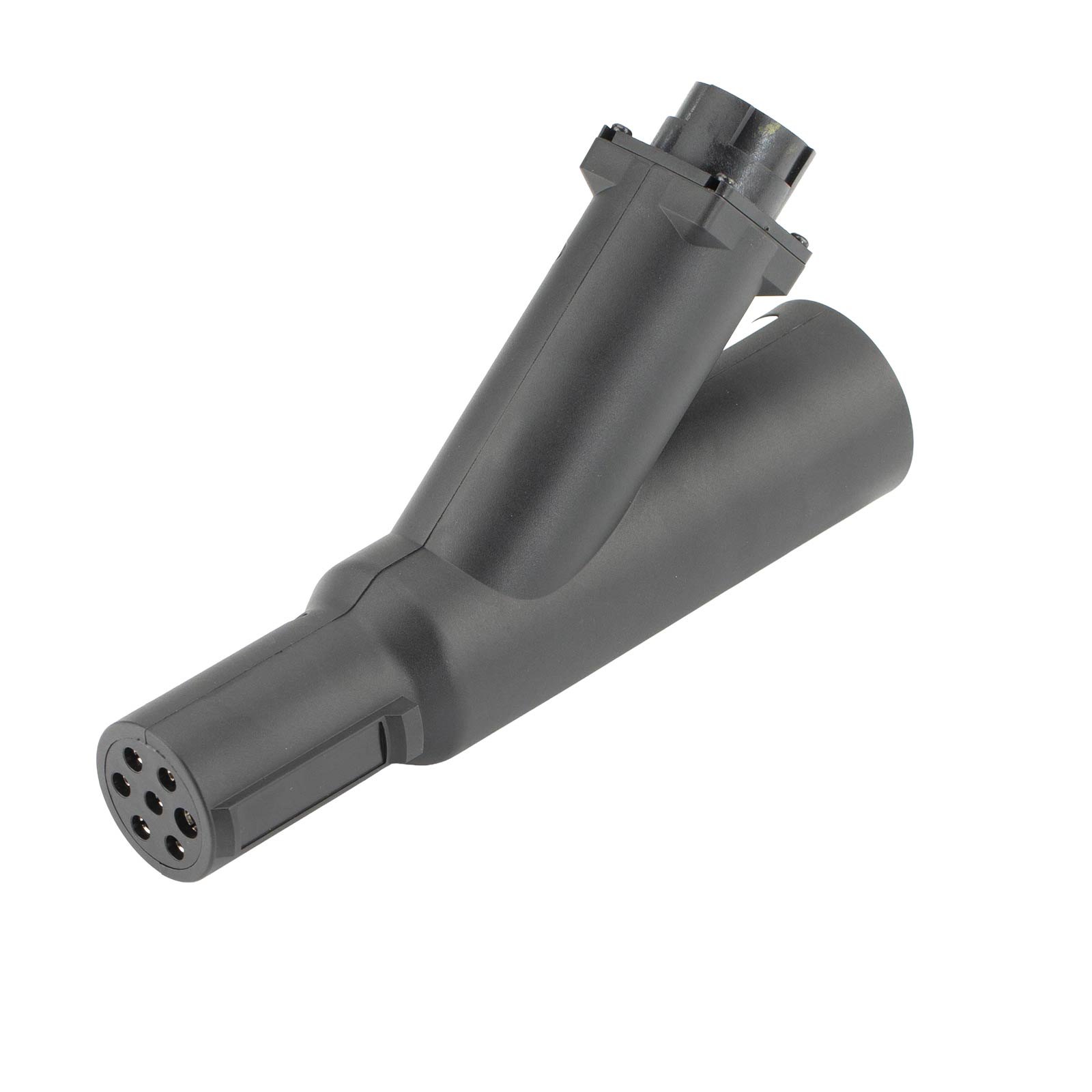

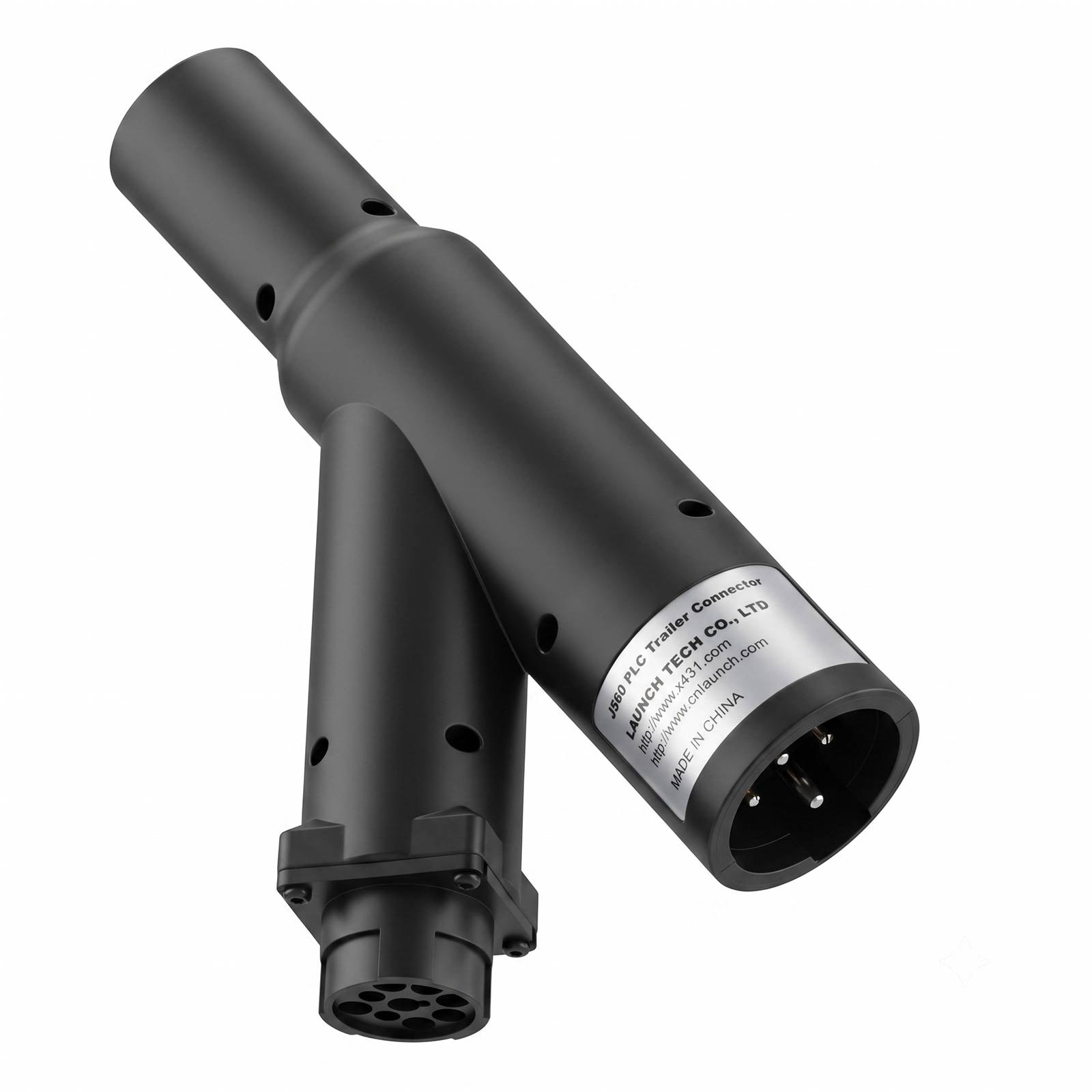

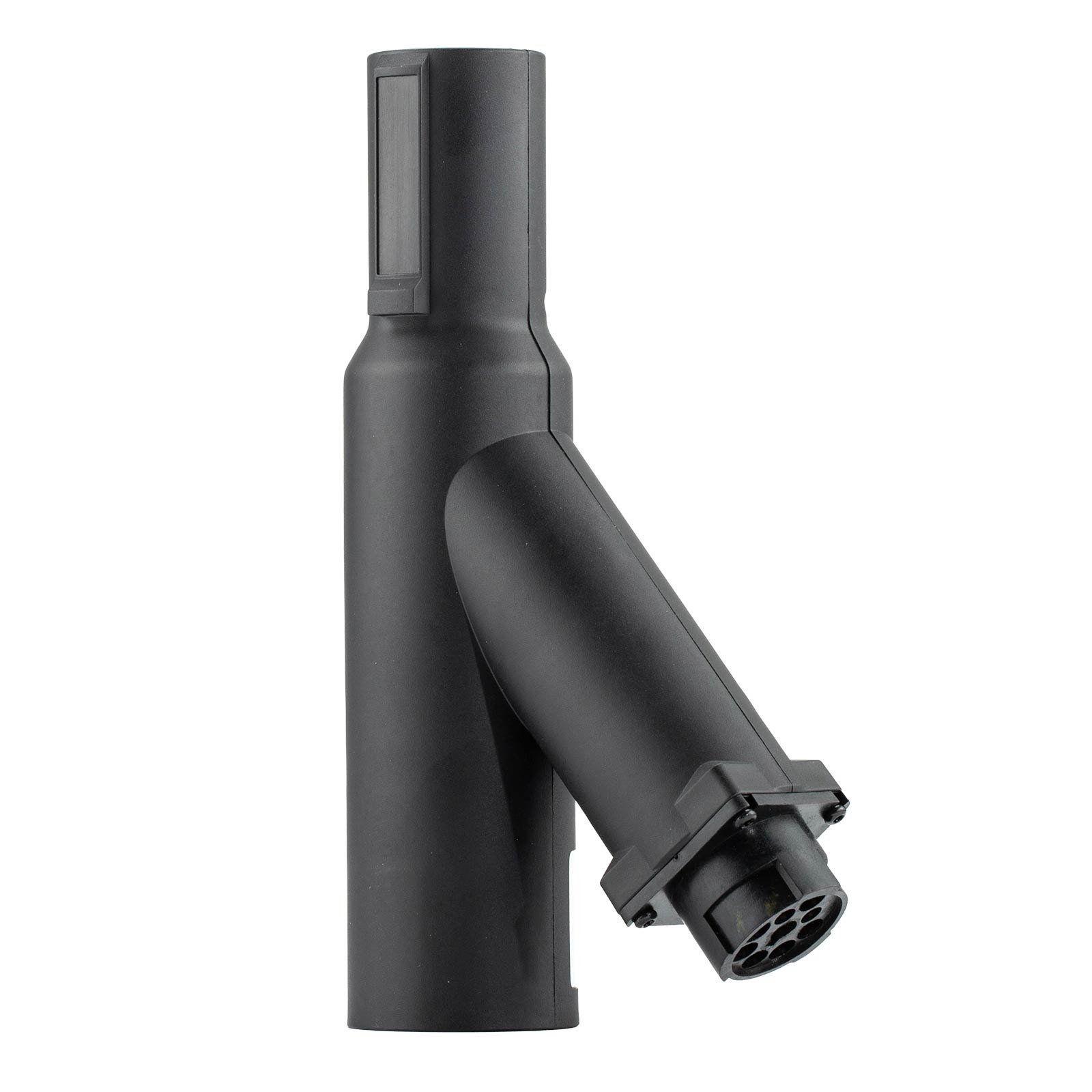

• The J560 PLC Trailer Connector

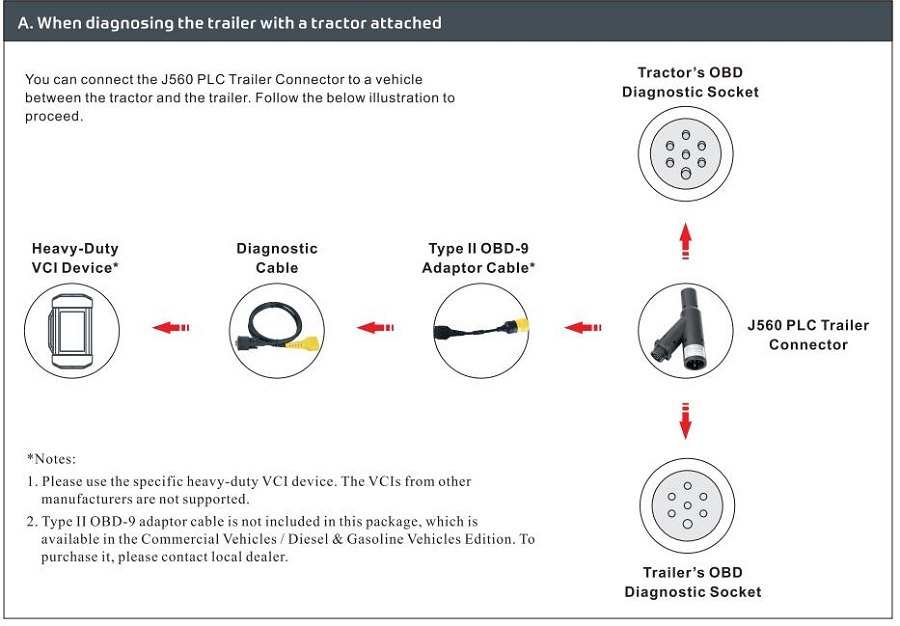

• It extends the capability of J1708/J1587 diagnostic tools to support J2497 PLC, it extracts data from the power line and converts it to J1708. It can be used with specific heavy-duty vehicle communication interface (VCI). It can be connected to a vehicle between the tractor and the trailer, or to the trailer alone without the tractor.
• The J560 PLC Trailer Power Adaptor

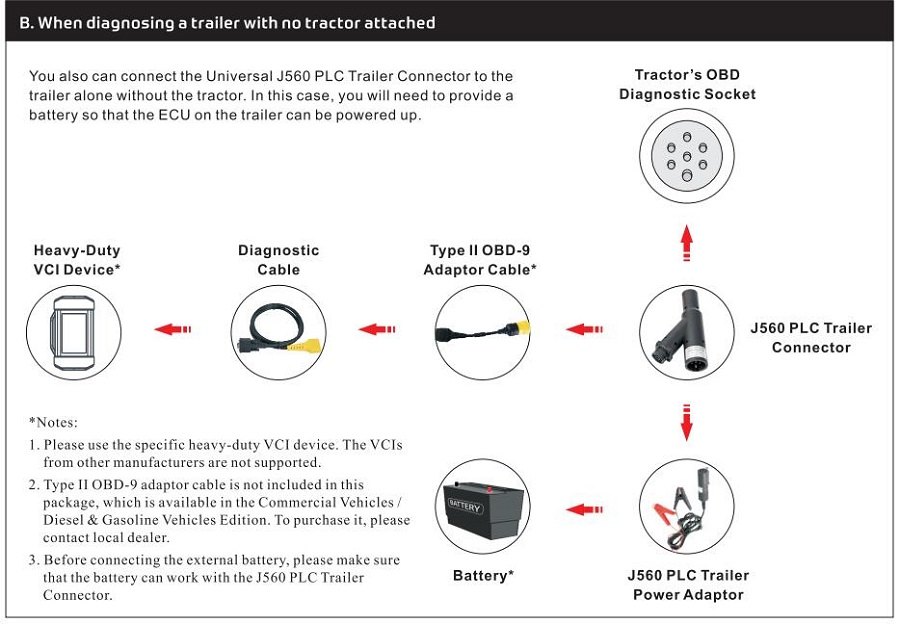

• It is to be used in conjunction with the J560 PLC Trailer Connector. By using these two items, you will be able to connect to a trailer with no tractor attached.
• Diagnostic Features (Needs to be used with heavy-duty diagnostic devices)
• Version Info

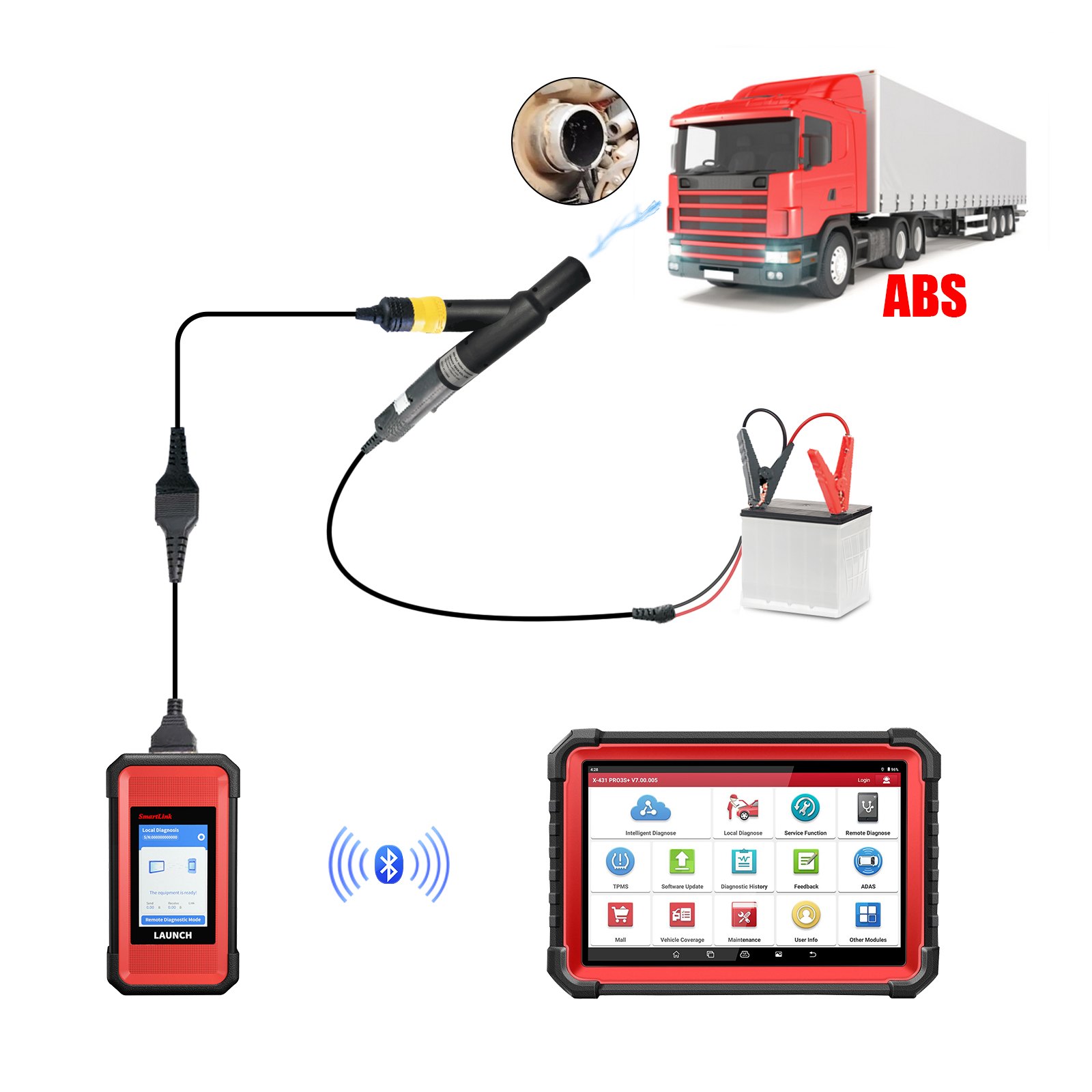

Trailer ABS faults are a common inspection failure, and they need this module to be read at all.
