LAUNCH RH850 Adapter Board for Data Reading & Writing of Various RH850 Microcontrollers

A Launch RH850 adapter board for data reading and writing across the various RH850 microcontrollers. The RH850 turns up throughout modern cluster and module work, and a purpose made board reaches it cleanly.

What you get

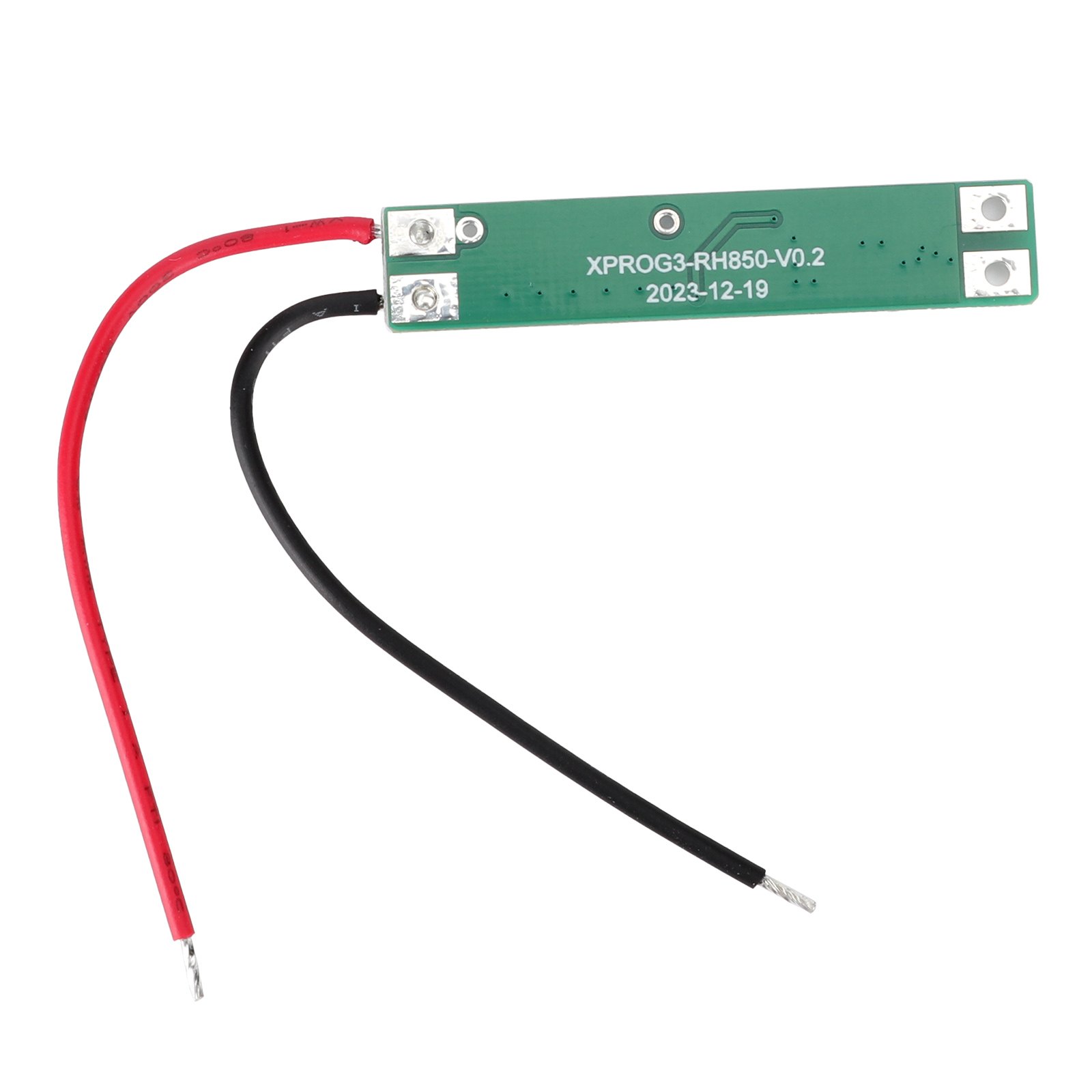

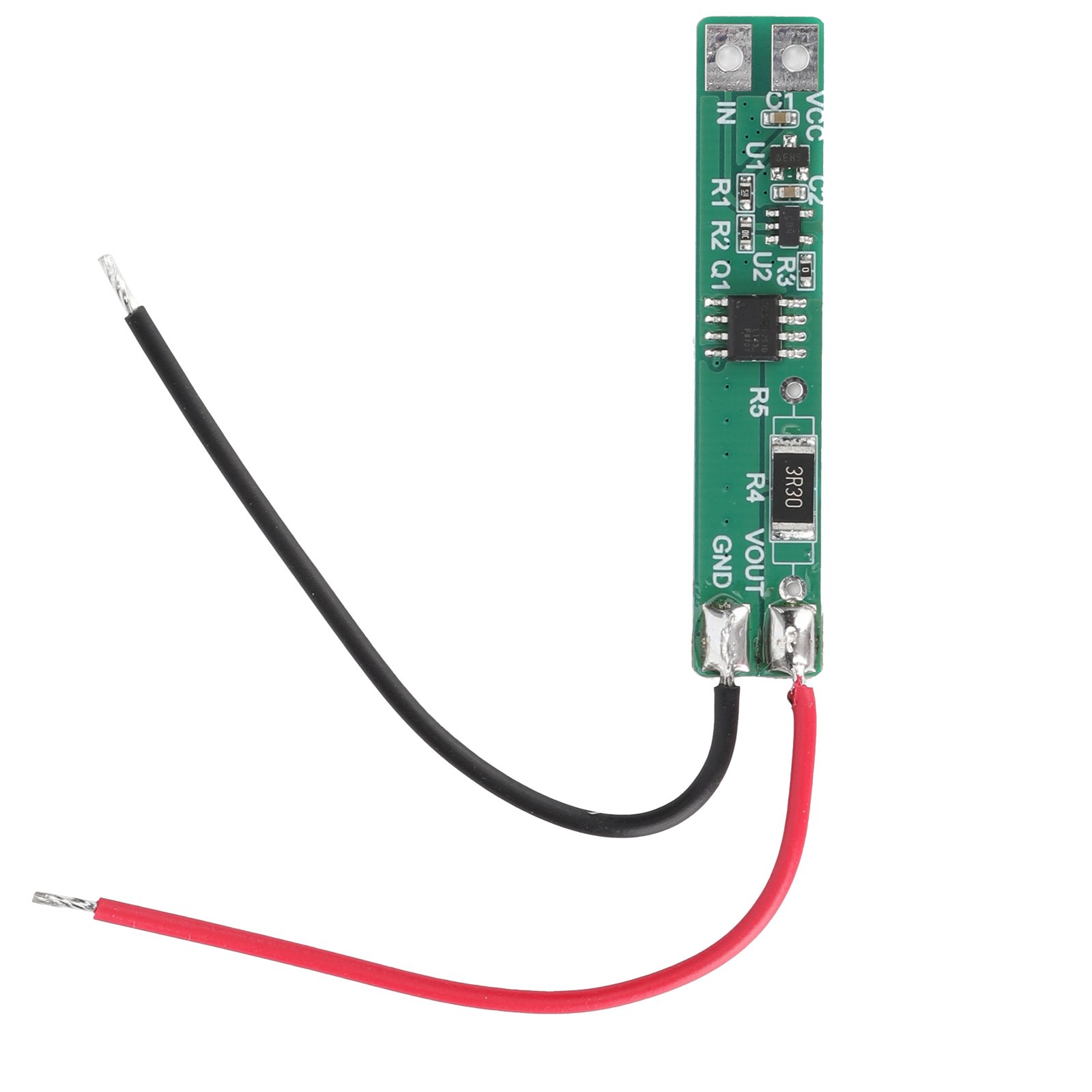

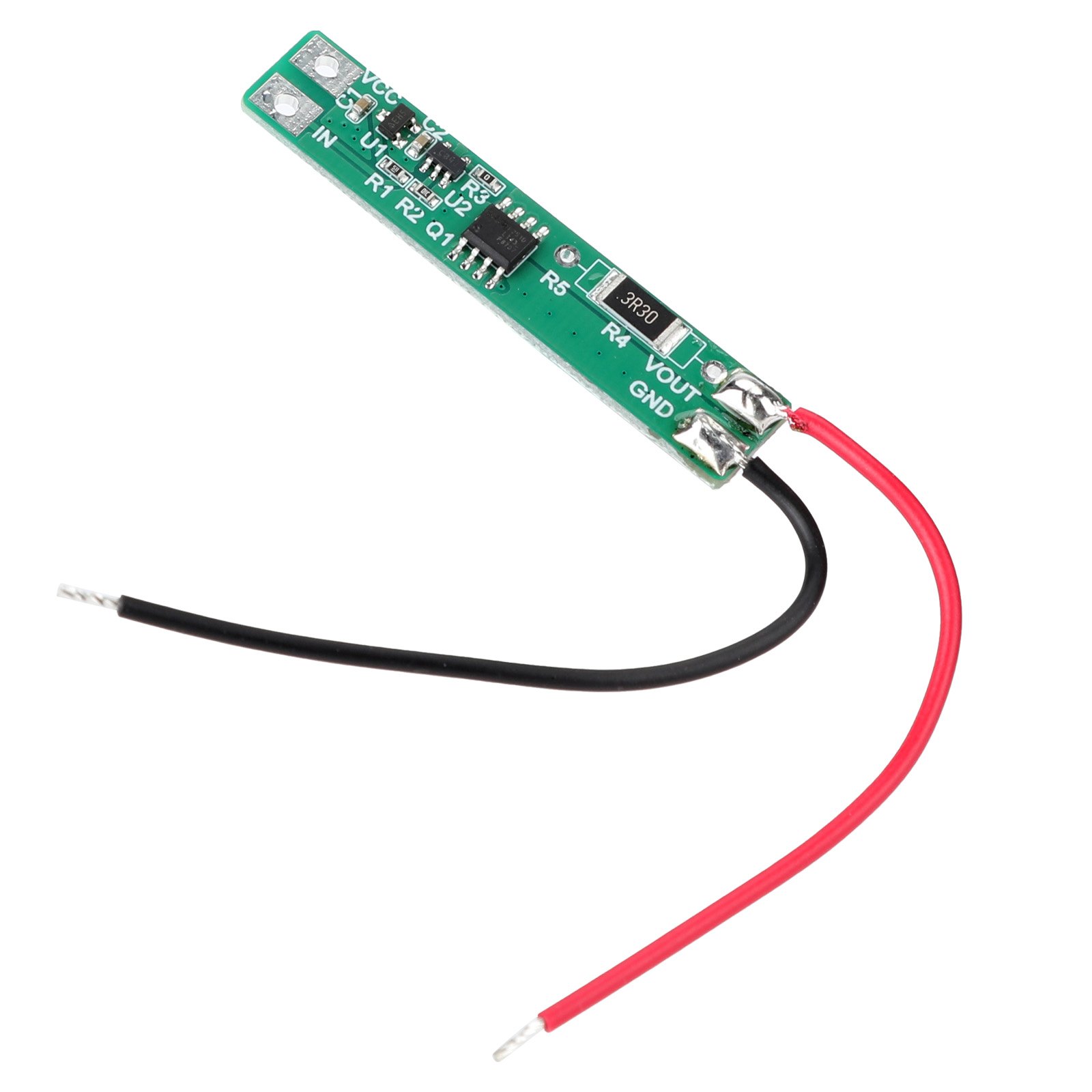

• 1pc x LAUNCH RH850 Adapter Board
• Read and write Renesas Encrypted RH850 MCUs
• Used with Launch GIII X-Prog 3 Advanced Immobilizer & Key Programmer
• LAUNCH RH850 Adapter Board for Data Reading & Writing of Various RH850 Microcontrollers
• Applicable to the data reading and writing functions of various RH850_encrypted Renesas microcontrollers.
• R7F701002, R7F701003, R7F701006, R7F701007, R7F701008, R7F701009, R7F701010, R7F701011, R7F701012, R7F701013, R7F701014, R7F701015, R7F701016, R7F701017, R7F701018, R7F701019, R7F701020, R7F701021, R7F701022, R7F701023, R7F701024, R7F701025, R7F701026, R7F701027, R7F701028, R7F701029, R7F701030, R7F701032, R7F701033, R7F701034, R7F701040, R7F701041, R7F701042, R7F701043, R7F701044, R7F701045, R7F701046, R7F701047, R7F701048, R7F701049, R7F701050, R7F701051, R7F701052, R7F701053, R7F701054, R7F701055, R7F701056, R7F701057
• Support multiple microcontrollers including pin 48, pin 64, pin 80, pin 100, pin 144, and pin 176.

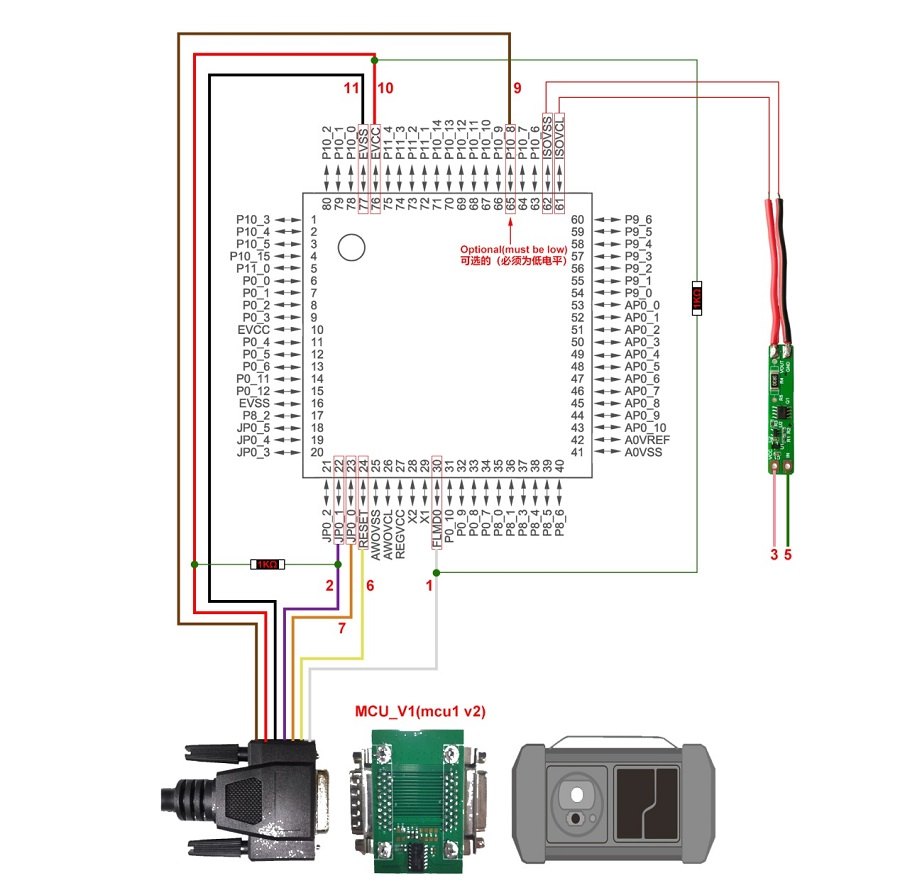

• Figure 1 shows an example of a connection diagram.
• Connect each end of the RH850 adapter board to the MCU and MCU harness according to the following correspondence:
• RH850 Adapter Board

A dedicated board also means the same connection every time, which matters on a repeated job.
