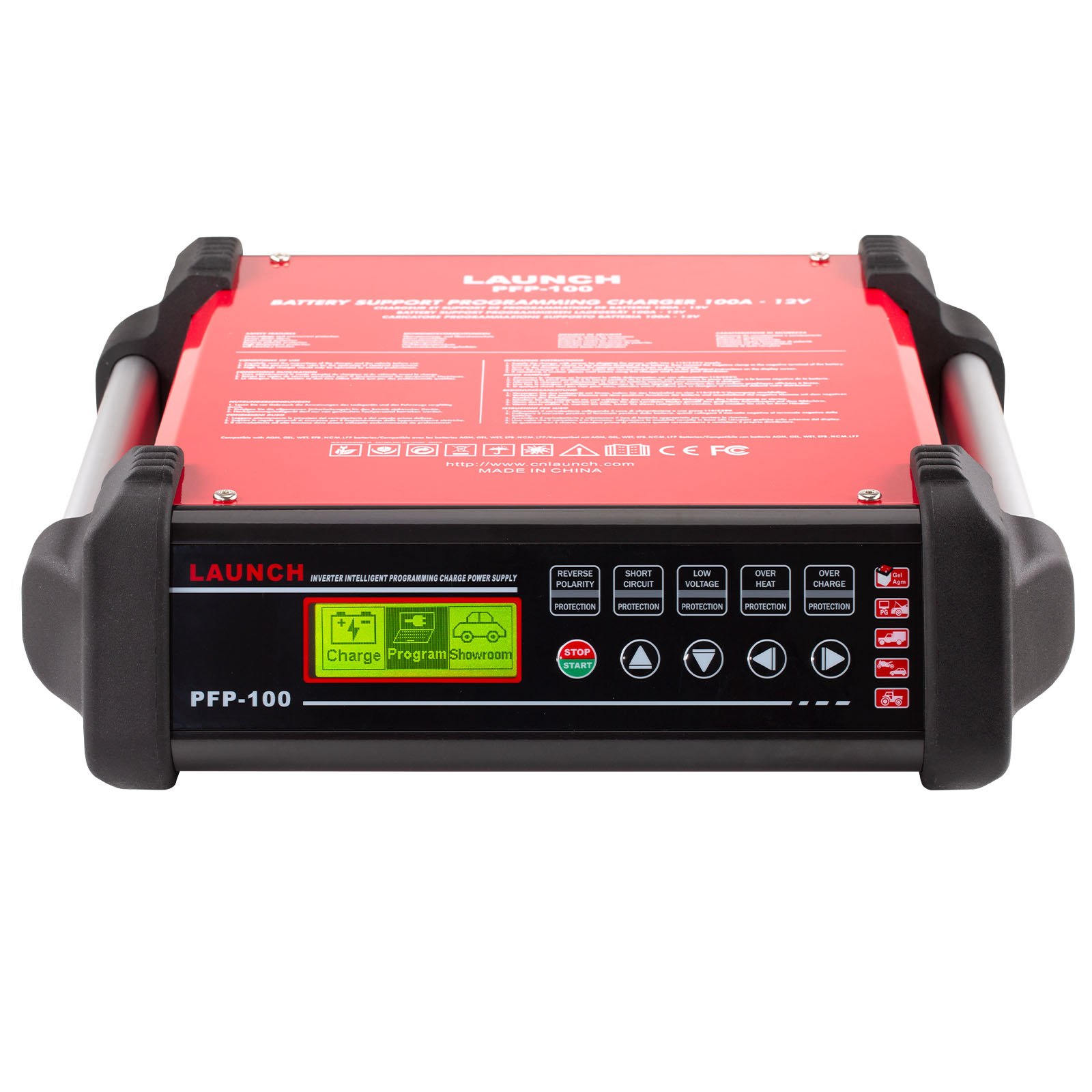

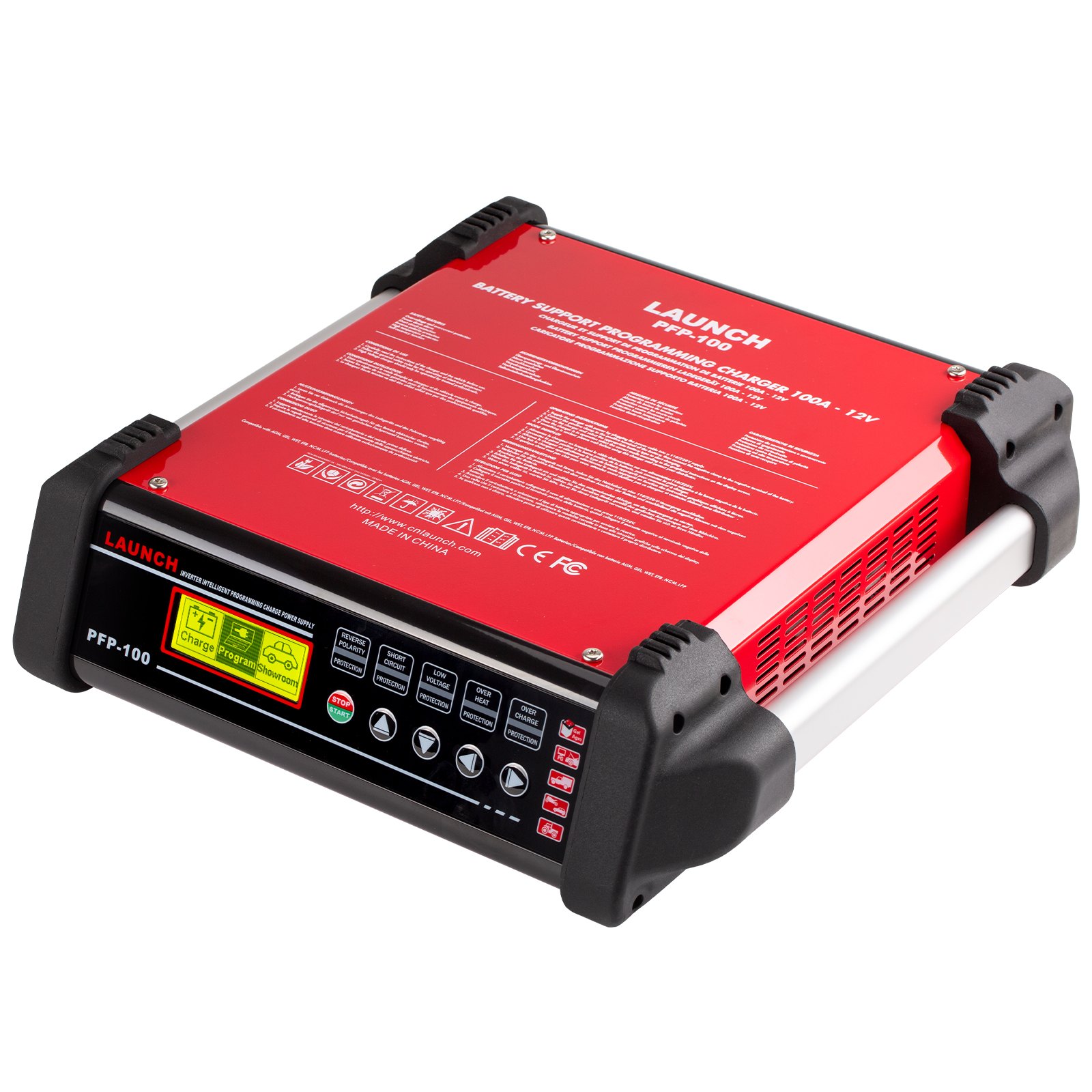

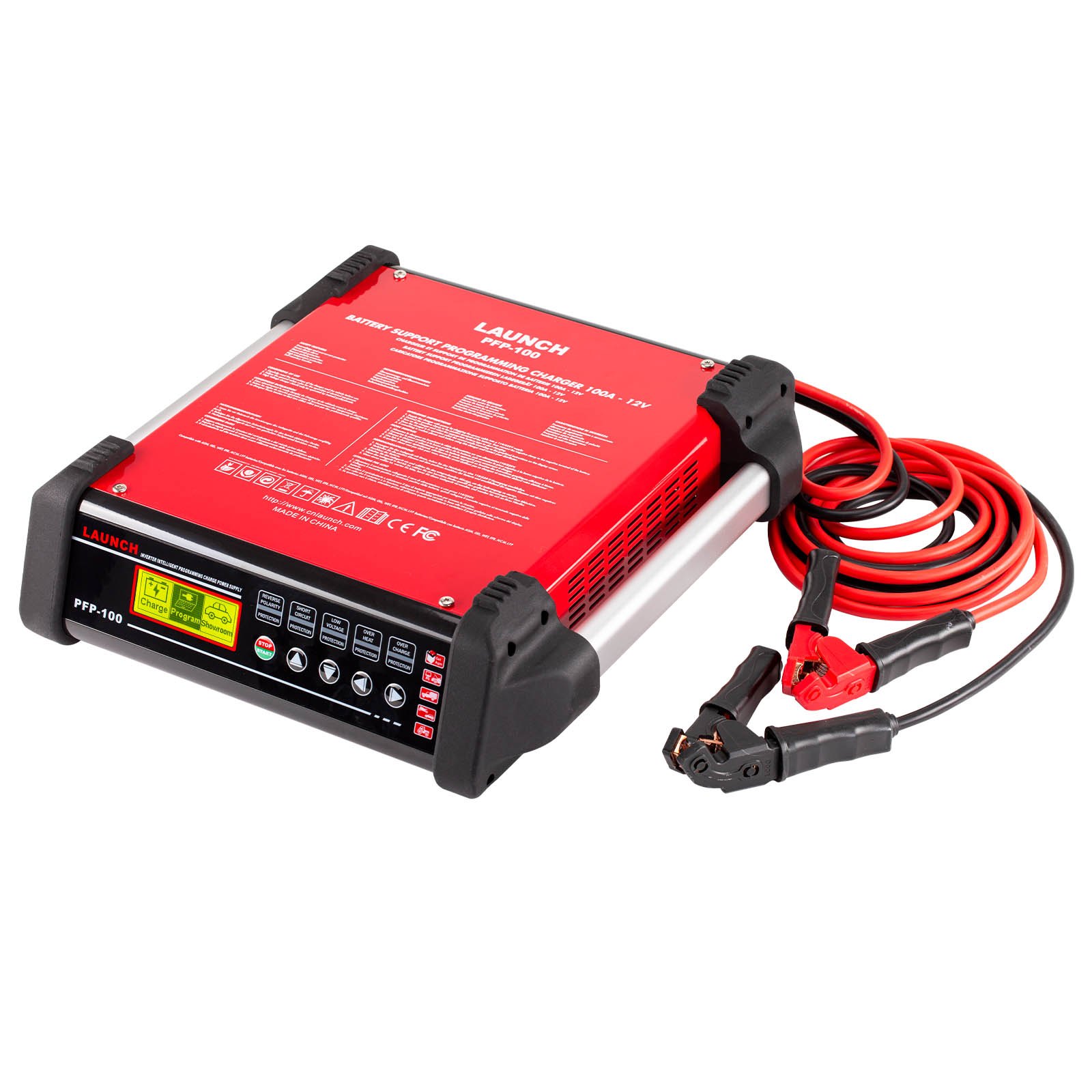

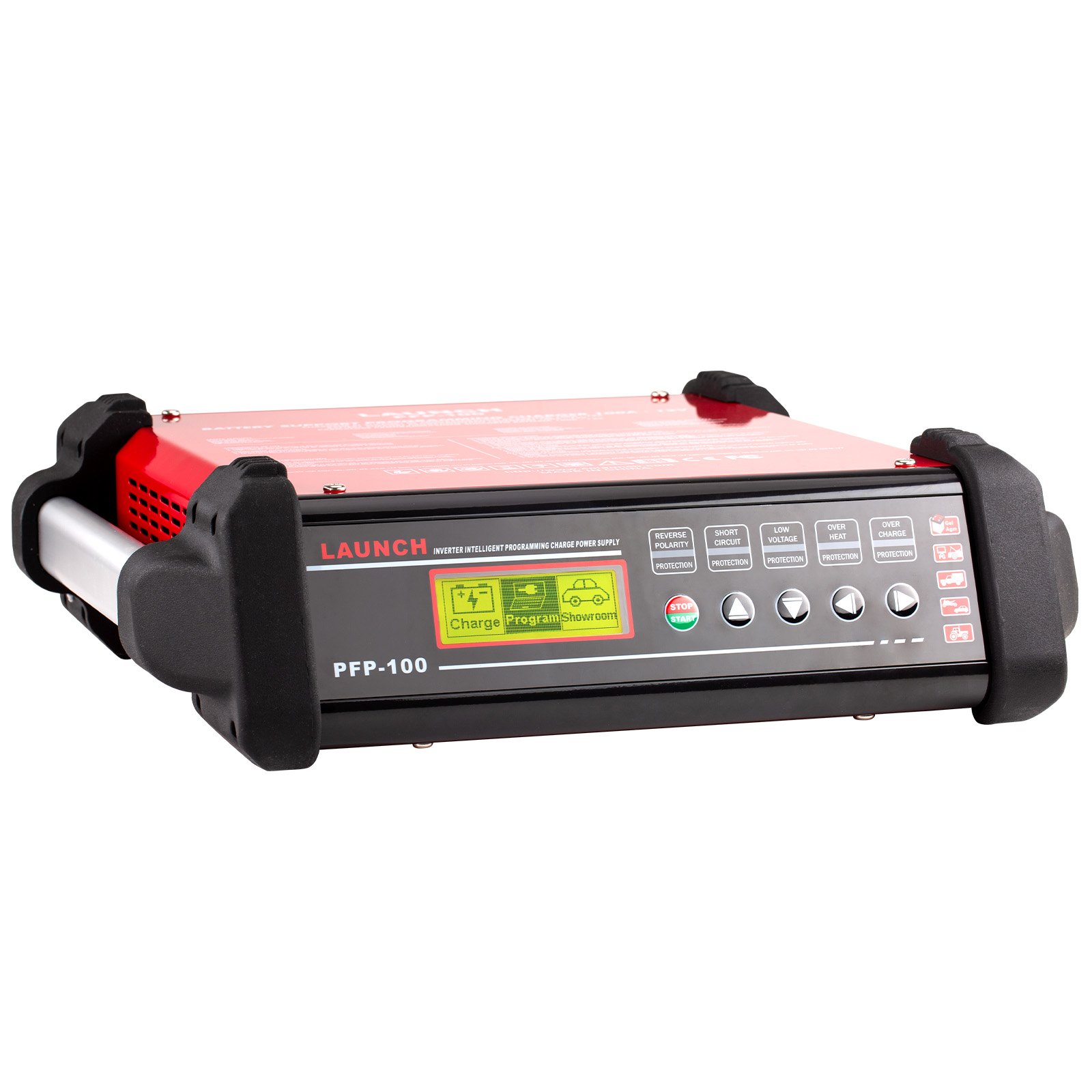

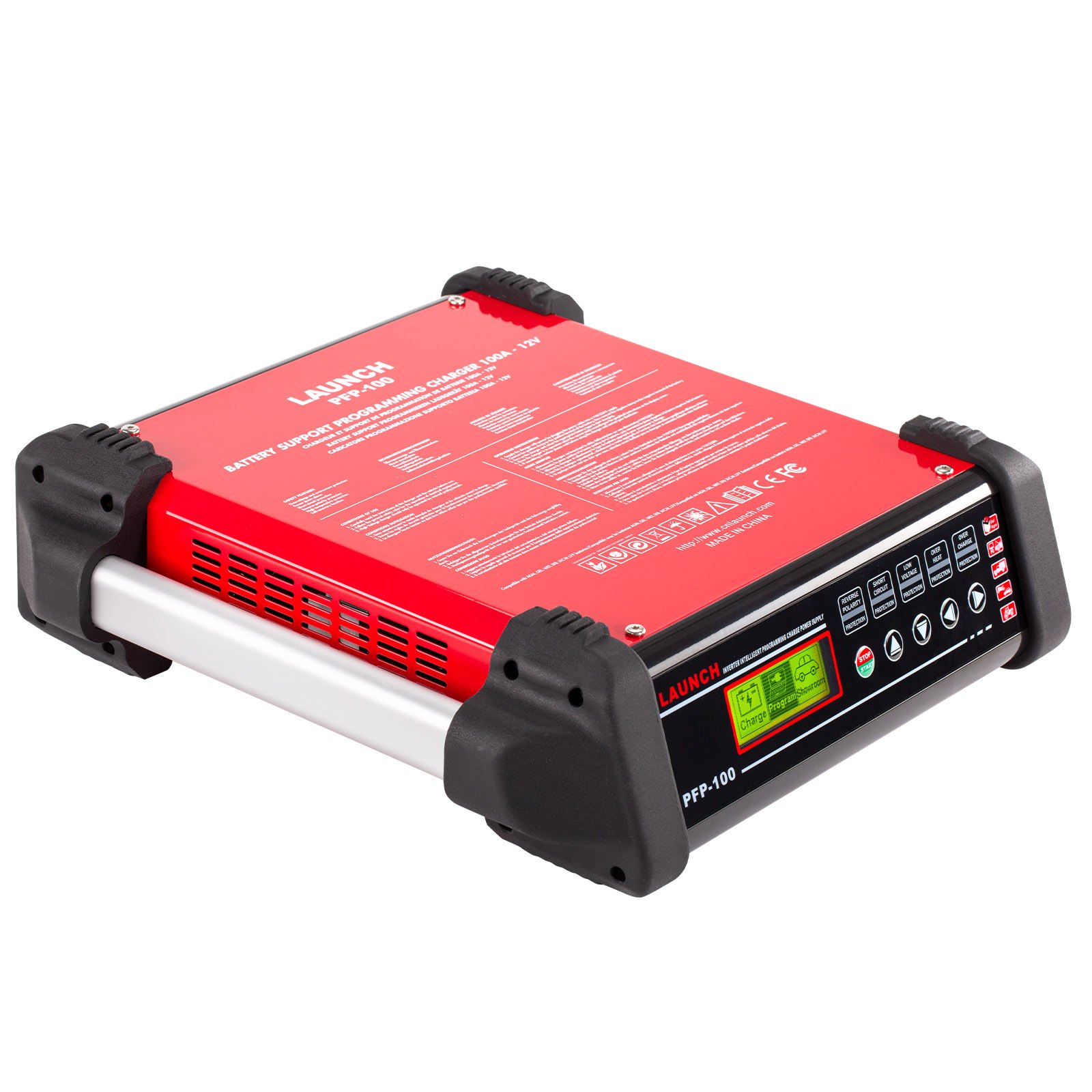

LAUNCH PFP-100 Programming Flash Power Advanced Diagnostic Battery Charger And Maintainer for Vehicles, Cars, Trucks, Boats, Tractors, Buses

The Launch PFP-100, a programming flash power battery charger and maintainer covering cars, trucks, boats, tractors and buses. It runs normal, exhibit, programming and hidden repair modes, with programming mode holding a stable voltage source for module flashing and exhibit mode trickling at low current for a showroom car.

Specifications

• 5 Protection Modes: Reverse Protection, Short Circuit Protection, Low Voltage Protection, Overheat Protection, Overcharge Protection, Synchronous Rectification (220V only)
• Normal Mode: Select the charging mode according to the position of vehicle battery (inside or outside)
• Exhibit Mode: For continual charge with low current in showrooms
• Programming Mode: Provide a stable voltage source for the car in need of programming or decoding, ranging from 12V to 16V
• Hidden Repair Mode: Indicate whether the battery should be repaired or not. Work with various batteries, such as AGM battery, Gel battery.
• Overcharge protection: The machine will constantly detect the battery state to prevent damage from overcharging in the charging process.
• Overheat protection: Flashpower will automatically stop charging when the machine is overheated.
• Low voltage protection: When the input voltage is lower than required, the machine will not work.
• Short circuit protection: The machine will not work and alarm when internal part short circuit occurs.
• Revers polarity protection: The LCD displays, if the battery clip is reversed.
• Input Voltage: 110V / 220V
• Power: 1200W
• Max. Current: 100A
• Charging Voltage: 12V
• Programming Mode: 2~16V / 2~200A
• MAH: 10~1200Ah
• Dimension: 430.5*392.5*130 mm
• Electric Cable Length: 3m
• Weight: 8.5kg

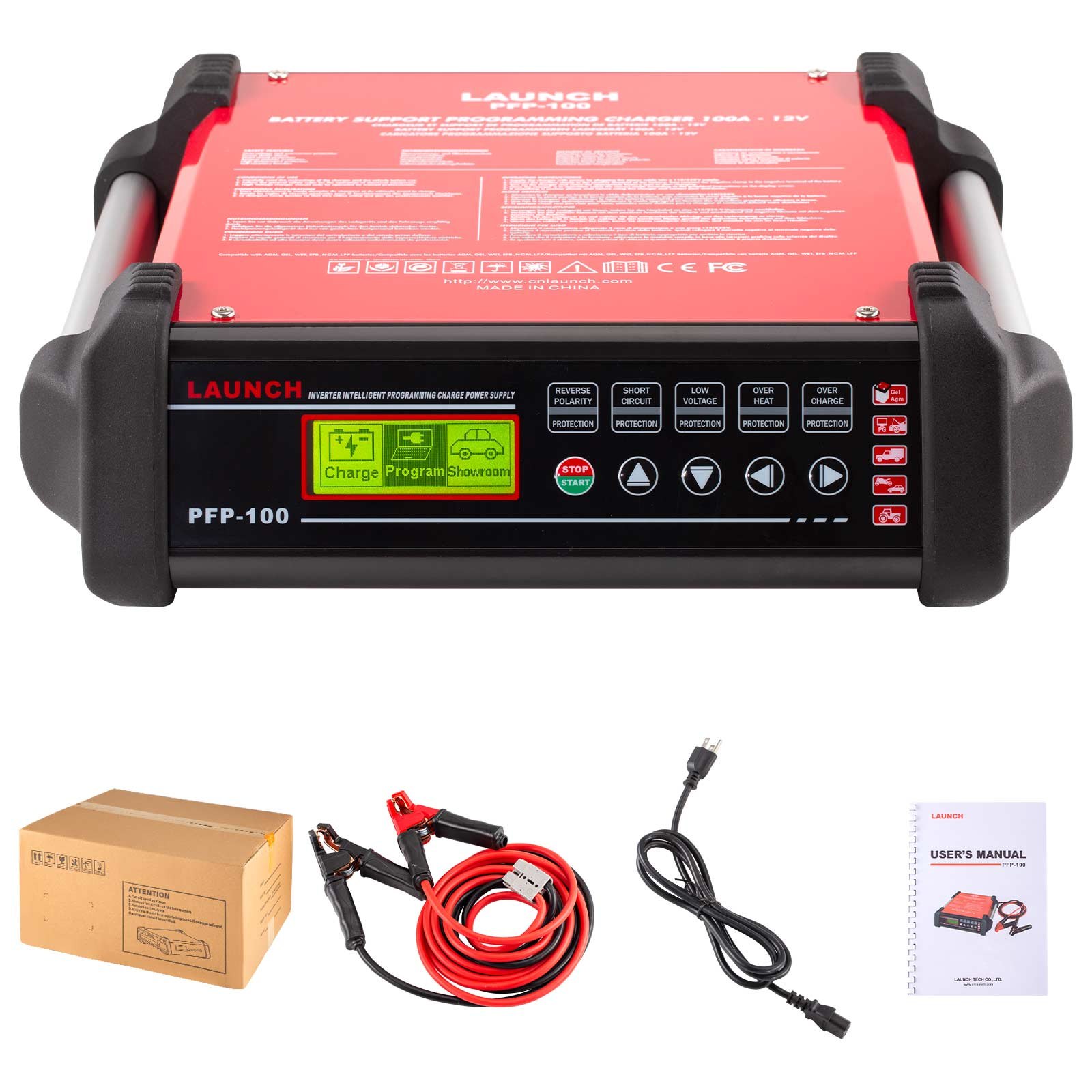

What you get

• 1pc x LAUNCH PFP-100 unit
• 1pc x Battery clips plug connecting cable(3m)
• 1pc x Power supply
• 1pc x User manual
• LAUNCH PFP-100 Programming Flash Power is a must tool for vehicle diagnosis. It can prevent failure and abnormal during the process of programming due to low voltage. It has battery protection with automatic stop and alarm. It is used by garages, car electricians and car dealerships, mainly for supplying continuous power to the vehicles battery, during all stages of ECU reprogramming and flashing, according to the request of car OEMS.
• LAUNCH PFP-100 Programming Flash Power, A Must Tool For Vehicle Diagnostic.
• LAUNCH PFP100 Programming Flash Power can constantly detect the battery state to prevent damage from overcharging.
• LAUNCH PFP100 Programming Flash Power is a professional 100A vehicle battery power support unit with high-performance, compact size and high-quality.

Five protections are fitted: reverse, short circuit, low voltage, overcharge and overheat, all monitored while charging.
