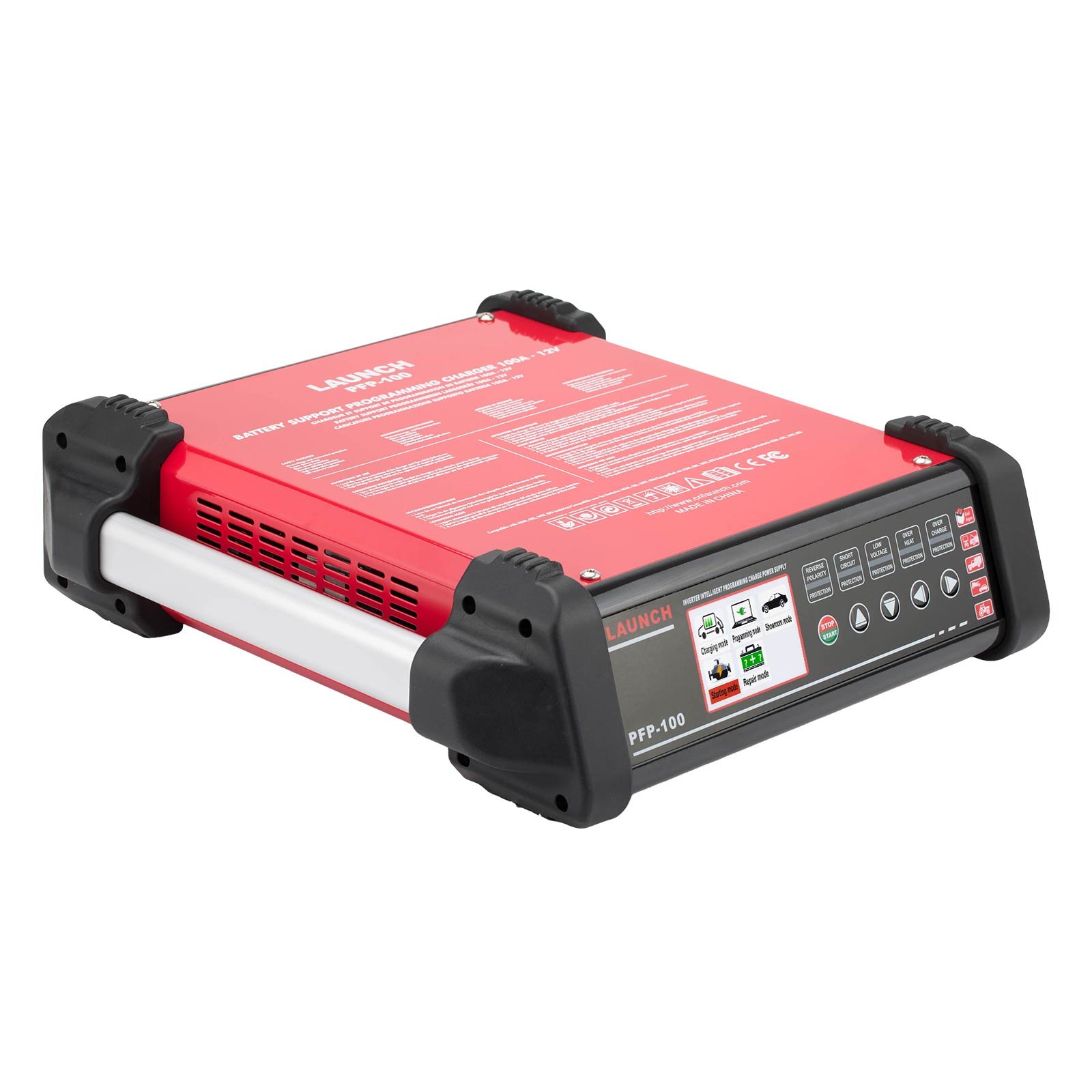

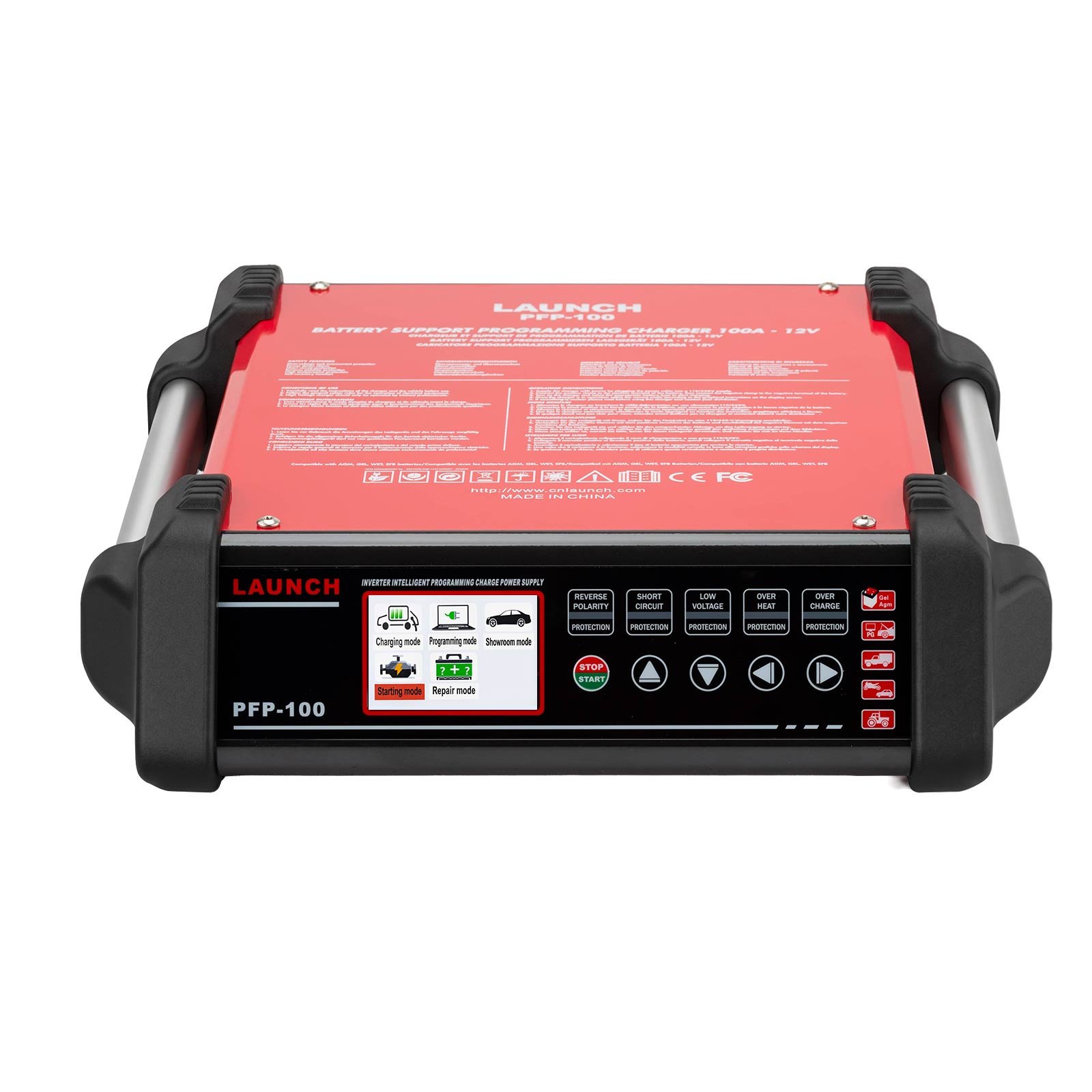

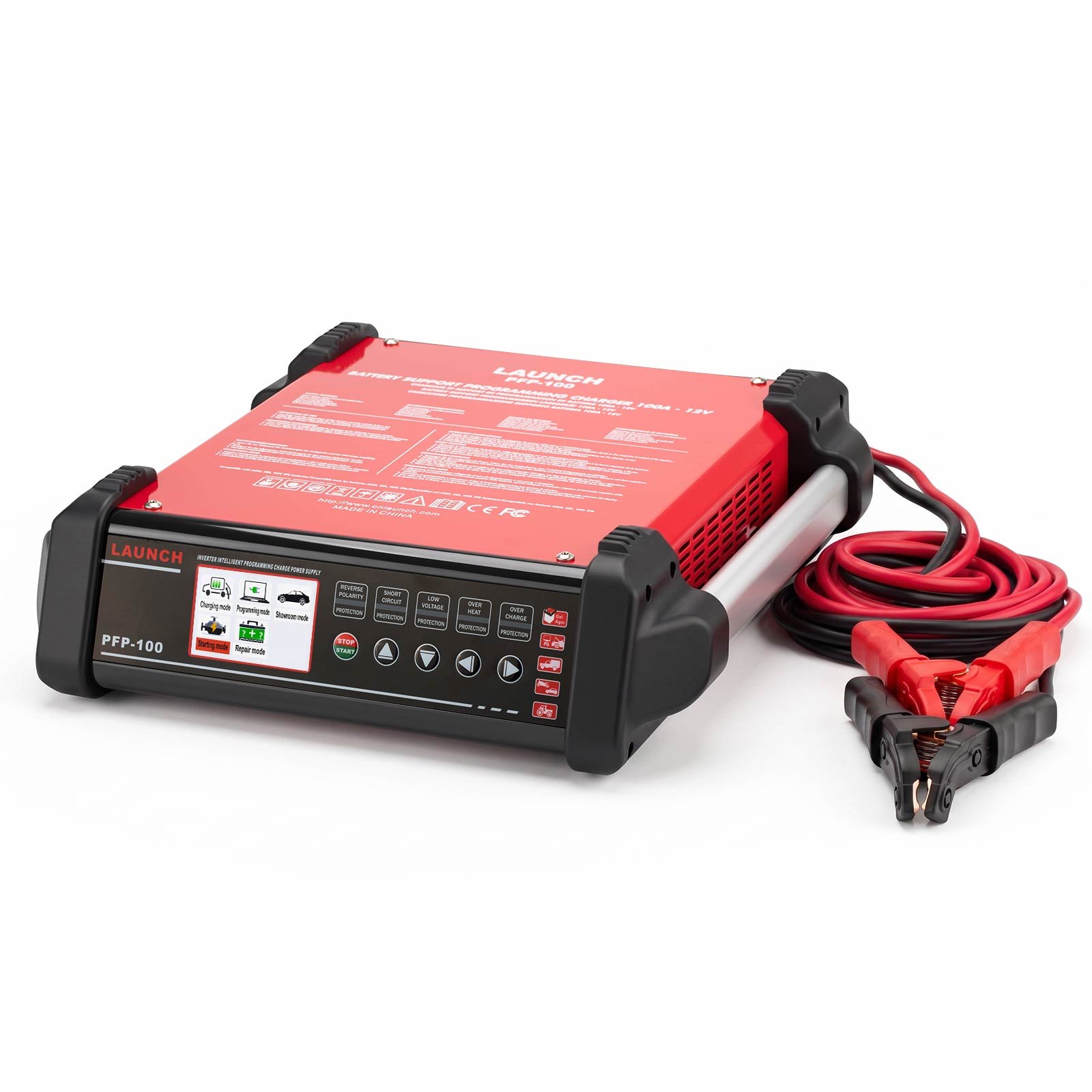

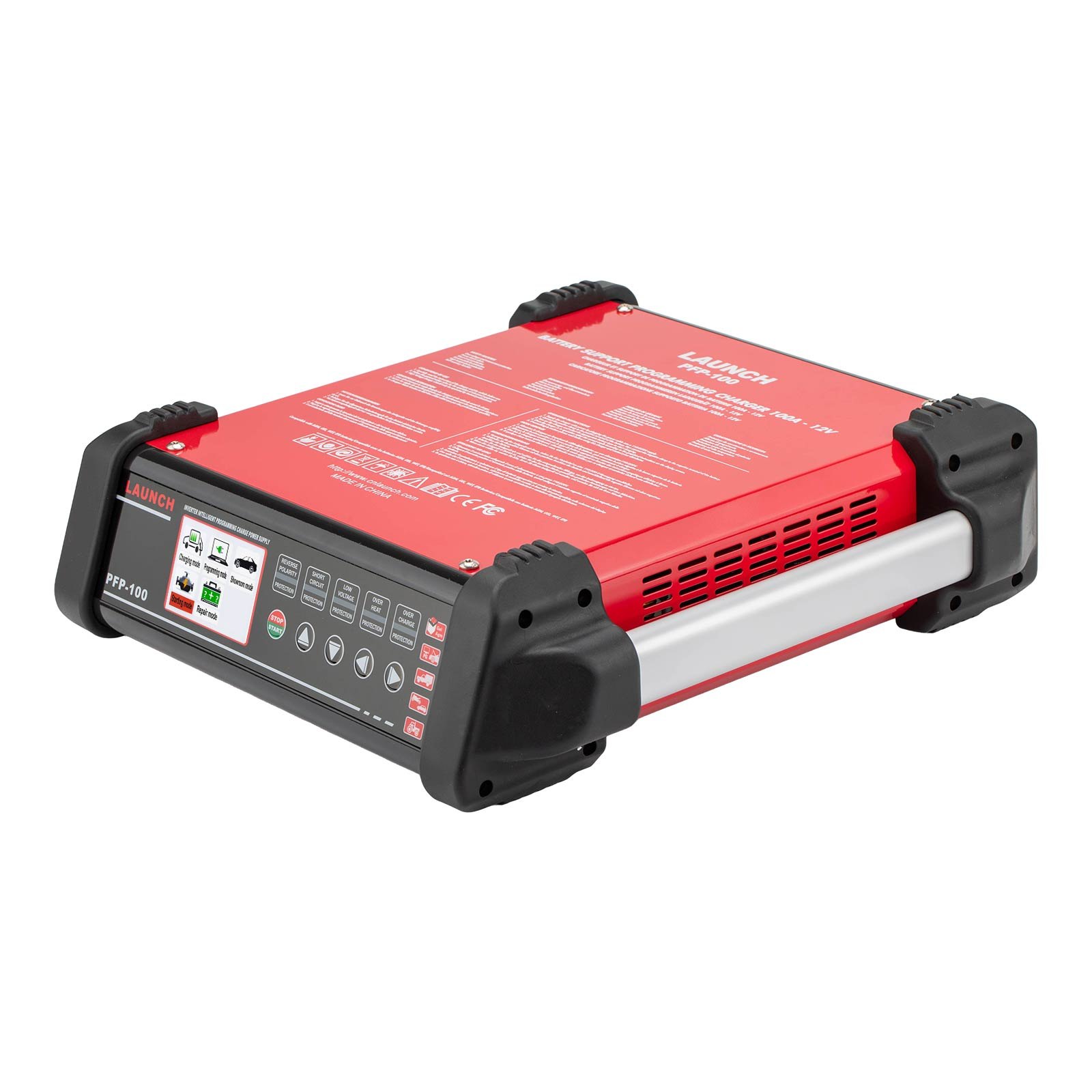

LAUNCH PFP-100 Inverter Intelligent Programming Charge Power Supply for All Types of Vehicles, Cars, Trucks, Boats, Tractors, Buses

The Launch PFP-100 inverter intelligent programming charge power supply, for cars, trucks, boats, tractors and buses. It runs 110V or 220V at 50 to 60Hz drawing 1800W, delivers a maximum 150A, charges at 12V and holds 2 to 14.8V at 2 to 150A in programming mode, measuring 44 by 41 by 14cm at 9kg.

Specifications

• Operating Voltage: 110V/220V
• Frequency: 50~60Hz
• Input Power: 1800W
• Maximum Effective Current: 150A
• Charging Voltage: 12V
• Programming Mode: 2~14.8V/2~150A
• Dimensions: 44*41*14CM
• Net Weight: 9Kg

What you get

• 1pc x main unit
• 1pc x power cable
• 1pc x clip cable
• 1pc x manual
• The LAUNCH PFP-100 can automatically detect, maintain, and repair batteries based on their health features in-vehicle and out-of-vehicle pulse charging as well as battery repair functions, supporting charging and repair of various battery types, including standard batteries, EFB, AGM, GEL, and lithium batteries (LFP, NCM).
• LAUNCH PFP-100 Inverter Intelligent Programming Charge Power Supply for All Types of Vehicles, Cars, Trucks, Boats, Tractors, Buses
• Features automatic detection, charging, showroom mode, regulated power supply programming, and automatic faulty battery repair modes;

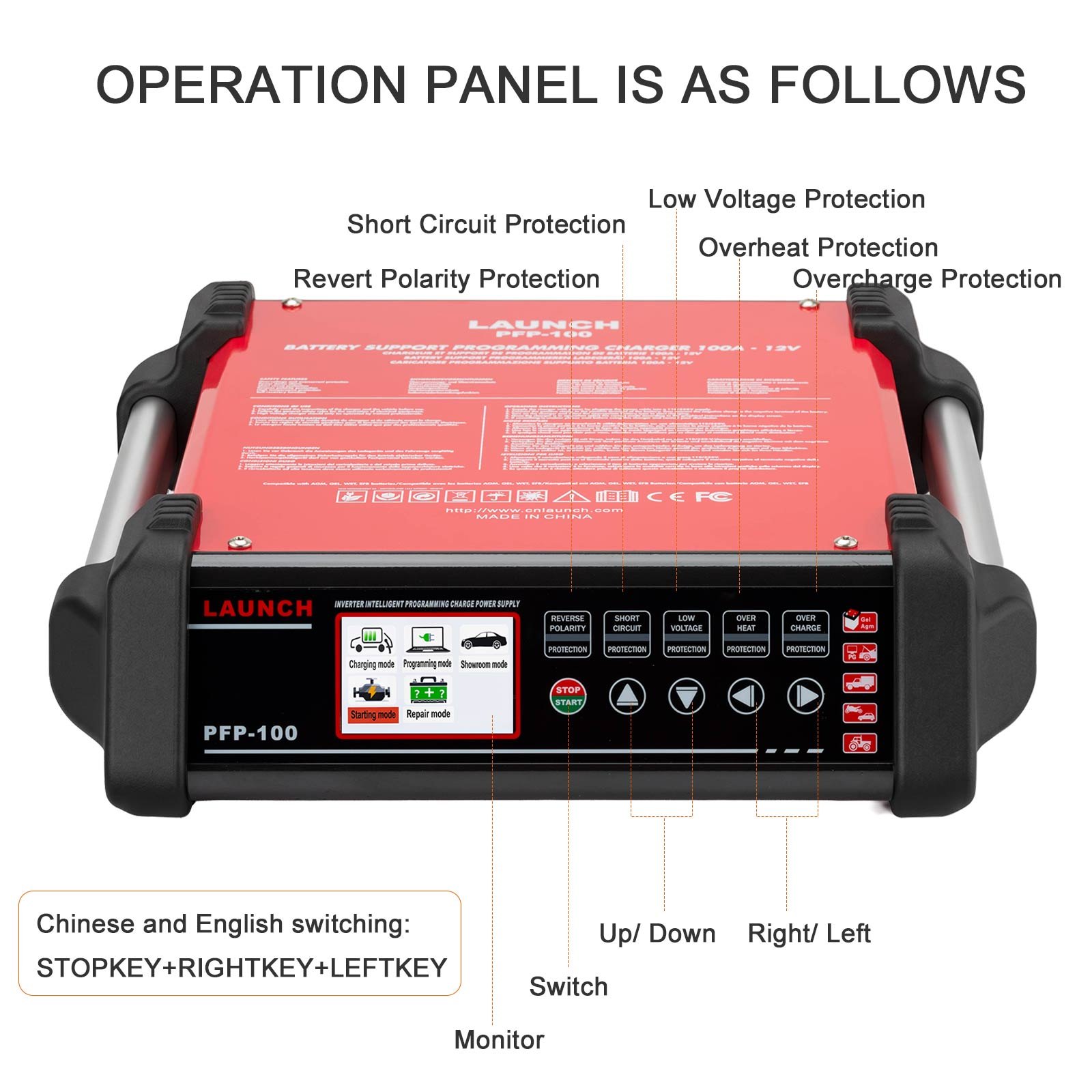

• Includes battery connection alarm, overload, overheat, overcharge, short circuit, and reverse polarity protection functions;
• Spark-free operation, compatible with dedicated charging curves for all battery technologies;
• Adjustable programming voltage (12V~14.8V) for different vehicle models;
• Overvoltage, overcurrent, short circuit, reverse polarity protection, and high temperature alarm during charging;
• Automatic battery repair function allows for detection, charging, and repair of different types of batteries, suitable for advanced charging equipment in auto repair shops, 4S stores, and repair workshops;

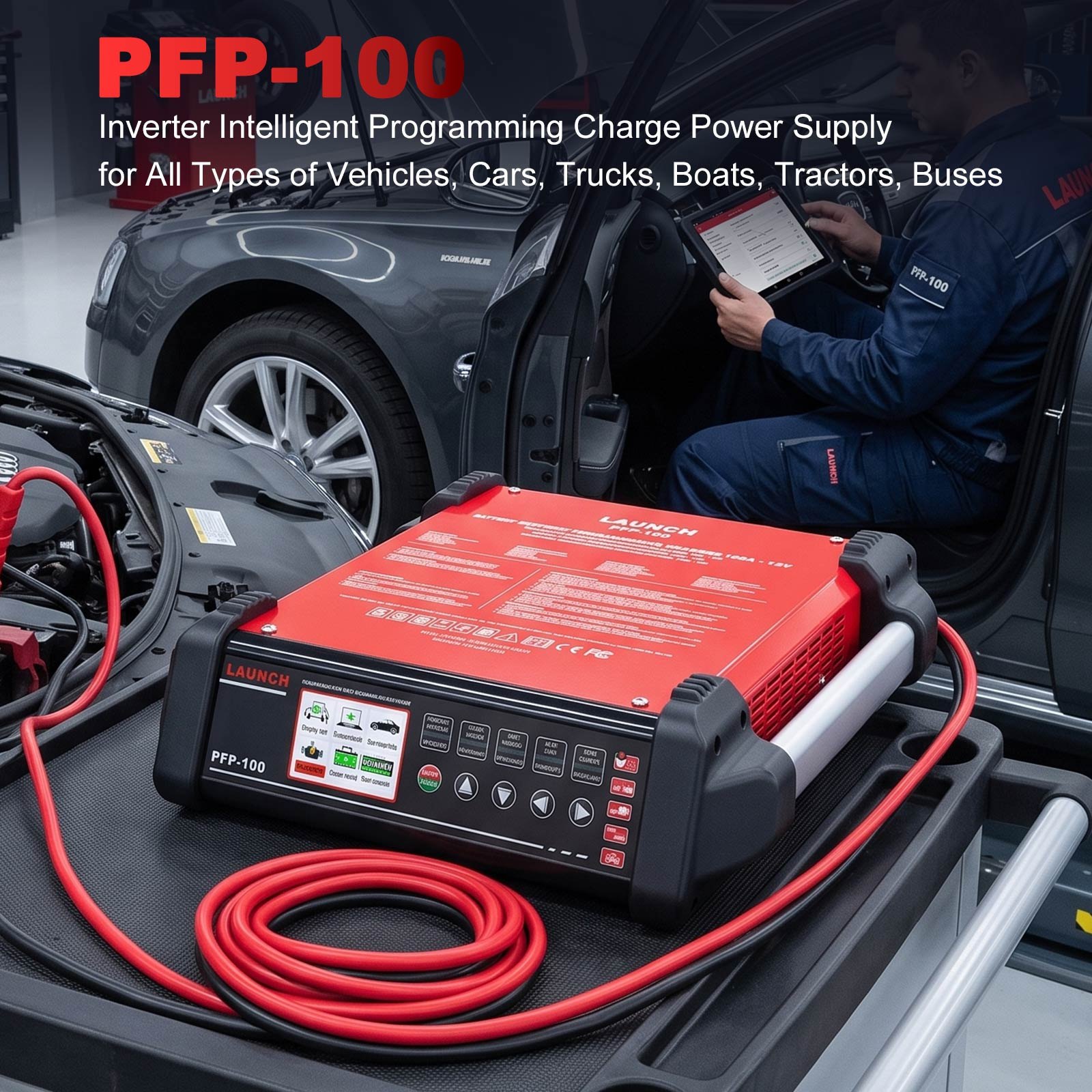

• Can be used during static vehicle maintenance, testing, and electronic control system programming; prevents damage to vehicle control components and data loss due to low battery power during vehicle programming or other testing.
• Intelligent lithium battery adapter, supporting flexible voltage and current adjustment for different vehicle models, adapting to the needs of various lithium battery brands, offering stronger compatibility and more efficient charging.
• Innovative voltage and current stabilization technology, spark-free technology, intelligently shielding against current and voltage surges.
• Features multiple operating modes including charging, showroom operation, voltage regulator programming, faulty battery repair, and vehicle starting.
• Equipped with protection functions such as no-battery alarm, overload, overheating, overcharge, short circuit, and reverse polarity protection.
• Unique 10-segment intelligent charging technology.
• High output current. Stable output 1~150A, max 150A.
• High efficiency, low heat generation, and high energy conversion efficiency.

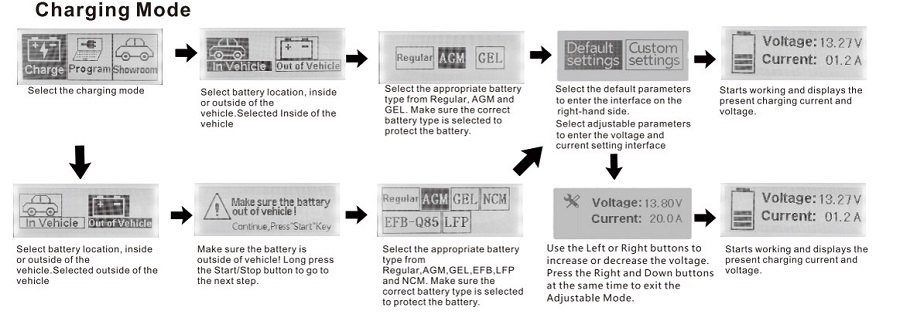

• For charging the battery under normal conditions. lf the battery has been left idle for a long time or has suffered a discharge deeply, it may be necessary to forced start and recovery. lt is necessary to make different selections as to whether the battery is inside or outside the vehicle and the machine will process the selection differently. The next step is to select the type of battery in order to carry out different charging voltages and currents. A proper and correct selection will allow the charger to better charge the battery and protect it.

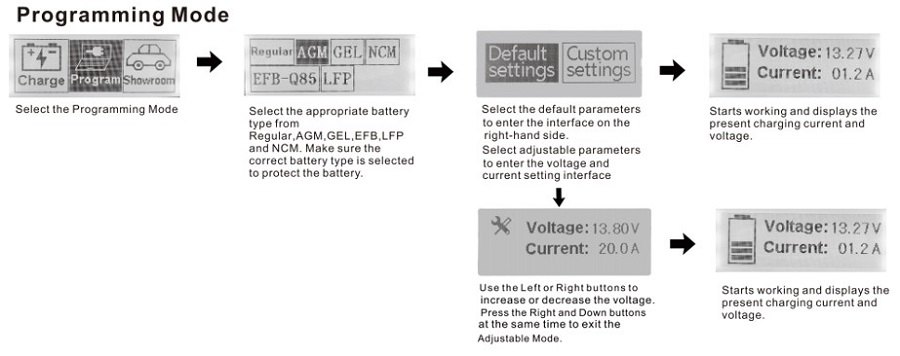

• lt provides a stable voltage to the vehicle electrical system to support the reprogramming/reflashing of the ECU. The battery needs to be charged to full capacity level first to avoid voltage instability due to charging. The reprogramming/reflashing voltage can be adjusted as required. Please operate correctly and adjust to the appropriate voltage. A stable voltage source will enable the ECU system to be successfully reprogrammed and reflashed.

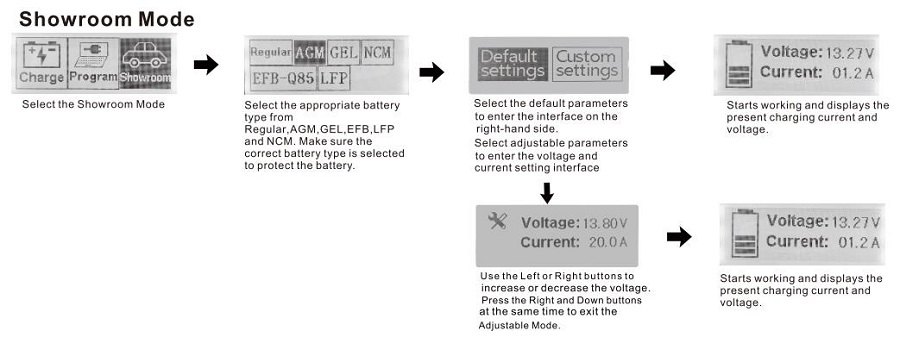

• Long-term parked showroom vehicles can easily become unusable due to low battery power, resulting in serious battery loss and damage. This showroom mode will continually charge the battery as needed, with a small current to ensure that the battery is always fully charged and protected.
• This Mode will be based on the charger to make a judgment on the status of the battery, and then prompt whether to repair. lf you need to repair please manually select repair, and follow the instructions to repair.
• It has a whole vehicle activation function. When the power supply detects that the battery voltage is too low, the power supply cannot start normally. It can easily deal with the battery depletion, quickly replenish the power, and restore the vehicle's power.
