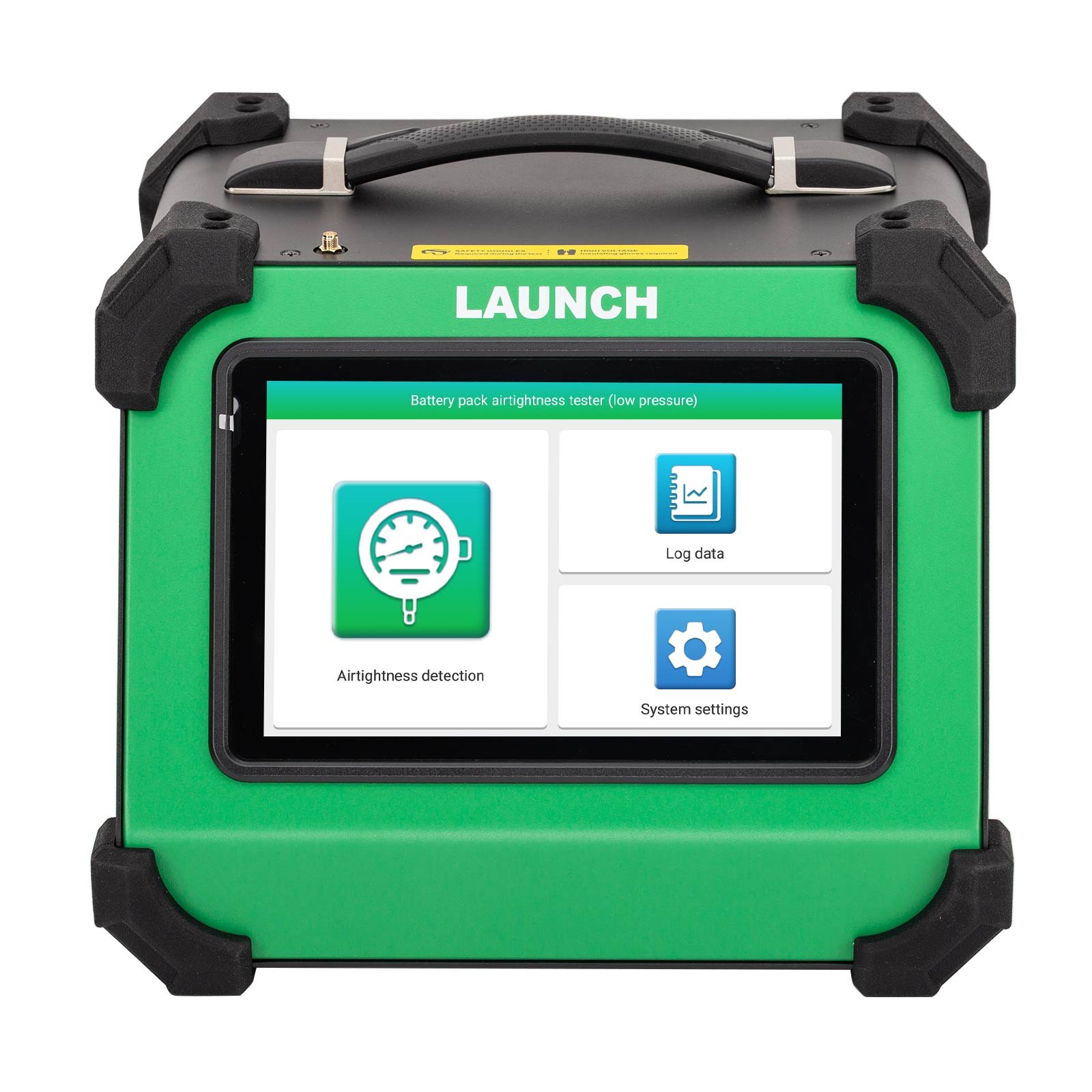

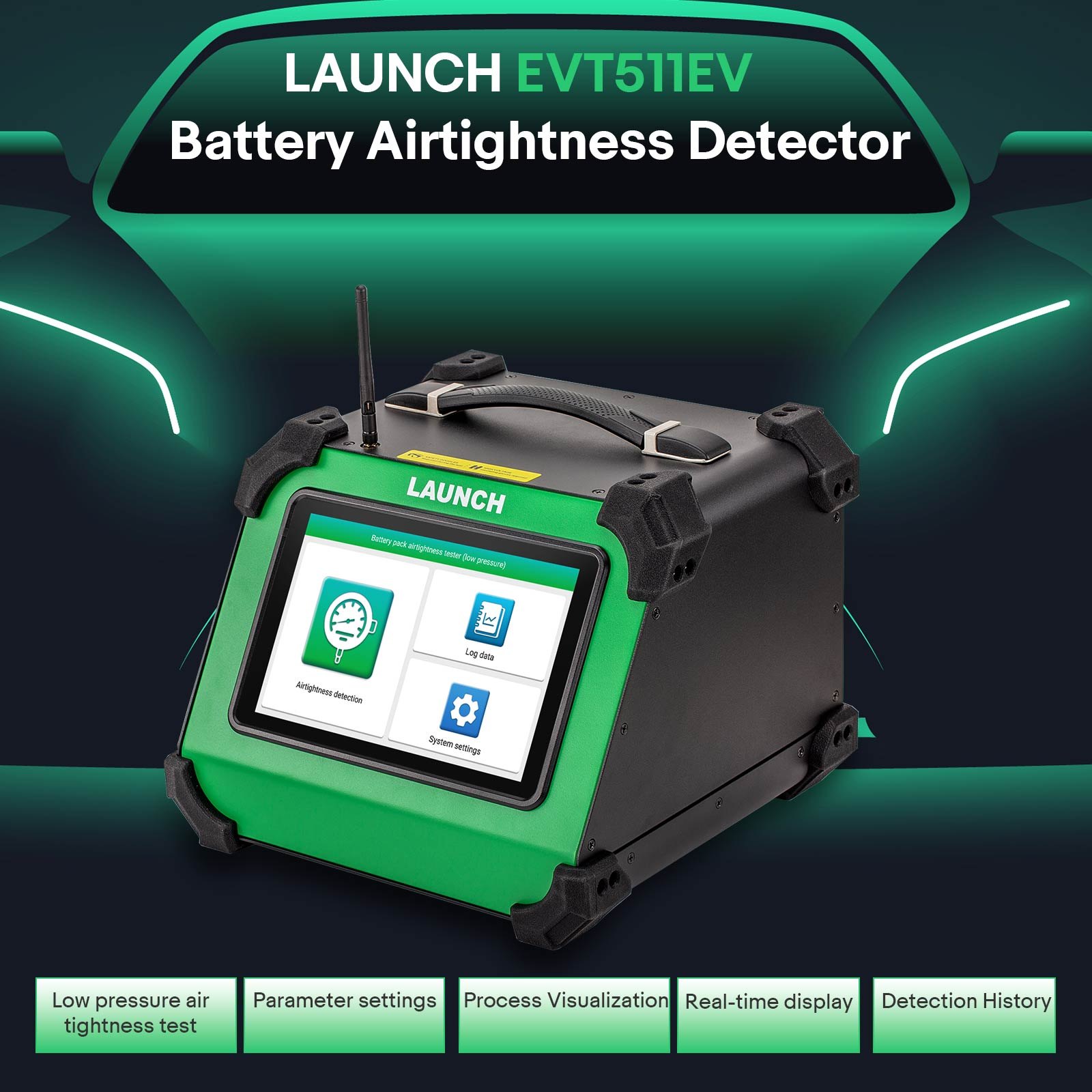

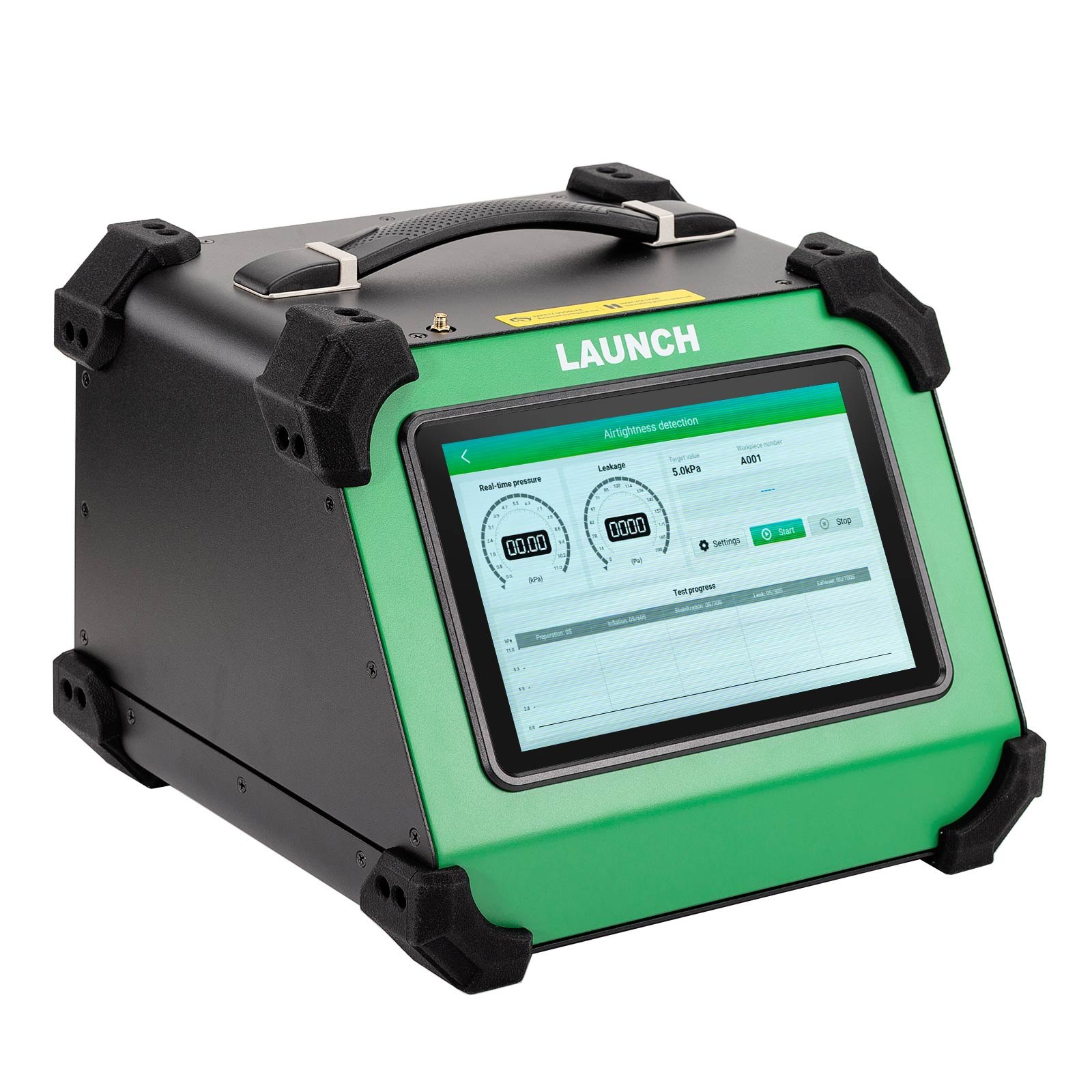

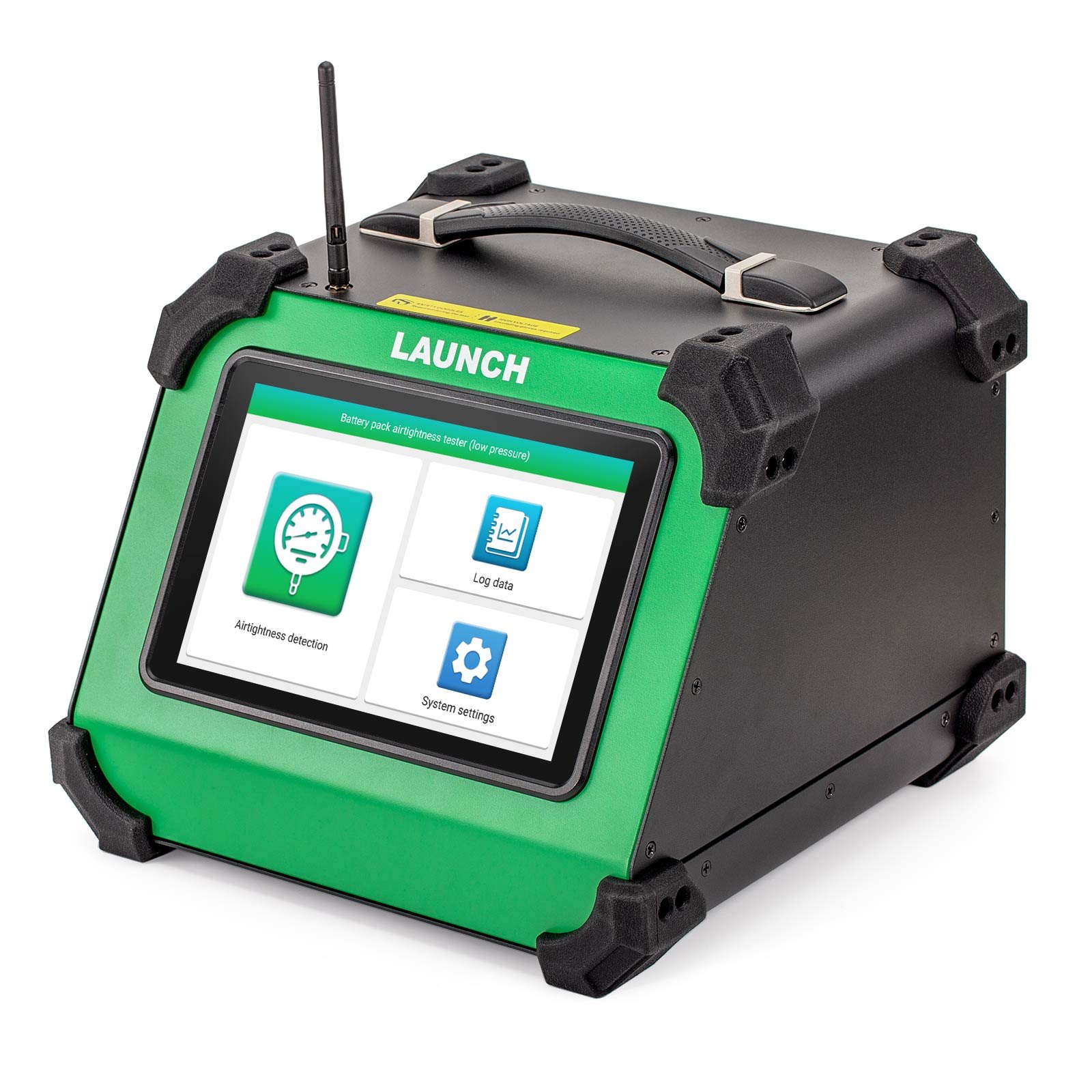

LAUNCH EVT511 EV Battery Airtightness Detector

An airtightness detector for EV battery packs. Compressed air pressurises the pack cavity and a high sensitivity sensor watches for pressure loss, which tells you whether the seal is sound.

This test belongs at the end of any battery or module repair, before the pack goes back in. A pack that is not sealed will take water on a wet road, and water in a pack means shorted circuits.

Capability

• Presets battery pack parameters
• Compressed air pressure test of the pack cavity
• High sensitivity sensor reads pressure change to judge sealing

Specifications

• Power: 20W (Max)
• Test pressure range: 0~30Kpa
• Sensor resolution: 1Pa
• Test accuracy: ±5pa

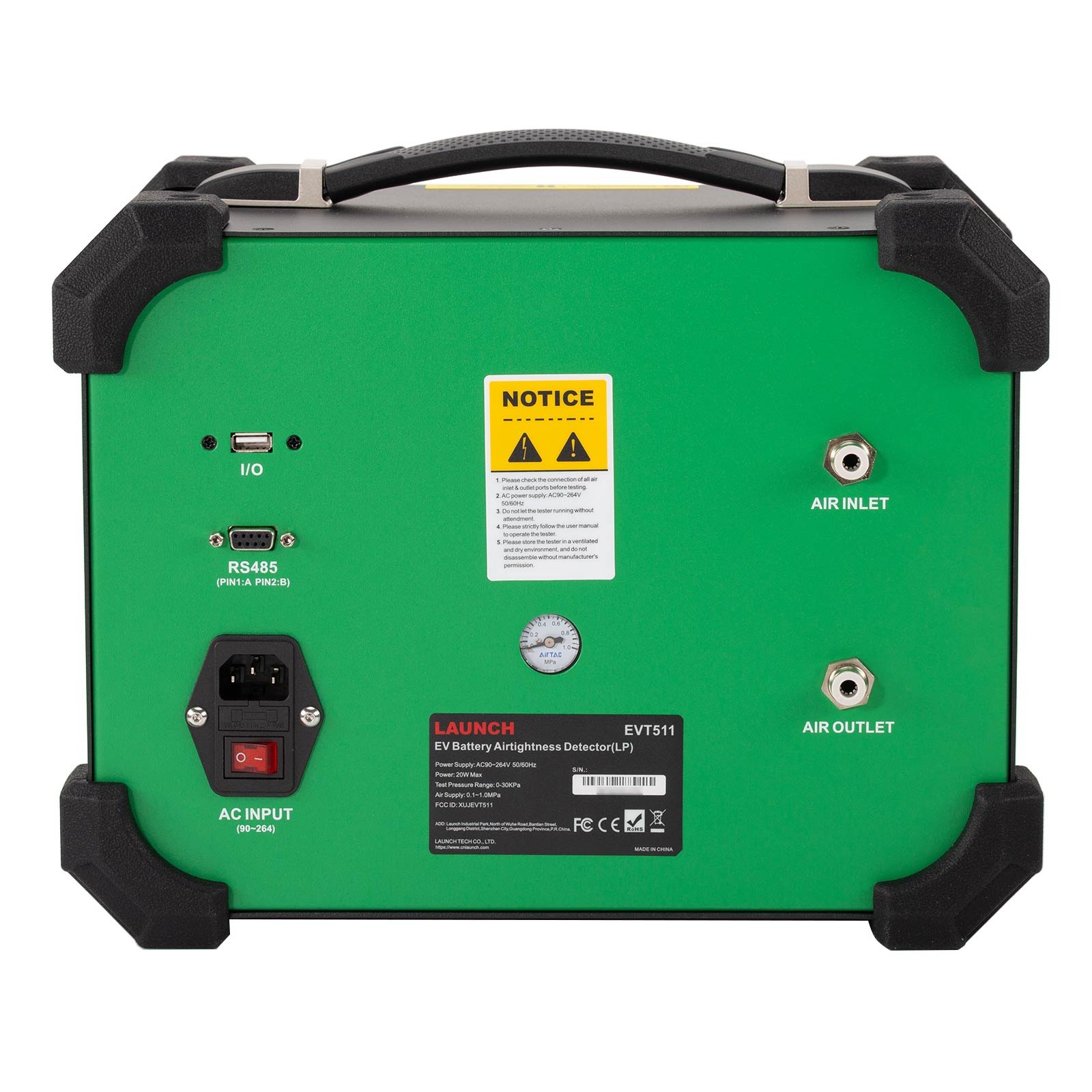

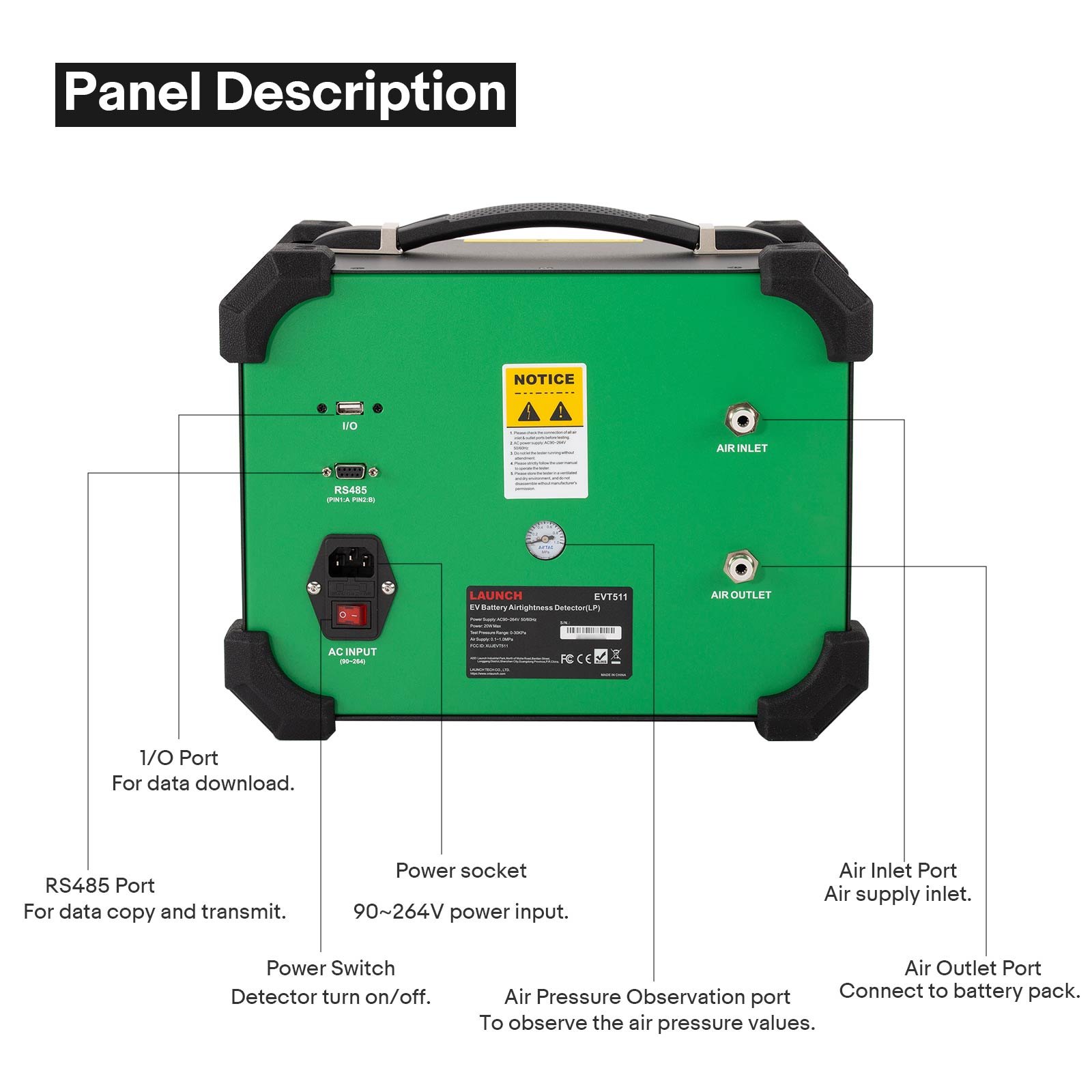

• Communication interface: RS485
• Display: 10.1'' LCD screen
• Power supply: AC90~264V, 50Hz/60Hz
• Air source requirements: 0.1~1.0 Mpa dry compressed air
• Intake port and test port: φ6mm and φ6mm
• Working temperature and humidity: -10~55°C, 10%~90% @25°C

In the box

• 1 x Launch EVT511 airtightness detector
