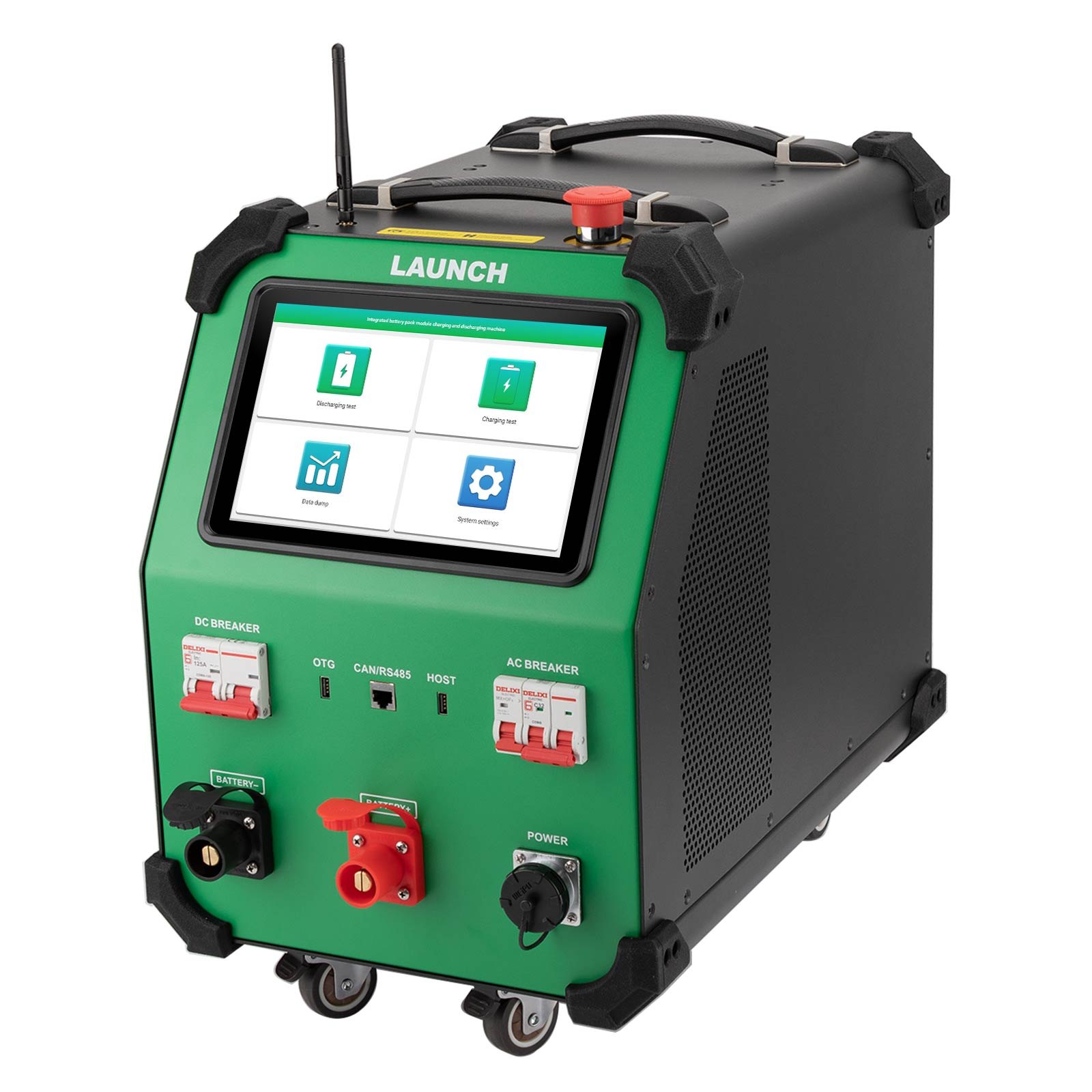

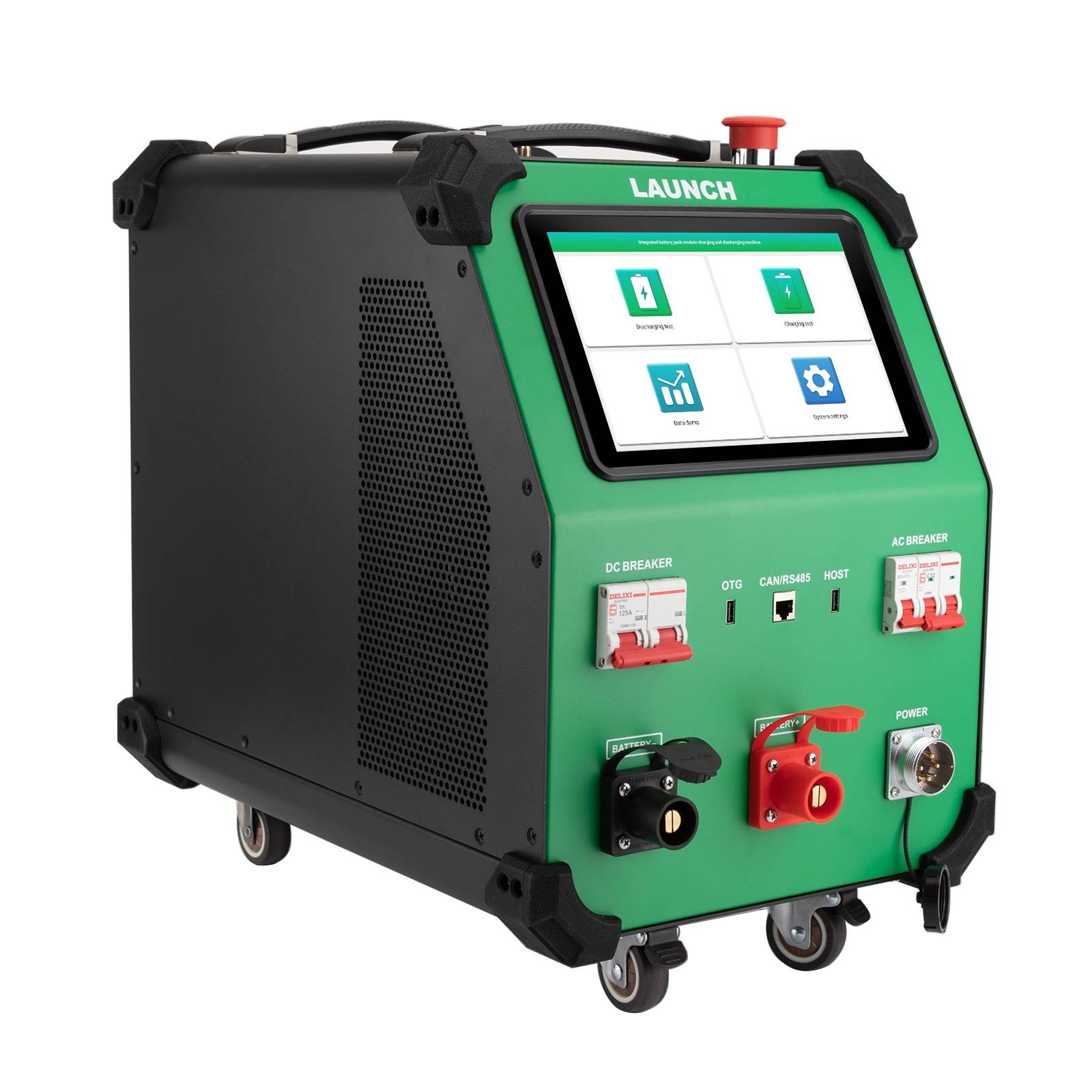

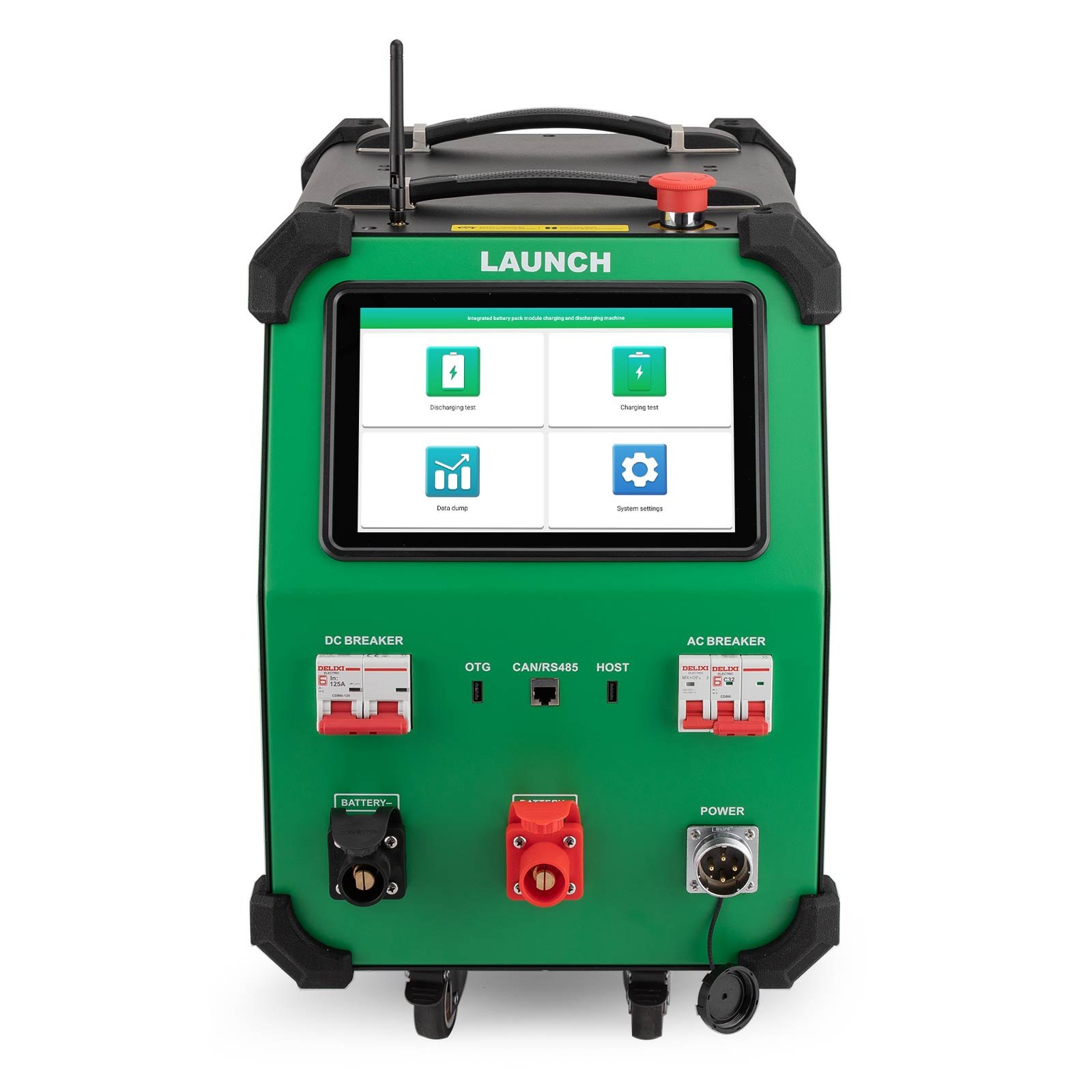

LAUNCH EVP711 EV Battery Pack Module Charging and Discharging Device

The LAUNCH EVP711 EV Battery Pack Module Charging and Discharging Device maintains lithium-ion and nickel-metal hydride batteries, with a focus on lithium batteries. It measures SOC and SOH over a wide voltage range with multiple charge and discharge modes. Protection against overvoltage, overcurrent, and overheating is built in. Real-time monitoring and adjustable protection thresholds protect battery life. Part number: Y-HKSO800.

How it is used

When a detection tool flags an issue inside a battery pack, technicians usually replace the full module, because single-cell repair is slow and difficult. After replacement, the EVP711 balances the module, and once voltages are consistent the module goes back into the vehicle. Where a balancer alone would take a long time, charge the module with the EVP711 first until voltages are close, then finish with an equalizer such as the EVB624 or ELB300. Combining both tools raises repair efficiency.

Features

• Charging and discharging maintenance for all common lithium-ion and nickel-hydrogen batteries on the market
• Charge and discharge testing that avoids interference with the BMS system
• Custom charging and discharging rules
• Wide voltage design with multiple charging and discharging modes for the voltage and current needs of different pack modules
• Warning alerts for reverse polarity, high temperature, overcurrent, fan malfunction, high voltage, and excessive current

Specifications

• Power input: AC90-264V
• Group terminal voltage accuracy: within plus or minus (0.5 percent FS plus 0.3V), resolution 0.01V
• Single cell voltage accuracy: within plus or minus (0.1 percent FS plus 5mV), resolution 0.01V
• Test current accuracy: within plus or minus (1 percent FS plus 0.2A), resolution 0.1A
• Charging and discharging voltage range: DC 2 to 400V
• Charging current range: 0 to 100A, maximum power 4.4kw
• Discharging current range: 0 to 100A, maximum power 7.2kw
• Data communication: RS485
• Display: 10.1 inch LCD
• Charging control: constant current charging plus constant voltage charging
• Discharging mode: constant current discharging
• Dimensions: 551 by 349 by 598mm

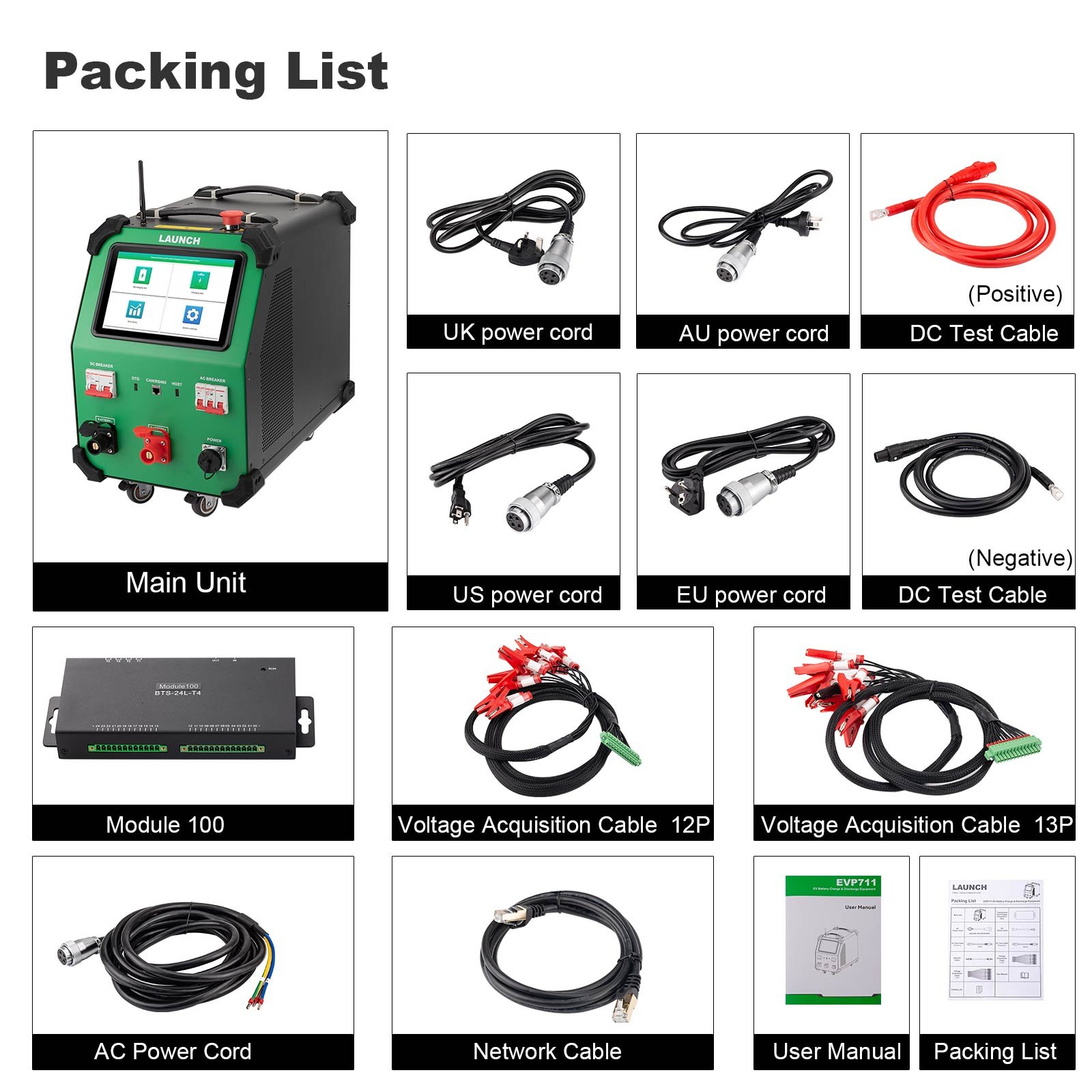

What is in the box

• 1pc main unit
• 1pc temperature and voltage acquisition box
• 1pc AC power cord, includes UK, US, EU, and AU ends
• 1pc AC power cord, single-phase three wire
• 1pc DC test cable, positive, red
• 1pc DC test cable, negative, black
• 1pc network cable
• 1pc voltage acquisition cable, 12P
• 1pc voltage acquisition cable, 13P
• 1pc user manual
• 1pc packing list
