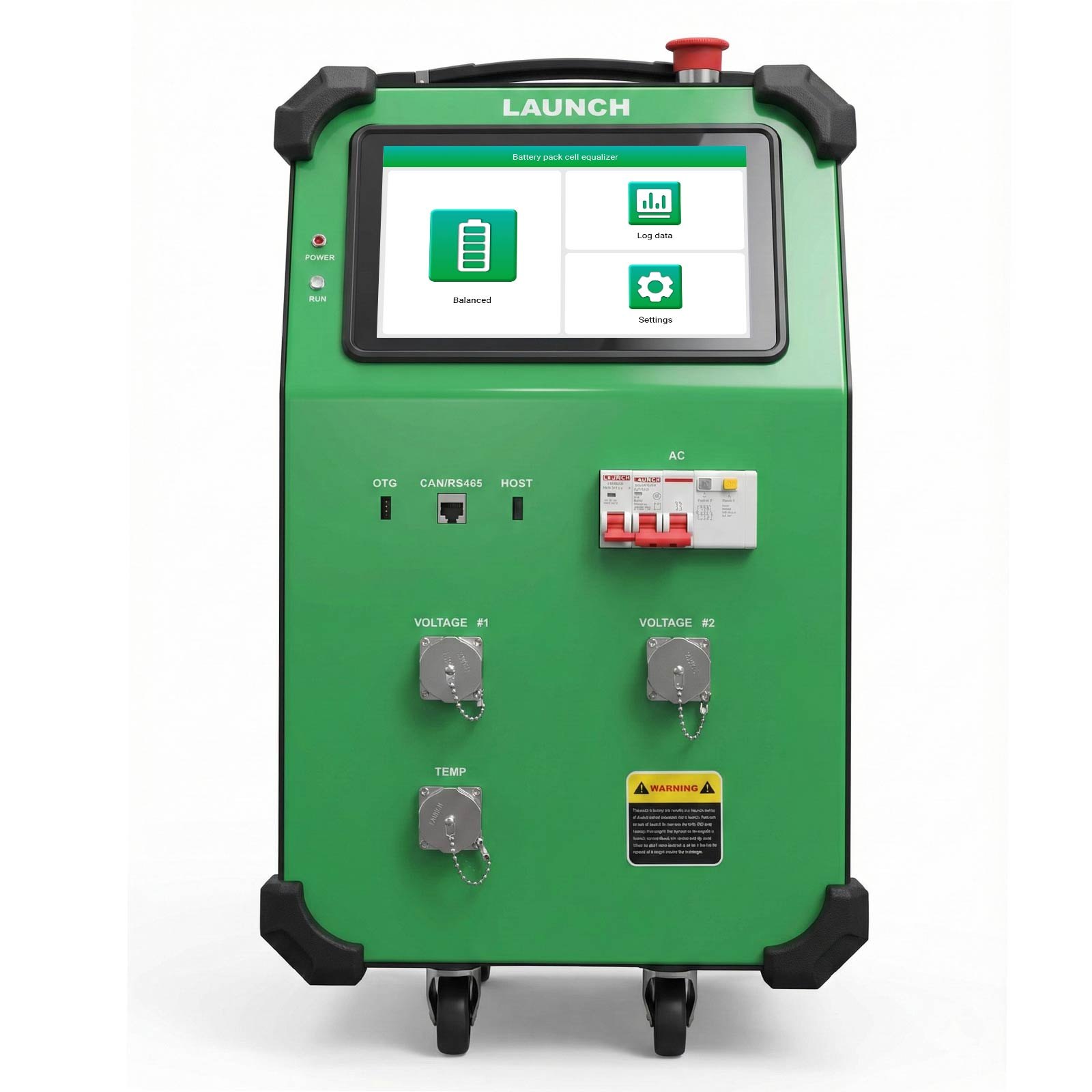

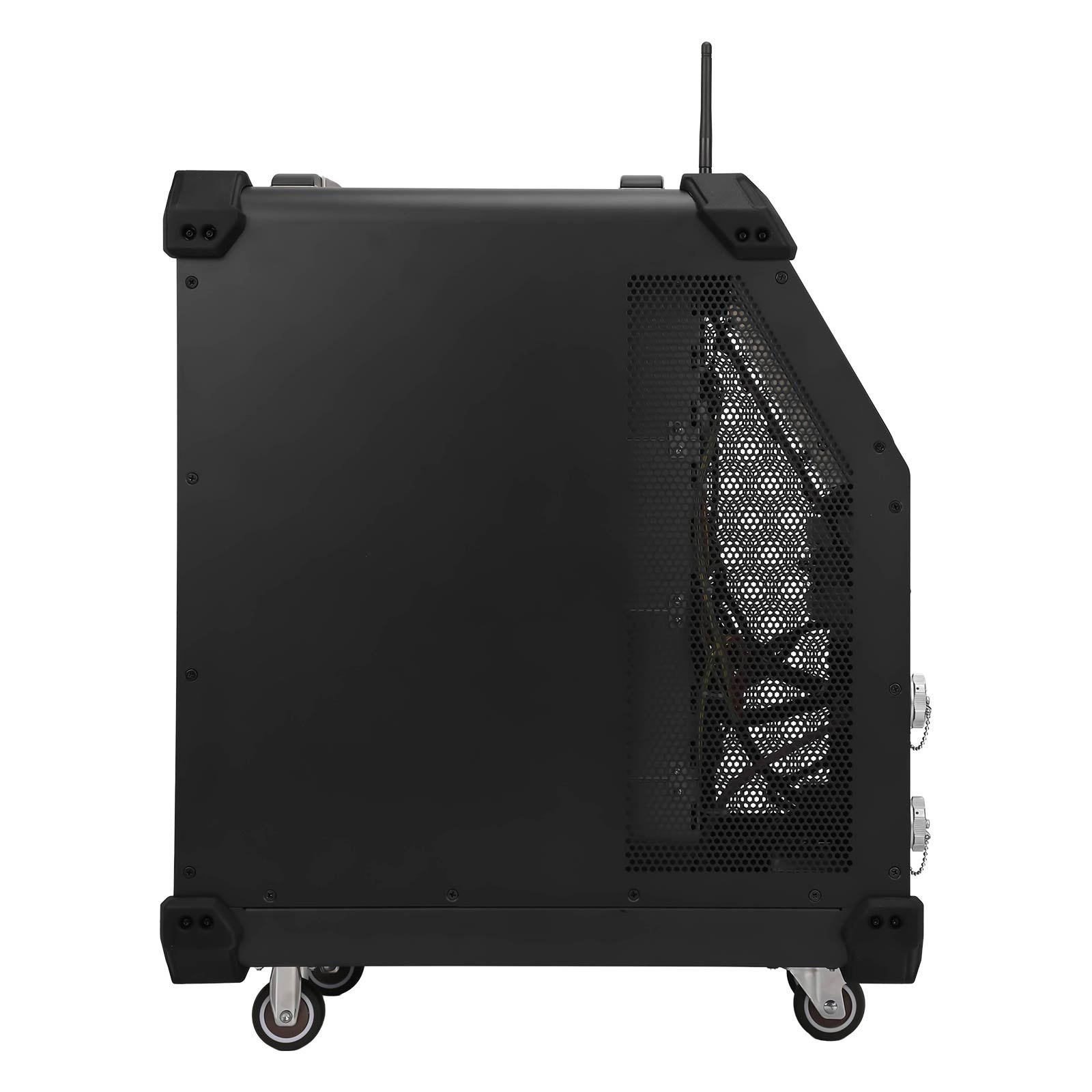

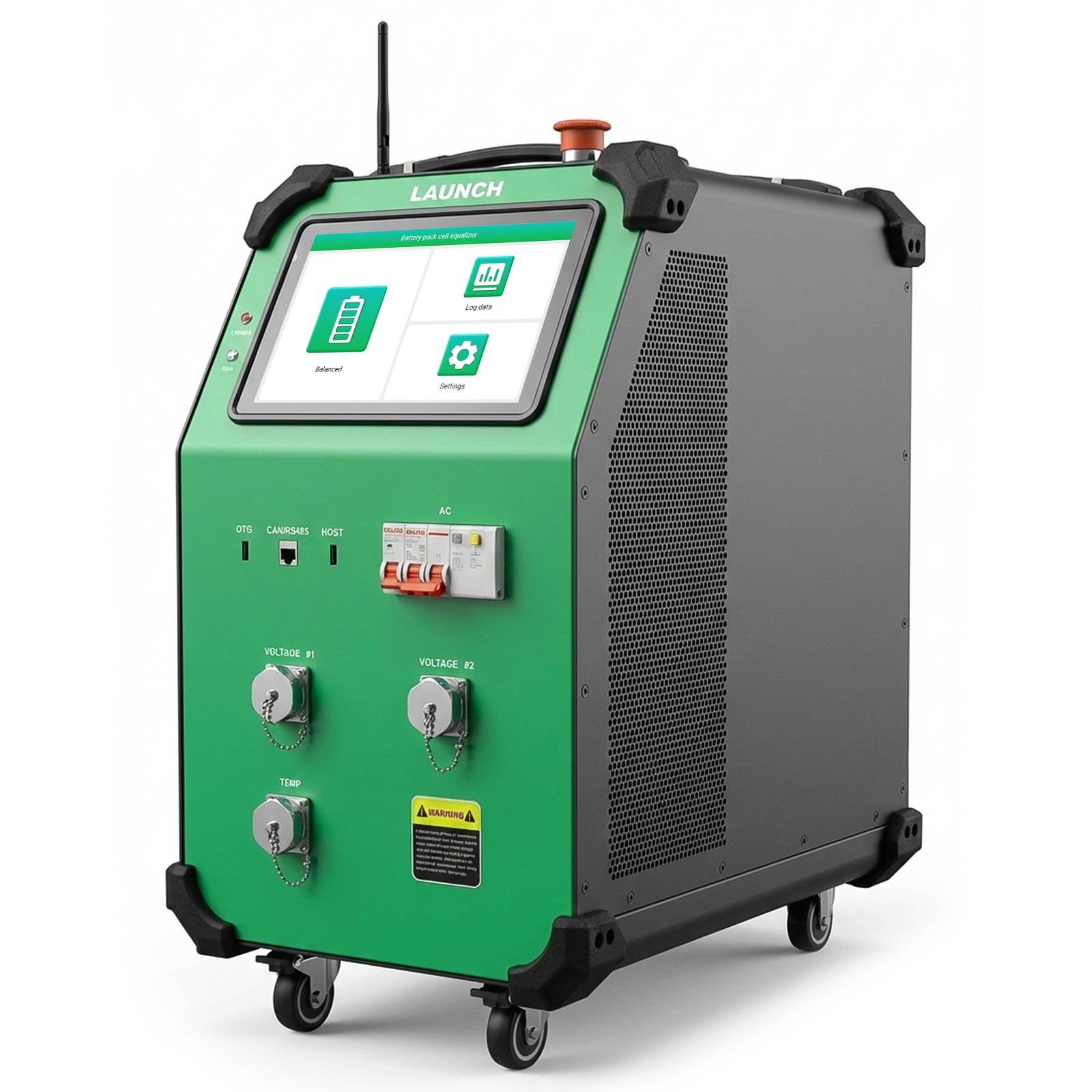

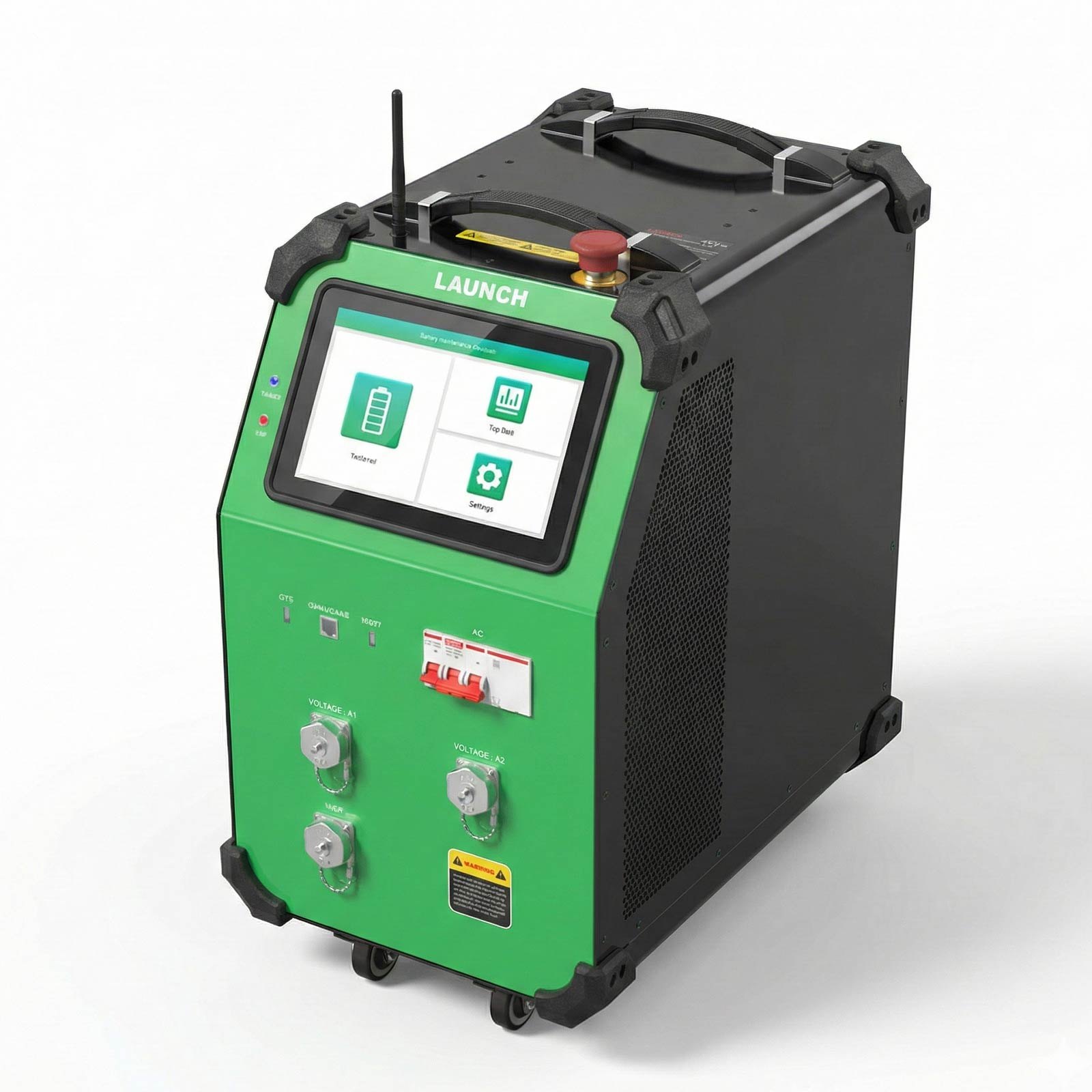

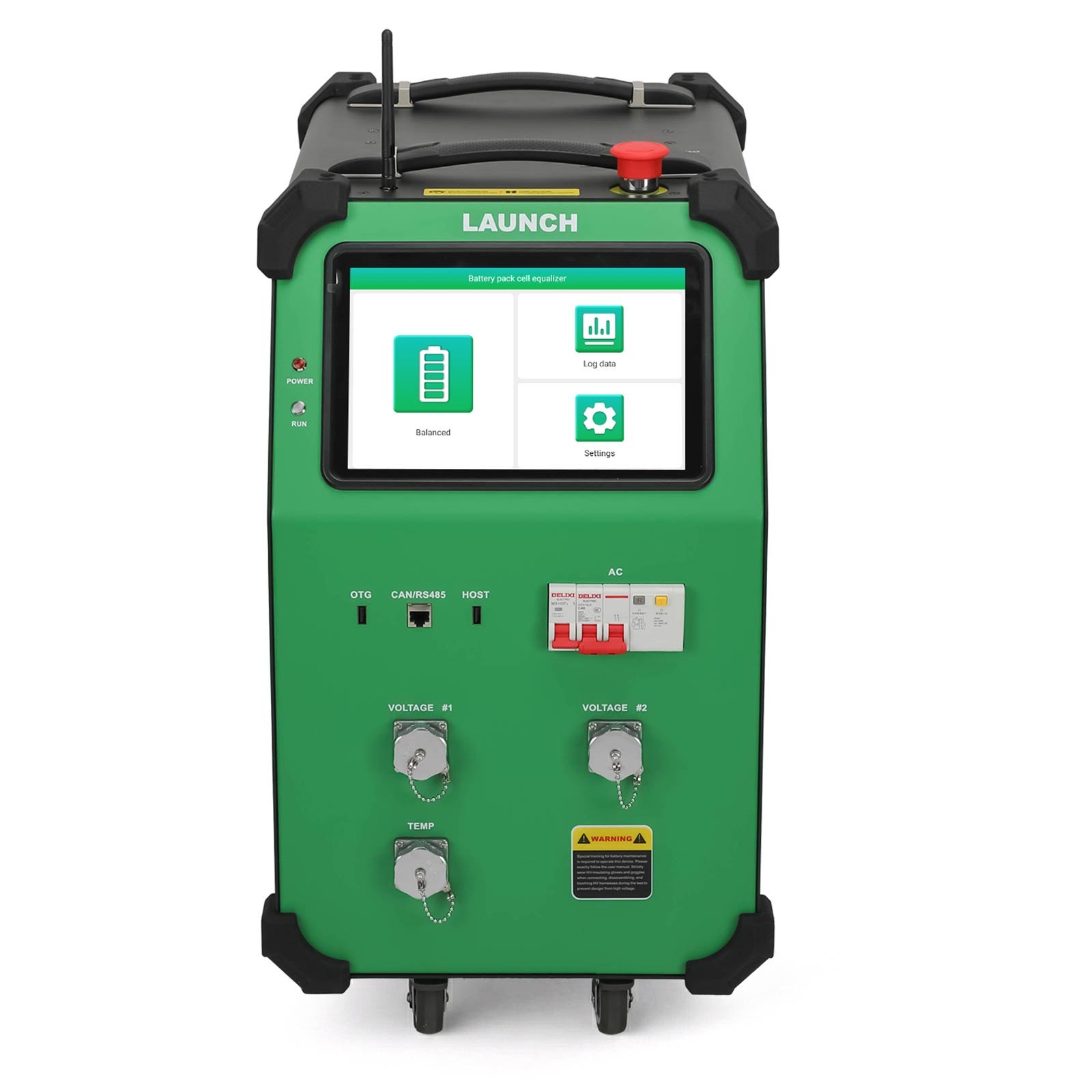

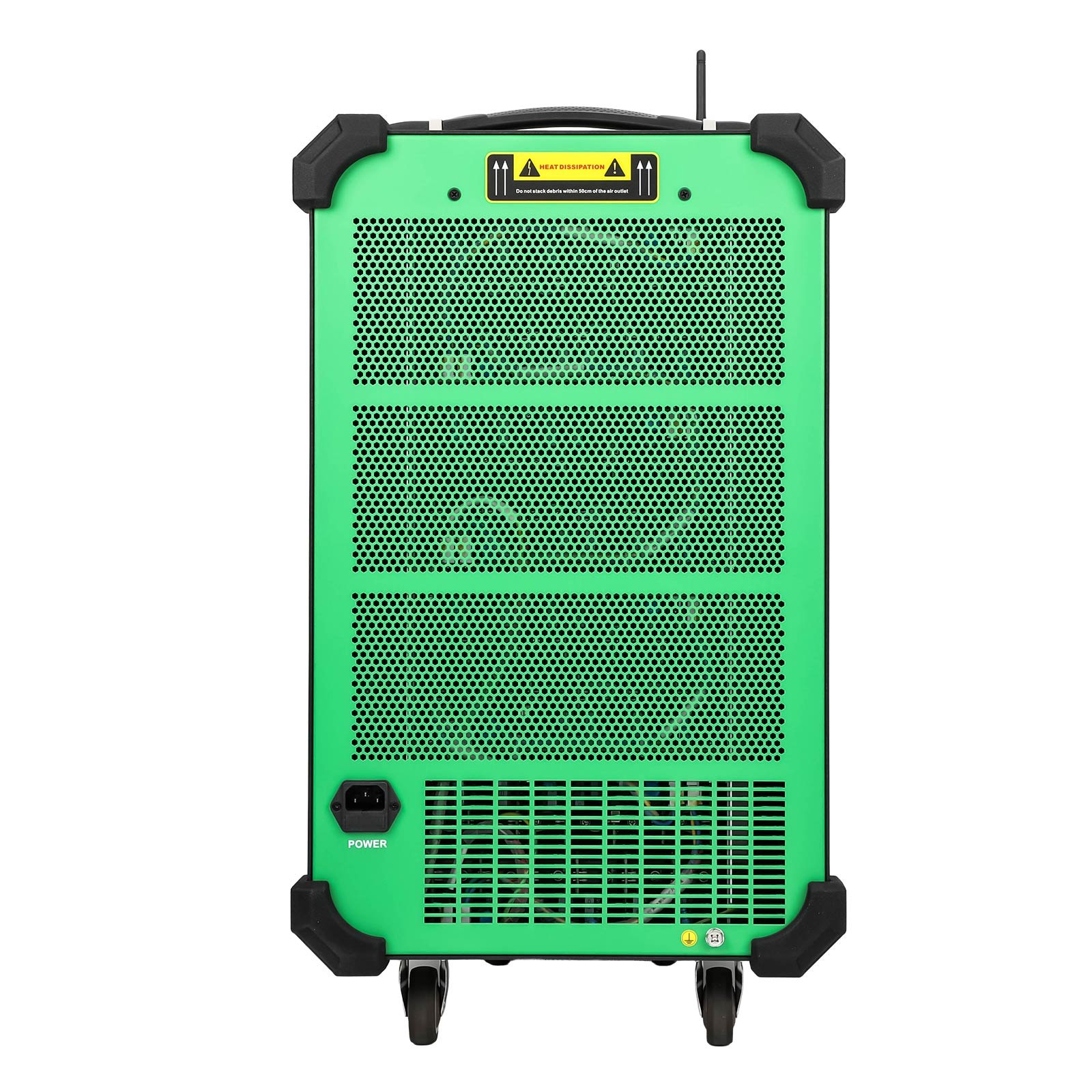

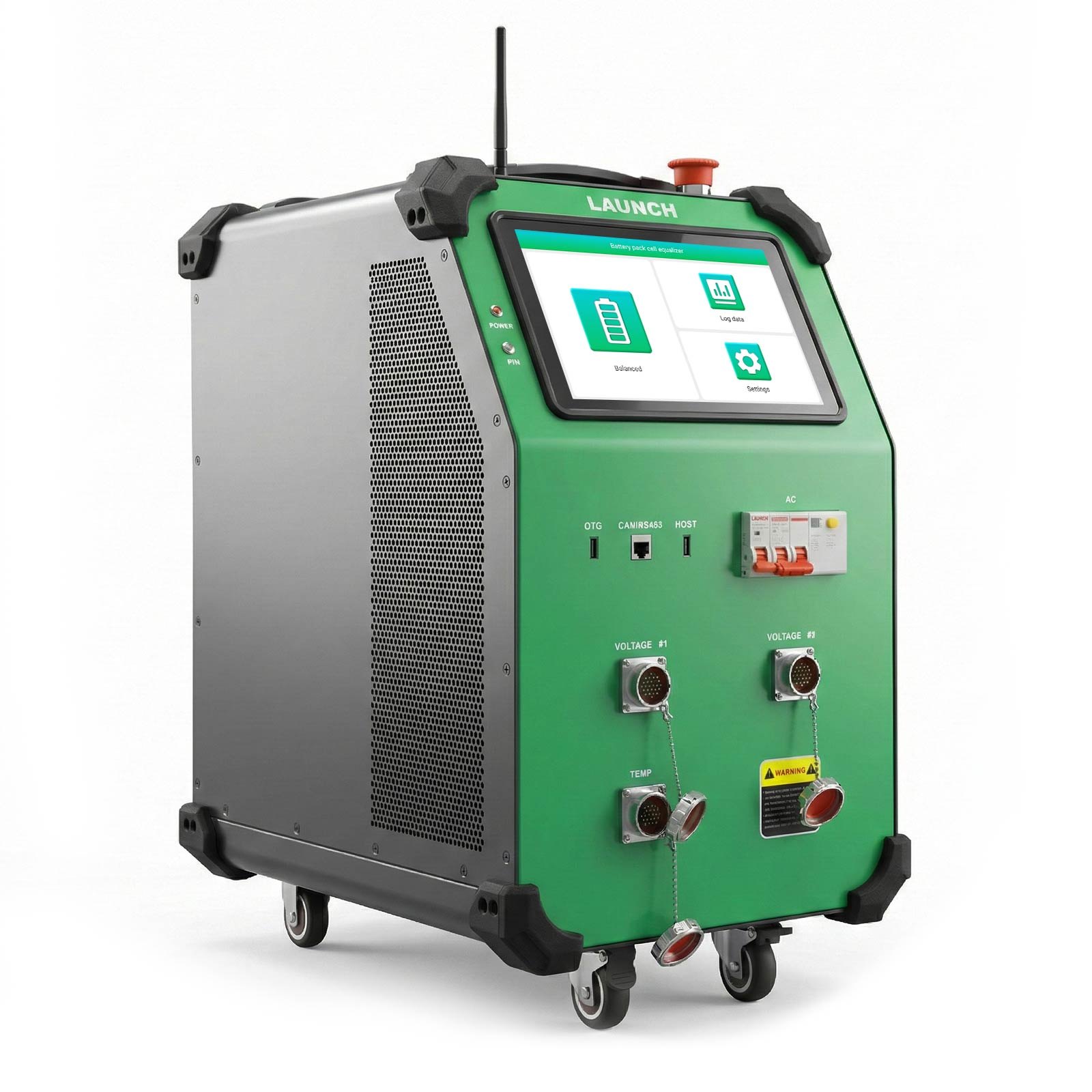

LAUNCH EVB648 EV Battery Pack Cell Equalizer (48 Channels)

The LAUNCH EVB648 EV Battery Pack Cell Equalizer addresses voltage inconsistencies among battery modules and cells, using lithium battery charge and discharge characteristics. It lowers battery pack repair cost and shortens maintenance time for EV detection and diagnostics. Part number: Y-HKSO802.

Balancing

• 48 balancing channels with independent single-cell balancing design. Balances up to 48 battery cells at the same time
• Intelligent cell balancing for ternary lithium (NCM and NCA), lithium iron phosphate (LiFePO4), lithium manganese oxide (LMO), and lithium titanate (LTO)
• Balancing maintenance parameters can be set. Voltage ranges are preselected by battery type. Charging and discharging modes switch automatically
• High-precision single-cell voltage measurement for consistent pack performance and power output

Safety protections

• Overcurrent protection
• Output overcurrent protection
• Overvoltage protection
• Over-temperature protection

Logs and monitoring

• Compares pre-balancing and post-balancing differences, with balancing data export
• Real-time monitoring of single-cell voltages and balancing status

Specifications

• Power input: AC 90 to 264V
• Discharge and charge voltage range: 1.8 to 4.5V
• Voltage measurement accuracy: plus or minus (0.1 percent FS plus or minus 2mV)
• Discharge and charge current range: 0.1 to 5A
• Current measurement accuracy: plus or minus (1 percent FS plus or minus 0.05A)
• Discharge and charge power: 1200W maximum
• Voltage port: 26Pin times 2
• Temperature port: 24Pin
• Display: 10.1 inch TFT LCD, 1280 by 800
• PC data communication: TCP/IP and USB-Device
• Wireless communication: Wi-Fi
• Data storage: internal device storage or USB flash drive transfer
• Charge mode: constant current charging plus constant voltage charging
• Discharge mode: CC plus CA
• Working temperature: -5 to 45 degrees C
• Dimensions: 616.5 by 349.0 by 518.3mm

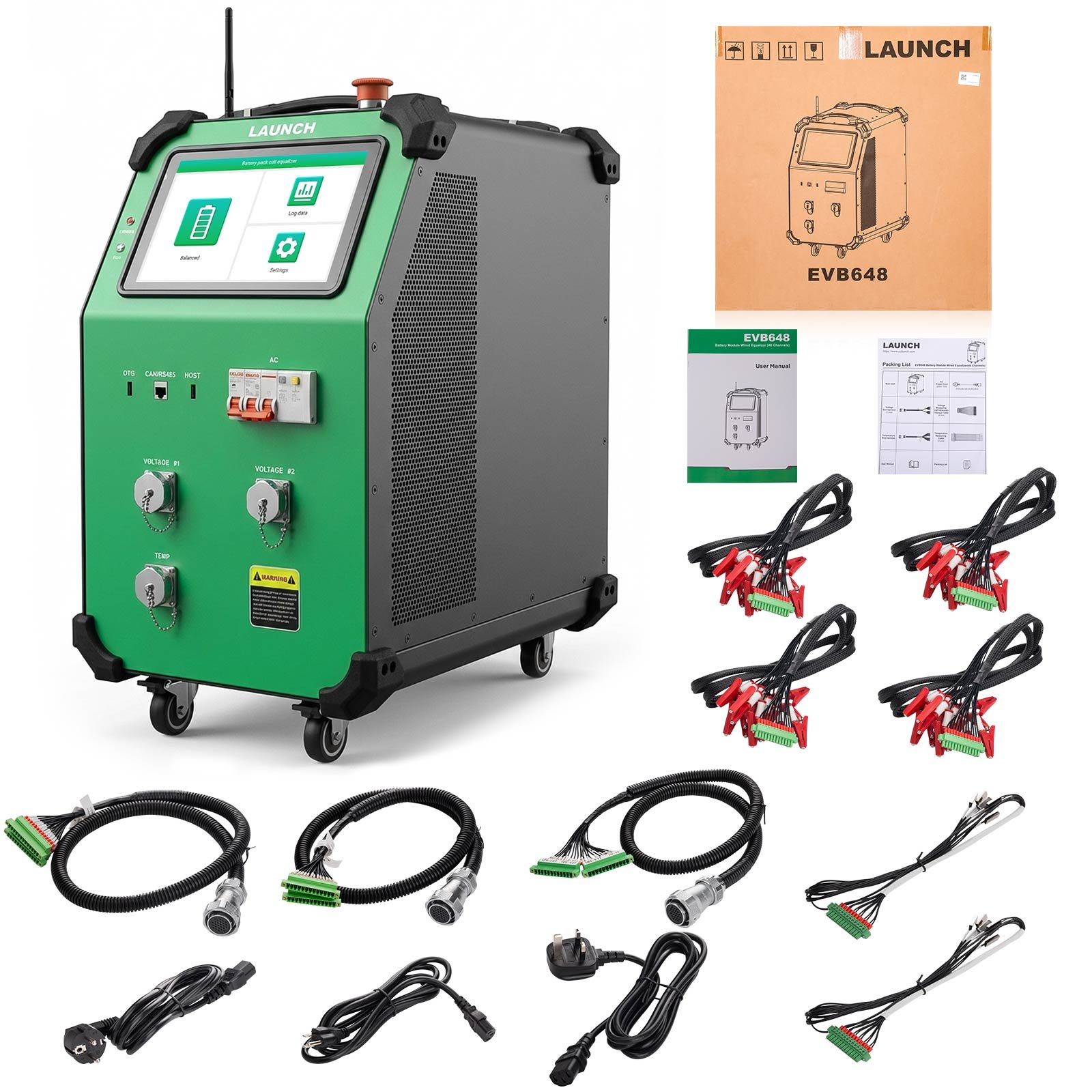

What is in the box

1pc LAUNCH EVB648 EV Battery Pack Cell Equalizer.
