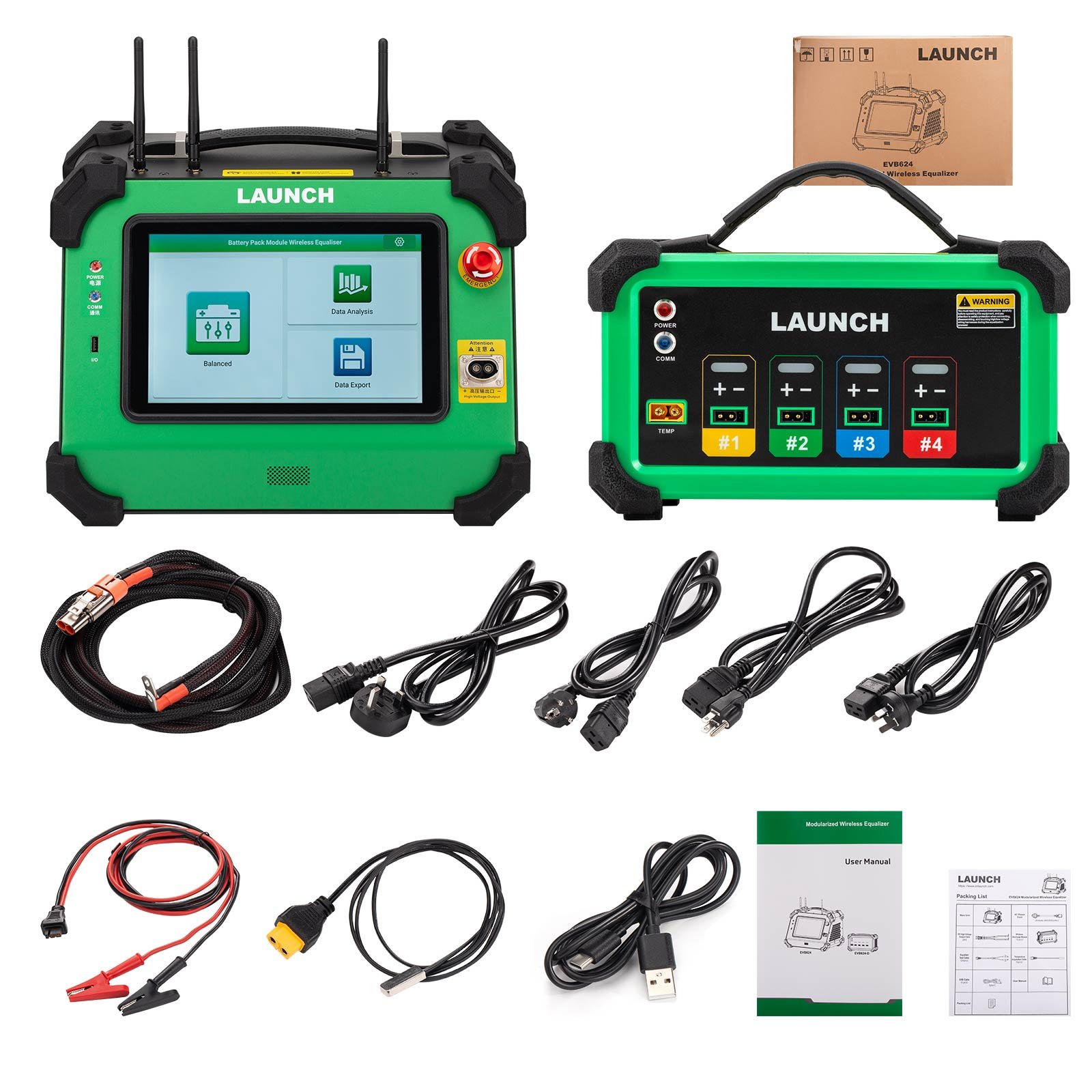

LAUNCH EVB624 EV Battery Pack Cell Wireless Equalizer (24 Channels)

$4,222.72

In stock, delivery 7 to 20 days

Free US shipping over $150
Secure checkout via Stripe
30 day returns, no restocking fee

Buying for the trade? Ask for a written quote on quantity.

Description

The LAUNCH EVB624 EV Battery Pack Cell Wireless Equalizer balances the internal cells of battery packs. Where voltage variance or inconsistent cell voltages appear, the EVB624 evens them out. After cell replacement inside a battery module, it balances the cells to uniform voltage. Part number: Y-HKSO799.

Features

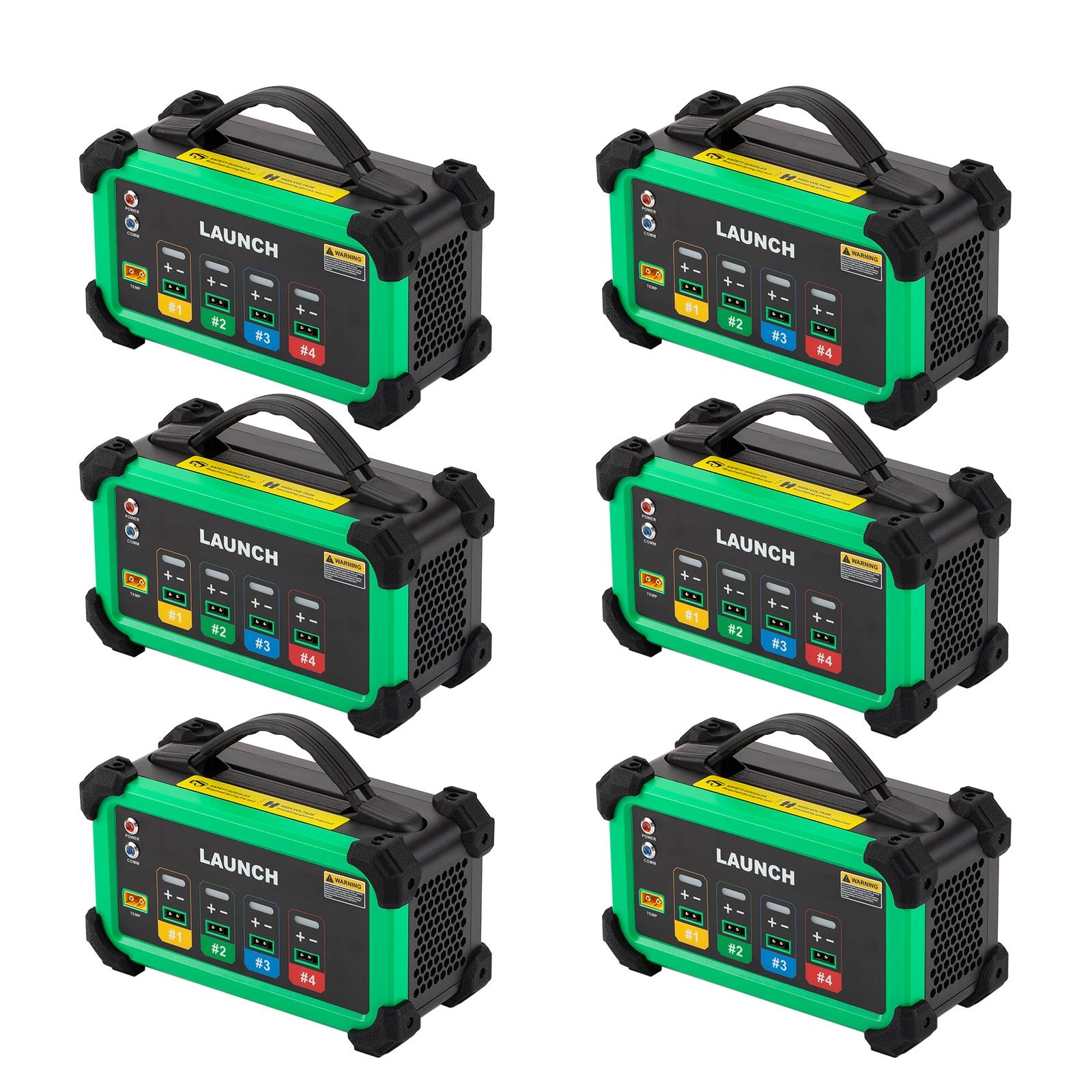

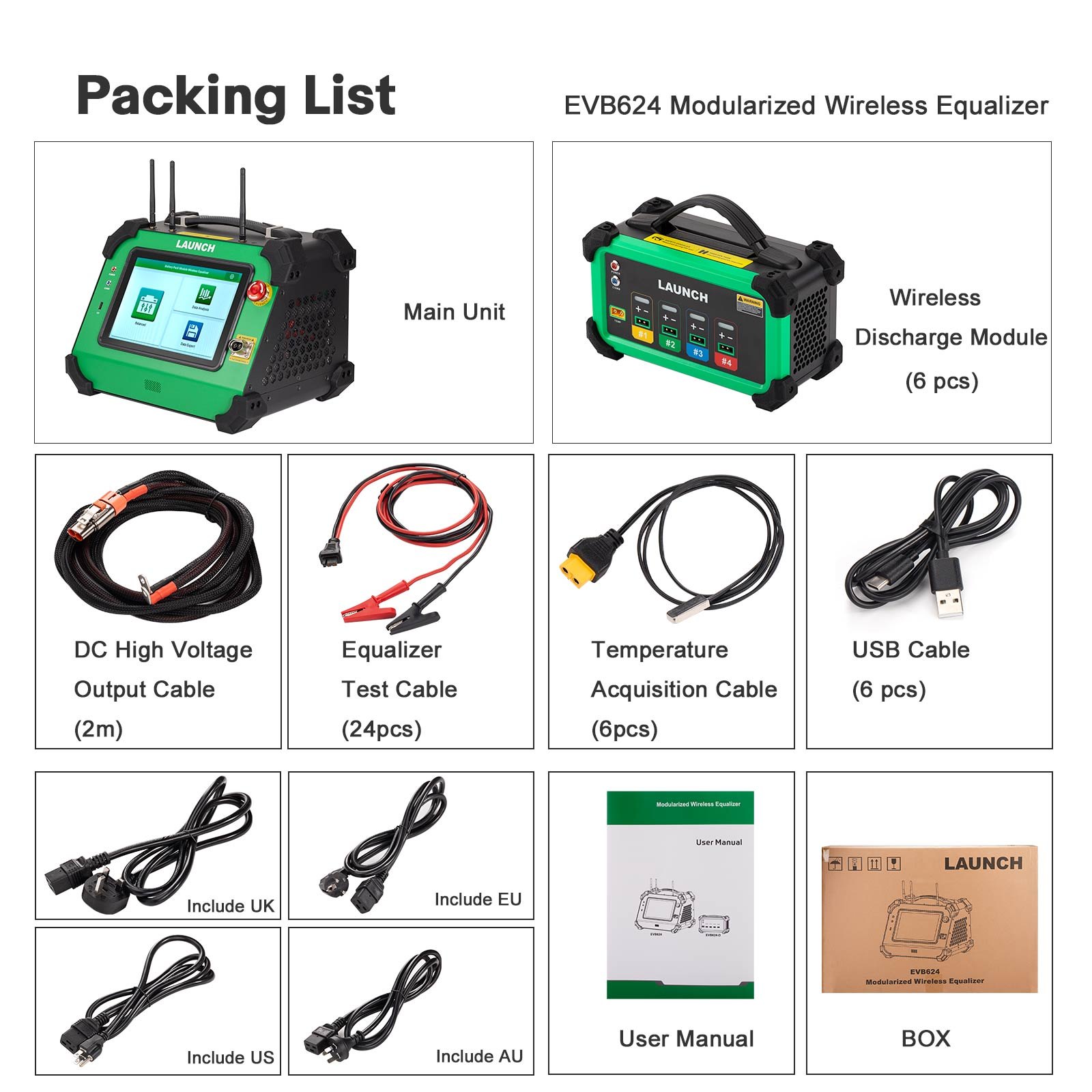

Charging unit plus 6 discharging units
Separate charging and discharging design with freely combinable balancer channels for up to 24 battery discharge unit covers 4 channels
Wireless networking communication for channel quantity expansion
Compatible with all common lithium battery types on the market
Two modes: charge and discharge balance, and discharge balance
High-precision voltage acquisition module for safe precise balancing control
Each battery cell wired separately and independently against connection errors
Safety protections: overvoltage, undervoltage, overcurrent, output short circuit, reverse connection, overtemperature, and others

Specifications

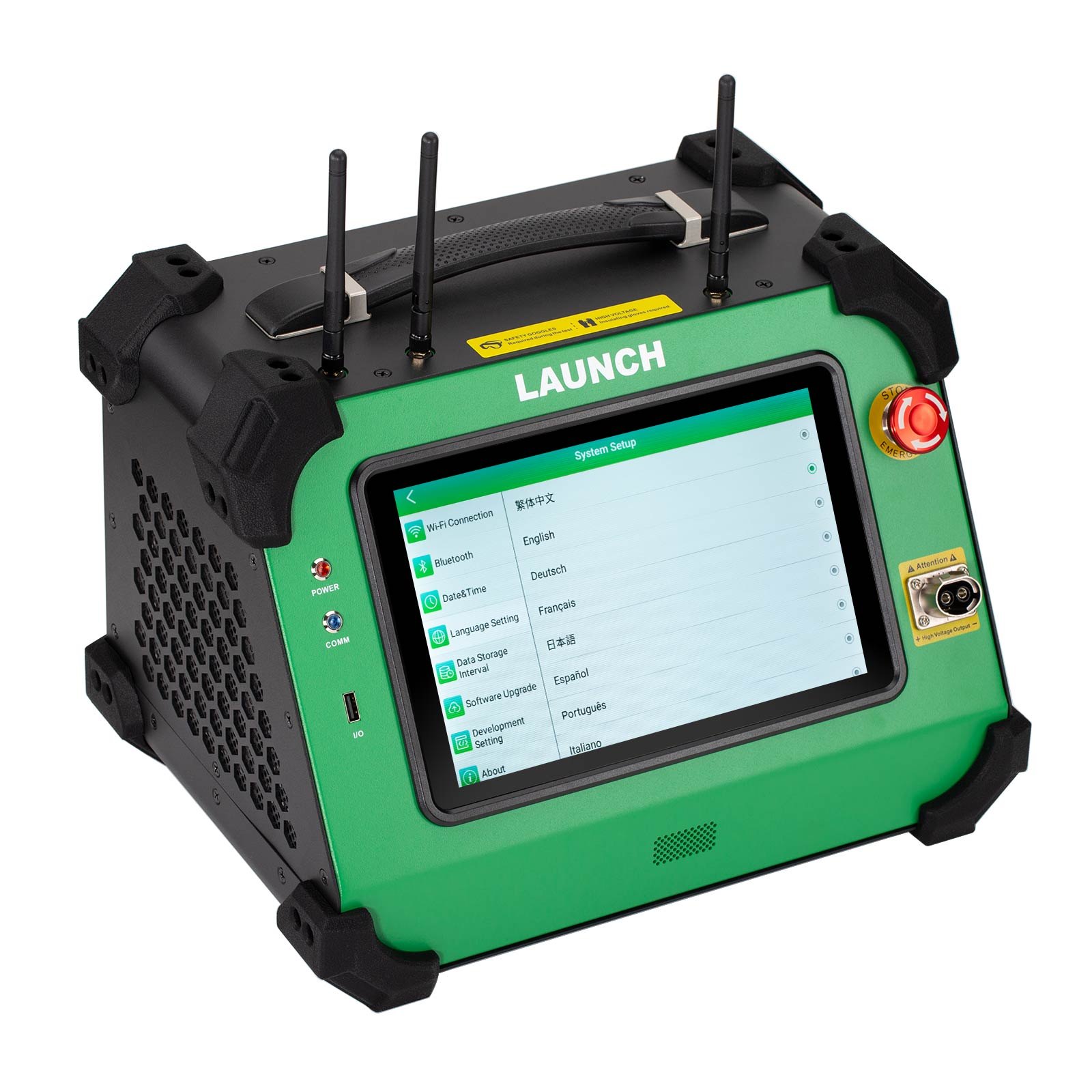

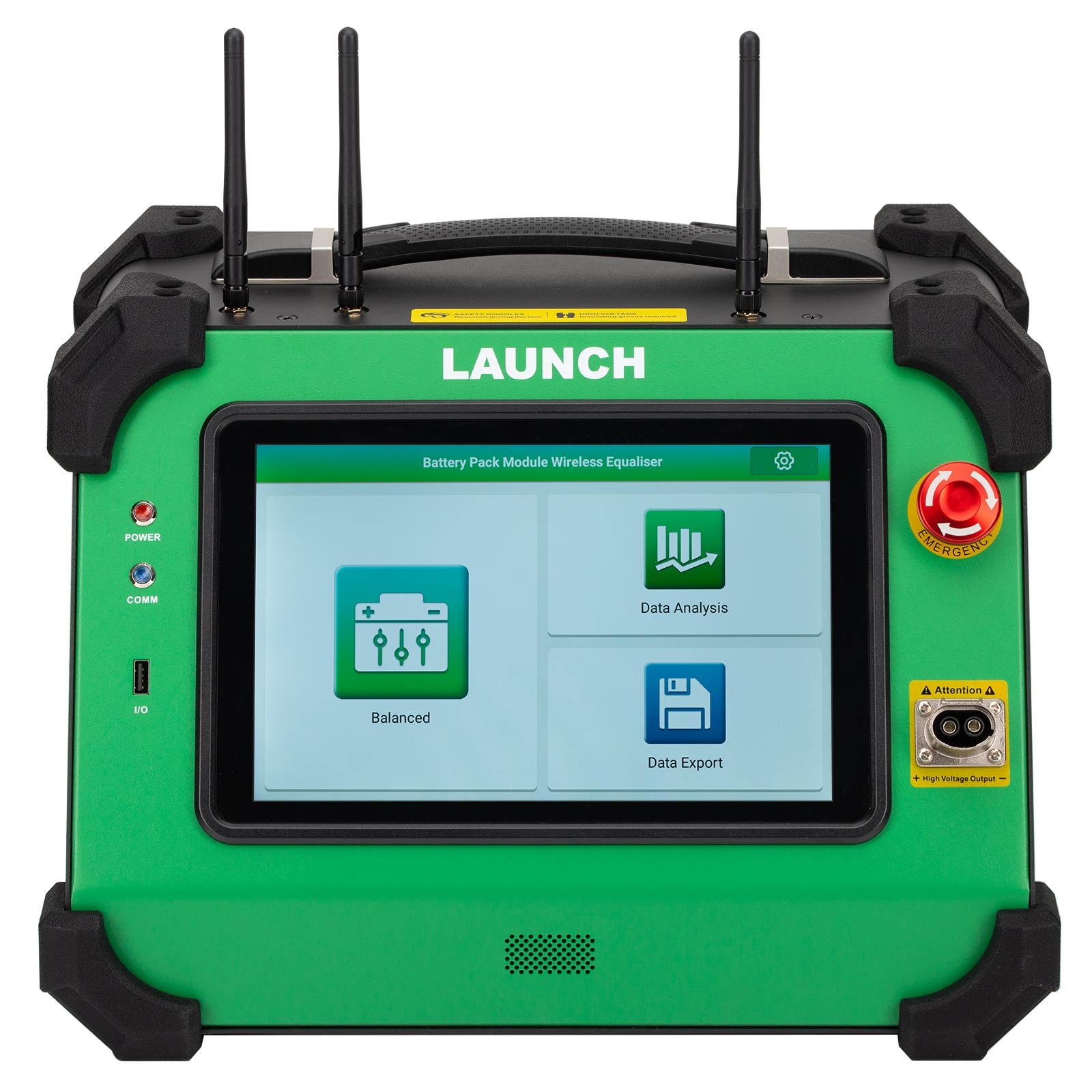

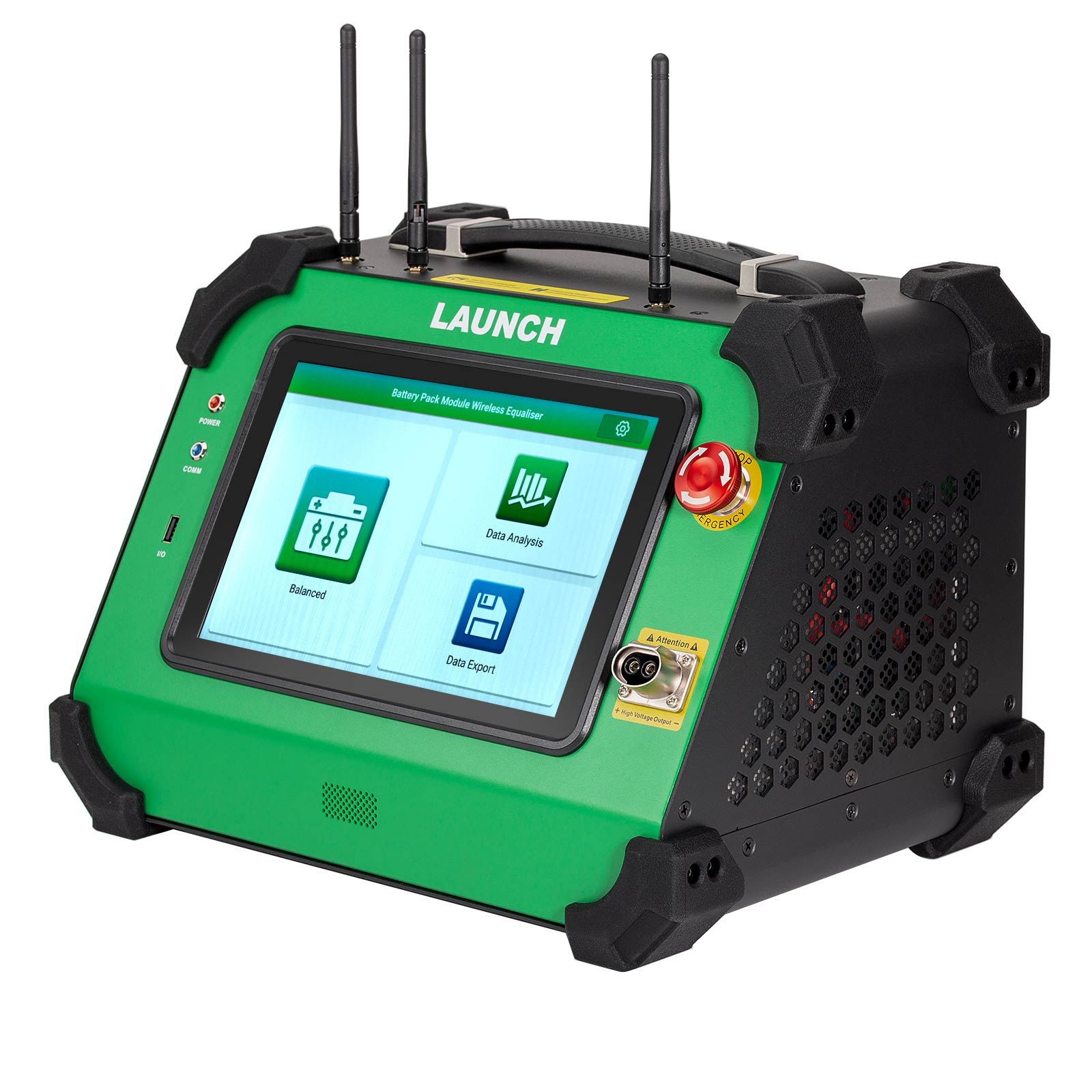

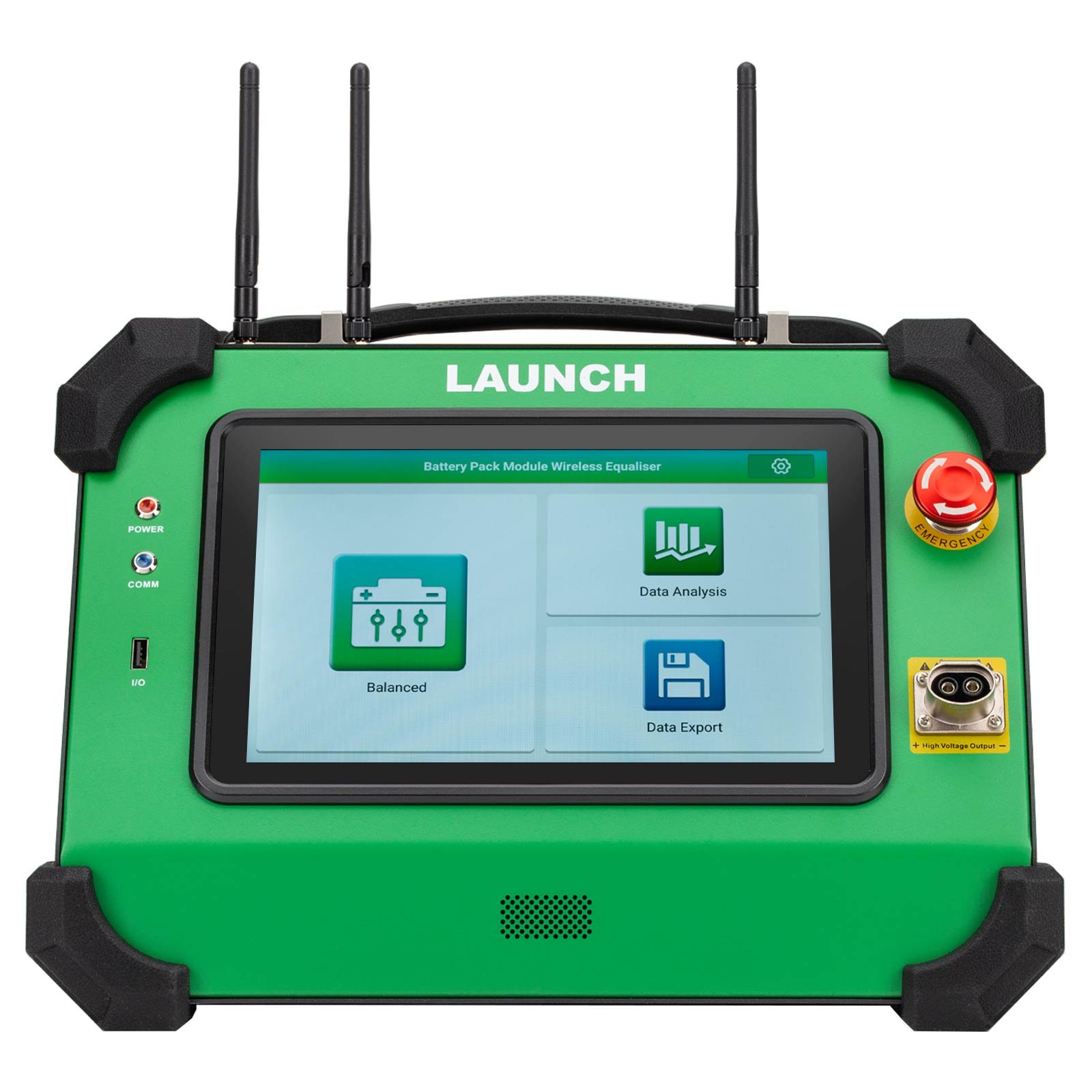

Charging unit:

Power input: AC90-264V, 50Hz and 60Hz
Output voltage range: DC0 to 112V
Output voltage accuracy: within plus or minus 1 percent at 48-112VDC, within plus or minus 0.5V at 10-48VDC
Output current accuracy: within plus or minus 1 percent above 4A output
Output current range: 1 to 40A
Display: 10.1 inch LCD touch screen
Dimensions: 381 by 270 by 275mm

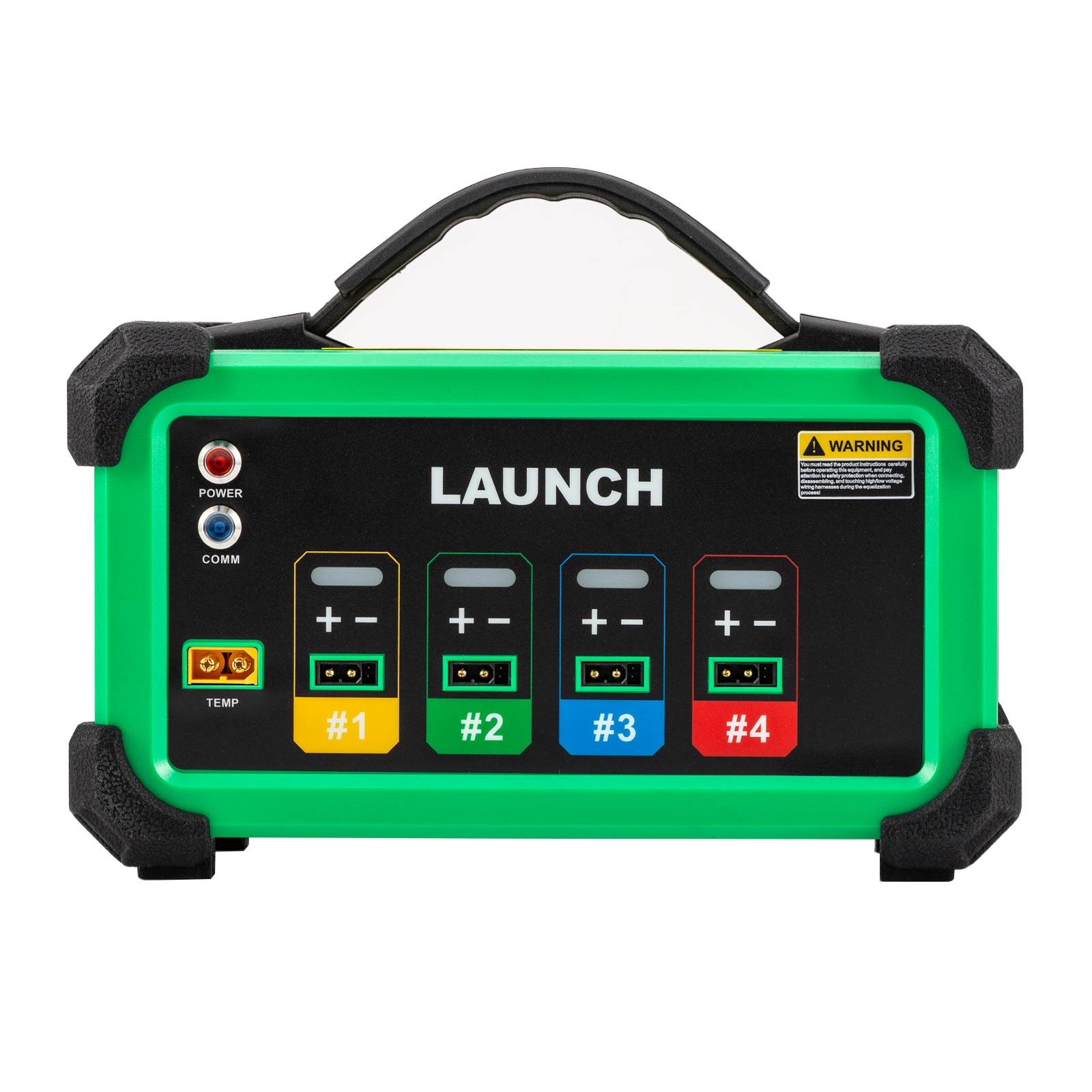

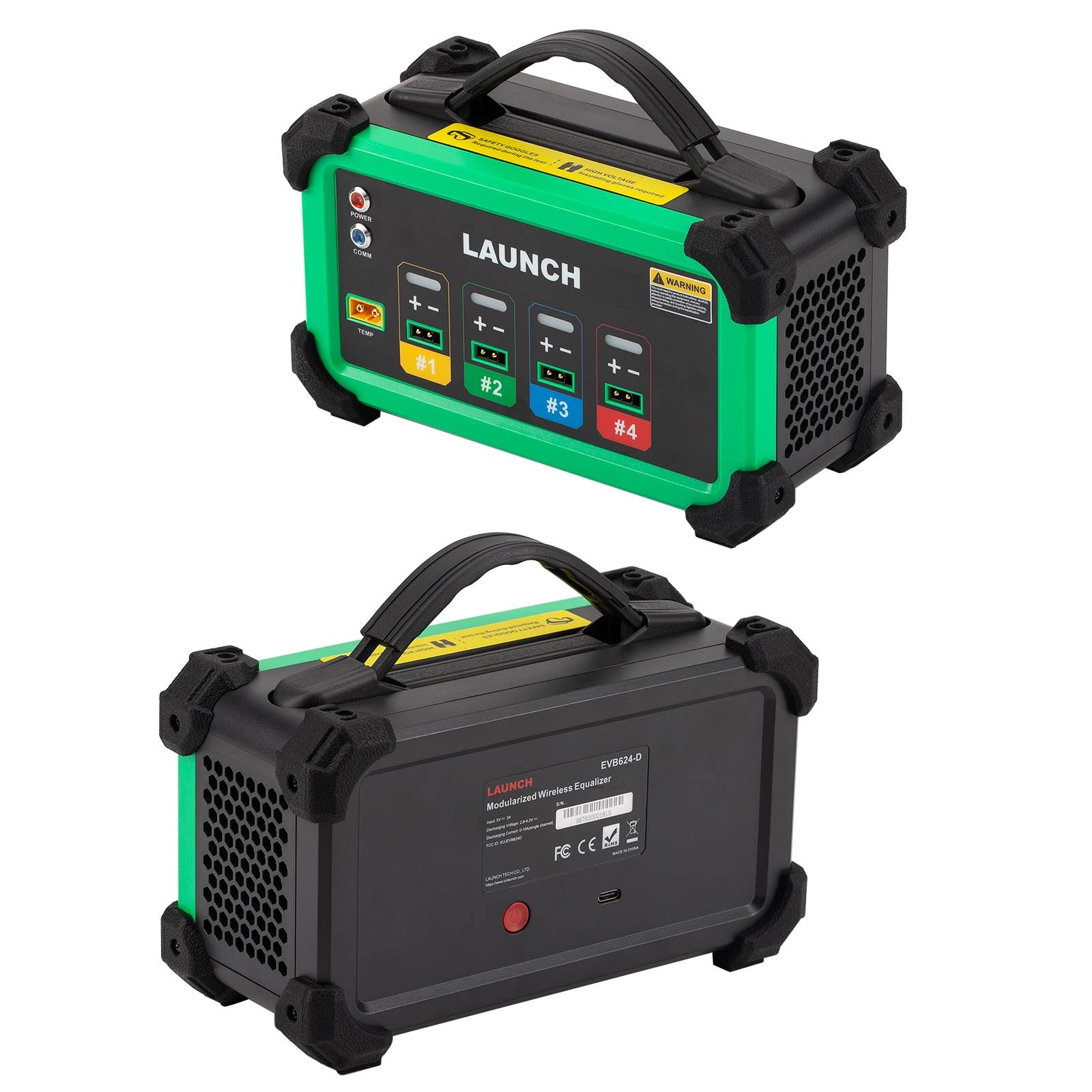

Discharge unit:

Channels: 4 per unit
Discharge voltage range: DC2.89 to 4.2V
Discharge current range: 1-10A
Voltage measurement accuracy: under plus or minus 1 percent at 48-112VDC, within plus or minus 0.5V at 10-48VDC
Current measurement accuracy: within plus or minus 1 percent above 4A output
Communication: Wi-Fi and Bluetooth
Dimensions: 215 by 100 by 130mm
