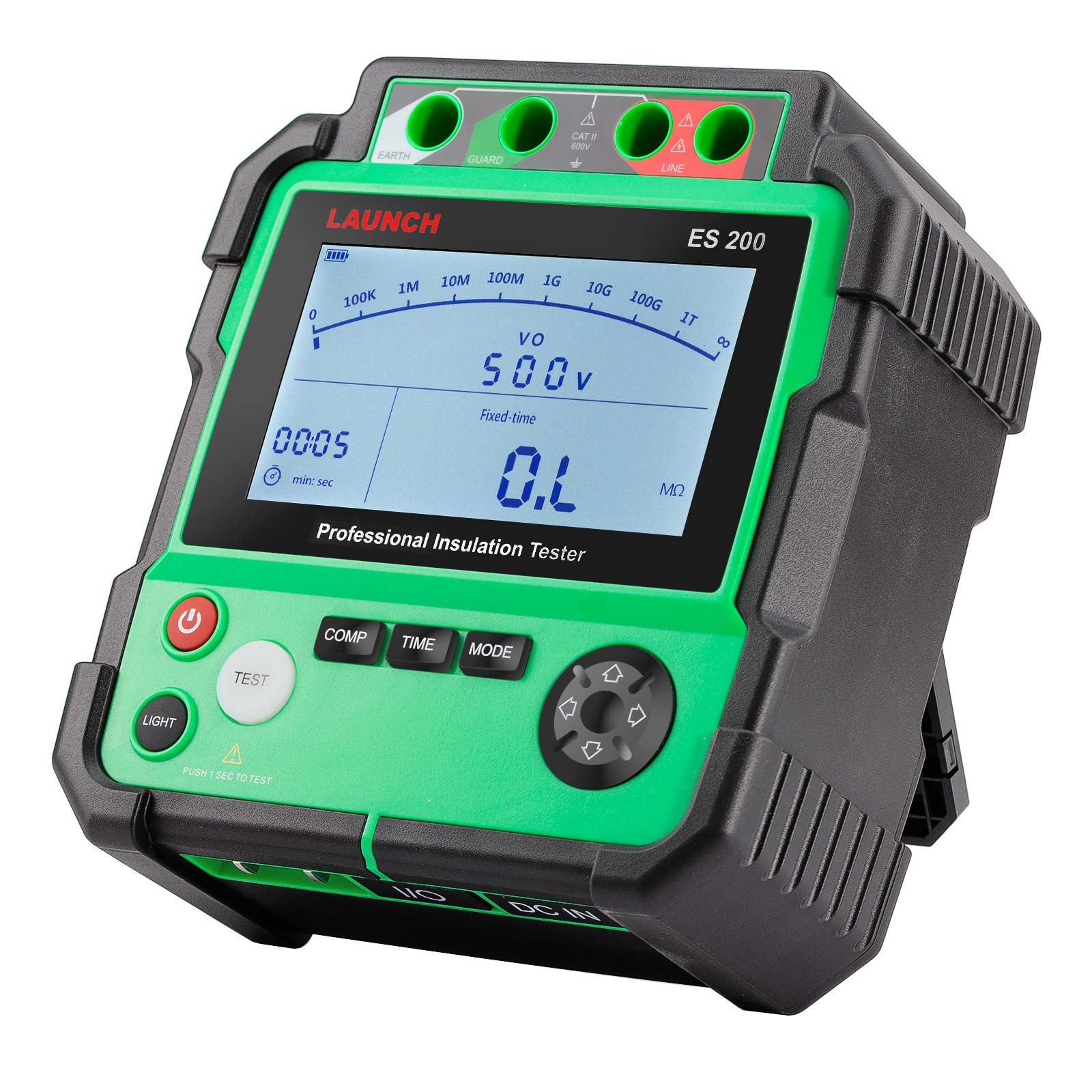

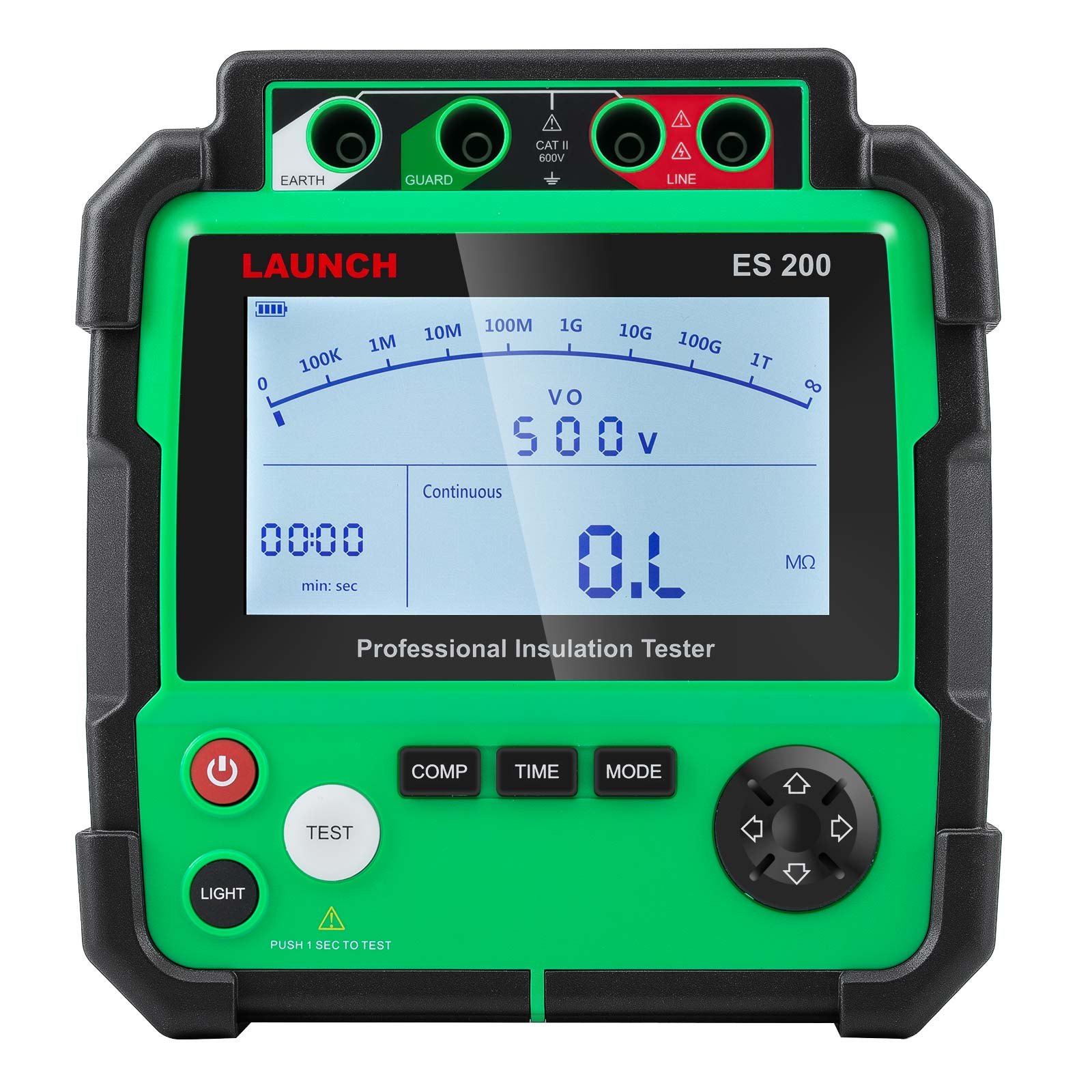

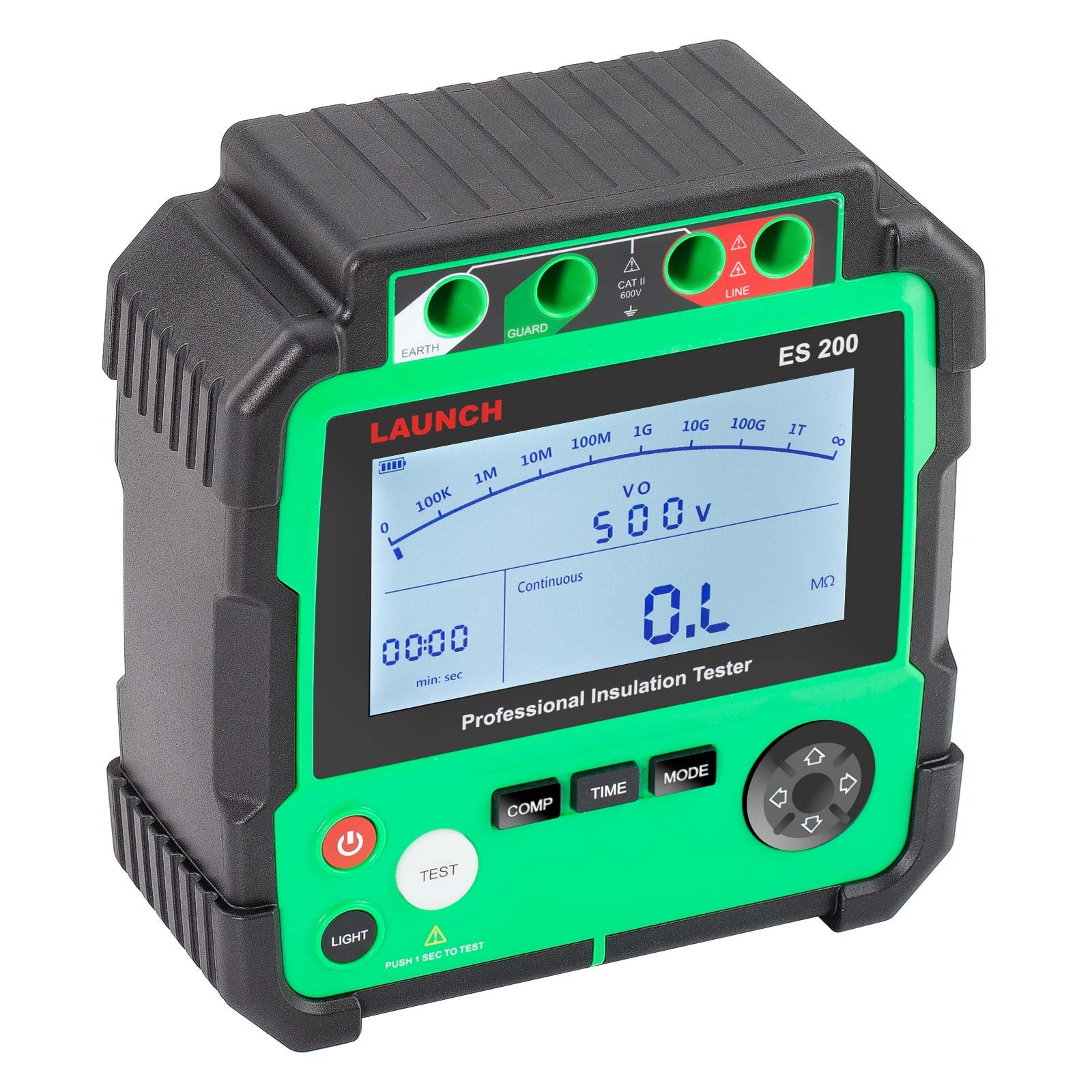

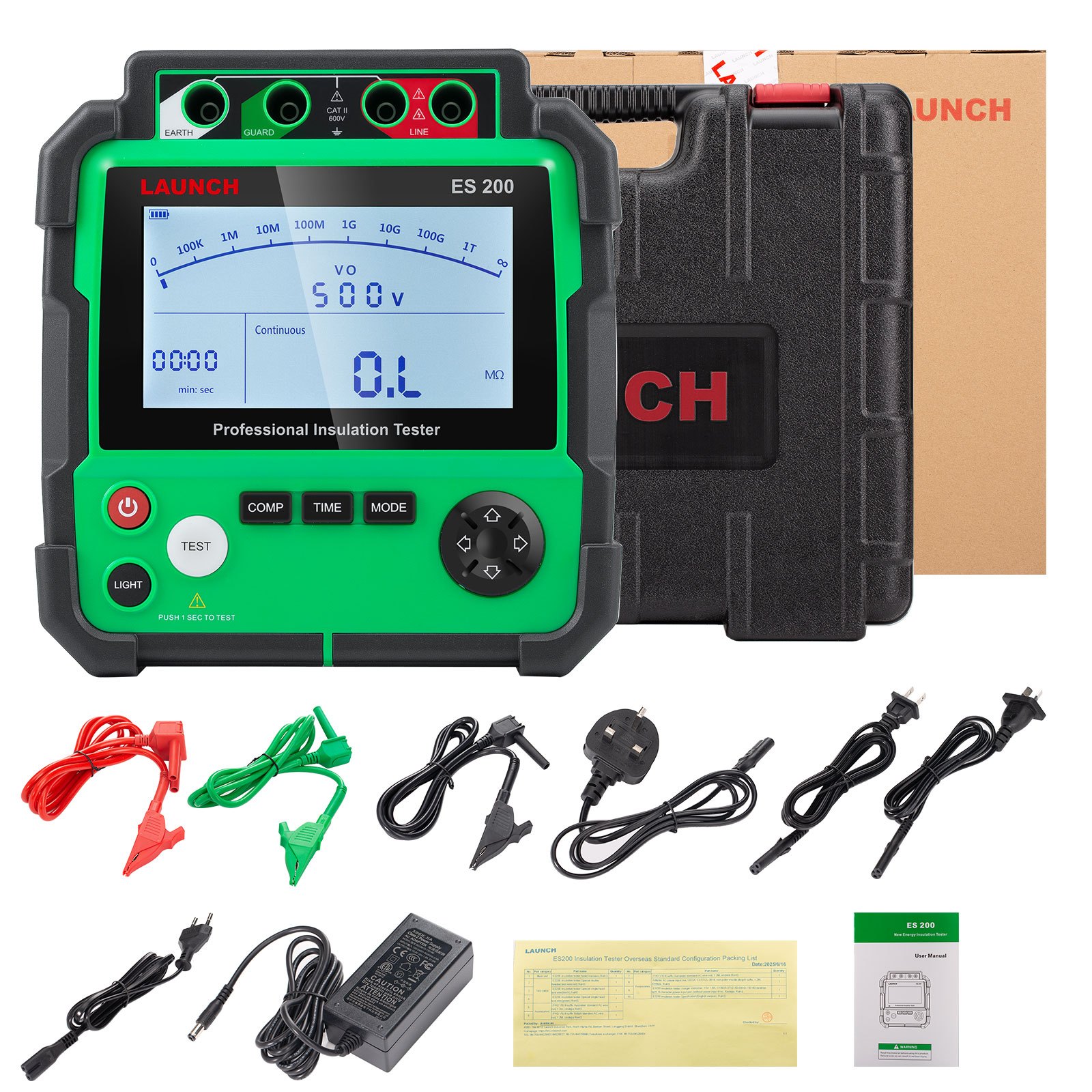

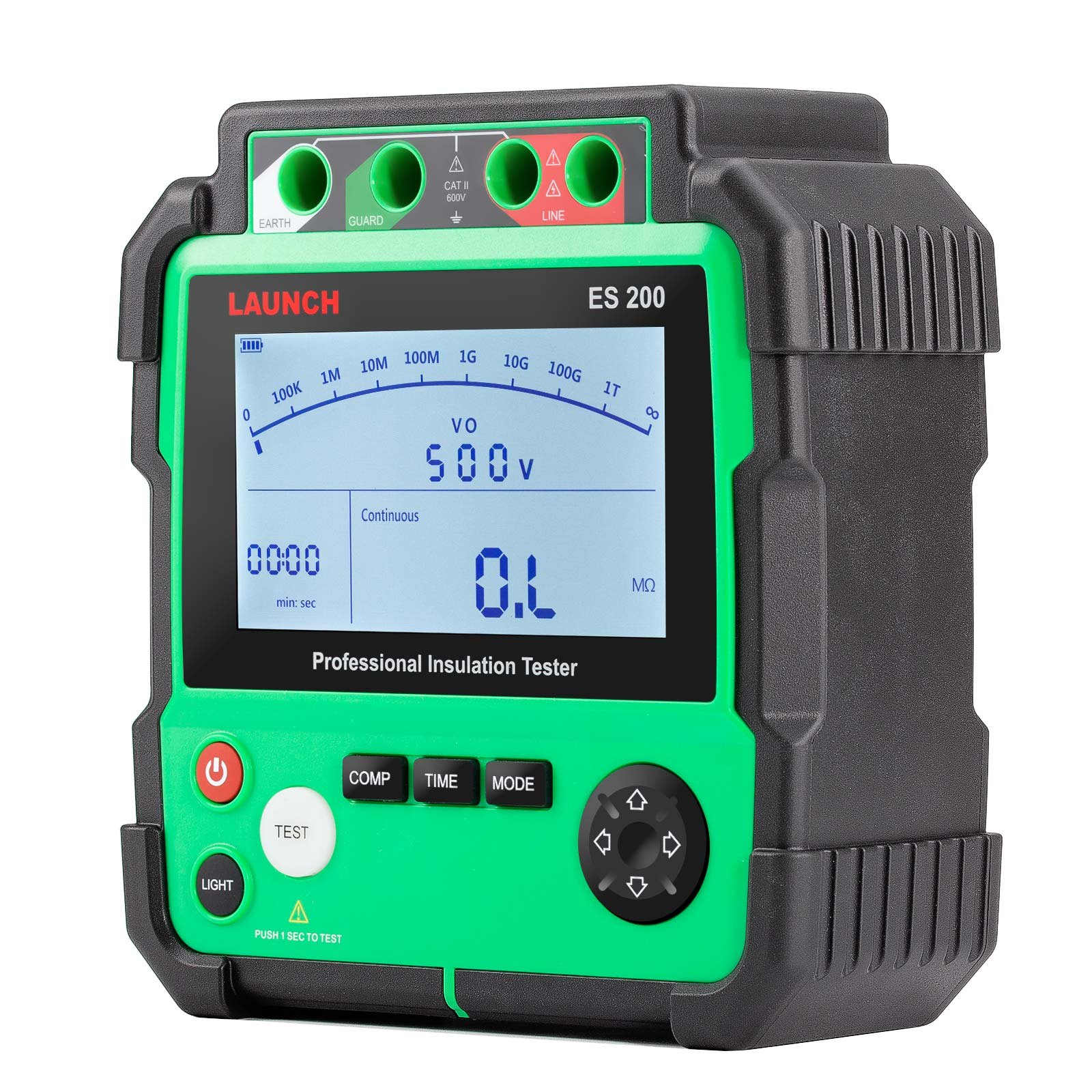

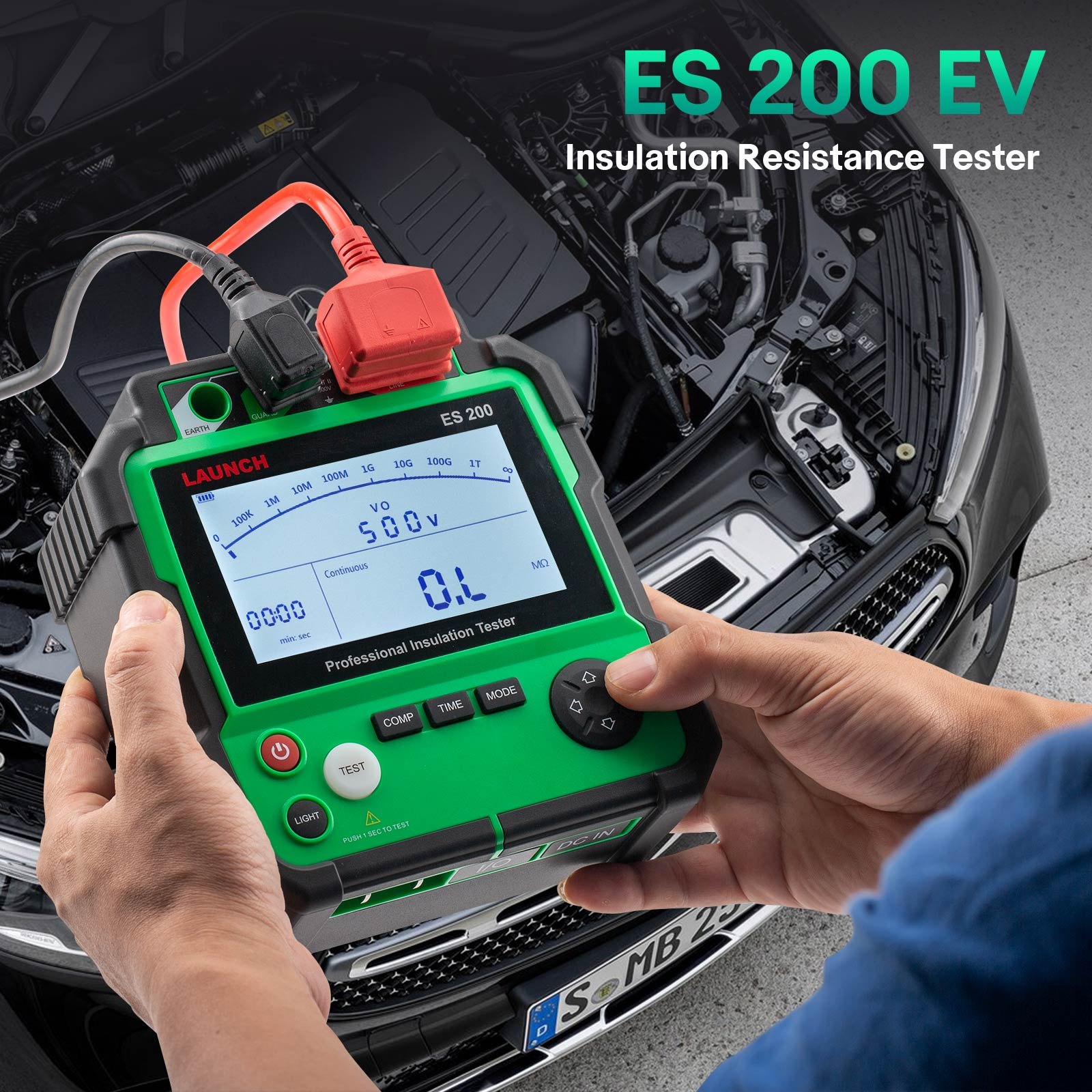

LAUNCH ES200 EV Insulation Resistance Tester

The Launch ES200 EV insulation resistance tester, a megohm meter with three measurement modes covering timing, comparison and continuous measurement. It tests at 500V, 1000V, 2000V and 5000V across ranges from 0 to 20 gigaohms up to 0 to 1000 gigaohms, reads on a 5 inch display, runs a 3150mAh battery, measures 180 by 174 by 65.5mm and weighs 1.7kg.

Specifications

• Three measurement modes: timing measurement, comparison measurement, continuous measurement and omnidirectional measurement.
• Battery: 3150mAh
• Display: 5''
• Working Temperature: 0~50℃
• Dimensions: 180*174*65.5(mm)
• Weight: 1.7kg
• Test Voltage: 500V 1000V 2000V 5000V
• Measuring Range: 0.0MΩ～20GΩ 0.0MΩ～40GΩ 0.0MΩ～100GΩ 0.0MΩ～1000GΩ
• Open Circuit Voltage: DC500V(0～20%) DC1000V(0～20%) DC2000V(0～20%) DC5000V(0～20%)
• Measurement Accuracy: 0.0～99.9MΩ: ±(3%+5) 0.0～99.9MΩ: ±(3%+5) 0.0～99.9MΩ: ±(3%+5) 0.0～99.9MΩ: ±(3%+5)
• 100MΩ～9.99GΩ: ±(5%+5) 100MΩ～9.99GΩ: ±(5%+5) 100MΩ～9.99GΩ: ±(5%+5) 100MΩ～9.99GΩ: ±(5%+5)

Also stated by the supplier

• Insulation resistance meters are commonly known as megohm meters, or shake meters, high resistance meters, insulation resistance testers, etc. It is reflected by insulation resistance. The product insulation resistance which is measured refers to the insulation resistance between the live part and the exposed non-live metal part(case). Using an insulation tester for measurement can effectively protect the safety of maintenance personnel.
• LAUNCH ES200 EV Insulation Resistance Tester
• ES200 s capable of measuring insulation resistance, and also innovatively increases the voltage measurement function.
• ES200 Specification
• AC and DC Voltage Test Performance Parameters
• Voltage Type DC Voltage AC Voltage
• Measuring Range ±30~±600V 30~600V(50/60Hz)
• Resolution 1V 1V
• Measurement Accuracy ±3% ±3%
• 10.0GΩ～20.0GΩ: ±(10%+5) 10.0GΩ～40.0GΩ: ±(10%+5) 10.0GΩ～100GΩ: ±(10%+5) 10.0GΩ～99.9G: ±Ω(10%+5)

Insulation testing is the safety step before touching an EV pack, not an optional refinement.
