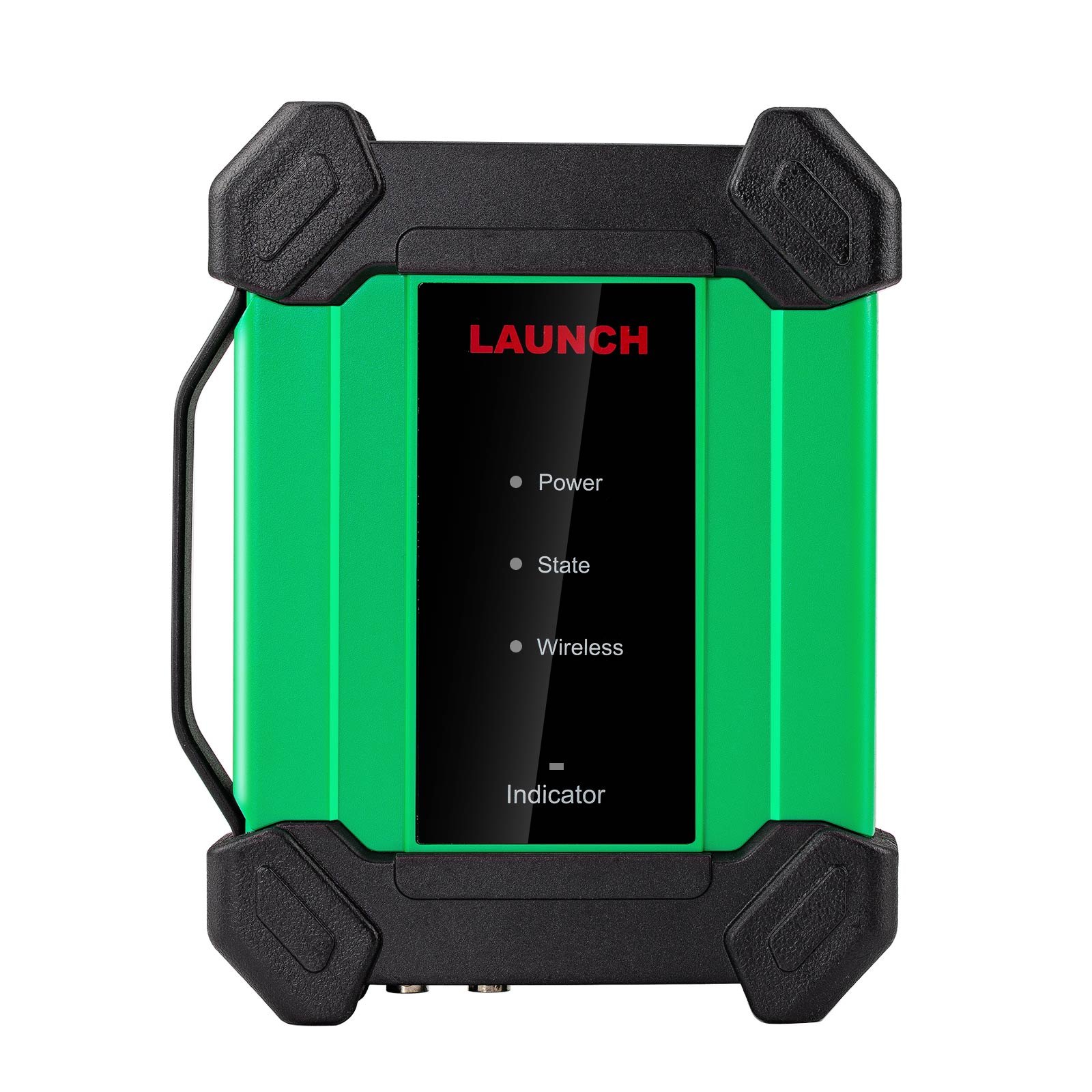

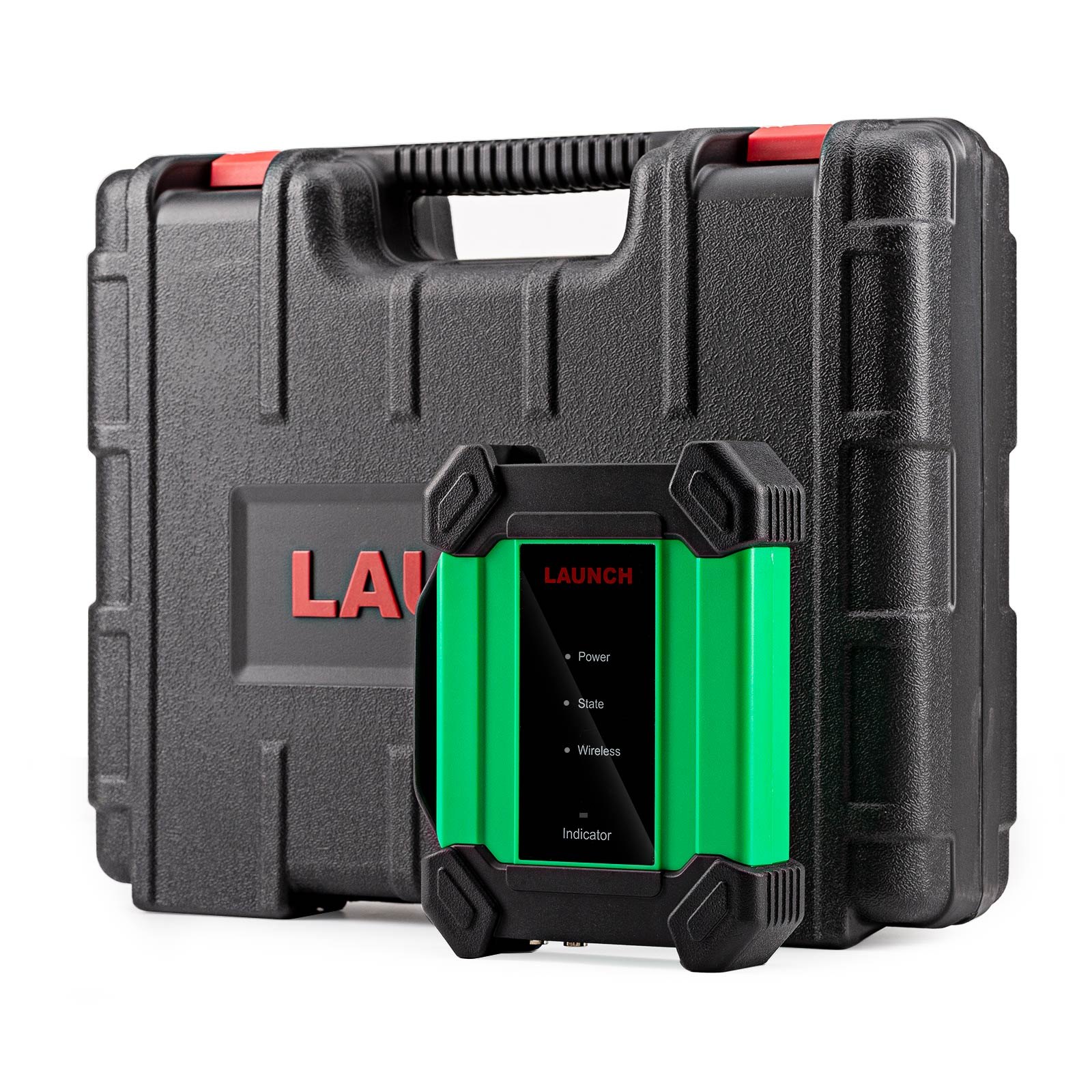

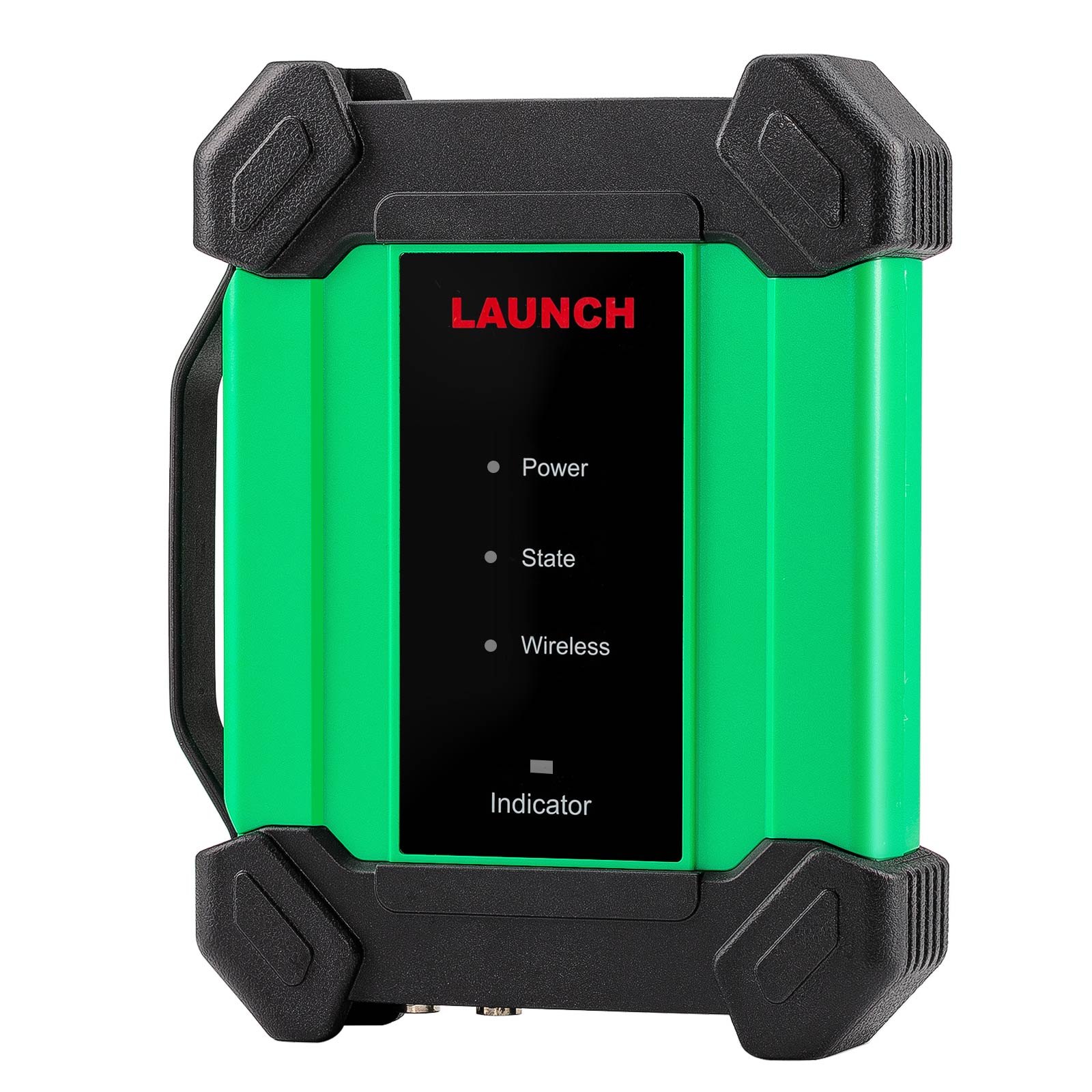

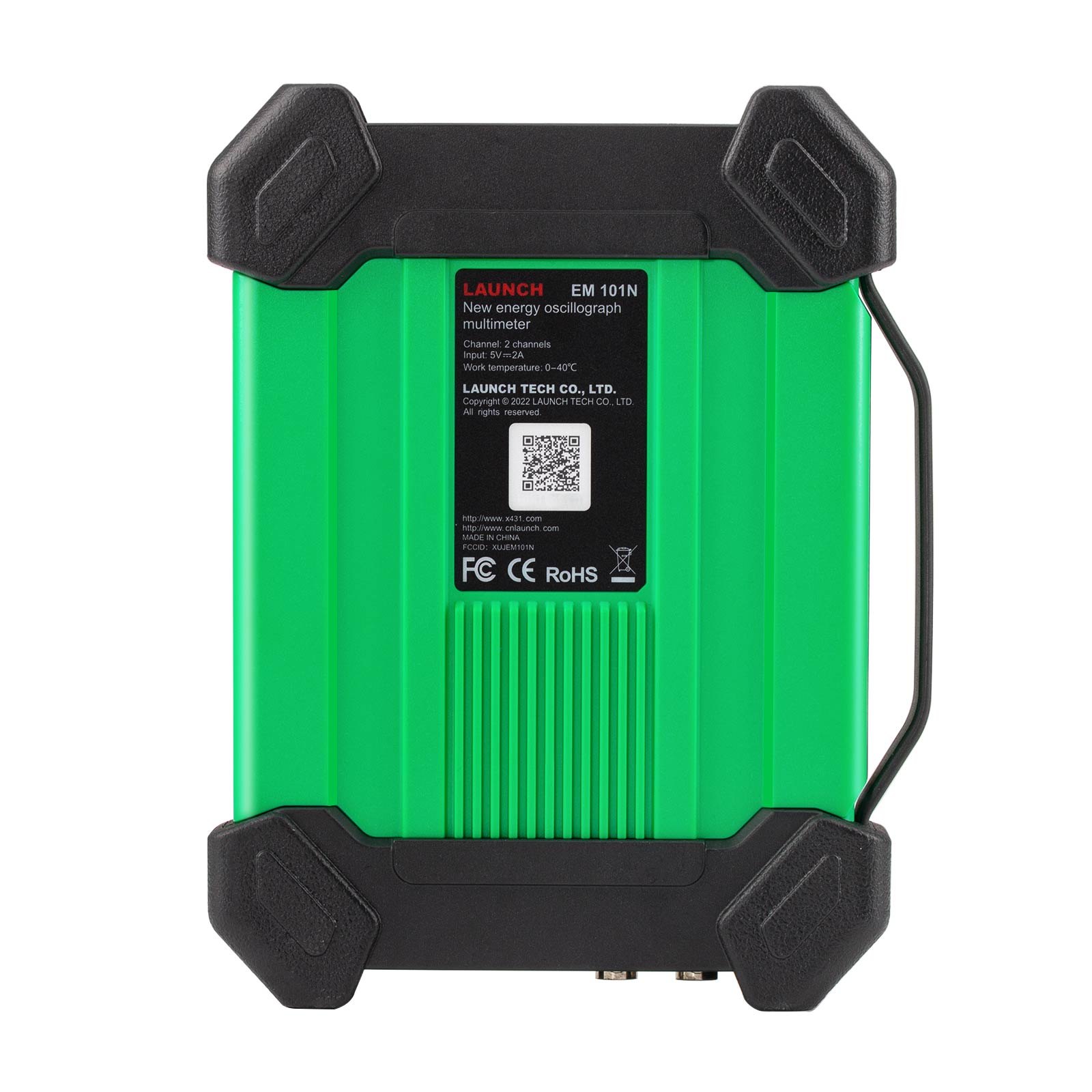

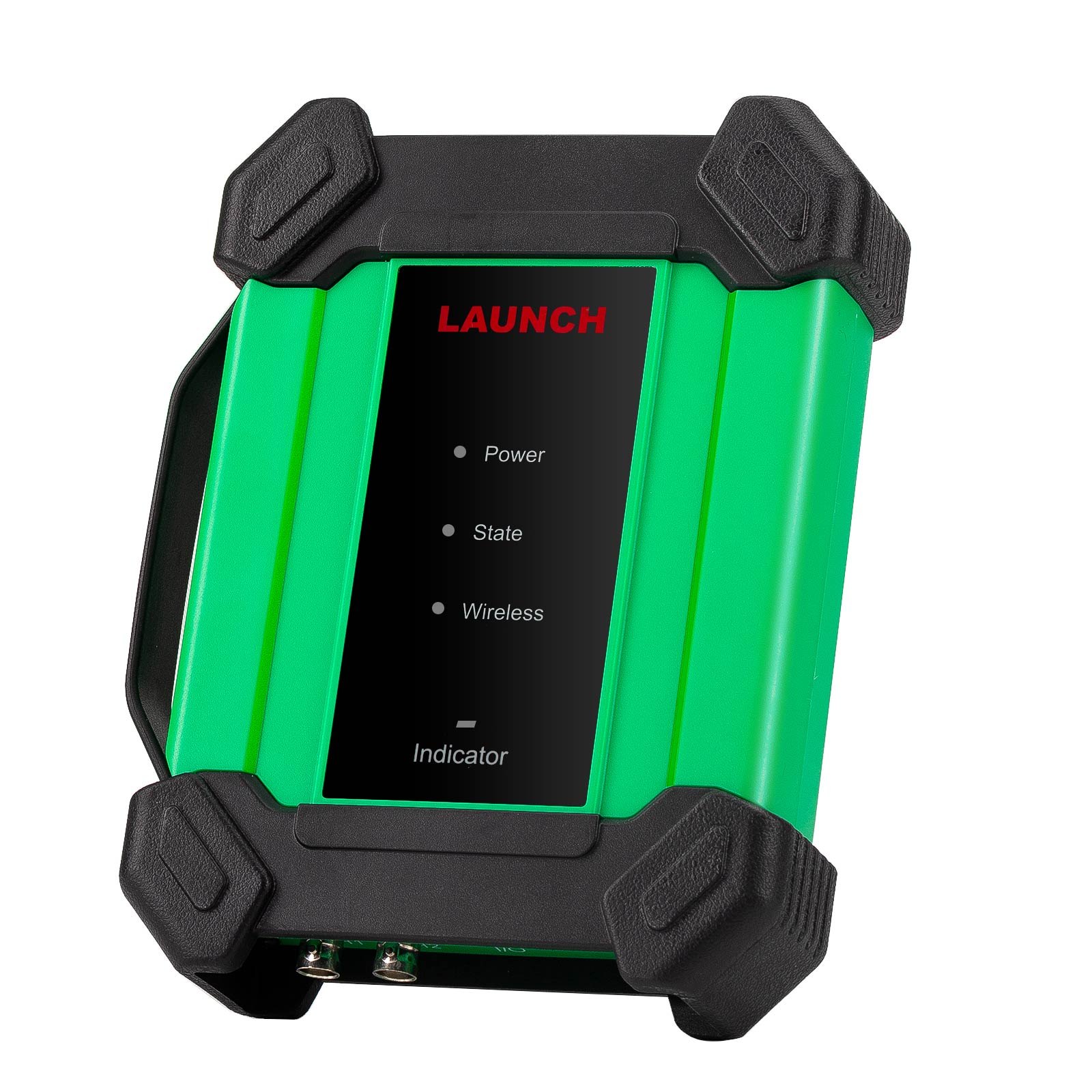

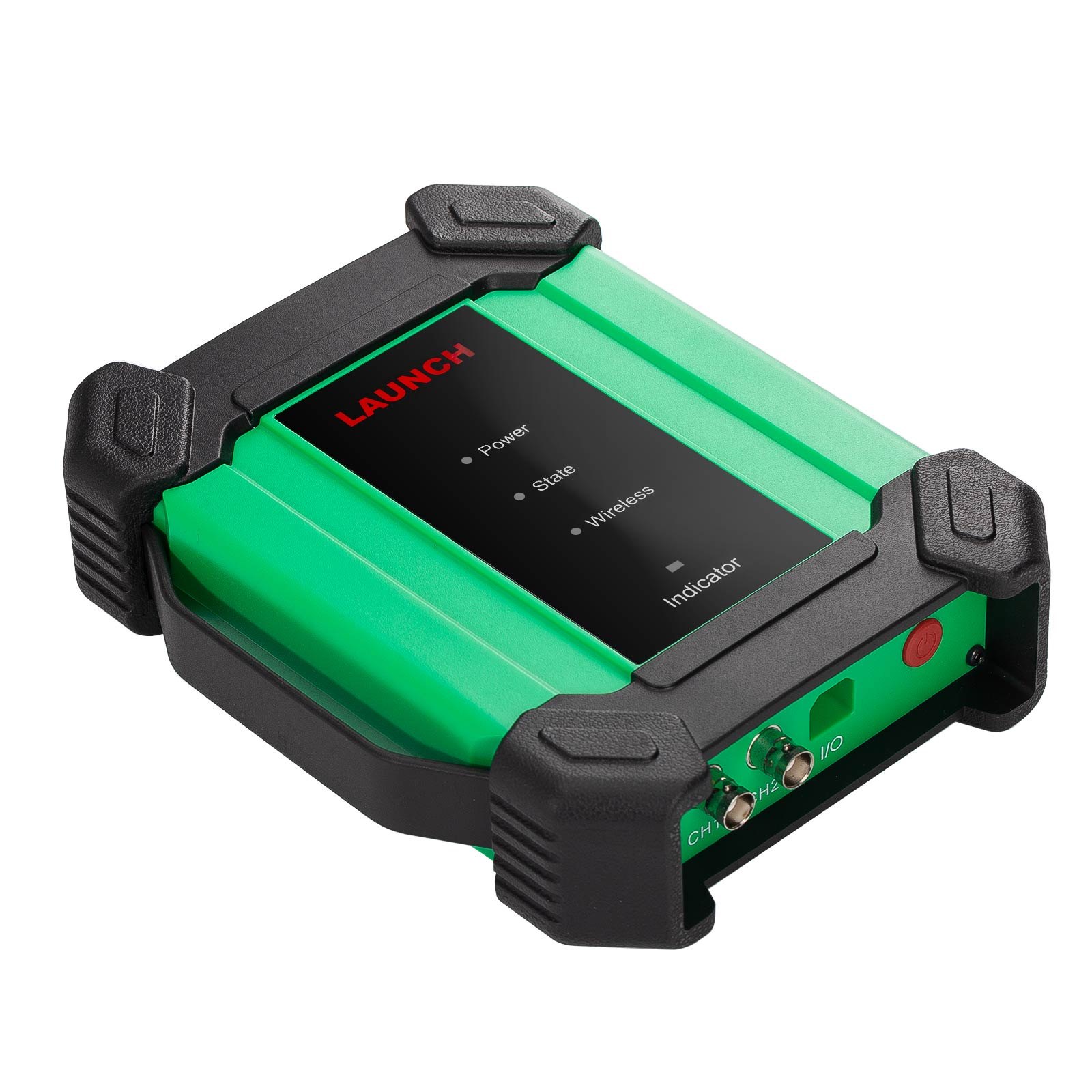

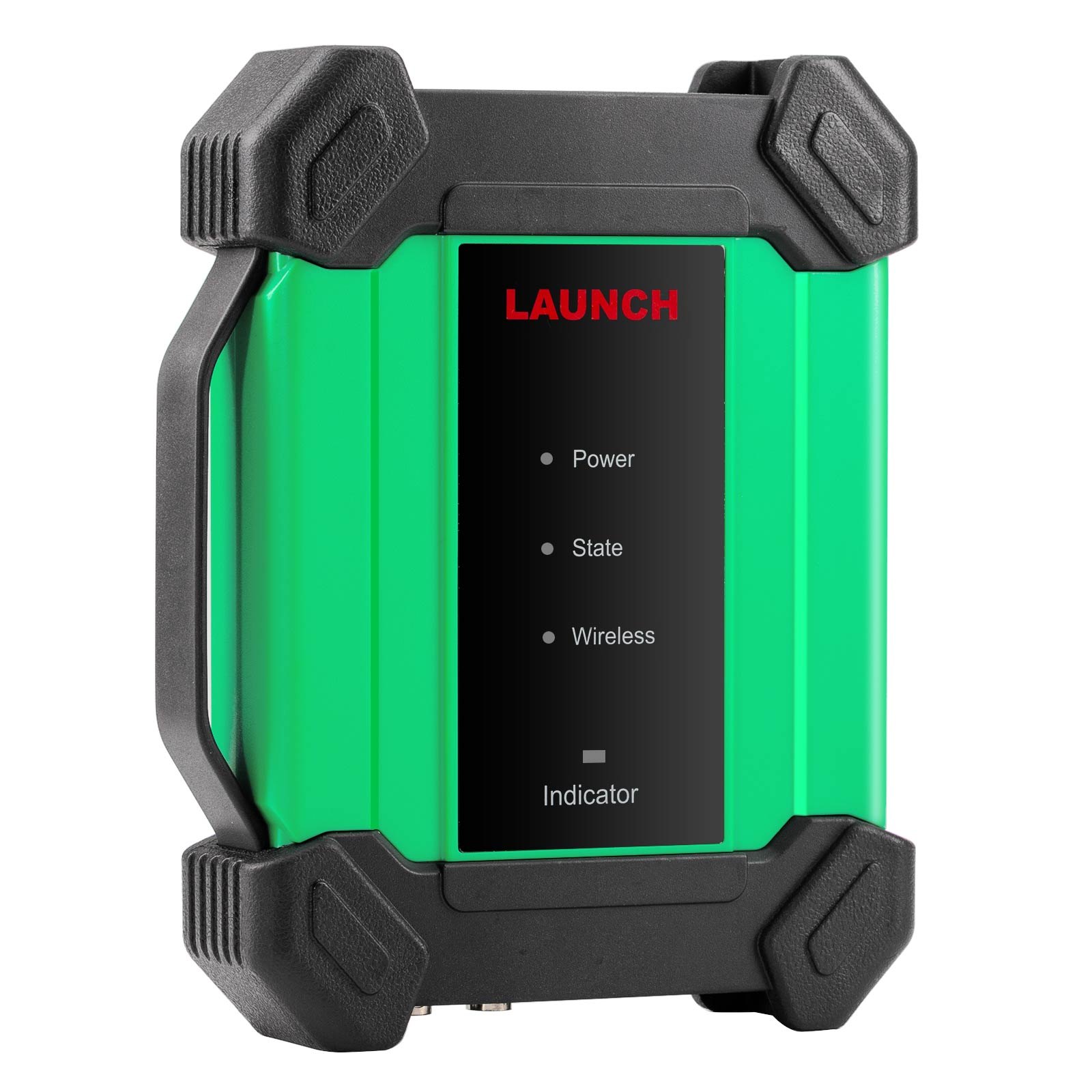

LAUNCH EM101N EV Oscilloscope & Multimeter

The Launch EM101N EV oscilloscope and multimeter, with two analogue channels at 10MHz bandwidth on a 3100mAh reads DC and AC voltage to 600V on automatic range, DC and AC current to 10A, resistance from 0 to 6 megaohms, continuity with a beep below 30 ohms, and diode drop at 0.5V and 2.0V.

Specifications

• DC Voltage: Automatic range, test range: ±600V
• AC Voltage: Automatic range, test range: ±600V
• DC Current: Automatic range, test range: ±10A
• AC Current: Automatic range, test range: ±10A. Average value measurement
• Resistance: Automatic range, test range: 0~6MΩ
• On and off: Tweet when less than 30Ω
• Diode: 0.5V, 2.0V
• Battery Capacity: 3100mAh
• Bandwidth: 10MHz
• Channel: Two analog channels
• Real-time Sampling Rate (Max): 50MHz/s
• Time Base Range: 1us/div～10s/div, step by 1～2～5 times
• Sampling Mode: Normal sampling, peak detection, average
• Buffer Memory: 1M
• Input Coupling: DC, AC, grounded
• Input Resistance: 1MΩ±2%, Parallel with 15pF±5pF
• Vertical Sensitivity: 2mV/div～5V/div
• Vertical Resolution: 8bits
• Maximum Input Voltage: 40V peak value（DC + AC peak value）
• Probe Attenuation Factor: 1X, 10X, 100X（probe support required)
• Trigger Type: Edge trigger, pulse width trigger
• Trigger Mode: Auto, Normal, Single
• Automatic Measurement: Peak-to-peak value, Average value, Maximum value, Minimum value, Top value, Bottom value, Frequency, Period

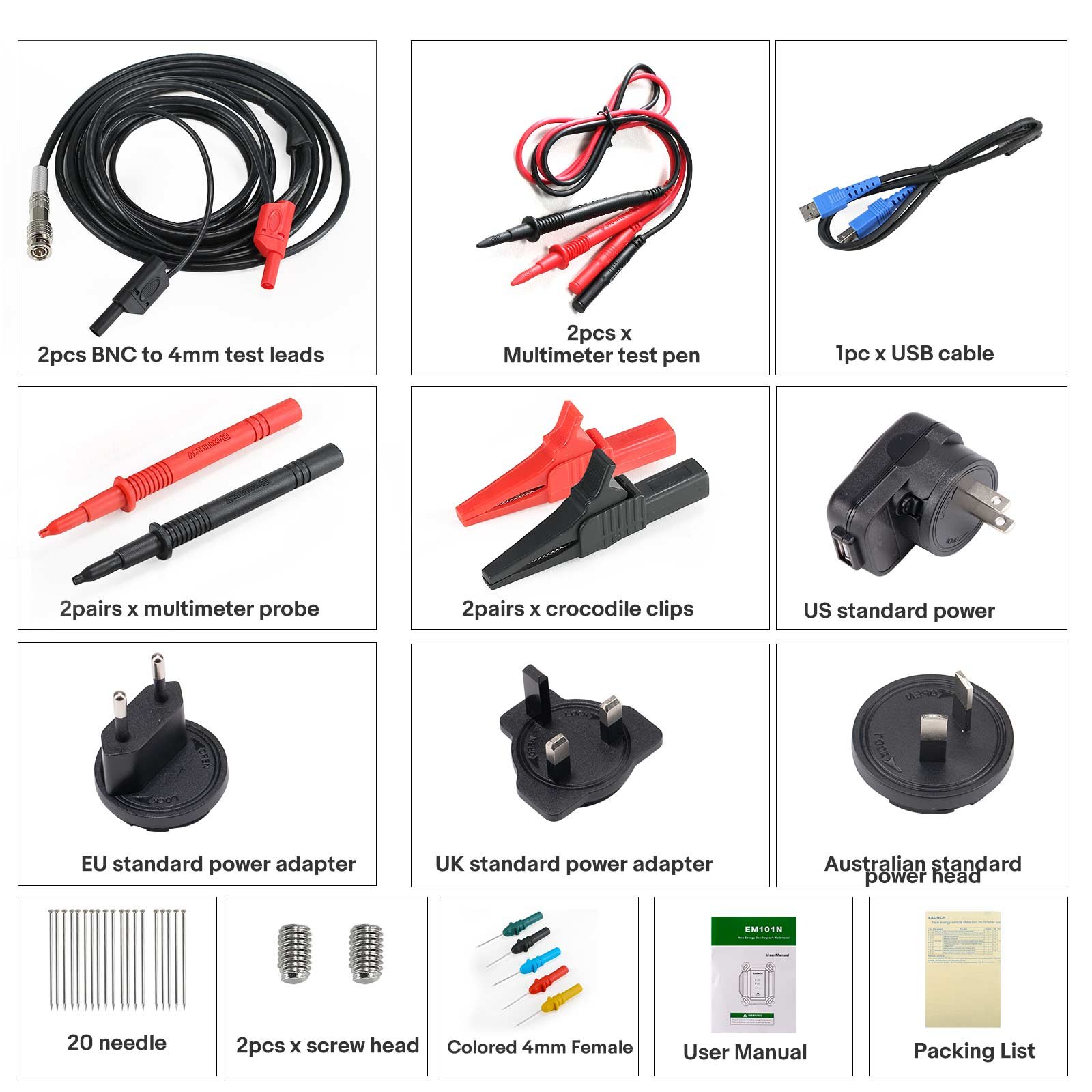

What you get

• 1pc x EM101N main unit
• 2pcs x BNC to 4mm test leads
• 2 pairs x Multimeter test pen(black+red)
• 2 pairs x Multimeter probes(black+red)
• 4pcs x Crocodile clips
• 1pc x Black probe pins suite(5probes+20pins+2caps)
• 1pc x Type A-Type B USB cable
• 1pc x User manual
• 1pc x UK Power plug
• 1pc x EU Power plug
• 1pc x AU Power plug
• 1pc x US Power adapter
• The detection and maintenance of the power system is important for new energy vehicles. By viewing the waveform diagram, the maintenance progress can be improved. This product integrates the functions of a multimeter and a dual-channel oscilloscope, which can be used for two purposes. The brand-new diagnostic APP is user-friendly, easy to use and convenient, supports the function of saving and opening waveforms locally.
• LAUNCH EM101N EV Oscilloscope & Multimeter

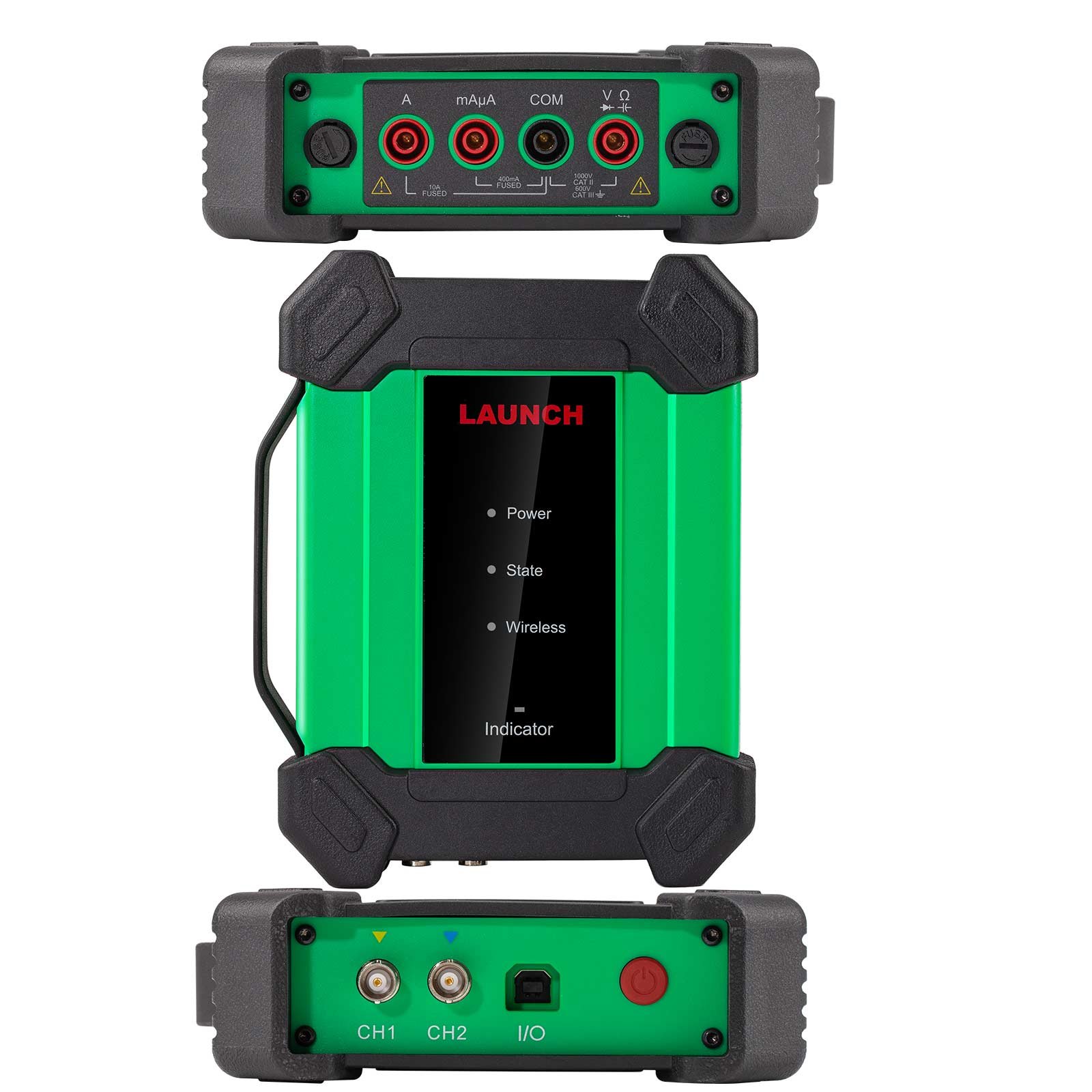

• This EM101N is composed of hardware and software. Hardware includes EM101N module and connection wire. The Oscilloscope and Multimeter APP are installed on diagnostic tool.
• Automotive oscilloscopes assist the auto repair technician with the ability to quickly identify faults on automotive electronic equipment and wiring. The oscilloscope sweep speed is far greater than the signal frequency of such vehicles, usually 5-10 times of the measured signal and quickly acquire the circuit signal while slowly displaying the waveform for observation and analysis.
• The built-in multimeter provides simple measurements to test voltage, current and resistance to help determine faults.
• The anti-fall rubber sleeve increases the protection of the product, and the unique fuse plug-in design is convenient for replacement.

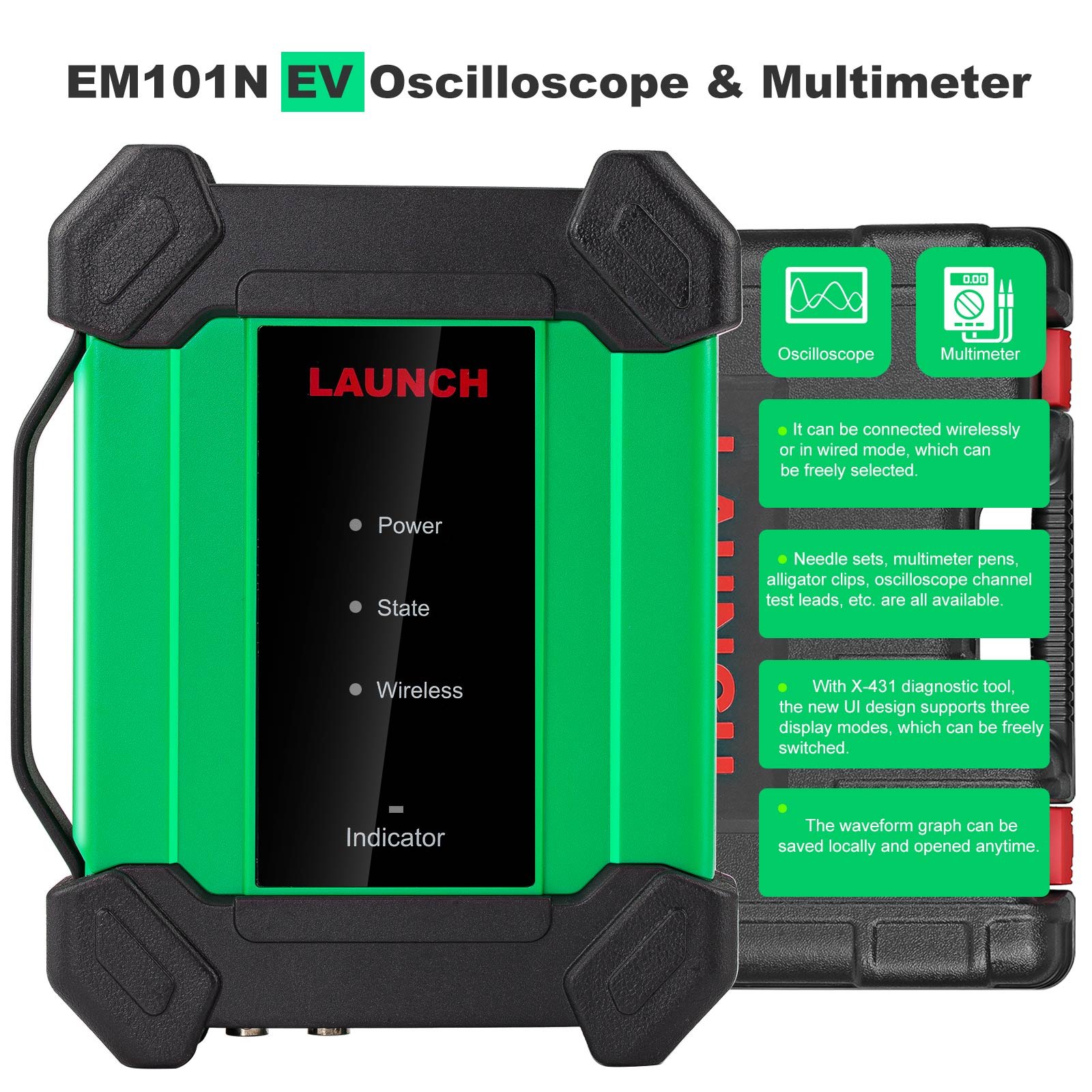

• With X-431 diagnostic tool, it can be connected wirelessly or in wired mode, which can be freely selected.
• With X-431 diagnostic tool, the new UI design supports three display modes, which can be freely switched.
• (It is necessary to connect an external sensor for large range current.)

600V capability is what makes this an EV tool rather than a conventional 12V workshop meter.
