LAUNCH ELA400 Intelligent Digital Power Supply (50-900V High Voltage)

The LAUNCH ELA400 Intelligent Digital Power Supply serves EV and fuel vehicle maintenance with a high voltage output range of 50V to 900V for high-voltage offline driving and maintenance testing. Part number: Y-HKSO803.

Features

• Fits all new energy and fuel vehicle maintenance scenarios
• High-voltage and low-voltage modules independent of each other, each with separate output protection
• Low voltage output 0V to 50V and 0A to 15A DC, adjusted by knob
• Input, high-voltage output, and low-voltage output circuits each with independent protection against undervoltage, overvoltage, overcurrent, and short circuit faults
• High voltage output with current limiting and short circuit protection at 50V to 900V and 0A to 5A DC, adjusted by knob

Specifications

• Power input: AC100 to 240V at 20A
• High voltage output: 50 to 900V, 0 to 5A
• Low voltage output: 0 to 50V, 0 to 15A

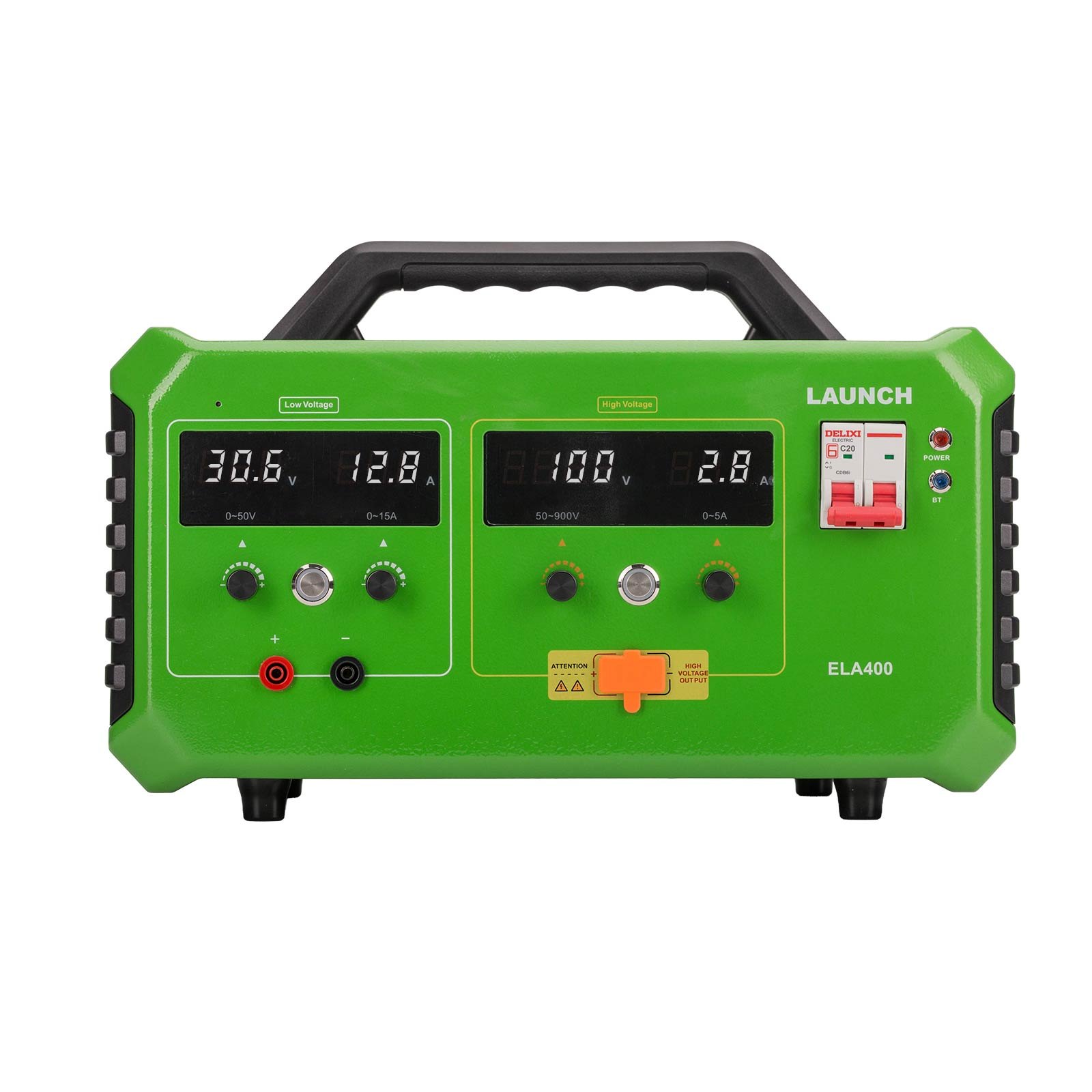

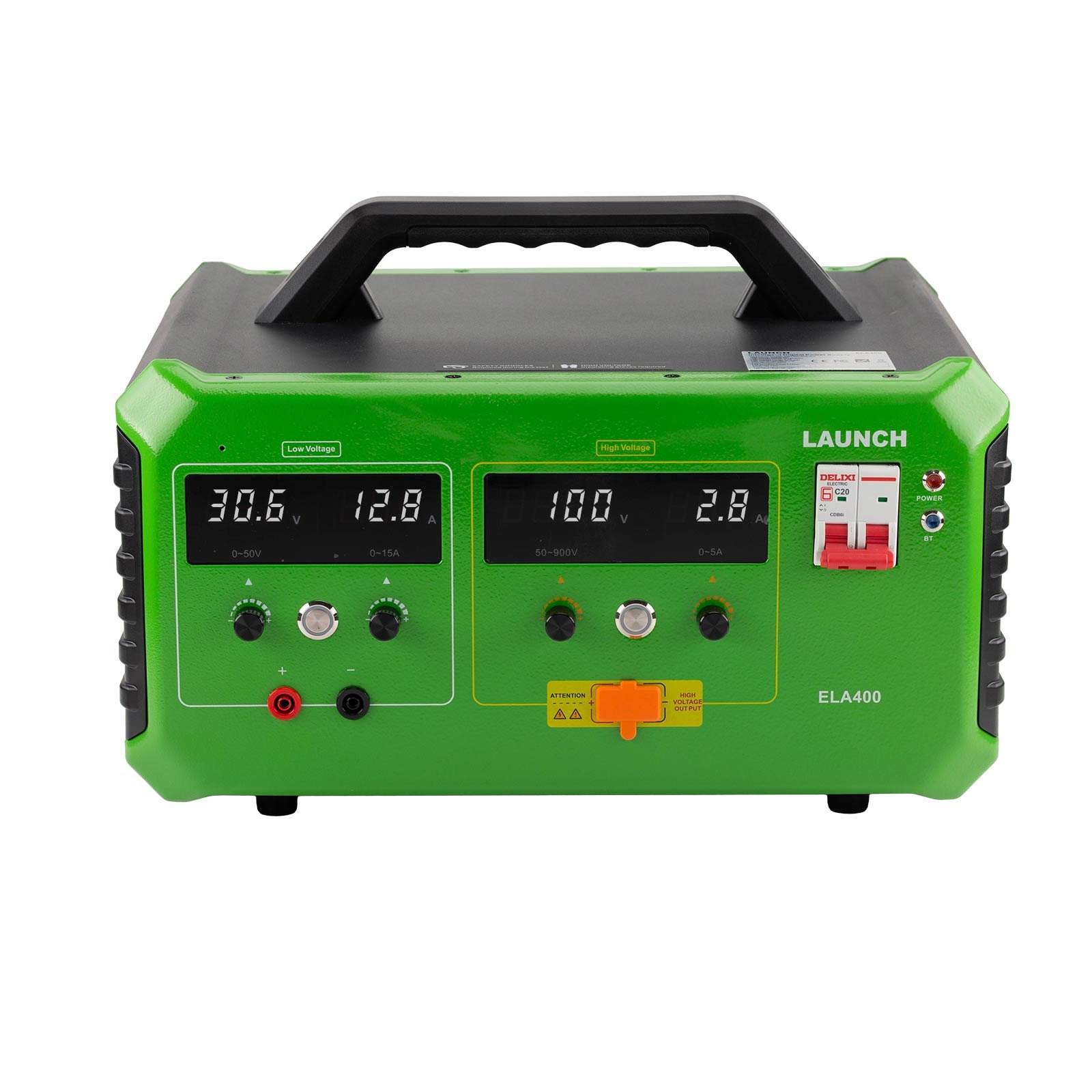

• Front panel high voltage: voltage knob, current knob, and high voltage switch button
• Front panel low voltage: current knob, voltage knob, and low voltage start and stop button
• Communication: Bluetooth
• Display: LED digital tube
• Protection: current limiting, short circuit, undervoltage, overvoltage, overtemperature, and others
• Working temperature: -10 to 65 degrees C
• Dimensions: 395 by 315 by 265mm
• Weight: 11Kg

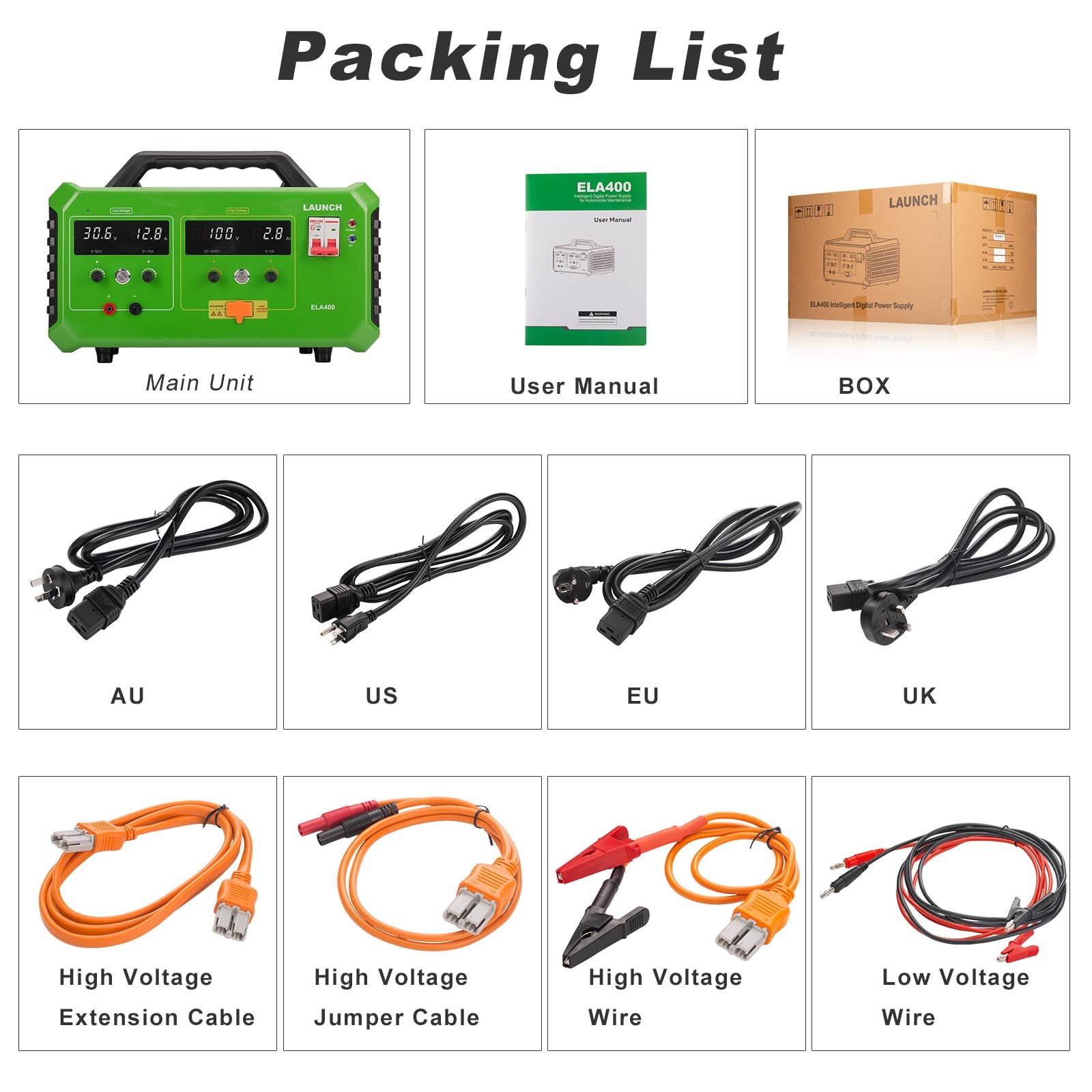

What is in the box

• 1pc main unit
• 1pc US-standard AC power cord
• 1pc UK-standard AC power cord
• 1pc AU-standard AC power cord
• 1pc EU-standard AC power cord
• 1pc high voltage extension cable
• 1pc high voltage wire with alligator clip fits
• 1pc high voltage jumper cable with 4mm banana plug
• 1pc black low voltage wire with alligator clip fits
• 1pc red low voltage wire with alligator clip fits
• 1pc user manual
• 1pc packing list
