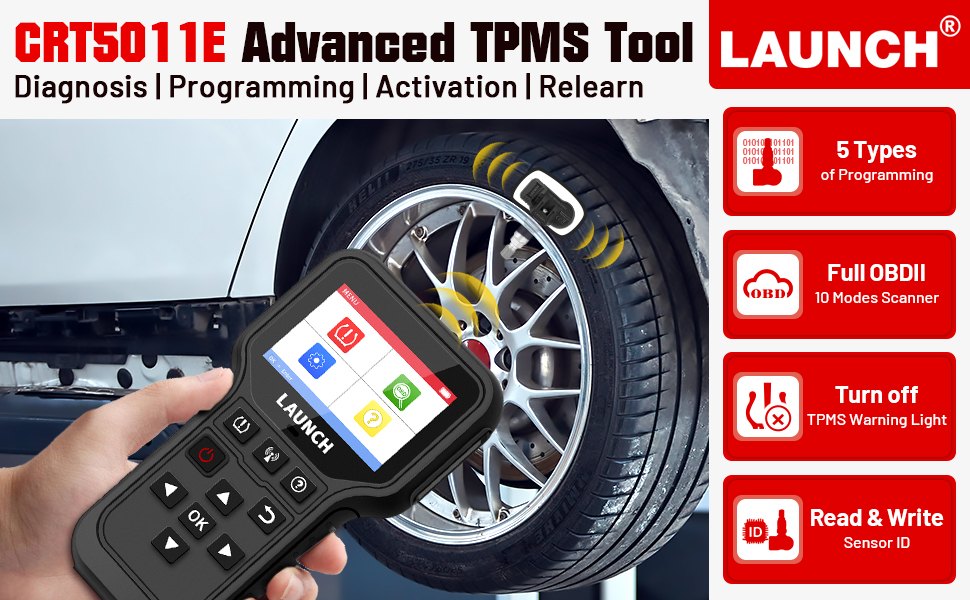

Launch CRT5011E TPMS Relearn Tool TPMS Sensor (315+433MHz) Support Read/ Activate/ Programming/ Relearn/ Reset/ Key Fob Test

The Launch CRT5011E TPMS relearn tool, a TPMS and OBDII two in one for 315 and 433MHz sensors. It reads, activates, programs, relearns and resets, tests a key fob, and creates sensor IDs automatically, by manual entry, by copying from an activated sensor or by OBD. It also looks up the OE part number of a sensor.

Specifications

• Multiple ID generation methods: Automatic creation/Manual creation/Copy ID by Activation/Copy by OBD/Creat Multi-sensor (1-8)
• This function includes two modules: Relearn Procedure and Part Number Lookup.
• Part number lookup: It allows you to check the OE number of the sensors.
• Manual Create: This function allows users to manually enter sensor ID. Users can enter the random ID or the original sensor ID, if it is available.
• Copy ID by activation: It can get tire pressure sensor ID when the tire sensor is working normally, you can write in the retrieved original sensor data to the LAUNCH-sensor. It is used after the original sensor is triggered.

Also stated by the supplier

• Launch CRT5011E TPMS Relearn Tool is a powerful and versatile tpms & obdii 2-in-1 tool, it can program the sensor by receiving multi-frequency 315MHz/433MHz,Besides writing the Sensor ID into ECU, it can read sensor ECU ID from TPMS, CRT5011E also supports the diagnosis of 99% of the models on the market.
• Launch CRT5011E TPMS Relearn Tool TPMS Sensor (315+433MHz) Support Read/Activate/Programming/Relearn/Reset/Key Fob Test
• Launch CRT5011E TPMS code reader & diagnostic tool is specially developed by LAUNCH, which enables users to trigger TPMS sensor, program TPMS sensor, perform the relearning procedure and check sensor part number. Additionally, it also supports all 10 modes as OBD2 scanner for a complete diagnosis. With built-in help menus and code definitions, diagnosing and repairing that dreaded Check Warning Light is now easier than ever!
• Launch CRT5011E TPMS Tool Features
• Launch CRT5011E is a powerful and versatile tpms & obdii 2-in-1 tool.
• Launch CRT5011E can program the sensor by receiving multi-frequency 315MHz/433MHz.
• Launch CRT5011E TPMS Relearn Tool can easily activate most of the known OEM TPMS sensors.
• Free Lifetime Upgraded, You can update your CRT5011E from your PC at any time without any cost
• Besides writing the Sensor ID into ECU, it can read sensor ECU ID from TPMS. CRT5011E also supports the diagnosis of 99% of the models on the market.
• CRT5011E tpms tool supports 10 languages: English, French, Russian, German, Italian, Japanese, Korean, Spanish, Portuguese, Chinese. You can configure the system language of the tool to your preference language.
• Launch CRT5011E TPMS Tool Main Functions
• 【Full TPMS Function + OBDII Diagnostics 2 in 1】LAUNCH CRT5011E 2023 NEWEST TPMS tool integrated with tire pressure sensor Diagnose(Check),Activate(Read), Program, and Relearn. It activates and reads tire sensor information by receiving 315/433MHz signal, and resets the TPMS module through the OBD interface. CRT5011E also is an OBD2 scanner, which supports Read/Clear Codes, I/M Readiness, Data Stream, View Freeze Frame, O2 Sensor Test, On-Board Monitor Test, EVAP System Test, Vehicle Info, etc.
• 【5 Programming Modes & 315/433MHz】 LAUNCH CRT5011E tpms programming tool support easy and fast Auto Creat,Manual Creation, Copy ID by OBD, Copy ID by Activate, and Creat Multi-Sensor ( up to 8 ) to program the tpms sensor data into new sensors. (Note: It only available for LAUNCH LTR-01 Sensor and other Unencrypted sensor, highly recommend program LAUNCH LTR01 Sensor,search "B09CKDYKY7" to purchase) Professional Launch CRT5011E can program the sensor by receiving multi-frequency 315MHz/433MHz.
• 【Activate 99% Sensors】LAUNCH CRT5011E TPMS Relearn Tool can easily activate most of the known OEM TPMS sensors. The main application scenarios of CRT5011E are tire pressure sensor replacement, tire replacement, car assembly and detection of whether the sensor is normal. Whether you are an automotive DIY enthusiast or mechanic, you can easily activate any brand of sensor with this TPMS reset tool. This TPMS Reset tool can also help you clear dreaded warning light of TPMS&Engine(emission-related).
• 【TPMS Relearn & Read TPMS ECU ID & Wide Coverage】LAUNCH CRT5011E is a tire pressure monitoring system relearn tool, which supports 3 relearn ways: 0BD Relearn, Automatic Relearn and Stationary Relearn. After sensor programming is completed, the Relearn function needs to be executed to register the sensor ID in the ECU. Besides writing the Sensor ID into ECU, it can read sensor ECU ID from TPMS. It is worth mentioning that CRT5011E also supports the diagnosis of 99% of the models on the market.
• Why do you need Launch CRT5011E TPMS Relearn Tool?
• Activate and match with all 315 MHz / 433 MHz tire pressure sensors
• Reprogramming LAUNCH LTR01 sensors AND other Unencrypted sensors with unlimited times

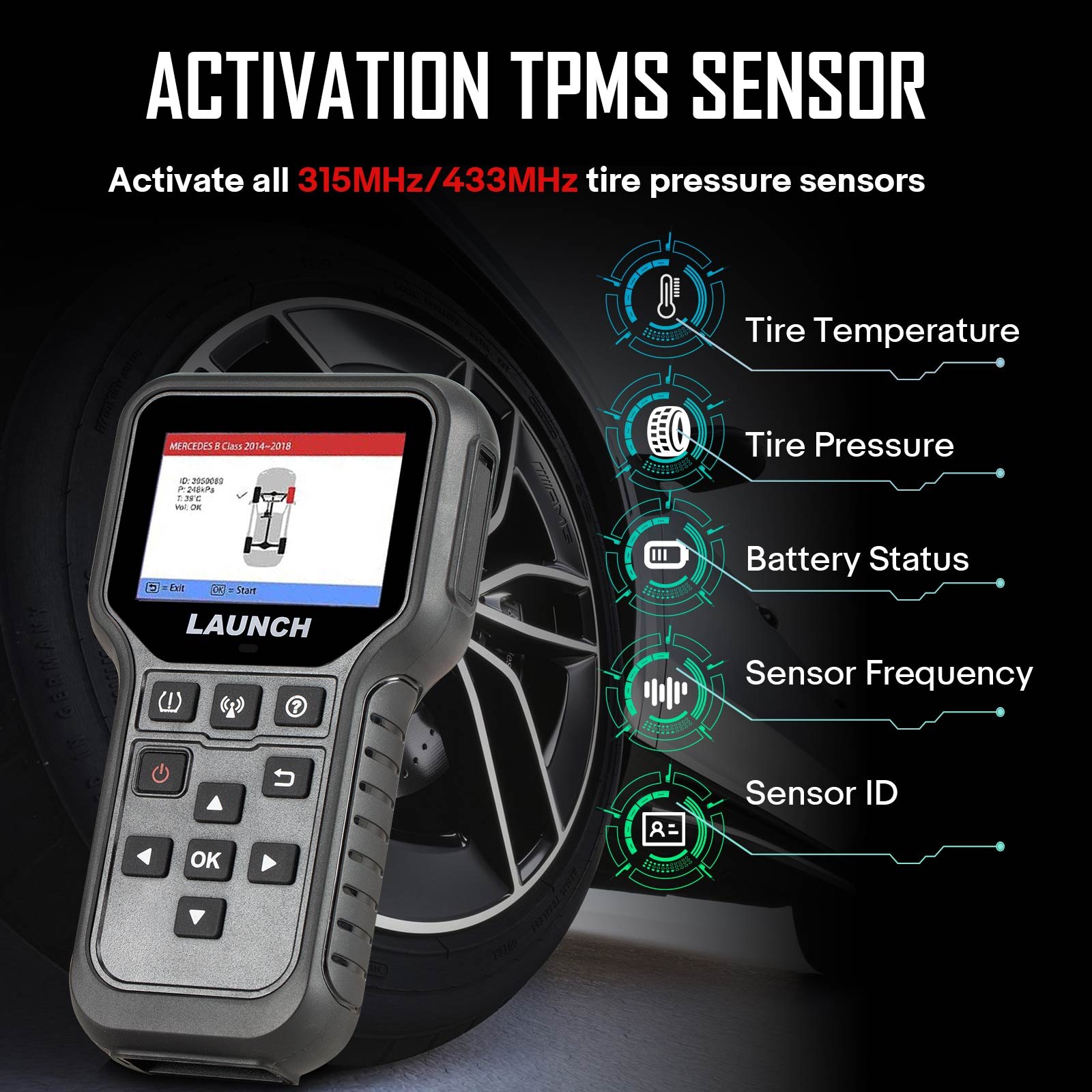

• Read tire pressure, tire temperature and battery status accurately
• Reprogram up to 8 sensors at one time
• Read dynamic data streams and MIL/Read readiness status/Freeze frame data/Read DTCs/Clear DTCs/O2 sensor test/On-board monitor test/Read vehicle information, etc.
• Please connect OBD2 port and start the engine before use.
• Note: For indirect TPMS vehicle, only the Relearning function is supported. For vehicle using Direct TPMS, it generally includes: Activation, Programming and Relearning. The available TPMS functions may vary for different vehicles being serviced.
• Full OBDII 10 Modes
• This option presents a quick way to check for DTCs, isolate the cause of the illuminated Malfunction Indicator Lamp (MIL), check monitor status prior to emissions certification testing, verify repairs, and perform a number of other services that are emission-related.
• 1.Read/Clear DTCs
• 2.I/M Readiness Check
• 3.Freeze Frame Data Viewing
• 4.O2 Sensor Test
• 5.On-board Monitor Test
• 6.EVAP System Test
• 7.Live Data Stream Viewing
• 8.Vehicle Information
• 9.Componet test.
• 4 in 1 Live Data Stream
• Relearn Procedure: Relearn operation applies only when the newly programmed sensor IDs are different from the original sensor IDs stored in the vehicle's ECU. Relearn is used to write the newly programmed sensor IDs into the vehicle's ECU for sensor recognition.
• Key Fob Test
• Please note that this feature is only available when you have upgraded your TPMS tool to the latest version.
• If you are tired of going to the dealer to test the signal strength of your key fob, key fob testing will be easy and convenient with the CRT5011E tpms relearn tool. When your key fob starts to run abnormally or stops working, this TPMS tool can check your key fob to make sure it is in the best condition.
• You can use this option to get the Tire Sensor ID, Tire Pressure/Temperature, Voltage, Versione Boot,Programming File, Serial Number(SN).

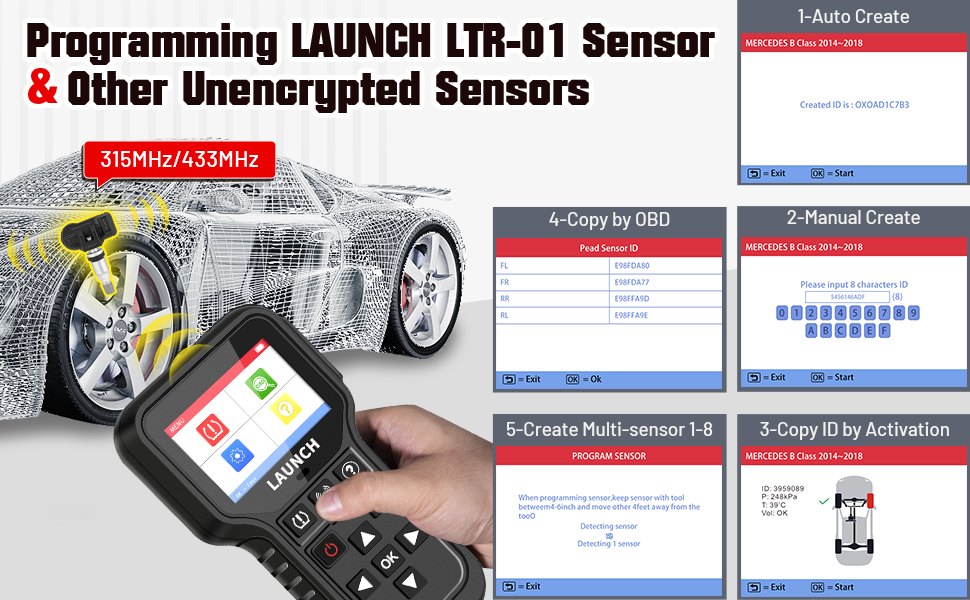

• 5 Modes to Program Launch LTR01 Sensors and Other Unencrypted Sensors
• The Launch CRT5011E TPMS sensor programmer tool can program all Launch LTR01 sensors and Other Unencrypted Sensors, including 315MHz and 433MHz, to replace damaged sensors.
• CRT5011E has 5 modes to program Launch LTR01 Sensors and Other Unencrypted Sensors:

Part number lookup is the underrated function, since it tells you what to order before fitting.
