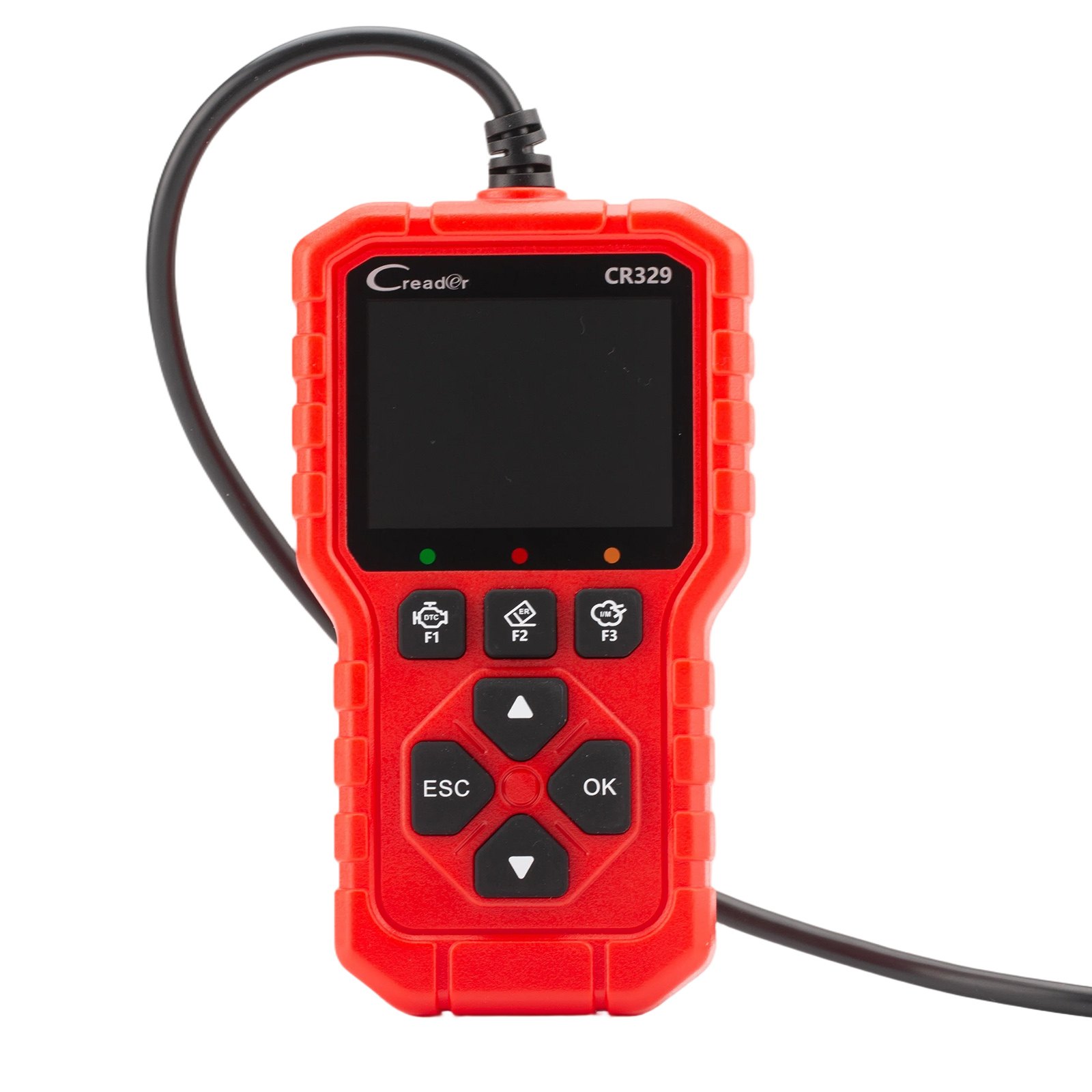

LAUNCH Creader CR329 Passenger Car Scan Tool Supports 10 OBD Diagnostic Modes Data Stream Battery Voltage Testing

The Launch Creader CR329, a passenger car scan tool supporting all ten OBD diagnostic modes with live data stream and battery voltage testing. It reads on a 2.8 inch screen with 32Mbit of flash storage, and speaks English, French, Spanish, German, Italian, Russian and Portuguese.

Specifications

• Supports Multiple Languages: English, French, Spanish, German
• Supports 10 languages: English, French, Spanish, German, Italian, Russian, Portuguese, Polish, Dutch, and Japanese.
• High contrast: Images appear sharper with distinct blacks and whites.
• Low contrast: The screen may look hazy with blurred details.
• Connect the Device: Turn on the ignition after connecting to the DLC, and the device will automatically start up.

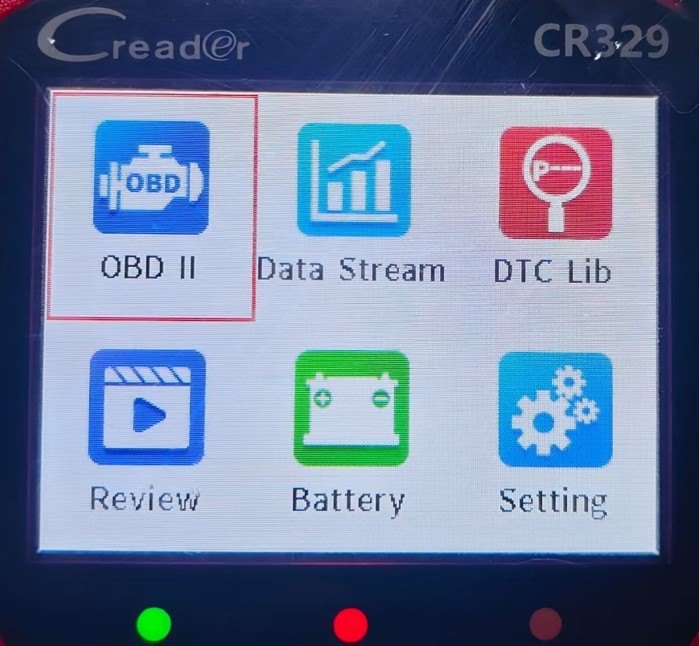

• Access the Main Interface: Once the system identifies the vehicle, you will enter the main function screen.
• Select a Function: Choose the required function, such as trouble code inquiry, data playback, or auxiliary functions.
• Follow On-screen Prompts: Complete the detection by following the guidance on the screen, simple and efficient.
• Screen: 2.8inch
• Storage: 32Mbit Flash
• Working temperature: 0℃~50℃
• Voltage: 12V

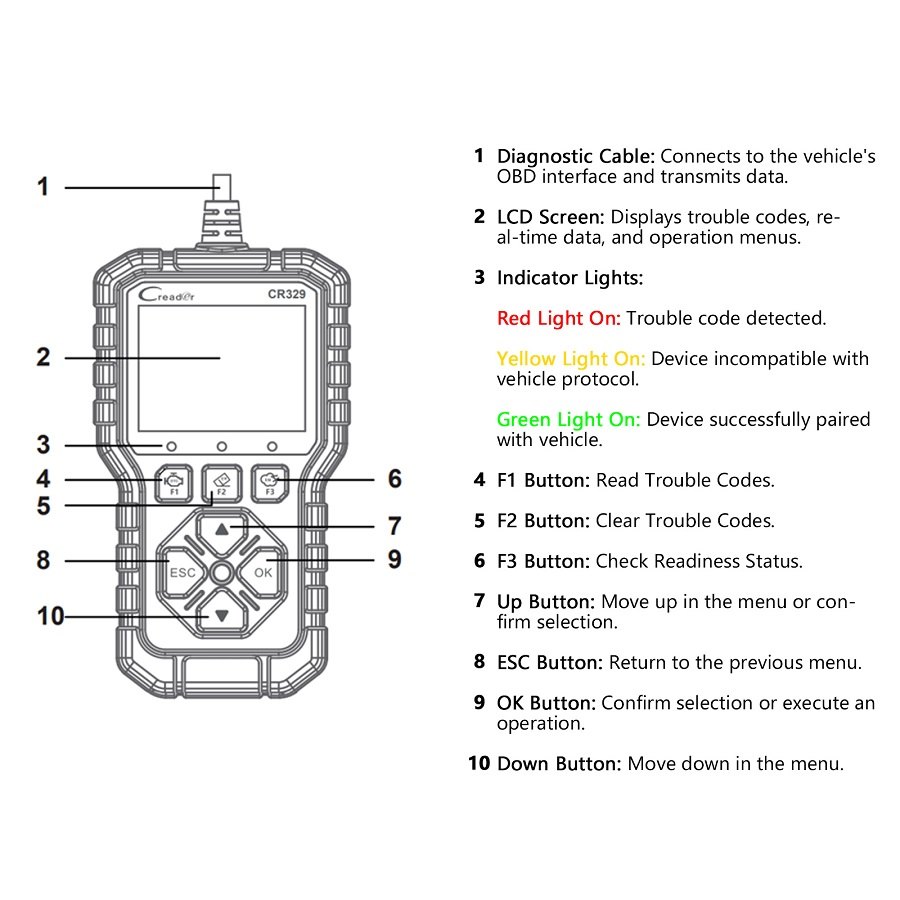

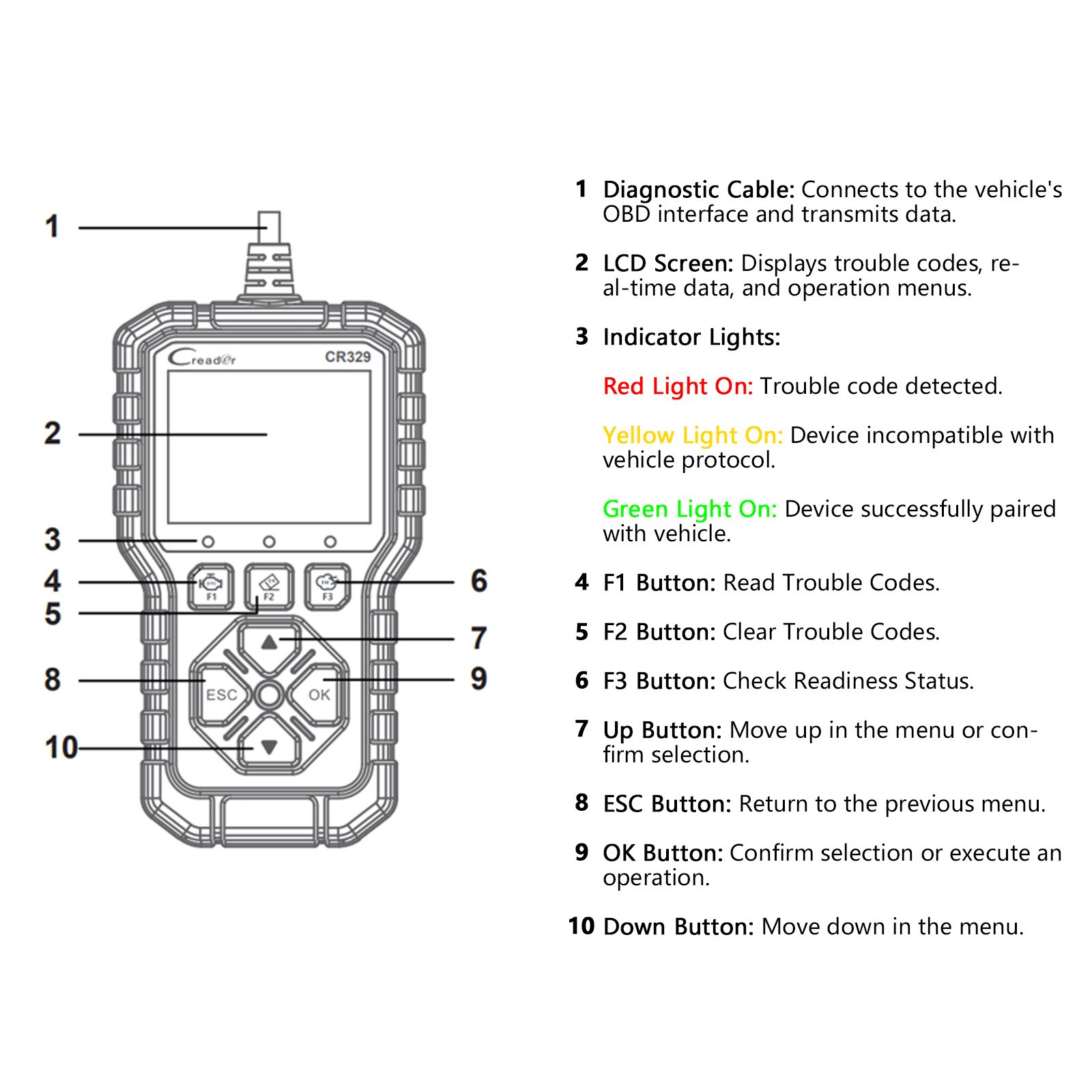

• Buttons: Up, Down, OK, ESC, F1 (Read DTCs), F2 (Clear DTCs), F3 (I/M Readiness Status)
• Certificates: CE, FCC, IC, ROHS
• Languages: 10 languages, English, French, Spanish, German, Italian, Russian, Portuguese, Polish, Dutch, Japanese.
• Size: 160*90*28mm

What you get

• 1pc x Main Unit with Diagnostic Cable
• 1pc x Quick Start Guide
• 1pc x GPSR
• 1pc x Desiccant
• LAUNCH Creader CR329 is a code reader tool based on a single-chip microcomputer platform. It offers full OBD diagnostics tailored for the passenger car DIY market. Equipped with a 2.8-inch high-definition color screen and indicator lights, it supports 10 OBD diagnostic modes, detailed trouble code and data stream display, real-time graphing, data playback, battery voltage testing, cloud printing, quick lookup, and specific trouble code search.
• LAUNCH Creader CR329 Passenger Car Scan Tool
• It supports the ISO15765, ISO9141, ISO-14230, and SAE J1850 protocols.
• Battery(Battery testing)

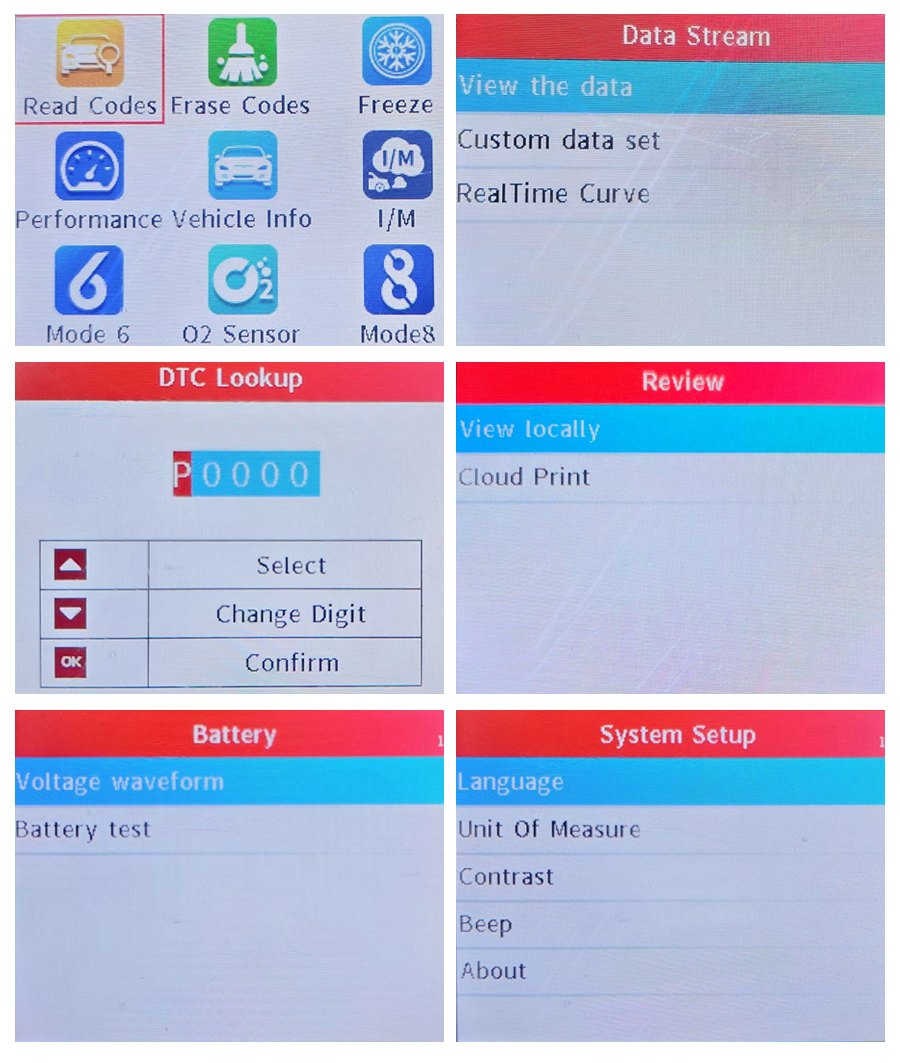

• Read Codes, Erase Codes, Freeze, Performance, Vehicle Info, I/M, Mode 6, O2 Sensor, Mode 8
• Enter Trouble Code → 2. Adjust Characters as Prompted → 3. Press [OK] to Confirm Query
• Battery
• Voltage Waveform, A graphical representation of voltage changes over time.
• Battery Test, Detects battery performance via voltage measurement.
• Adjust contrast using the Up and Down button.
• The device includes a buzzer, which can be turned ON or OFF.
• Displays the device version number.
• Turn off the ignition switch and ensure the vehicle is in a safe condition.

All ten OBD modes is the detail. Cheaper readers cover three or four and miss readiness and freeze frames.
