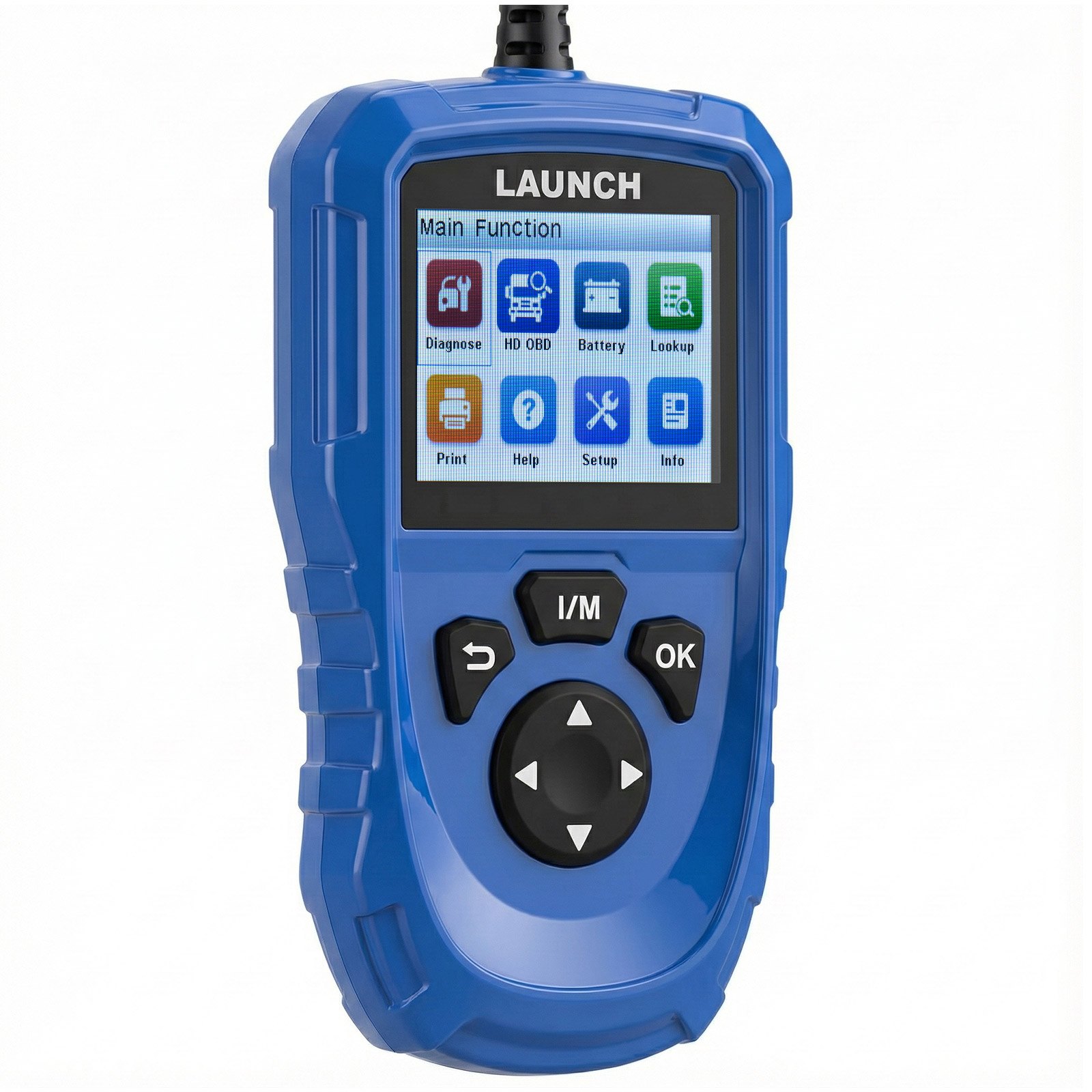

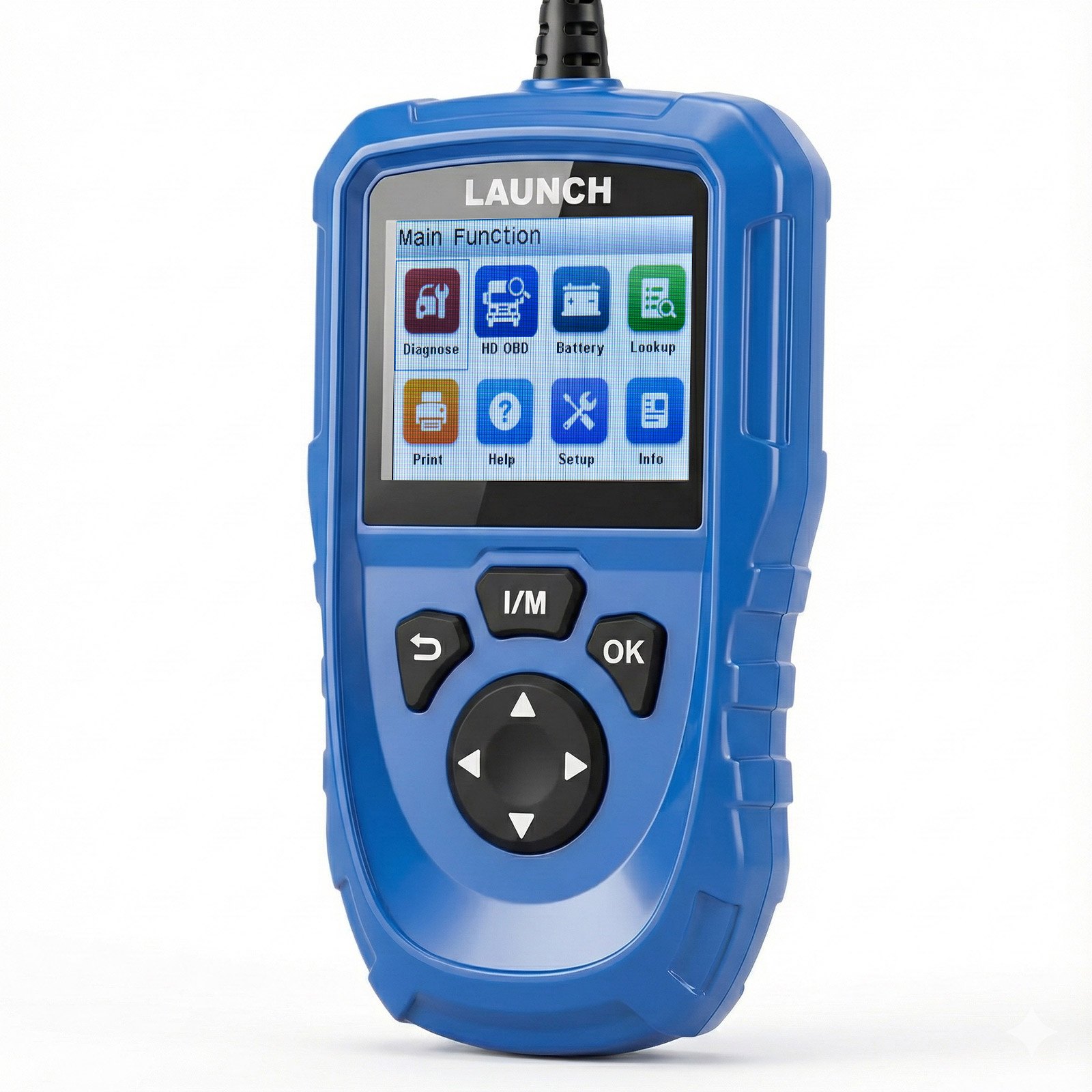

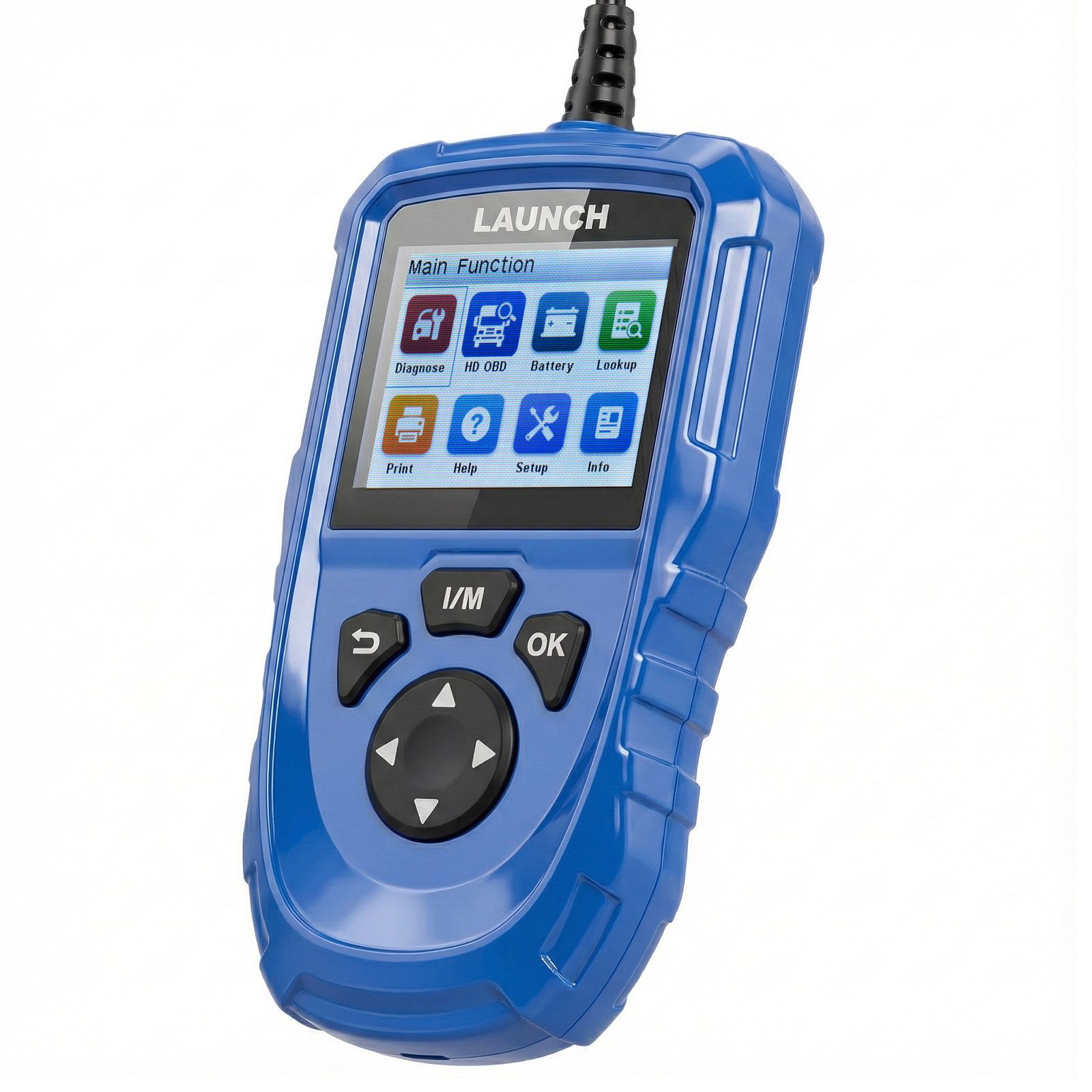

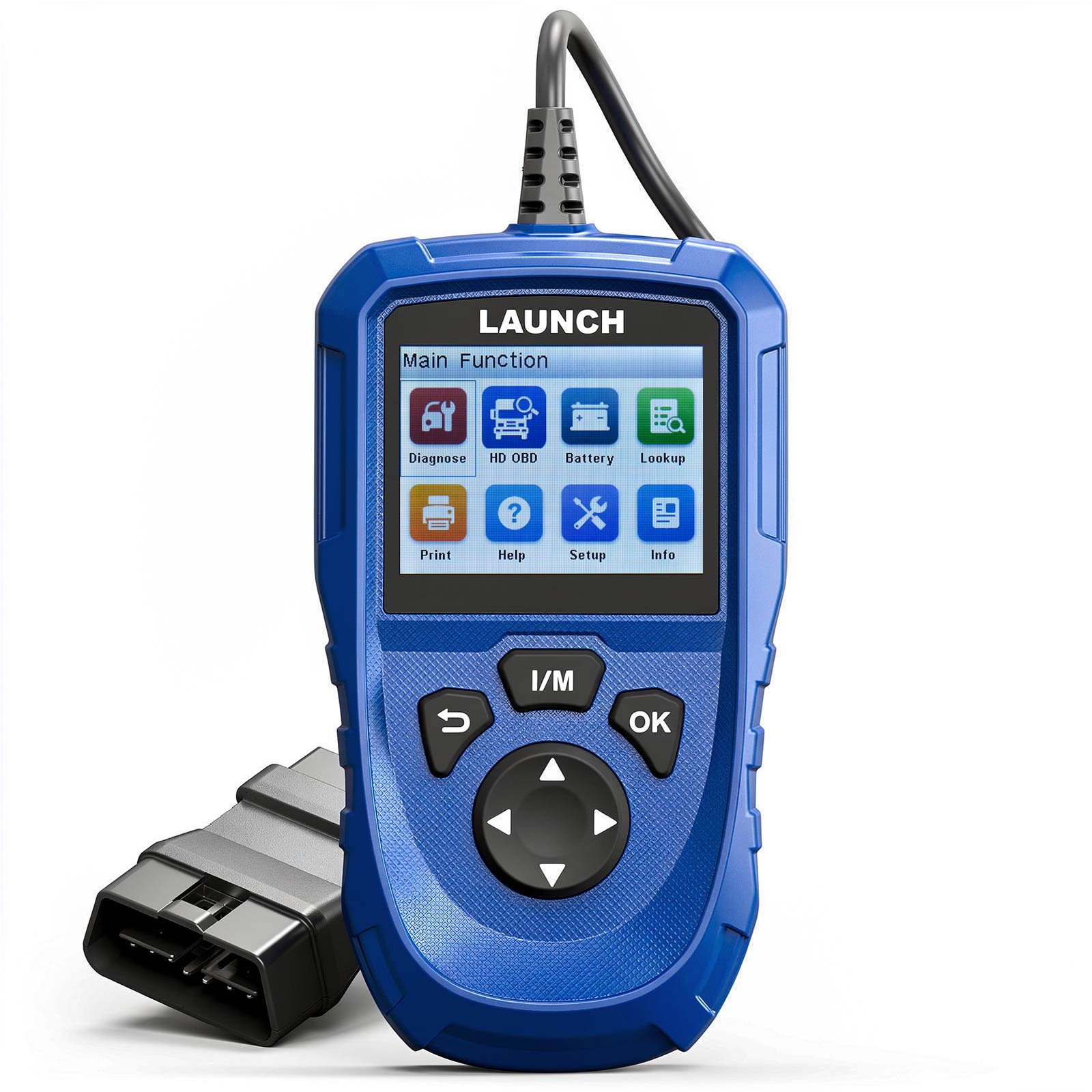

LAUNCH CR HD V2 Commercial Vehicle E-commerce Standard Configuration Supports HD OBD & EOBD Fast Fault Code Reading/Clearing, Battery Check

The Launch CR HD V2 commercial vehicle code reader in standard configuration, supporting HD OBD and EOBD with fast fault code reading and clearing and a battery check. It searches systems automatically or by manual selection, records at one press, offers three interface languages and switchable units, on a 2.8 inch screen with 16MB of storage.

Specifications

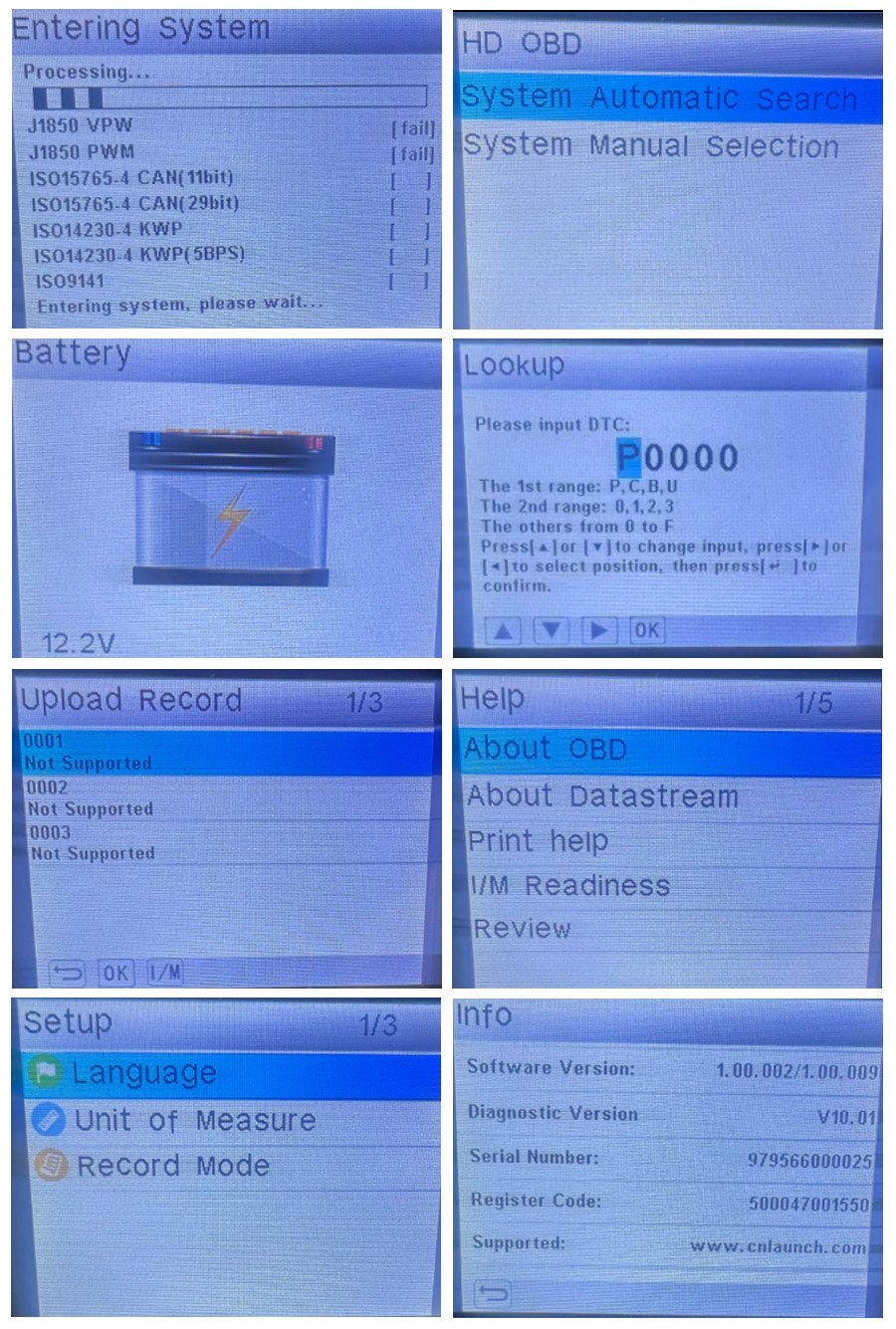

• Automatic System Search: Automatically identifies vehicle communication protocols with a single click, quickly establishing a connection for high efficiency and convenience.
• Manual System Selection: Supports professional personnel manually specifying the system to handle special or complex vehicle models, providing more accurate and flexible diagnosis.
• Language Switching: Supports three multilingual interfaces to meet the native language operation needs of users in different regions.
• Unit of Measure: Allows for flexible unit settings to ensure data reading conforms to user habits.
• Record mode: One-click enabling and disabling of recording mode.
• Software Version: The software version currently installed on the device.
• Diagnostic Version: The firmware version currently installed on the device.
• Supported: Official Support Channels
• Screen: 2.8 inch
• Storage: 16MB
• Interfaces: 1. OBDII (direct output); 2. Type-C
• Voltage: 24V
• Operating Current: 0.25A
• Operating Temperature: 0℃~-50℃
• Storage Temperature: -20℃~-70℃

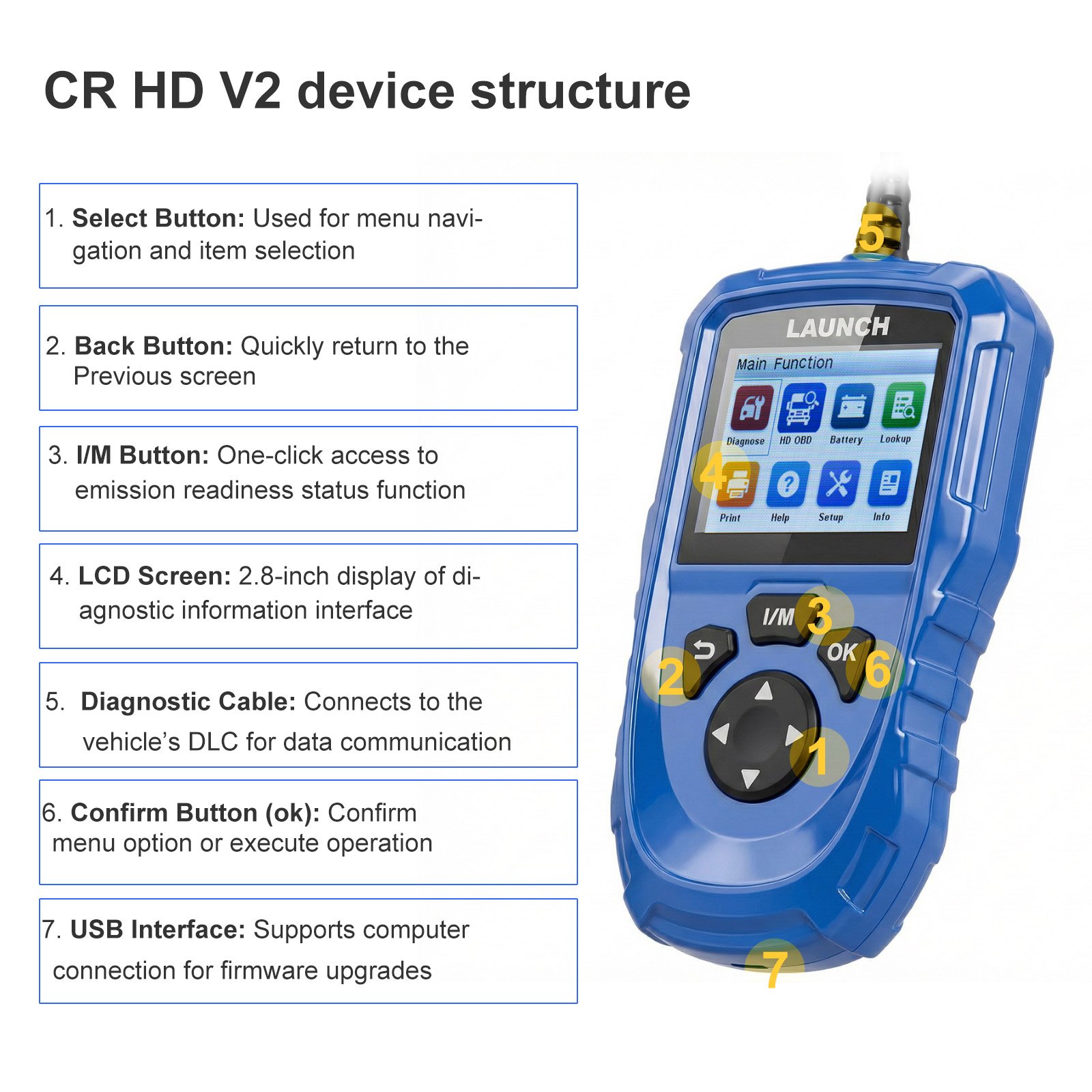

• Buttons: Up, Down, Left, Right, Confirm, Back, I/M
• Certifications: CE, FCC, IC, RoHS
• Languages: English, French, Spanish
• Service: Upgrade package obtained via PC client connection, permanently valid.
• Connecting the Device: Connect the diagnostic tool to the vehicle's DLC, turn on the ignition switch, and the device will start automatically;

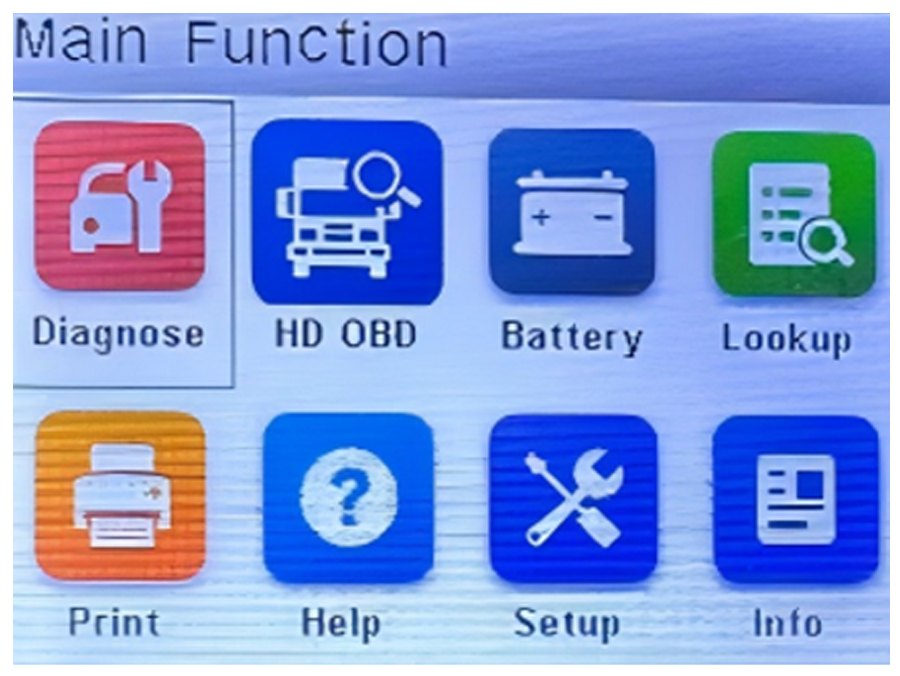

• Entering the Main Interface: After the system recognizes the vehicle, it will enter the main function screen;
• Selecting a Function: Select fault code lookup, data logging, playback, or auxiliary functions as needed;
• Following the Prompts: Follow the on-screen instructions to complete the test; simple and efficient.

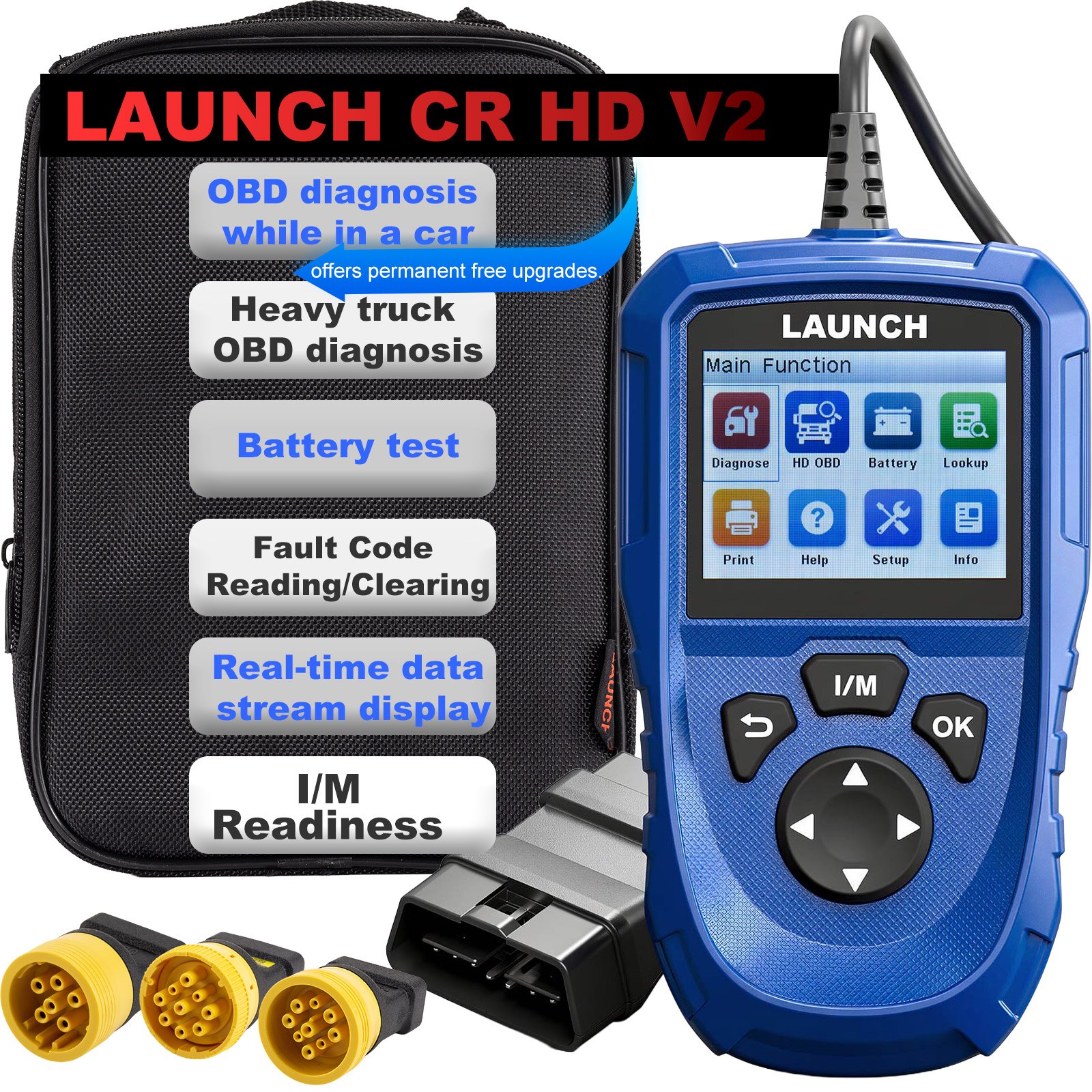

What you get

• 1pc x Main unit with diagnostic cables (3-row DB15 female connectors (1.5m cable))
• 1pc x OBD6 connector,
• 1pc x OBD9 connector,
• 1pc x CT9 connector,
• 1pc x adapter connector
• 1pc x USB power cable
• 1pc x Quick Start Guide
• 1pc x Cloth bag
• LAUNCH CR HD V2 is a new generation heavy-duty truck tool, developed based on the ARM platform and designed specifically for DIY users. This product supports HD OBD and EOBD, and features practical functions such as fast fault code reading and clearing, real-time data stream display, graphical display, voltage detection, data printing, and I/M readiness status checking, meeting the needs of various scenarios including daily maintenance and troubleshooting.
• LAUNCH CR HD V2 Commercial Vehicle E-commerce Standard Configuration Supports HD OBD & EOBD Fast Fault Code Reading/Clearing, Battery Check
• LAUNCH CR HD V2 supports J1708, J1939, J1979, J1850, PWM, and VPW protocols. It offers comprehensive fault code and data stream display and offers permanent free upgrades.
• Supports mainstream global automotive communication protocols, with no compatibility concerns.
• Battery (Battery Check)
• Read battery voltage from OBD port
• Enter the fault code → 2. Adjust the characters according to the prompts → 3. Press [OK] to confirm the lookup

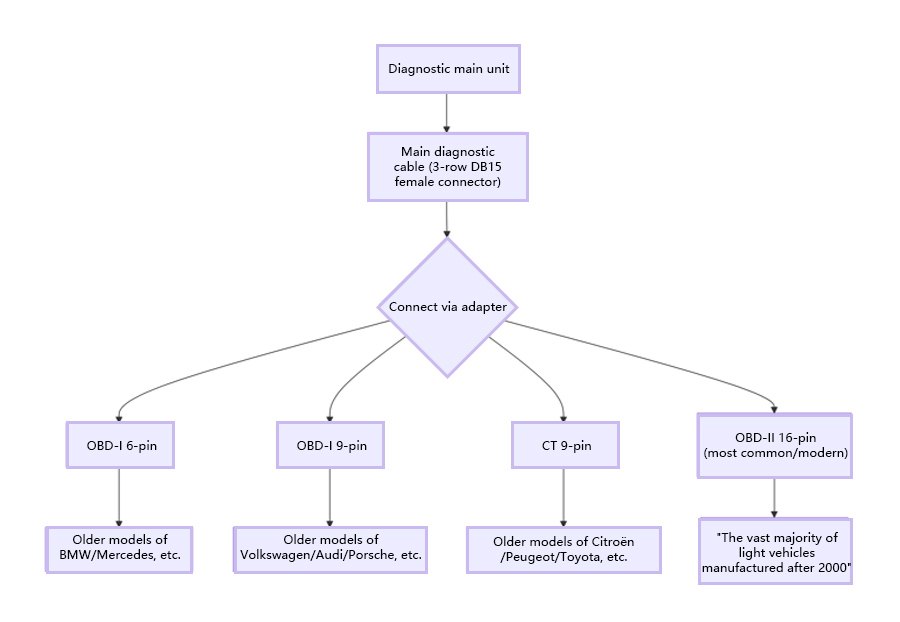

• Next, select and install the appropriate adapter according to the vehicle's DLC type;

Automatic protocol identification is what saves time on a mixed fleet of trucks and trailers.
