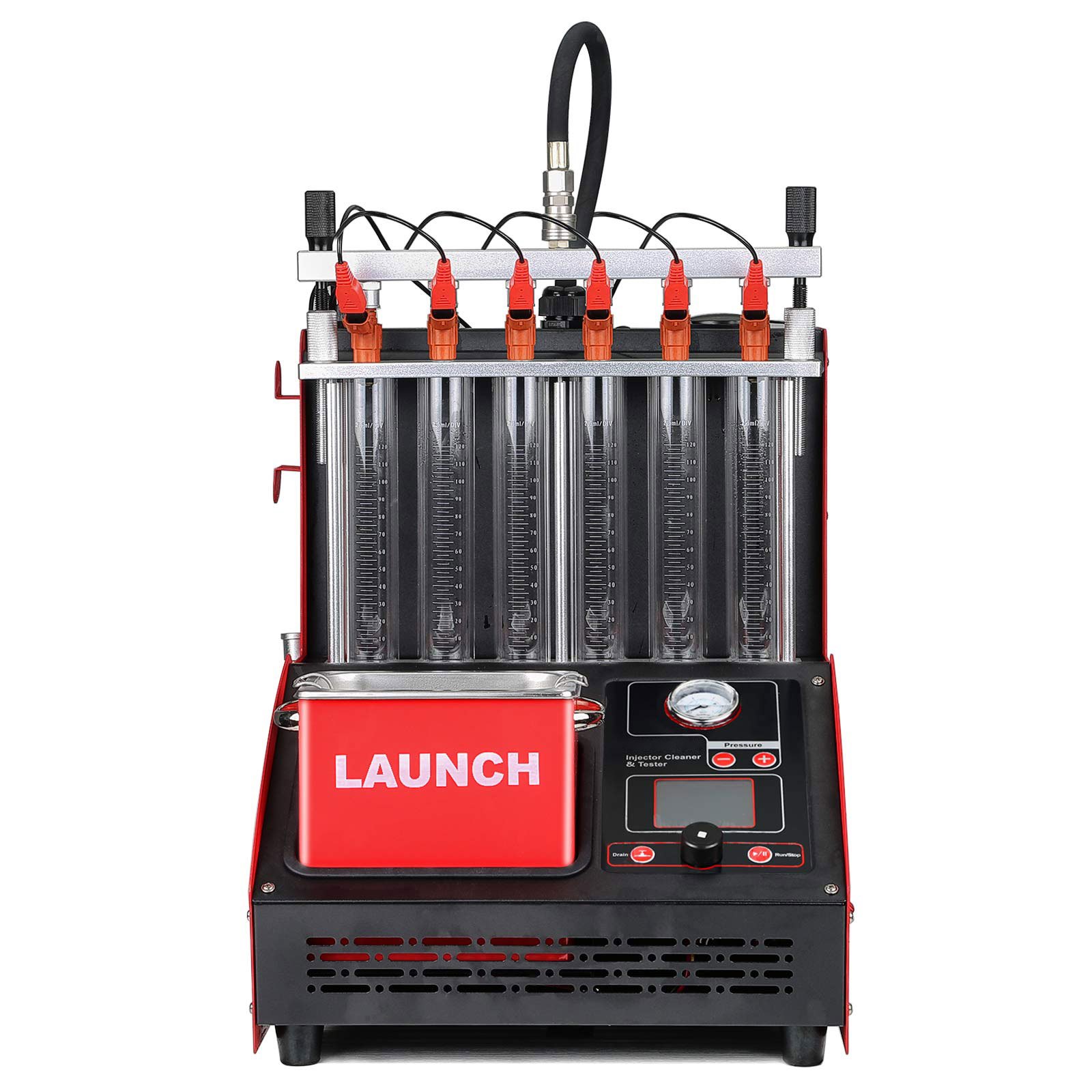

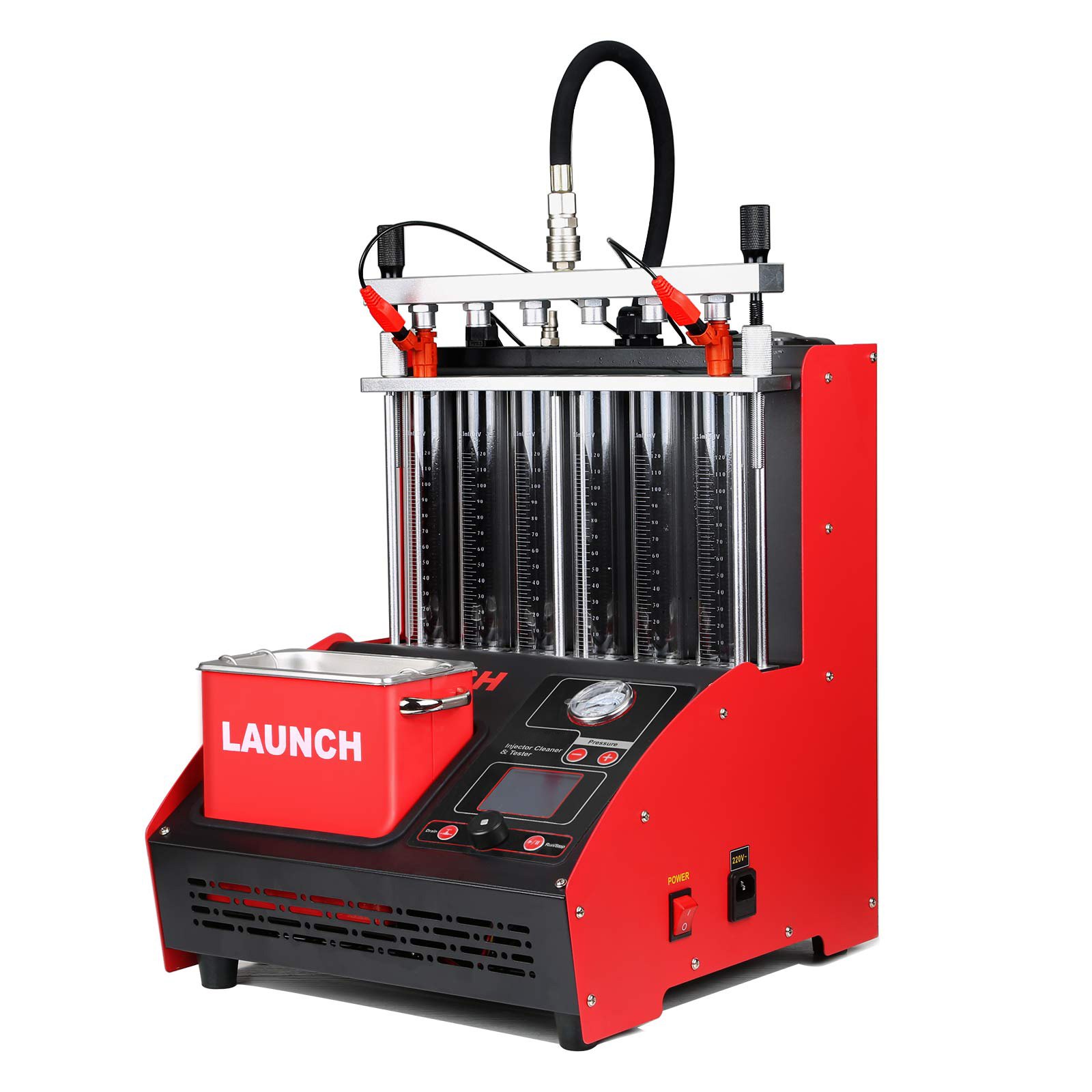

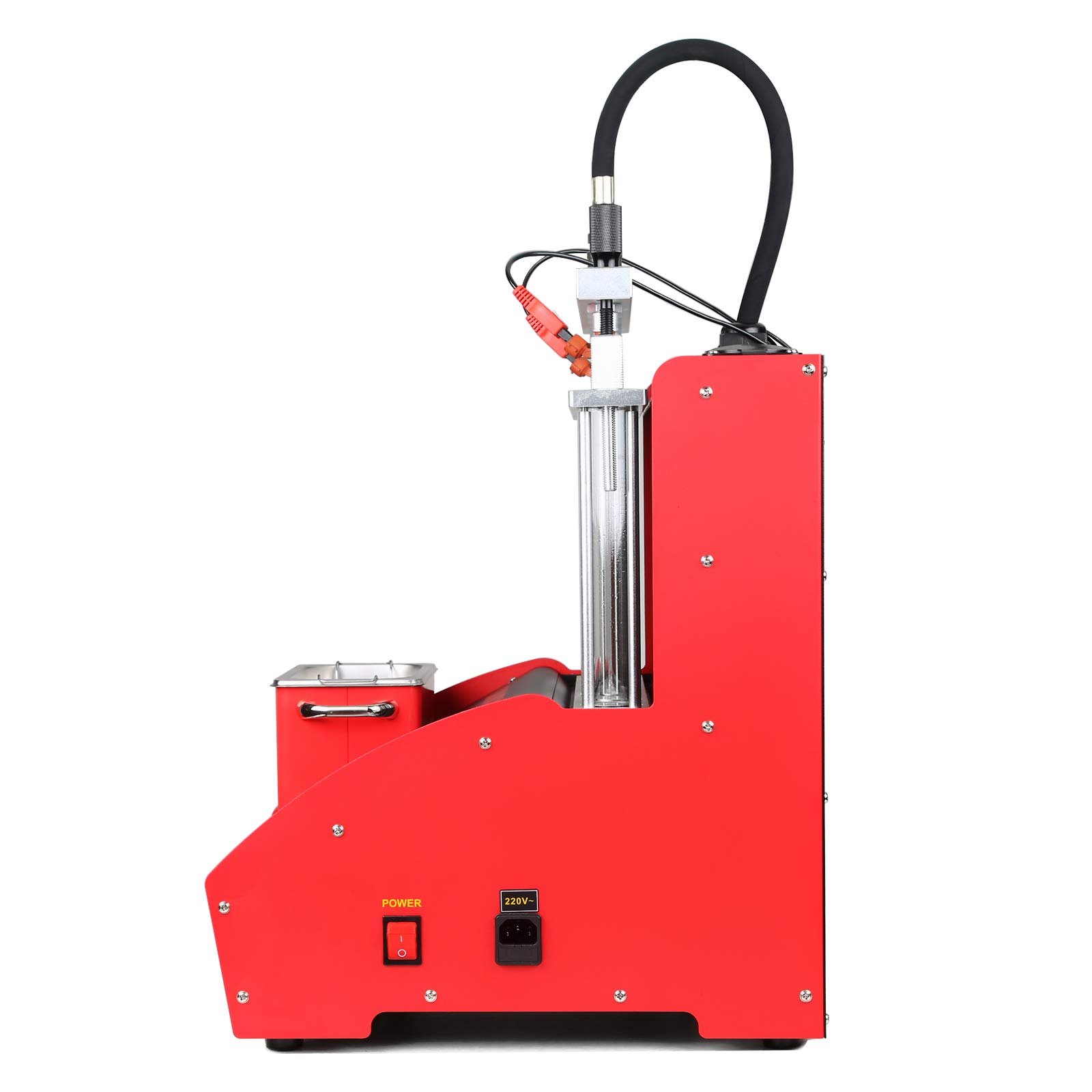

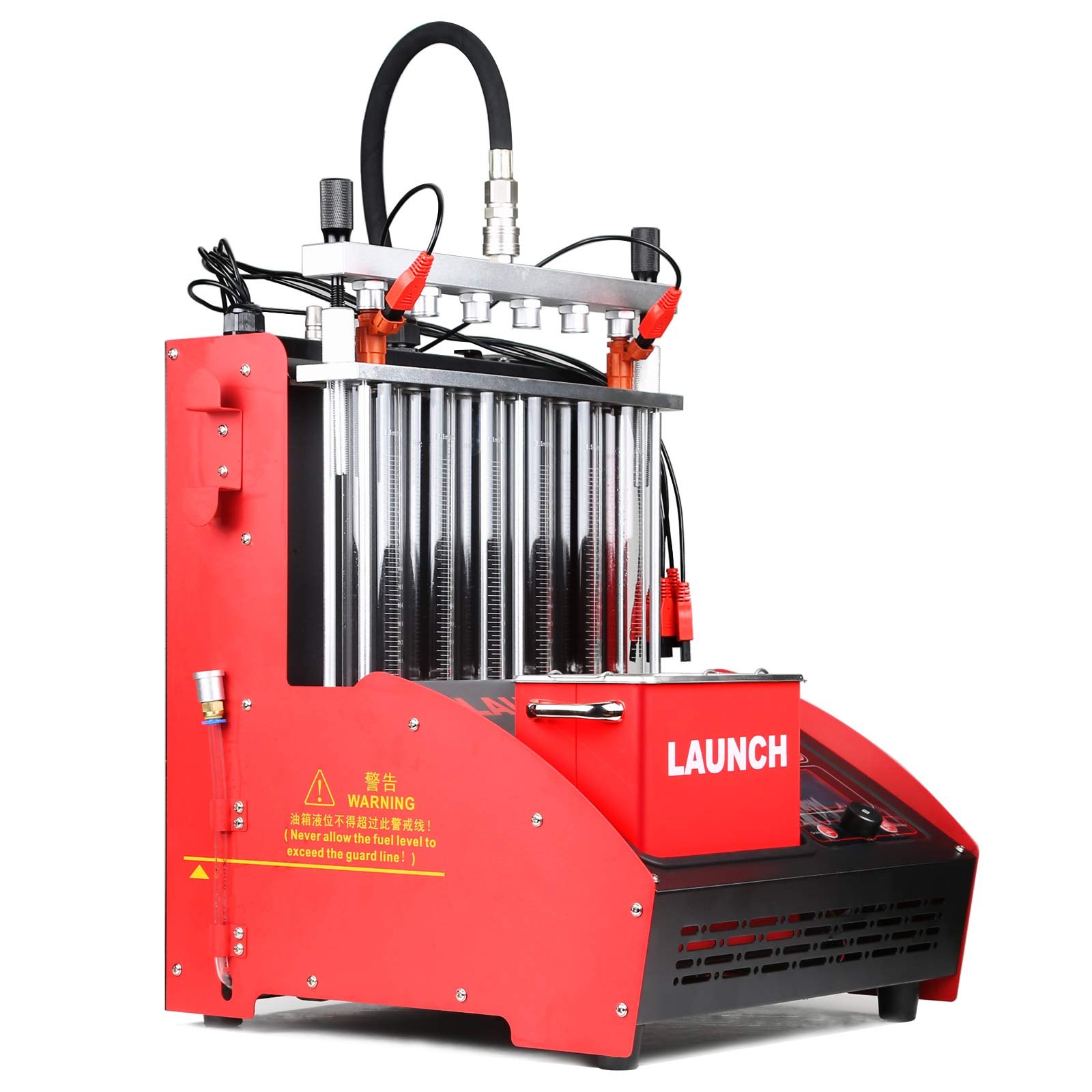

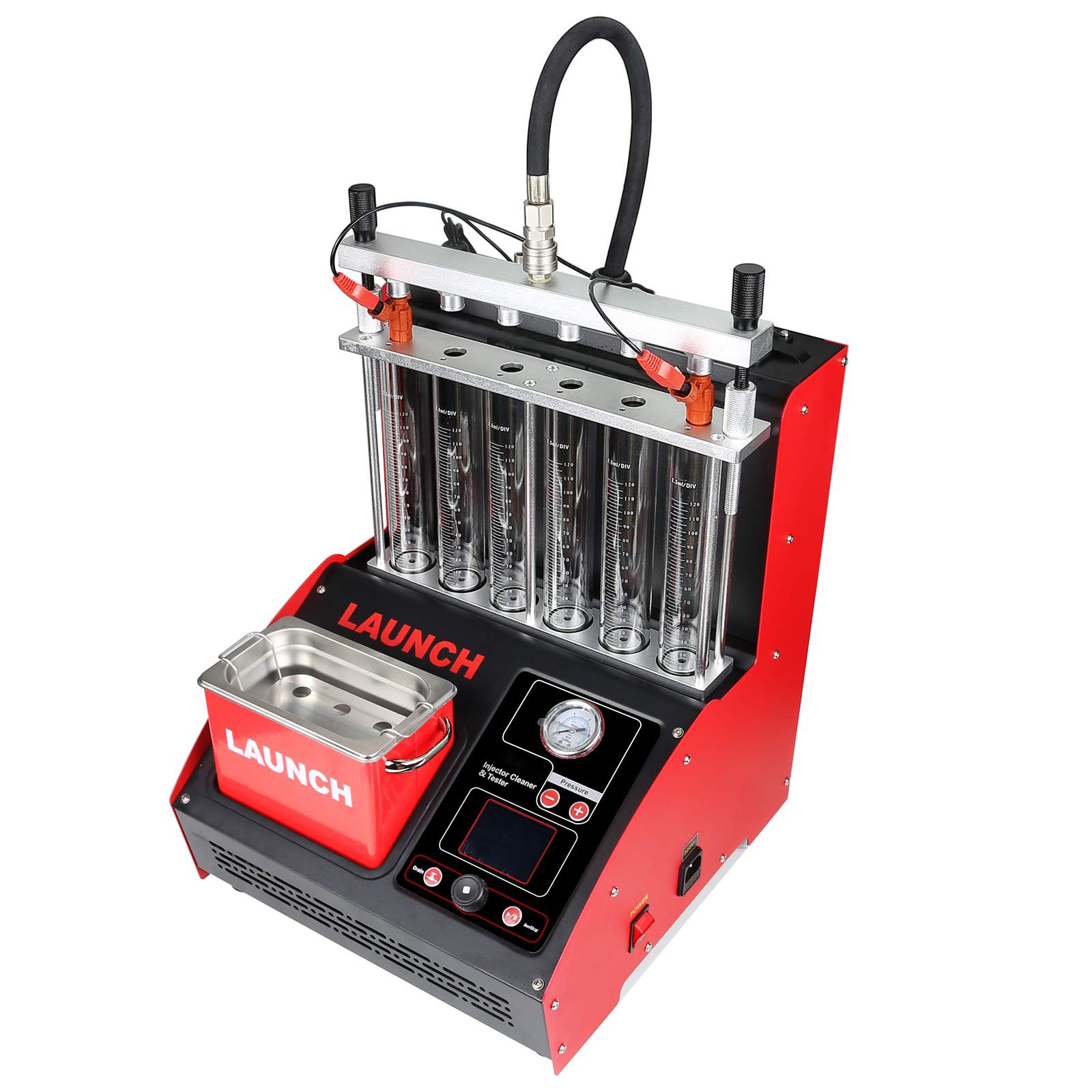

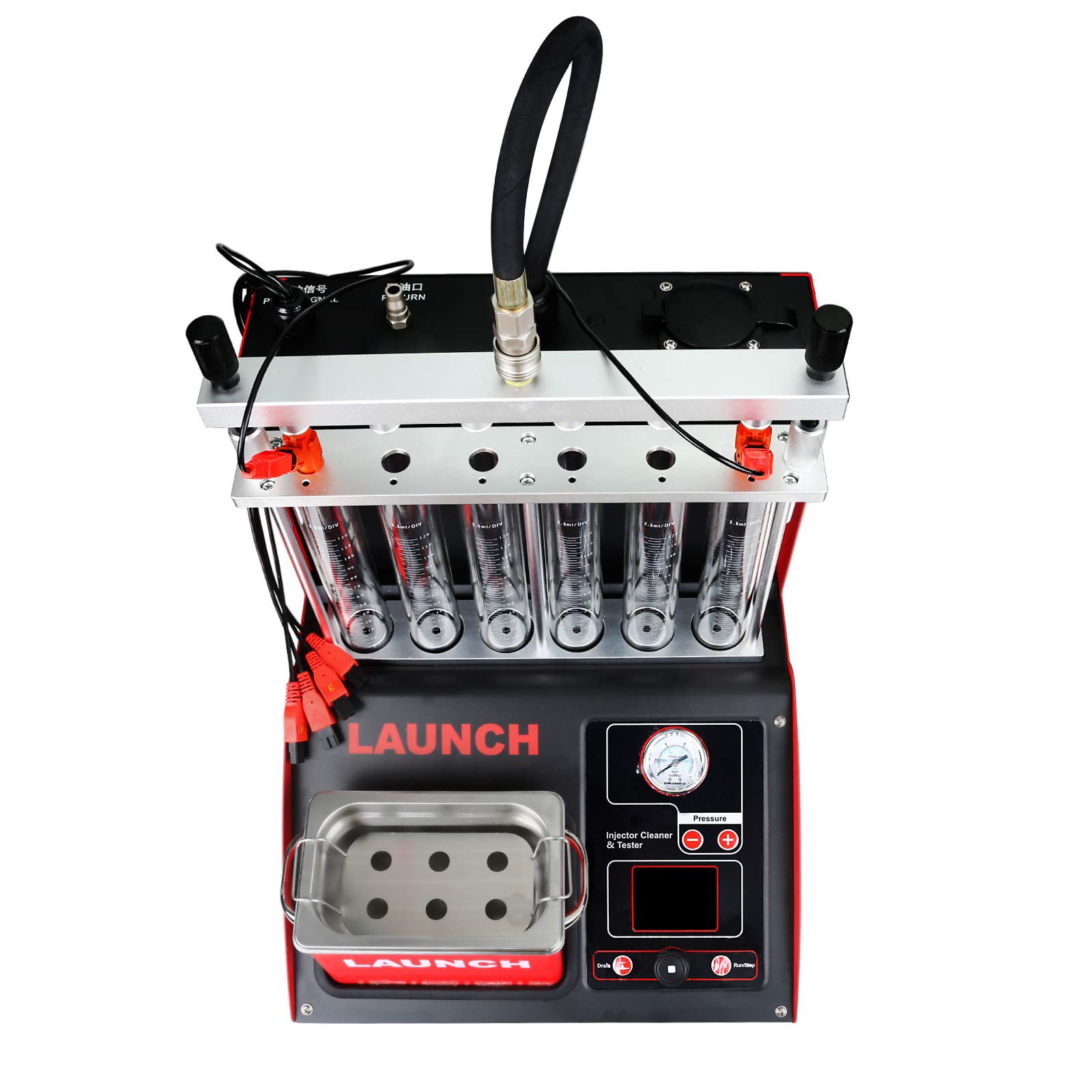

Launch CNC603A Ultrasonic Fuel Injector Cleaner and Tester for 4/6 Cylinder

Launch CNC603A is an ultrasonic fuel injector cleaner and tester that simulates engine working conditions to clean and test fuel injectors, and performs on-vehicle cleaning for the fuel supply system.

Compatible with Audi, Benz, BMW, Chevrolet, Chrysler, Citroen, Fiat, Ford, GM, Honda, Hyundai, Jaguar, Kia, Land Rover, Mazda, Mitsubishi, Nissan, Opel, Peugeot, Porsche, Renault, Seat, Skoda, Subaru, Suzuki, Toyota, Volvo, VW, and more.

Functions

• Uniformity / spray ability test: Detects fuel injection quantity uniformity and monitors spray status with backlight
• Leakage test: Tests leakage and dribbling conditions under system pressure
• Injecting flow test: Measures fuel injected in 15 seconds
• Ultrasonic cleaning: Cleans multiple injectors simultaneously, removing carbon deposits
• On-vehicle cleaning: Disassembly-free cleaning connectors for various vehicle models
• Auto test: Simulates injector operation under specific conditions

Specifications

• Power: AC220V-230V, 50/60Hz 1.5A max
• Mechanical power: 300W
• Ultrasonic cleaning power: 100W
• Speed range: 10-9990 RPM (step: 10 RPM)
• Timing range: 1-9999s
• Pulse width range: 0.5-25ms (step: 0.1ms)
• Operating volume: 2000ml
• Main unit dimensions: 355 x 350 x 356 mm
• Packing dimensions: 458 x 433 x 537 mm
• Net weight: 10.5 kg
• Gross weight: 13 kg
• Voltage options: 110V and 220V
• Languages: English, Japanese, Russian, Korean, French, Portuguese, Italian, Chinese

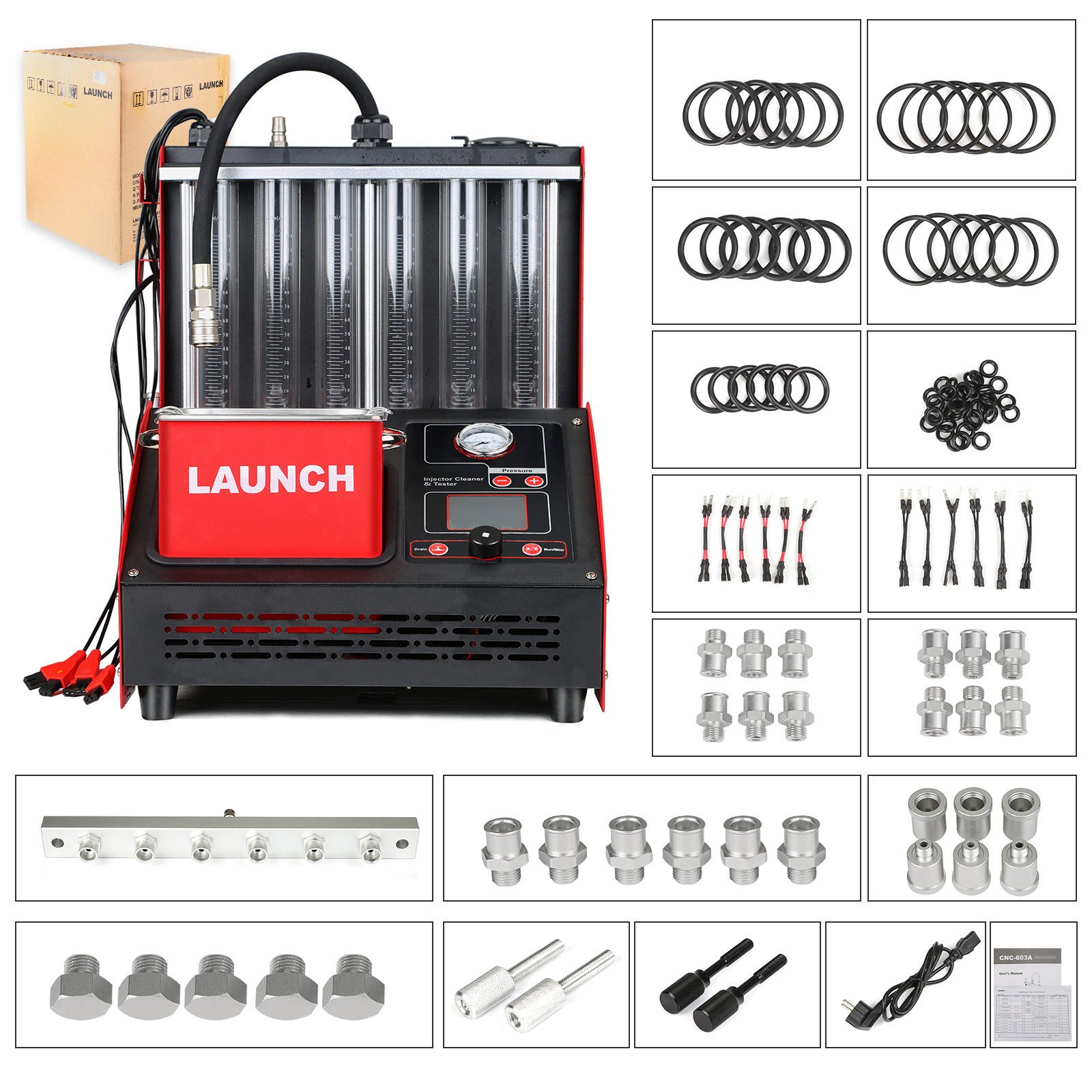

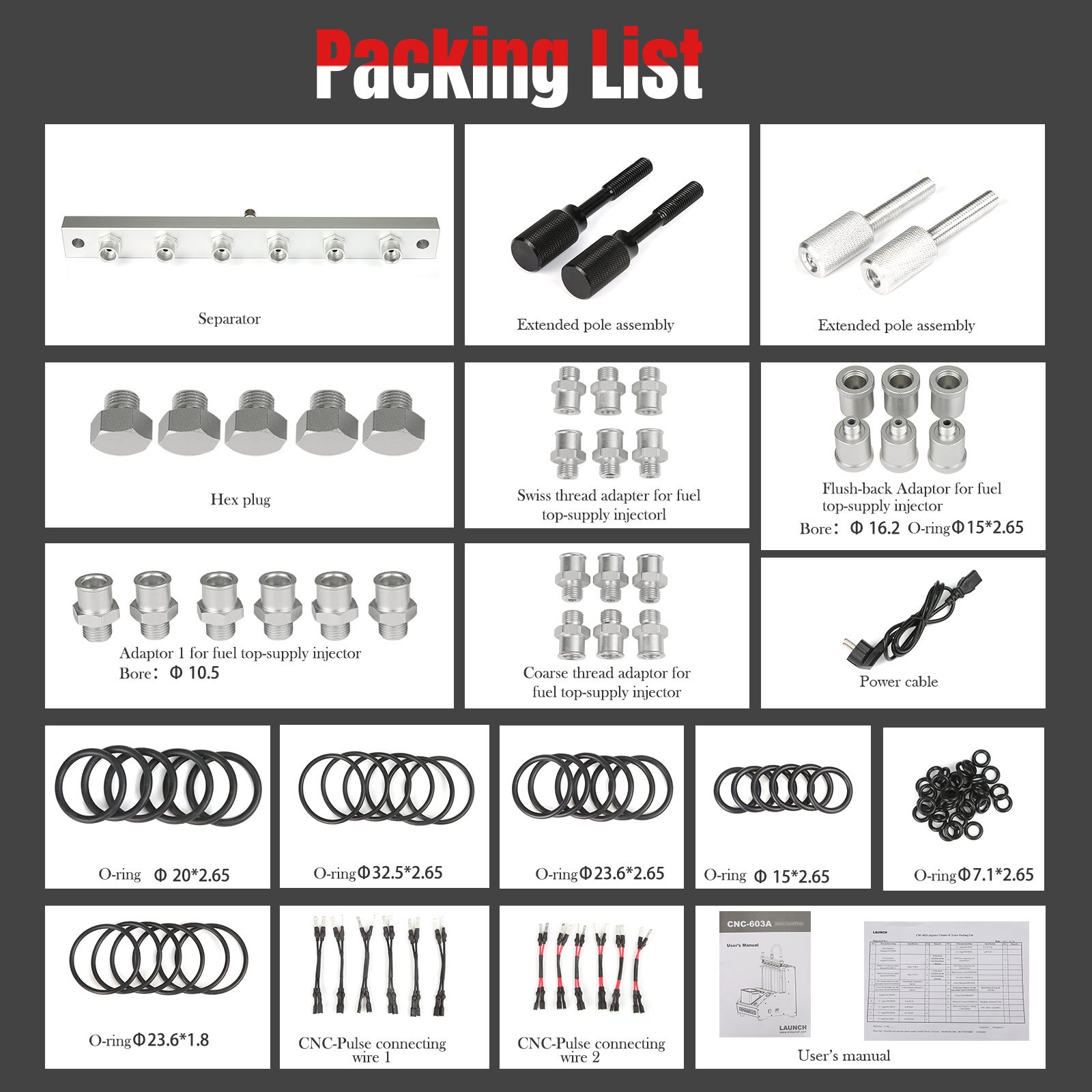

Package Includes

• 1 x Launch CNC603A
