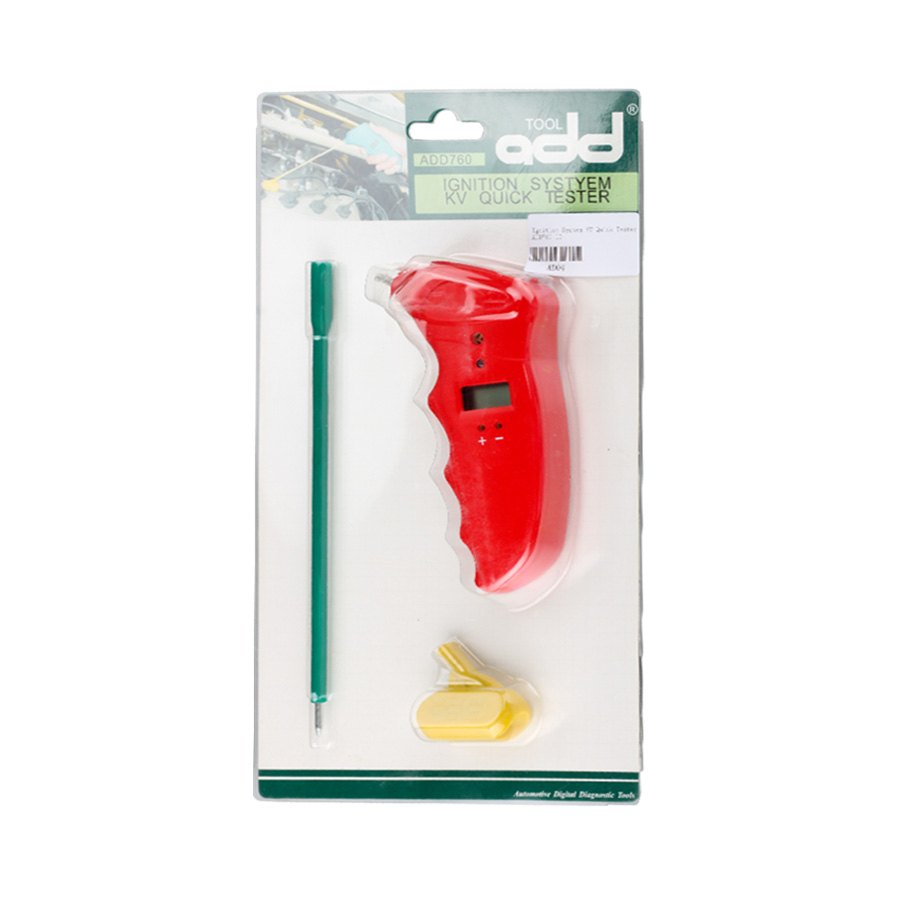

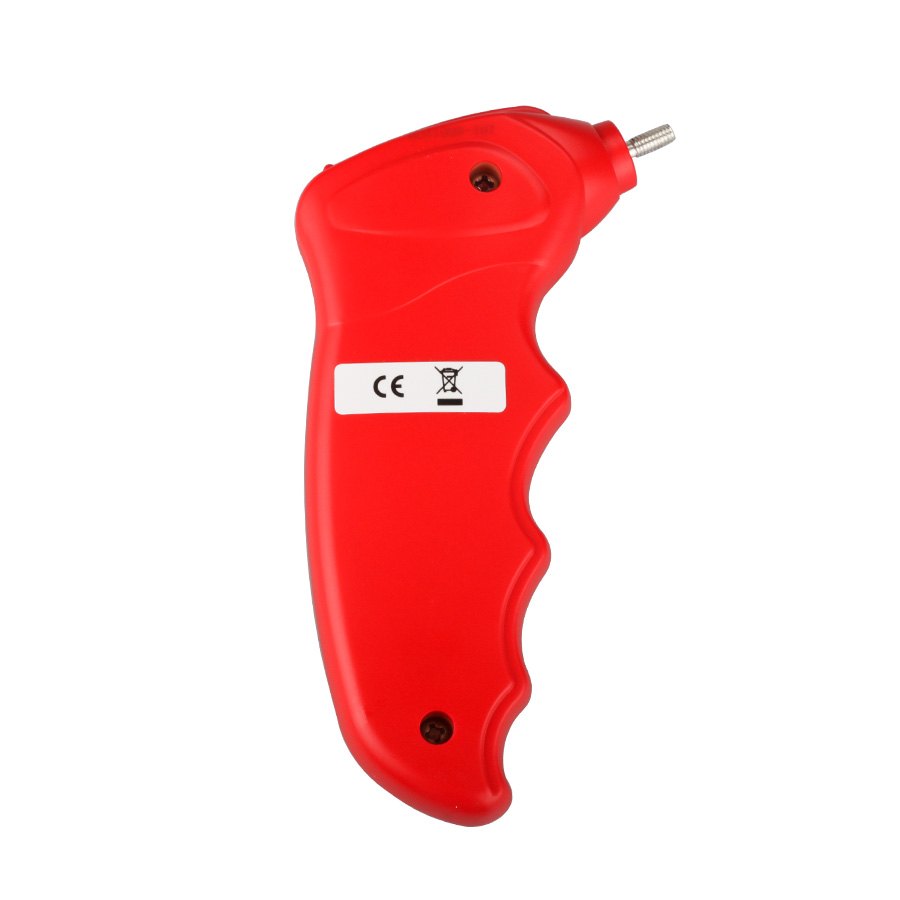

Ignition System KV Quick Tester ADD760

The ADD760 ignition system KV quick tester, built for distributor and distributorless ignition systems. It runs on its own battery, and testing is as simple as placing the probe over the ignition lead rather than breaking into the circuit.

Also stated by the supplier

• Ignition System KV Quick Tester ADD760
• The KV Ignition system quick tester ADD 760 is designed to work on distributor and DIS systems, and it can quick measure KV value of the secondary ignition and compare peak kV, or verify the proper firing of the secondary ignition system.

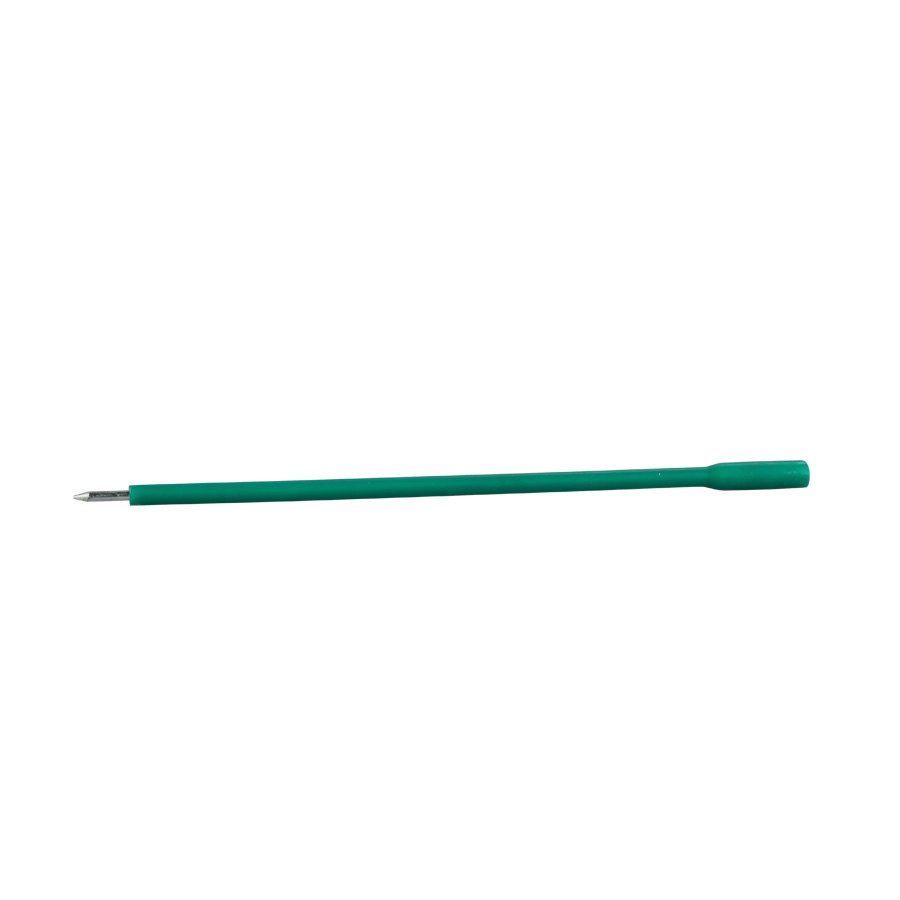

• Quick tester battery Operated and easy to use, simply place the probe over the ignition wire.
• Each time the tester detects a spark firing, it will flash the Super Bright LED strobe indicating a spark-firing event with sufficient arc press the button and the unit measures and displays peak kV on the LCD display. Super Bright LED strobe allows the user to determine if the secondary ignition is firing consistently, intermittently misfiring, or not spark polarity on DIS systems. Detect problems caused by faulty wires, plugs, cap, rotor, coil(s), etc.
• To enter the Quick Check Mode, simply turn the tester on. The tester automatically enters this mode when it is powered on.
• If the tester does not detect a spark after 30 seconds, it automatically turns off.
• The Quick Check Mode may not detect spark voltage less than 5 kV. Use the Measurement Mode to verify.
• During this mode, the red and green LEDs stay lit while the tester measures the peak spark voltage (for approximately 10 to 15 seconds).
• The headlight flashes 3 times
• LCD displays the current KV reading for 15 seconds

A non intrusive KV check is the fastest way to find a weak lead or coil without pulling anything apart.
