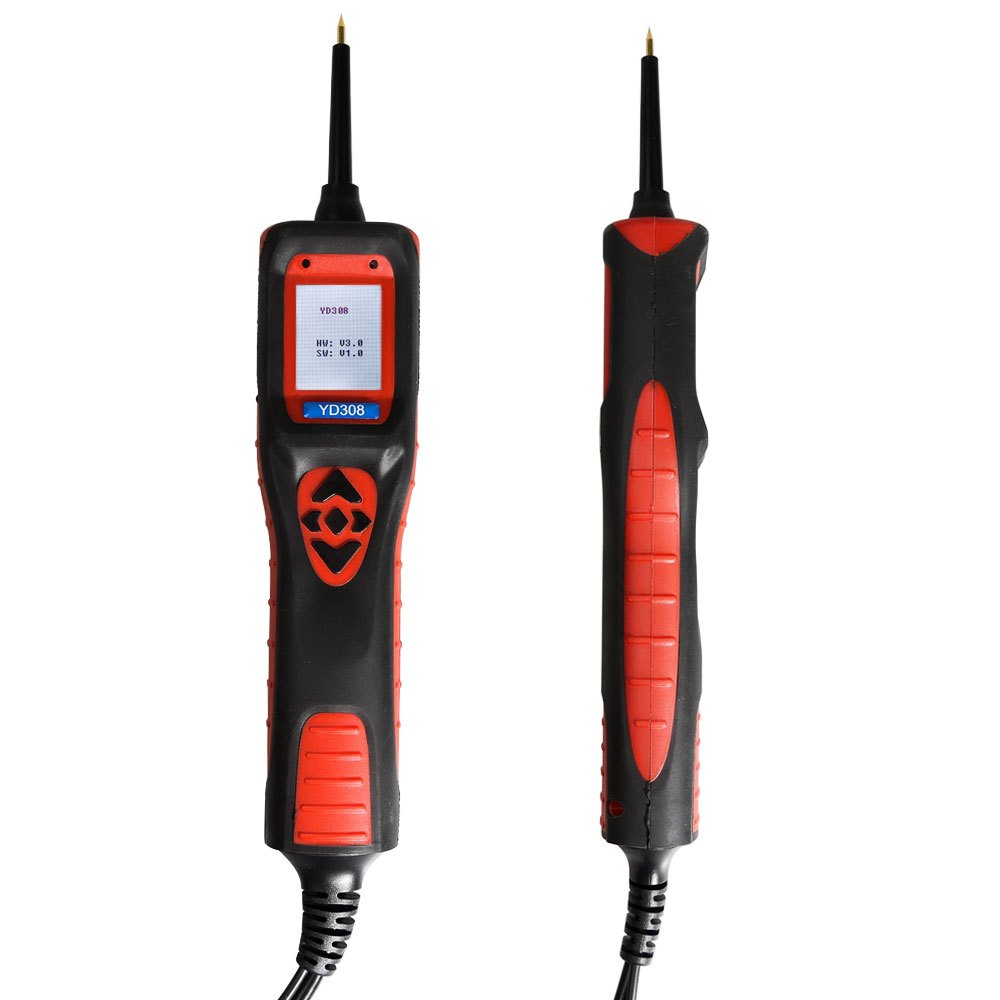

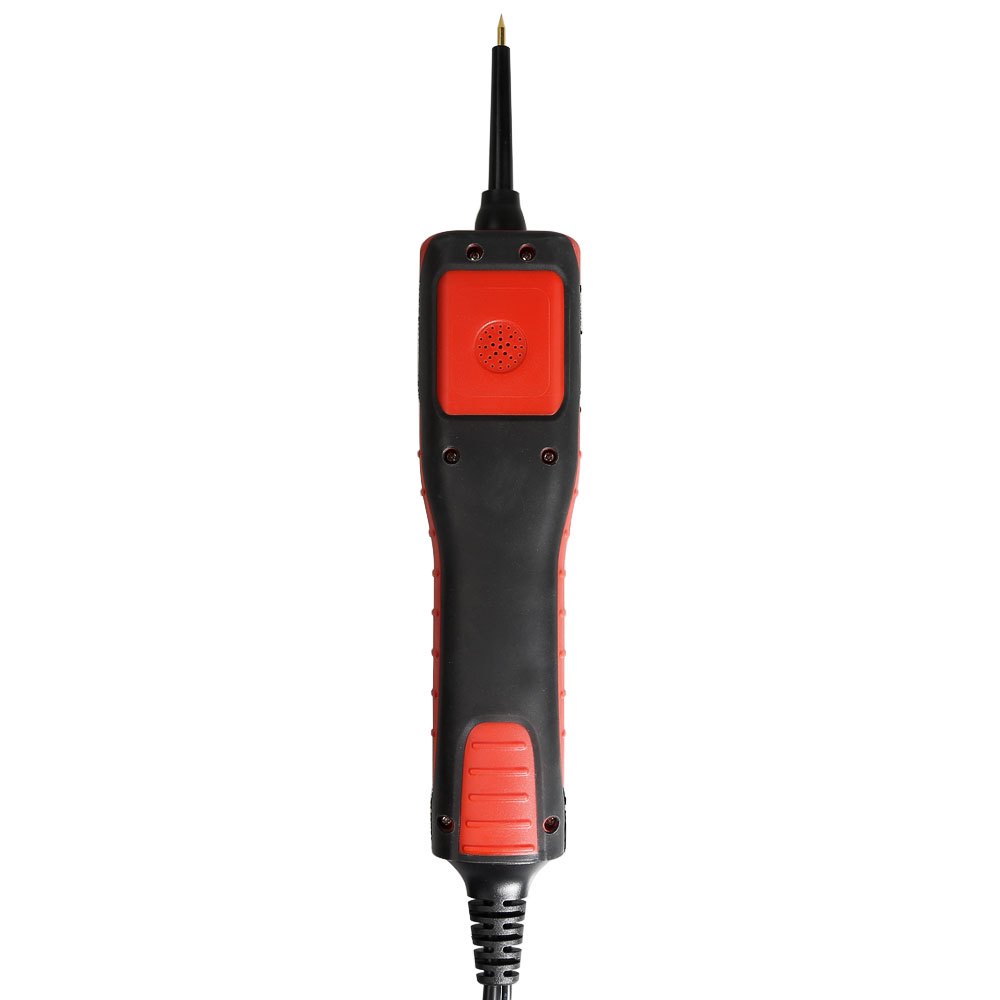

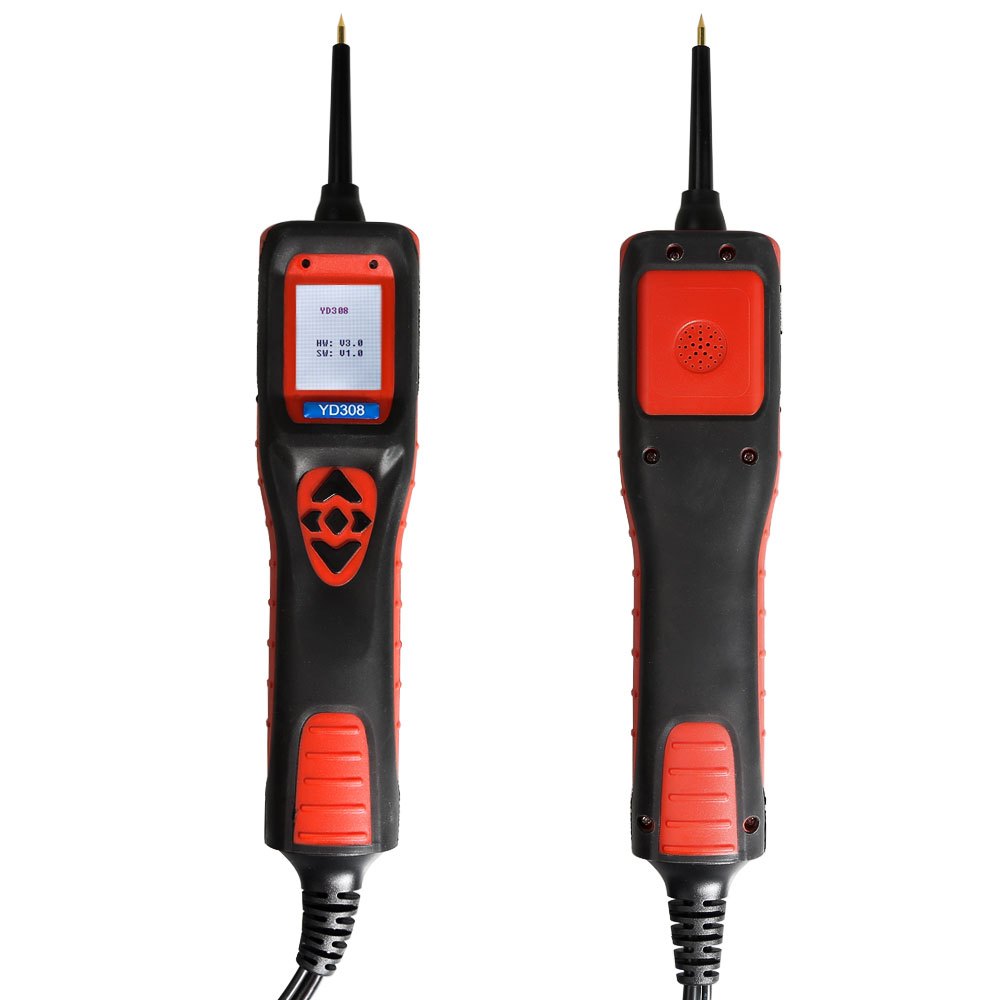

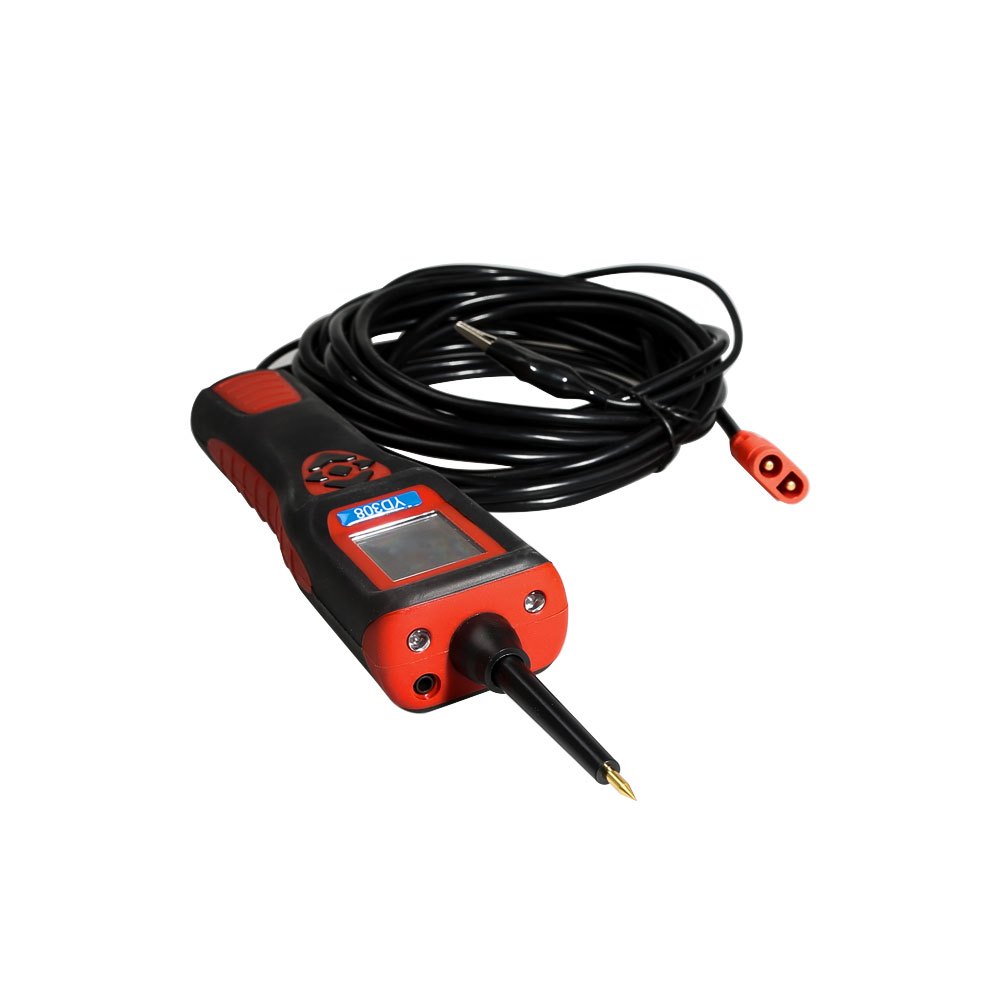

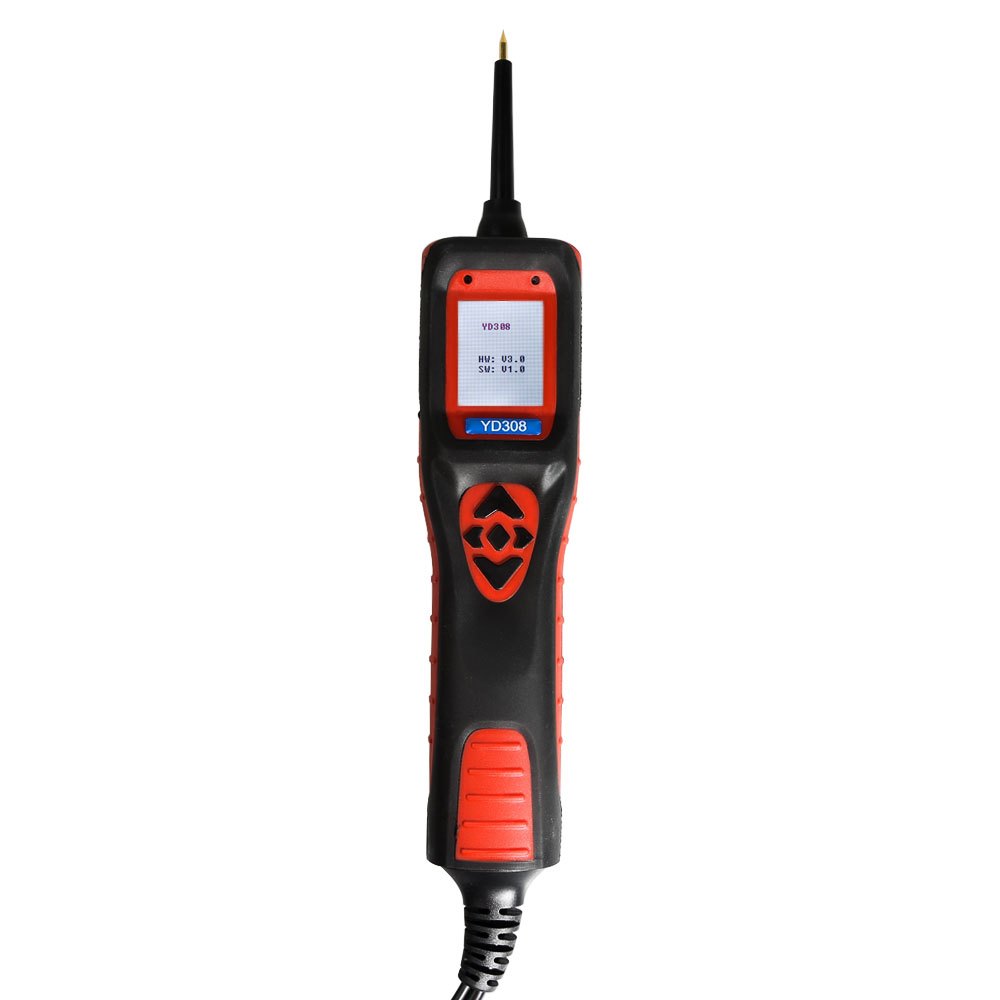

Handy Smart YANTEK YD308 Diagnostic Tool auto Circuit Tester Covers All The Function of YD208

The YD308 is the later YANTEK circuit tester and it carries everything the YD208 did. What makes it useful on the bench is the mode switching: mode one supplies power while held and cuts on release, mode two latches on until pressed again, and mode three pulses intermittently for component checks.

Specifications

• Mode 1 (conventional): press to supply power and release to power off
• Mode 2: press once to power on and not power off until you press it again (convenient for a long distance from the power supply and the working device)
• Mode 3: press once for intermittently supply power (convenient for checking the bulb type flickering effect and it is possible to detect the current at the same time)
• Optional voltage output available: 0-5V available and 0.5V interval each time

What you get

• 1pc x User's Manual

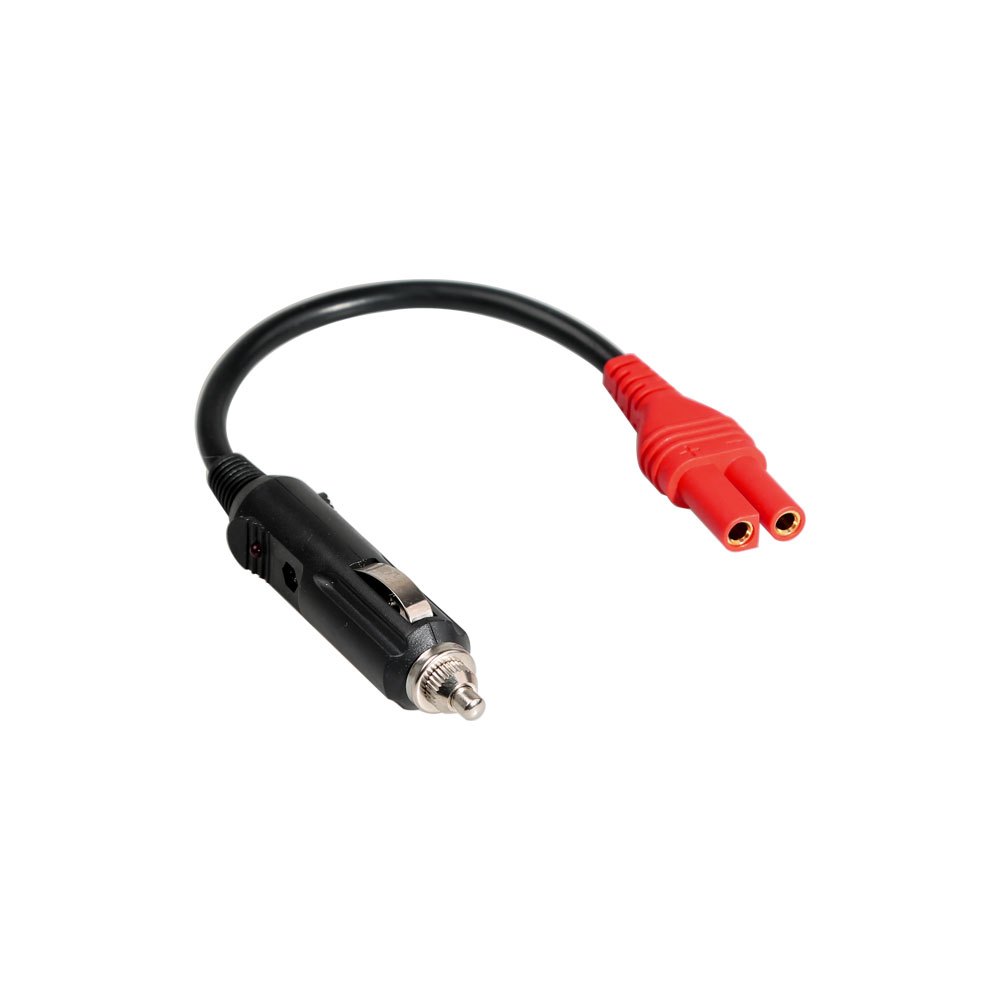

• 1pc x Cigarette lighter adapter

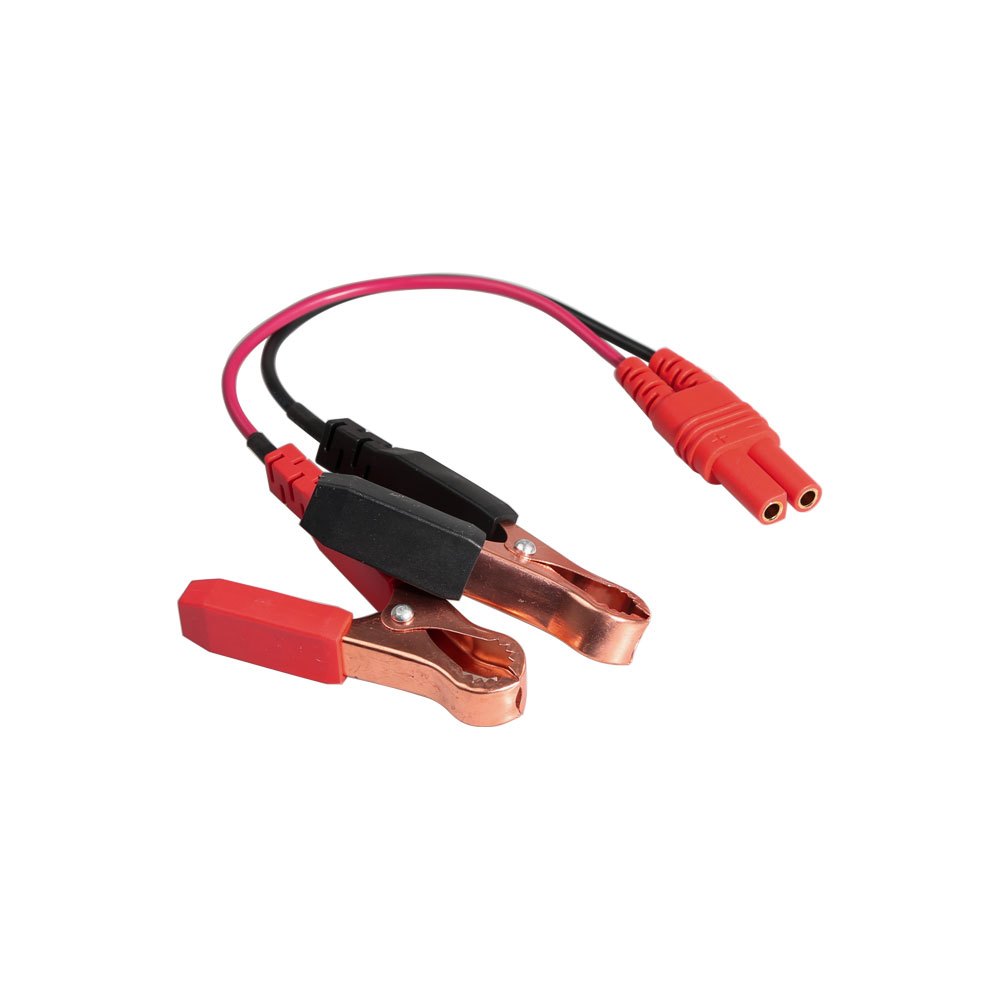

• 1pc x Battery hookup clips
• 1pc x Probe tip

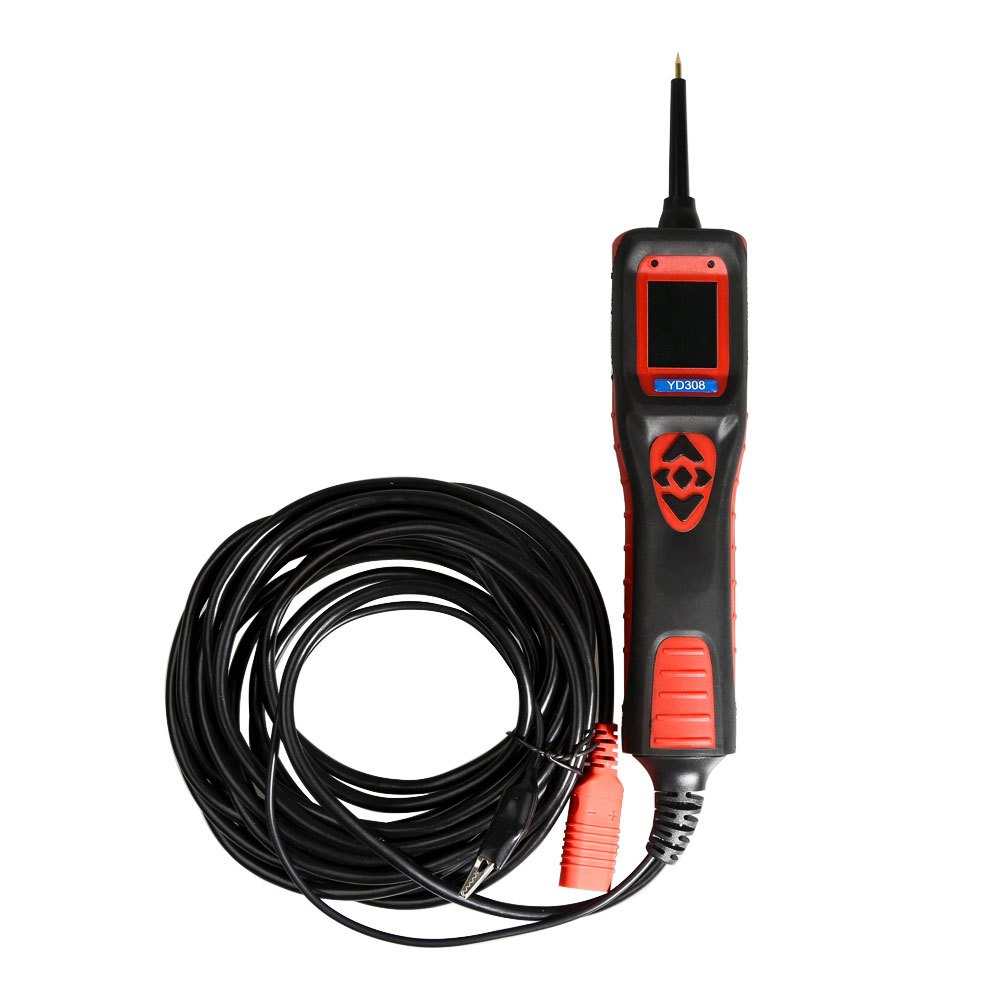

• 1pc x 20ft.extension cable

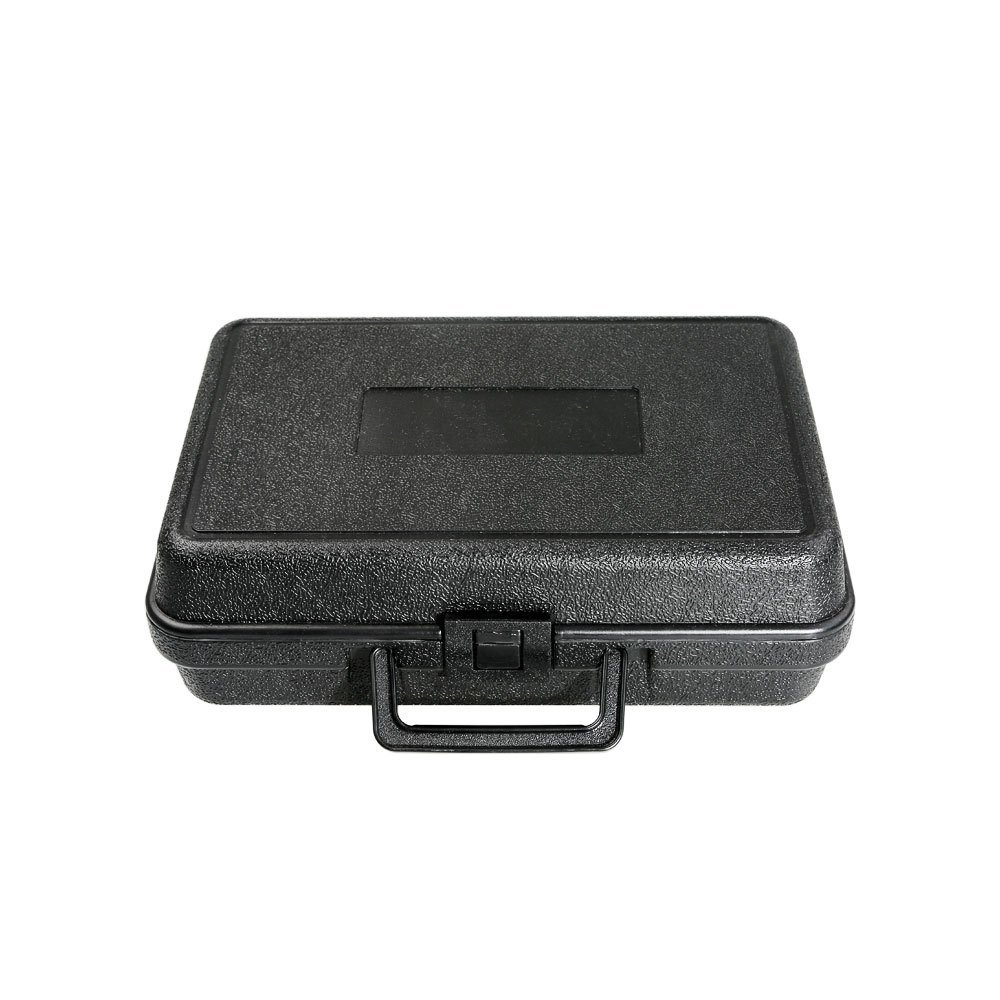

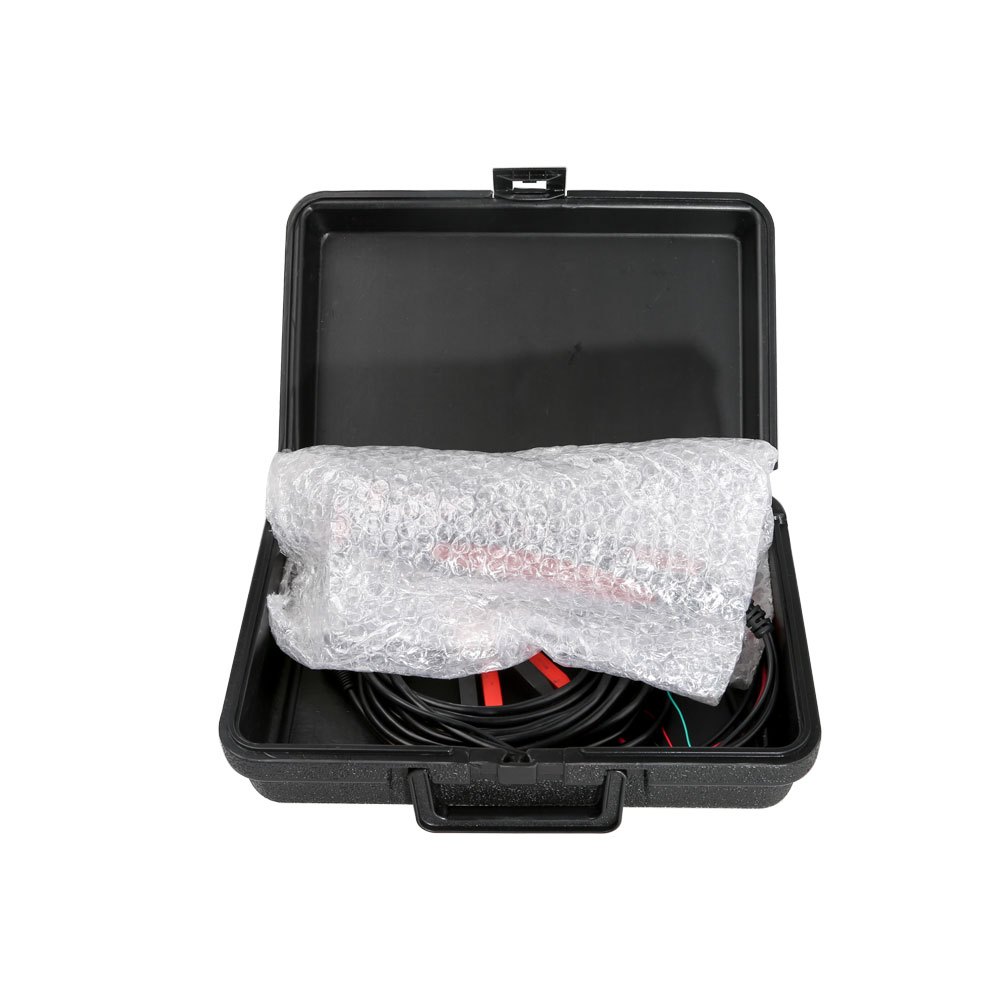

• 1pc x Carry case
• Handy Smart YANTEK YD308 Diagnostic Tool auto Circuit Tester Covers All The Function of YD208
• To test voltage and output
• To provide 3 modes for power supply
• To test 0-5 volt common voltage output
• To display the frequency digitally
• To help check the positive and negative of the battery/line
• 2.Detect 12-24v voltage and output as the power supply
• There are two modes to display the frequency, in ware or digit, suitable for two different sensor signal detection environments.
• Some are focused on waveform changes, and some on precise frequency values.
• There are 3 modes to supply power in convenience of different situations, to test the current (not available in similar products in the market)
• 7.It can support the maximum current 18A and set the trip current (2-18A optional threshold) for various circuit environments.
• 8.Optional small voltage output 0-5V is easy to use when repairing ECU electronics and detecting automotive oxygen sensors (not available in similar products in the market)

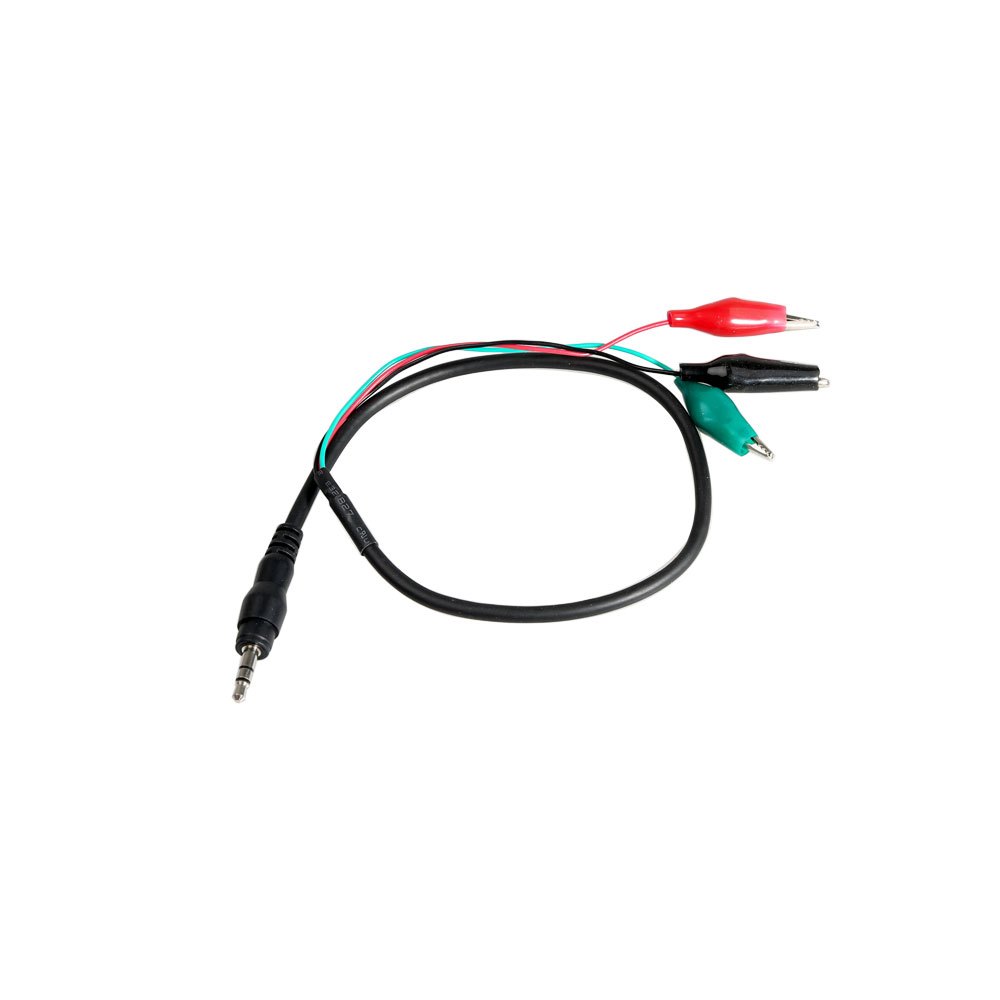

• The relay test function is intuitive and convenient, just connect the line according to the diagram color; that is, you can directly test the working condition of the relay.

Voltage output is adjustable from 0 to 5V in 0.5V steps, which suits testing sensors and actuators that expect a specific reference. The intermittent mode saves a second pair of hands when checking a circuit.
