GODIAG GT100+ GT100 Pro New Generation OBDII Breakout Box with Electronic Current Display

A GODIAG GT100+ GT100 Pro new generation OBDII breakout box with an electronic current display. Seeing the current draw as well as the pin state is what turns a break out box into a diagnostic tool.

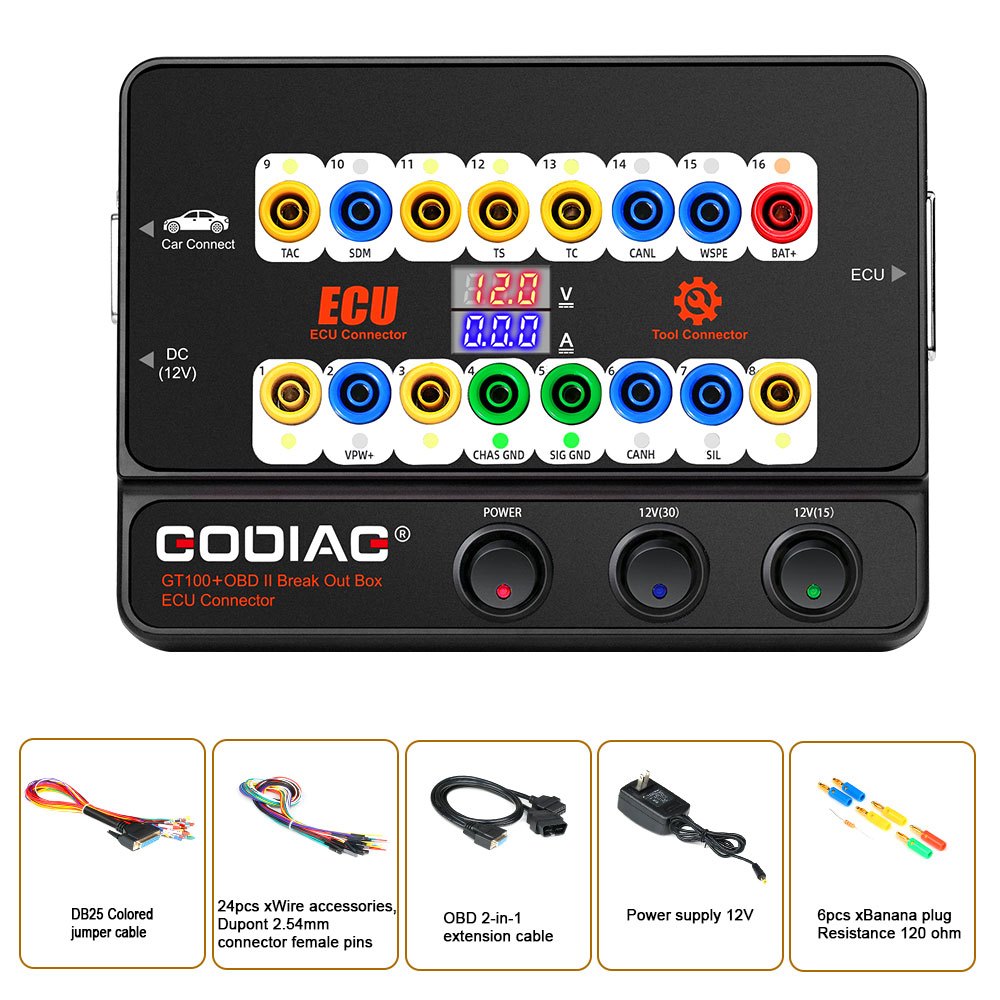

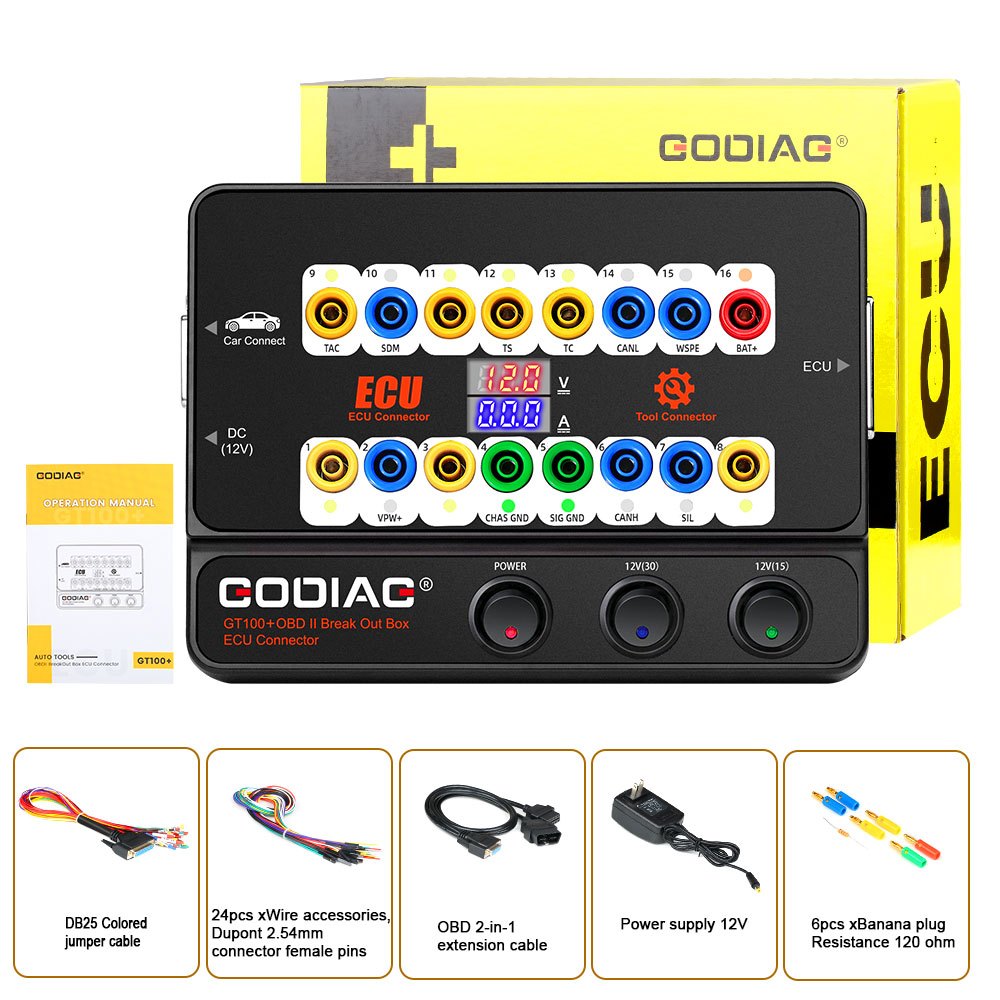

What you get

• 1pc x Host
• 1pc x OBD 2-in-1 Extension Cable
• 1pc x Colored Jumper Cable
• 1pc x Power Supply 12V
• 1pc x Resistance 120 ohm
• 6pcs x Banana Plug
• 24pcs x Wire accessories, Dupont 2.54mm connector female pins

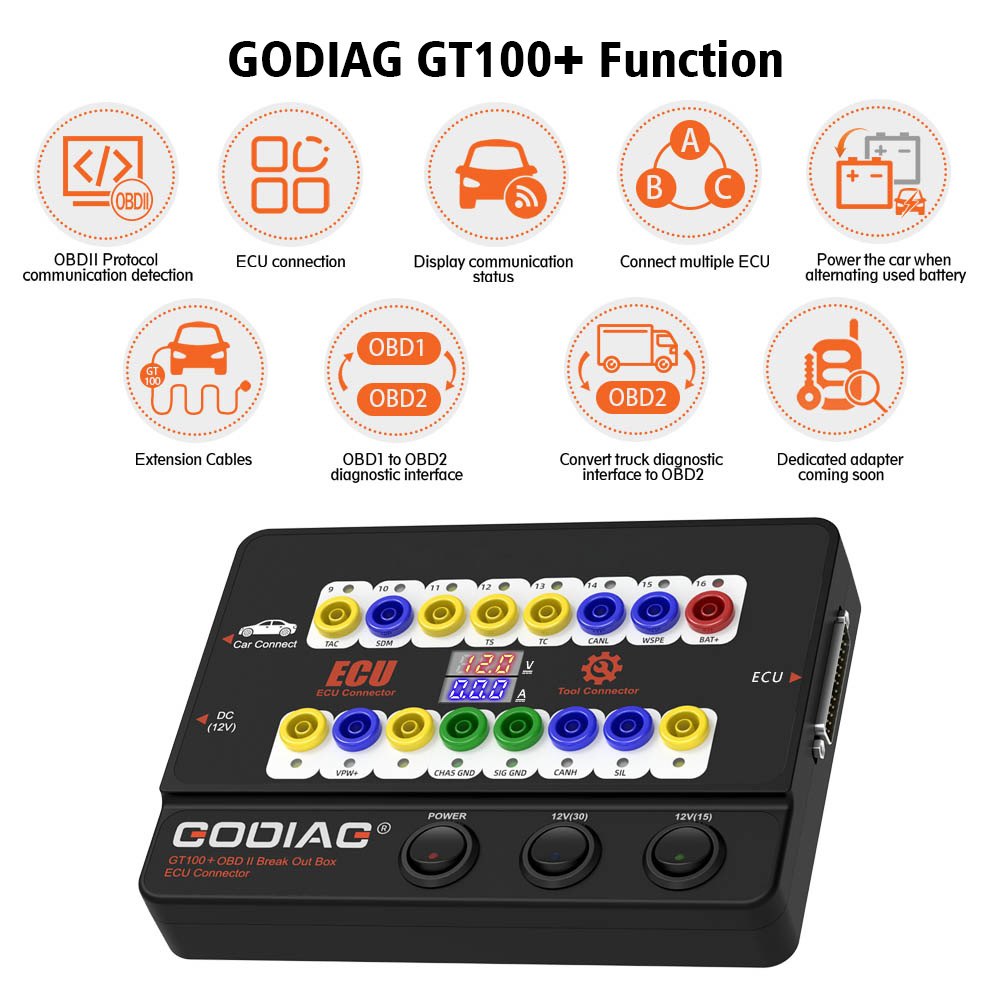

• GODIAG GT100 + is the new generation of GT100, which covers all the functions of GT100 and adds Electronic Current Display for ECU Module.
• Support more protocols like CANBUS, K-Line, PWM, VPW+, KWP2000.
• Support All Key Lost for Porsche, VW, Mitsubishi etc.
• GODIAG GT100+ GT100 Pro OBDII Breakout Box ECU Bench Connector with Electronic Current Display
• New generation of GT100, Adds Electronic Current Display. You can intuitively see the current display of the ECU by connecting the ECU module with the Banana interface or the DB25 cable, which can make your work much easier.
• Work together with Xhorse VVDI2, Autel devices, Launch, Foxwell etc.
• Convert OBD1 diagnostic interface to the standard OBD2 diagnostic interface.
• One Year Warranty.

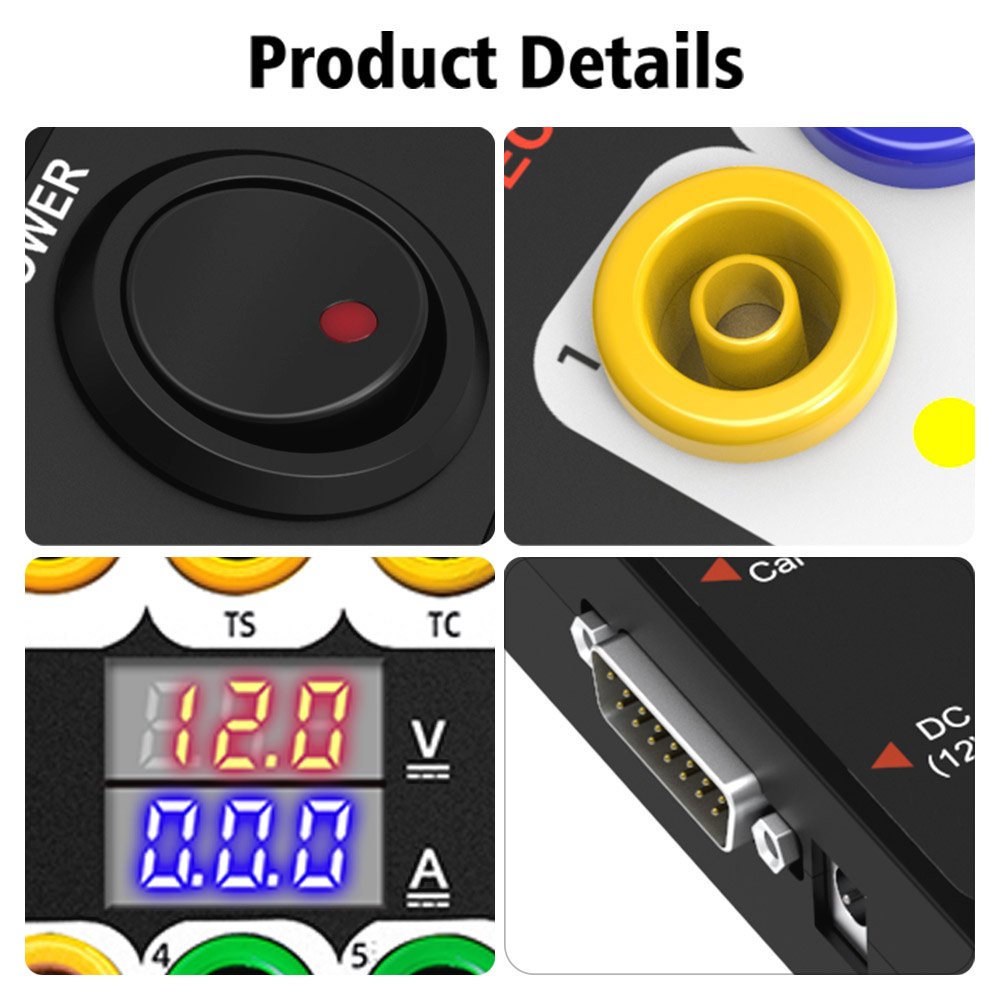

• GT100+ adds Electronic Current Display.
• On bench connect the ECU module by using the banana connector or db25 dedicated ECU adapter, Godiag GT100+ will display the electronic current.
• GT100+ Adds CANBUS Protocol Communication
• GT100+ Pin 1, 9, 3, 11 12, 13, 8 [corresponding to the yellow banana connector on the machine], these non-standard obd2 protocol interface may display CAN BUS or K-Line communication protocol. GT100 can only display K-Line Pwm Vpw+ KWP 2000 protocol. GT100+ will display CANBUS K-Line Pwm Vpw+ KWP 2000 protocol communication.
• Reset instrument/immobilizer when all keys lost
• When you want to program key for VW, Porsche, Mitsubishi and nother cars with all keys lost, or to program Toyota ECU, you need to activate the dashboard (reset instrument) or wake up the immobilizer module first. Then you can operate directly by using GT100 GT100+.

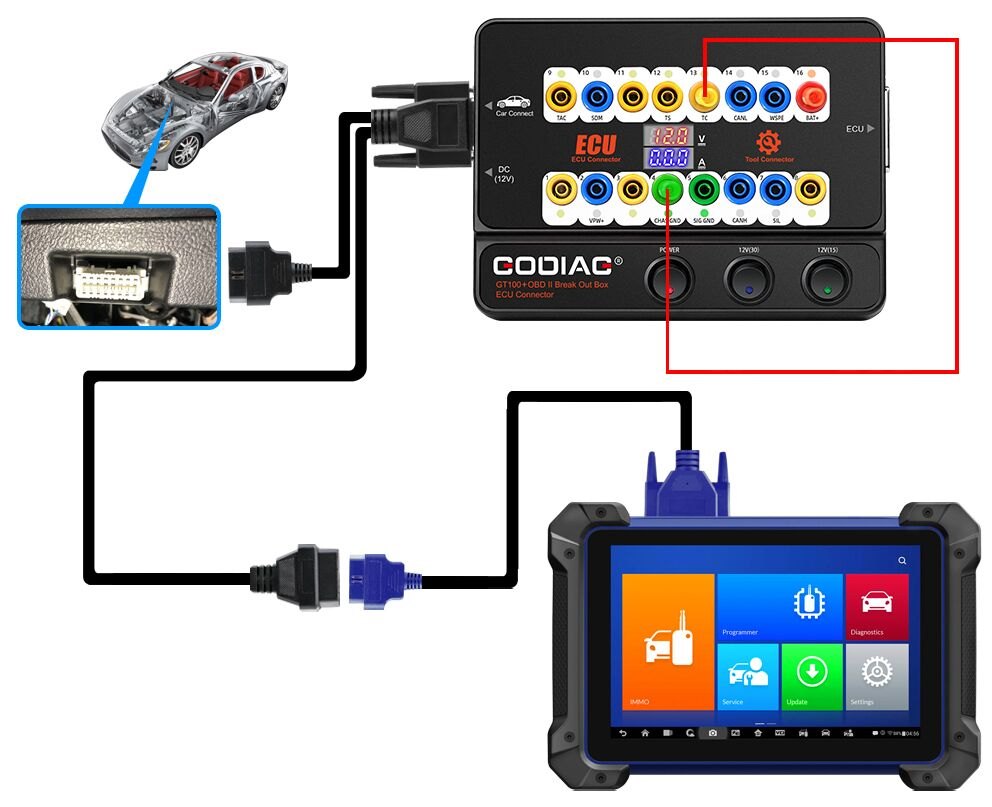

• a. To replace the engine ECU of Toyota or to use some key programmer to program Toyota when all keys lost, it requires to short-circuit PIN13-PIN4
• b. To program Mitsubishi key with all keys lost or to set OBDII when all remote keys lost, please short-circuit PIN1-PIN4.

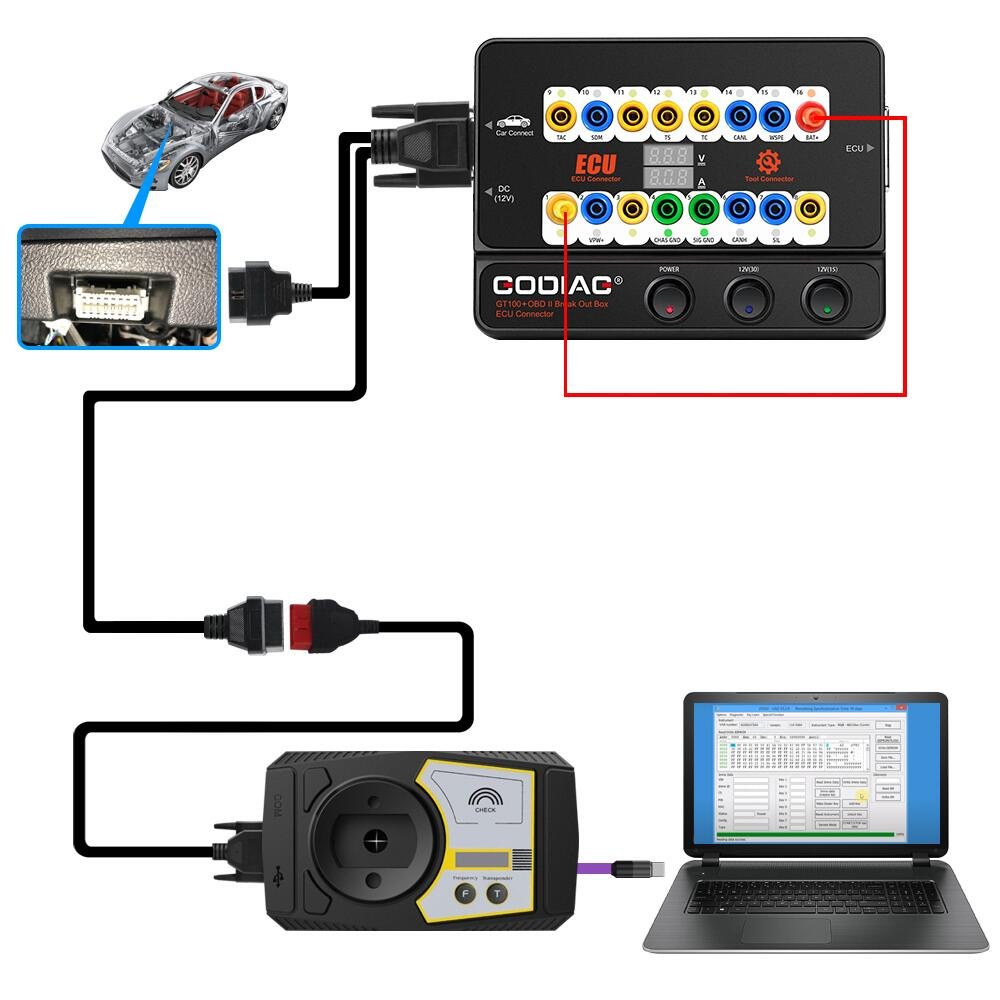

• c. For Porsche and VAG 4th generation / 5th generation keys (for example new A6L Touareg A4 Q5 A7), please use GT100+ to short-circuit banana connector PIN 16, -PIN 1 to lit up the dashboard, after that use the key programming tool to connect with the female adapter of GT100+ for data collection. Some vehicle dashboards won't be lit up, but data can also be collected, for example: A6L Q7.

The current display is the difference from the plain GT100, and it is worth the small premium.
